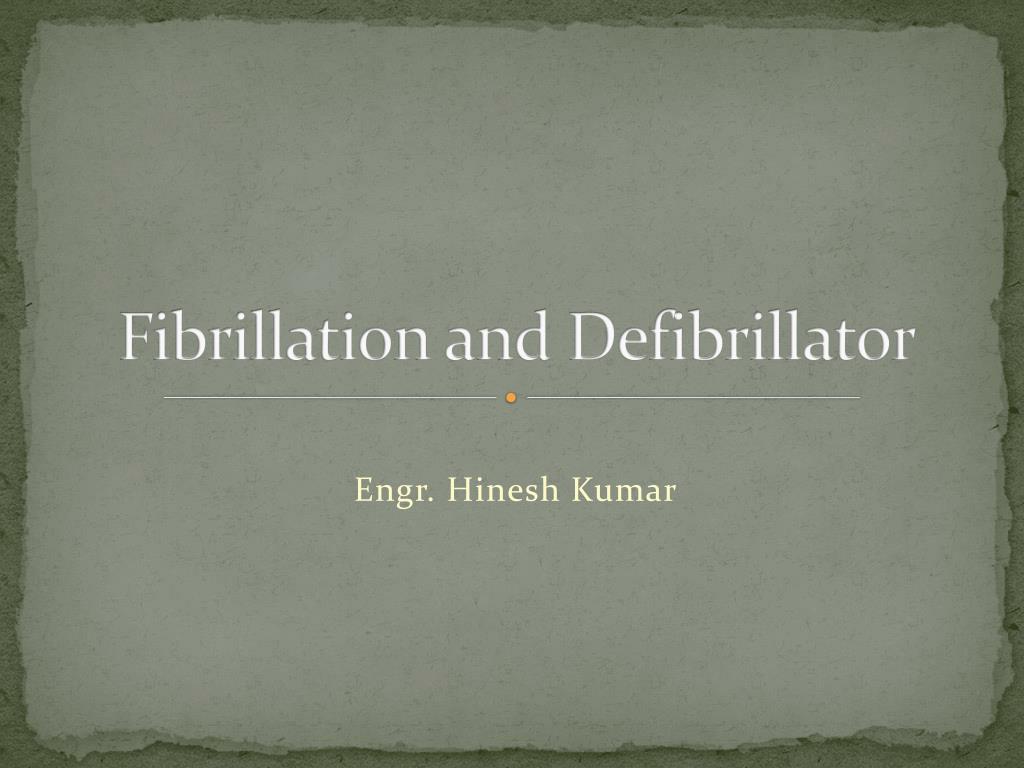

Fibrillation and defibrillator

Fibrillation and Defibrillator

Engr. Hinesh Kumar


History
History

  • Defibrillation was invented in 1899by PrevostandBatelli, two Italian physiologists.

  • They discovered that electric shocks could convert ventricular fibrillation to sinus rhythm in dogs.

  • The first case of a human life saved by defibrillation was reported by Beck in 1947 .


Fibrillation
Fibrillation

  • Fibrillation is the rapid, irregular, and unsynchronized contraction of muscle fibers.

  • There are two major classes of cardiac fibrillation: Atrial Fibrillation and Ventricular Fibrillation.

  • Atrial fibrillationis an irregular and uncoordinated contraction of the cardiac muscle of atria.

  • Ventricular Fibrillationis an irregular and uncoordinated contraction of the cardiac muscle of ventricles.


Fibrillation1
Fibrillation

  • Figure:

  • Normal waveform.

  • Ventricular fibrillation.

  • Ventricular tachycardia.


Defibrillation
Defibrillation

  • Defibrillation is a process in which an electronic device sends an electric shock to the heart to stop an extremely rapid, irregular heartbeat, and restore the normal heart rhythm.

  • Defibrillation should be performed with in the first 8 minutes after cardiac arrest. Ideally, the sooner, the better.


Defibrillator
Defibrillator

  • Defibrillator is the device used to deliver the electrical shock and it can be manual or automatic.


Types of defibrillator
Types of Defibrillator

  • Internal Defibrillator

    • Electrodes directly placed to the heart

    • e.g., ICD (Internal Cardioversion Defibrillator)

  • External Defibrillator

    • Electrodes placed directly on the chest.

    • e.g., AED (Automatic External Defibrillator)



Internal defibrillator
Internal Defibrillator

  • An implantable cardioverter-defibrillator (often called an ICD) is a device that briefly passes an electric current through the heart.

  • It is "implanted," or put in your body surgically.

  • It includes a pulse generator and one or more leads.

  • The pulse generator constantly watches your heartbeat.


Automated external defibrillator
Automated External Defibrillator

  • AED is a portable electronic device that automatically diagnoses the ventricular fibrillation in a patient.

  • Automatic refers to the ability to autonomously analyse the patient's condition.

  • AEDs require self-adhesive electrodes instead of hand held paddles.




Classification of waveform
Classification of Waveform

  • There are two general classes of waveforms:

  • Monophasic waveform

    • Energy delivered in one direction through the patient’s heart

  • Biphasic waveform

    • Energy delivered in both direction through the patient’s heart


Monophasic waveform
Monophasic Waveform

  • A monophasic type, give a high-energy shock, up to 10 to 360 joules due to which increased cardiac injury and in burns the chest around the shock pad sites.


Biphasic waveform
Biphasic Waveform

  • A biphasic type, give two sequential lower-energy shocks of 5 - 200 joules, with each shock moving in an opposite polarity between the pads.

    • Low energy biphasic shocks may be as effective as high energy monophasic shocks.

    • Biphasic waveform defibrillation used in implantable cardioverter defibrillator (ICD) and automatic external defibrillators.


Defibrillator waveform
Defibrillator Waveform

  • Lown Waveform

  • Monopulse Waveform

  • Tapered DC Delay

  • Trapezoidal


Lown waveform
Lown Waveform

  • In 1962, Dr Bernard Lown of Harward University introduced the waveform that bears his name.

  • The voltage and current applied to the patient's chest plotted against time.

  • The current will rise very rapidly to about 20 A under the influence of slightly less than 3 KV.

  • The waveform then decays back to zero within 5 ms, and then produces a smaller negative pulse also of about 5 msec.

  • The charge delivered to the patient is stored in a capacitor and is produced by a high-voltage dc power supply.


Figure
Figure…

Lown Defibrillator Waveform


Cont…

  • The operator can set the charge level using the set energy knob on the front panel.

  • The knob controls the dc voltage produced by the high-voltage power supply and so can set the maximum charge on the capacitor

  • The energy stored in the capacitor is given by:

  • where,

    • U is the energy in joules (J)

    • C is the capacitance of C1, in farads (F)

    • V is the voltage across C1, (V)


Exercise
Exercise

Calculate the energy stored in a 16-µF capacitor that is charged to a potential of 5000 V dc.

Solution


Monopulse waveform
Monopulse Waveform

  • The monopulse waveform shown in figure is a modified Lownwaveform and is commonly found in certain portable defibrillator.


Tapered dc delay
Tapered DC Delay

  • This waveform differs from the others in that it uses a lower amplitude and longer duration to achieve the energy level.

  • The energy transferred is proportional to the area under the square of the curve, so we may attain the same energy as in other waveforms.


Trapezoidal
Trapezoidal

  • The trapezoidal waveform shown in figure is another low-voltage, long duration shape.

  • The initial output potential is about 800 V, which drops continuously for about 20 ms until it reaches 500 V, where it is terminated .


Defibrillator electrodes
Defibrillator Electrodes

  • Types of defibrillator electrodes:-

    • Spoon Shaped Electrode

      • Applied directly to the heart.

    • Paddle type electrode

      • Applied against the chest wall

    • Pad Type Electrode

      • Applied directly on chest wall


fig: Electrodes used in defibrillator (a) a spoon shaped internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.


Fig.- Pad electrode internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.


Placement
Placement internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.

  • White is negative, anterior chest wall.Red is Positive , left anterior axillary line.

  • “Red on Ribs! White on right!”


Precautions
Precautions internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.

  • The paddles used in the procedure should not be placed:-

    • on a woman's breasts

    • over an internal pacemaker patients.

  • Before the paddle is used, a electrochemical gel must be applied to the patient's skin to avoid the skin burns.


Risks
RISKS internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.

  • Skin burns from the defibrillator paddles are the most common complication of defibrillation.

  • Other risks include injury to the heart muscle, abnormal heart rhythms, and blood clots.


Troubleshooting
Troubleshooting internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.

  • Attach the external and internal paddles if the monitor reads, "No paddles”.

  • Check to ensure that the leads are securely attached if the monitor reads, "No leads.“

  • Connect the unit to AC power if the message reads, "Low battery.“

  • Verify that the Energy Select control settings are correct if the defibrillator does not charge.


Cont internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.…

  • Change the electrodes and make sure that the electrodes adapter cable is properly connected.

  • Close the recorder door and the paper roll if the monitor message reads, "Check recorder”.


Thankyou internal electrode that is applied directly to the heart. (b) a paddle type electrode applied against the anterior chest wall.
