  1. Coding ADO.NET Objects:Connection, Command, DataReader

  2. A Simplified View of ADO.Net Objects Ado.Net Data Provider Data Consumer Adapter Dataset WinForm Connection Command WebForm Reader

  3. Connection with a Connection Object • A connection object represents a unique session with a data source. • Property: • Connection string: string used to open a database. • Data source, OLE DB provider, password, if any, security, etc. • Methods: • Use the Open/Close method to open/close a connection.

  4. Connection String • Containing information about database, OLE DB provider, password, if any, security, etc. • For Jet database: • ="Provider=Microsoft.Jet.OLEDB.4.0;Data Source = c:\salesDB.mdb“ • For Access 2007: • = "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\SalesDB2007.accdb“ • For SQL Server Express • "Data Source=DCHAO100L\sqlexpress;Initial Catalog=testSQL08;Integrated Security=True"

  5. Connection Object • Example 1: • dim strConn as string ="Provider=Microsoft.Jet.OLEDB.4.0;Data Source = c:\salesDB.mdb" • dim objConn as new OledbConnection(strConn) • objConn.open() • Example 2: • dim strConn as string ="Provider=Microsoft.Jet.OLEDB.4.0;Data Source = c:\salesDB.mdb" • dim objConn as new OledbConnection() • objConn.ConnectionString=strConn • objConn.open() • Object Browser: System.Data.OleDB/oledbConnection/New • Basic Methods: • Open, Close

  6. Command Object • The command object allows us to execute a SQL statement. • Properties: • CommandType: Text, stored procedure, tableDirect • CommandText: SQL statement, procedure name, table name • Connection • Other properties: • Parameters • Basic Methods: • ExecuteReader: Creates a DataReader object that contains the results of the query. • ExecuteNonQuery: Change the data in a database without using a DataSet by executing SQL’s UPDATE, INSERT, or DELETE statements.

  7. DataReader Object • It is read-only and forward-only cursor. • Basic Methods: • Read: Reads the current record and advances the pointer to the next record. It returns False if no more record in the DataReader. • Close: Closes the dataReader. • Property: • HasRows – Boolean, indicates whether this System.Data.Common.DbDataReader contains one or more rows.

  8. ExecuteReader Example dim strConn as string= "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\SalesDB2007.accdb“ dim objConn as new OledbConnection(strConn) dim strSQL as string = "select * from customer;" dim objComm as new OledbCommand(strSQL,objConn) dim Results as string objConn.open() dim objDataReader as oledbDataReader objDataReader=objComm.executeReader() Note: No NEW in the Dim statement when define a dataReader object.

  9. Import NameSpace • The Imports statement must appear before all other declarations in a file and cannot appear inside a class or module declaration. • Imports System.Data.OleDb • Public Class Form1 • Note: To import a nameSpace for all forms/modules in a project: • Use Project Property Page: Imports

  10. Read Records in a DataReader • dim Results as string • do while objDataReader.Read()=true Results+=objDataReader("cid") + “ “ + objDataReader("Cname") + vbCrLF • loop • Textbox1.text=Results • Note: objDataReader.Item(0) • Note: objDataReader.Item(“cid”) • Note: The Read method will (1) read a record, (2) advance pointer, (3) return true/false to indicate if more records exisit.

  11. Add Items from a DataReader to a Listbox Dim strConn As String = "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\SalesDB2007.accdb“ Dim objConn As New OleDbConnection(strConn) Dim strSQL As String = "select cid from customer;" Dim objComm As New OleDbCommand(strSQL, objConn) objConn.Open() Dim objDataReader As OleDbDataReader objDataReader = objComm.ExecuteReader() Do While objDataReader.Read() = True LISTBOX1.Items.Add(objDataReader("cid")) Loop

  12. Display Selected Customer Info in Textbox Private Sub ListBox1_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles ListBox1.SelectedIndexChanged Dim strConn As String = "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\SalesDB2007.accdb" Dim objConn As New OleDbConnection(strConn) Dim strSQL As String = "select * from customer where cid='" & ListBox1.SelectedItem & "';" Dim objComm As New OleDbCommand(strSQL, objConn) objConn.Open() Dim objDataReader As OleDbDataReader objDataReader = objComm.ExecuteReader() objDataReader.Read() TextBox1.Text = objDataReader("cname") TextBox2.Text = objDataReader("rating") objDataReader.Close() End Sub

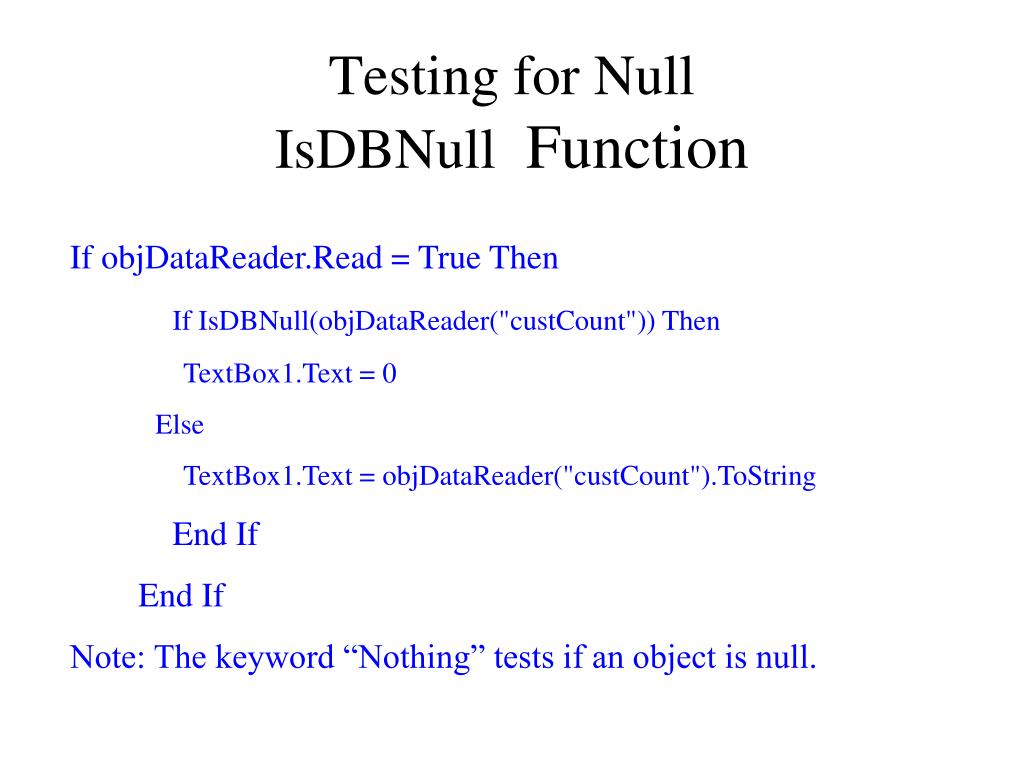

  13. Testing for NullIsDBNull Function If objDataReader.Read = True Then If IsDBNull(objDataReader("custCount")) Then TextBox1.Text = 0 Else TextBox1.Text = objDataReader("custCount").ToString End If End If Note: The keyword “Nothing” tests if an object is null.

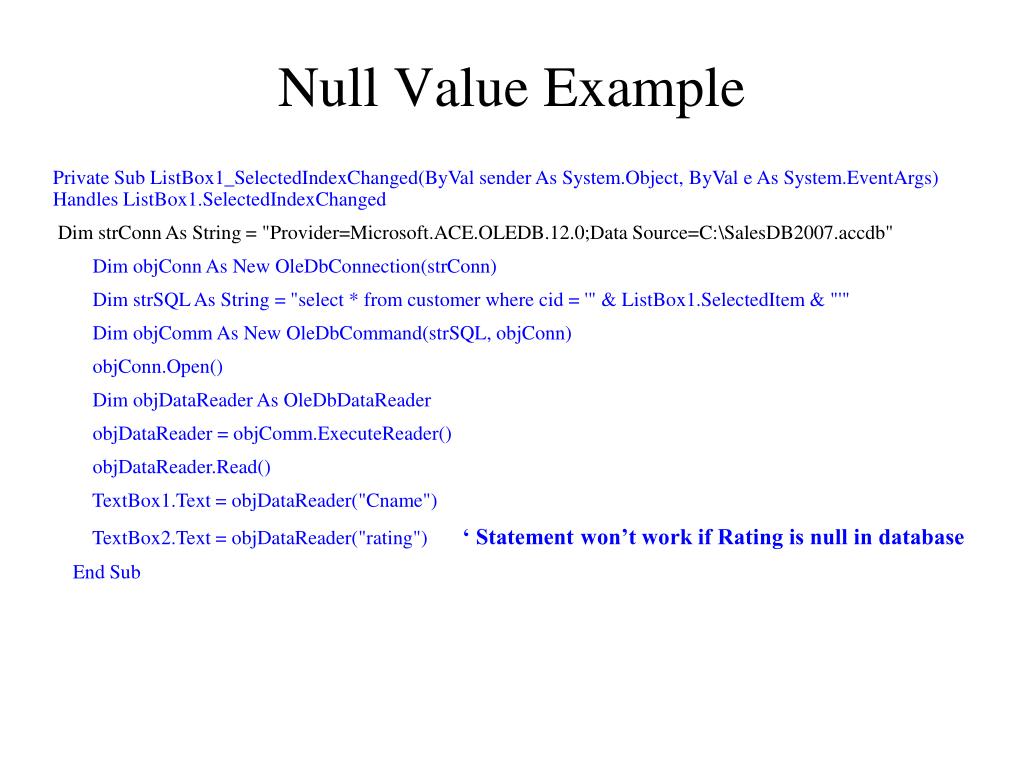

  14. Null Value Example Private Sub ListBox1_SelectedIndexChanged(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles ListBox1.SelectedIndexChanged Dim strConn As String = "Provider=Microsoft.ACE.OLEDB.12.0;Data Source=C:\SalesDB2007.accdb" Dim objConn As New OleDbConnection(strConn) Dim strSQL As String = "select * from customer where cid = '" & ListBox1.SelectedItem & "'" Dim objComm As New OleDbCommand(strSQL, objConn) objConn.Open() Dim objDataReader As OleDbDataReader objDataReader = objComm.ExecuteReader() objDataReader.Read() TextBox1.Text = objDataReader("Cname") TextBox2.Text = objDataReader("rating") ‘ Statement won’t work if Rating is null in database End Sub

  15. Error Handling Try objConn.Open() Dim objDataReader As OleDbDataReader objDataReader = objComm.ExecuteReader() Do While objDataReader.Read() = True Results += objDataReader("cid") + " " + objDataReader("Cname") + vbCrLf Loop TextBox1.Text = Results objConn.Close() Catch except As System.Exception MessageBox.Show(except.Message) End Try

  16. Possible Database Errors • SQL syntax errors • Database connection not open • Null • Violate database constraints • Referential integrity • Field data type and length • Primary key constraint • Invalid data – database may have validation rules.

  17. Use Command Object’s ExecuteNonQuery to Insert A New Record • Create unbound text boxes to enter new record. • Add an Insert button with the following handler Dim strSQLInsert As String strSQLInsert = "Insert into Customer values ('" strSQLInsert = strSQLInsert & TextBox1.Text & "','" & TextBox2.Text & "','" strSQLInsert = strSQLInsert & TextBox3.Text & "','" & TextBox4.Text & "')" Dim objCommInsert As New OleDbCommand(strSQLInsert, objConn) objCommInsert.ExecuteNonQuery()

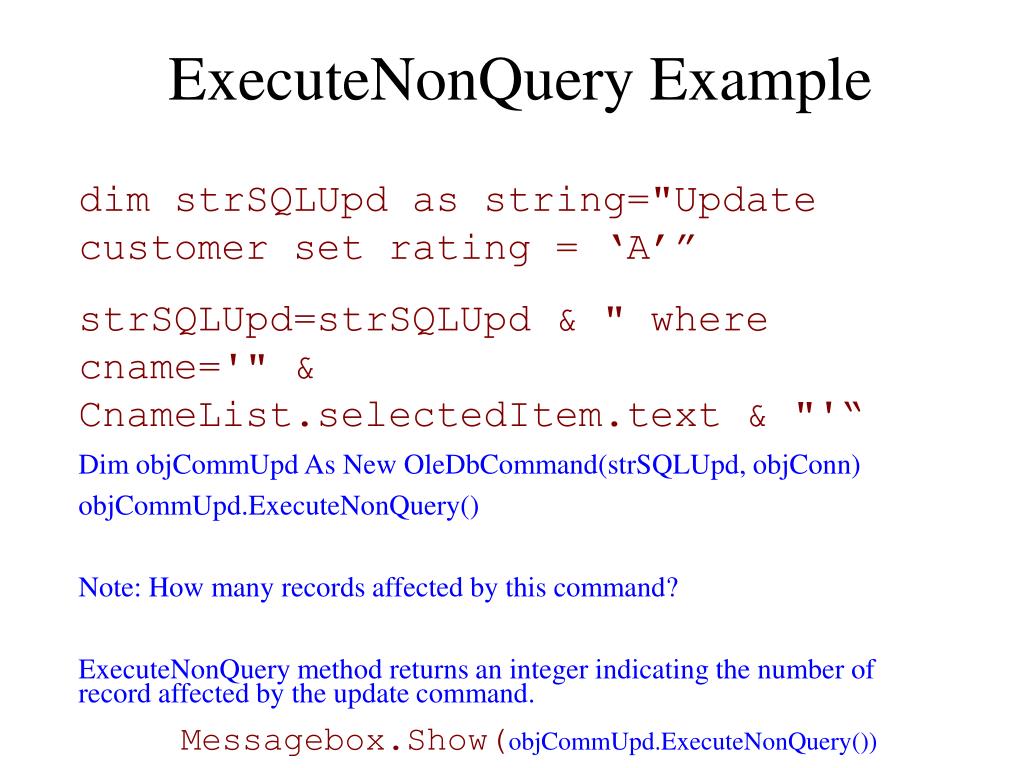

  18. ExecuteNonQuery Example dim strSQLUpd as string="Update customer set rating = ‘A’” strSQLUpd=strSQLUpd & " where cname='" & CnameList.selectedItem.text & "'“ Dim objCommUpd As New OleDbCommand(strSQLUpd, objConn) objCommUpd.ExecuteNonQuery() Note: How many records affected by this command? ExecuteNonQuery method returns an integer indicating the number of record affected by the update command. Messagebox.Show(objCommUpd.ExecuteNonQuery())

  19. Demo • Create a project that do the following tasks: • Use a DataReader to retrieve customer IDs and populate a listbox. • Select a new rating from radio buttons for the selected customer. • Update customer’s rating using the ExecuteNonQuery method of a Command object.

  20. Declare OleDB objects and create listbox Imports System.Data.OleDb Public Class Form3 Inherits System.Windows.Forms.Form Dim strConn As String = "Provider=Microsoft.Jet.OLEDB.4.0;Data Source = c:\salesDB.mdb" Dim objConn As New OleDbConnection(strConn) Dim strSQL As String = "select cid from customer;" Dim objComm As New OleDbCommand(strSQL, objConn) Private Sub Form3_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load objConn.Open() Dim objDataReader As OleDbDataReader objDataReader = objComm.ExecuteReader() Do While objDataReader.Read() = True ListBox1.Items.Add(objDataReader("cid")) Loop objConn.Close() End Sub

  21. Update customer rating Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button1.Click objConn.Open() Dim newRating As String If RadioButton1.Checked = True Then newRating = "A" ElseIf RadioButton2.Checked Then newRating = "B" Else newRating = "C" End If Dim strSQLUpd As String = "Update customer set rating = '" & newRating & "'" strSQLUpd = strSQLUpd & " where cid='" & ListBox1.SelectedItem & "'" Dim objCommUpd As New OleDbCommand(strSQLUpd, objConn) objCommUpd.ExecuteNonQuery() objConn.Close() End Sub

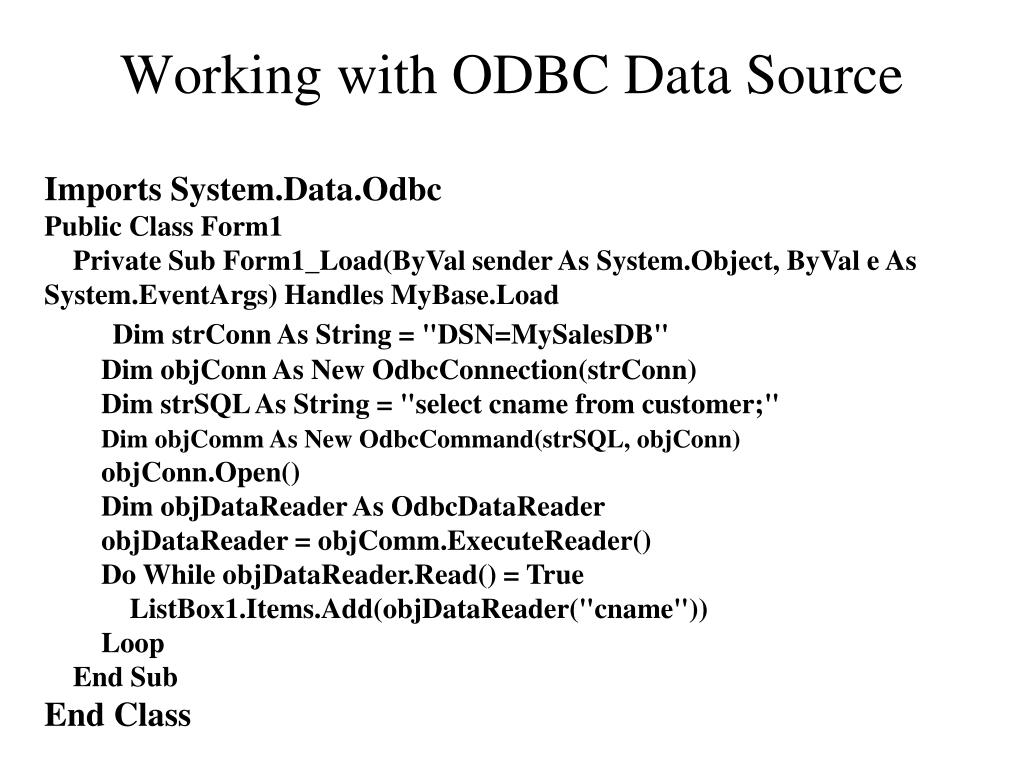

  22. Working with ODBC Data Source Imports System.Data.Odbc Public Class Form1 Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load Dim strConn As String = "DSN=MySalesDB" Dim objConn As New OdbcConnection(strConn) Dim strSQL As String = "select cname from customer;" Dim objComm As New OdbcCommand(strSQL, objConn) objConn.Open() Dim objDataReader As OdbcDataReader objDataReader = objComm.ExecuteReader() Do While objDataReader.Read() = True ListBox1.Items.Add(objDataReader("cname")) Loop End Sub End Class

  23. Working with SQL Server Data Source Imports System.Data.SqlClient Public Class Form9 Private Sub Form9_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load Dim strConn As String = "Data Source=DCHAO100L\sqlexpress;Initial Catalog=testSQL08;Integrated Security=True" Dim objConn As New SqlConnection(strConn) Dim strSQL As String = "select * from customer;" Dim objComm As New SqlCommand(strSQL, objConn) objConn.Open() Dim objDataReader As SqlDataReader objDataReader = objComm.ExecuteReader() Do While objDataReader.Read() = True ListBox1.Items.Add(objDataReader("cname")) Loop End Sub End Class
