Presentation Transcript


Building e commerce and e learning models

Building E-Commerce and

E-Learning Models

Hassanin M. Al-Barhamtoshy

[email protected]


Building e commerce and e learning models

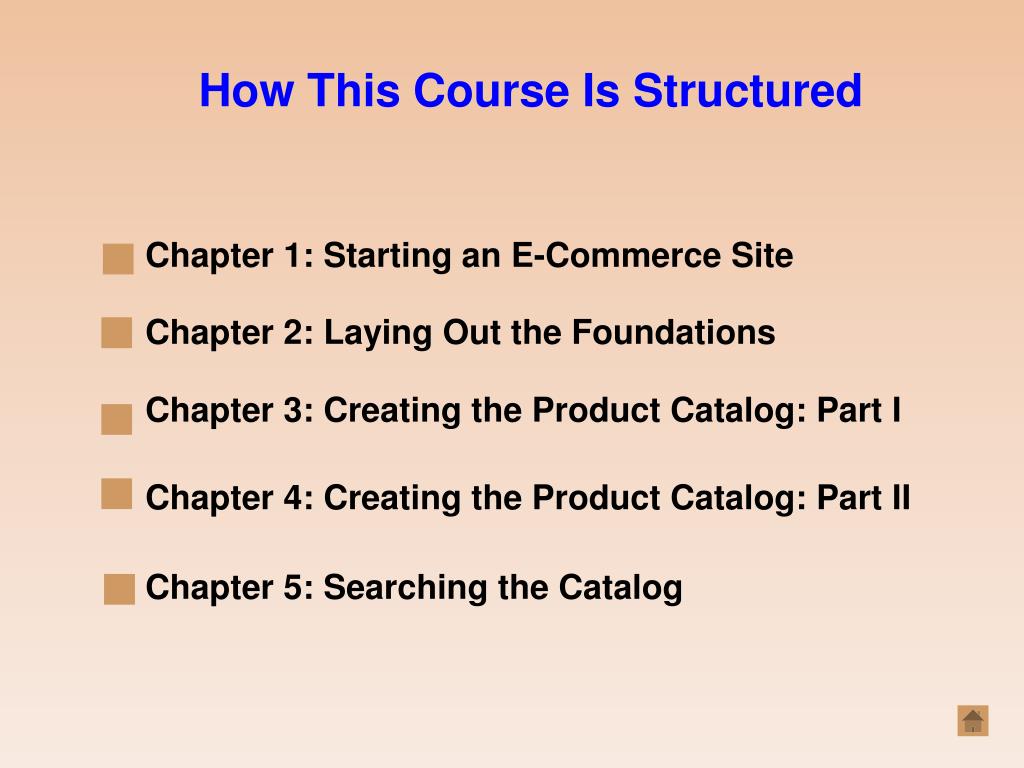

How This Course Is Structured

Chapter 1: Starting an E-Commerce Site

Chapter 2: Laying Out the Foundations

Chapter 3: Creating the Product Catalog: Part I

Chapter 4: Creating the Product Catalog: Part II

Chapter 5: Searching the Catalog


Building e commerce and e learning models

Chapter 1: Starting an E-Commerce Site

Deciding Whether to Go Online.

Making Money.

Designing for Business

Phase I: Getting a Site UpNaming Service.

Phase II: Creating Your Own Shopping Cart

Phase III: Processing Orders

The Balloon Shop

Conclusion.


Building e commerce and e learning models

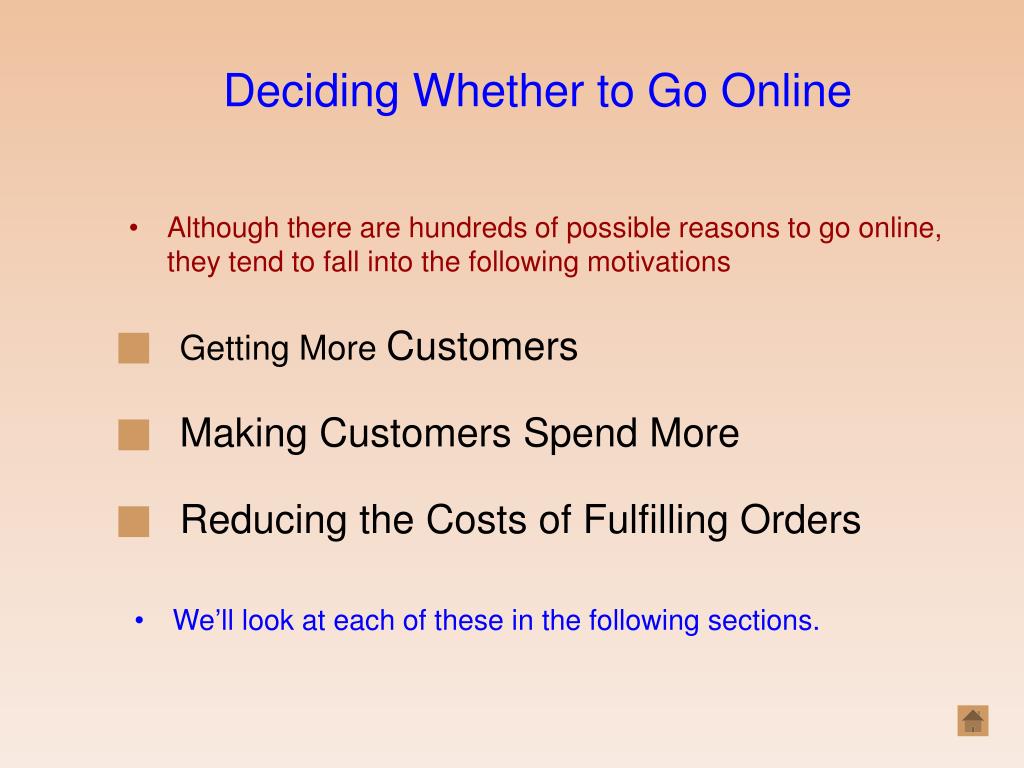

Deciding Whether to Go Online

  • Although there are hundreds of possible reasons to go online, they tend to fall into the following motivations

Getting More Customers

Making Customers Spend More

Reducing the Costs of Fulfilling Orders

  • We’ll look at each of these in the following sections.


Building e commerce and e learning models

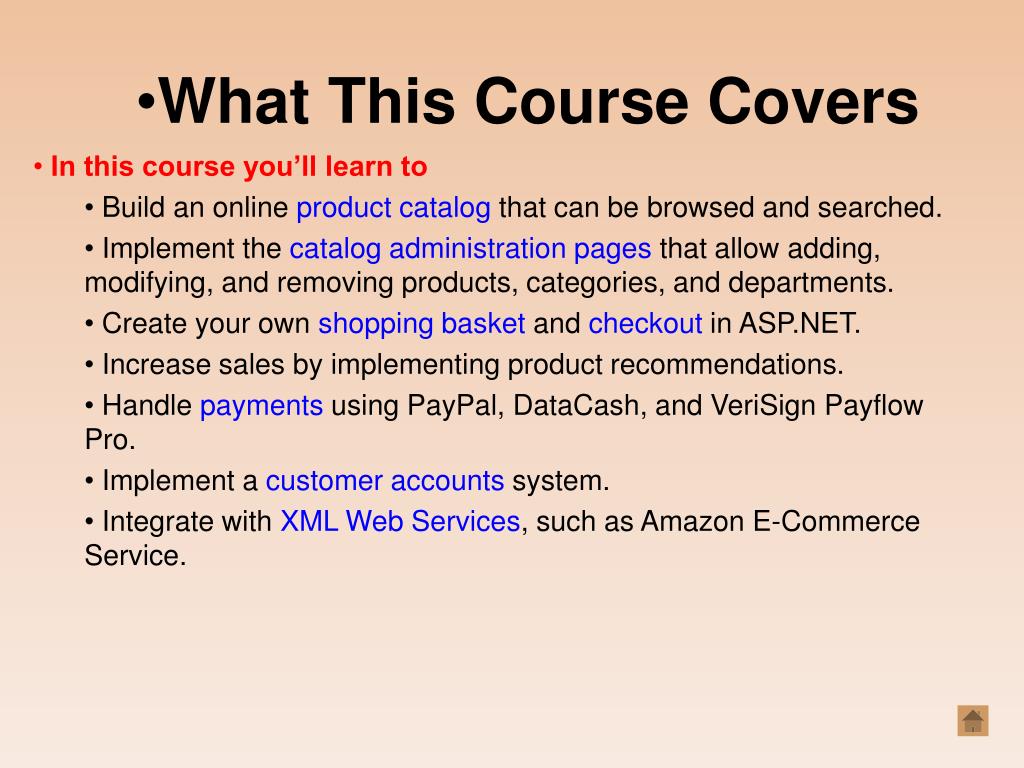

  • What This Course Covers

  • In this course you’ll learn to

    • Build an online productcatalog that can be browsed and searched.

    • Implement the catalog administration pages that allow adding, modifying, and removing products, categories, and departments.

    • Create your own shopping basket and checkout in ASP.NET.

    • Increase sales by implementing product recommendations.

    • Handle payments using PayPal, DataCash, and VeriSign Payflow Pro.

    • Implement a customer accounts system.

    • Integrate with XML Web Services, such as Amazon E-Commerce Service.


Building e commerce and e learning models

Considering the Risks and Threats

Request

DATA

Transfer Data

  • Some risks are particularly relevant to e-commerce companies, such as

  • Hacking and identity theft

  • Credit-card scams

  • Unreliable shipping services

  • Hardware failures

  • Software errors

  • Changing laws

A

B

Code

DATA


Building e commerce and e learning models

E-Commerce Tutorial

  • e-commerce tutorial that covers taxation, shipping, and many of the issues you’ll face when designing your site at :

    • http://hotwired.lycos.com/webmonkey/e-business/ building/tutorials/tutorial3.html

  • Check this out before you start designing your own site.


Building e commerce and e learning models

Designing for Business

  • Phase I: Getting a Site Up

  • Design a database for storing a product catalog containing categories, subcategories, and products.

  • Write the SQL (Structured Query Language) code and C# code for accessing that data.

  • Build an attractive and functional user interface (UI) that allows for easy catalog browsing.

  • Implement an efficient error-reporting system that notifies the administrator in case the site runs into trouble and displays an Ooops message to the visitor when a critical error occurs.

  • Integrate an external payment processor (with examples for PayPal) to allow visitors to order your products.

  • Provide a free-text search engine for the database.

  • Give the site’s administrators a private section of the site where they can modify the catalog online.


Building e commerce and e learning models

Designing for Business

  • Phase II: Creating Your Own Shopping Cart

  • Build your own ASP.NET (Active Server Pages .NET) shopping cart.

  • Pass a complete order through to PayPal for credit-card processing.

  • Create an orders administration page.

  • Implement a product recommendations system in the form of a “customers who bought this product also bought” list.


Building e commerce and e learning models

Designing for Business

  • Phase III: Processing Orders

  • Build a customer accounts module, so that customers can log in and retrieve their details every time they make an order.

  • Establish secure connections using SSL so that data sent by users is encrypted on its travels across the Internet.

  • Authenticate and charge credit cards using third-party companies such as DataCash and VeriSign, and their XML (Extensible Markup Language) web services.

  • Store credit-card numbers securely in a database.

  • Learn how to integrate the Amazon E-Commerce Service into your web site.


Building e commerce and e learning models

The Balloon Shop


Building e commerce and e learning models

The Magic of the Three-Tier Architecture

  • The three-tier architecture has become popular today because it answers most of the problems discussed so far by splitting an application’s functionality unit into three logical tiers:

    • The presentation tier

    • The business tier

    • The data tier


Building e commerce and e learning models

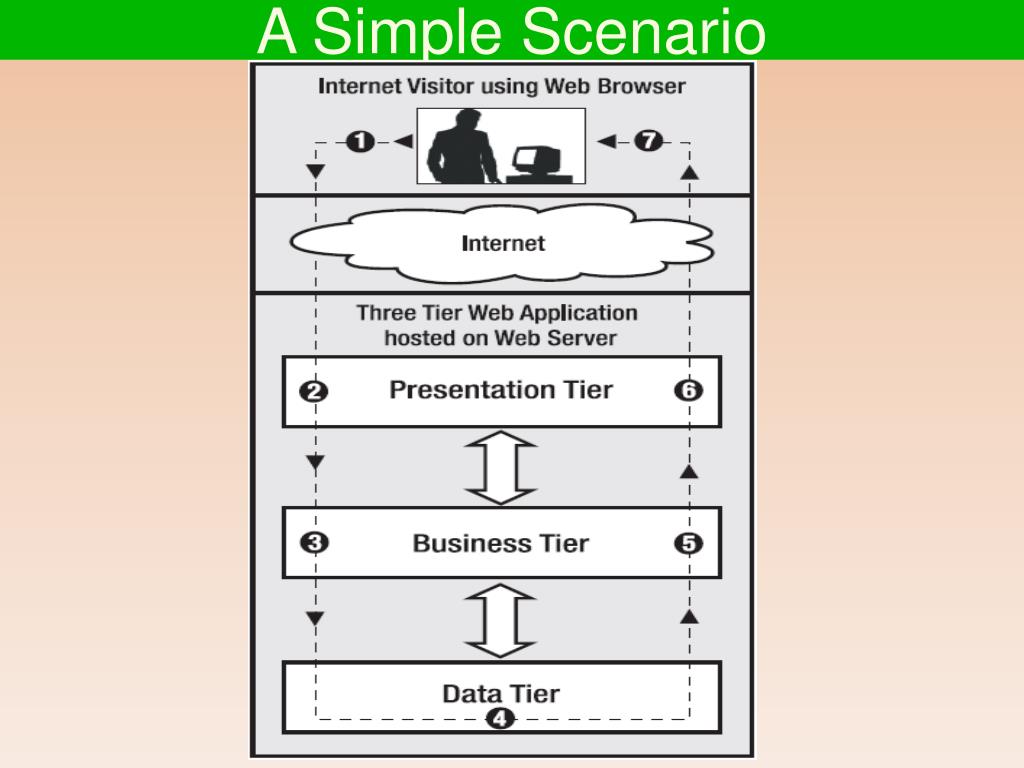

A Simple Scenario


Building e commerce and e learning models

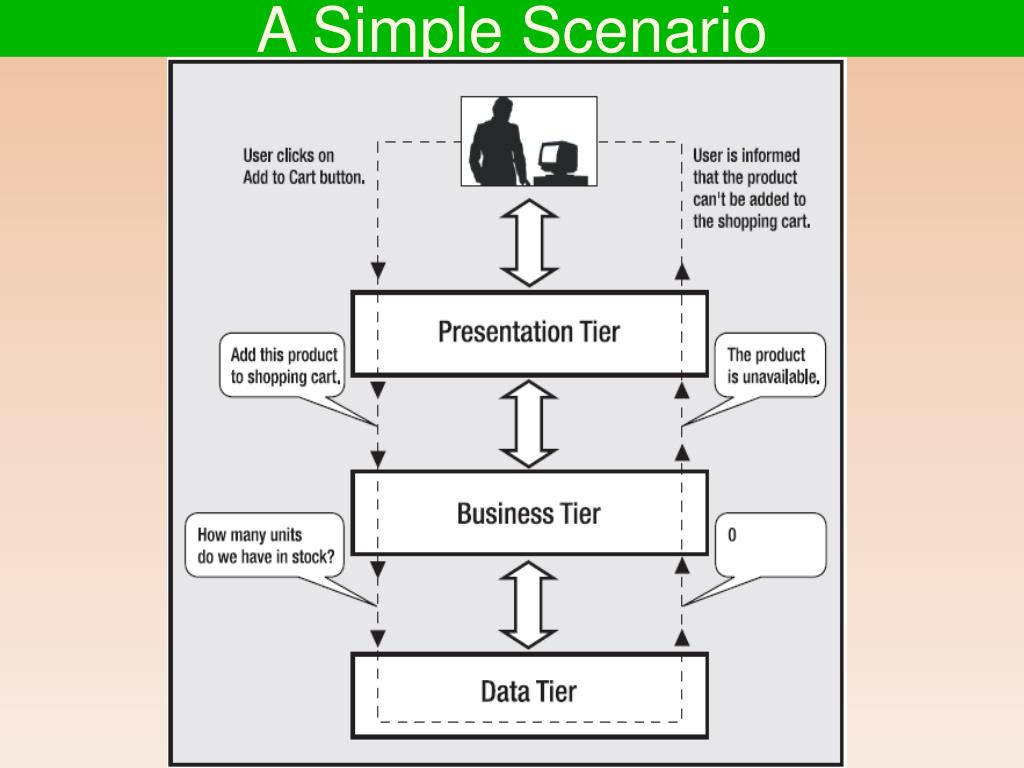

A Simple Scenario


Building e commerce and e learning models

Choosing Technologies and Tools: Using ASP.NET 2.0


Building e commerce and e learning models

Choosing Technologies and Tools: Using SQL Server 2005


Building e commerce and e learning models

Exercise: Creating the BalloonShop Project

Follow the following steps to create the ASP.NET Web Site.

Start Visual Studio.NET 2005

Choose File ➤ New.

Select Web Site.


Building e commerce and e learning models

Exercise: Creating the BalloonShop Project

Choose ASP.NET Web Site. Select HTTP at Location.

For the purpose of this exercise, we’re creating the project in the http://localhost/BalloonShop location.

Click OK. Visual Studio now creates the new project in the BalloonShop folder you specified.


Building e commerce and e learning models

Exercise: Creating the BalloonShop Project

Execute the project in debug mode by pressing F5. At this point, Visual Web Developer will complain (as shown in Figure) that it can’t debug the project as long as debugging is not enabled in web.config. (actually, at this point, the web.config file doesn’t even exist).

Click OK to allow Visual Studio to enabledebug mode for you. Feel free to look at the newly created web.configfile to see what has been done for you.


Building e commerce and e learning models

Exercise: Creating the BalloonShop Project

At this moment your project contains three files:

  • Default.aspxis your Web Form.

  • Default.aspx.csis the code-behind file of the Web Form.

  • web.configis the project’s configuration file.


Building e commerce and e learning models

Implementing the Site Skeleton


Building e commerce and e learning models

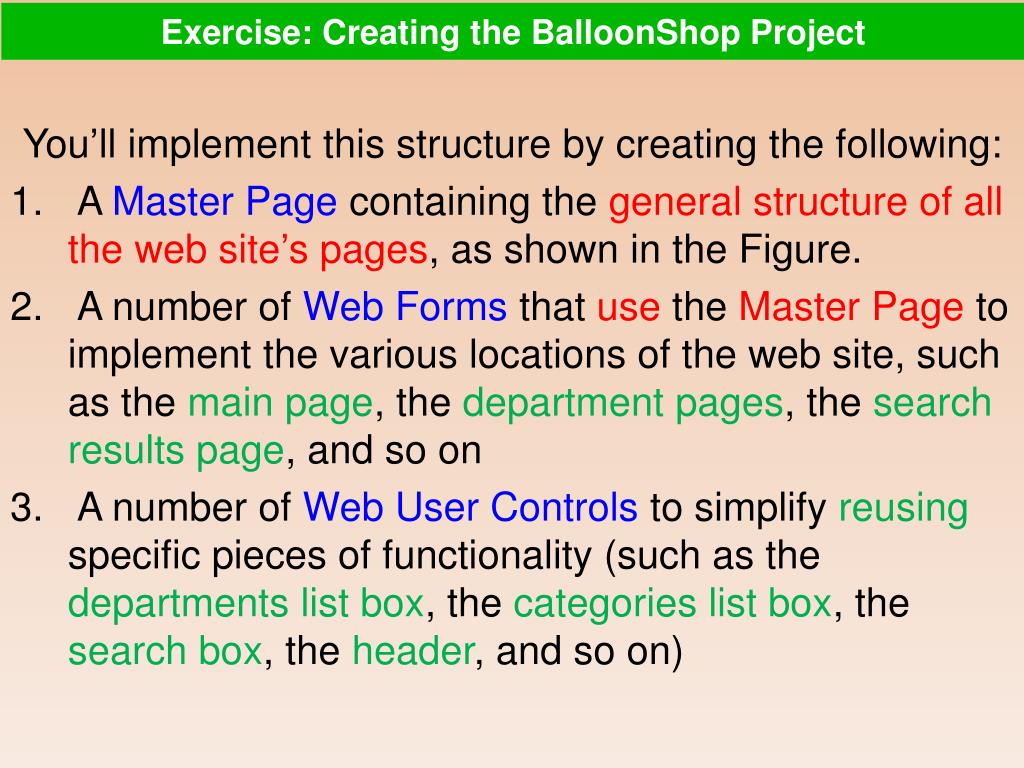

Exercise: Creating the BalloonShop Project

You’ll implement this structure by creating the following:

  • A Master Page containing the general structure of all the web site’s pages, as shown in the Figure.

  • A number of Web Forms that use the Master Page to implement the various locations of the web site, such as the main page, the department pages, the search results page, and so on

  • A number of Web User Controls to simplify reusing specific pieces of functionality (such as the departments list box, the categories list box, the search box, the header, and so on)


Building e commerce and e learning models

Implementing the Site Skeleton

The following figure shows a few of the Web User Controls you’ll create while developing BalloonShop.


Building e commerce and e learning models

Building the First Page

  • Click Website ➤ Add New Item (or press Ctrl+Shift+A). In the dialog box that opens, choose Master Page from the Visual Studio Installed Templates list.

  • Choose Visual C# for the language, check the Place code in a separate file check box, and change the page name to BalloonShop.master (the default name MasterPage.master isn’t particularly expressive). The Add New Item dialog box should now look like in the Figure.


Building e commerce and e learning models

Building the First Page

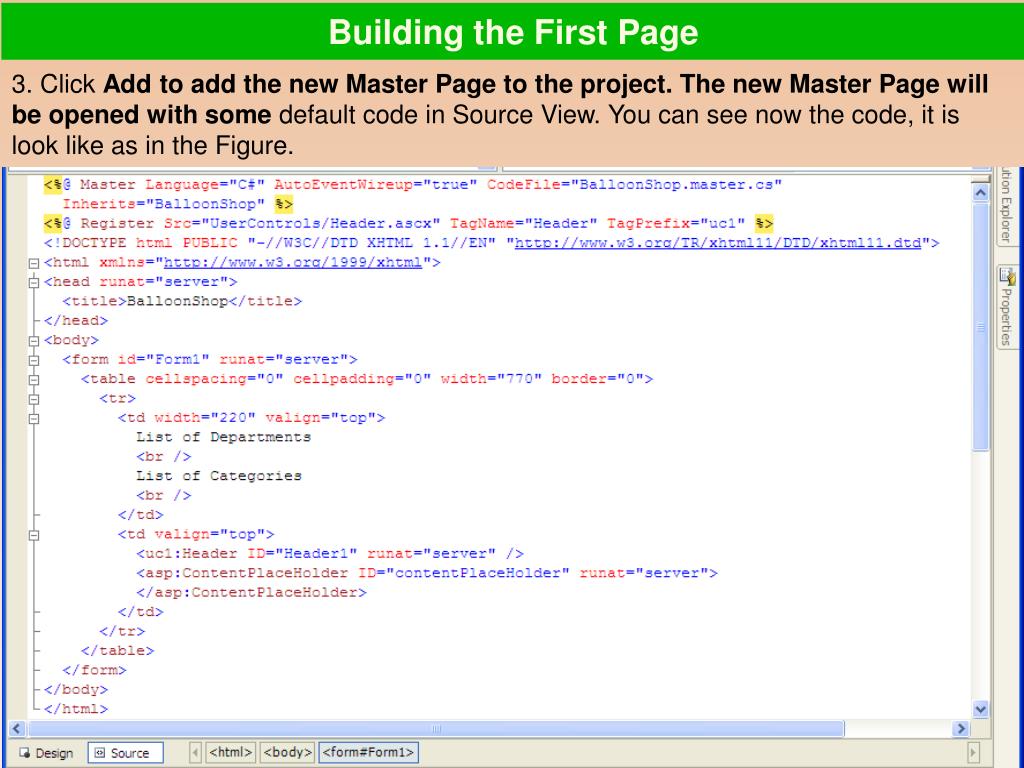

3. Click Add to add the new Master Page to the project. The new Master Page will be opened with some default code in Source View. You can see now the code, it is look like as in the Figure.


Building e commerce and e learning models

Building the First Page

4. Now switch again to Design View; you should see something like in the figure. If you haven’t changed the default behavior of Visual Web Developer, you’ll see that the ContentPlaceHolder object is marked with a little green arrow sign (which is probably hardly visible in the figure). This indicates that the control is marked to be executed at server-side (on the server). All server-side controls (including Labels, TextBoxes, and so on) on the page will be marked with the same green symbol. If you look at the HTML code of the ContentPlaceHolder, you’ll see the runat="server" clause:

<asp:ContentPlaceHolder ID="contentPlaceHolder" runat="server">

</asp:ContentPlaceHolder>


Building e commerce and e learning models

Building the First Page

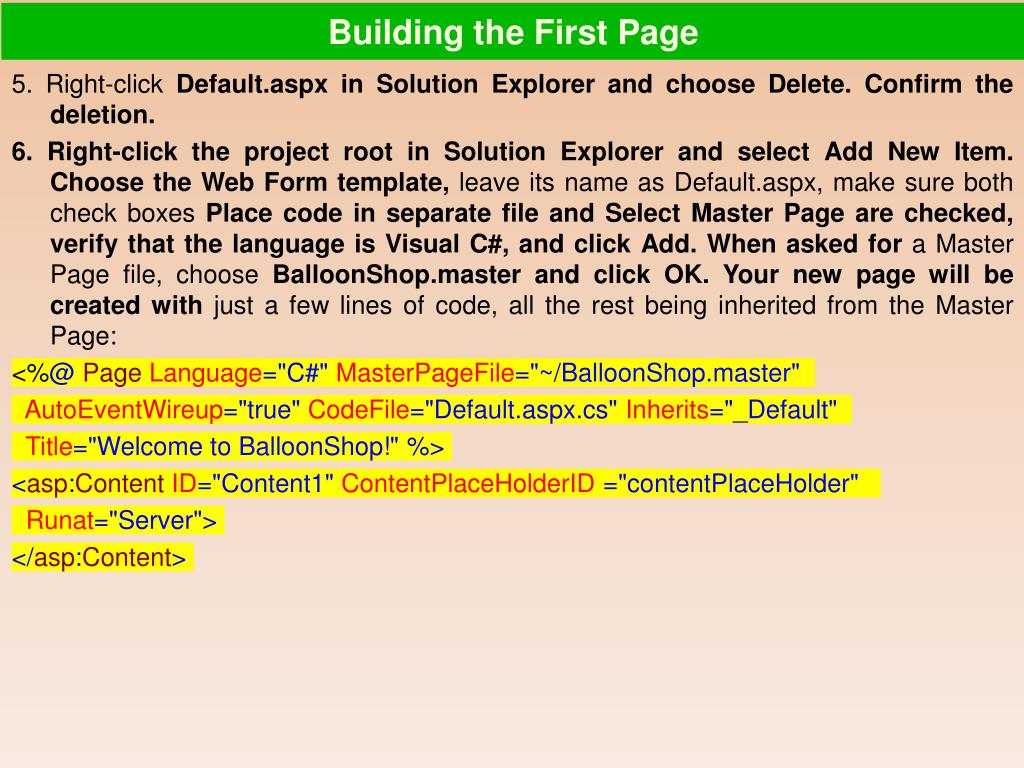

5. Right-click Default.aspx in Solution Explorer and choose Delete. Confirm the deletion.

6. Right-click the project root in Solution Explorer and select Add New Item. Choose the Web Form template, leave its name as Default.aspx, make sure both check boxes Place code in separate file and Select Master Page are checked, verify that the language is Visual C#, and click Add. When asked for a Master Page file, choose BalloonShop.master and click OK. Your new page will be created with just a few lines of code, all the rest being inherited from the Master Page:

<%@ Page Language="C#" MasterPageFile="~/BalloonShop.master"

AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default"

Title="Welcome to BalloonShop!" %>

<asp:ContentID="Content1" ContentPlaceHolderID="contentPlaceHolder"

Runat="Server">

</asp:Content>


Building e commerce and e learning models

Building the First Page

7. Change the title of the page from “Untitled Page” to “Welcome to BalloonShop!” by either using the Properties window in Design View (see Figure 2-14) or by editing the code in Source View like this:

<%@ Page Language="C#" MasterPageFile="~/BalloonShop.master"

AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default"

Title="Welcome to BalloonShop!" %>

<asp:ContentID="Content1" ContentPlaceHolderID="contentPlaceHolder"

Runat="Server">

</asp:Content>

8. Press F5 to execute the project.


Building e commerce and e learning models

Building the First Page

8. Press F5 to execute the project.


Building e commerce and e learning models

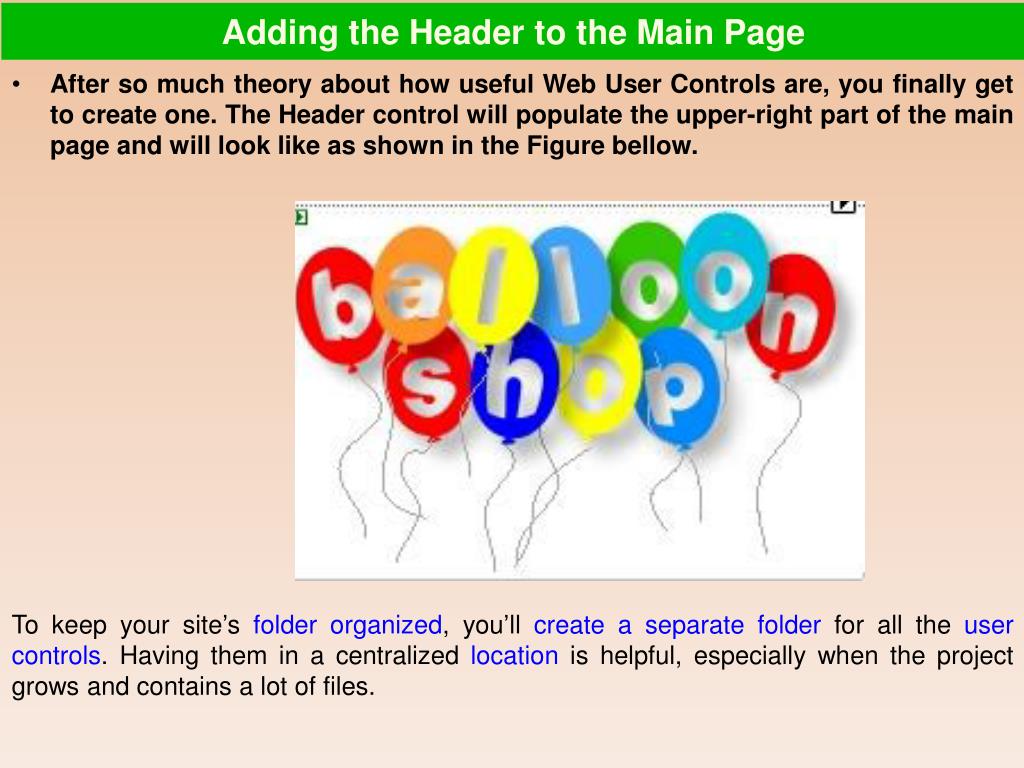

Adding the Header to the Main Page

  • After so much theory about how useful Web User Controls are, you finally get to create one. The Header control will populate the upper-right part of the main page and will look like as shown in the Figure bellow.

    To keep your site’s folder organized, you’ll createa separate folder for all the user controls. Having them in a centralized location is helpful, especially when the project grows and contains a lot of files.


Building e commerce and e learning models

Adding the Header to the Main Page

  • Make sure that the project isn’t currently running (if it is, the editing capabilities are limited), and that the Solution Explorer window is visible (if it isn’t, choose View ➤ Solution Explorer or use the default Ctrl+Alt+L shortcut). Right-click the root entry and select Add Folder ➤ Regular Folder.

  • Enter UserControls as the name of the new folder, as shown in the figure.

    3. Create the Header.ascx user control in the UserControls folder. Right-click UserControls in Solution Explorer and clickAdd New Item. In the form that appears, choose the Web User Control template and change the default name to Header.ascx. Leave the other options in place (as shown in Figure), and click Add.


Building e commerce and e learning models

Adding the Header to the Main Page

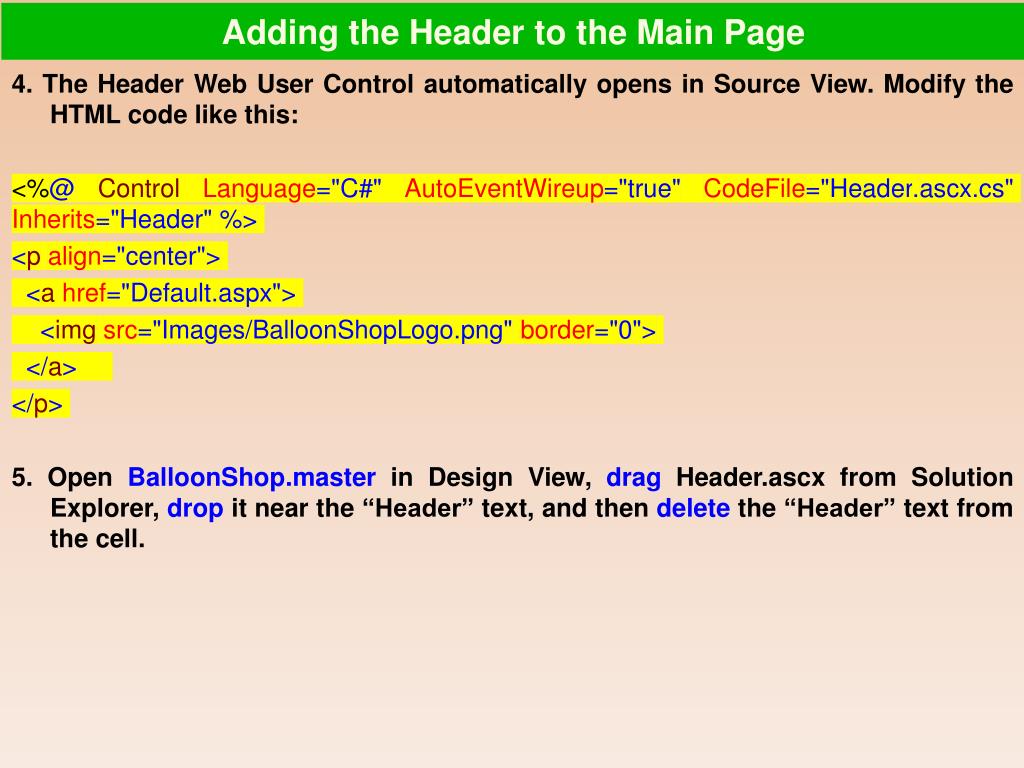

4. The Header Web User Control automatically opens in Source View. Modify the HTML code like this:

<%@ Control Language="C#" AutoEventWireup="true" CodeFile="Header.ascx.cs" Inherits="Header" %>

<p align="center">

<a href="Default.aspx">

<imgsrc="Images/BalloonShopLogo.png" border="0">

</a>

</p>

5. Open BalloonShop.master in Design View, drag Header.ascx from Solution Explorer, drop it near the “Header” text, and then delete the “Header” text from the cell.

To keep your site’s folder organized, you’ll createa separate folder for all the user controls. Having them in a centralized location is helpful, especially when the project grows and contains a lot of files.


Building e commerce and e learning models

Adding the Header to the Main Page

6. Click Debug ➤ Start (F5 by default) to execute the project. The web page will look like Figure 2-20.


Building e commerce and e learning models

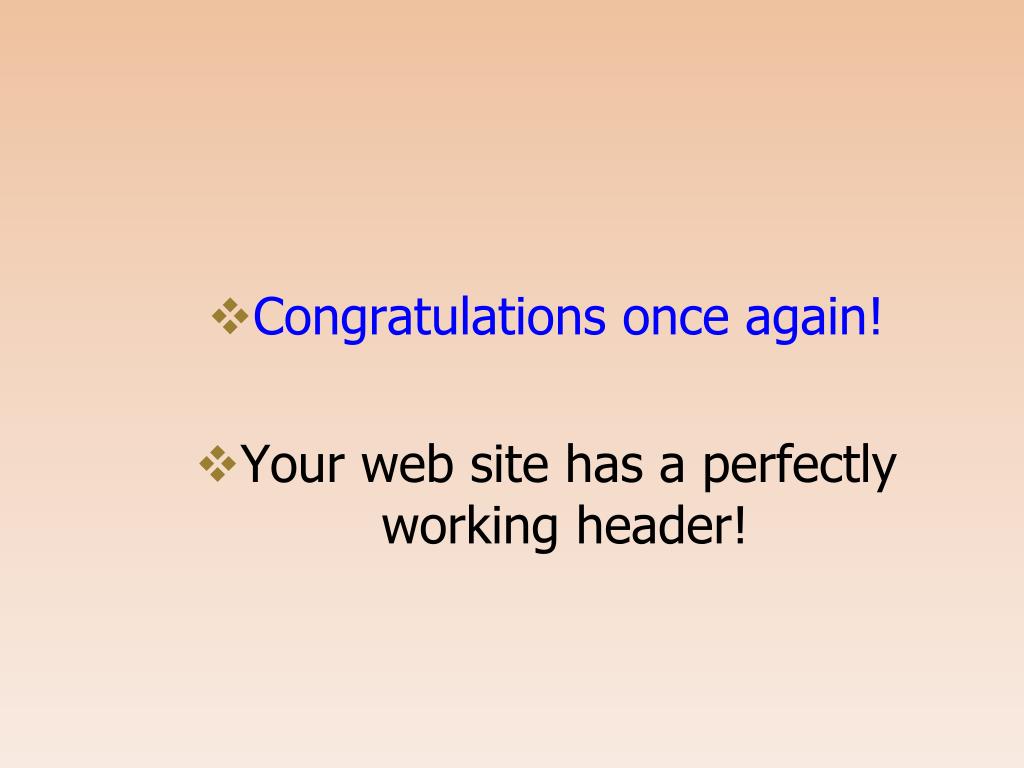

  • Congratulations once again!

  • Your web site has a perfectly working header!


Building e commerce and e learning models

Exercise: Creating a New SQL Server Database

1. In your Visual Web Developer project, make sure the Database Explorer window is open. If it isn’t, you can either select View ➤ Database Explorer or press the default shortcut keys Ctrl+Alt+S.

2. In Server Explorer, right-click the Data Connections entry, and select Create New SQL Server Database. In the window that appears (see Figure), enter the name of the SQL Server instance where you want to create the database


Building e commerce and e learning models

Exercise: Creating a New SQL Server Database

If you installed SQL Server Express using the default options as shown in Appendix A, then your server name should be (local)\SqlExpress; in the installation process you are provided with the necessary data to connect to your database. Enter BalloonShop for the name of the new database. The figure shown bellow is used for Creating a new SQL Server database using Visual Web Developer Note Using Windows Authentication, your local Windows account will be used to log in to SQL Server. If you installed SQL Server yourself, you’ll have full privileges to SQL Server, and everything will run smoothly; otherwise, you’ll need to make sure you’re provided with administrative privileges on the SQL Server instance. With SQL Server Authentication, you need to provide a username and password, but note that this authentication mode is disabled by default in SQL Server.


Building e commerce and e learning models

Downloading the Code

  • The code for this book is available for download in the Source Code area of the Apress web site: http://www.apress.com

  • Unzip the file and open Welcome.html for installation details.
