Schematic Description of Grid Exceptions

Schematic Description of Grid Exceptions. Arun Jagatheesan San Diego Supercomputer Center (SDSC) & High Energy Physics Group, University of Florida. Outline. Why describe? How to describe? What to describe?. Who / MIB (Men Involved Behind the scene)? RFS (Request for Suggestions)

chico
Download Presentation

Schematic Description of Grid Exceptions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Schematic Description of Grid Exceptions Arun Jagatheesan San Diego Supercomputer Center (SDSC) & High Energy Physics Group, University of Florida

  2. Outline • Why describe? • How to describe? • What to describe? • Who / MIB (Men Involved Behind the scene)? • RFS (Request for Suggestions) • NOTE: Still in learning phase…

  3. Data Grid Management System (DGMS) • Before we start, why we were interested : Data, Knowledge Management in Grids • Data Grid Management System as set of Services • Credit (DGMS): • Reagan Moore (SDSC) – Knowledge Grids • Jim Gray (Microsoft) – VLDB Suggestions • Arcot Rajasekar (SDSC) – Data Grids • You (TIA for your suggestions in workshop) A question session will follow. Take Notes

  4. What: Datagrid and DGMS • Data Grid: Logical view of collection of heterogeneous data spread across virtual organization(s) providing a transparent access irrespective of data location, storage media, storage format and data identifier (name) • DGMS: System to manage relationship between data and events associated with the data grid workflow to help in automated data and knowledge discovery

  5. Descriptions Required • DGMS required Grid Data Flow – distributed operations on the grid specified using XML documents Also required … • Description of Exceptions in inter-grid and intra grid environments • Description of Handling Cases which might dynamically change

  6. Why descriptions?

  7. Whatz ahead for Grid • “Grid” as it was meant to be. Grid in a Cell??

  8. Exception Handling in Grid Service Requestor Store file1.xyz in data grid Grid / Executor Service Providers

  9. Exception Handling in Grid – User Service Requestor Just send me an e-mail of failure Grid / Executor Service Providers

  10. Exception Handling in Grid - Provider Service Requestor Archival System: Maintenance required for tape robot or try after 1 working day Grid / Executor Service Providers

  11. Exception Handling in Grid – System Service Requestor Mission Critical Grid: Need to find another Service Provider Grid / Executor Service Providers

  12. Exception Handling • Grid User Specified • Service Provider Specified • Grid/System Specified • 2 Questions: • How do we dynamically specify the different exception handling associated with the same exception • Who does the real exception handling

  13. How to description?

  14. Customized Exception Handling Try (store file1.xyz in data grid) catch any exception and handle • Using Arun_Out_of_Office_Handler (User) • Using Vegas_HPSS_Handler (Service Provider) • Using GriPhyN_Level1_Handler (System)

  15. Exception Name spaces xmlns:condor = “http://www.cs.wisc.edu/condor/exceptions” <gdfl:exception> <faultHandler name=“ArunFirstHandler"> <fault value=“condor:FileNotFound”> <action> <mail name="faultHandlerMail"> <To>arun@sdsc.edu</To> <body>Sum of all Fears - SOS Grid </body> </mail> <log>Fatal Error: Mercury Rising</log> </action> <flow>die</flow> <fault> </faultHandler> </gdfl:exception>

  16. What to describe?

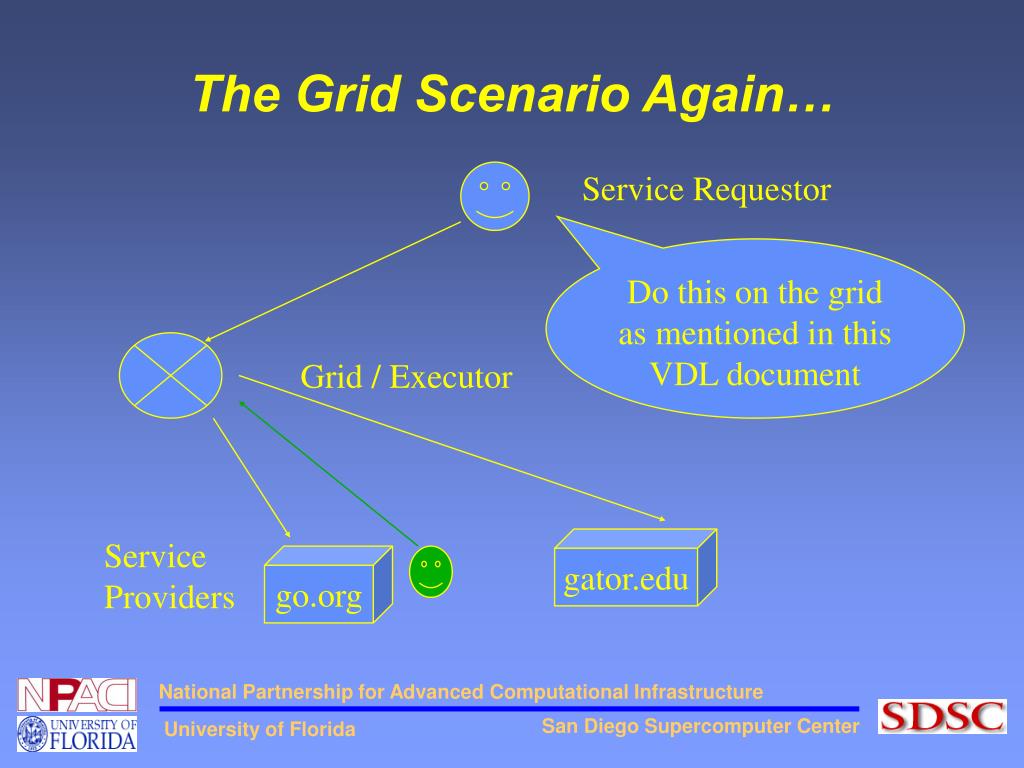

  17. gator.edu The Grid Scenario Again… Service Requestor Do this on the grid as mentioned in this VDL document Grid / Executor Service Providers go.org

  18. The Grid Scenario Again… Service Requestor Now where the the hell did the grid service crash? If I now it, I could handle it appropriately Grid / Executor Service Providers gator.edu go.org

  19. So what we need… • Need for Name spaces describing the taxonomies of error handling with respect to the Service Provider, Type of the error (generic/specific), the policies in the grid • Need for description of what happened exactly. Just a message “Some thing bad happended during the service invocation” is not fine to recover from it.

  20. Sum up • VDL/DAG Submission (For each operation on the grid) • User App has its own customized error handler based on the name spaces/ categories of error types • Service provider has its own error handler based on the name spaces/ categories of its own domain which is shared with the grid • Grid (System) has its own error handler based on the grid policies and efficiency concerns All these error handlers could change dynamically.

  21. Advantages • Structured Handling based on profiles • Handled by the respective providers • Profiles can be dynamically changed • Suitable for inter-grid and intra-grid scenarios

  22. Disadvantages • Xtra processing • Definition and categorization of grid errors required • New Mechanisms to parse and handle these exception documents (probably in XML) is required

  23. Summary • Grid Exceptions involve: The Service Requestor, Service Provider and the Grid Policy which change dynamically • Generic Classification of Grid Errors which could be extended later is required • Error types and error handling description based on service provider required to handle if more efficiently
