Data Integration

Data Integration. Combining data from different sources, providing a unified view of the data Data warehouse is a repository that results from some types of data integration processes. Techniques for Data Integration. Consolidation (ETL) Extract/Transform/Load

chico
Download Presentation

Data Integration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

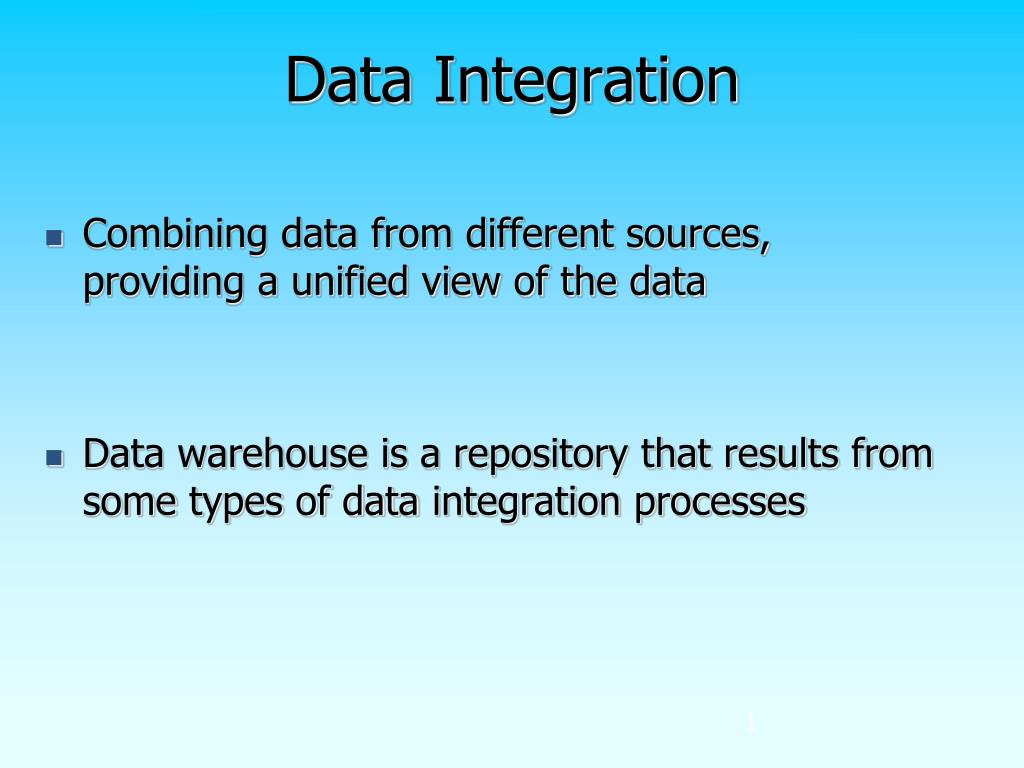

  1. Data Integration Combining data from different sources, providing a unified view of the data Data warehouse is a repository that results from some types of data integration processes

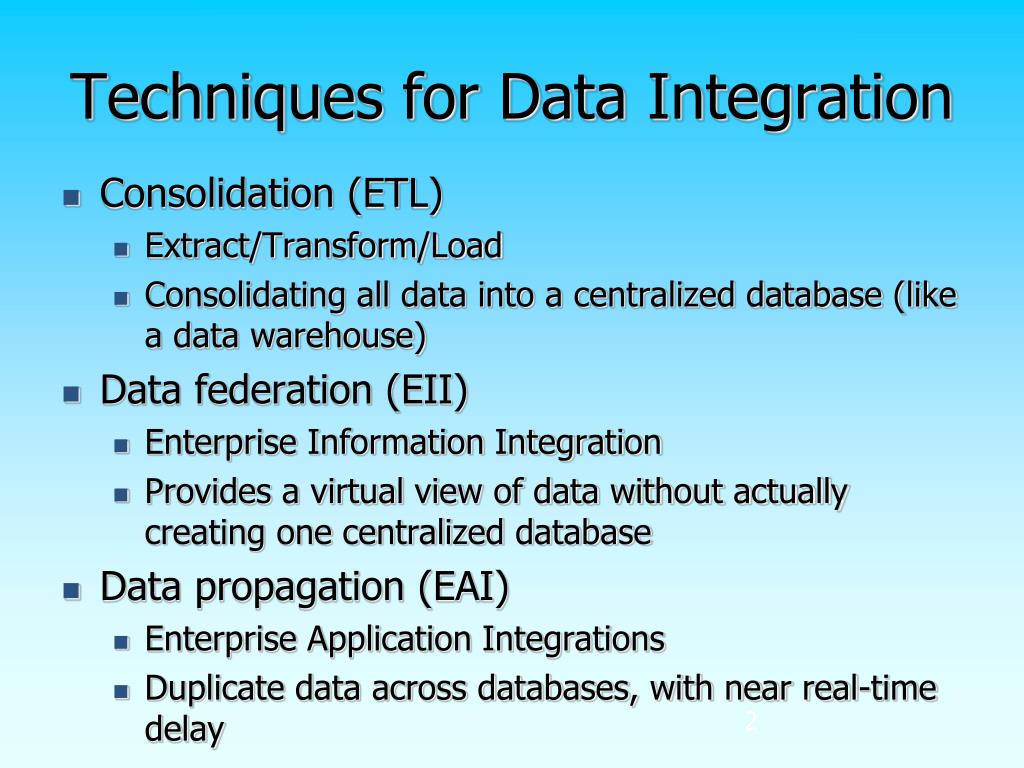

  2. Techniques for Data Integration • Consolidation (ETL) • Extract/Transform/Load • Consolidating all data into a centralized database (like a data warehouse) • Data federation (EII) • Enterprise Information Integration • Provides a virtual view of data without actually creating one centralized database • Data propagation (EAI) • Enterprise Application Integrations • Duplicate data across databases, with near real-time delay

  3. The ETL Process • Capture/Extract • Scrub or data cleansing • Transform • Load and Index ETL = Extract, transform, and load

  4. Capture/Extract…obtaining a snapshot of a chosen subset of the source data for loading into the data warehouse Incremental extract = capturing changes that have occurred since the last static extract Static extract = capturing a snapshot of the source data at a point in time

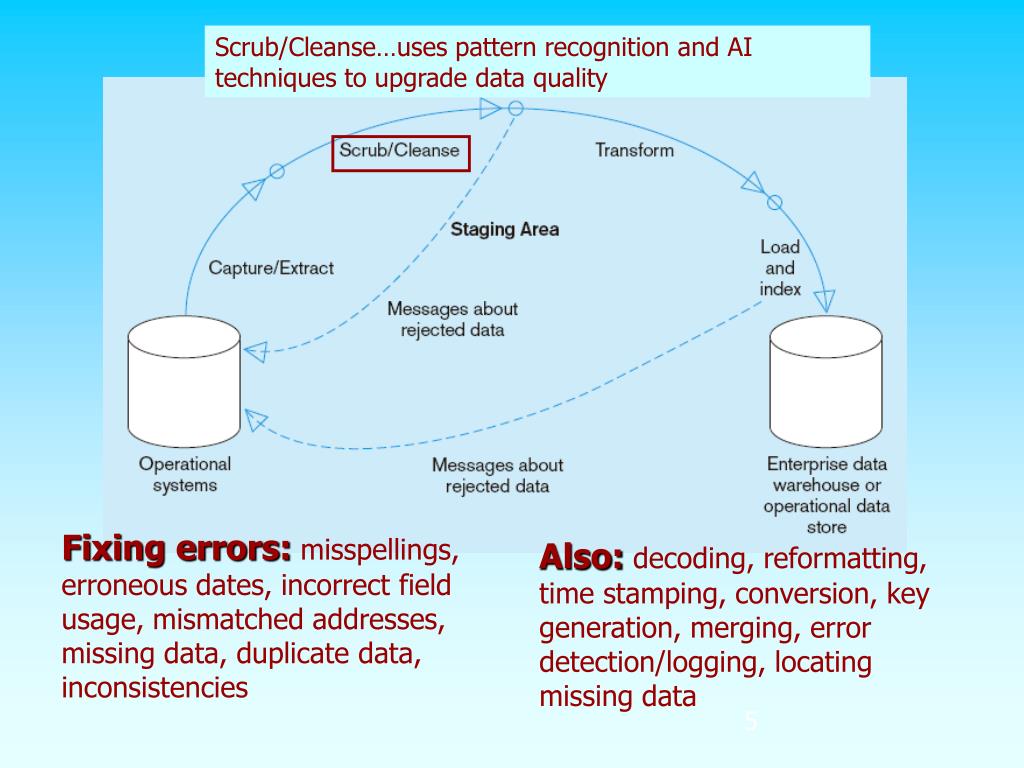

  5. Scrub/Cleanse…uses pattern recognition and AI techniques to upgrade data quality Fixing errors: misspellings, erroneous dates, incorrect field usage, mismatched addresses, missing data, duplicate data, inconsistencies Also: decoding, reformatting, time stamping, conversion, key generation, merging, error detection/logging, locating missing data

  6. Transform = convert data from format of operational system to format of data warehouse Record-level: Selection–data partitioning Joining–data combining Aggregation–data summarization Field-level: single-field–from one field to one field multi-field–from many fields to one, or one field to many

  7. Load/Index= place transformed data into the warehouse and create indexes Refresh mode: bulk rewriting of target data at periodic intervals Update mode: only changes in source data are written to data warehouse

  8. Data Transformation Functions • Record-level • Transformation that involves obtaining the set of recordsyou want from the data source • Selection, joining, aggregation • Field-level • Transformation that converts data from fields of a source record to field(s) of a target record. • Single-field vs. Multi-field transformations

  9. Single-field transformation In general–some transformation function translates data from old form to new form Algorithmic transformation uses a formula or logical expression Tablelookup–another approach, uses a separate table keyed by source record code

  10. Multifield transformation M:1–from many source fields to one target field 1:M–from one source field to many target fields
