AQ 200 series

Protection IED platform, product release 1


Aq 200 series first release products

AQ 200 series – first release products

  • AQ F201 – Overcurrent and earth-fault relay

  • AQ F210 – Feeder protection IED

  • AQ M210 – Motor protection IED

  • AQ V211 – Voltage protection IED

  • AQ F215 – Feeder protection IED

  • AQ M215 – Motor protection IED

  • AQ S214 – Alarm and indication IED

  • AQ S215 – Bay control IED


Aq 200 series key benefits

AQ 200 series – key benefits

  • Genuinely modular software and hardware platform

    • Logistics benefits for stocking, replacement,

      upgrades and maintenance

    • Reduced life cycle cost in terms of training, engineering, operation and spare parts

    • Application specific productization


Aq 200 series key benefits cont

AQ 200 series – key benefits cont.

  • Performance

    • Powerful 3 CPU system - separation of protection, I/O and communication tasks

    • 64 samples per cycle sampling rate

    • Instant protection operation time typically <20ms

    • 60MB memory allocated for DR and user files

    • >100 disturbance records in Flash memory

    • >15 000 events in Flash memory


Aq 200 series key benefits cont1

AQ 200 series – key benefits cont.

  • Wide measurement ranges

    • Operating frequency band of 6…75Hz

    • Phase current measurement range from10mA to 250A

    • Coarse residual current I01 measurement range from 1mA to 150A

    • Fine residual current I02 measurement range from 0.1mA to 75A

    • Voltage measurement 0-460V (RMS)

  • Protection algorithms’ design

    • Versatile setting alternatives

    • Harmonic overcurrent stage based on 2nd / 3rd / 4th / 5th / 7th harmonic

    • Compensated cable-end differential protection

    • Integrated arc protection

    • Fast operation times


Aq 200 series key benefits cont2

AQ 200 series – key benefits cont.

  • Measurement accuracy

    • Class 0.2 over frequency range of 6-75Hz !!

Conventional measurement

Arcteq patented frequency tracking algorithm


Sensitive cable end differential protection

Sensitive cable end differential protection

Normal measurement

without compensation

Fault seen by IED,

with compensated

measurement

Proactive protection!


Aq 200 series key benefits cont3

AQ 200 series – key benefits cont.

  • Superior usability

    • Easy to use and simple to set

    • Large customizable HMI with full language support and clear indication windows

    • Extensive log information including complete user history register (e.g. setting change tracking)

    • Downloading of files to relay memory (commissioning report, manual…)


Aq 200 series common characteristics

AQ 200 series – common characteristics

  • 5 CT inputs as standard

    • 3 phase currents (1/5 amps software settable)

    • Io1 (1/5A software settable)

    • Io2 (0.2/1A software settable)

  • Wide setting ranges

    • 0.1…40 x In (phase overcurrent)

    • 0.005…40 x In (earth-fault)

  • DT, IEC or ANSI time/overcurrent curves with settable release delays

  • 8 setting groups available

  • Freely software settable digital input threshold voltage

  • Measurement of up to 31st harmonic and THD

  • Measurement accuracy +- 0.2%


Aq 200 series common characteristics cont

AQ 200 series – common characteristics cont.

  • Logic programming

    • On-line indication of active/de-active signals

    • Program cycle 5ms for fast protection logic

  • 16 programmable LEDs

  • MIMIC display with up to 5 controllable devices

  • IEC 61850, IEC 103 and Modbus protocols as standard

    (DNP 3 and IEC 101/104 and SPA under development)

  • AQtivate 200 freeware software suite for all settings and configuration

  • AQview freeware software for disturbance recorder analyzing


Aq 200 series aqtivate 200 software suite

AQ 200 series – AQtivate 200 software suite

  • Free of charge

  • Easy to use

  • Ethernet connection to IED

  • On-line / Off-line modes

  • Clear Menu structure

  • Instant download of settings

    • All IED settings < 1 second

  • Logic programming feature

    • Templates / macros

  • MIMIC Diagram

  • Communication parameters

  • AQview software module for disturbance recorder analysis


Aq 200 series modular platform

AQ 200 series - modular platform


Aq 200 series modern platform

AQ 200 series – modern platform

Computing power designed for needs far ahead

Modern high-performance multi-CPU system


Aq 200 series1

AQ 200 series

Modern R&D environment

Developed algorithms are thoroughly tested and optimized in development phase in PC environment. Child diseases can be found in very early phase.

  • Function development from idea to product is extremely fast.


Aq 200 series2

AQ 200 series

Easy and modern HMI

- Custom displays

- User editable menus

- Local language

- Consistent and modern HMI

and PC tools


Aq 200 series3

AQ 200 series

Easy and modern HMI

Large freely configurable display

System LED:s

4 (fixedfunction)

16 user programmable LED:s

Direct CB control

Local Ethernet port

for PC programming

Local panel HMI buttons for

setting and using the relay


Aq 200 series applications

AQ 200 series – applications

  • Feeder protection and control

  • Arc protection

  • Motor protection and control

  • Alarm annunciation & I/O extension

  • Bay control

  • Transformer protection

  • Generator protection

  • Power monitoring

  • etc.


Aq f201 overcurrent and earth fault relay

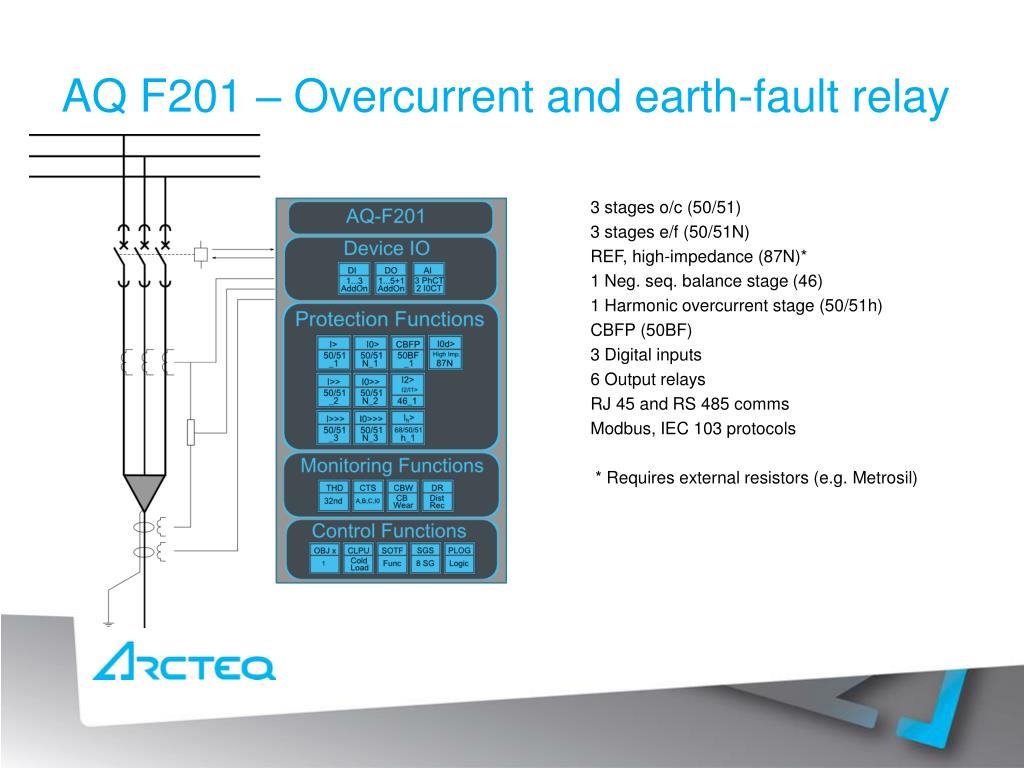

AQ F201 – Overcurrent and earth-fault relay

  • 3 stages o/c (50/51)

  • 3 stages e/f (50/51N)

  • REF, high-impedance (87N)*

  • 1 Neg. seq. balance stage (46)

  • 1 Harmonic overcurrent stage (50/51h)

  • CBFP (50BF)

  • 3 Digital inputs

  • 6 Output relays

  • RJ 45 and RS 485 comms

  • Modbus, IEC 103 protocols

  • * Requires external resistors (e.g. Metrosil)


Aq f210 feeder protection ied

AQ F210 – Feeder protection IED

  • 4 stages o/c (50/51)

  • 4 stages e/f (50/51N)

  • REF low or high*-impedance (87N) or cable end differential protection

  • 4 Neg. seq. balance stages (46)

  • 4 Harmonic overcurrent stages (50/51h)

  • Cable thermal protection (49)

  • Autoreclose (79)

  • CBFP (50BF)

  • 3 Digital inputs (standard)

  • 6 Output relays (standard)

  • RJ 45 and RS 485 comms (standard)

  • IEC 61850, Modbus, IEC 103 protocols

  • Optionally available: 4 xI/O card slots

  • (8DI / 5DO / 2xfiber Ethernet / arc protection)

  • * Requires external resistors (e.g. Metrosil)


Aq m210 motor protection ied

AQ M210 – Motor protection IED

  • 4 stages o/c (50/51)

  • 4 stages e/f (50/51N)

  • 4 Neg. seq. balance stages (46)

  • 4 Harmonic overcurrent stages (50/51h)

  • Cable end differential protection

  • Motor thermal protection (49M)

  • Locked rotor / start-up supervision (48)

  • Speed switch (14)

  • Frequent starts (66)

  • Undercurrent (37)

  • Mechanical jam (51M)

  • CBFP (50BF)

  • 3DI (standard)

  • 6DO (standard)

  • RJ 45 and RS 485 comms (standard)

  • IEC 61850, Modbus, IEC 103 protocols

  • Optionally available: 4xI/O card slots

  • (8DI / 5DO / 2xfiber Ethernet / arc protection)


Aq v211 voltage protection ied

AQ V211 – Voltage protection IED

4 stages overvoltage (59)

4 stages undervoltage (27)

4 stages residual overvoltage (59N)

8 stages over/under frequency (81U/O)

CBFP (50BF)

Fuse failure (60)

3DI (standard)

6DO (standard)

RJ 45 and RS 485 comms (standard)

IEC 61850, Modbus, IEC 103 protocols

Optionally available: 5xI/O card slots

(8DI / 5DO / 2xfiber Ethernet)


Aq f215 feeder protection ied

AQ F215 – Feeder protection IED

  • 4 stages o/c (50/51)

  • 4 stages e/f (50/51N)

  • 4 stages directional o/c (67)

  • 4 stages directional e/f (67N)

  • REF low or high*-impedance (87N) or cable end differential protection

  • 4 Neg. seq. balance stages (46)

  • 4 Harmonic overcurrent stages (50/51h)

  • Cable thermal protection (49)

  • 4 stages overvoltage (59)

  • 4 stages undervoltage (27)

  • 4 stages residual overvoltage (59N)

  • 8 stages over/under frequency (81U/O)

  • Autoreclose (79)

  • CBFP (50BF)

  • 3 Digital inputs (standard)

  • 6 Output relays (standard)

  • RJ 45 and RS 485 comms (standard)

  • IEC 61850, Modbus, IEC 103 protocols

  • Optionally available: 3 xI/O card slots

  • (8DI / 5DO / 2xfiber Ethernet / arc protection)

  • * Requires external resistors (e.g. Metrosil)

Feeder management with full measurements


Aq m215 motor protection ied

AQ M215 – Motor protection IED

  • 4 stages o/c (50/51)

  • 4 stages e/f (50/51N)

  • 4 stages directional e/f (67N)

  • 4 Neg. seq. balance stages (46)

  • 4 Harmonic overcurrent stages (50/51h)

  • Cable end differential protection

  • Motor thermal protection (49M)

  • Locked rotor / start-up supervision (48)

  • Speed switch (14)

  • Frequent starts (66)

  • Undercurrent (37)

  • Mechanical jam (51M)

  • 4 stages overvoltage (59)

  • 4 stages undervoltage (27)

  • 4 stages residual overvoltage (59N)

  • 8 stages over/under frequency (81U/O)

  • CBFP (50BF)

  • 3DI (standard)

  • 6DO (standard)

  • RJ 45 and RS 485 comms (standard)

  • IEC 61850, Modbus, IEC 103 protocols

  • Optionally available: 3xI/O card slots (8DI / 5DO / 2xfiber Ethernet / arc protection)

Motor management with full measurements


Aq s214 alarm and indication ied

AQ S214 – Alarm and indication IED

  • 5 controllable objects

  • 16 programmable LEDs

  • 10 000 Non-volatile event records

  • Logic programming

  • 3DI (standard)

  • 6DO (standard)

  • RJ 45 and RS 485 comms (standard)

  • IEC 61850, Modbus, IEC 103 protocols

Optionally available: 6xI/O card slots (8DI / 5DO / 2xfiber Ether.)

Alarm annunciation and I/O extension


Aq s215 bay control ied

AQ S215 – Bay control IED

  • Measurements (I, U, P, Q ,S, pf, E+ ,E-)

  • Fuse failure (60)

  • CT supervision

  • Auto-reclose (79)

  • 5 controllable objects

  • 16 programmable LEDs

  • 10 000 Non-volatile event records

  • Logic programming

  • 3DI (standard)

  • 6DO (standard)

  • RJ 45 and RS 485 comms (standard)

  • IEC 61850, Modbus, IEC 103 protocols

Optionally available: 3xI/O card slots (8DI / 5DO / 2xfiber Ether.)


Aq 200 series4

AQ 200 series

CPU


Aq 200 series5

AQ 200 series

CT card


Aq 200 series

AQ 200 series

DI8 option card


Aq 200 series

AQ 200 series

D05 option card


Aq 200 series6

AQ 200 series

Versatile IO


Aq 200 series7

AQ 200 series

Versatile IO

AQ-X210-AAAA

AQ-X215-AAA (future)

AQ-X213-AAA (future)

AQ-X213-BEA (future)

AQ-X213-BAA (future)

AQ-X213-BEC (future)


Aq 200 series8

AQ 200 series

Products of the platform

Example of X215 and X235 hardware


Aq 200 series9

AQ 200 series
