  1. Glenair: Series 89 Nano Miniature Connectors

  2. The Series 89 Nano Connector Range • Super small, light weight and versatile, The Series 89 Nano connector range offers the ultimate in compact design and performance. • Glenair’s Series 89 Nano connector range features the high reliability TwistPin contact system for added performance and reliability. • The Series 89 range is ideally suited for use in down-hole electronics, space systems, missile systems and avionic enclosures.

  3. The Series 89 Nano Connector, the Basics • The Series 89 Nano connector range has a contact spacing of 0.025 inches (0.635 mm) housed within a metal body. • Available in a range of shell materials to suite the toughest environments: -Plated aluminium (CAD and Electroless Nickel) -Stainless Steel -Titanium • Available in Single or Double row layouts. • All Glenair Nano’s come fitted with LCP insulators as standard. • Glenair makes commercial versions and is also qualified to MIL-DTL-32139

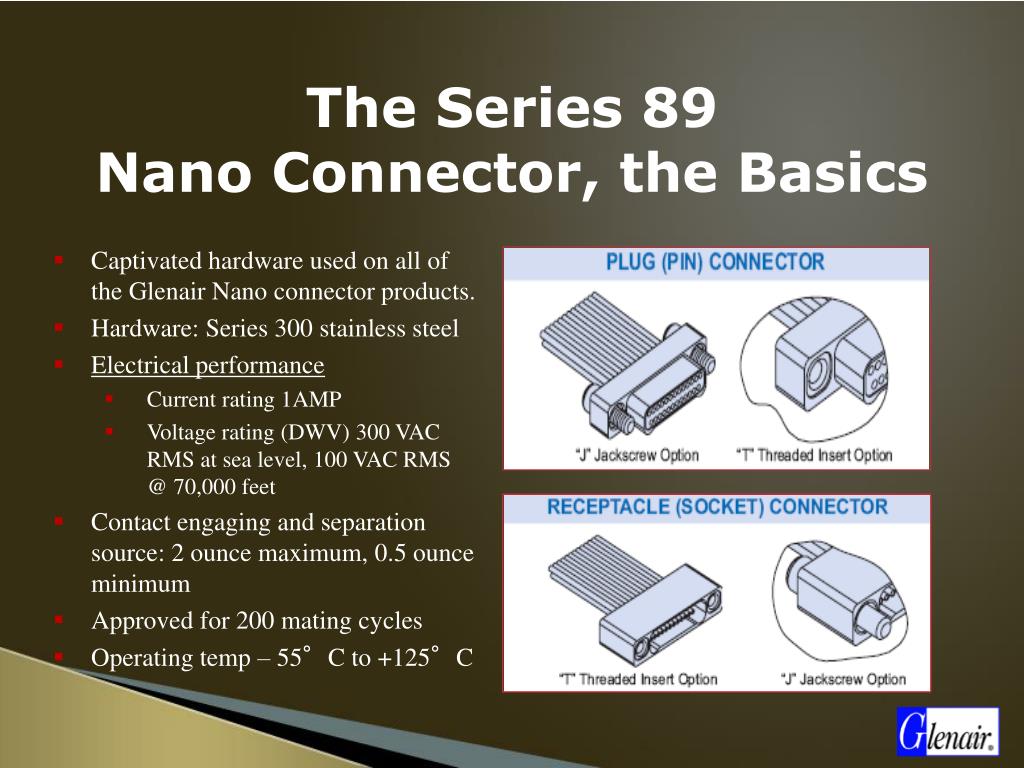

  4. The Series 89 Nano Connector, the Basics • Captivated hardware used on all of the Glenair Nano connector products. • Hardware: Series 300 stainless steel • Electrical performance • Current rating 1AMP • Voltage rating (DWV) 300 VAC RMS at sea level, 100 VAC RMS @ 70,000 feet • Contact engaging and separation source: 2 ounce maximum, 0.5 ounce minimum • Approved for 200 mating cycles • Operating temp – 55°C to +125°C

  5. Series 89 Nano ConnectorsAvailable in Shell Sizes 9 to 51

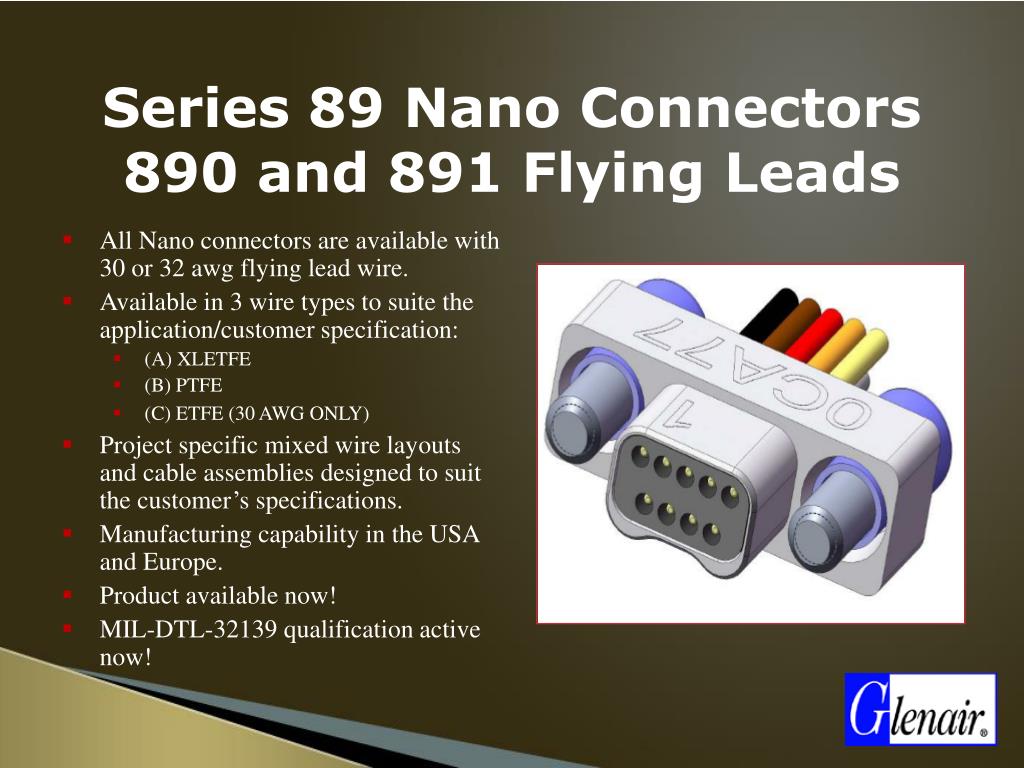

  6. Series 89 Nano Connectors890 and 891 Flying Leads • All Nano connectors are available with 30 or 32 awg flying lead wire. • Available in 3 wire types to suite the application/customer specification: • (A) XLETFE • (B) PTFE • (C) ETFE (30 AWG ONLY) • Project specific mixed wire layouts and cable assemblies designed to suit the customer’s specifications. • Manufacturing capability in the USA and Europe. • Product available now! • MIL-DTL-32139 qualification active now!

  7. Series 89 Nano Connectors890 and 891 Un-Insulated Wire • Ideal for customers who want to terminate their own wire or flexi circuit assembly. • 30 or 32 awg Solid wire (gold plated) Available. • Available in all layouts and shell materials. • Product available now!

  8. Series 89 Nano Connectors890 and 891 Jumper Cables • Ideal for connecting PCB’s or internal sub modules • Easy to specify part number system • All Nano connectors are available with 30 or 32 awg wire. • Available in 3 wire types to suite the application/customer specification. • Project specific mixed wire layout cable assemblies designed and built to the customer’s specifications. • Manufacturing capability in the USA & Europe • Product available now!

  9. Series 89 Nano Connectors890 and 891 Through Hole PCB Mount Connectors • The Glenair Series 89 Nano connector is available in vertical and right angle PCB mount variants. • All shell sizes available • Please note that you can order any through hole PCB mount Nano with jackscrews – for flexi circuit mounting • Product available now!

  10. Series 89 Nano Connectors890 and 891 Surface Mount Connectors • The Glenair Series 89 Surface mount PCB connector range is available in vertical or right angle mount formats • All shell sizes available • SMT tooling/fixture program almost complete • Product available on a 12 to 14 week lead time. • Design-it in now!

  11. Series 89 Nano Connectors891 Straddle Mount Connectors • The 891 straddle mount Nano connector has been designed to allow the customer to terminate flexi circuits, PCB’s and flexi rigid’s to the Nano connector • Available only in the 891 shell style (2 row) • Tooling program on-going • Lead time in the region of 14 to 16 weeks (as of today). • Consult the factory if an improved lead time is required by your customer. • Design-it in now!

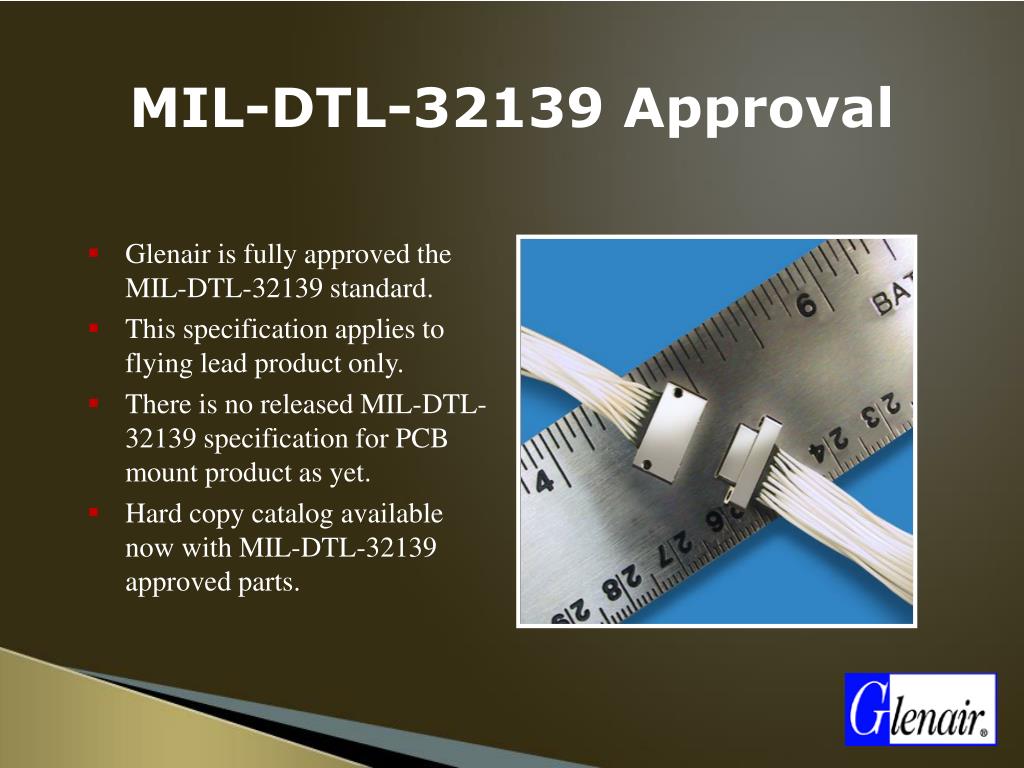

  12. MIL-DTL-32139 Approval • Glenair is fully approved the MIL-DTL-32139 standard. • This specification applies to flying lead product only. • There is no released MIL-DTL-32139 specification for PCB mount product as yet. • Hard copy catalog available now with MIL-DTL-32139 approved parts.

  13. Glenair is MIL-DTL-32139 Approved Glenair is MIL-DTL-32139 Qualified

  14. How to Order /01 and /02 Single Row MIL-DTL-32139

  15. How to Order /03 and /04 Double Row MIL-DTL-32139

  16. Manufacturing Capability • Our Nano connector range is being built not only in the USA but also in Europe to support local contract, design and specification needs. • Our Mansfield, UK facility will concentrate on building flying lead cable assemblies and Nano flexi assemblies for the European market. • Printed circuit board product will continue to be built in the USA.

  17. Series 89 Project Specific Nano Connector Designs • Glenair UK is the world leader in the design and manufacture of project specific Nano connector assemblies. • Glenair UK has over 15 years experience in developing custom Nano connector assemblies to meet the needs of the market. • Both factories are open for business to support cable and flex project designs.

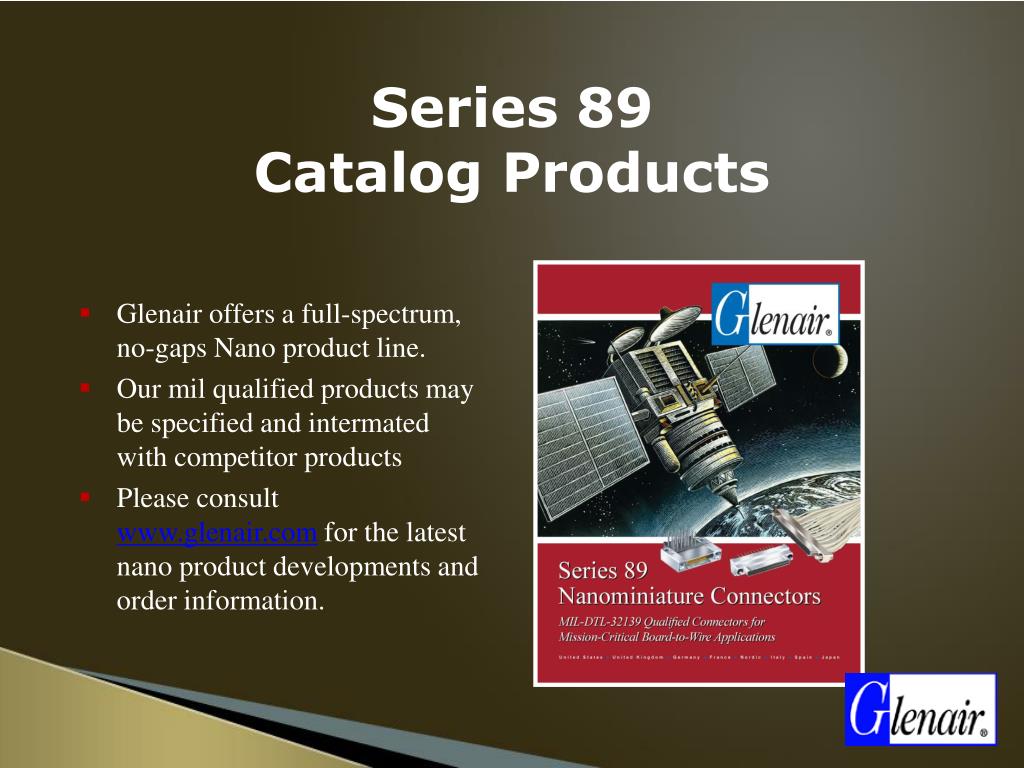

  18. Series 89 Catalog Products • Glenair offers a full-spectrum, no-gaps Nano product line. • Our mil qualified products may be specified and intermated with competitor products • Please consult www.glenair.com for the latest nano product developments and order information.
