Presentation Transcript
slide1

Milk procurement route optimisation

using GIS in a farmers’ dairy organisation

Subir Mitra

Sr. Manager

NDDB, Anand

[email protected]

Darsh Worah

Dy. Manager

NDDB, Anand

[email protected]

Mena Paghadar

Dy. Manager

NDDB, Anand

[email protected]

milk procurement system in a typical farmers dairy organisation

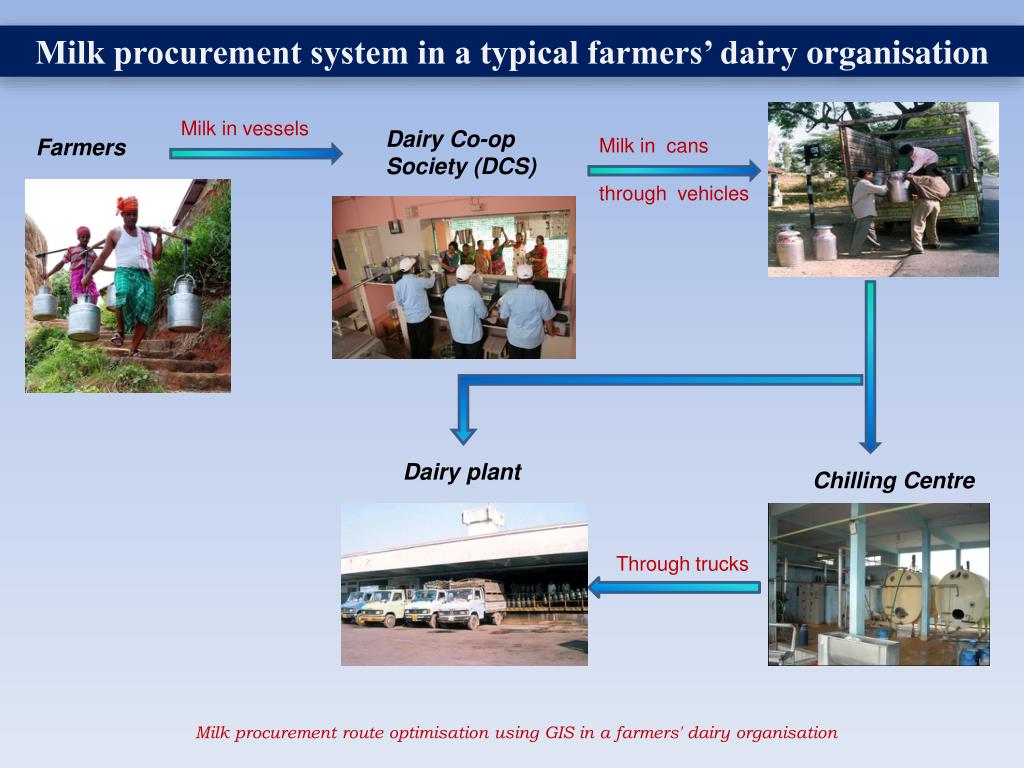

Milk procurement system in a typical farmers’ dairy organisation

Milk in vessels

Milk in cans

through vehicles

Farmers

Dairy Co-op Society (DCS)

Chilling Centre

Dairy plant

Through trucks

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide3

Present case study

  • A typical milk union in Maharashtra
  • 138 pick up points
  • Milk collected in two shifts
  • Routing is manually planned
  • Farthest point first

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide4

Vehicle types and their carrying capacity

  • Tata 407 = 44 cans
  • Mahindra max = 40 cans
  • Minidor = 20 cans
  • Rickshaw = 8 cans
  • * each can of 40 lit capacity.

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide5

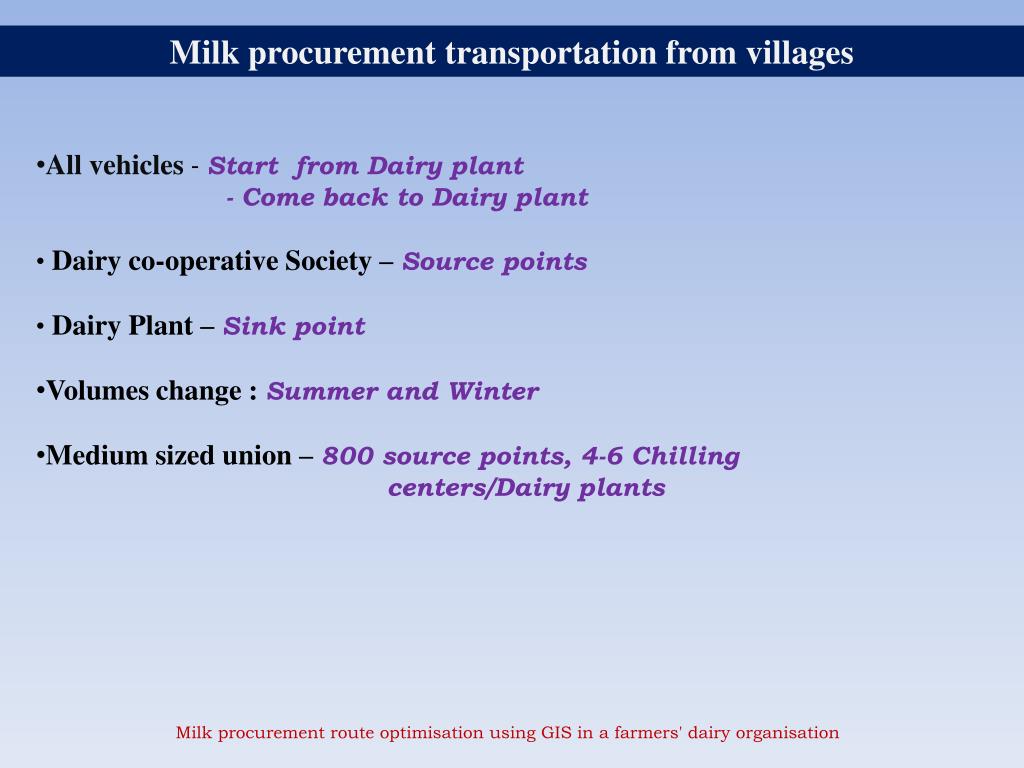

Milk procurement transportation from villages

  • All vehicles -Start from Dairy plant
  • - Come back to Dairy plant
  • Dairy co-operative Society – Source points
  • Dairy Plant – Sink point
  • Volumes change : Summer and Winter
  • Medium sized union – 800 source points, 4-6 Chilling centers/Dairy plants

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide6

Our objective…

  • Efficient transport system
  • Minimise transportation cost
  • Validating current routes
  • Scope of improvement
  • Quicker planning

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide7

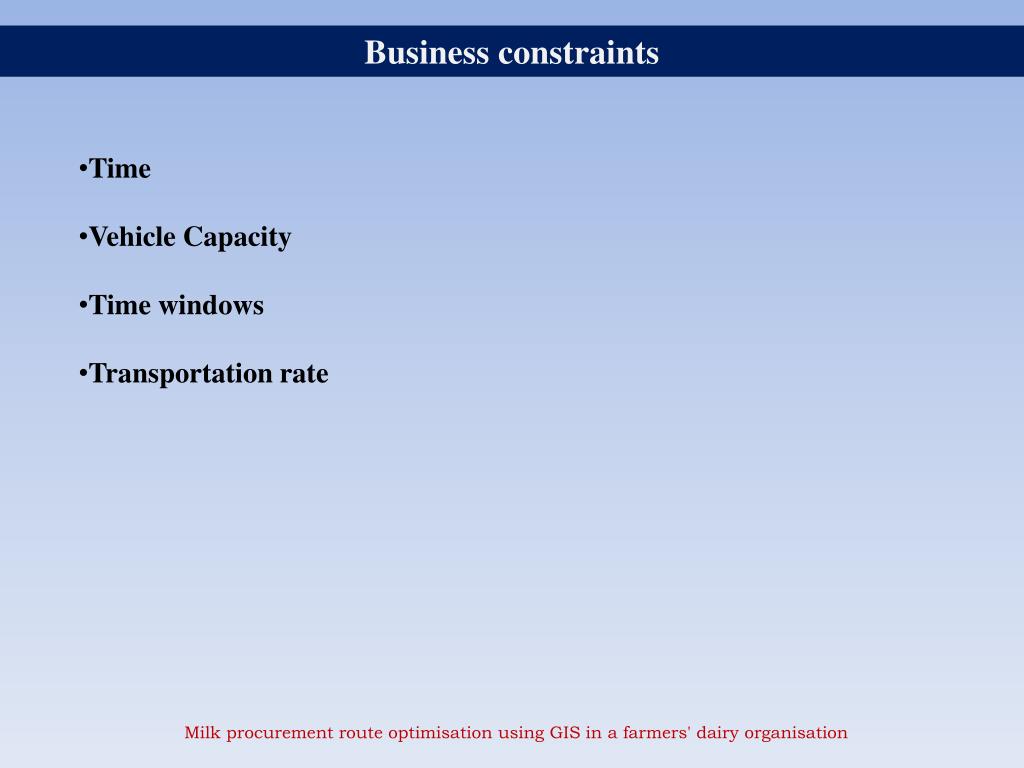

Business constraints

  • Time
  • Vehicle Capacity
  • Time windows
  • Transportation rate

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide8

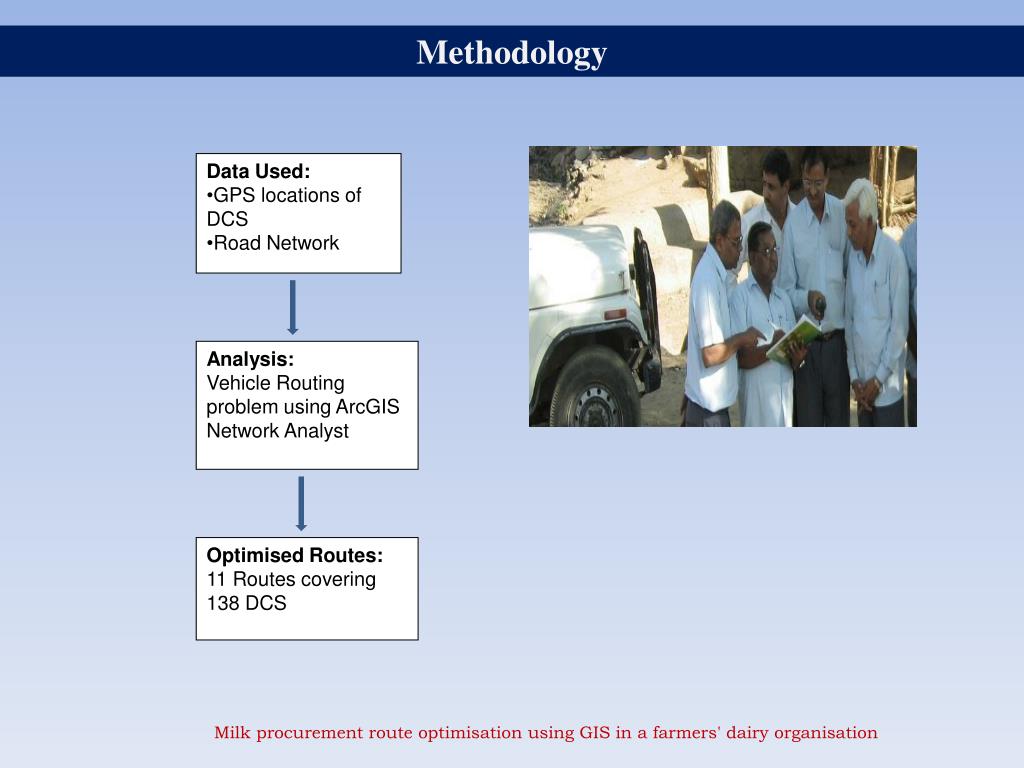

Methodology

  • Data Used:
  • GPS locations of DCS
  • Road Network

Analysis:

Vehicle Routing problem using ArcGIS Network Analyst

Optimised Routes:

11 Routes covering 138 DCS

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide9

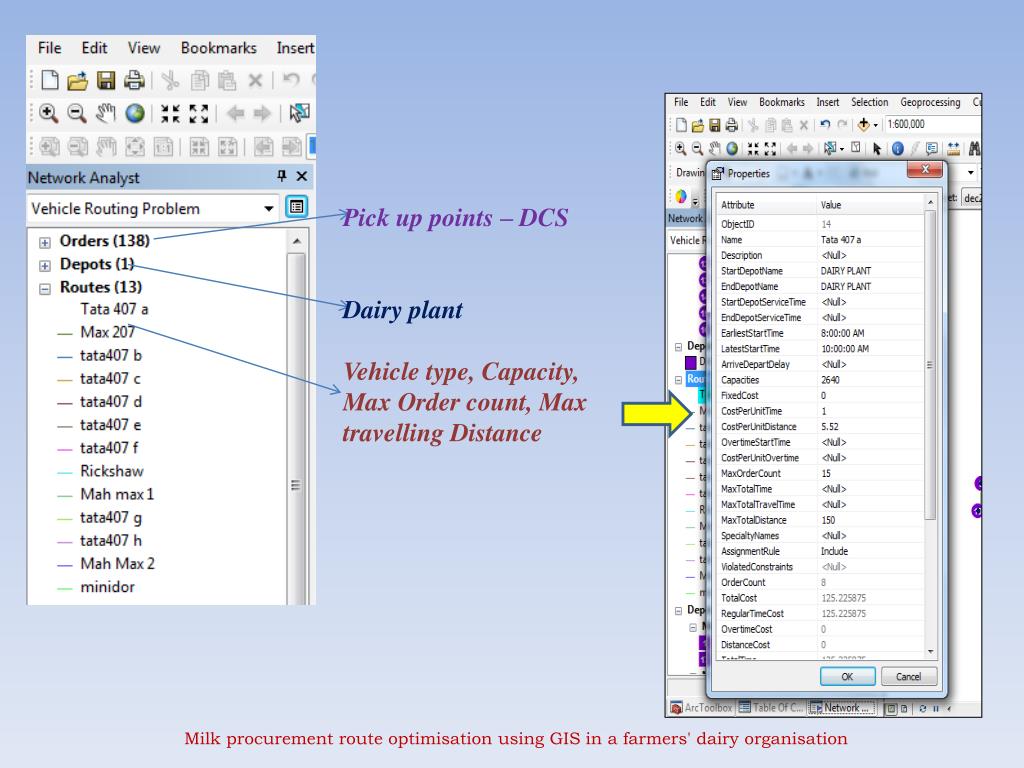

Pick up points – DCS

Dairy plant

Vehicle type, Capacity, Max Order count, Max travelling Distance

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide10

Dairy plant and DCS locations

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide11

Existing Routes

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide12

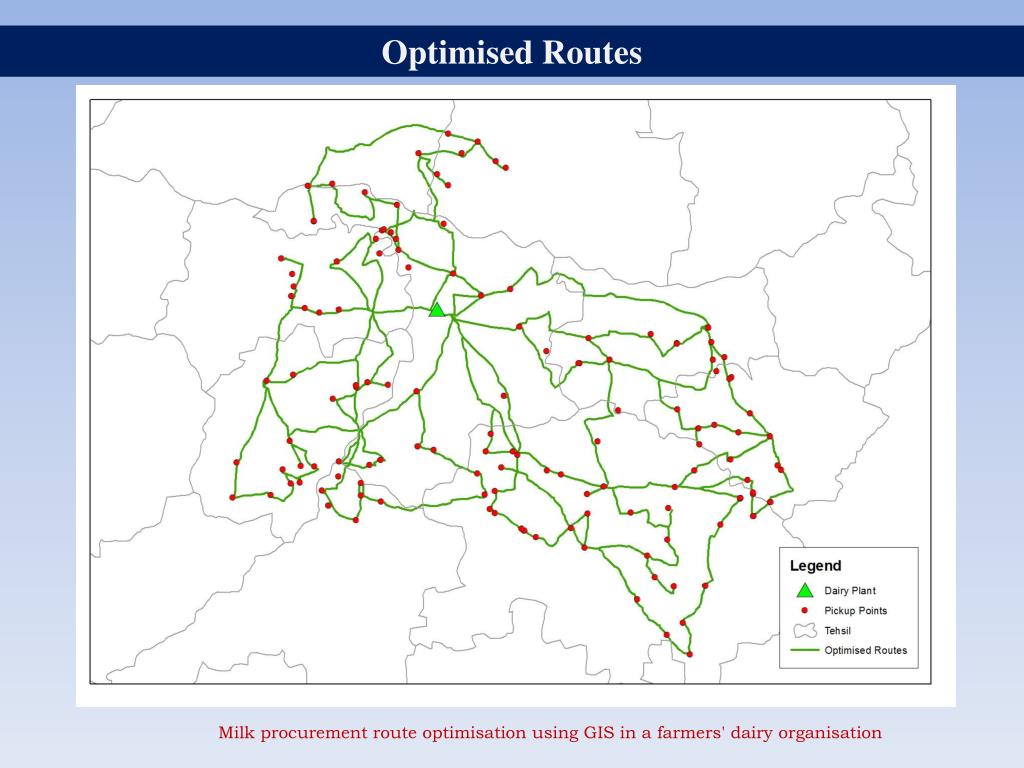

Optimised Routes

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide13

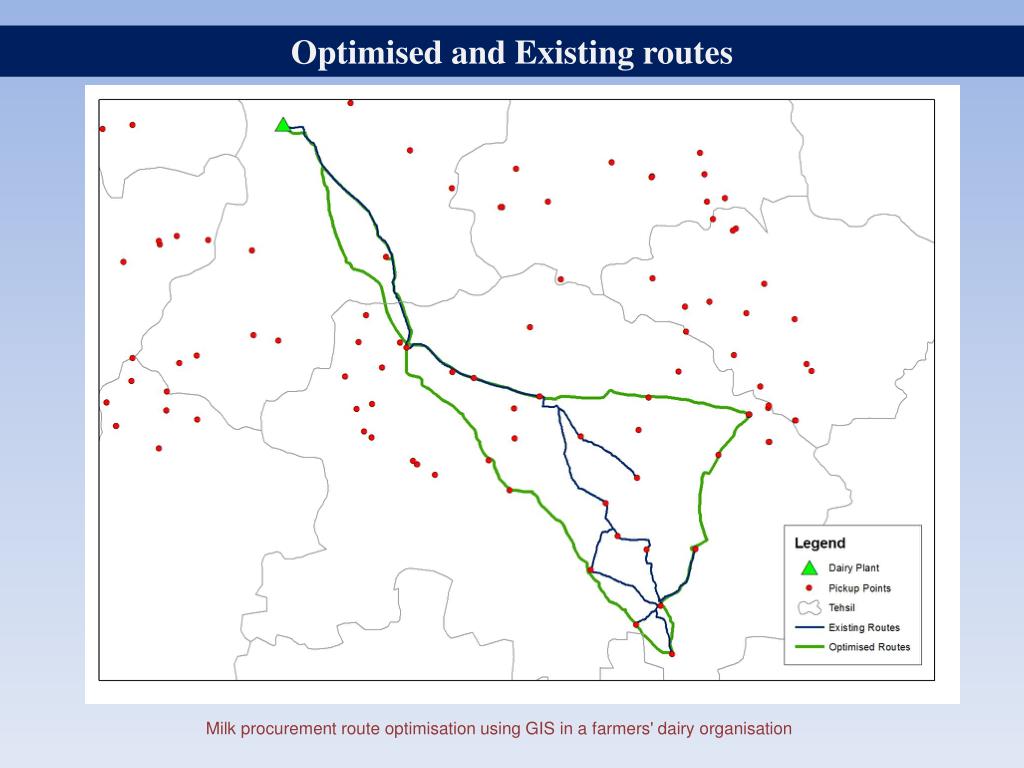

Optimised and Existing routes

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide14

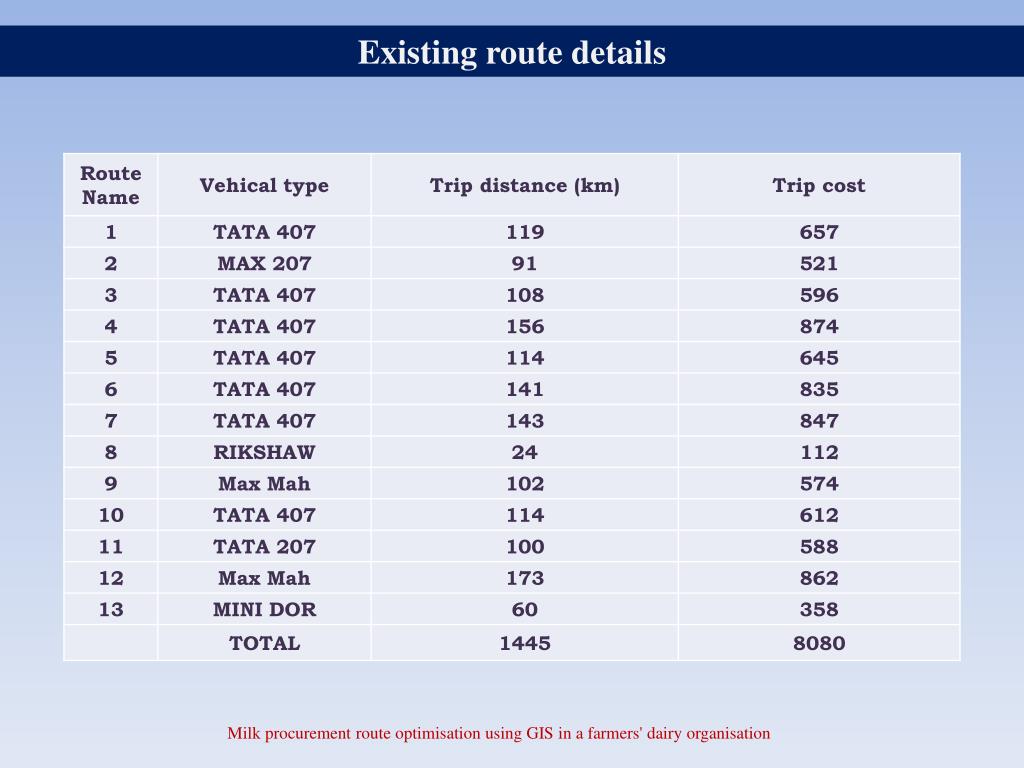

Existing route details

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide15

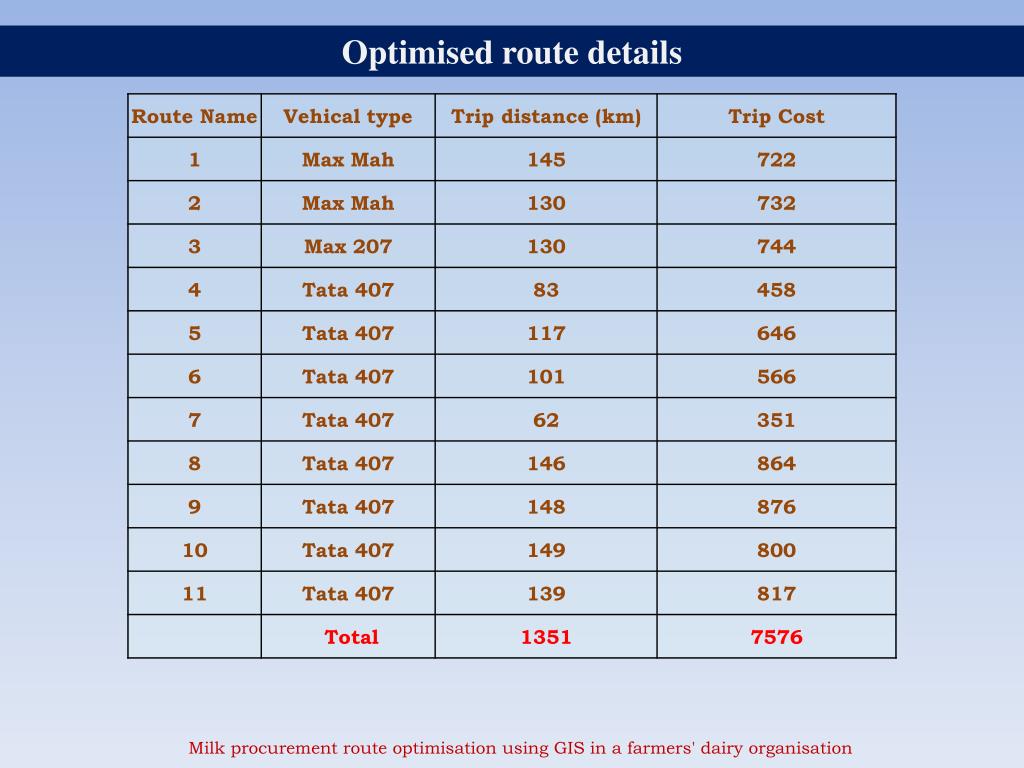

Optimised route details

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide16

Results

EXISTING ROUTES:

No of Routes : 13

Total length : 1445 km / Shift

Cost of transportation : 0.75 Rs/lit

Annual transportation cost : 59 lakh

OPTIMISED ROUTES:

No of Routes : 11

Total length: 1350 km/shift

Cost of transportation: 0.70 Rs/lit

Annual transportation cost : 55.3 lakh

Annual savings of Rs. 3.7 lakh

6 % savings on annual basis

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide17

Conclusion

  • GIS Technology for Farmers’ organisation
  • Initial hand holding and training required
  • Better road network – Better optimisation

Milk procurement route optimisation using GIS in a farmers\' dairy organisation

slide18

Questions?

Comments..

Suggestions….

Milk procurement route optimisation using GIS in a farmers\' dairy organisation
