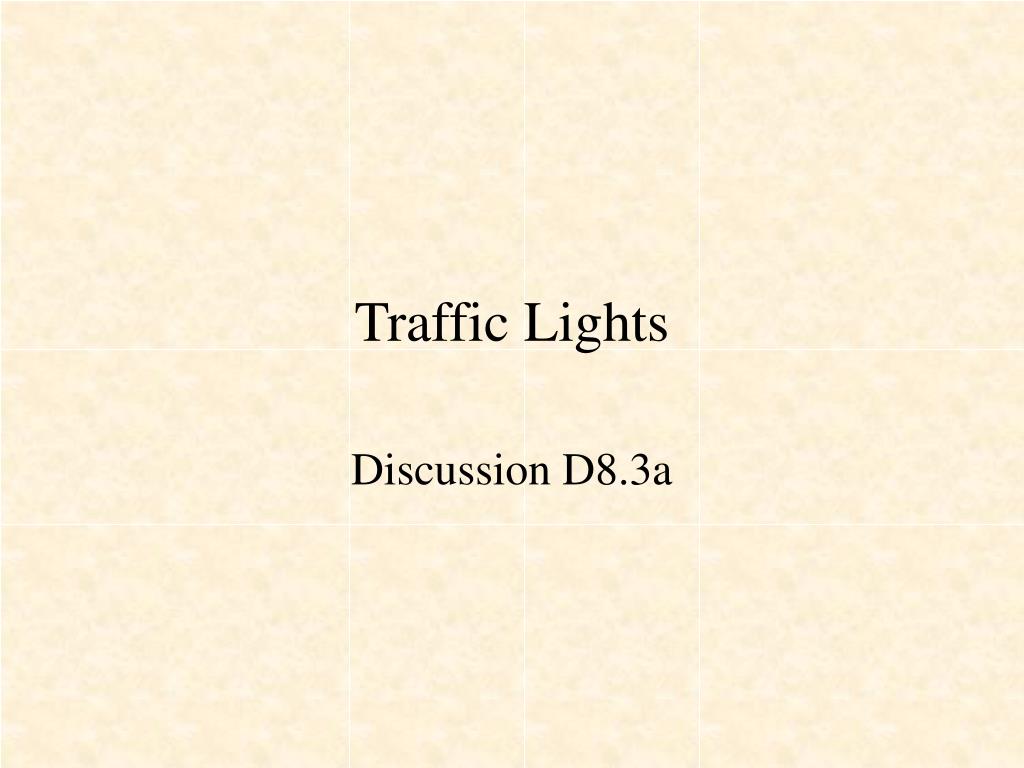

  1. Traffic Lights Discussion D8.3a

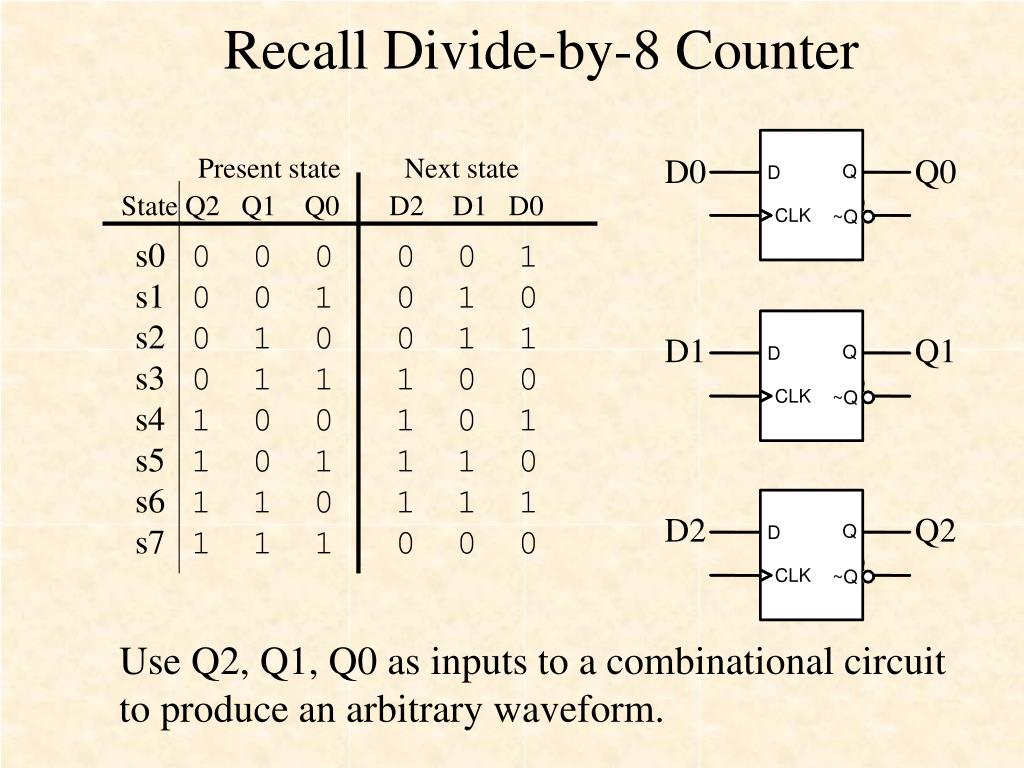

  2. Present state Next state State Q2 Q1 Q0 D2 D1 D0 D0 Q0 s0 0 0 0 0 0 1 s1 0 0 1 0 1 0 s2 0 1 0 0 1 1 s3 0 1 1 1 0 0 s4 1 0 0 1 0 1 s5 1 0 1 1 1 0 s6 1 1 0 1 1 1 s7 1 1 1 0 0 0 D1 Q1 D2 Q2 Recall Divide-by-8 Counter Use Q2, Q1, Q0 as inputs to a combinational circuit to produce an arbitrary waveform.

  3. Blink State Q2 Q1 Q0 D2 D1 D0 y s0 0 0 0 0 0 1 1 s1 0 0 1 0 1 0 1 s2 0 1 0 0 1 1 0 s3 0 1 1 1 0 0 1 s4 1 0 0 1 0 1 0 s5 1 0 1 1 1 0 1 s6 1 1 0 1 1 1 0 s7 1 1 1 0 0 0 0

  4. lights.v module lights ( clr ,RYG ,clk ); input clr ; // pushbutton switch S4 - pin 69 wire clr ; input clk ; // 1 Hz clock - pin 12 wire clk ; output [5:0] RYG ; // RYGRYG reg [5:0] RYG ; reg [3:0] Q; // 4-bit counter always @(posedge clk or posedge clr) if(clr == 1) Q <= 0; else Q <= Q + 1;

  5. lights.v // Traffic lights always @(Q[3:1]) case(Q[3:1]) // RYGRYG 0: RYG = 6'b001100; 1: RYG = 6'b001100; 2: RYG = 6'b010100; 3: RYG = 6'b100100; 4: RYG = 6'b100001; 5: RYG = 6'b100001; 6: RYG = 6'b100010; 7: RYG = 6'b100100; default: RYG = 6'b001100; endcase endmodule

  6. lights.ucf #PACE: Start of PACE I/O Pin Assignments NET "clk" LOC = "p12" ; NET "clr" LOC = "p69" ; NET "RYG<0>" LOC = "p32" ; NET "RYG<1>" LOC = "p31" ; NET "RYG<2>" LOC = "p26" ; NET "RYG<3>" LOC = "p25" ; NET "RYG<4>" LOC = "p20" ; NET "RYG<5>" LOC = "p13" ;

  7. G3VM-61A1 MOS FET Relay

  8. Silicon-Controlled Rectifier (SCR) Text: Section 11-12, pages 446 - 449

  9. Triac

  10. Using an AC Relay
