Presentation Transcript


Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

Description of weakly bound nuclei with PTG/HFB and Gamow/HFB approaches

Nicolas Michel(ESNT/SPhN/CEA)

Kenichi Matsuyanagi (Kyoto University)

Mario Stoitsov (ORNL – University of Tennessee)


Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

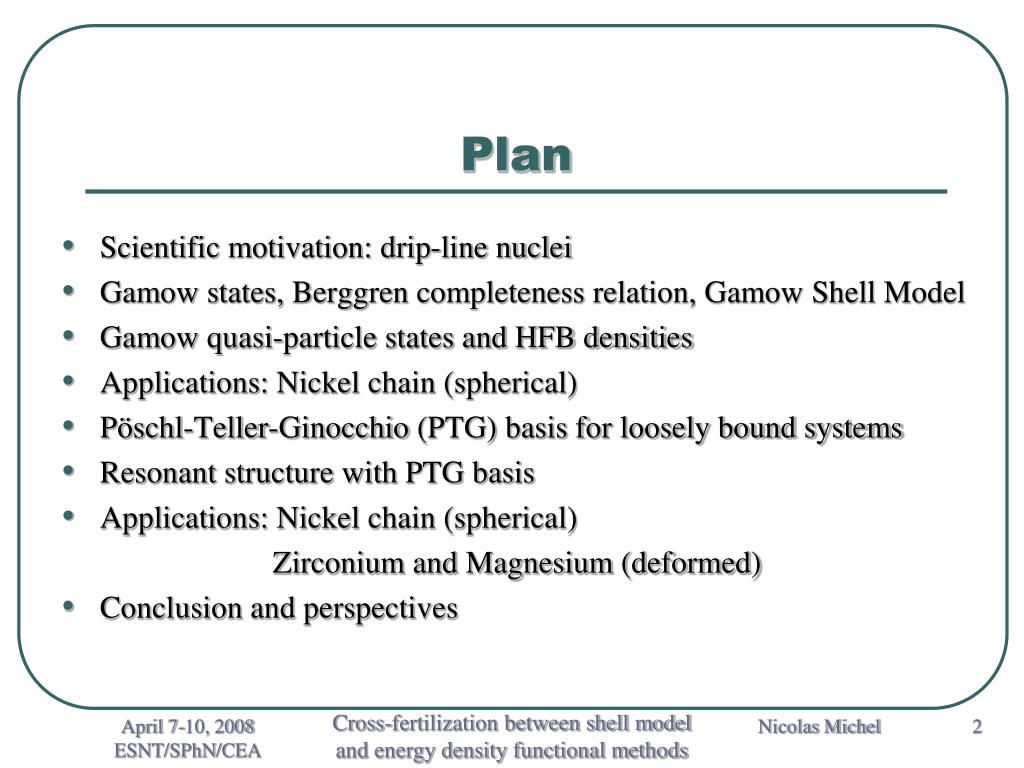

Plan

  • Scientific motivation: drip-line nuclei

  • Gamow states, Berggren completeness relation, Gamow Shell Model

  • Gamow quasi-particle states and HFB densities

  • Applications: Nickel chain (spherical)

  • Pöschl-Teller-Ginocchio (PTG) basis for loosely bound systems

  • Resonant structure with PTG basis

  • Applications: Nickel chain (spherical)

    Zirconium and Magnesium (deformed)

  • Conclusion and perspectives


Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

Scientific motivation


Gamow states

Gamow states

  • Georg Gamow : a decay

    G.A. Gamow, Zs f. Phys. 51 (1928) 204; 52 (1928) 510

  • Definition :


Complex scaling method

Complex scaling method

  • Radial integral calculation : complex scaling

  • Analytic continuation : integral independent of R and θ

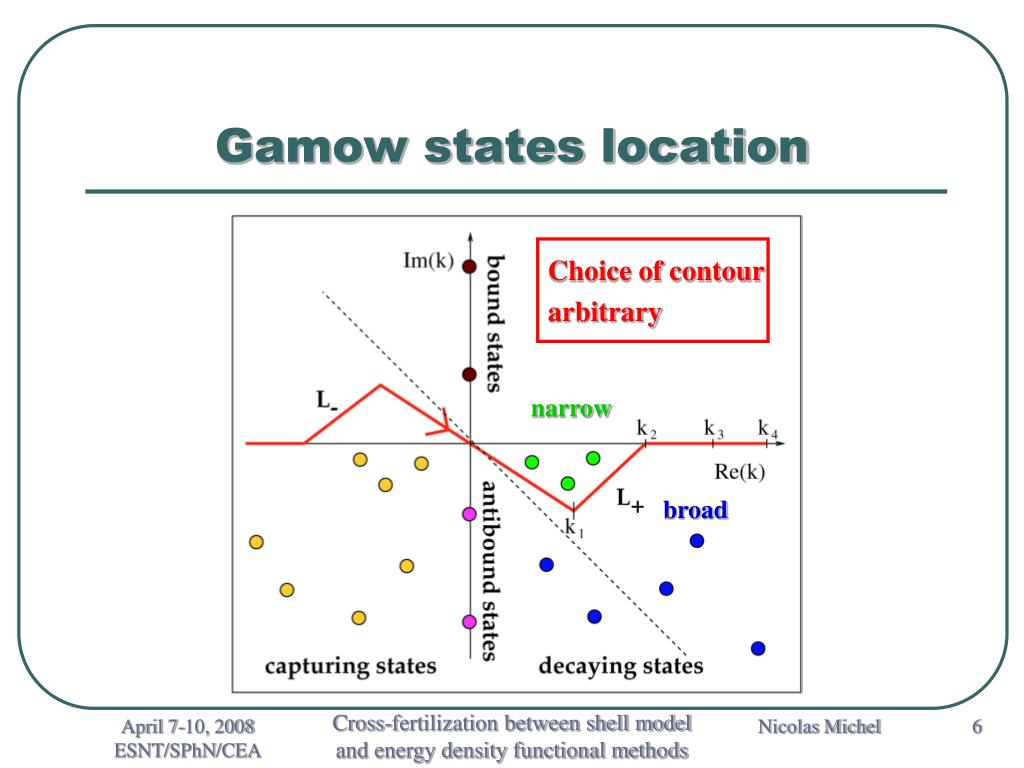

Gamow states location

Gamow states location

Choice of contour

arbitrary

narrow

broad

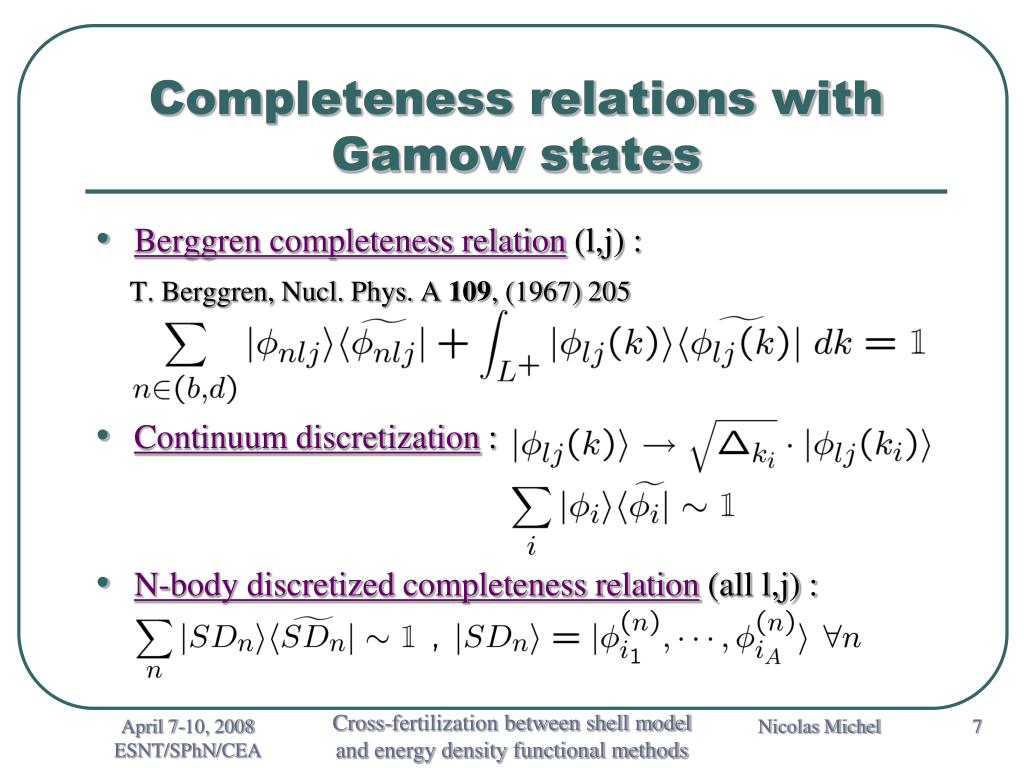

Completeness relations with gamow states

Completeness relations with Gamow states

  • Berggren completeness relation (l,j) :

    T. Berggren, Nucl. Phys. A 109, (1967) 205

  • Continuum discretization :

  • N-body discretized completeness relation (all l,j) :

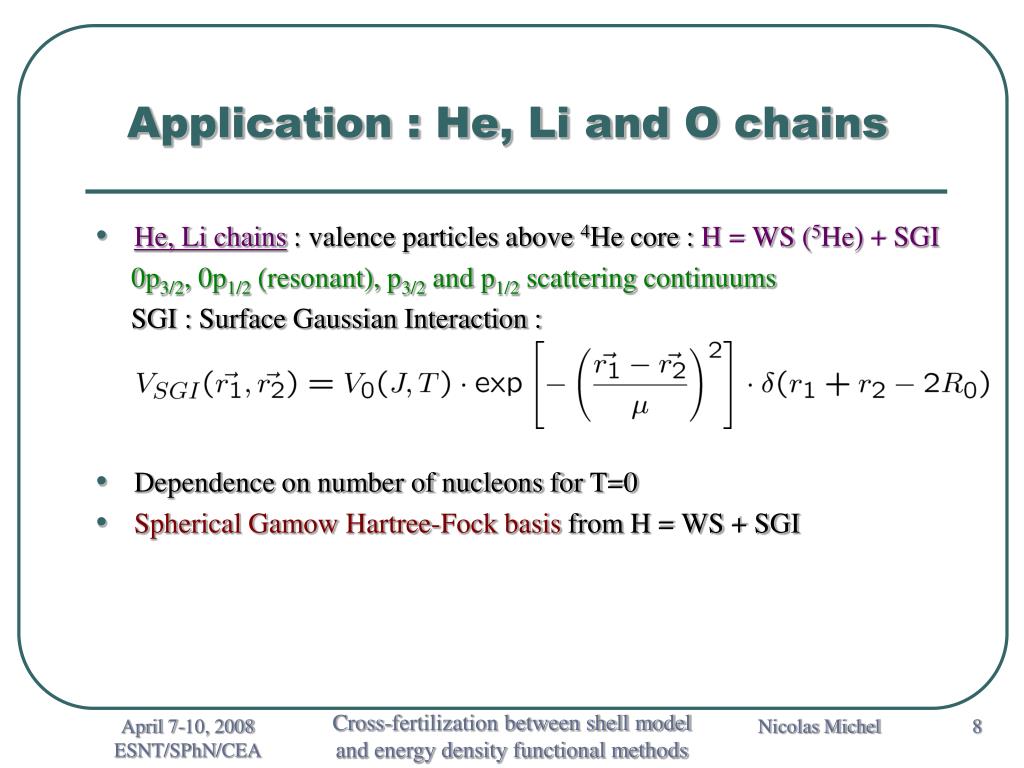

Application he li and o chains

Application : He, Li and O chains

  • He, Li chains : valence particles above 4Hecore : H = WS (5He) + SGI

    0p3/2, 0p1/2 (resonant), p3/2 and p1/2 scattering continuums

    SGI : Surface Gaussian Interaction :

  • Dependence on number of nucleons for T=0

  • Spherical Gamow Hartree-Fock basis from H = WS + SGI


Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

N. Michel et al.,

Phys. Rev C, 67 054311 (2003)

Rev. Mex. Fis., 50 S2 74 (2004)

Helium anomaly

reproduced

Bound from unbound basis


Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

Halo density


Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

N. Michel et al., Phys. Rev. C 70, 064313 (2004)

Satisfactory

results

(schematic model)

S-components

missing

E (MeV)

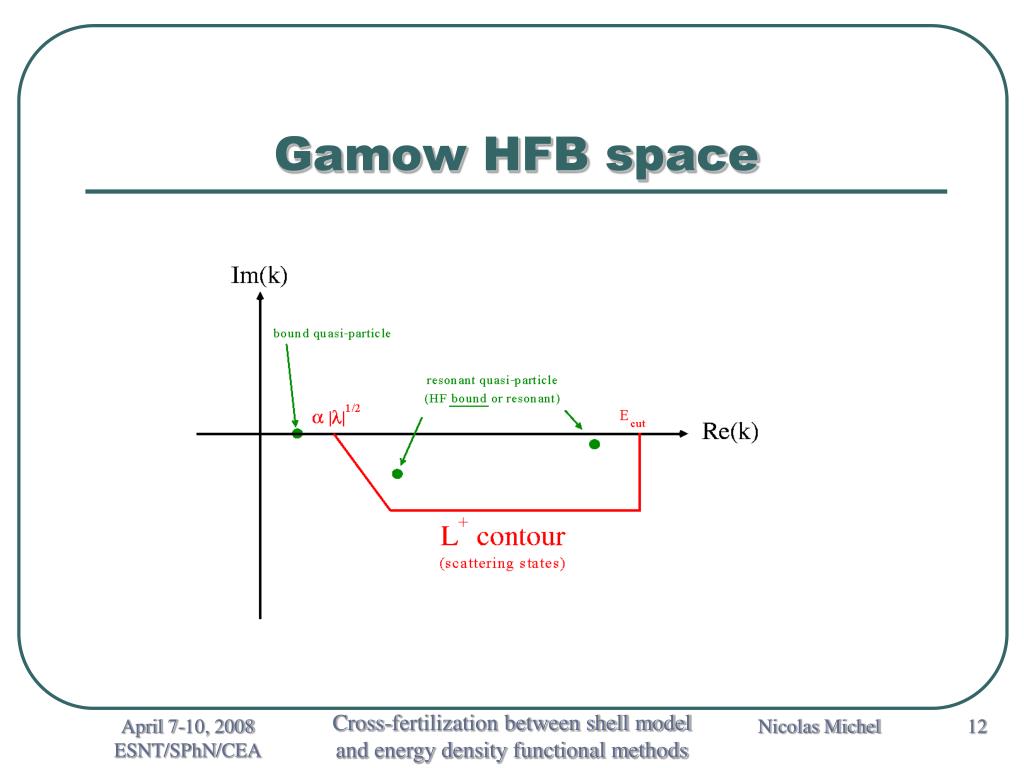

Gamow hfb space

Gamow HFB space


Densities with gamow hfb

Densities with Gamow HFB

  • HFB equations:

  • Complex particle and pairing densities:

  • HF associated bound and narrow resonant states in discrete sum

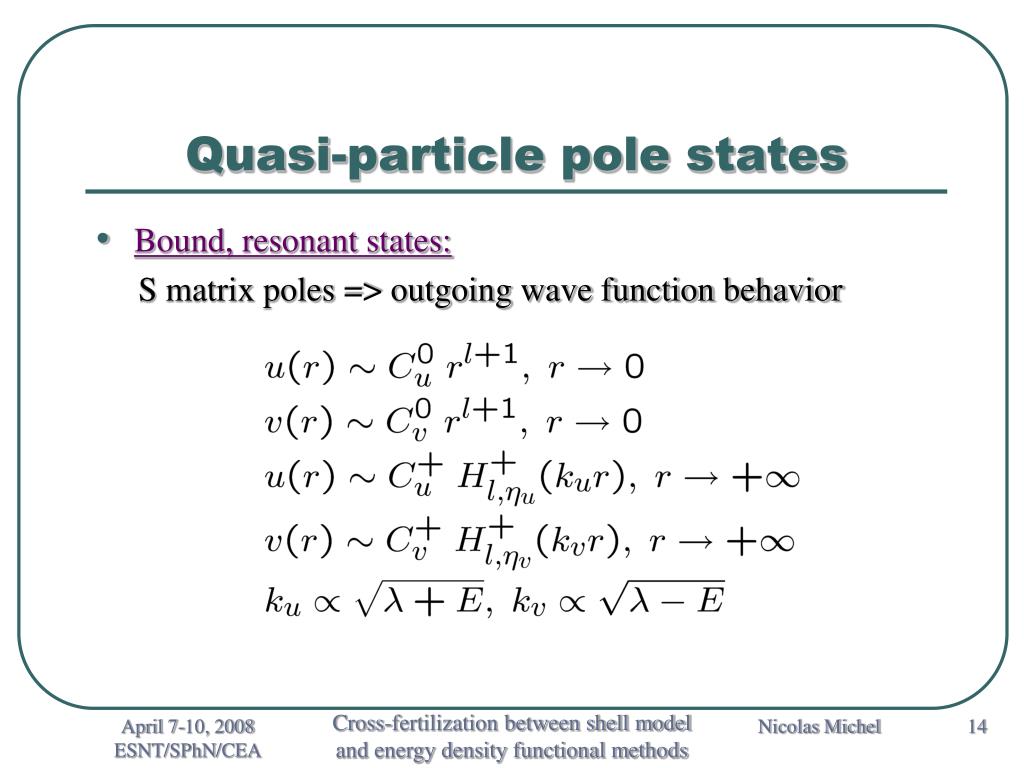

Quasi particle pole states

Quasi-particle pole states

  • Bound, resonant states:

    S matrix poles => outgoing wave function behavior

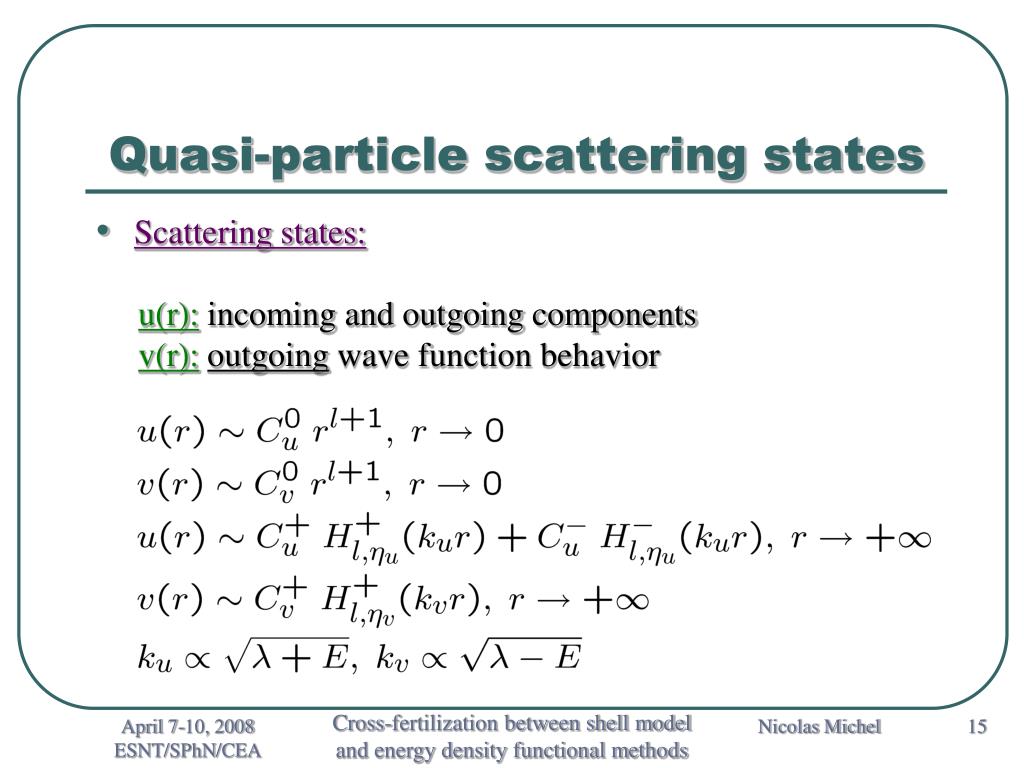

Quasi particle scattering states

Quasi-particle scattering states

  • Scattering states:

    u(r):incoming and outgoing components

    v(r):outgoing wave function behavior


Gamow quasi particle states norm

Gamow quasi-particle states norm

  • Normalization:

    S-matrix poles:complex scaling

    Scattering states: Dirac delta normalization

    Continuum discretization:

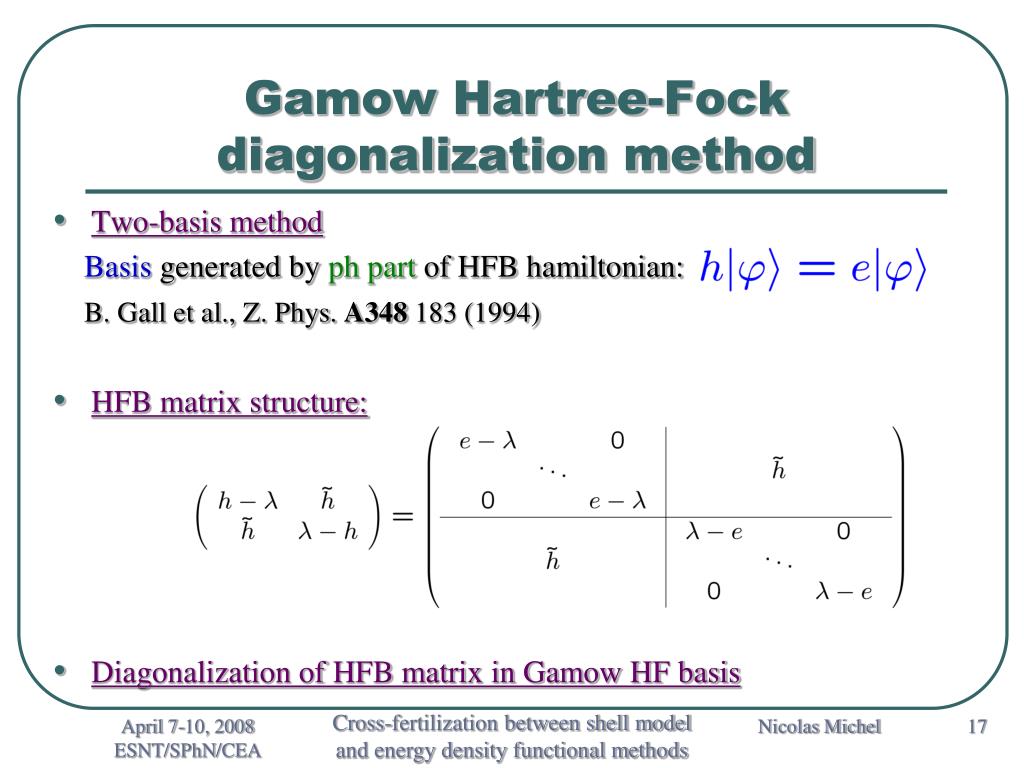

Gamow hartree fock diagonalization method

Gamow Hartree-Fock diagonalization method

  • Two-basis method

    Basisgenerated by ph part of HFB hamiltonian:

    B. Gall et al., Z. Phys. A348 183 (1994)

  • HFB matrix structure:

  • Diagonalization of HFB matrix in Gamow HF basis


Description of nickel calculations

Description of Nickel calculations

  • Considered nuclei:84Ni, 86Ni, 88Ni, 90Ni

  • Interaction and space:

    Skyrme interaction: Sly4, Ecut = 60 MeV, l: 0 →10

    Rcut = 20 fm, kmax = 4 fm-1, Nscat (l,j) = 100 for GHF basis.

  • Interest:Resonant structure directly put in HFB basis

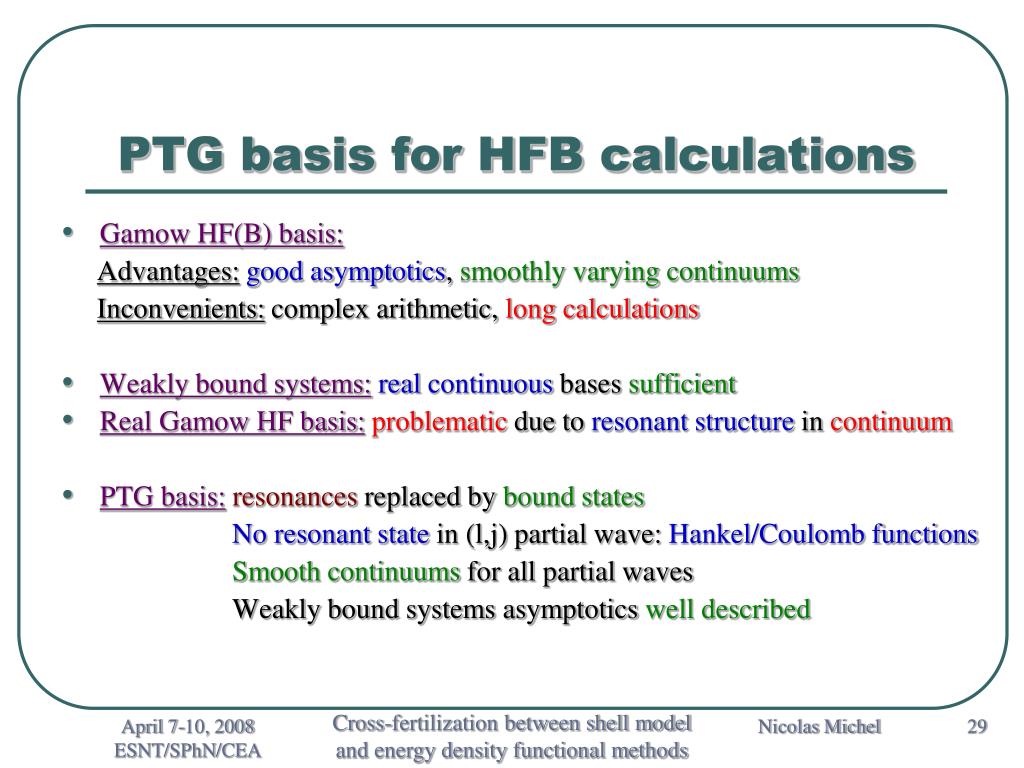

Ptg basis for hfb calculations

PTG basis for HFB calculations

  • Gamow HF(B) basis:

    Advantages:good asymptotics, smoothly varying continuums

    Inconvenients: complex arithmetic, long calculations

  • Weakly bound systems:realcontinuous bases sufficient

  • Real Gamow HF basis:problematic due to resonant structure in continuum

  • PTG basis:resonances replaced by bound states

    No resonant state in (l,j) partial wave: Hankel/Coulomb functions

    Smooth continuums for all partial waves

    Weakly bound systems asymptotics well described

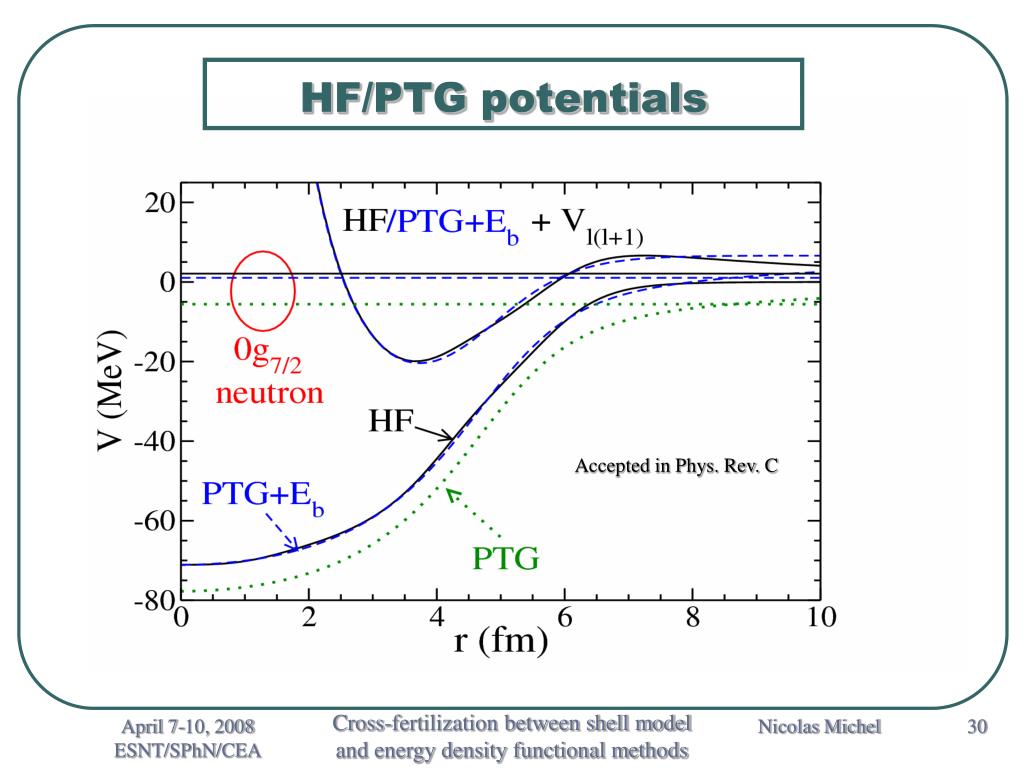

Hf ptg potentials

HF/PTG potentials

Accepted in Phys. Rev. C


Hf ptg wave functions

HF/PTG wave functions

---- : PTG

: HF

r (fm)

Accepted in Phys. Rev. C


Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

---- : PTG p

---- : PTG n

: Box p

: Box n

.… : HO

r (fm)

r (fm)

Accepted in Phys. Rev. C

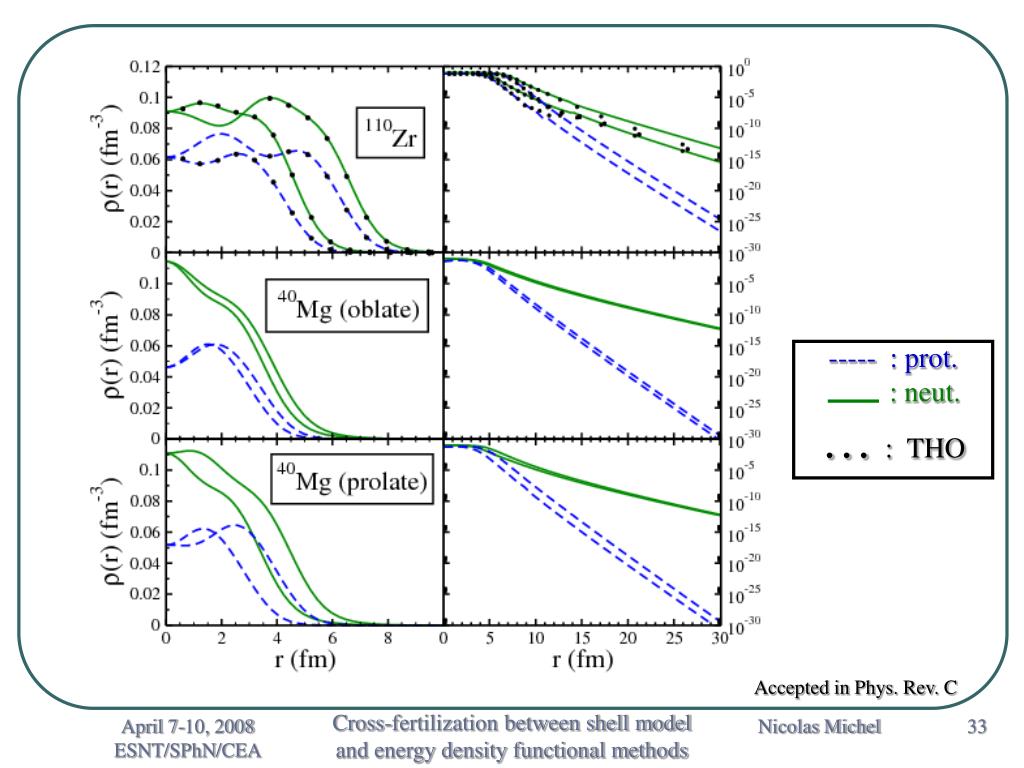

Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

----- : prot.

: neut.

… : THO

Accepted in Phys. Rev. C

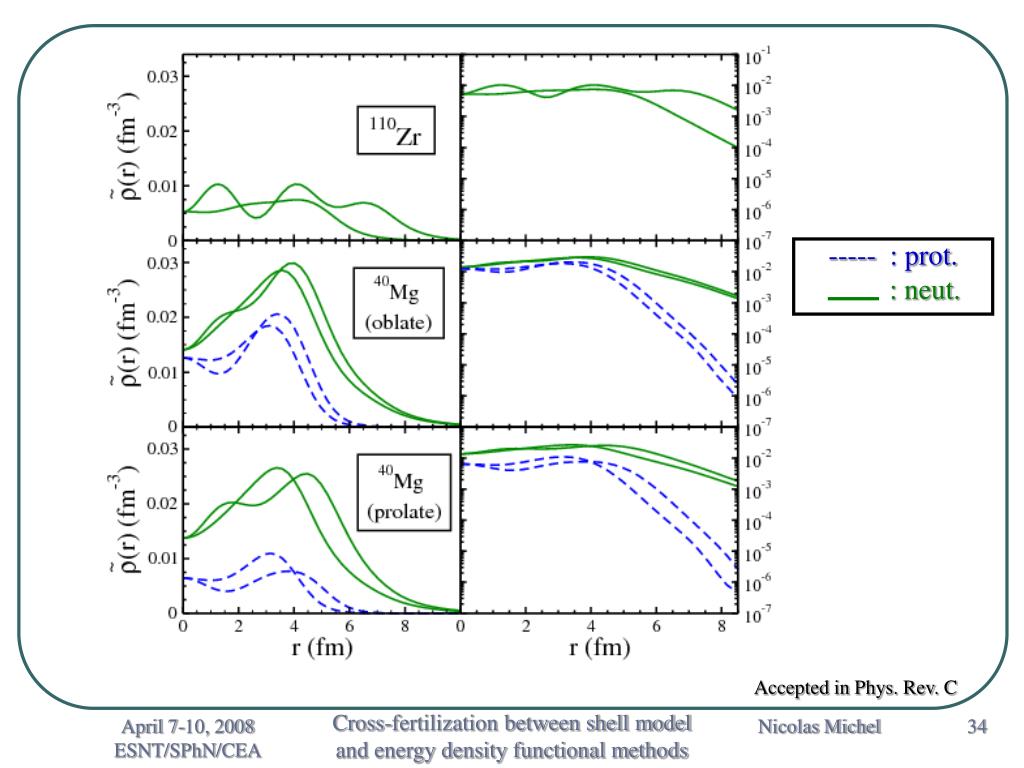

Description of weakly bound nuclei with ptg hfb and gamow hfb approaches

----- : prot.

: neut.

Accepted in Phys. Rev. C

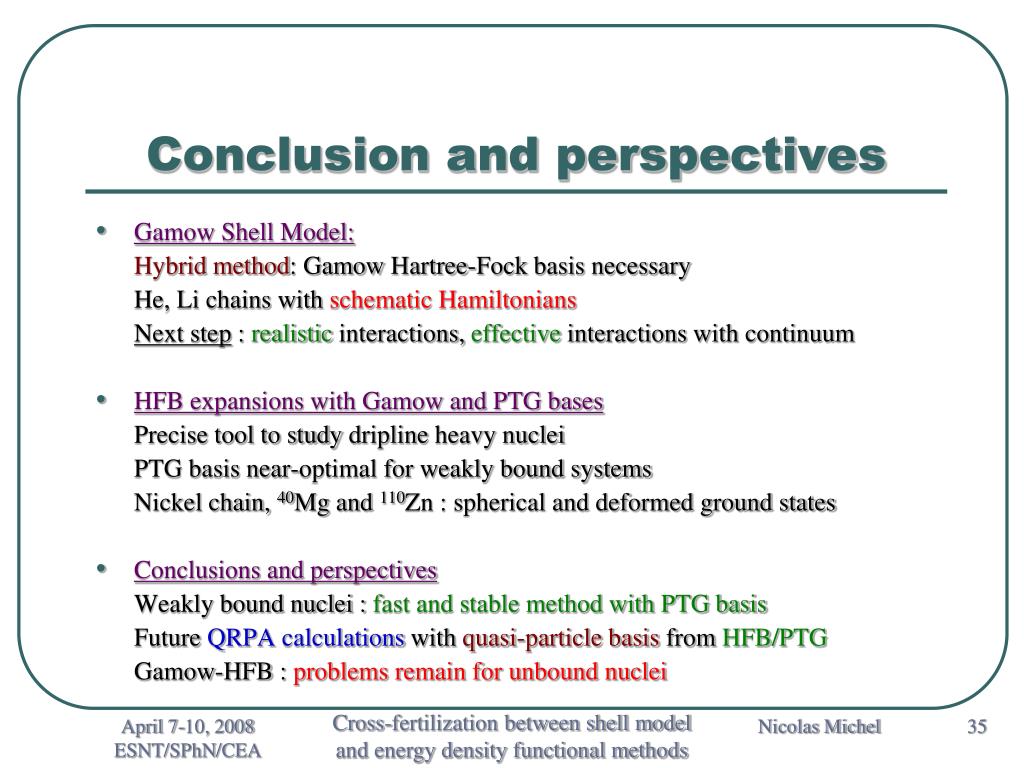

Conclusion and perspectives

Conclusion and perspectives

  • Gamow Shell Model:

    Hybrid method: Gamow Hartree-Fock basis necessary

    He, Li chains with schematic Hamiltonians

    Next step : realistic interactions, effective interactions with continuum

  • HFB expansions with Gamow and PTG bases

    Precise tool to study dripline heavy nuclei

    PTG basis near-optimal for weakly bound systems

    Nickel chain, 40Mg and 110Zn : spherical and deformed ground states

  • Conclusions and perspectives

    Weakly bound nuclei : fast and stable method with PTG basis

    Future QRPAcalculations withquasi-particle basis from HFB/PTG

    Gamow-HFB: problems remain for unbound nuclei
