Presentation Transcript


A signal processing model for arterial spin labeling perfusion fmri

A Signal Processing Model for Arterial Spin Labeling Perfusion fMRI

Thomas Liu and Eric Wong

Center for Functional Magnetic Resonance Imaging

University of California, San Diego


A signal processing model for arterial spin labeling perfusion fmri

Wait

Tag by Magnetic Inversion

Acquire image

Wait

Control

Acquire image

Arterial Spin Labeling (ASL)

1:

2:

Control - Tag µ CBF


A signal processing model for arterial spin labeling perfusion fmri

Goal: Accurately measure dynamic CBF response to neural activity

From C. Iadecola 2004


A signal processing model for arterial spin labeling perfusion fmri

Example:

Perfusion and BOLD in primary and supplementary motor cortex.

Measured with PICORE QII with dual-echo spiral readout.

Obata et al. 2004


Asl data processing

ASL Data Processing

  • CBF = Control - Tag

  • An estimate of the CBF time series is formed from a filtered subtraction of Control and Tag images.

  • Use of subtraction makes CBF signal more insensitive to low-frequency drifts and 1/f noise.


Pairwise subtraction example

Pairwise subtraction example

Control

Tag

+1

-1

+1


Surround subtraction

Surround subtraction

TA = 1 to 4 seconds

Control

Control

Control

Control

Tag

Tag

Tag

+1/2

-1

+1/2

-1/2

1

-1/2

Perfusion Time Series


Generalized running subtraction

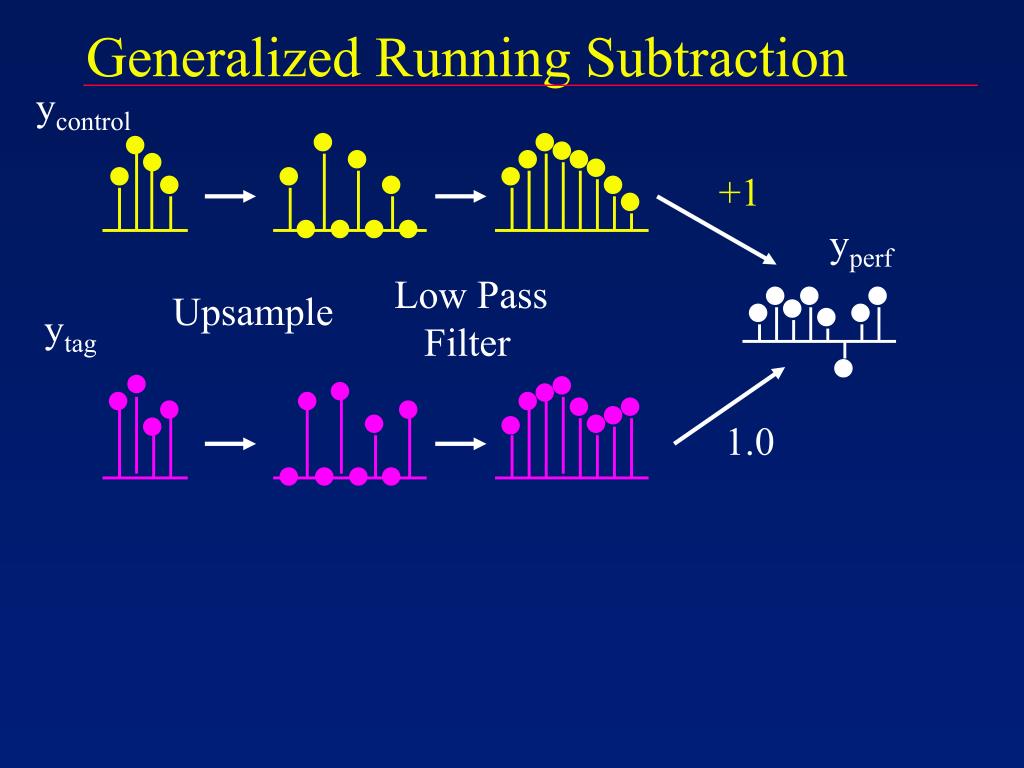

Generalized Running Subtraction

ycontrol

+1

yperf

Low Pass

Filter

Upsample

ytag

1.0


Questions

Questions

  • What is the difference between the various processing schemes?

  • How do they effect the estimate of CBF?

  • What are the noise properties of the estimate?


A signal processing model for arterial spin labeling perfusion fmri

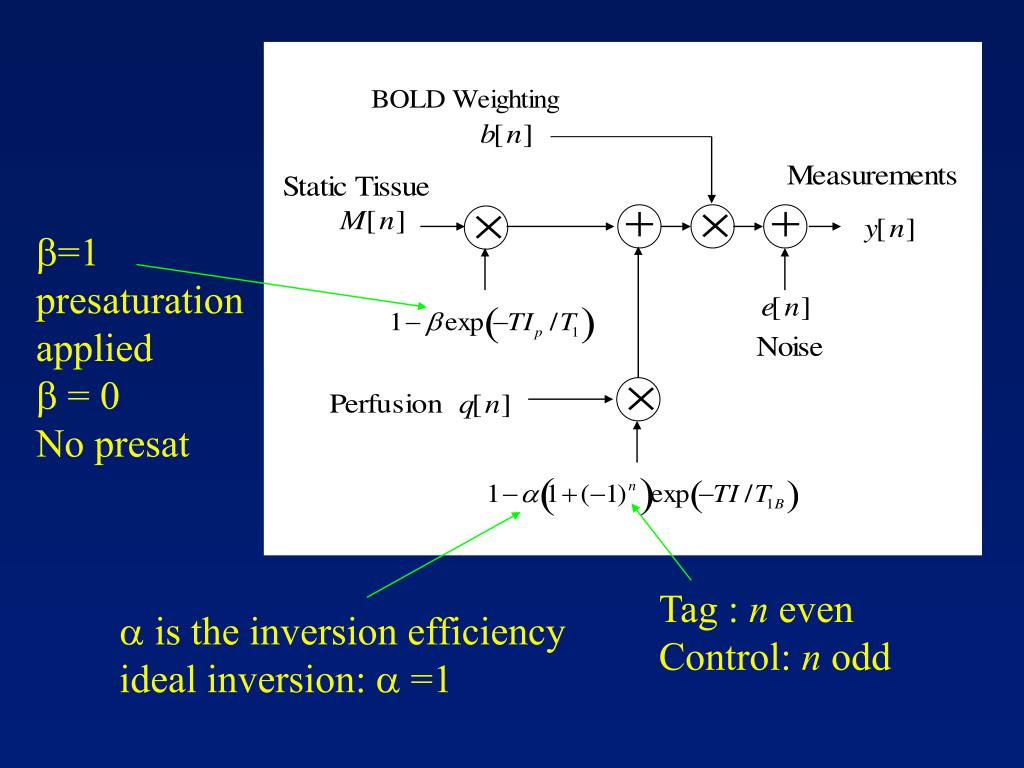

  • =1 presaturation applied

  • = 0

    No presat

Tag : n even

Control: n odd

 is the inversion efficiency ideal inversion:  =1


A signal processing model for arterial spin labeling perfusion fmri

Tag : n even

Control: n odd

Pairwise Subtraction

Surround Subtraction

Sinc Subtraction


A signal processing model for arterial spin labeling perfusion fmri

Demodulate

Modulate


A signal processing model for arterial spin labeling perfusion fmri

Perfusion Estimate

Demodulated and filtered perfusion component

Modulated and filtered BOLD component

Modulated and filtered noise component


A signal processing model for arterial spin labeling perfusion fmri

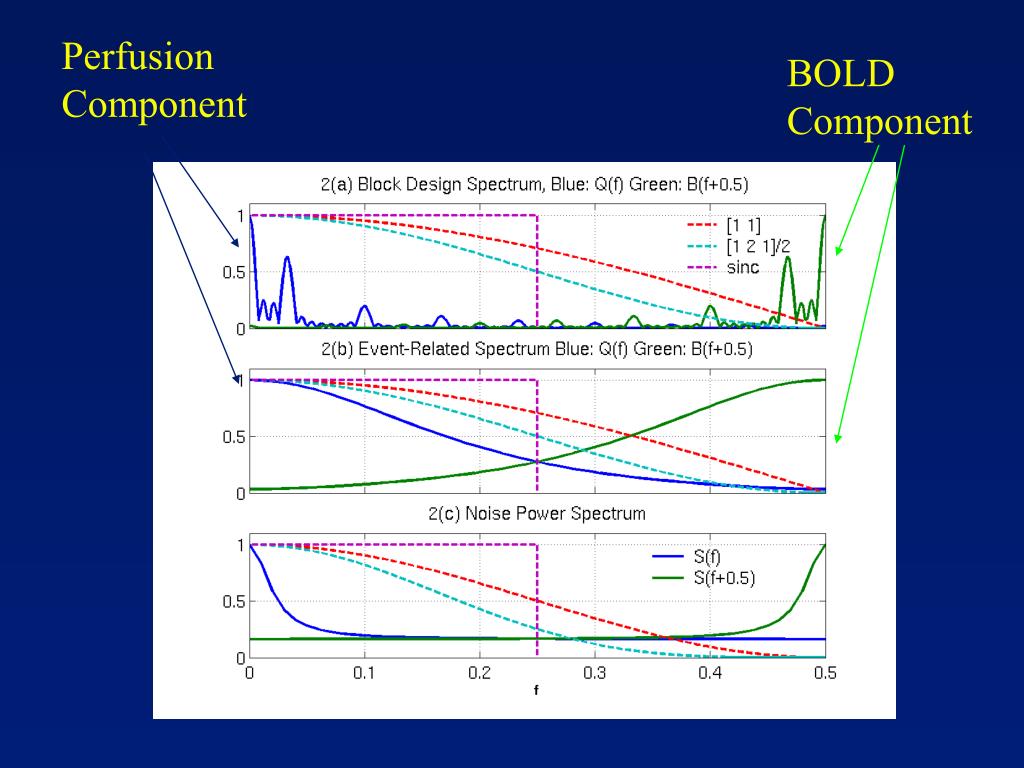

Perfusion Component

BOLD Component

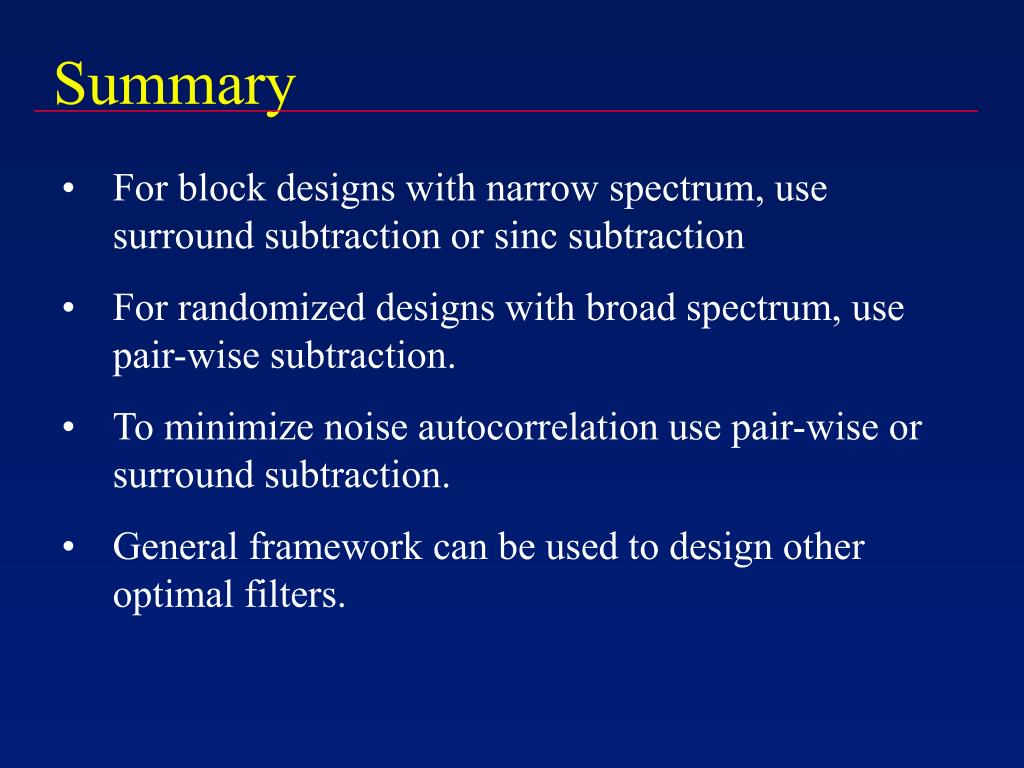

Summary

Summary

  • For block designs with narrow spectrum, use surround subtraction or sinc subtraction

  • For randomized designs with broad spectrum, use pair-wise subtraction.

  • To minimize noise autocorrelation use pair-wise or surround subtraction.

  • General framework can be used to design other optimal filters.
