King fahd university of petroleum minerals

King Fahd University of Petroleum & Minerals

Mechanical Engineering

Dynamics ME 201

BY

Dr. Meyassar N. Al-Haddad

Lecture # 21


Objective

Objective

  • To introduce the concept of angular impulse and momentum.


Definition

Definition

  • Moment = “عزم” = r x F


King fahd university of petroleum minerals

l

l

l

Line of action of the force

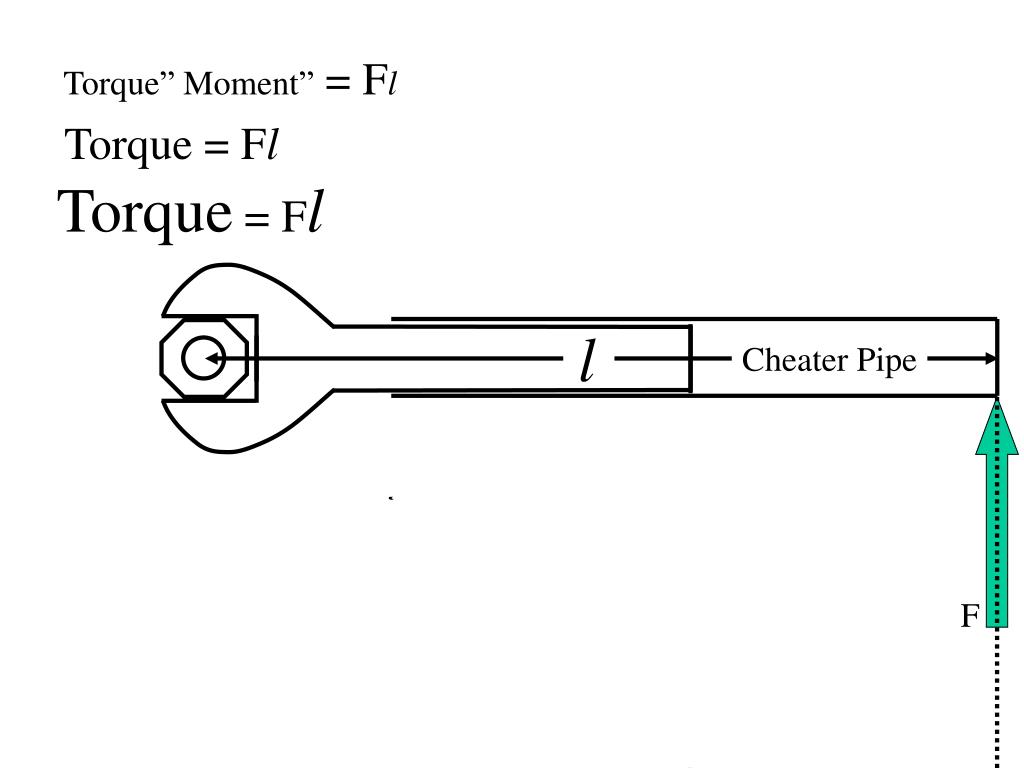

Torque” Moment” = Fl

Torque = Fl

Torque = Fl

Cheater Pipe

F

F

F


King fahd university of petroleum minerals

ANGULAR MOMENTUM

  • Angular momentum about point O is defined as the “moment” of the particle’s linear momentum about O.

  • Angular momentum (Ho) = ( r x mV)

v

m

Units - kg.m2/s or sl.ft2/s

It is a vector.

Here the vector is pointing toward you.

Using right-hand rule

r


King fahd university of petroleum minerals

Angular Momentum


King fahd university of petroleum minerals

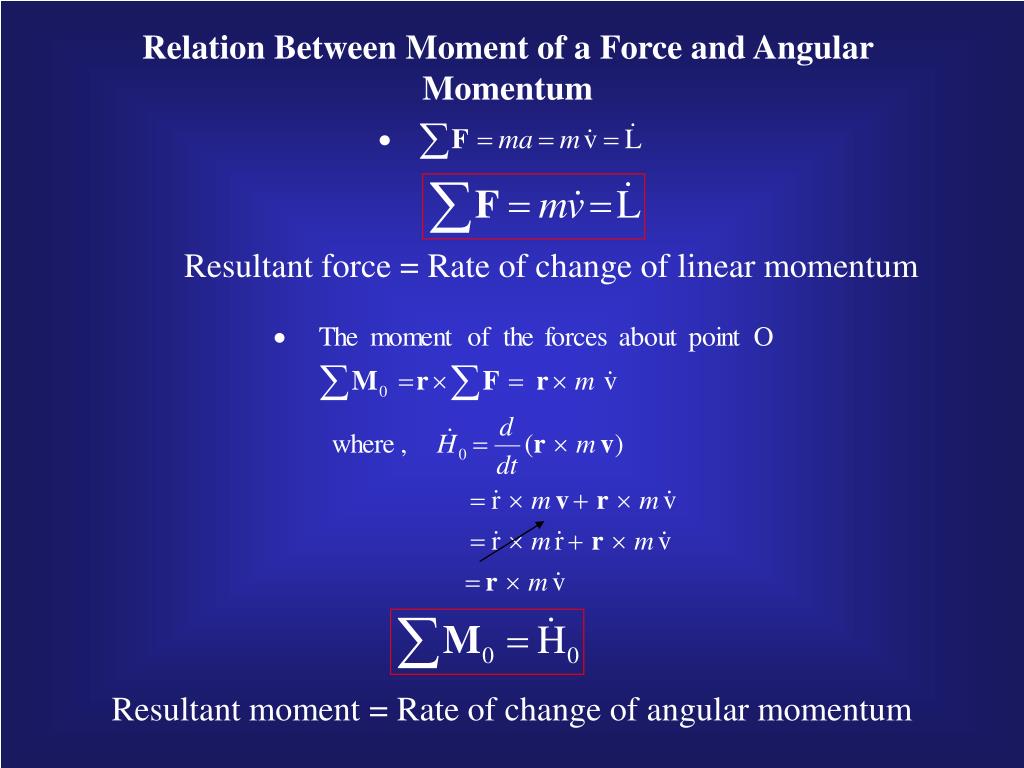

Relation Between Moment of a Force and Angular Momentum

Resultant force = Rate of change of linear momentum

Resultant moment = Rate of change of angular momentum


King fahd university of petroleum minerals

Angular Impulse and Momentum Principles


King fahd university of petroleum minerals

  • Scalar Formulation

  • Conservation of Angular Momentum

  • Angular impulse is zero


King fahd university of petroleum minerals

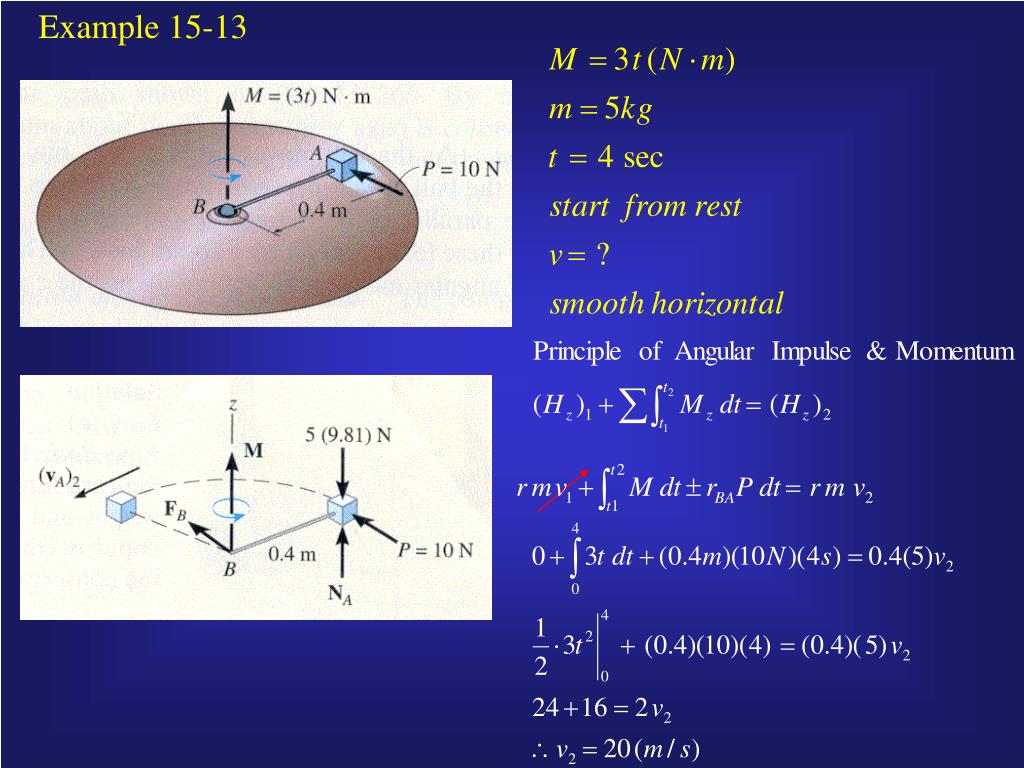

Example 15-13


King fahd university of petroleum minerals

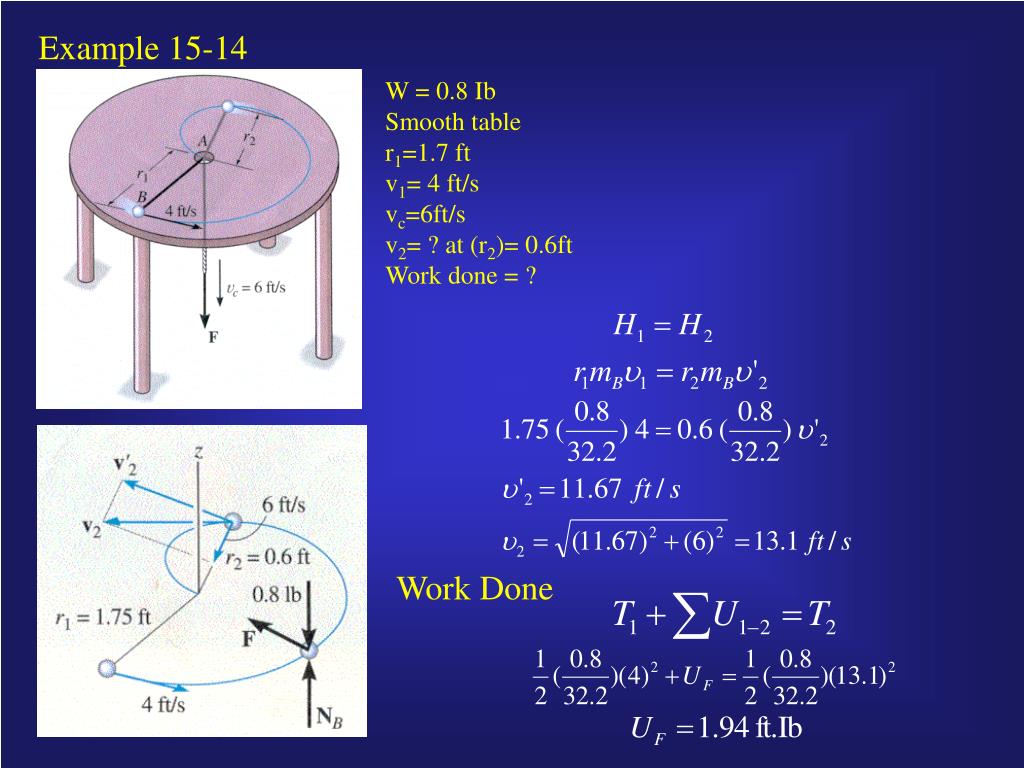

Example 15-14

W = 0.8 Ib

Smooth table

r1=1.7 ft

v1= 4 ft/s

vc=6ft/s

v2= ? at (r2)= 0.6ft

Work done = ?

Work Done


King fahd university of petroleum minerals

Problem 15-101

m = 400 g

v1= 2 m/s

M = 0.6 N.m

v2=?

t = 3 s


King fahd university of petroleum minerals

Problem 102

W = 5-Ib

v1 = 0 ft/s

M = ( 0.5 t + 0.8 ) Ib.ft

v2= ?

t = 4 s


King fahd university of petroleum minerals

Thank You
