소수력 발전기. 극 두께 : 12[mm] 효율 : 94.80[%] 역률 : 0.7531 출력 전력 : 9974.93[w] 입력 전력 : 10521.6[w] 적층 : 240[mm] 공극 : 1[mm]. 18 극 30 슬롯 권선 두께 1.5[mm] 7 가닥 30 턴 고정자 외경 : 280[mm] 내경 : 192[mm] 회전자 외경 : 190[mm] 내경 : 50[mm]. 18 극 단층 ( 적층 : 240, 턴수 :30 턴 , 공극 : 1, 마그넷 두께 : 12).

Download Presentation

소수력 발전기

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


5589620

소수력 발전기

극 두께 : 12[mm]

효율 : 94.80[%]

역률 : 0.7531

출력 전력 :9974.93[w]

입력 전력 : 10521.6[w]

적층: 240[mm]

공극: 1[mm]

  • 18극 30슬롯

  • 권선 두께 1.5[mm] 7가닥 30턴

  • 고정자

  • 외경 : 280[mm]

  • 내경: 192[mm]

  • 회전자

  • 외경 : 190[mm]

  • 내경: 50[mm]


18 240 30 1 12

18극단층 (적층: 240, 턴수:30턴,공극: 1, 마그넷 두께 : 12)

ANSOFT

37.50

Winding currents under Load

Winding Voltages under Load

Curve Info

Phase Current ia

25.00

Phase Current ib

12.50

Phase Current ic

(Amperes)

0.00

-12.50

-25.00

-37.50

0.00

125.00

250.00

375.00

Electric Degree

ANSOFT

500.00

Curve Info

Phase Voltage va

Line Voltage vab

250.00

(Volts)

0.00

-250.00

-500.00

0.00

125.00

250.00

375.00

Electric Degree


5589620

소수력 발전기

극 두께 : 15[mm]

효율 : 94.91[%]

역률 : 0.7531

출력 전력 :10639.9[w]

입력 전력 : 11209.7[w]

적층: 240[mm]

공극: 1[mm]

  • 18극 30슬롯

  • 권선 두께 1.5[mm] 7가닥 30턴

  • 고정자

  • 외경 : 280[mm]

  • 내경: 192[mm]

  • 회전자

  • 외경 : 190[mm]

  • 내경: 50[mm]


18 240 30 1 15

ANSOFT

40.00

Curve Info

Phase Current ia

Phase Current ib

20.00

Phase Current ic

(Amperes)

0.00

-20.00

-40.00

0.00

125.00

250.00

375.00

Electric Degree

ANSOFT

500.00

Curve Info

Phase Voltage va

Line Voltage vab

250.00

(Volts)

0.00

-250.00

-500.00

0.00

125.00

250.00

375.00

Electric Degree

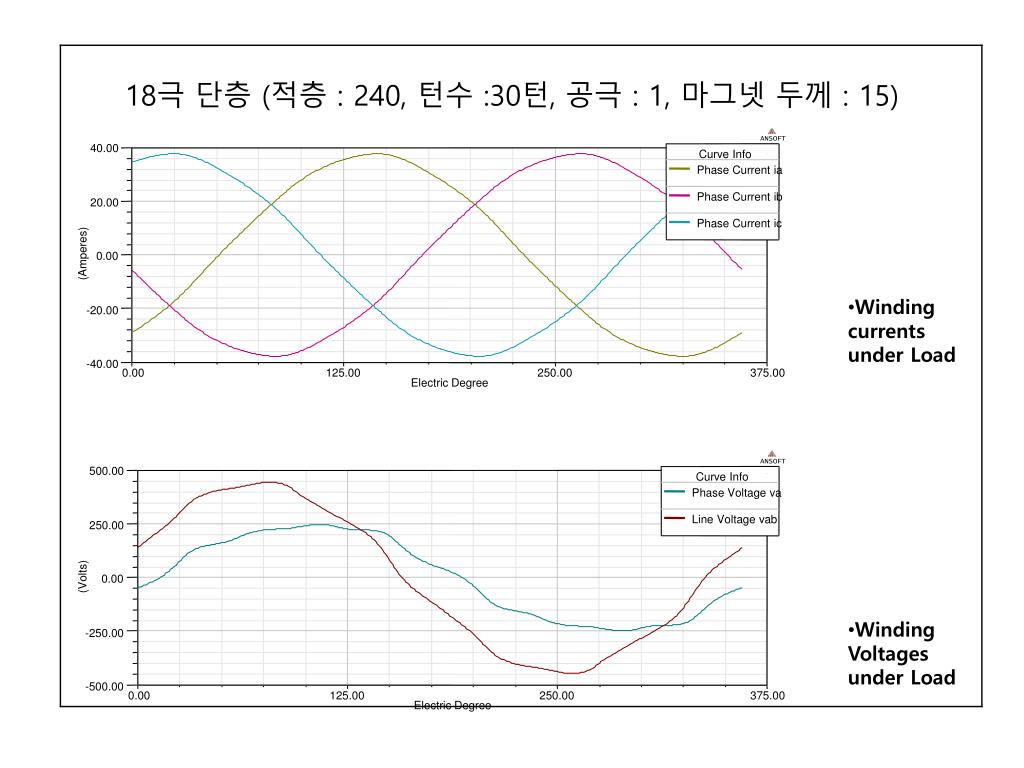

18극단층 (적층: 240, 턴수:30턴,공극: 1, 마그넷 두께 : 15)

Winding currents under Load

Winding Voltages under Load


5589620

소수력 발전기

극 두께 : 1.2[mm]

효율 : 97.22[%]

역률 : 0.7532

출력 전력 :11227.3[w]

입력 전력 : 11547.8 [w]

적층: 240[mm]

  • 16극 30슬롯

  • 권선 직경 2.5[mm] 7가닥 30턴

  • 고정자

  • 외경 : 280[mm]

  • 내경: 192[mm]

  • 회전자

  • 외경 : 190[mm]

  • 내경: 50[mm]


16 240 30 1 12

ANSOFT

40.00

Curve Info

Phase Current ia

Phase Current ib

20.00

Phase Current ic

(Amperes)

0.00

-20.00

-40.00

0.00

125.00

250.00

375.00

Electric Degree

ANSOFT

500.00

Curve Info

Phase Voltage va

Line Voltage vab

250.00

(Volts)

0.00

-250.00

-500.00

0.00

125.00

250.00

375.00

Electric Degree

16극단층(적층: 240, 턴수:30턴,공극: 1, 마그넷 두께 : 12)

Winding currents under Load

Winding Voltages under Load
