  1. Test Circuit for Locating Open Leads of QFP ICs M.Hashizume, A.Shimoura, M.Ichimiya, H.Yotsuyanagi The Univ. of Tokushima, JAPAN

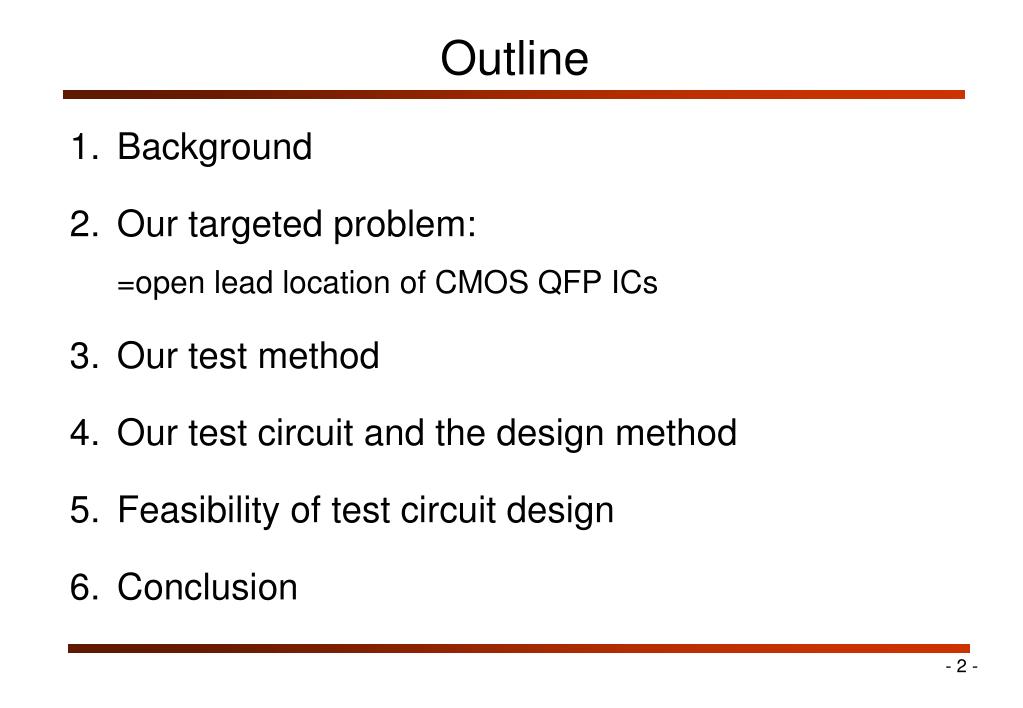

  2. Outline • Background • Our targeted problem:=open lead location of CMOS QFP ICs • Our test method • Our test circuit and the design method • Feasibility of test circuit design • Conclusion

  3. Background • Many logic circuits are implemented with fine-pitch QFP ICs and a PCB of fine line layout. (ex.)circuits that downsizing and high performance are not requested strongly • Open leads of QFP ICs occur more frequently in soldering process. [Targeted Defects] Open lead of QFP ICs occurring in soldering process Now, 0.4mm solder bridging pattern short open lead peeling-off pattern

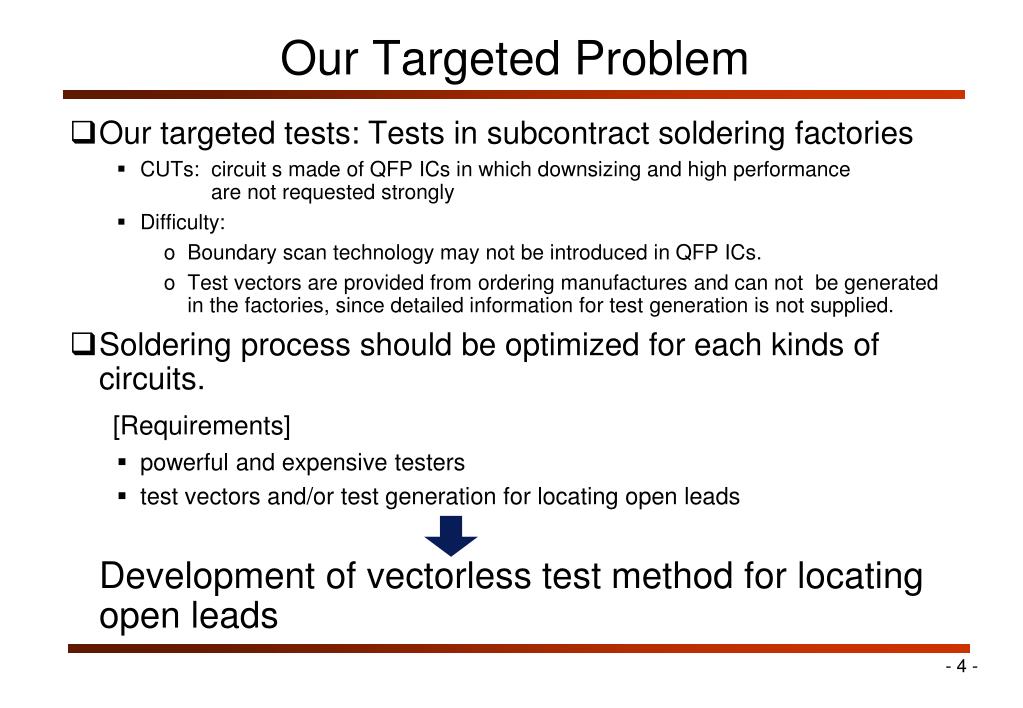

  4. Our Targeted Problem • Our targeted tests: Tests in subcontract soldering factories • CUTs: circuit s made of QFP ICs in which downsizing and high performance are not requested strongly • Difficulty: • Boundary scan technology may not be introduced in QFP ICs. • Test vectors are provided from ordering manufactures and can not be generated in the factories, since detailed information for test generation is not supplied. • Soldering process should be optimized for each kinds of circuits. [Requirements] • powerful and expensive testers • test vectors and/or test generation for locating open leads Development of vectorless test method for locating open leads

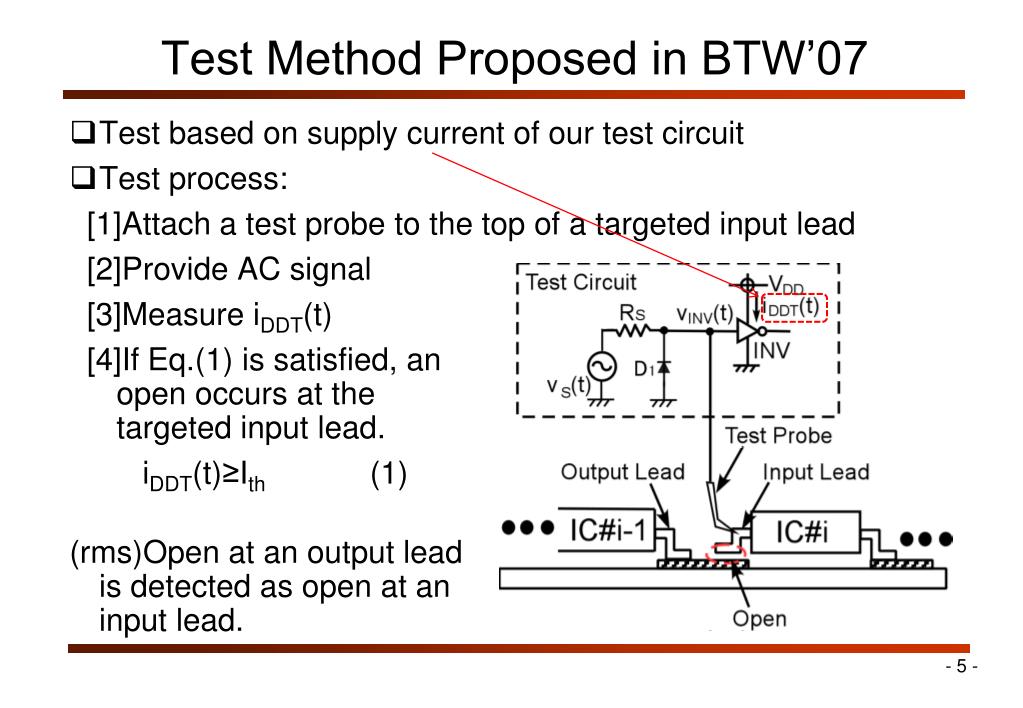

  5. Test Method Proposed in BTW’07 • Test based on supply current of our test circuit • Test process: [1]Attach a test probe to the top of a targeted input lead [2]Provide AC signal [3]Measure iDDT(t) [4]If Eq.(1) is satisfied, an open occurs at the targeted input lead. iDDT(t)≥Ith (1) (rms)Open at an output lead is detected as open at an input lead.

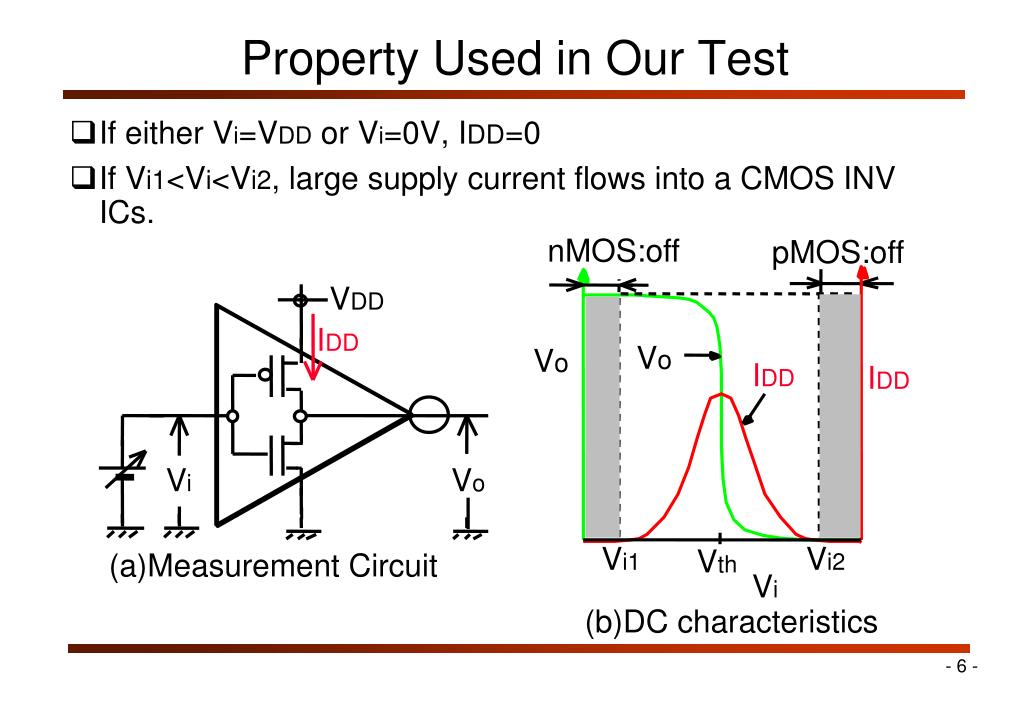

  6. nMOS:off pMOS:off VDD IDD Vo Vo IDD IDD Vi Vo Vi1 Vi2 Vth Property Used in Our Test • If either Vi=VDD or Vi=0V, IDD=0 • If Vi1<Vi<Vi2, large supply current flows into a CMOS INV ICs. (a)Measurement Circuit Vi (b)DC characteristics

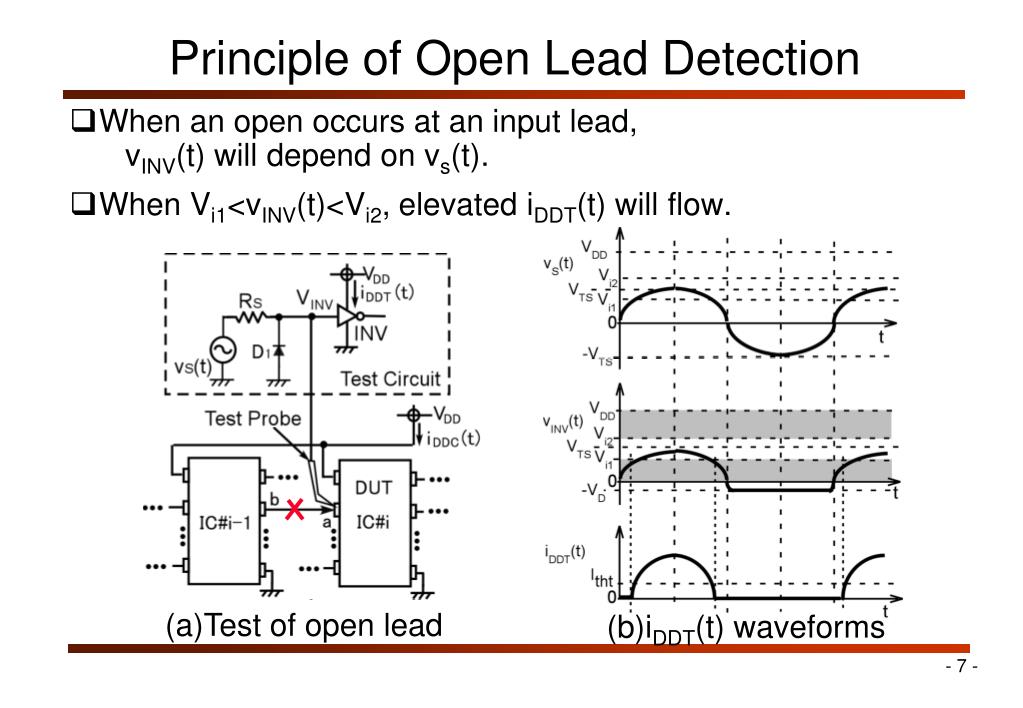

  7. Principle of Open Lead Detection • When an open occurs at an input lead, vINV(t) will depend on vs(t). • When Vi1<vINV(t)<Vi2, elevated iDDT(t) will flow. (a)Test of open lead (b)iDDT(t) waveforms

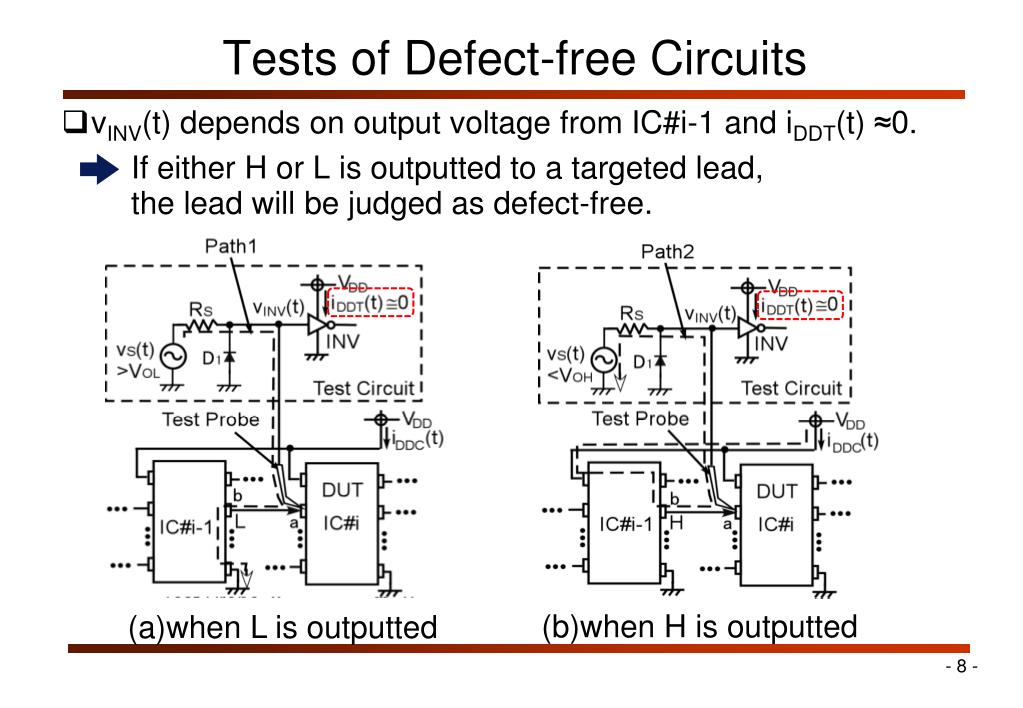

  8. (b)when H is outputted (a)when L is outputted Tests of Defect-free Circuits • vINV(t) depends on output voltage from IC#i-1 and iDDT(t) ≈0. If either H or L is outputted to a targeted lead, the lead will be judged as defect-free.

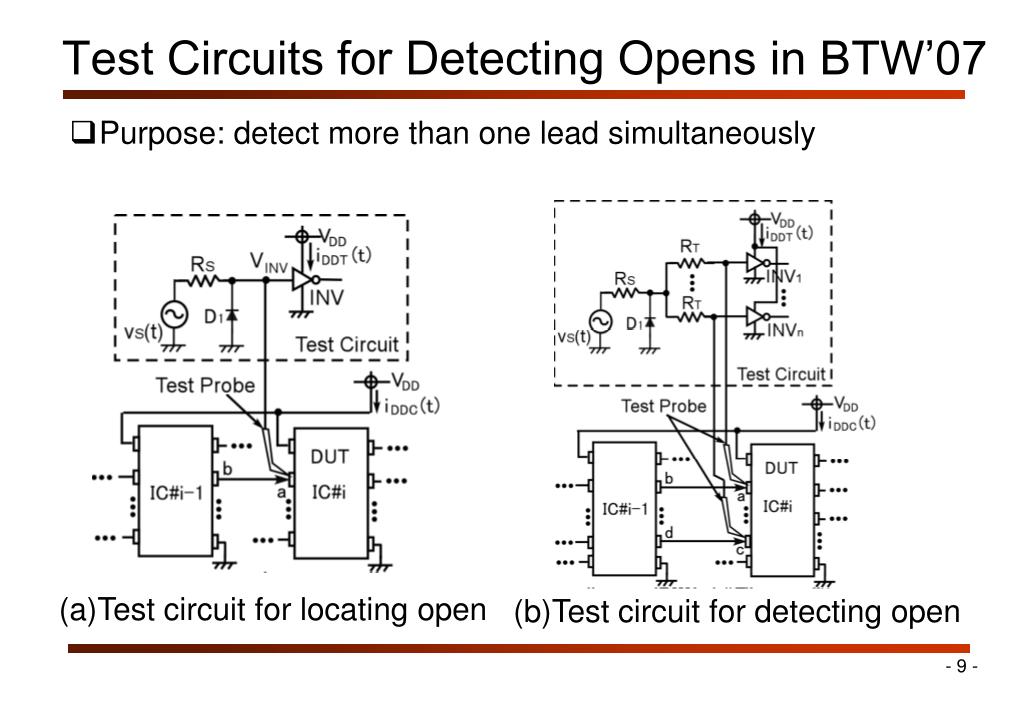

  9. Test Circuits for Detecting Opens in BTW’07 • Purpose: detect more than one lead simultaneously (a)Test circuit for locating open (b)Test circuit for detecting open

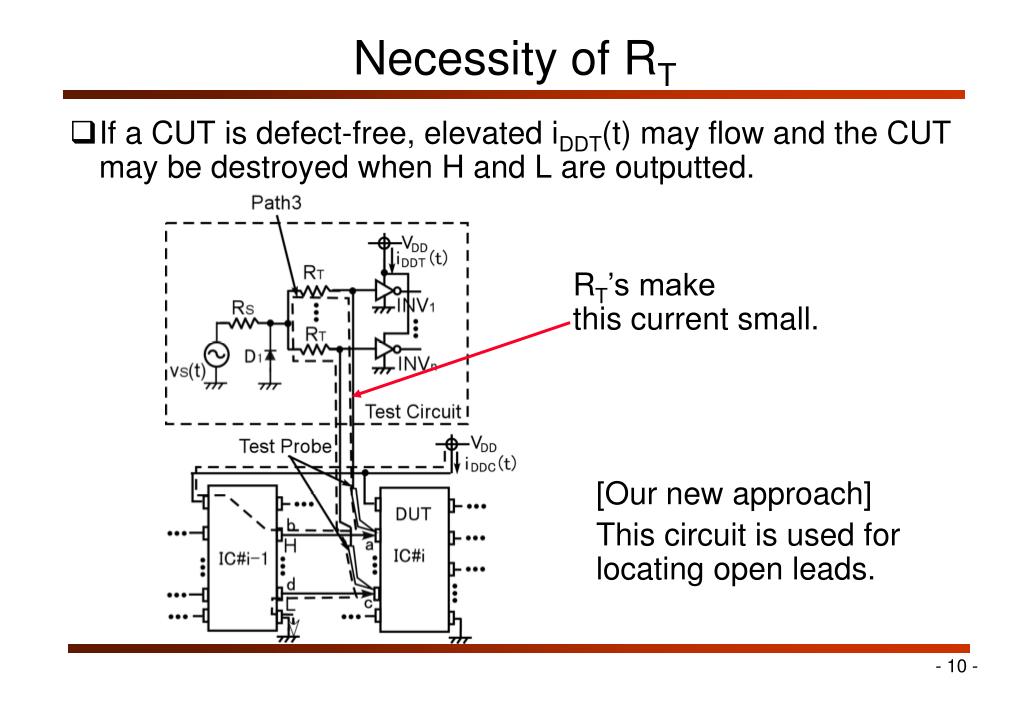

  10. Necessity of RT • If a CUT is defect-free, elevated iDDT(t) may flow and the CUT may be destroyed when H and L are outputted. RT’s make this current small. [Our new approach] This circuit is used for locating open leads.

  11. Drawback of Our Test Circuit in BTW’07 • When high-Z is outputted to a targeted lead in a defect-free circuit, the lead will be judged as defective.= Test vector generation and application are indispensable. Elevated iDDT flows. highZ (b)when open lead occurs (a)when high-Z is outputted

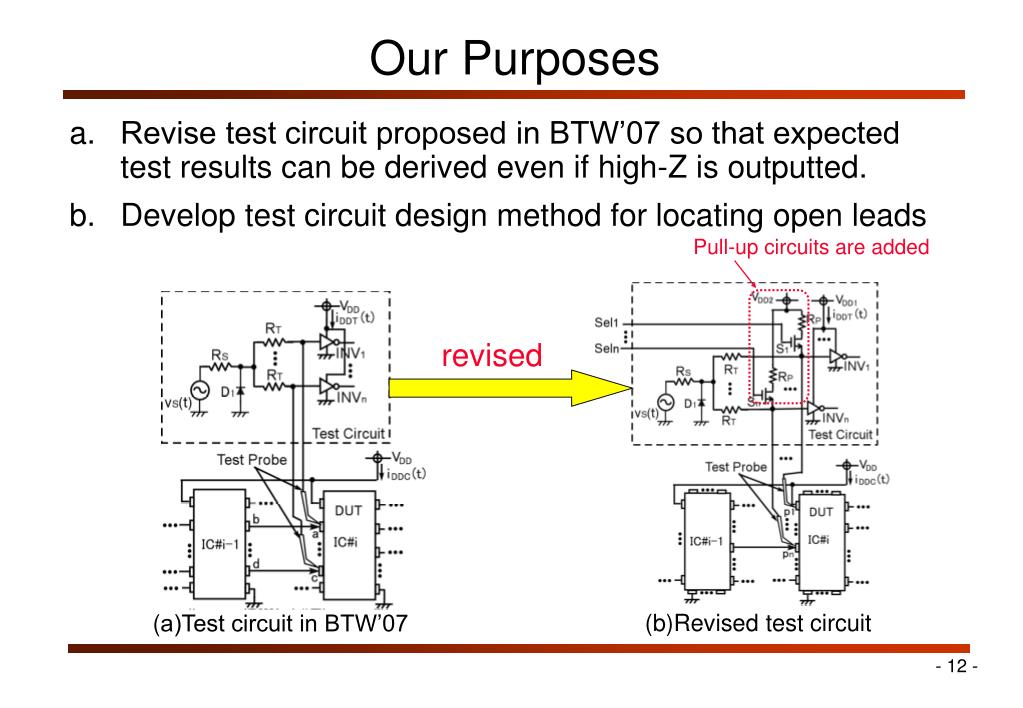

  12. Our Purposes • Revise test circuit proposed in BTW’07 so that expected test results can be derived even if high-Z is outputted. • Develop test circuit design method for locating open leads Pull-up circuits are added revised (b)Revised test circuit (a)Test circuit in BTW’07

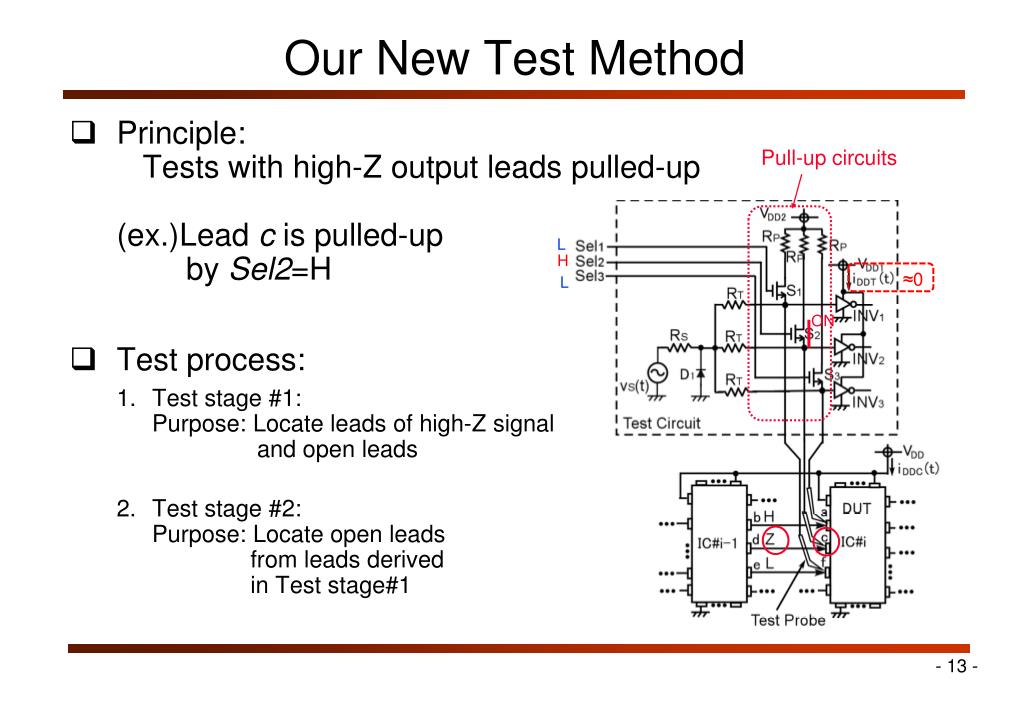

  13. ON Our New Test Method • Principle: Tests with high-Z output leads pulled-up(ex.)Lead c is pulled-up by Sel2=H • Test process: • Test stage #1: Purpose: Locate leads of high-Z signal and open leads • Test stage #2:Purpose: Locate open leads from leads derived in Test stage#1 Pull-up circuits L H ≈0 L

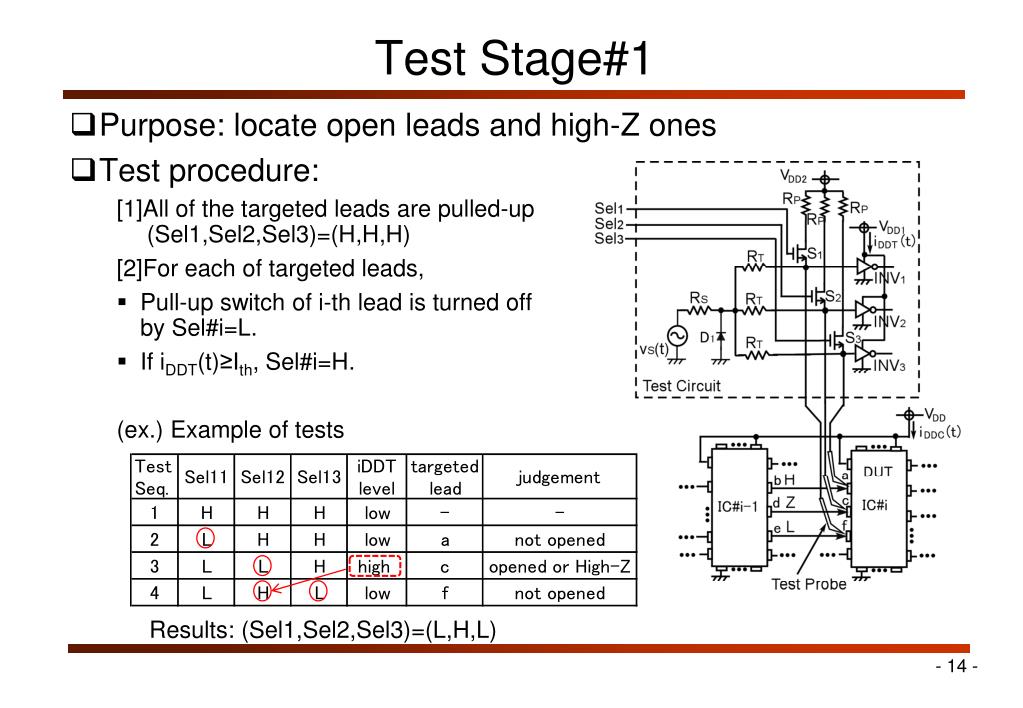

  14. Test Stage#1 • Purpose: locate open leads and high-Z ones • Test procedure: [1]All of the targeted leads are pulled-up (Sel1,Sel2,Sel3)=(H,H,H) [2]For each of targeted leads, • Pull-up switch of i-th lead is turned off by Sel#i=L. • If iDDT(t)≥Ith, Sel#i=H. (ex.) Example of tests Results: (Sel1,Sel2,Sel3)=(L,H,L)

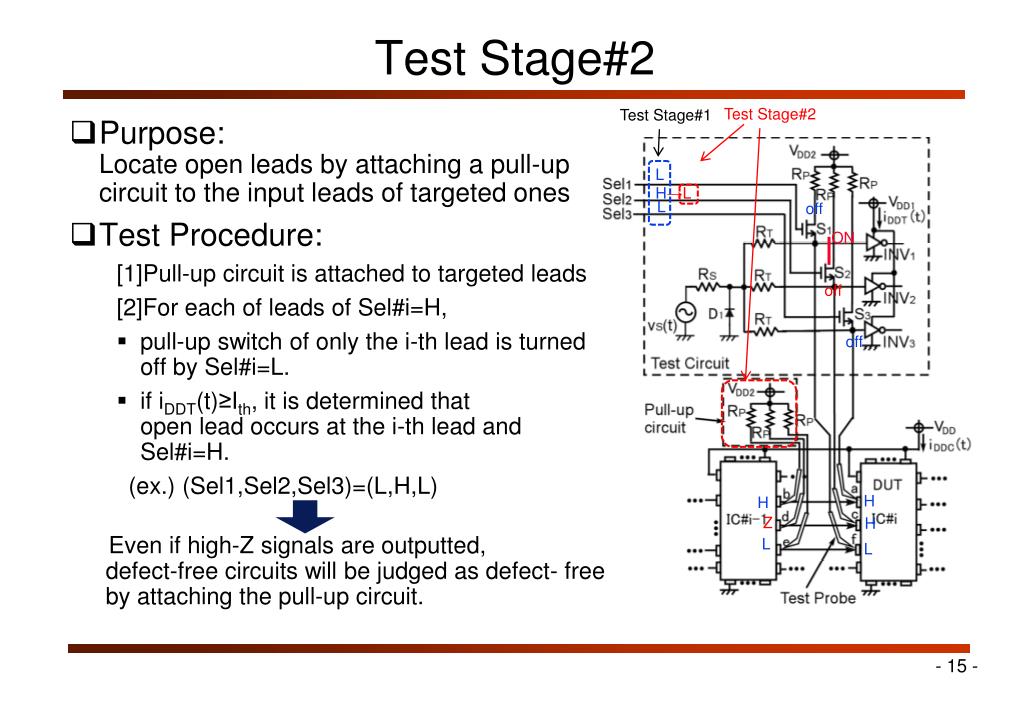

  15. Test Stage#2 Test Stage#2 Test Stage#1 • Purpose:Locate open leads by attaching a pull-up circuit to the input leads of targeted ones • Test Procedure: [1]Pull-up circuit is attached to targeted leads [2]For each of leads of Sel#i=H, • pull-up switch of only the i-th lead is turned off by Sel#i=L. • if iDDT(t)≥Ith, it is determined that open lead occurs at the i-th lead and Sel#i=H. (ex.) (Sel1,Sel2,Sel3)=(L,H,L) Even if high-Z signals are outputted, defect-free circuits will be judged as defect- free by attaching the pull-up circuit. L H→L L off ON off off H H Z H L L

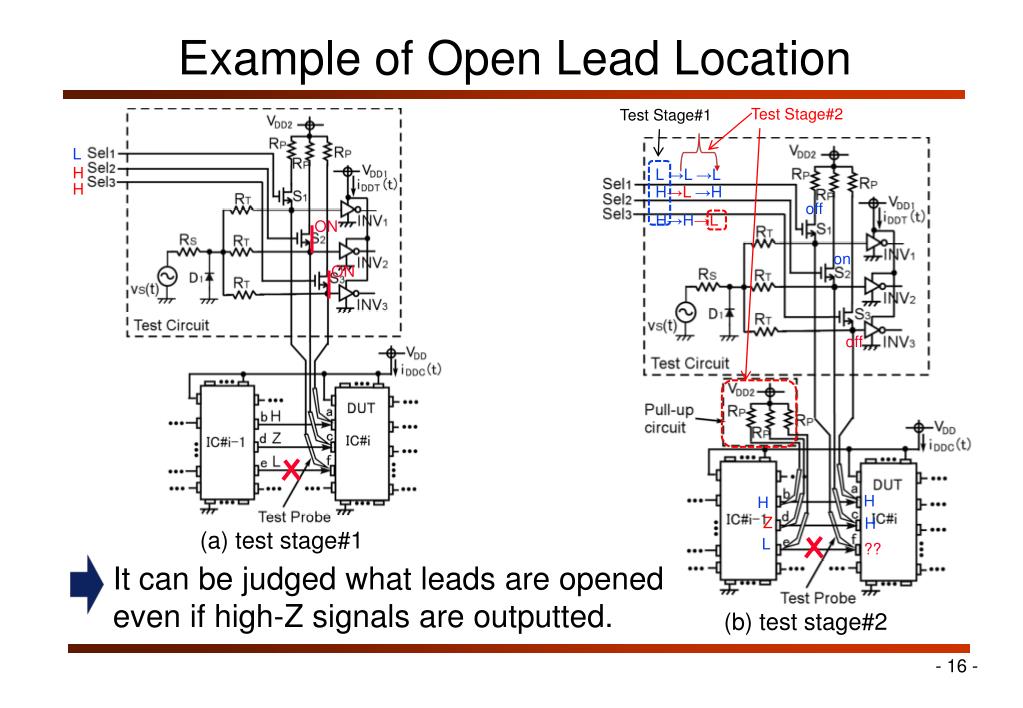

  16. ON ON Example of Open Lead Location Test Stage#2 Test Stage#1 It can be judged what leads are opened even if high-Z signals are outputted. L →L→L L H→L →H H H off H→H→L on off H H Z H (a) test stage#1 L ?? (b) test stage#2

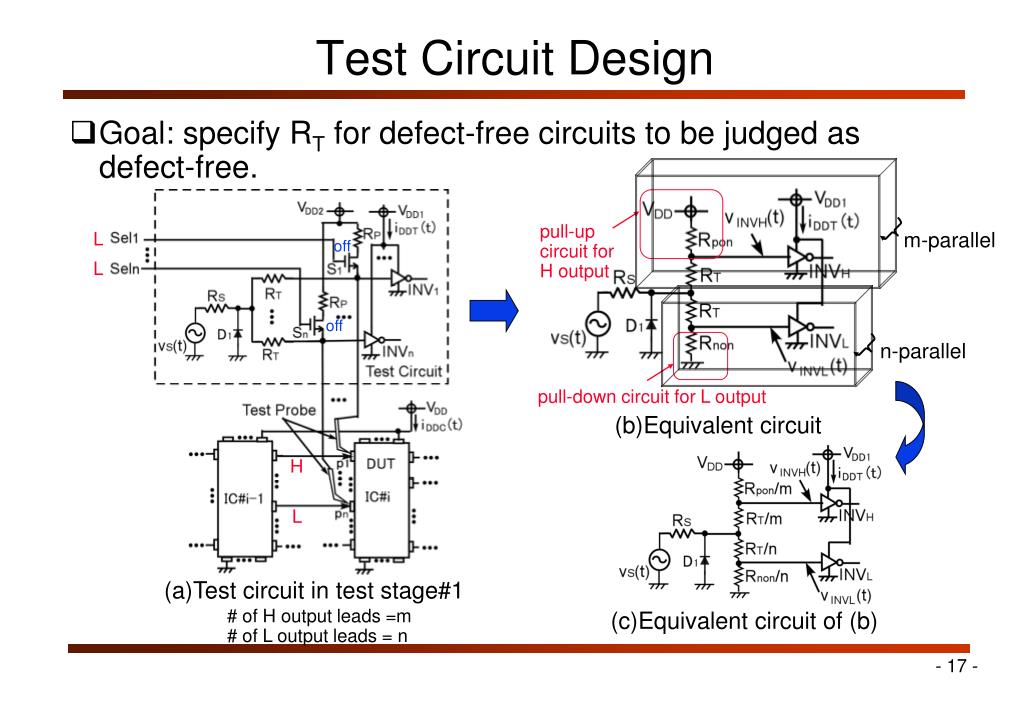

  17. Test Circuit Design • Goal: specify RT for defect-free circuits to be judged as defect-free. pull-up circuit for H output m-parallel L off L off n-parallel pull-down circuit for L output (b)Equivalent circuit H L (a)Test circuit in test stage#1 # of H output leads =m # of L output leads = n (c)Equivalent circuit of (b)

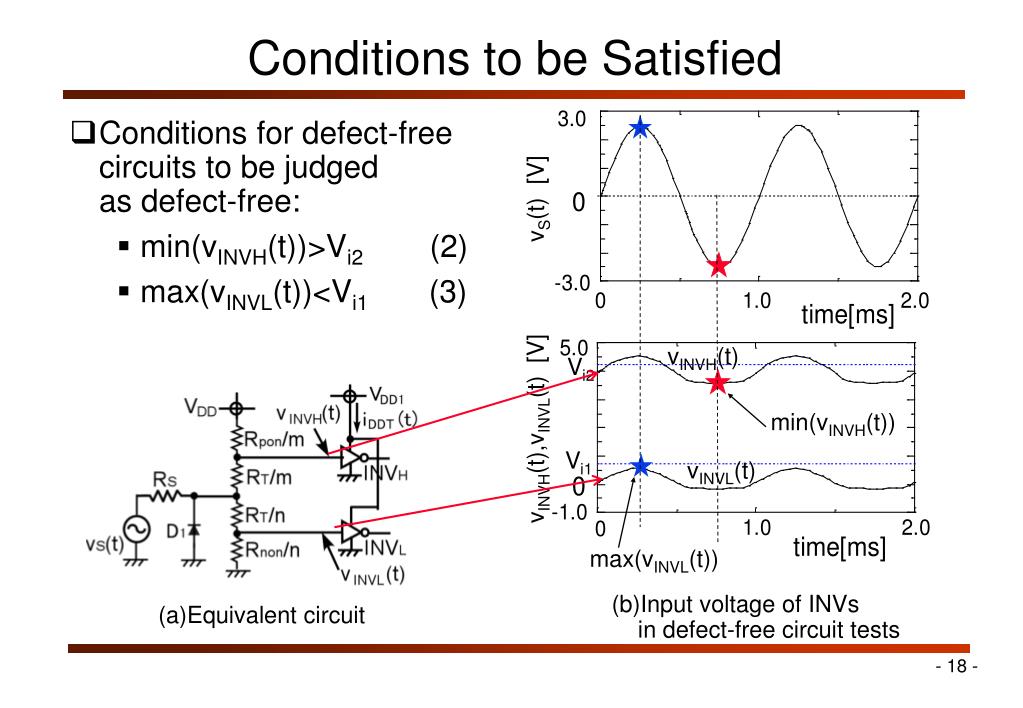

  18. vS(t) [V] vINVH(t) Vi2 min(vINVH(t)) vINVH(t),vINVL(t) [V] Vi1 vINVL(t) max(vINVL(t)) Conditions to be Satisfied • Conditions for defect-free circuits to be judged as defect-free: • min(vINVH(t))>Vi2 (2) • max(vINVL(t))<Vi1 (3) (b)Input voltage of INVs in defect-free circuit tests (a)Equivalent circuit

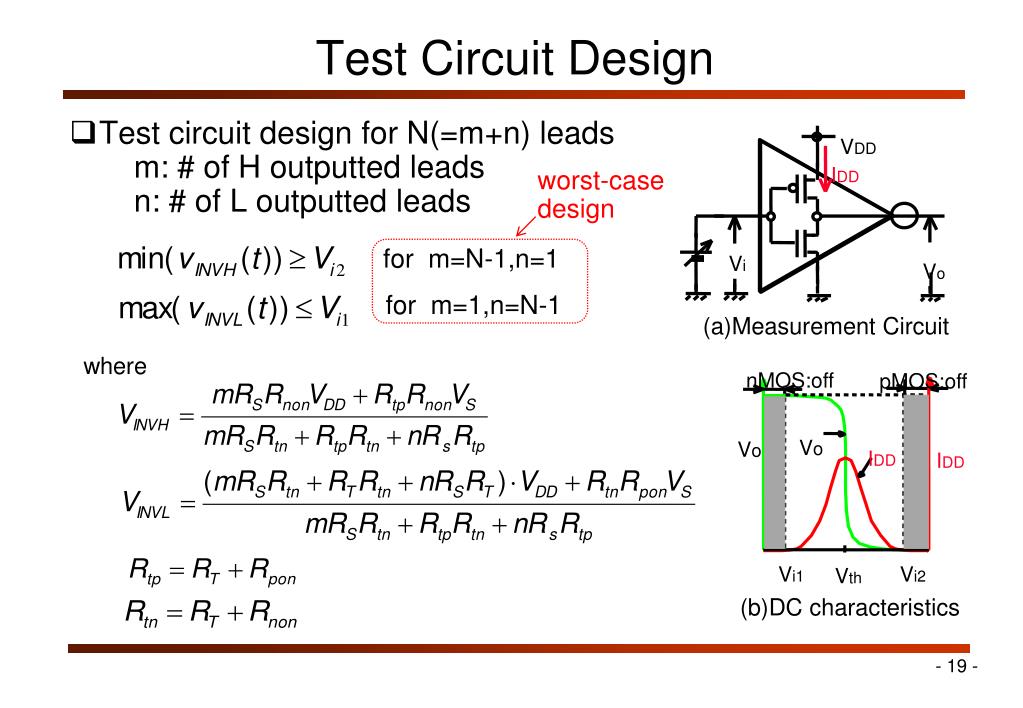

  19. nMOS:off pMOS:off Vo Vo IDD IDD Vi1 Vi2 Vth Test Circuit Design • Test circuit design for N(=m+n) leads m: # of H outputted leads n: # of L outputted leads VDD IDD worst-case design for m=N-1,n=1 Vi Vo for m=1,n=N-1 (a)Measurement Circuit where (b)DC characteristics

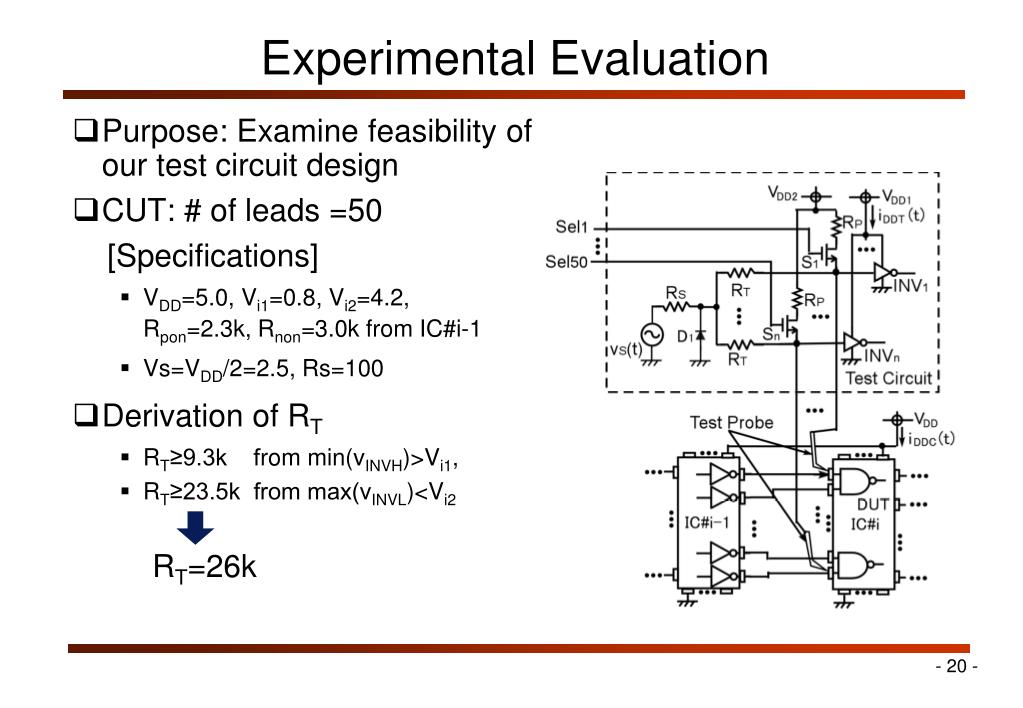

  20. Experimental Evaluation • Purpose: Examine feasibility of our test circuit design • CUT: # of leads =50 [Specifications] • VDD=5.0, Vi1=0.8, Vi2=4.2, Rpon=2.3k, Rnon=3.0k from IC#i-1 • Vs=VDD/2=2.5, Rs=100 • Derivation of RT • RT≥9.3k from min(vINVH)>Vi1, • RT≥23.5k from max(vINVL)<Vi2 RT=26k

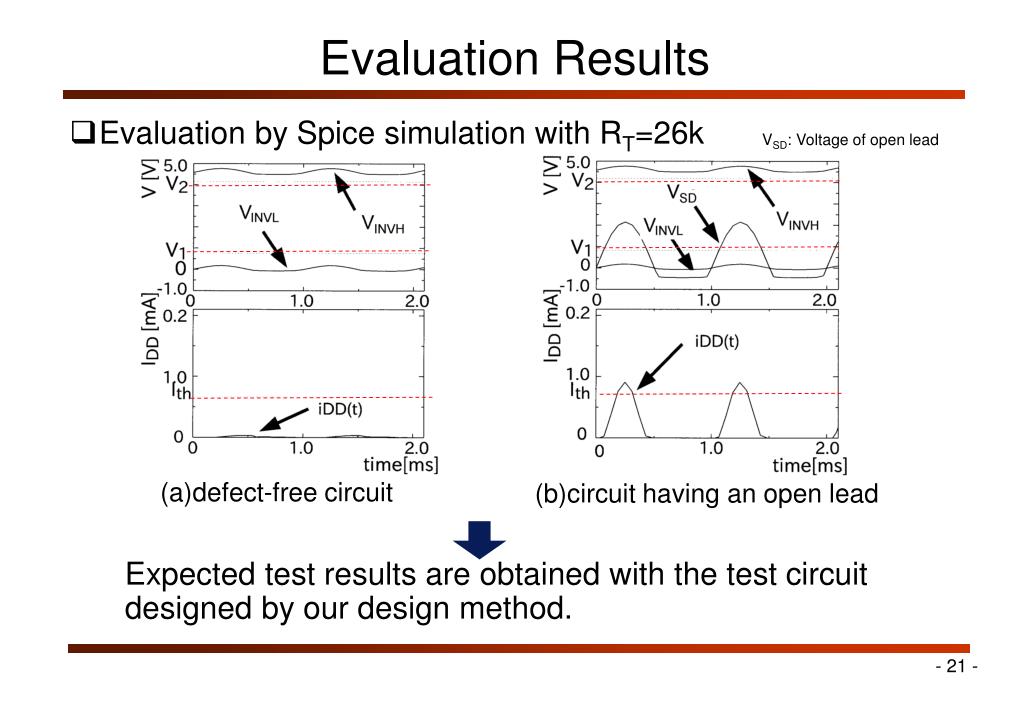

  21. Evaluation Results • Evaluation by Spice simulation with RT=26k VSD: Voltage of open lead (a)defect-free circuit (b)circuit having an open lead Expected test results are obtained with the test circuit designed by our design method.

  22. Conclusion • A new test circuit for locating open leads of CMOS QFP ICs [features] • Simple test circuit • Vectorless test method Open leads can be located in subcontract soldering factories. • Test circuit design method [Evaluation by SPICE simulation] • 50 leads are tested with the test circuit designed by our design method successfully. • Development of test probes • Open lead location in real ICs with our test circuit Future works
