Presentation Transcript

  1. Caldera overview

  2. Customers feed back about caldera • The fastest rip • Drag and drop ergonomy • All in one (scan, print, colouredit ,nest ,cut ,colour profiling ,tiling ,client server ,easy workflow ,features ,all drivers included for demo mode ,easy média…) • Autosense format (raster,PS,PDF,HPGL2…) • Nesting function working on thumbails • Easy and advanced mode (for experimented users) • Print and rip simultaneously • Floating print ,scan ,feature license • Key server and client ripping easy (need only one host) • Easy média for calibration • One ripstation can drive all printers • Features increasing productivity

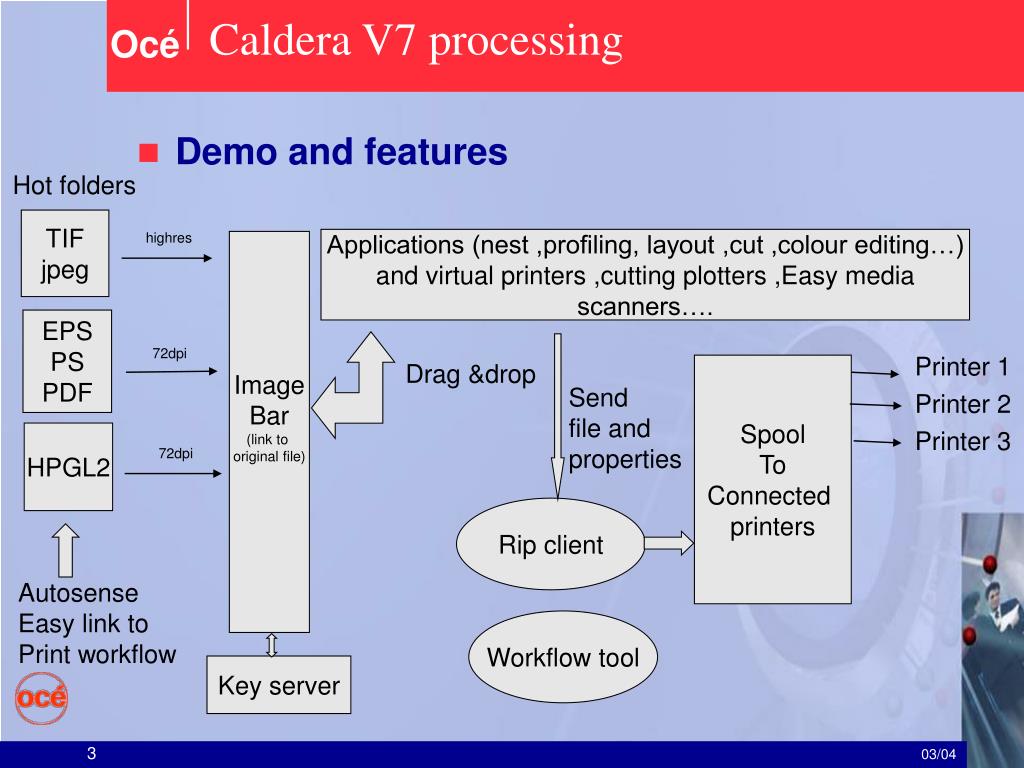

  3. Caldera V7 processing • Demo and features Hot folders TIF jpeg highres Applications (nest ,profiling, layout ,cut ,colour editing…) and virtual printers ,cutting plotters ,Easy media scanners…. Image Bar (link to original file) EPS PS PDF 72dpi Printer 1 Drag &drop Spool To Connected printers Send file and properties Printer 2 Printer 3 HPGL2 72dpi Rip client Autosense Easy link to Print workflow Workflow tool Key server

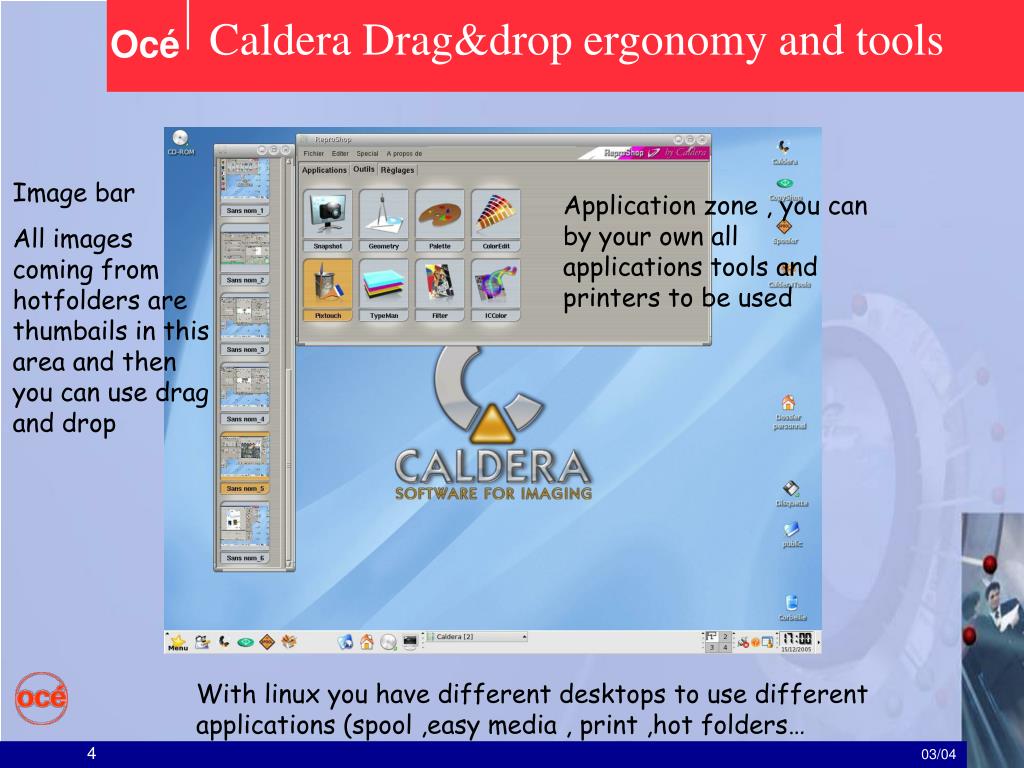

  4. Caldera Drag&drop ergonomy and tools Image bar All images coming from hotfolders are thumbails in this area and then you can use drag and drop Application zone , you can by your own all applications tools and printers to be used With linux you have different desktops to use different applications (spool ,easy media , print ,hot folders…

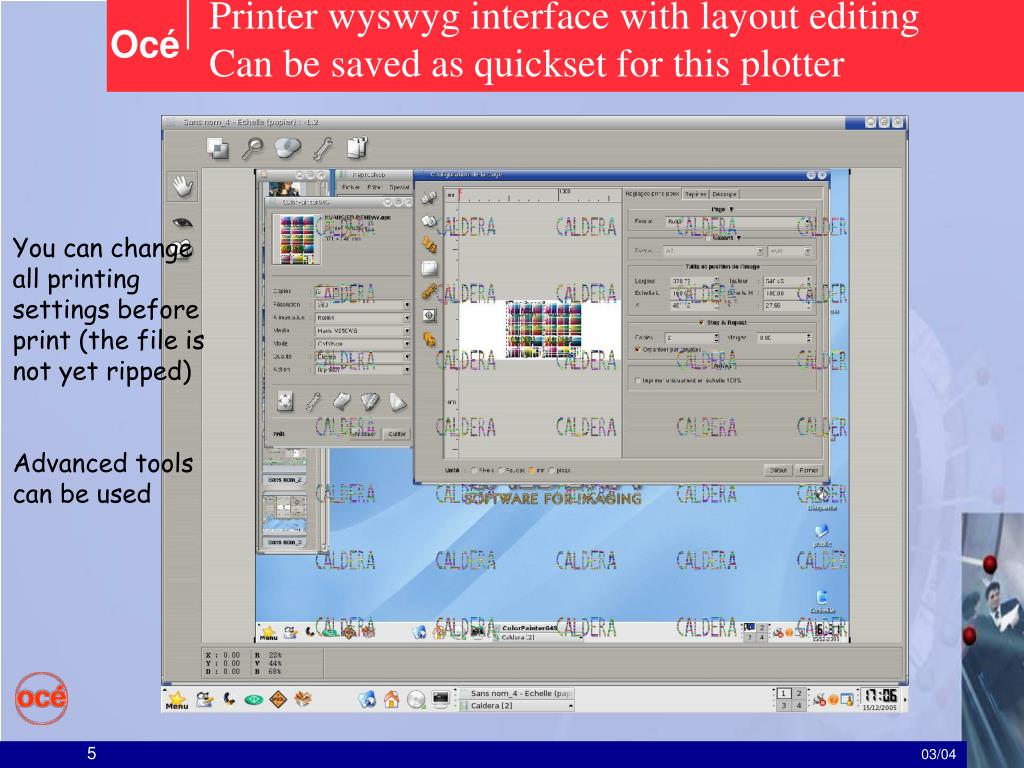

  5. Printer wyswyg interface with layout editingCan be saved as quickset for this plotter You can change all printing settings before print (the file is not yet ripped) Advanced tools can be used

  6. Caldera Nesting layout interface (drag&drop easy resize ,save configuration …..) You can save gabarits (size ,marks ,hems ….) and just drag and drop your file to create a new layout ( this application work with lowres files)

  7. Tools for easy finishing in Caldera EYELET tool

  8. Cutting plotters interface on print layout

  9. Scan to print interface (advanced mode) EASY GREEN BUTTON for COPYSHOPS A lot of caldera rips are installed in copyshops (200 units) ,Caldera has an integated autosense hpgl converter and all files can be workflowed with the same features

  10. Cost Proof • client tool for sales (pricing) • Enter a media price list (attached to media profile ?) • Take care of waste media • Enter Ink price list • Enter a finishing list price • Enter file size and data ,copies ,margins… • Enter printer model define a print time • Calculate an estimate cost and sale price

  11. MERCI
