Presentation Transcript

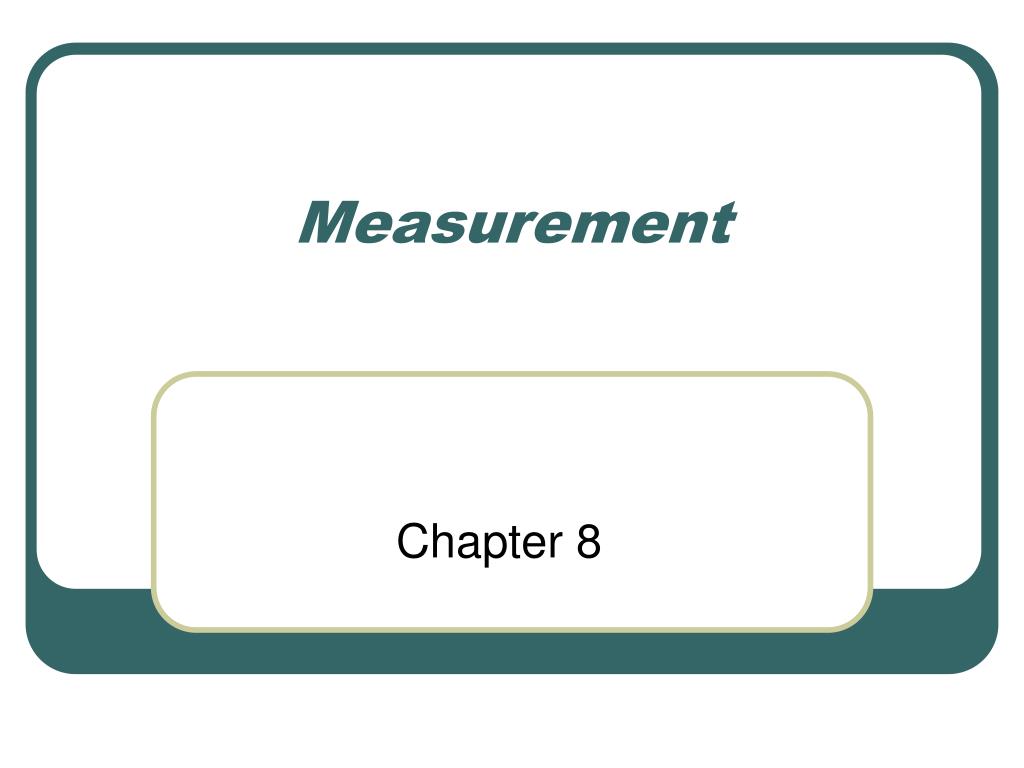

Measurement

Measurement

Chapter 8


Outcomes

Outcomes

  • D1: solve indirect measurement problems, using proportions

  • D2: solve measurement problems, using appropriate SI units

  • D3: estimate areas of circles

  • D4: develop and use the formula for the area of a circle

  • D5: describe patterns and generalize the relationships between areas and perimeters of quadrilaterals and areas and circumferences of circles

  • D6: calculate the areas of composite figures

  • D7: estimate and calculate surface areas and volumes of right prisms and cylinders

  • D8: measure and calculate surface areas and volumes of composite 3-D shapes


Metric conversions

Metric Conversions

  • Metric units are very nice to work with, since they are all multiples of ten of each other.

  • The basic units are meters (for length), grams (for mass or weight), and liters (for volume).


Metric prefixes

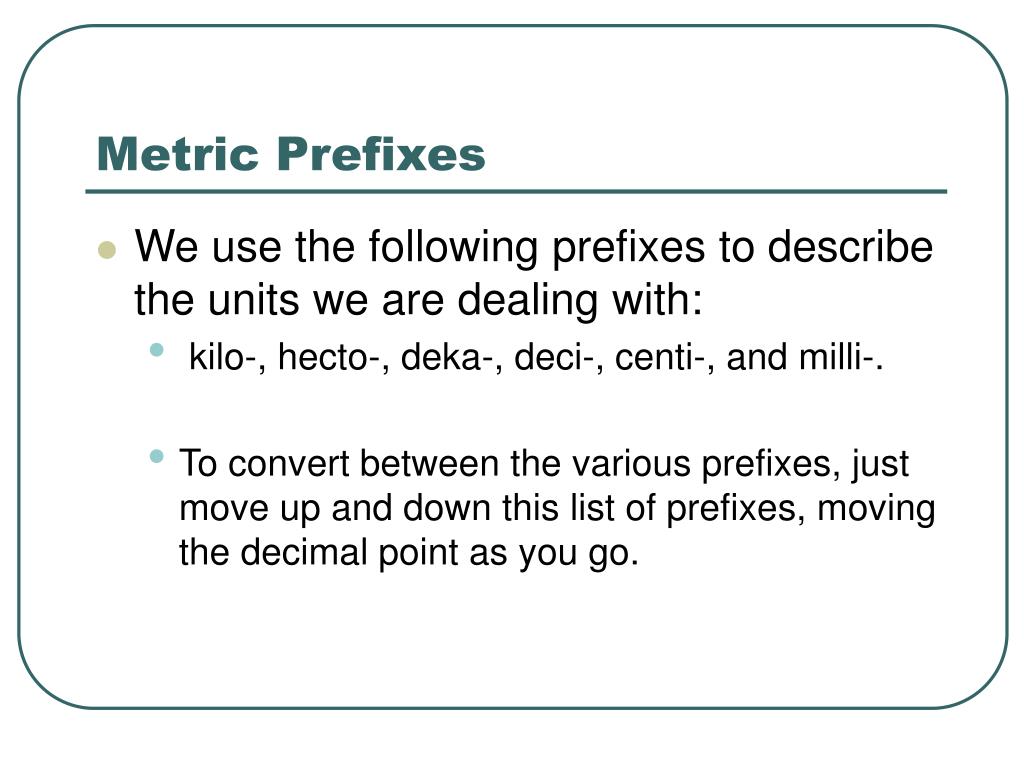

Metric Prefixes

  • We use the following prefixes to describe the units we are dealing with:

    • kilo-, hecto-, deka-, deci-, centi-, and milli-.

    • To convert between the various prefixes, just move up and down this list of prefixes, moving the decimal point as you go.


Metric staircase

Metric Staircase

kilo .001

hecto .01decimal point moves to the right

deka .1

Basic Unit (m, l, g) 1

deci 10

centi 100

decimal point moves to the leftmilli 1000


Example

Example:

  • Since each step is ten times or one-tenth as much as the step on either side, we have:

    • 1 kilometer = 10 hectometers


You try these

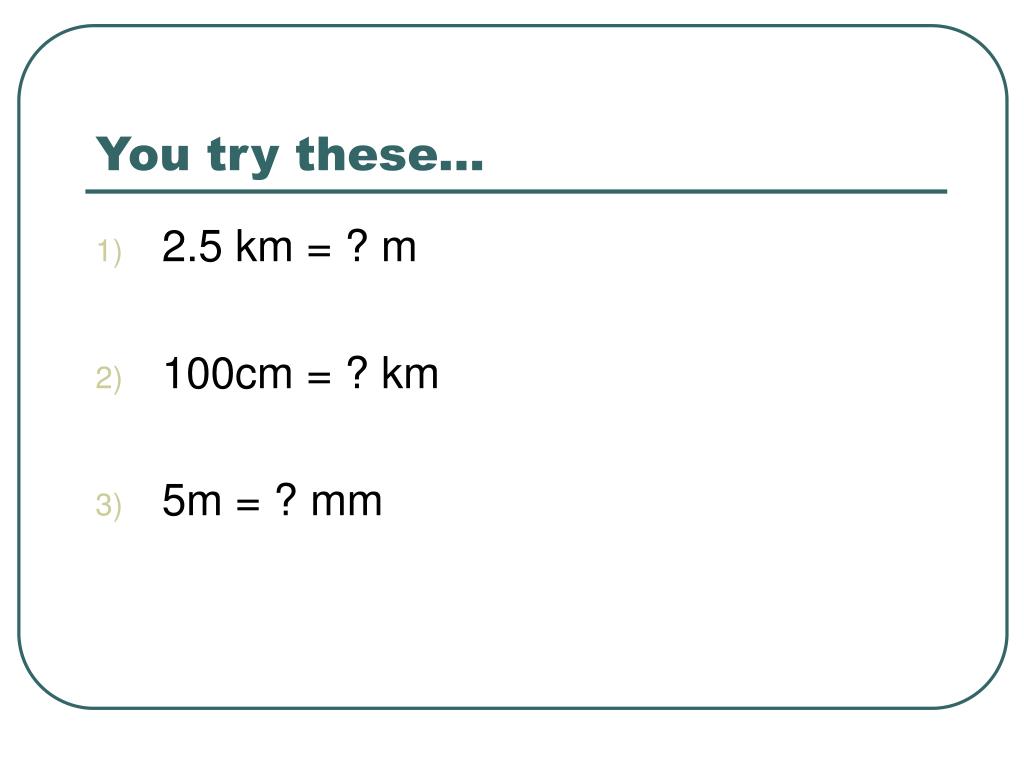

You try these…

  • 2.5 km = ? m

  • 100cm = ? km

  • 5m = ? mm


What is perimeter

What is perimeter?

  • Perimeter is the sum of the lengths of all the sides of a polygon.

    • It is the total length around an object.


Example1

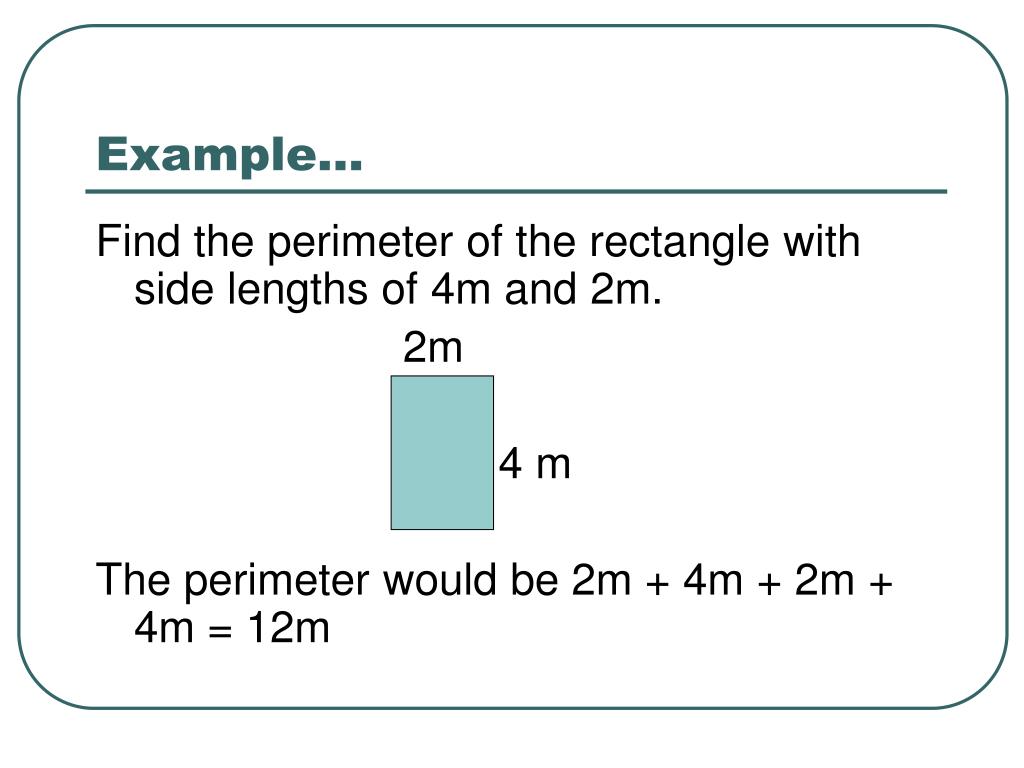

Example…

Find the perimeter of the rectangle with side lengths of 4m and 2m.

2m

4 m

The perimeter would be 2m + 4m + 2m + 4m = 12m


What is area

What is area?

  • Area is the number of square units needed to cover a surface.

    2m

    4m

    The area of this rectangle can be found by using the equation A = l x w

    Therefore A = 4m x 2m

    = 8m2


You try these find area and perimeter

You try these…(find area and perimeter)

  • Rectangle with sides 3cm and 7cm

  • Square with sides 5m

  • Rectangle with sides 4m and 3m


What about triangles

What about triangles???

  • Can you use the same formulas for a triangle?


Area of a triangle

Area of a triangle

  • Area of a triangle is

    A = ½ b x h

    8cm

    4cm

    Area = ½ (4cm)(8cm) = 16cm2
