Isomerism

Isomerism

SCH4U Spring 2012


Isomerism1

Isomerism

  • Isomerism occurs when there are two or more compounds (called isomers) with the same molecular formula but different arrangements of their atoms

  • Isomers have different physical and chemical properties

  • There are two main classes of isomerism:

    a) structural isomerism

    b) stereoisomerism


Structural isomerism

Structural isomerism

  • Structural isomers are molecules with the same molecular formula but with different structural arrangements of the atoms

  • There are three types of structural isomers:

    a) Chain isomers

    b) Positional isomers

    c) Functional groupisomers


Chain isomers

Chain isomers

  • Isomers have different arrangements of the carbon chain

  • E.g. C4H10


Chain isomers1

Chain isomers

  • As the number of carbon atoms increases , the number of possible isomers increases

  • How many isomers would C5H12 have?

    What are they?


Positional isomers

Positional Isomers

  • Isomers have the same carbon skeleton but the functional group is in different positions in the molecule

  • E.g. C6H4Cl2


Positional isomers1

Positional isomers

  • What would be a positional isomer of butan-1-ol?


Functional group isomers

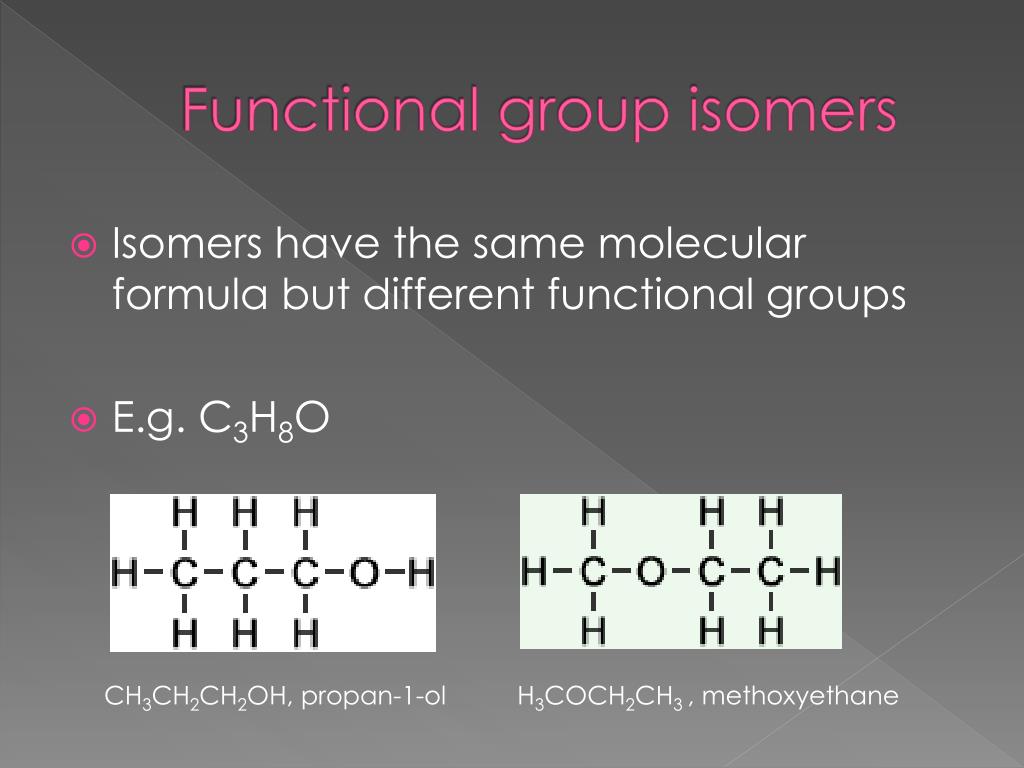

Functional group isomers

  • Isomers have the same molecular formula but different functional groups

  • E.g. C3H8O

CH3CH2CH2OH, propan-1-ol H3COCH2CH3 , methoxyethane


Functional group isomers1

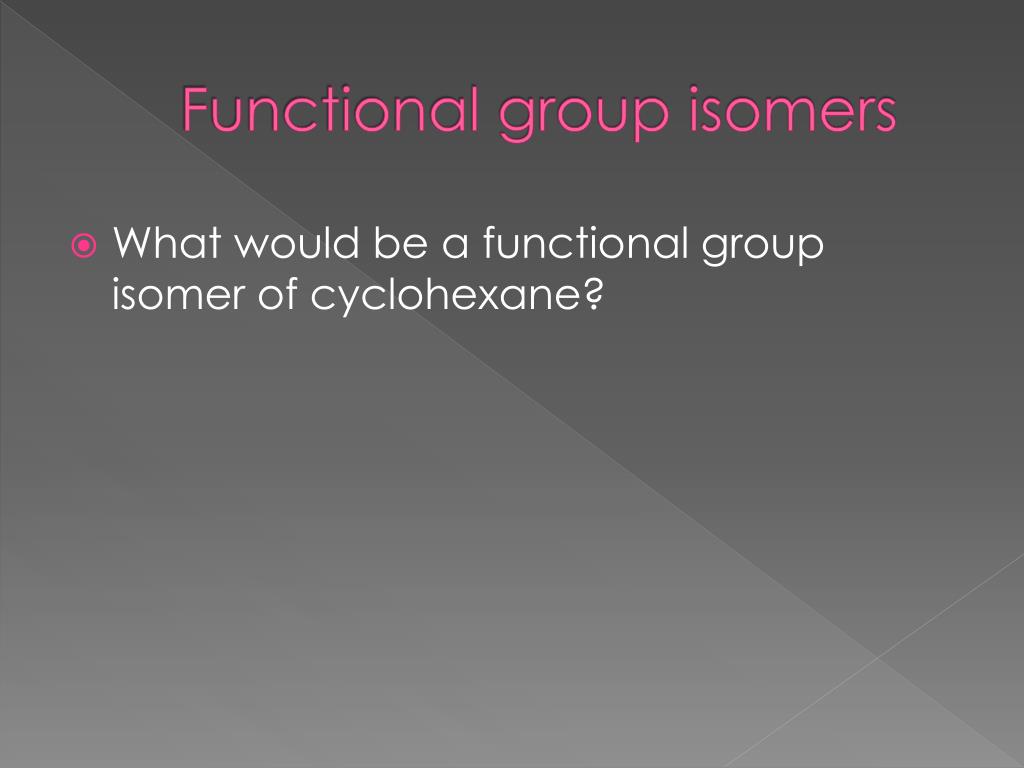

Functional group isomers

  • What would be a functional group isomer of cyclohexane?


Stereoisomerism

Stereoisomerism

  • Stereoisomers have identical molecular formula and the atoms are linked together in the same order but have different relative positions in space

  • There are two types of stereoisomers:

    a) Geometric (or cis-trans ) isomers

    b) Optical isomers


Geometric isomers

Geometric isomers

  • Geometric or cis-trans isomers exist because the (pie) π bond of the C=C bond prevents free rotation

  • Cis – same side

  • Trans – opposite side of the double bond

  • E.g. 1,2-dichloroethene


Optical isomers

Optical isomers

  • This type of isomerism occurs when a molecule has one or more asymmetric carbon atoms i.e. a carbon atom linked to four different atoms or groups

  • The optical isomers have a chiral centre and are mirror images of each other

  • E.g. butan-2-ol


Optical isomers1

Optical isomers

  • Identify all chiral centre(s), if any:
