Example1:

Example1:. A balanced three phase three-wire system has a line voltage of 500V. Two balanced Y-connected loads are present. One is a capacitive load with per phase, and the other is an inductive load with per phase. Find: The phase voltage. The line current.

chars
Download Presentation

Example1:

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Example1: • A balanced three phase three-wire system has a line voltage of 500V. Two balanced Y-connected loads are present. One is a capacitive load with per phase, and the other is an inductive load with per phase. Find: • The phase voltage. • The line current. • The total power drawn by the load. • The power factor at which the source is operating.

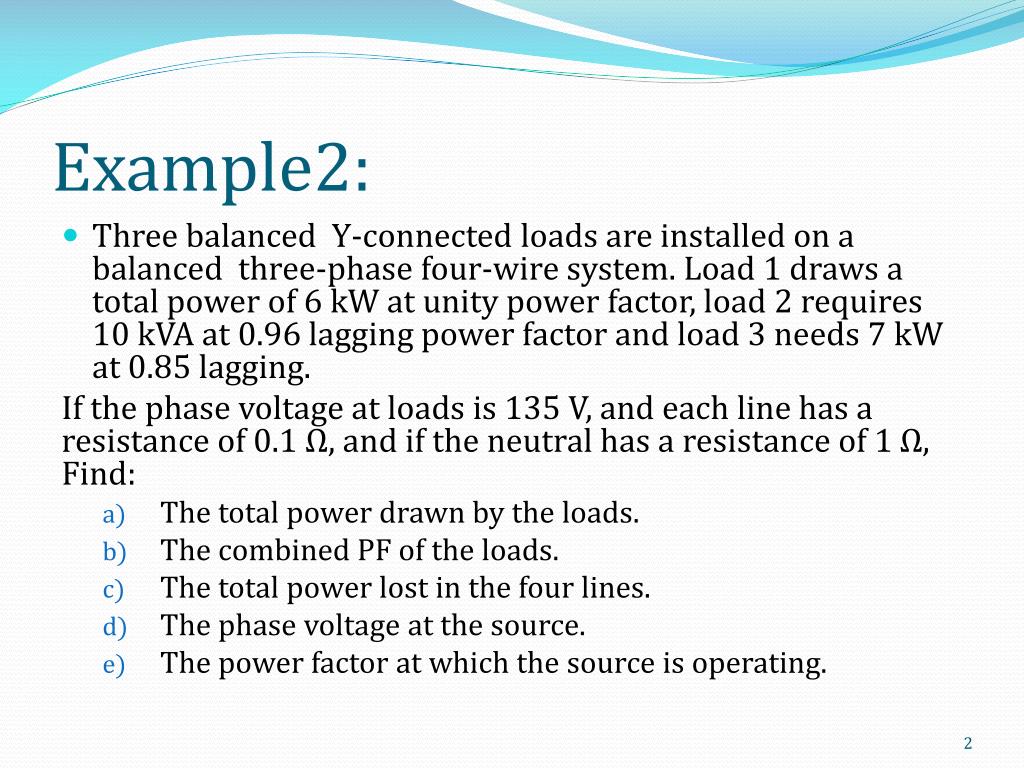

  2. Example2: • Three balanced Y-connected loads are installed on a balanced three-phase four-wire system. Load 1 draws a total power of 6 kW at unity power factor, load 2 requires 10 kVA at 0.96 lagging power factor and load 3 needs 7 kW at 0.85 lagging. If the phase voltage at loads is 135 V, and each line has a resistance of 0.1 , and if the neutral has a resistance of 1 , Find: • The total power drawn by the loads. • The combined PF of the loads. • The total power lost in the four lines. • The phase voltage at the source. • The power factor at which the source is operating.
