Wide Area Grid – Technical Requirements

1. Wide Area Grid – Technical Requirements Paul Kopp

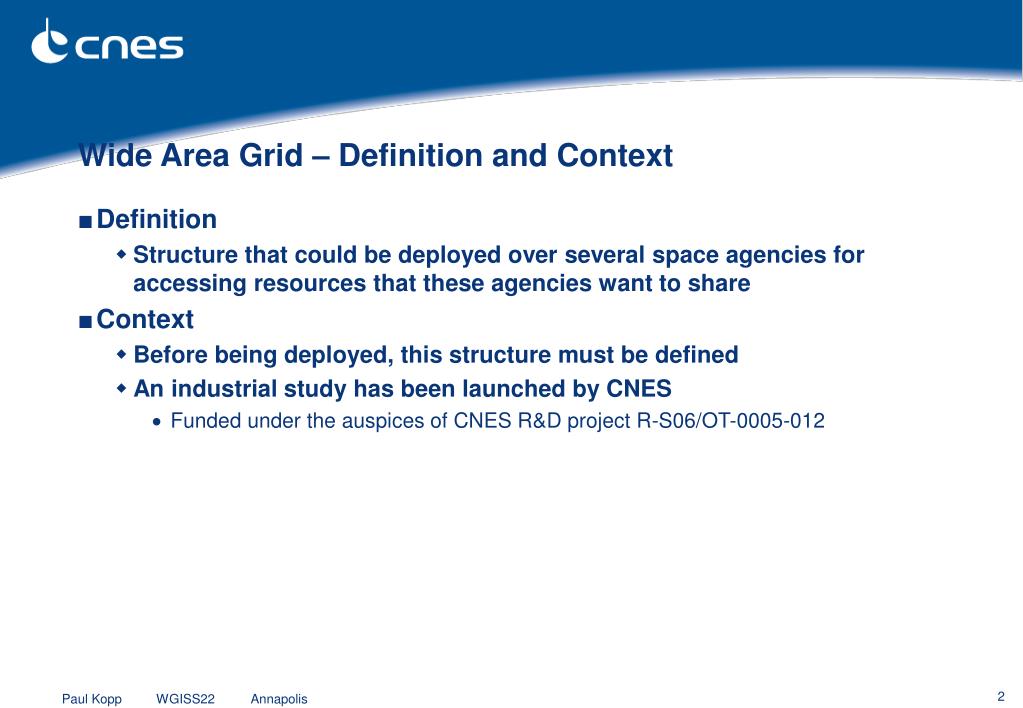

2. Wide Area Grid – Definition and Context • Definition • Structure that could be deployed over several space agencies for accessing resources that these agencies want to share • Context • Before being deployed, this structure must be defined • An industrial study has been launched by CNES • Funded under the auspices of CNES R&D project R-S06/OT-0005-012 Paul Kopp WGISS22 Annapolis

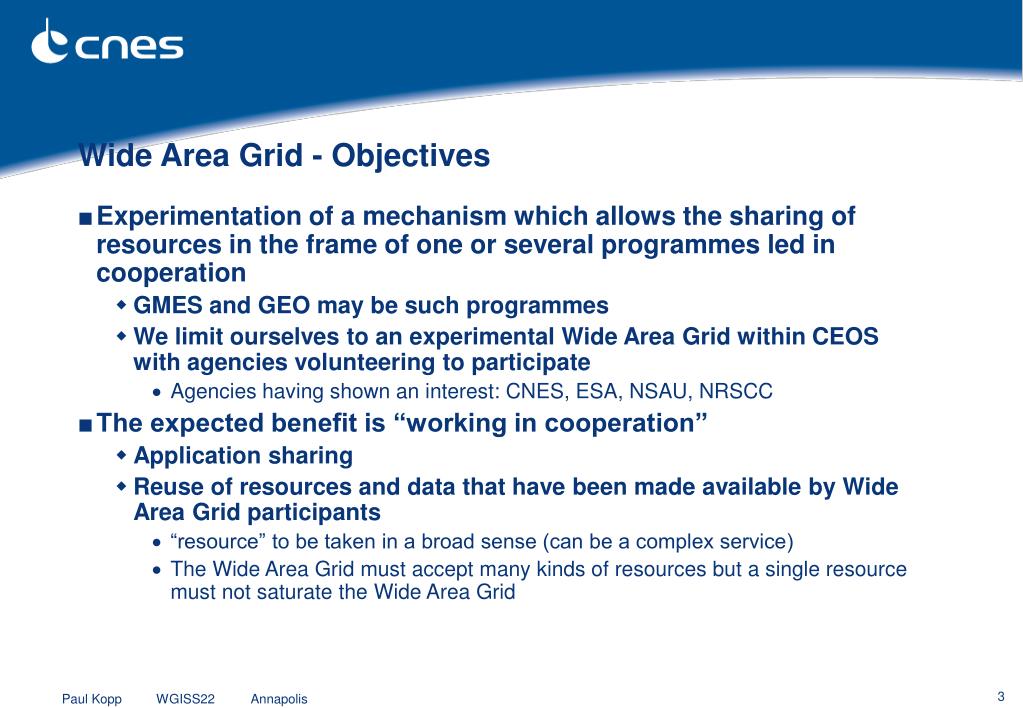

3. Wide Area Grid - Objectives • Experimentation of a mechanism which allows the sharing of resources in the frame of one or several programmes led in cooperation • GMES and GEO may be such programmes • We limit ourselves to an experimental Wide Area Grid within CEOSwith agencies volunteering to participate • Agencies having shown an interest: CNES, ESA, NSAU, NRSCC • The expected benefit is “working in cooperation” • Application sharing • Reuse of resources and data that have been made available by Wide Area Grid participants • “resource” to be taken in a broad sense (can be a complex service) • The Wide Area Grid must accept many kinds of resources but a single resource must not saturate the Wide Area Grid Paul Kopp WGISS22 Annapolis

4. Wide Area Grid Activity • Step 1 • Analysis of the building blocks required to set up the Wide Area Grid • Standardized grid middleware • Additional elements, like • Workflow mechanism • Service advertising mechanism (ex.: UDDI) • Portal for accessing the Wide Area Grid • Analysis of the constraints • Cultural barriers between agencies • “best effort” principles • Step 2 • Implementation of a Wide Area Grid Prototype • Step 3 • Experimentation of the prototype Paul Kopp WGISS22 Annapolis

5. Wide Area Grid - Requirements • The Wide Area Grid is a shared structure among agencies that are geographically distributed • Each agency offers computers, software, networks • Each agency remains the owner of these resources • An agency may leave the Wide Area Grid at any time • The Wide Area Grid manages and exploits the resources made available by agencies • A resource may be defined as a service consisting of several operations. New resources may be recursively defined from existing resources • There may be families of resources. A family may be seen as a Wide Area Grid utilization profile (ex.: “flood monitoring” profile) • Wide Area Grid users are persons or organizations. All users are registered users. The user selects a profile when connecting. The user may need to provide the required inputs for resource activation Paul Kopp WGISS22 Annapolis

6. Wide Area Grid – Requirements (continued) • A user may offer the Wide Area Grid to include additional resources for a given profile. A new resource must be agreed by the Wide Area Grid before inclusion. • The Wide Area Grid is a managed entity. The Wide Area Grid Manager acts on behalf of the Wide Area Grid participants. • Access to the Wide Area Grid must be offered through a very friendly interface • All resources provided by an agency in the frame of the Wide Area Grid may be completely disconnected from the other agency resources (no physical link). If not, security must be provided through an appropriate mechanism (ex.: DMZ). Paul Kopp WGISS22 Annapolis

7. Wide Area Grid – Characterization Methodology • Enterprise Viewpoint • The Wide Area Grid is a commonality set up by CEOS agencies for hosting and exploiting shared resources. Most resources may be seen as services. • There is no a priori limitation on the number of participants. • Computational Viewpoint • The Wide Area Grid is a combination of logical elements (to be defined by the study). • These elements interact with each other through interfaces. • They behave as information source or information destination. • Information Viewpoint • Information flowing through the Wide Area Grid must be semantically identified. • This will result in the Wide Area Grid information model. Paul Kopp WGISS22 Annapolis

8. Wide Area Grid – Characterization Methodology (continued) • Engineering Viewpoint • The Wide Area Grid elements may be classified according to categories. • A category is identified by its interaction type, thus making some characteristics of an element transparent to the user (ex.: location). • Grouping categories together may follow an architecture model (ex.: multi-tier architecture). • Technology Viewpoint • The Wide area grid will work if there exists at least one solution (to be defined) which will actually be implementations of each of the other viewpoints. Paul Kopp WGISS22 Annapolis

9. Wide Area Grid - Schedule • Step 1 (Study) End 2006 • Step 2 (Implementation) End 2007 • Step 3 (Experimentation) Starting end 2007 Schedule for the implementation and the experimentation steps will depend on Wide Area Grid participants! Paul Kopp WGISS22 Annapolis

10. Thank You! Paul Kopp WGISS22 Annapolis
