The can crusher

The Can Crusher

Group 12

Stanley Andrews

Brandon Jefferson


Motivation

Motivation

  • Wanted to incorporate more electrical design into the idea of the “Can Crusher”

  • Use pneumatic cylinders (3 pneumatic cylinders in this project)

  • Thought it would be something different from previous senior design projects


Objectives

Objectives

  • Step 1: Can or water bottle is placed into the trash can. Can/Water bottle enters hopper and waits for it to be identified by the optical and reflective sensor.

  • Step 2: Rotary cylinder rotates the object and sends it down the ramp.

  • Step 3: Sorter determines route of the object based on feedback from the sensors.

  • Step 4: If object is a water bottle, the pneumatic cylinder will extend, adjusting the direction of the sorter

  • Step 5: If the object is an aluminum can, it will be routed towards a push cylinder and crushed

  • Step 6: Push cylinder crushes the aluminum cans and sends remains to the storage bin

  • Step 7: Process continues until storage sensor alerts operator that storage bin is 90 %filled.

  • Step 8: Once storage reaches 90%. Can crusher goes into “Stop” mode. Items from storage bin, can then be removed.


Features

Features

  • Fully automatic can crusher and sorter

  • Detect when an object is placed in the hopper

  • Be able to distinguish between an aluminum can and a water bottle

  • Sort the water bottle into a separate storage bin from the aluminum cans

  • Be able to crush the aluminum cans and put into storage bin

  • Detect when the storage bins are full

  • Have three different modes “Standby”, “Operational”, “Stop”


Hopper

Hopper

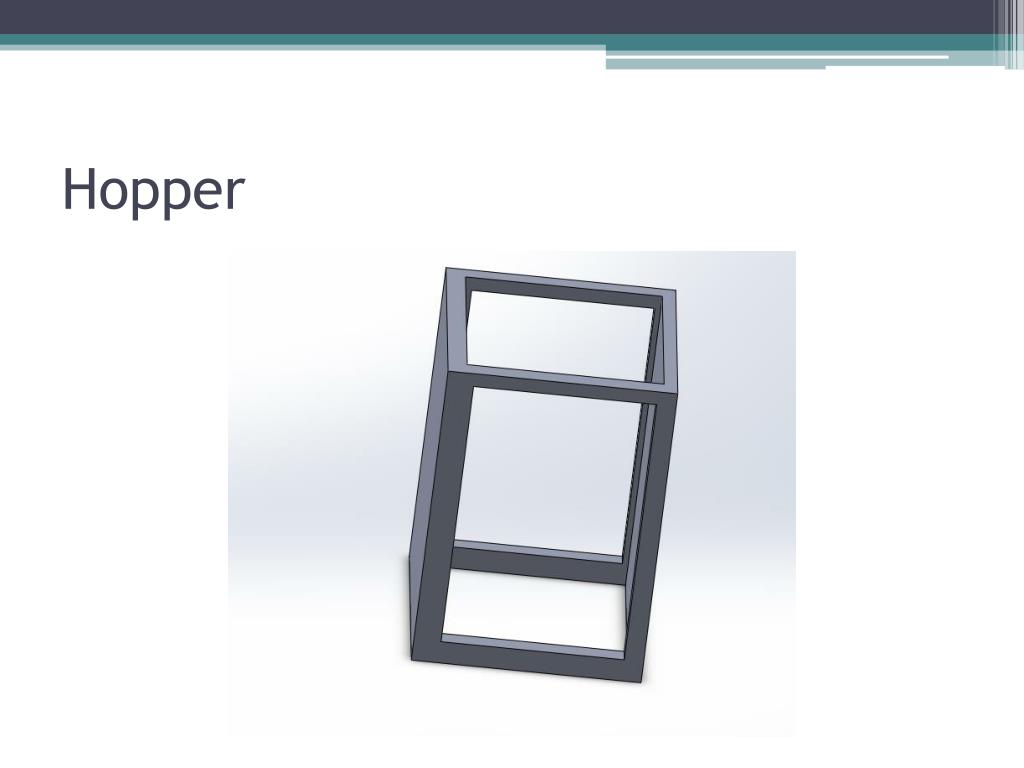

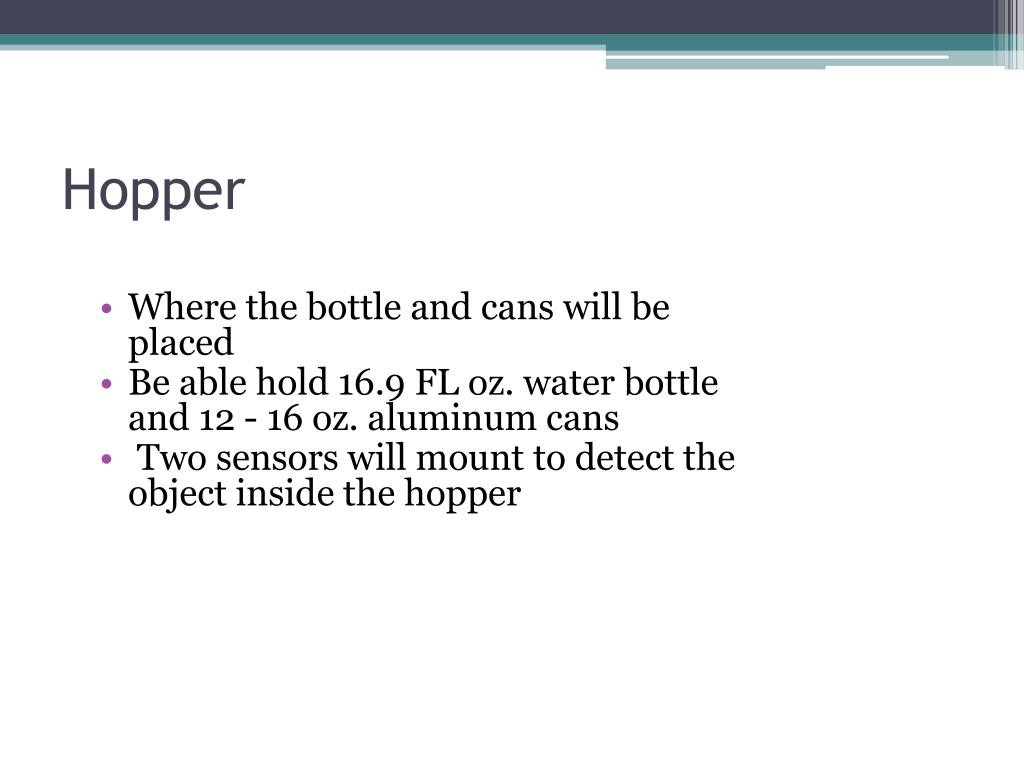

Hopper1

Where the bottle and cans will be placed

Be able hold 16.9 FL oz. water bottle and 12 - 16 oz. aluminum cans

Two sensors will mount to detect the object inside the hopper

Hopper

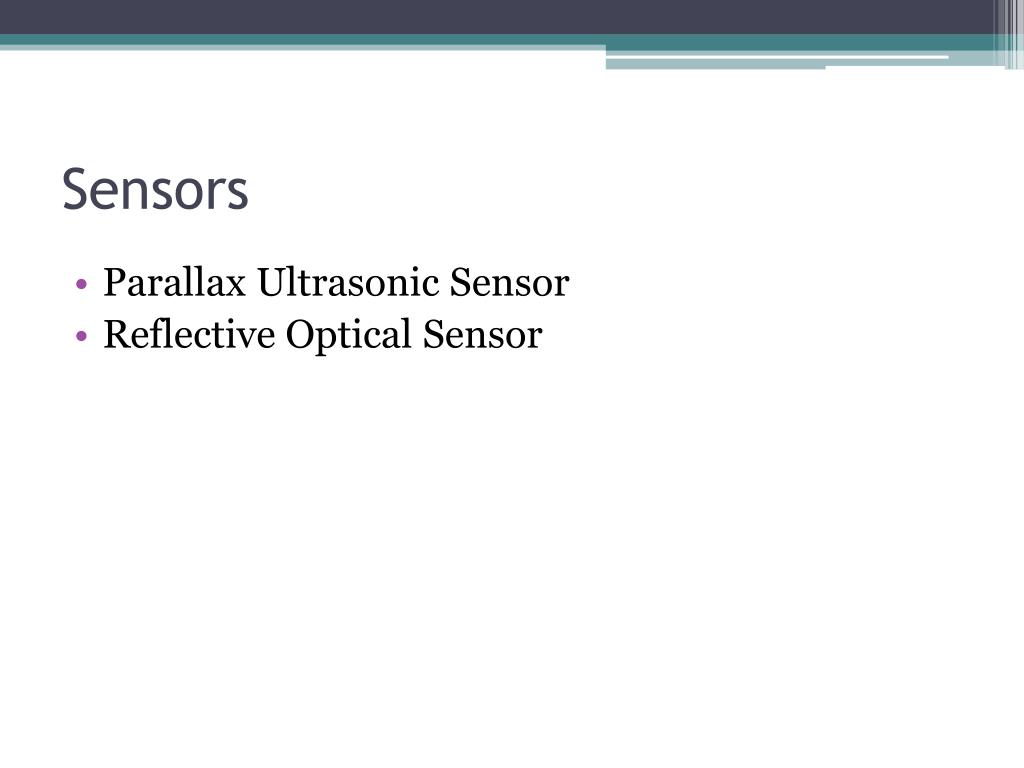

Sensors

Sensors

  • Parallax Ultrasonic Sensor

  • Reflective Optical Sensor

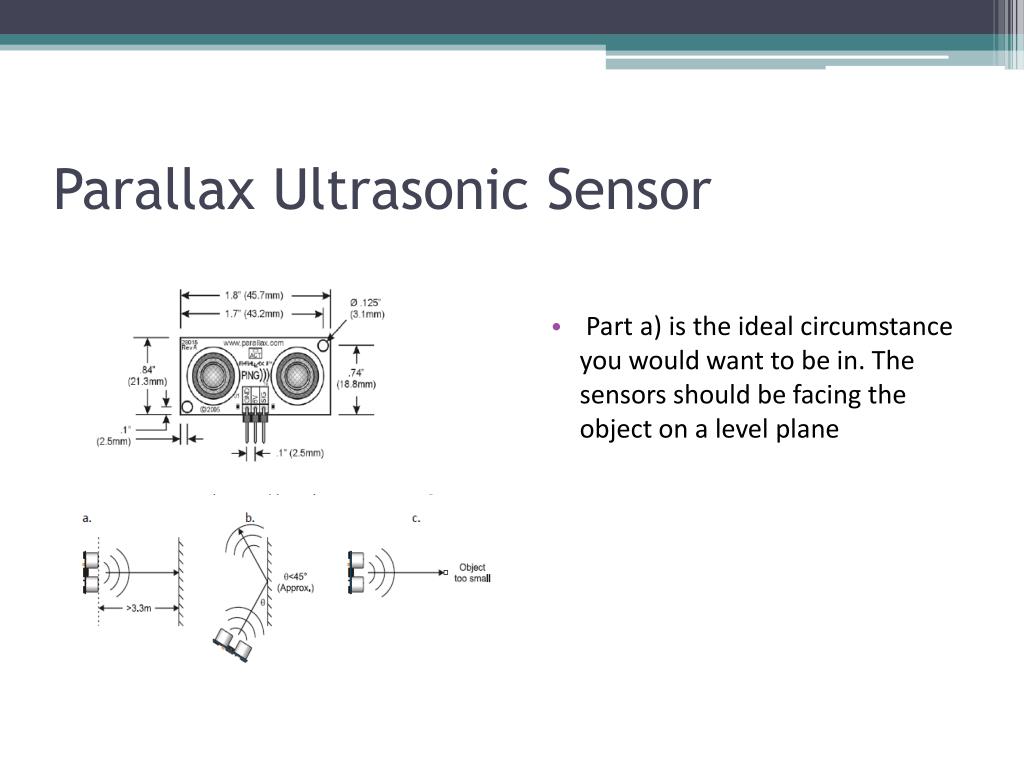

Parallax ultrasonic sensor

Parallax Ultrasonic Sensor

  • Part a) is the ideal circumstance you would want to be in. The sensors should be facing the object on a level plane

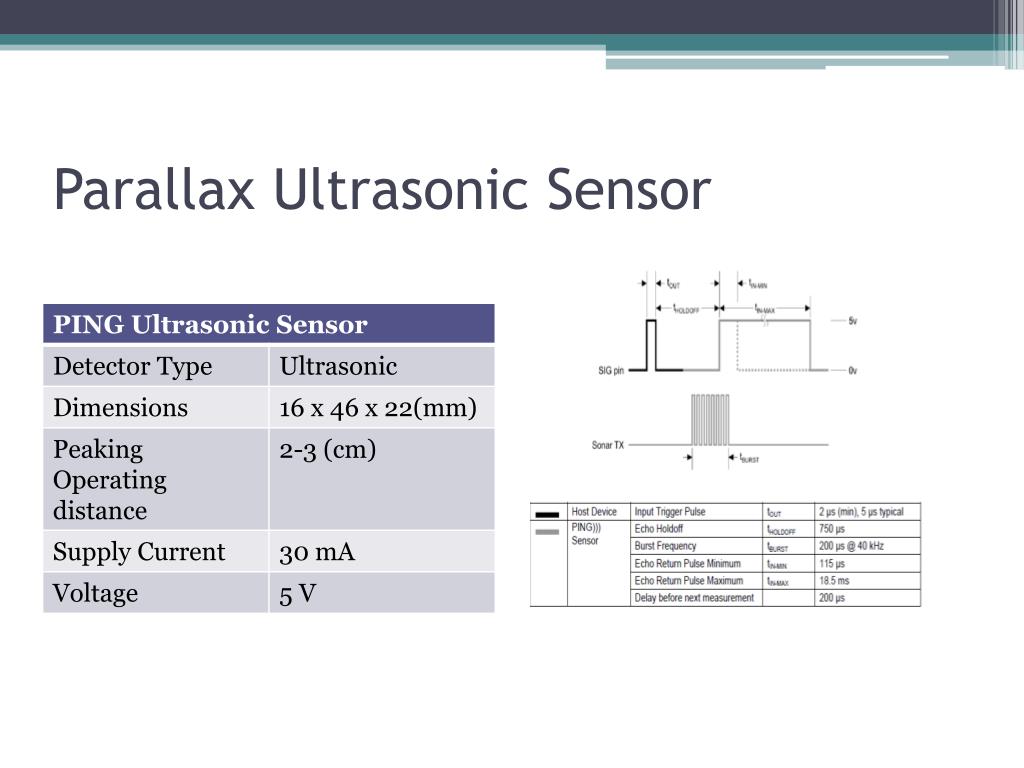

Parallax ultrasonic sensor1

Parallax Ultrasonic Sensor


Reflective optical sensor

Reflective Optical Sensor

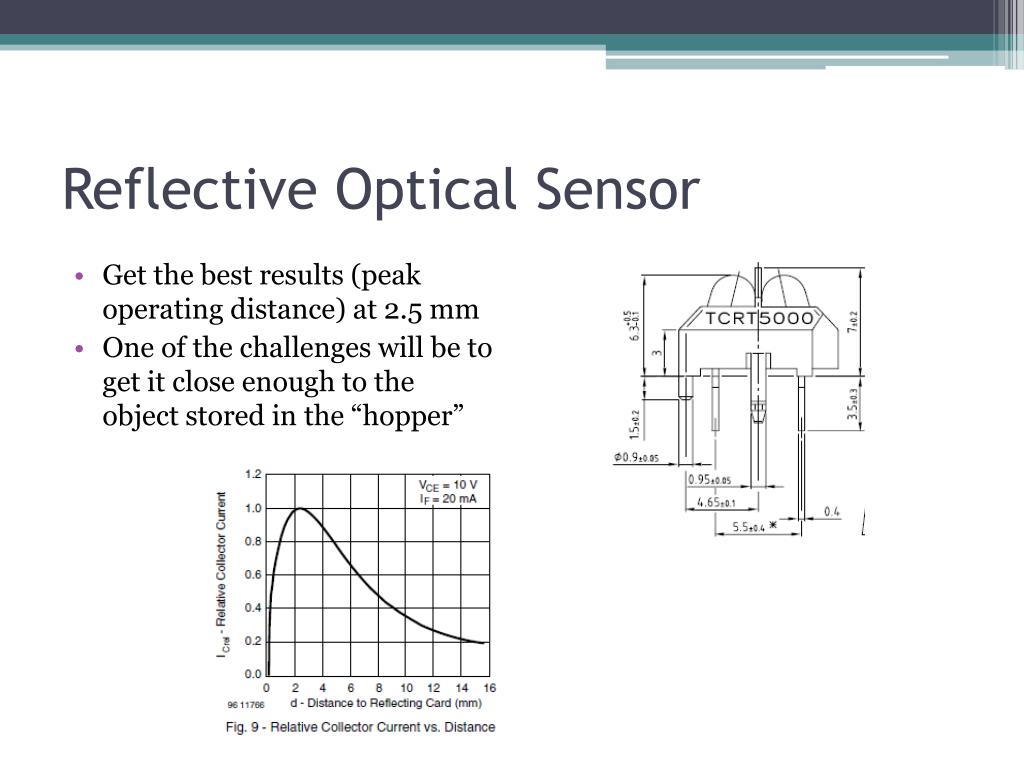

Reflective optical sensor1

Reflective Optical Sensor

  • Get the best results (peak operating distance) at 2.5 mm

  • One of the challenges will be to get it close enough to the object stored in the “hopper”


Aluminum cans water bottles

Aluminum Cans/ Water bottles

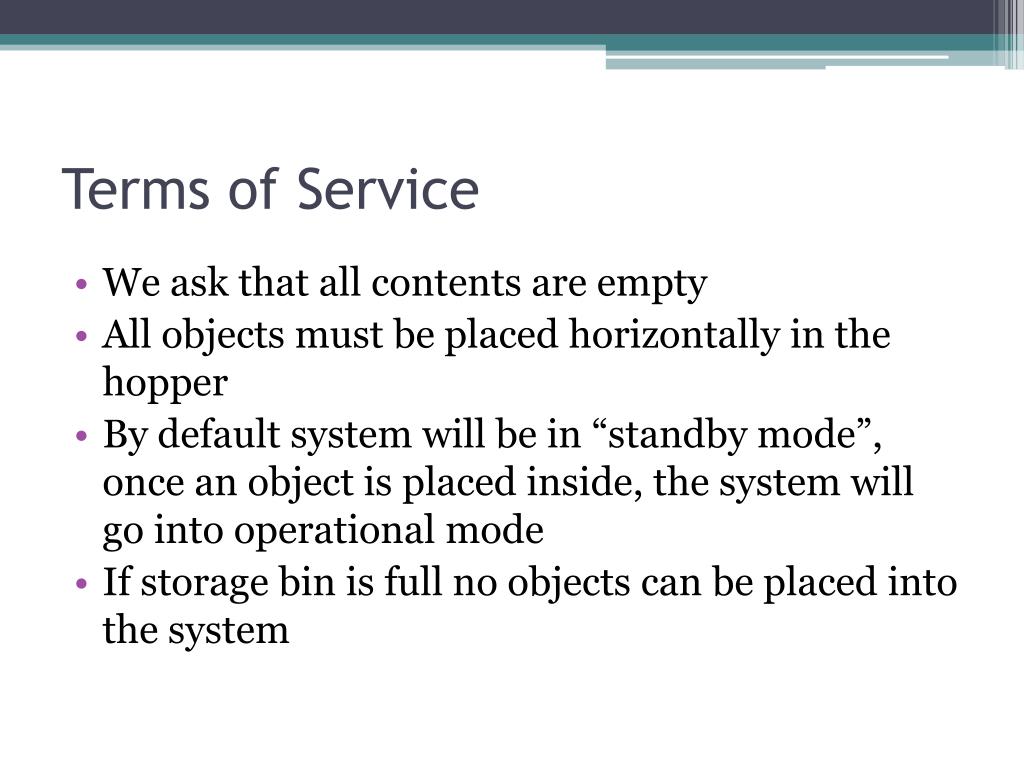

Terms of service

Terms of Service

  • We ask that all contents are empty

  • All objects must be placed horizontally in the hopper

  • By default system will be in “standby mode”, once an object is placed inside, the system will go into operational mode

  • If storage bin is full no objects can be placed into the system

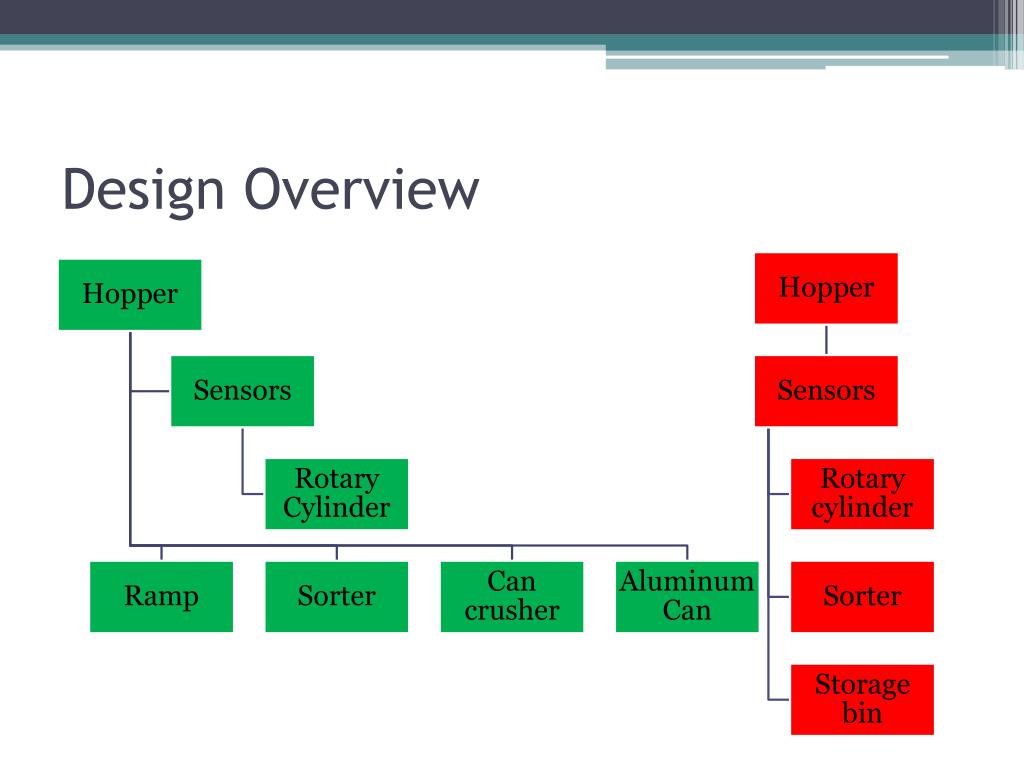

Design overview

Design Overview

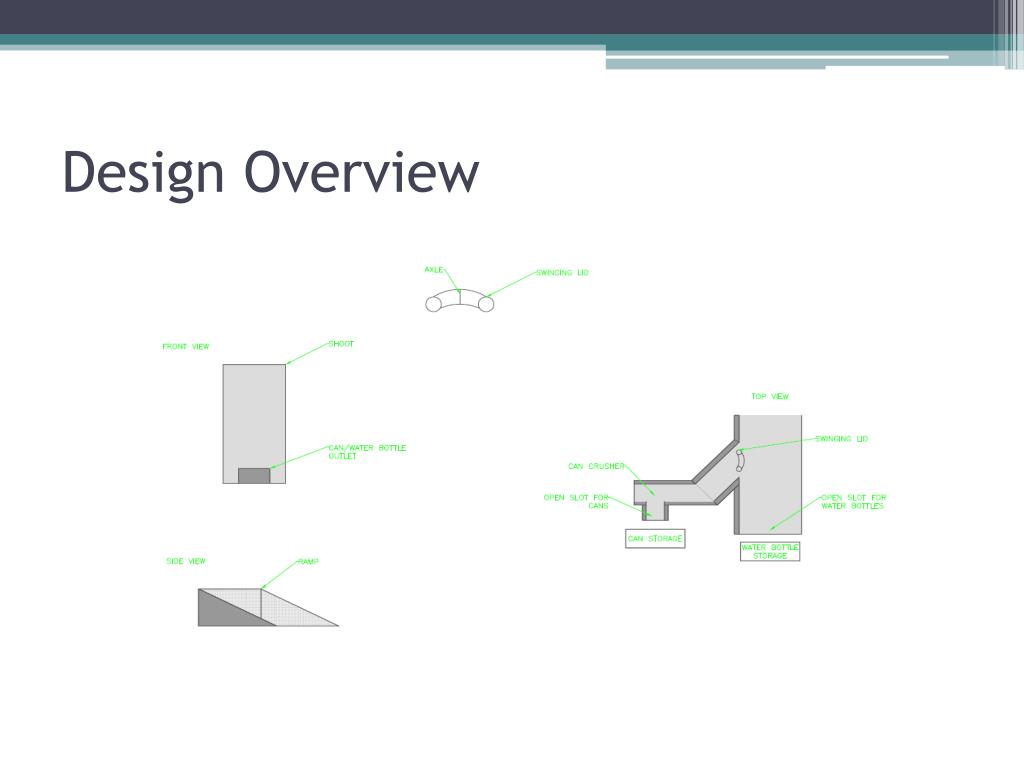

Design overview1

Design Overview


Sorter

The idea is called the “Swinging lid”

Uses pneumatic cylinder to be able to “swing” the lid and alter the objects path

Routes Aluminum Cans to Can Crusher

Routes Water bottles to storage bin

Sorter


Motors air compressor

Motors/ Air Compressor

Electric motors

Air Compressor

Pros

  • Uses Standard Outlet

  • Option to convert AC to DC

  • Very Compact and small to maneuver and place anywhere

    Cons

  • Most motors only have one speed

  • No way to speed up or slow down the project

  • Very Expenses for high power motors

  • Only can

Pros

  • Uses a Standard Outlet

  • Able to adjust the air pressure

  • Ability to control the speed of the motor by the PSI

  • Option to convert AC to DC

  • Not to expensive economy for the budget

  • Can use air solenoid valves that can control of a multiple operated air pressure components

    Cons

  • Tank will have to be refilled when low on air

  • Will need multiple air hoses

  • Very big hard to hide and maneuver

  • Very loud when filling up the tank


Air compressor

Air Compressor


Pneumatic cylinders

Pneumatic cylinders

  • Rotary Cylinder

  • Mini cylinder (sorter)

  • Double Acting Cylinder (can crusher)


Kevinkrusher 11 0

Kevinkrusher11.0

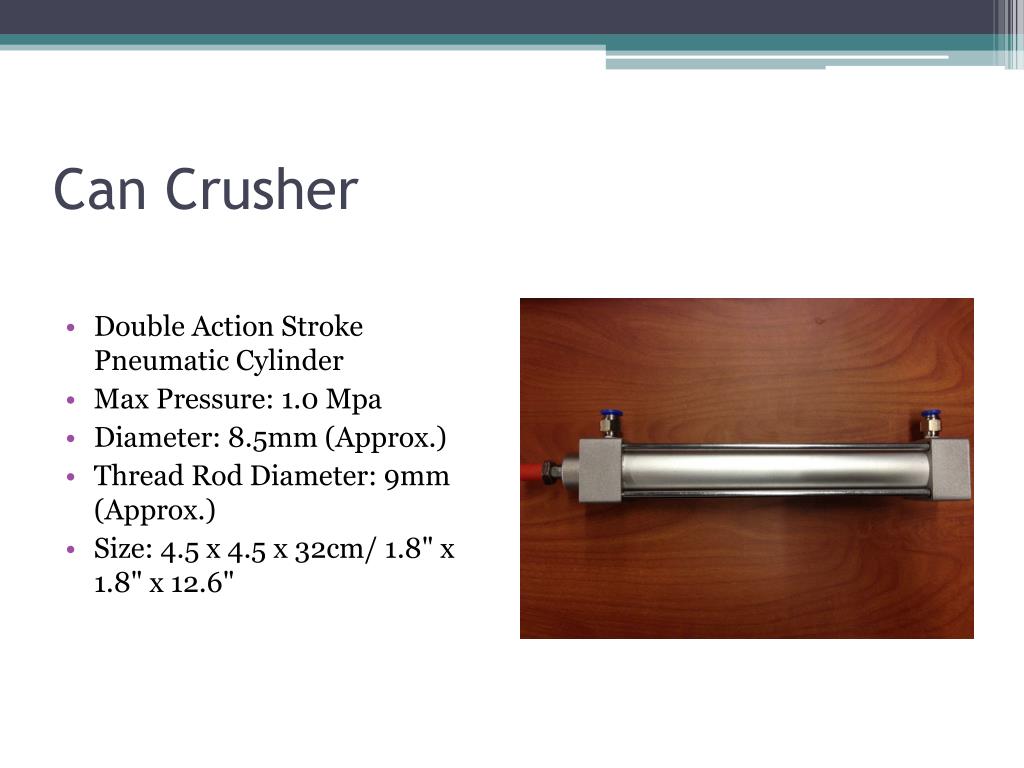

Can crusher

Can Crusher

  • Double Action Stroke Pneumatic Cylinder

  • Max Pressure: 1.0 Mpa

  • Diameter: 8.5mm (Approx.)

  • Thread Rod Diameter: 9mm (Approx.)

  • Size: 4.5 x 4.5 x 32cm/ 1.8" x 1.8" x 12.6"


Mini cylinder

Mini Cylinder

  • Double Action

  • Max Pressure: 1.0 Mpa

  • Diameter: 8.5mm (Approx.)

  • Thread Rod Diameter: 6mm (Approx.)

  • Size: 1.5 x 1.1 x 1.5cm/ 0.5" x 0.4" x 0.6"


Cylinders

Cylinders


Air solenoid

Air Solenoid

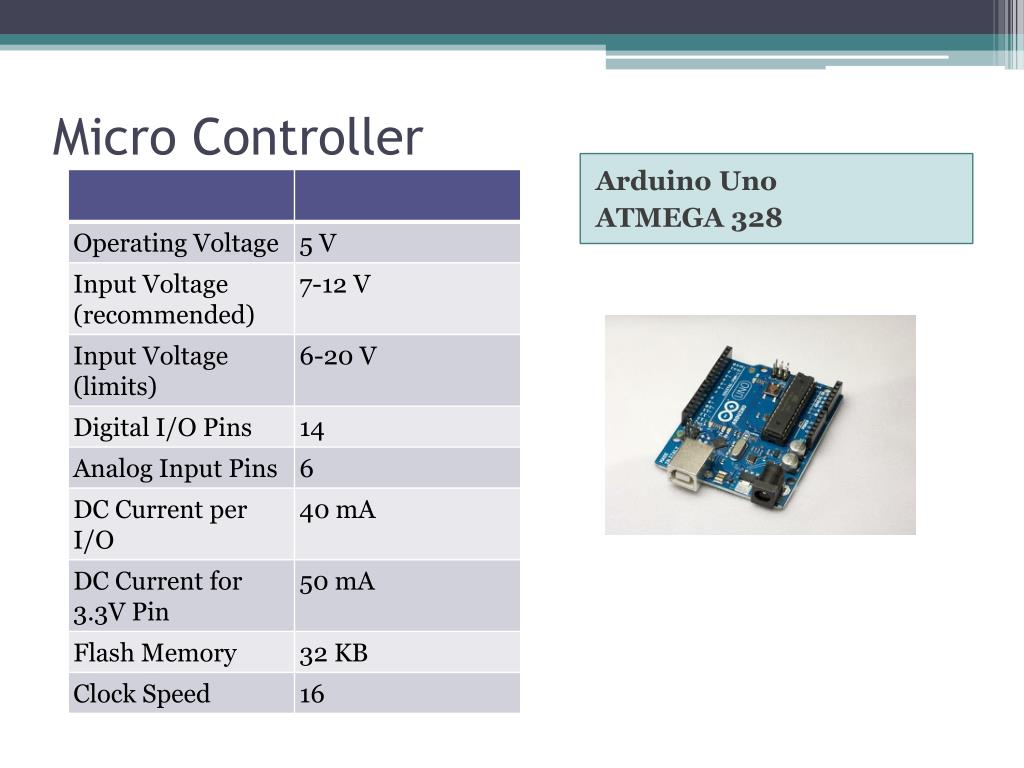

Micro controller

Micro Controller

ArduinoUno

ATMEGA 328

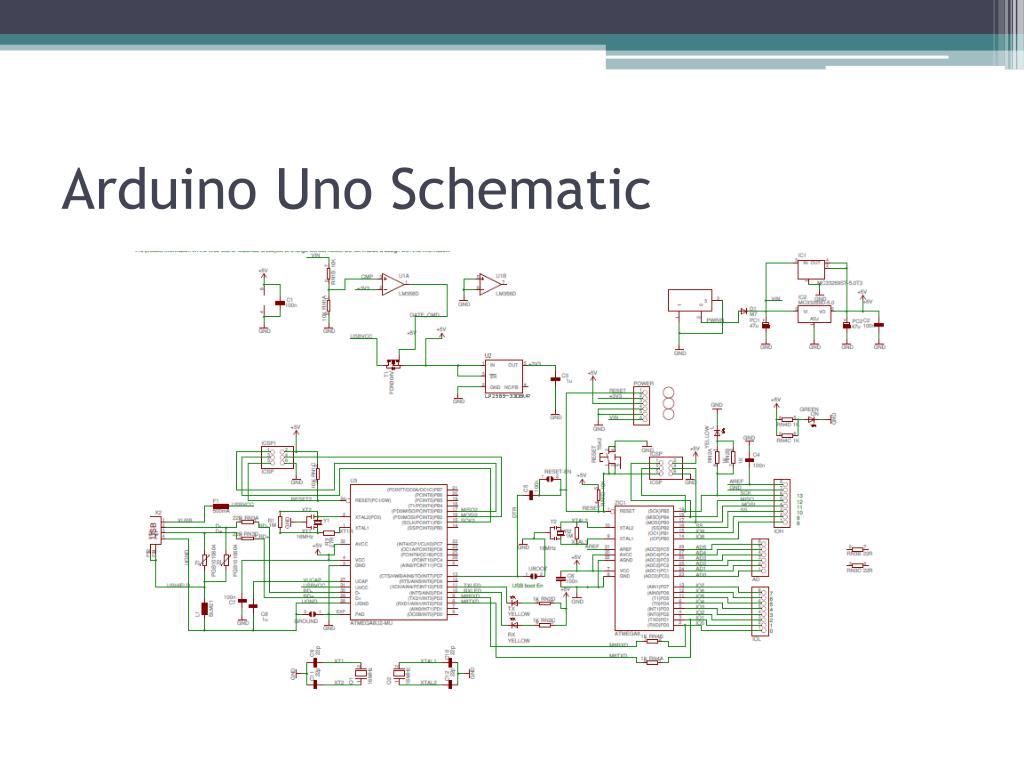

Arduino uno schematic

Arduino Uno Schematic


Storage bins

Storage Bins

  • Two storage bins

  • Aluminum Can and Water Bottle

  • Each bin will have Parallax Ultrasonic sensor

  • Once storage reaches 90%. Can crusher goes into “Stop” mode


Enclosure

Enclosure

Trash Can

Cabinet


The can crusher

LEDs


Led schematic

LED Schematic


Power supply

Power Supply


Power supply schematic

Power Supply Schematic

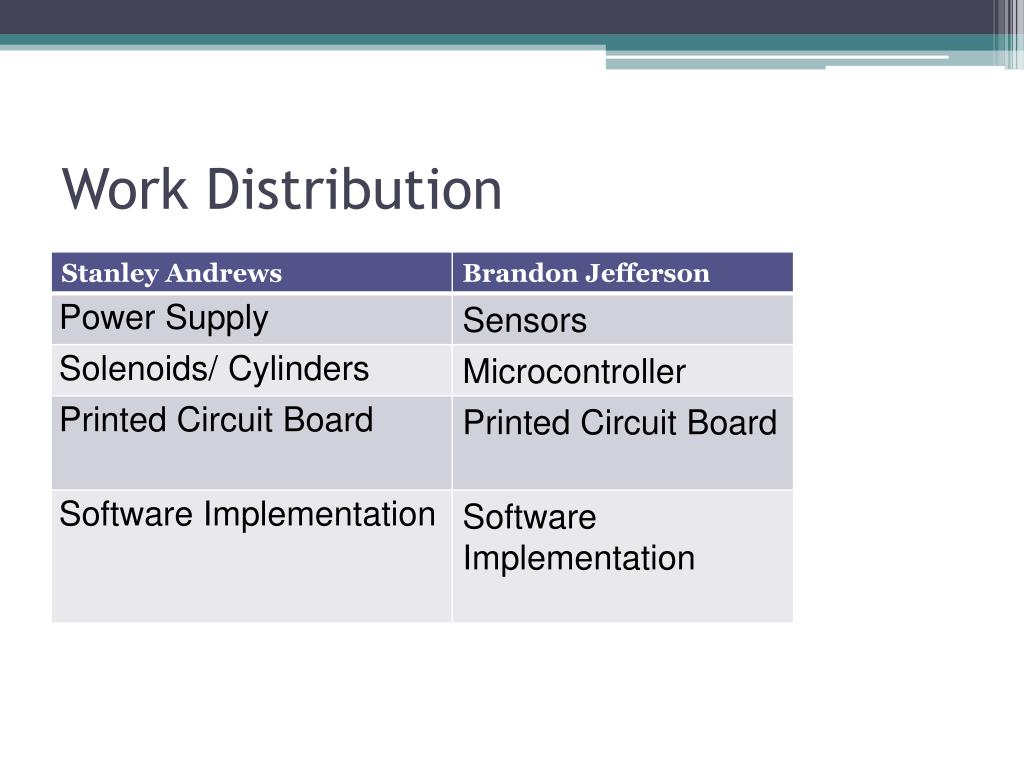

Work distribution

Work Distribution


Budget

Budget


Progression

Progression

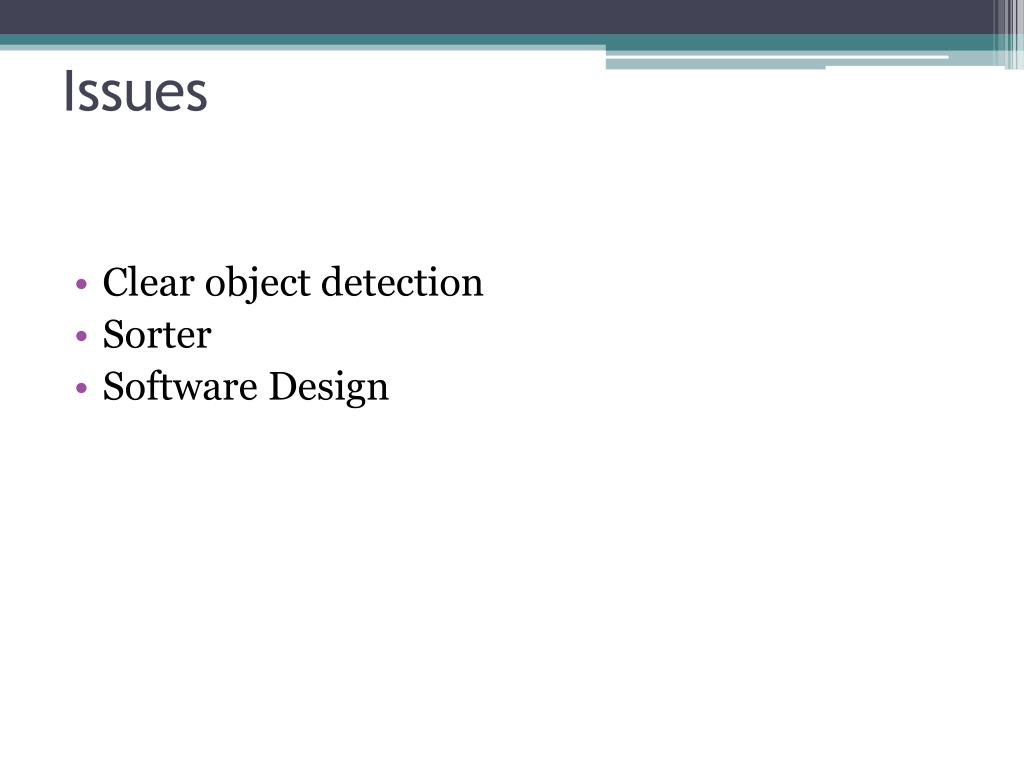

Issues

Issues

  • Clear object detection

  • Sorter

  • Software Design


Questions

Questions
