Presentation Transcript

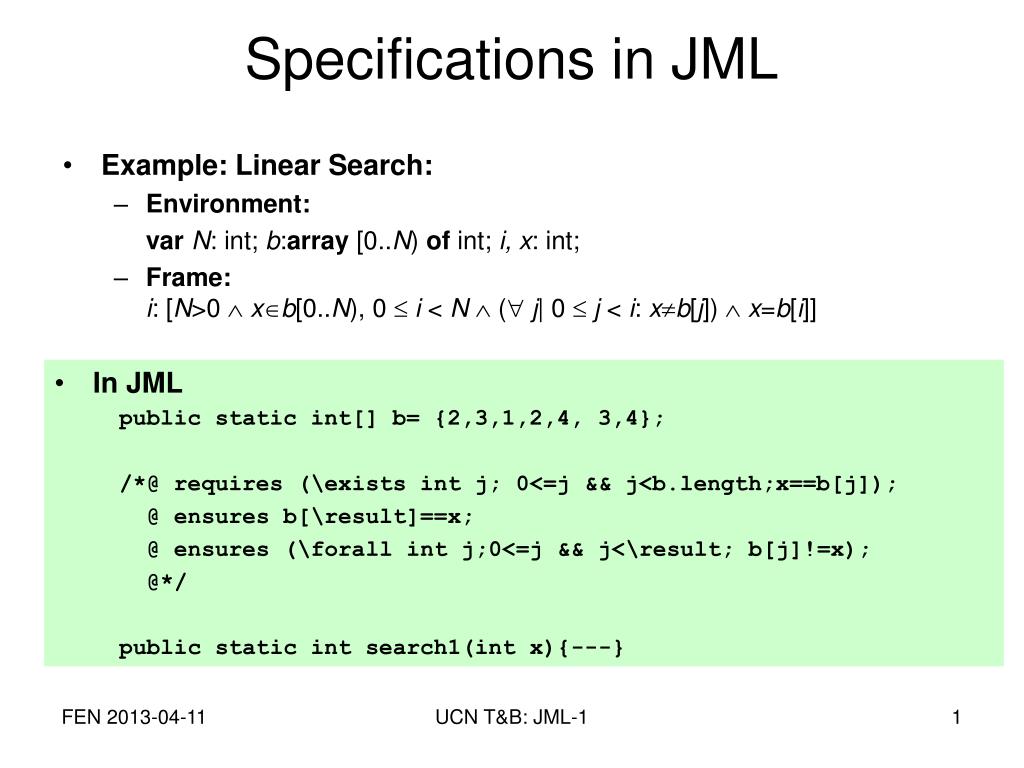

specifications in jml
Specifications in JML
  • Example: Linear Search:
    • Environment:

varN: int; b:array [0..N) of int; i, x: int;

    • Frame:i: [N>0 xb[0..N), 0 i <N (j| 0 j < i: xb[j]) x=b[i]]
  • In JML
    • public static int[] b= {2,3,1,2,4, 3,4};
    • /*@ requires (\exists int j; 0<=j && j<b.length;x==b[j]);
    • @ ensures b[\result]==x;
    • @ ensures (\forall int j;0<=j && j<\result; b[j]!=x);
    • @*/
    • public static int search1(int x){---}

UCN T&B: JML-1

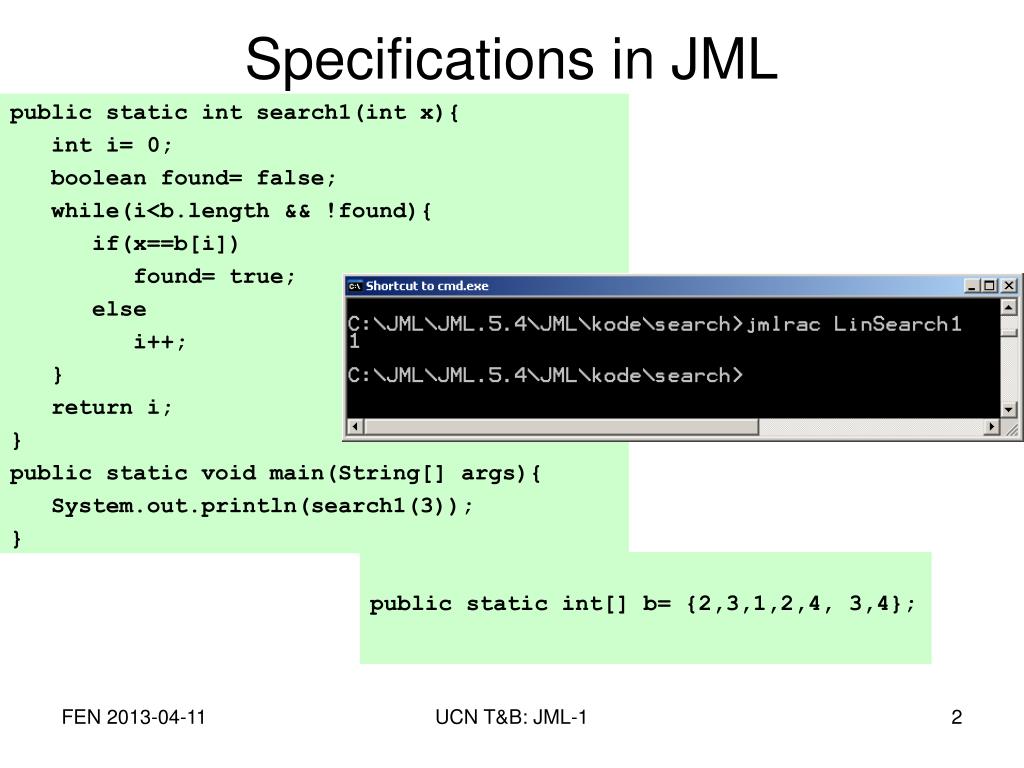

specifications in jml1
Specifications in JML

public static int search1(int x){

int i= 0;

boolean found= false;

while(i<b.length && !found){

if(x==b[i])

found= true;

else

i++;

}

return i;

}

public static void main(String[] args){

System.out.println(search1(3));

}

public static int[] b= {2,3,1,2,4, 3,4};

UCN T&B: JML-1

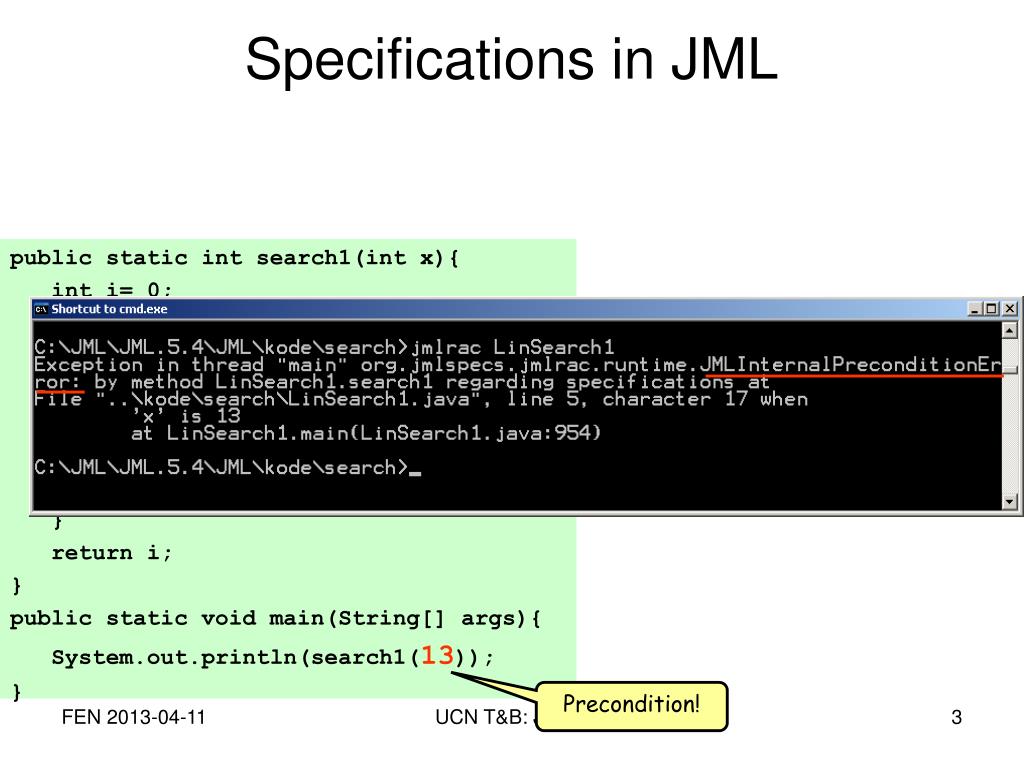

specifications in jml2
Specifications in JML

public static int search1(int x){

int i= 0;

boolean found= false;

while(i<b.length && !found){

if(x==b[i])

found= true;

else

i++;

}

return i;

}

public static void main(String[] args){

System.out.println(search1(13));

}

Precondition!

UCN T&B: JML-1

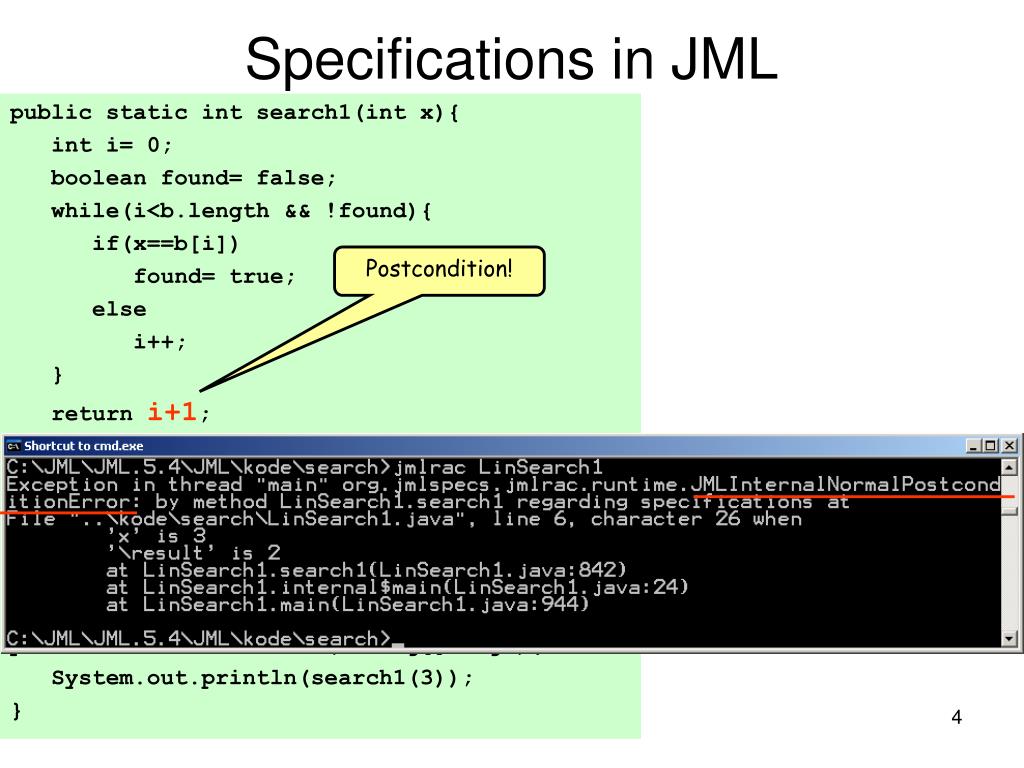

specifications in jml3
Specifications in JML

public static int search1(int x){

int i= 0;

boolean found= false;

while(i<b.length && !found){

if(x==b[i])

found= true;

else

i++;

}

return i+1;

}

public static void main(String[] args){

System.out.println(search1(3));

}

Postcondition!

UCN T&B: JML-1

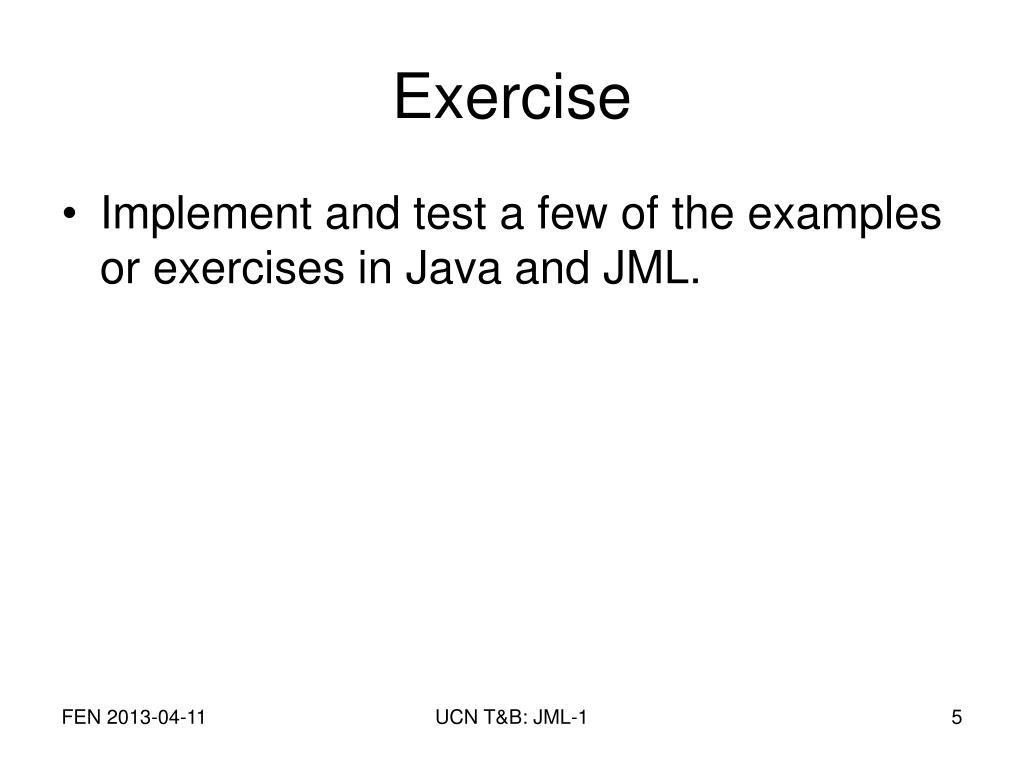

exercise
Exercise
  • Implement and test a few of the examples or exercises in Java and JML.

UCN T&B: JML-1
