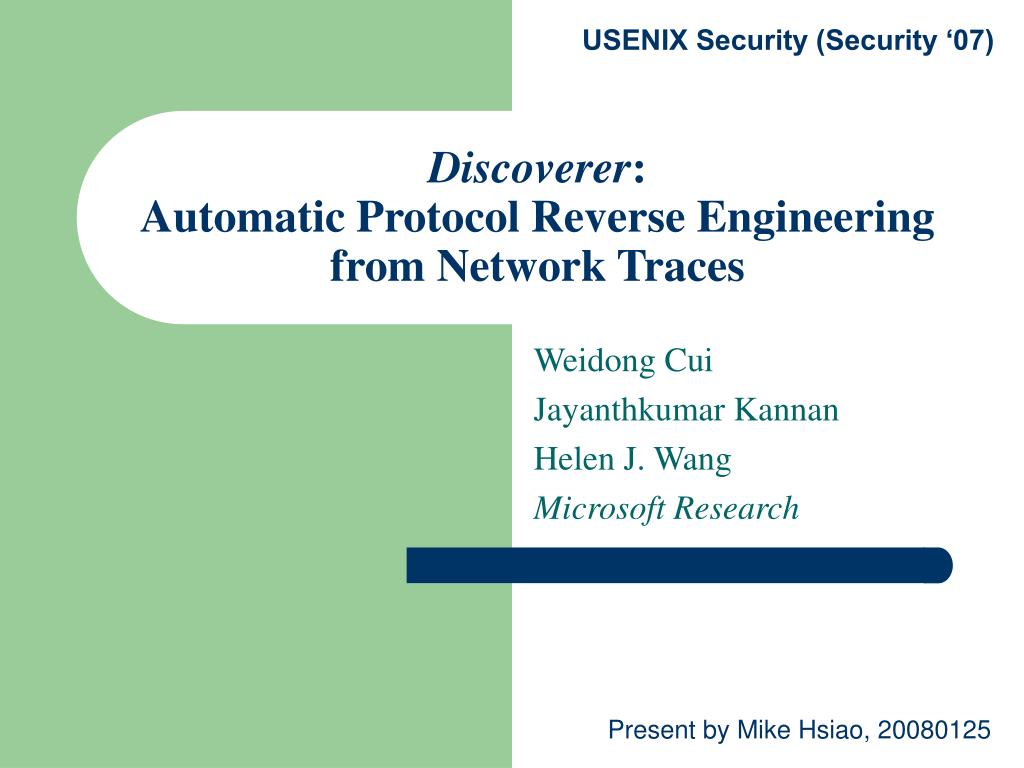

  1. USENIX Security (Security ‘07) Discoverer: Automatic Protocol Reverse Engineeringfrom Network Traces Weidong Cui Jayanthkumar Kannan Helen J. Wang Microsoft Research Present by Mike Hsiao, 20080125

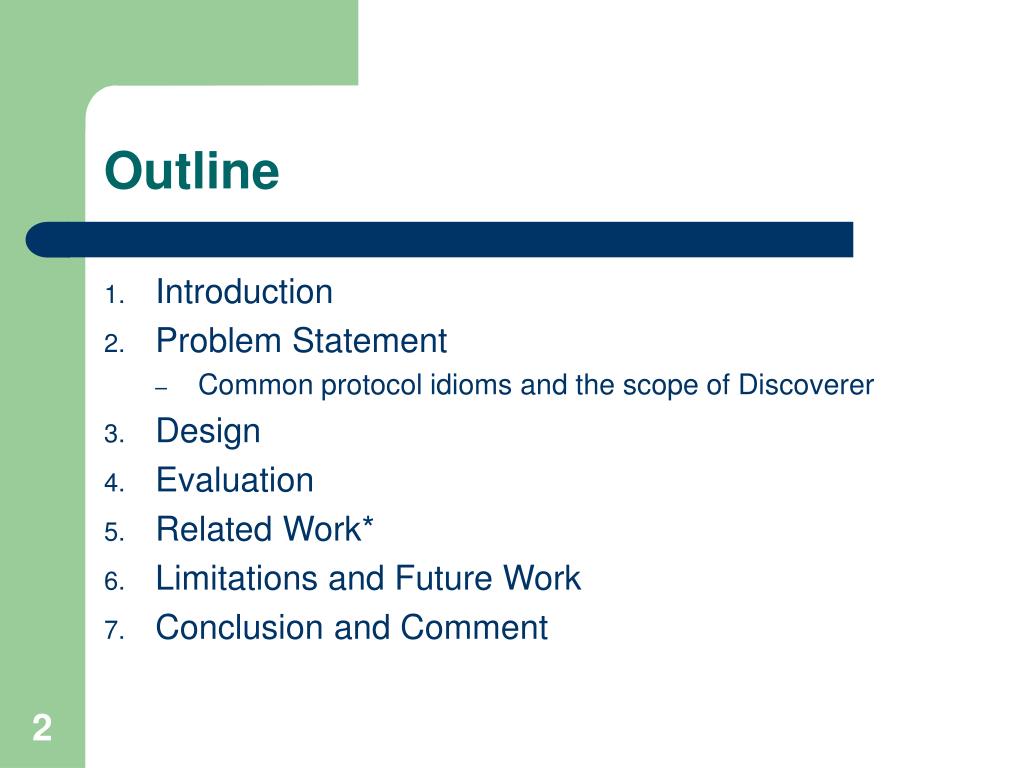

  2. Outline • Introduction • Problem Statement • Common protocol idioms and the scope of Discoverer • Design • Evaluation • Related Work* • Limitations and Future Work • Conclusion and Comment

  3. Section 1 Application-level protocol specifications: usage • Application-level protocol specifications are useful for many security applications. • intrusion prevention and detection • deep packet inspection • protocol analyzer • penetration testing • generates network inputs to an application to uncover potential vulnerabilities • Current practice is mostly manual.

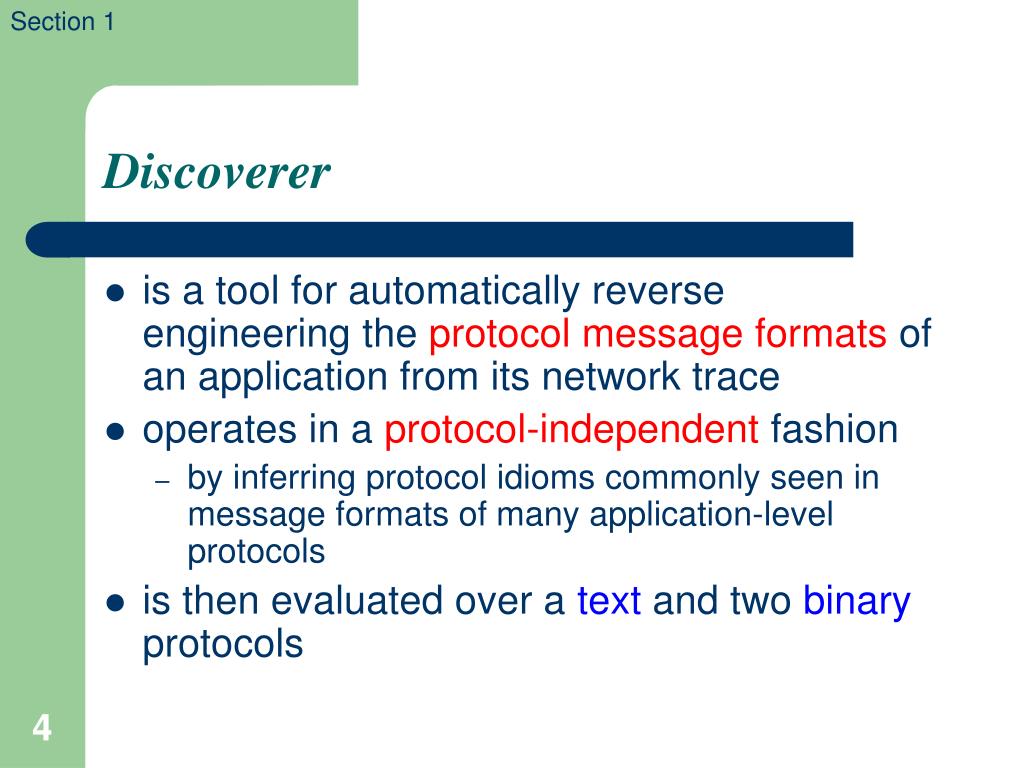

  4. Section 1 Discoverer • is a tool for automatically reverse engineering the protocol message formats of an application from its network trace • operates in a protocol-independent fashion • by inferring protocol idioms commonly seen in message formats of many application-level protocols • is then evaluated over a text and two binary protocols

  5. Section 1 Application-level protocol specifications • From documentation or reverse engineered manually • Time-consuming and error-prone • “It took the open-source SAMBA project 12 years to manually reverse engineer the Microsoft SMB protocol.” • “Yahoo messenger protocol has also been persistently reverse engineered, despite which, the open source clients regularly require patching to support proprietary changes in the Yahoo protocol.” • the period between the availability of an official client and an open-source client has been a month

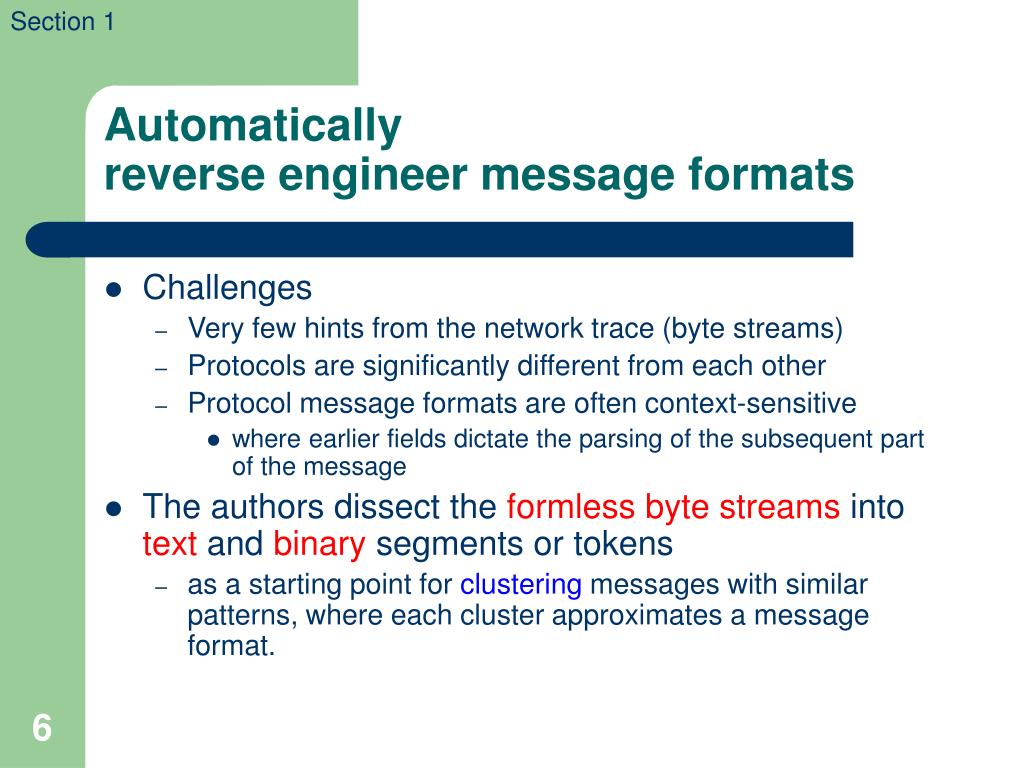

  6. Section 1 Automaticallyreverse engineer message formats • Challenges • Very few hints from the network trace (byte streams) • Protocols are significantly different from each other • Protocol message formats are often context-sensitive • where earlier fields dictate the parsing of the subsequent part of the message • The authors dissect the formless byte streams into text and binary segments or tokens • as a starting point for clustering messages with similar patterns, where each cluster approximates a message format.

  7. Section 1 Evaluation Matrices • Correctness • does one inferred format correspond to exactly one true format? • Conciseness • how many inferred formats is a single true format reflected in? • Coverage • how many messages are covered by the inferred formats?

  8. Section 2 Problem Statement: Common Protocol Idioms • Application session • consists of a series of messages between two hosts that accomplishes a specific task. • Message format specification • a sequence of fields and their semantics • length, offset (byte offset of another field) • pointer (an offset specifies the index of a field) • cookie (session specific opaque data. E.g., session ID) • endpoint-address (IP, port) • set (a group of fields that can be put in an arbitrary order)

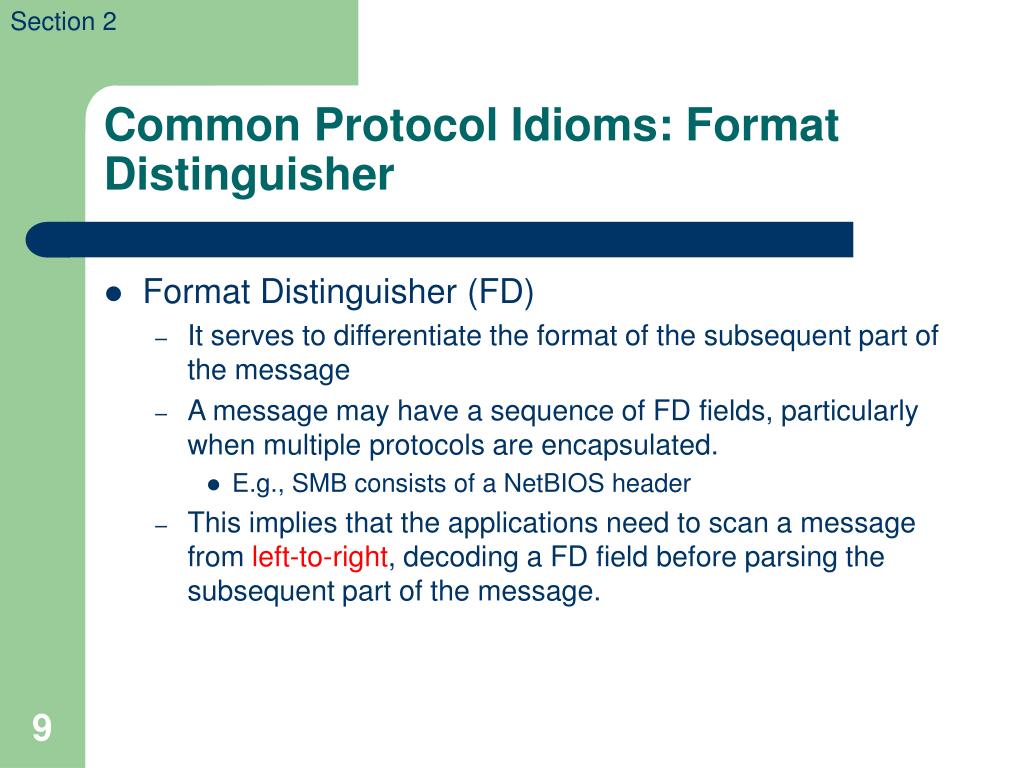

  9. Section 2 Common Protocol Idioms: Format Distinguisher • Format Distinguisher (FD) • It serves to differentiate the format of the subsequent part of the message • A message may have a sequence of FD fields, particularly when multiple protocols are encapsulated. • E.g., SMB consists of a NetBIOS header • This implies that the applications need to scan a message from left-to-right, decoding a FD field before parsing the subsequent part of the message.

  10. Section 2 Scope of Discoverer • derive the message format specification • not protocol finite state machine • assume synchronous protocols • A message is a consecutive chunk of application-level data sent in one direction • one or more TCP or UDP connection • UDP connection is a pair of unidirectional UDP flows • focus on applications that do not obfuscate payloads • do not capture timing semantics

  11. Section 3 Design: Overview • Cluster messages with the same format together and infer the message format by comparing messages in a single cluster • Tokenization and Initial Clustering • Recursive Clustering • Merging

  12. Section 3 1-1 Tokenization (1/2) • Text • Identify text bytes by comparing them with the ASCII values of printable characters • Consider a sequence of text bytes sandwiched between two binary bytes as a text segment • Require the sequence to have a minimum length • Use a set of delimiters (e.g., space and tab) to divide a text segment into tokens

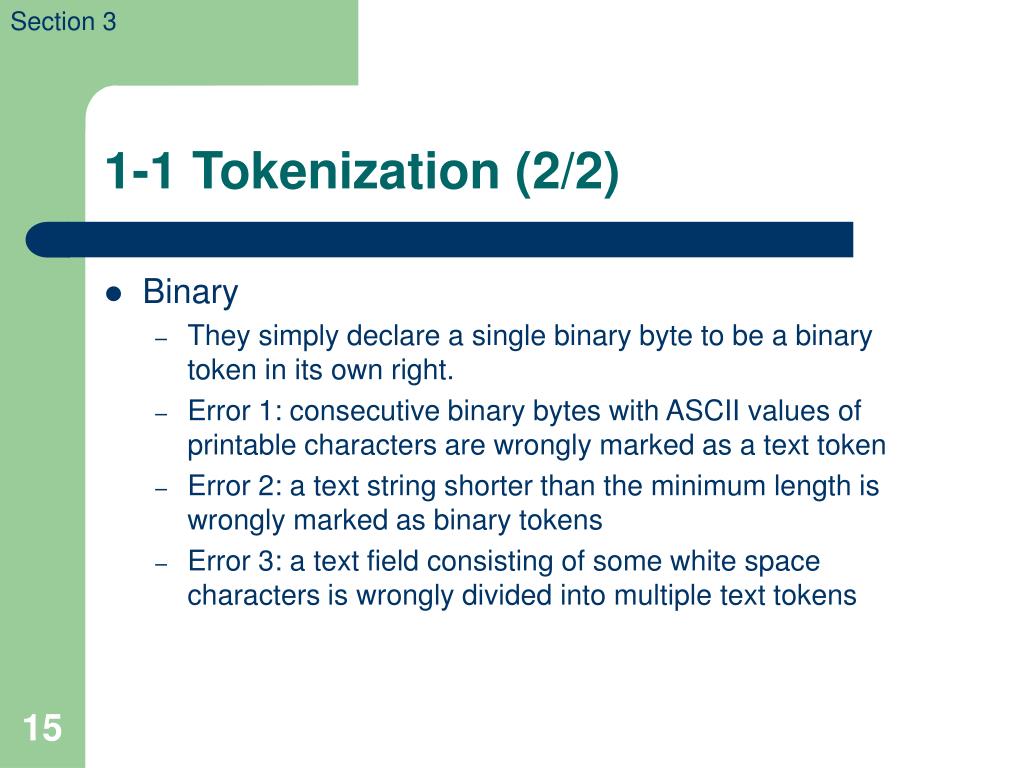

  13. Section 3 1-1 Tokenization (2/2) • Binary • They simply declare a single binary byte to be a binary token in its own right. • Error 1: consecutive binary bytes with ASCII values of printable characters are wrongly marked as a text token • Error 2: a text string shorter than the minimum length is wrongly marked as binary tokens • Error 3: a text field consisting of some white space characters is wrongly divided into multiple text tokens

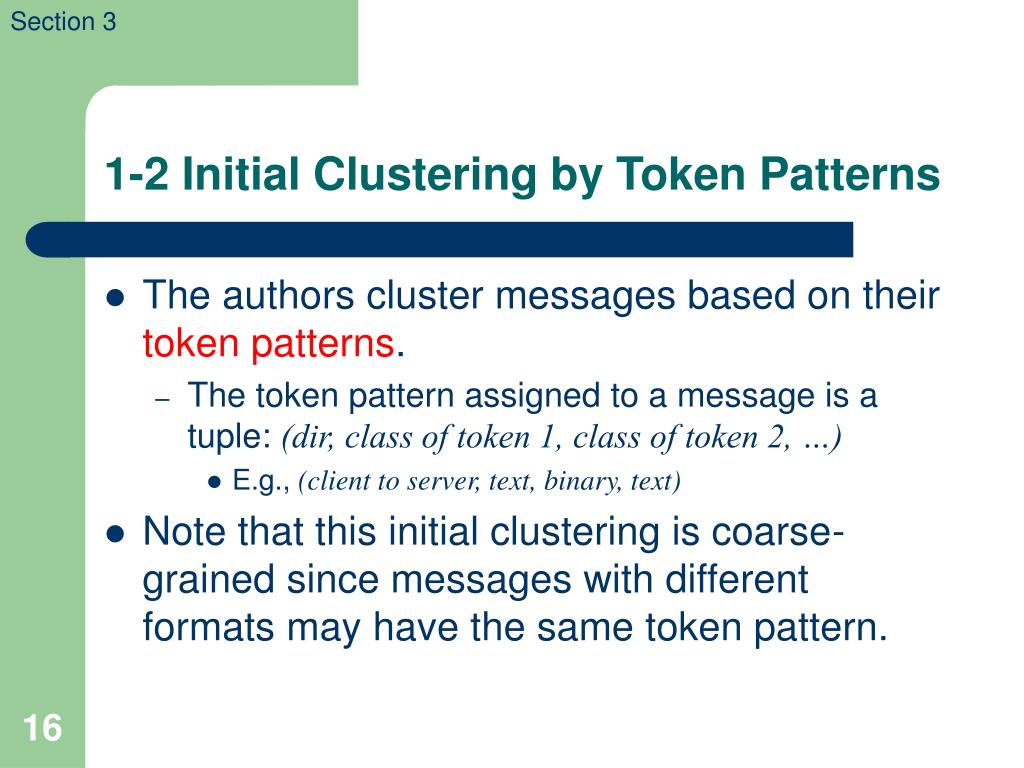

  14. Section 3 1-2 Initial Clustering by Token Patterns • The authors cluster messages based on their token patterns. • The token pattern assigned to a message is a tuple: (dir, class of token 1, class of token 2, …) • E.g., (client to server, text, binary, text) • Note that this initial clustering is coarse-grained since messages with different formats may have the same token pattern.

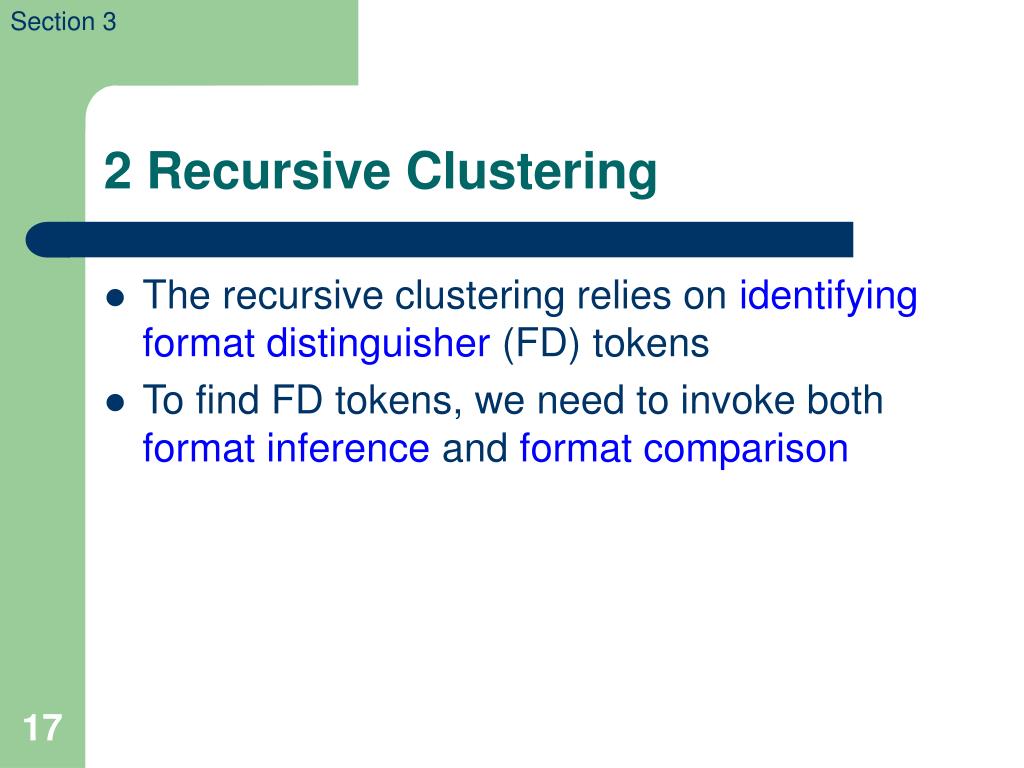

  15. Section 3 2 Recursive Clustering • The recursive clustering relies on identifying format distinguisher (FD) tokens • To find FD tokens, we need to invoke both format inference and format comparison

  16. Section 3 2-1 Format Inference • This phase takes as input a set of messages and infers a format that succinctly captures the content of the set of messages. • Property Inference • Token class is already identified during the tokenization phase. • Constant or variable tokens can also be easily identified. • Since the set of messages come from a single token-pattern cluster, tokens in one message can be directly compared against their counterparts by simply using the token offset. • Thus, constant tokens are those that take the same value across the entire set of messages, and variable tokens are those that take more than one value.

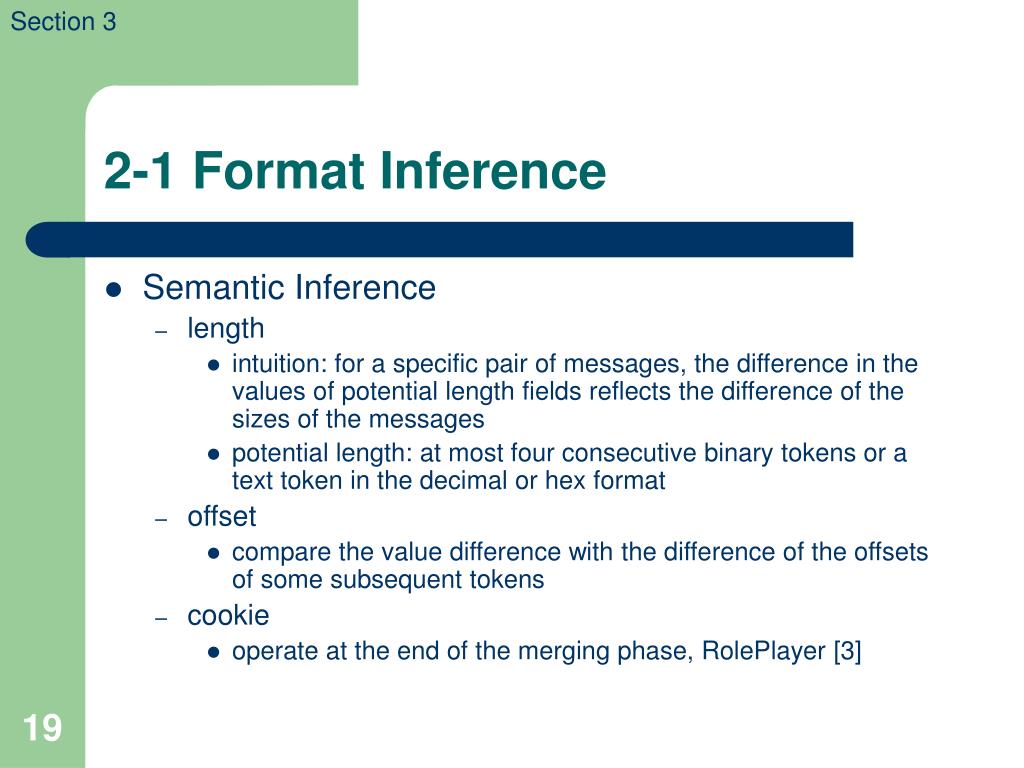

  17. Section 3 2-1 Format Inference • Semantic Inference • length • intuition: for a specific pair of messages, the difference in the values of potential length fields reflects the difference of the sizes of the messages • potential length: at most four consecutive binary tokens or a text token in the decimal or hex format • offset • compare the value difference with the difference of the offsets of some subsequent tokens • cookie • operate at the end of the merging phase, RolePlayer [3]

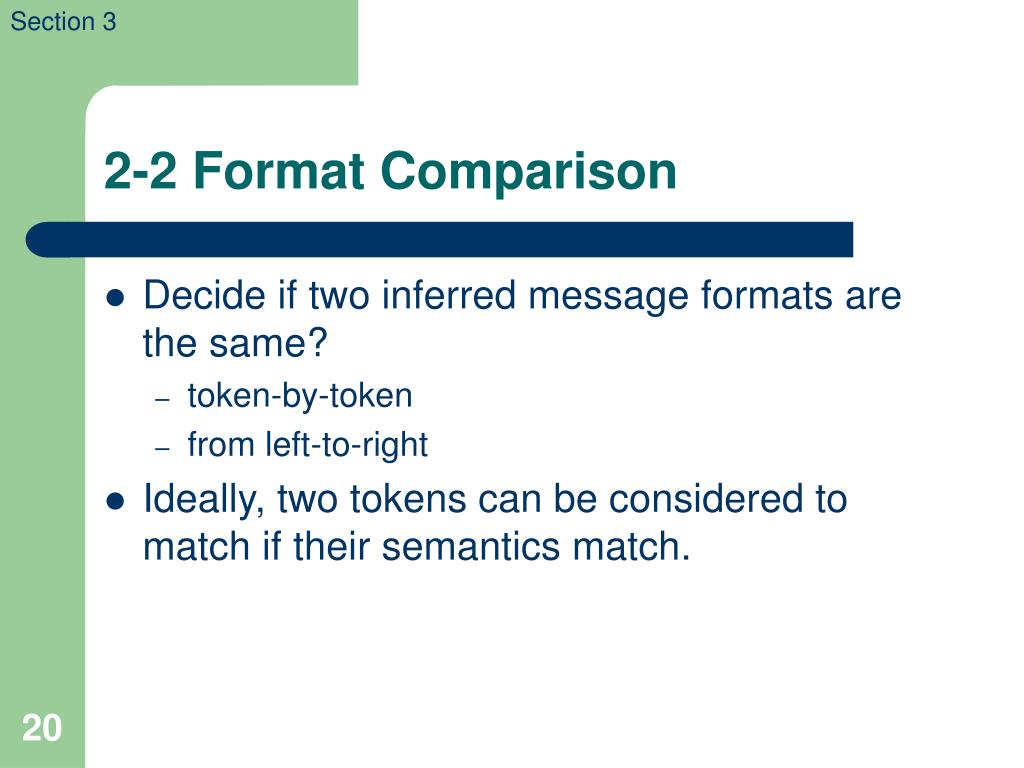

  18. Section 3 2-2 Format Comparison • Decide if two inferred message formats are the same? • token-by-token • from left-to-right • Ideally, two tokens can be considered to match if their semantics match.

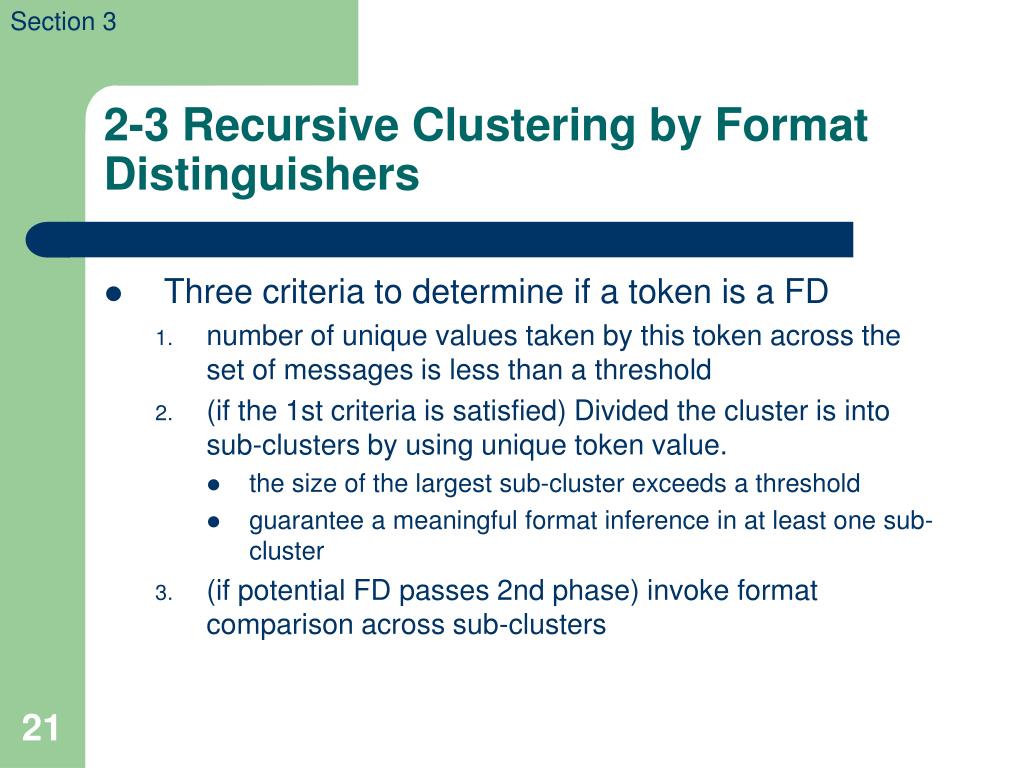

  19. Section 3 2-3 Recursive Clustering by Format Distinguishers • Three criteria to determine if a token is a FD • number of unique values taken by this token across the set of messages is less than a threshold • (if the 1st criteria is satisfied) Divided the cluster is into sub-clusters by using unique token value. • the size of the largest sub-cluster exceeds a threshold • guarantee a meaningful format inference in at least one sub-cluster • (if potential FD passes 2nd phase) invoke format comparison across sub-clusters

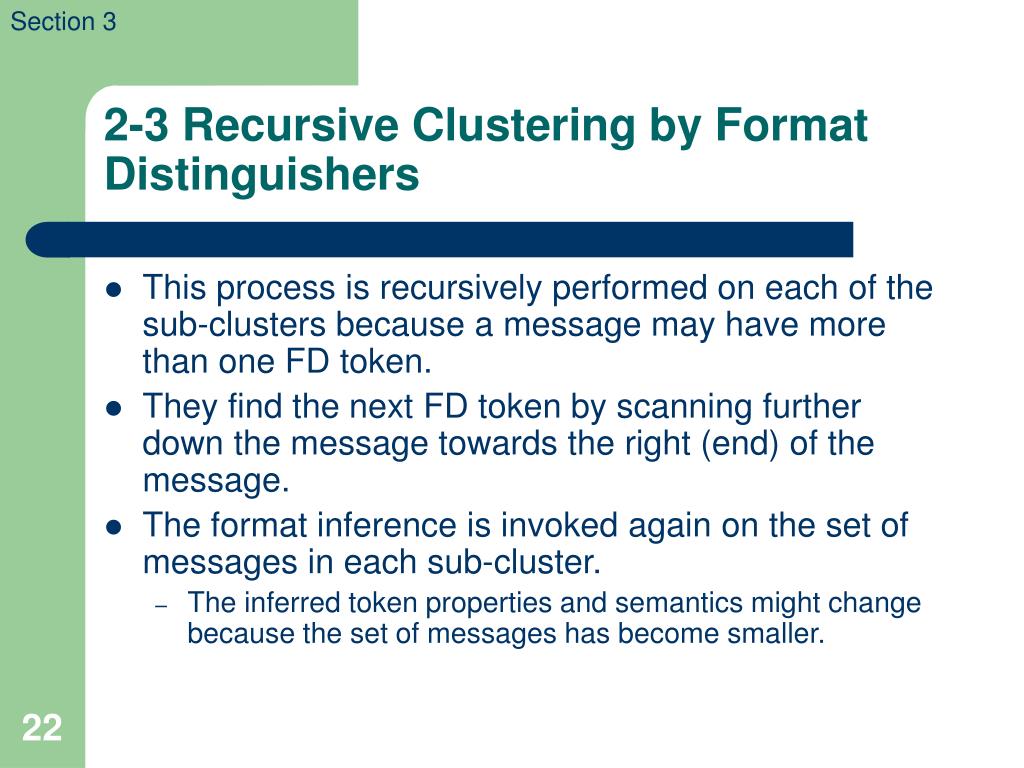

  20. Section 3 2-3 Recursive Clustering by Format Distinguishers • This process is recursively performed on each of the sub-clusters because a message may have more than one FD token. • They find the next FD token by scanning further down the message towards the right (end) of the message. • The format inference is invoked again on the set of messages in each sub-cluster. • The inferred token properties and semantics might change because the set of messages has become smaller.

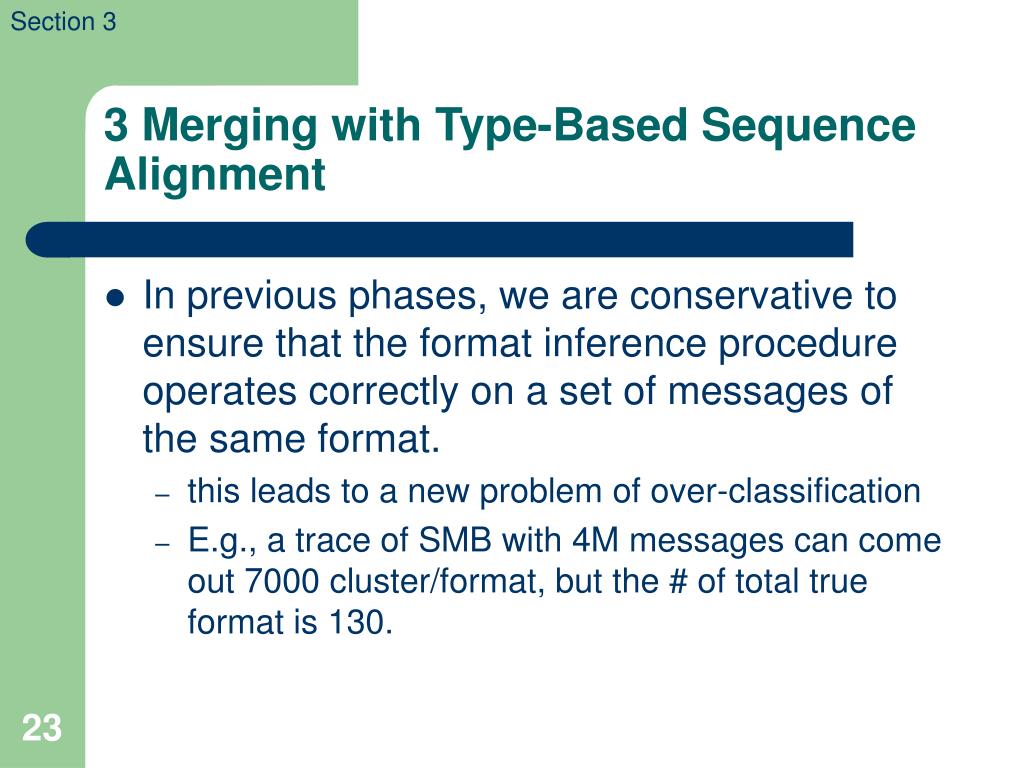

  21. Section 3 3 Merging with Type-Based SequenceAlignment • In previous phases, we are conservative to ensure that the format inference procedure operates correctly on a set of messages of the same format. • this leads to a new problem of over-classification • E.g., a trace of SMB with 4M messages can come out 7000 cluster/format, but the # of total true format is 130.

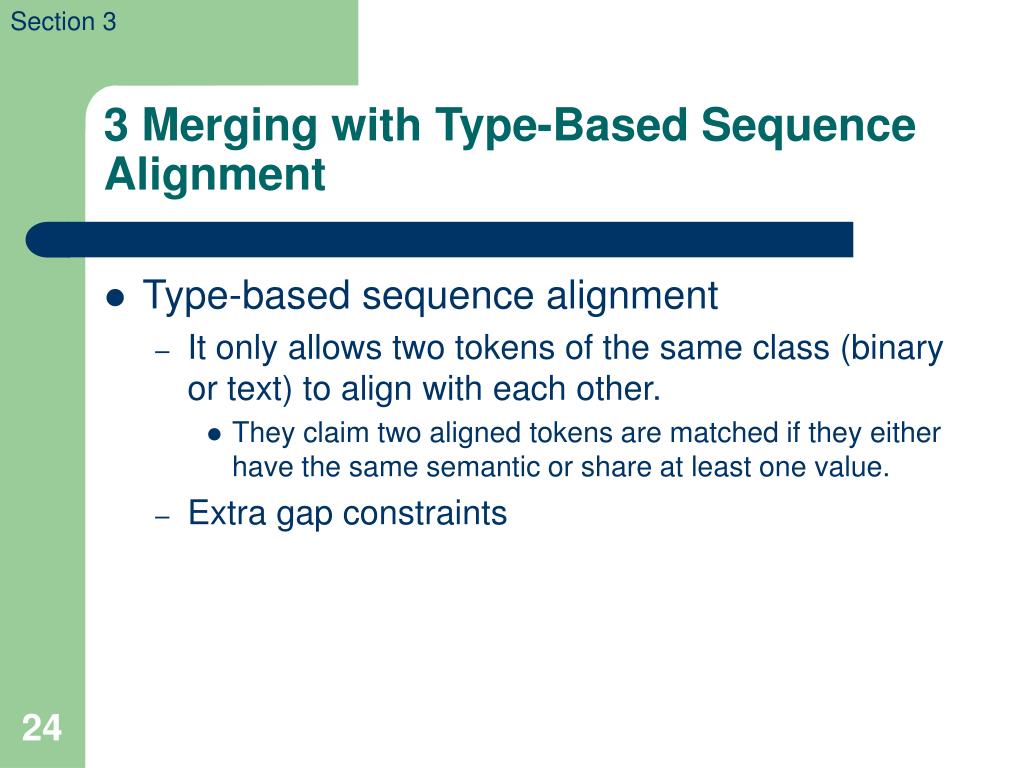

  22. Section 3 3 Merging with Type-Based SequenceAlignment • Type-based sequence alignment • It only allows two tokens of the same class (binary or text) to align with each other. • They claim two aligned tokens are matched if they either have the same semantic or share at least one value. • Extra gap constraints

  23. Section 3 An Example: true message from Ethereal

  24. Section 3 An Example: the final inferredformat by Discoverer (1/2)

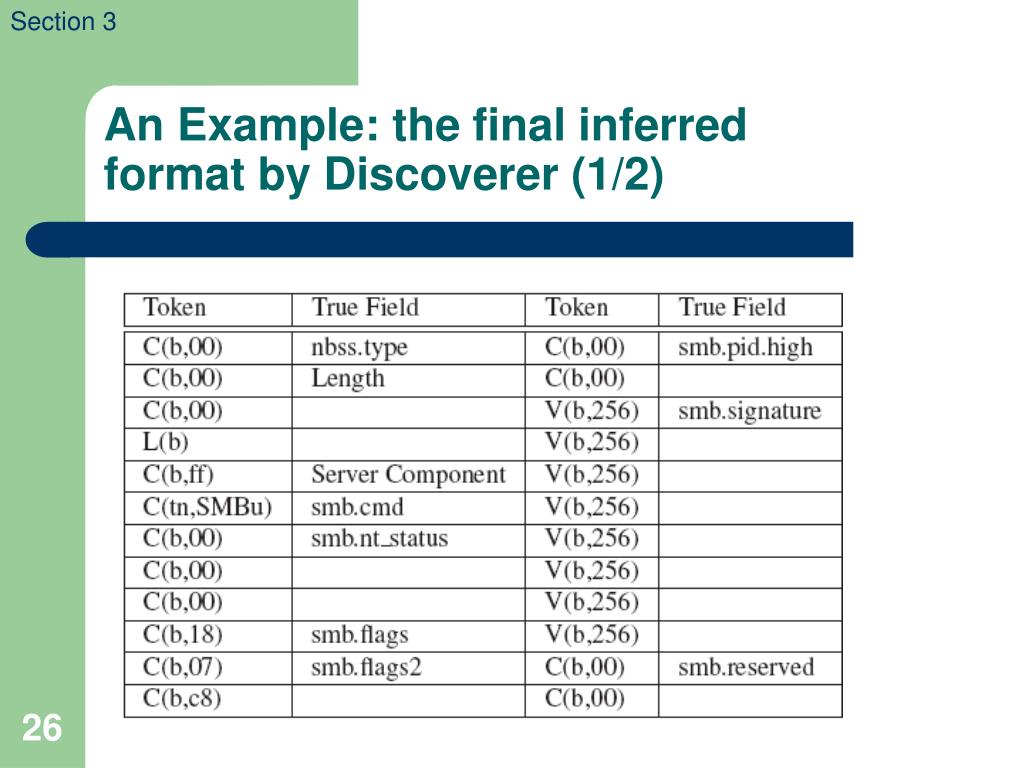

  25. Section 3 An Example: the final inferredformat by Discoverer (1/2) inferred format is a sequence of tokens with token properties (binary vs. text, constant vs. variable) and semantics (e.g., length fields).

  26. Section 4 Evaluation • 5,700 lines of C++ code on Windows • un-optimized implementation takes about 6-12 hours for a trace of several million messages • Data Sets • a honeyfarm site (which responds to unsolicited, mostly malicious traffic); SMB only. • a busy enterprise (which has diverse and high-volume traffic); HTTP, SMB, RPC.

  27. Section 4 Evaluation Methodology • Correctness • If a cluster contains messages from more than one true format, then Discoverer will make incorrect inference. • For all three protocols, over 90% clusters contain messages from a single true format. • Conciseness • A large number of redundant formats will affect the conciseness of the protocol specifications generated • The ratio from the number of inferred formats to the number of true formats followed by their messages. (5:1) • almost 80% true formats are scattered into at most five clusters.

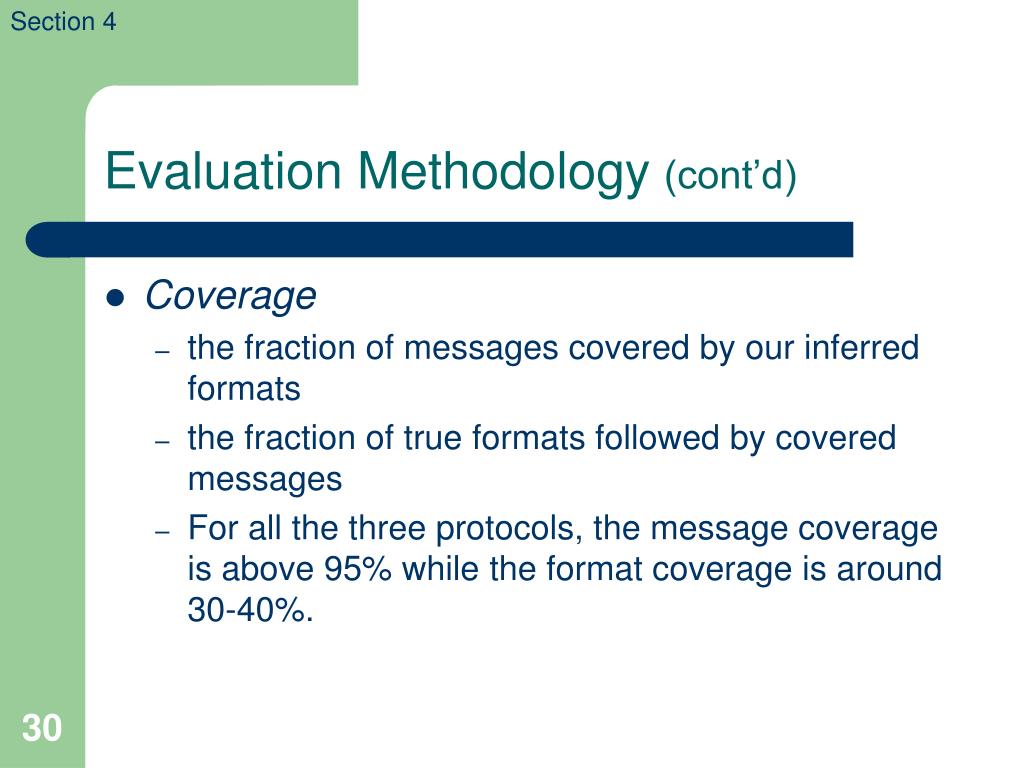

  28. Section 4 Evaluation Methodology (cont’d) • Coverage • the fraction of messages covered by our inferred formats • the fraction of true formats followed by covered messages • For all the three protocols, the message coverage is above 95% while the format coverage is around 30-40%.

  29. Section 4 Tunable Parameters

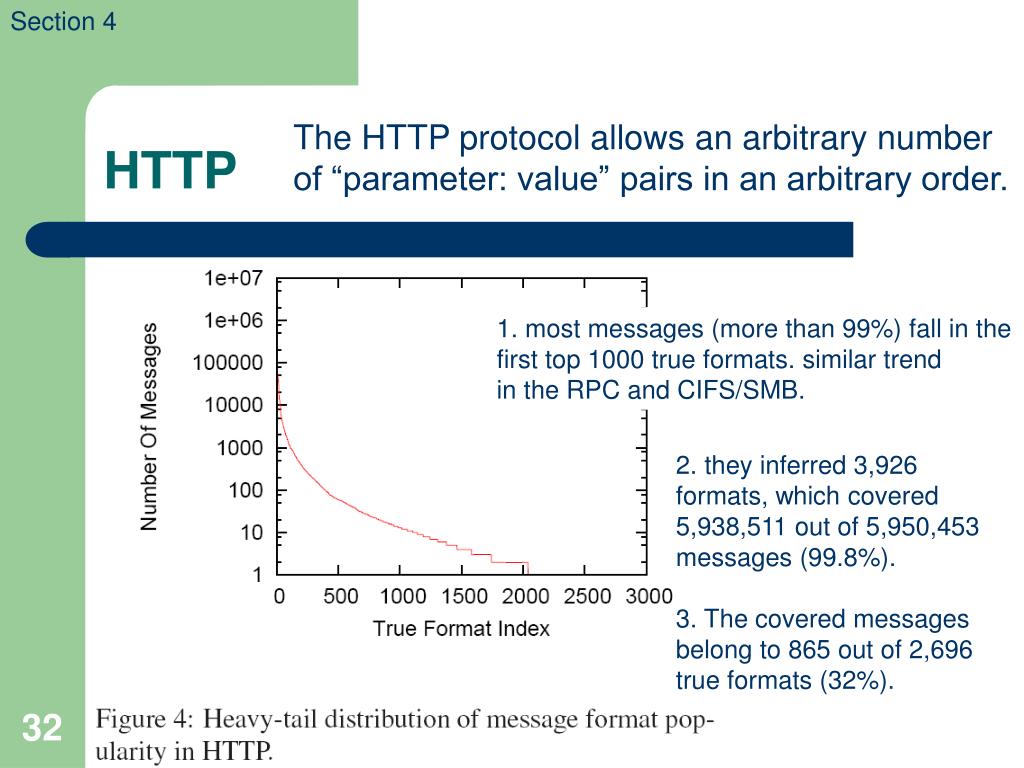

  30. Section 4 HTTP The HTTP protocol allows an arbitrary number of “parameter: value” pairs in an arbitrary order. 1. most messages (more than 99%) fall in the first top 1000 true formats. similar trend in the RPC and CIFS/SMB. 2. they inferred 3,926 formats, which covered 5,938,511 out of 5,950,453 messages (99.8%). 3. The covered messages belong to 865 out of 2,696 true formats (32%).

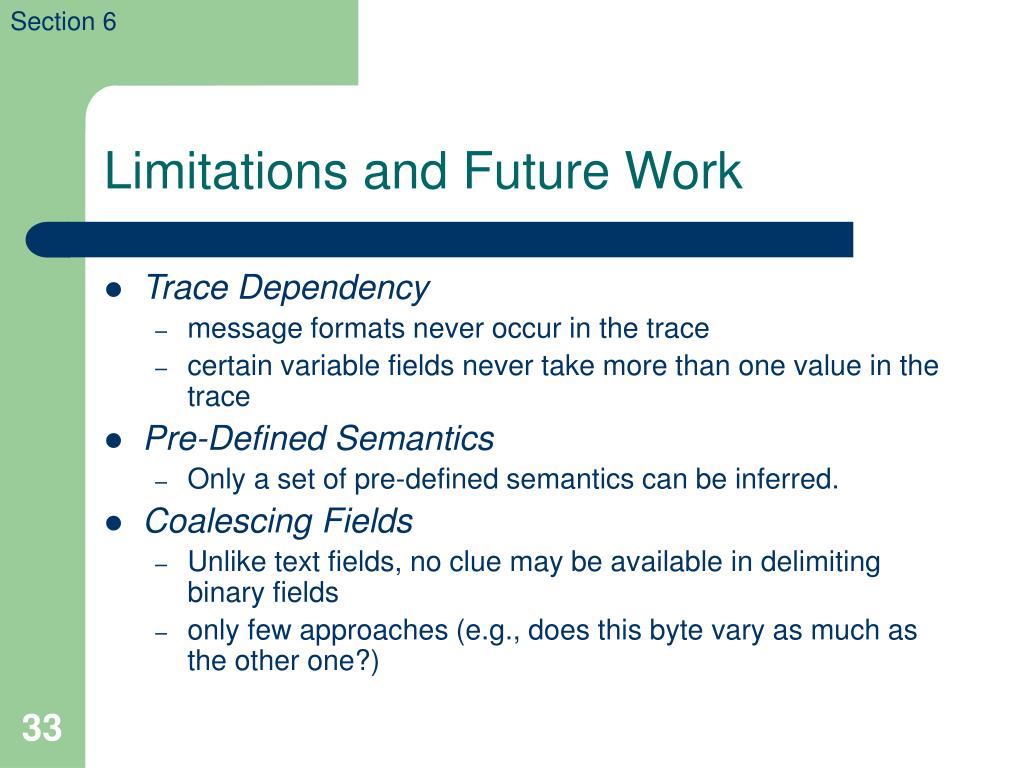

  31. Section 6 Limitations and FutureWork • Trace Dependency • message formats never occur in the trace • certain variable fields never take more than one value in the trace • Pre-Defined Semantics • Only a set of pre-defined semantics can be inferred. • Coalescing Fields • Unlike text fields, no clue may be available in delimiting binary fields • only few approaches (e.g., does this byte vary as much as the other one?)

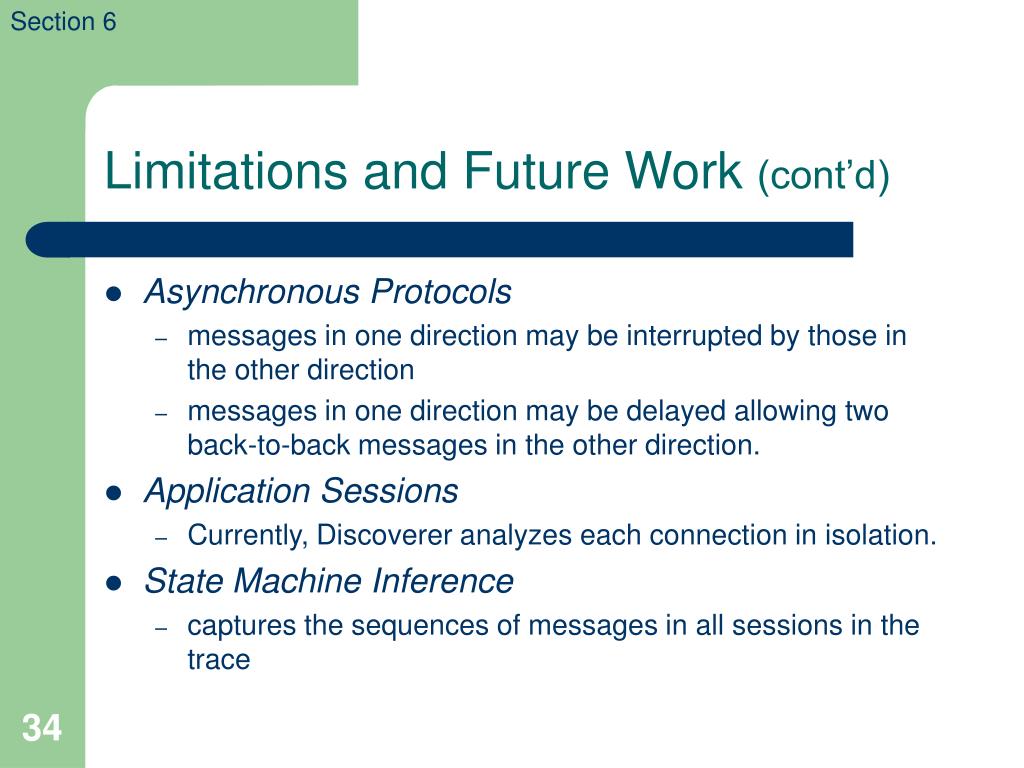

  32. Section 6 Limitations and FutureWork (cont’d) • Asynchronous Protocols • messages in one direction may be interrupted by those in the other direction • messages in one direction may be delayed allowing two back-to-back messages in the other direction. • Application Sessions • Currently, Discoverer analyzes each connection in isolation. • State Machine Inference • captures the sequences of messages in all sessions in the trace

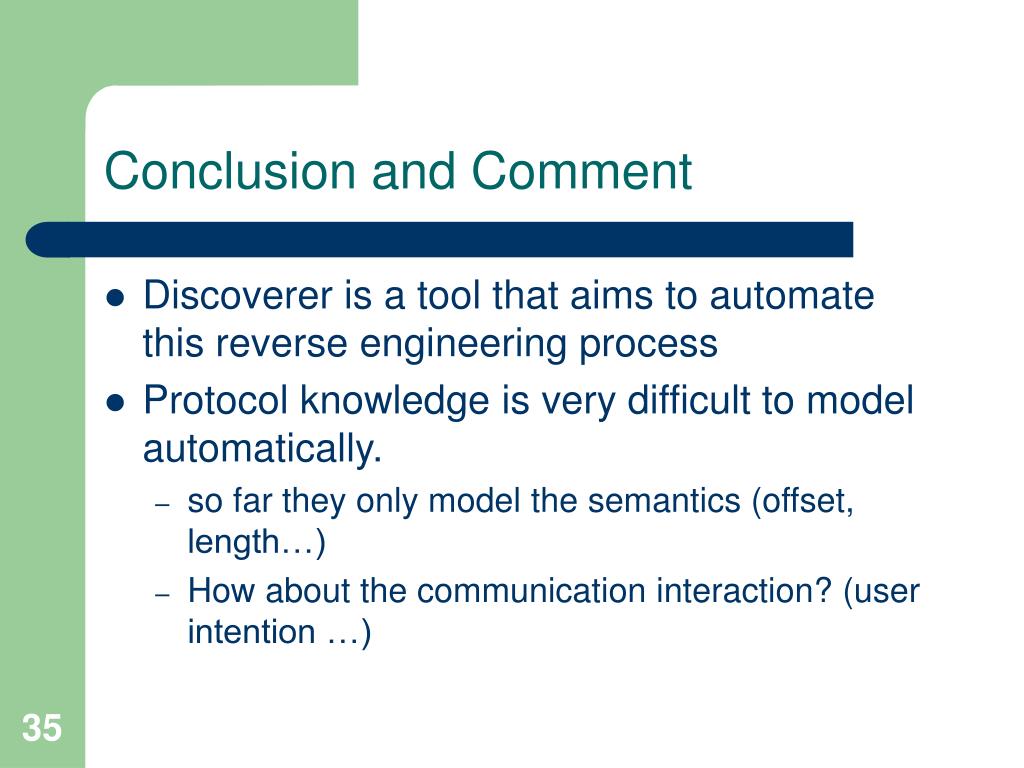

  33. Conclusion and Comment • Discoverer is a tool that aims to automate this reverse engineering process • Protocol knowledge is very difficult to model automatically. • so far they only model the semantics (offset, length…) • How about the communication interaction? (user intention …)
