  1. MM Process Management Karrie KarahaliosSpring 2007 (based off slides created by Brian Bailey)

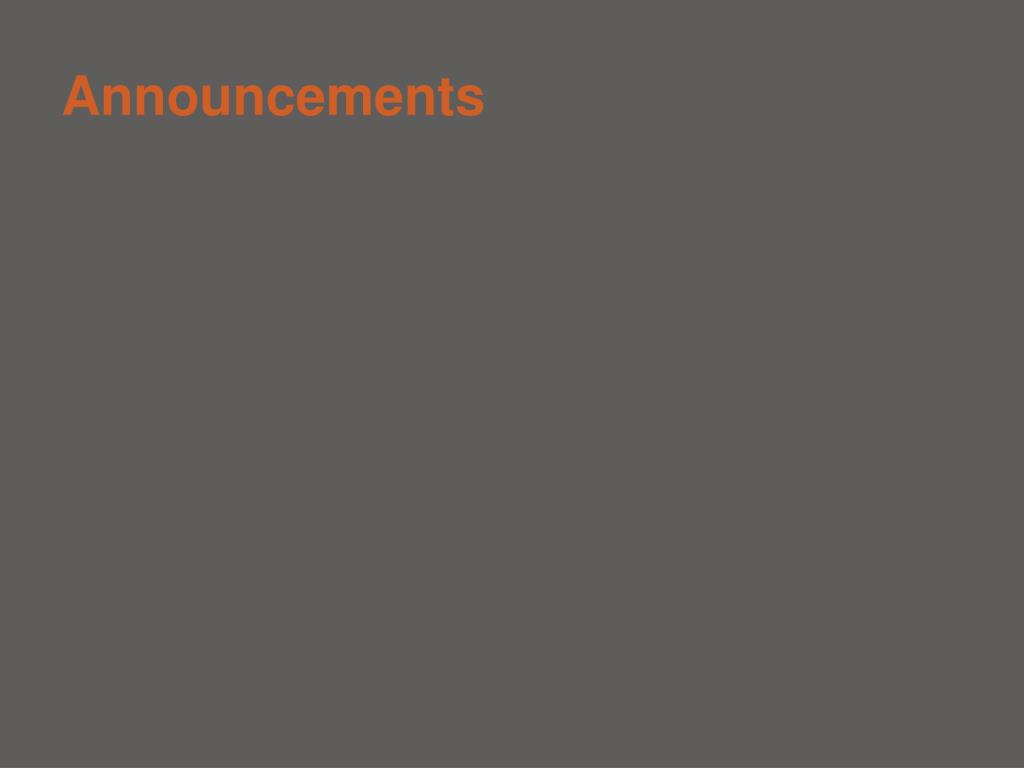

  2. Announcements

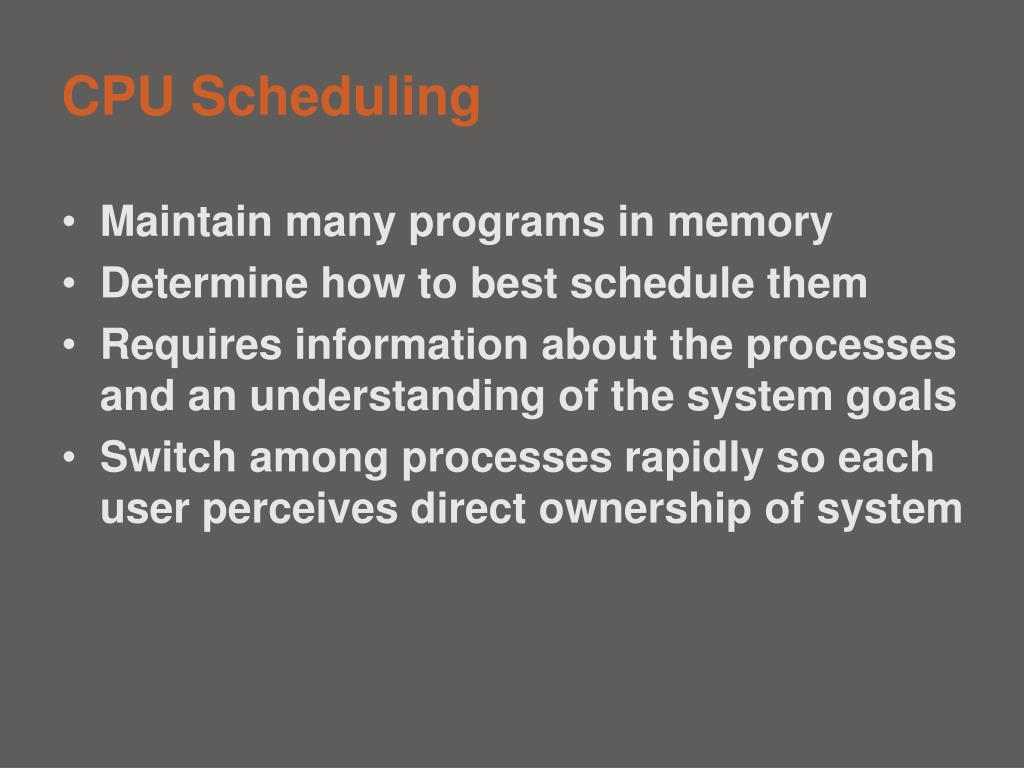

  3. CPU Scheduling • Maintain many programs in memory • Determine how to best schedule them • Requires information about the processes and an understanding of the system goals • Switch among processes rapidly so each user perceives direct ownership of system

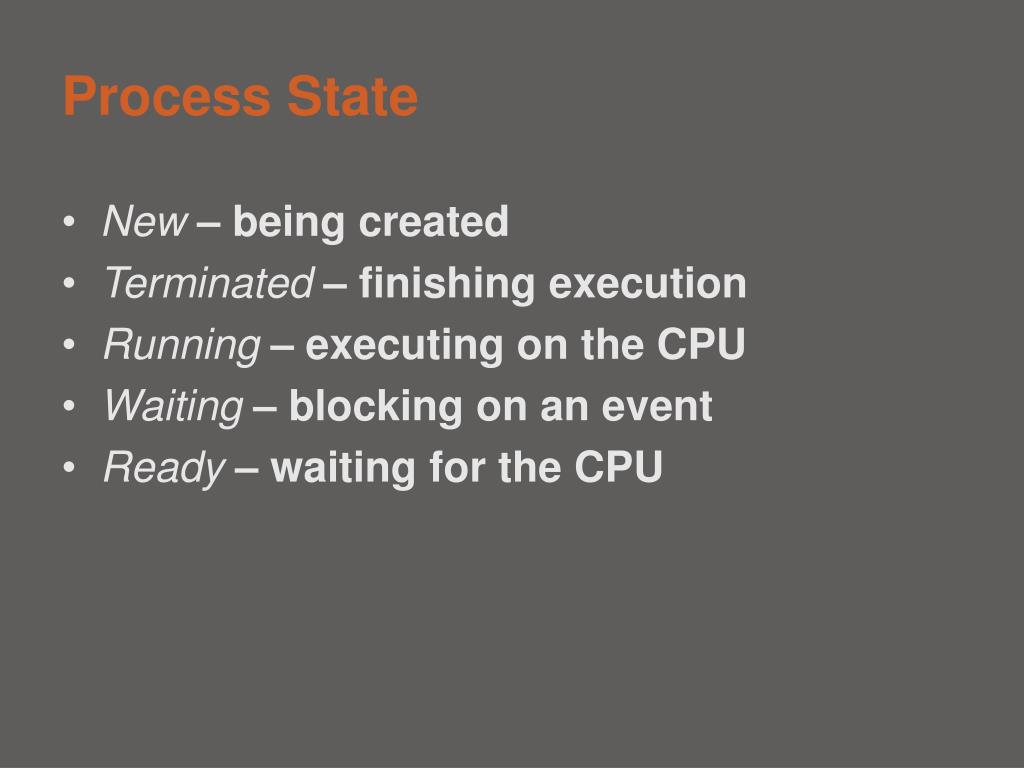

  4. Process State • New – being created • Terminated – finishing execution • Running – executing on the CPU • Waiting – blocking on an event • Ready – waiting for the CPU

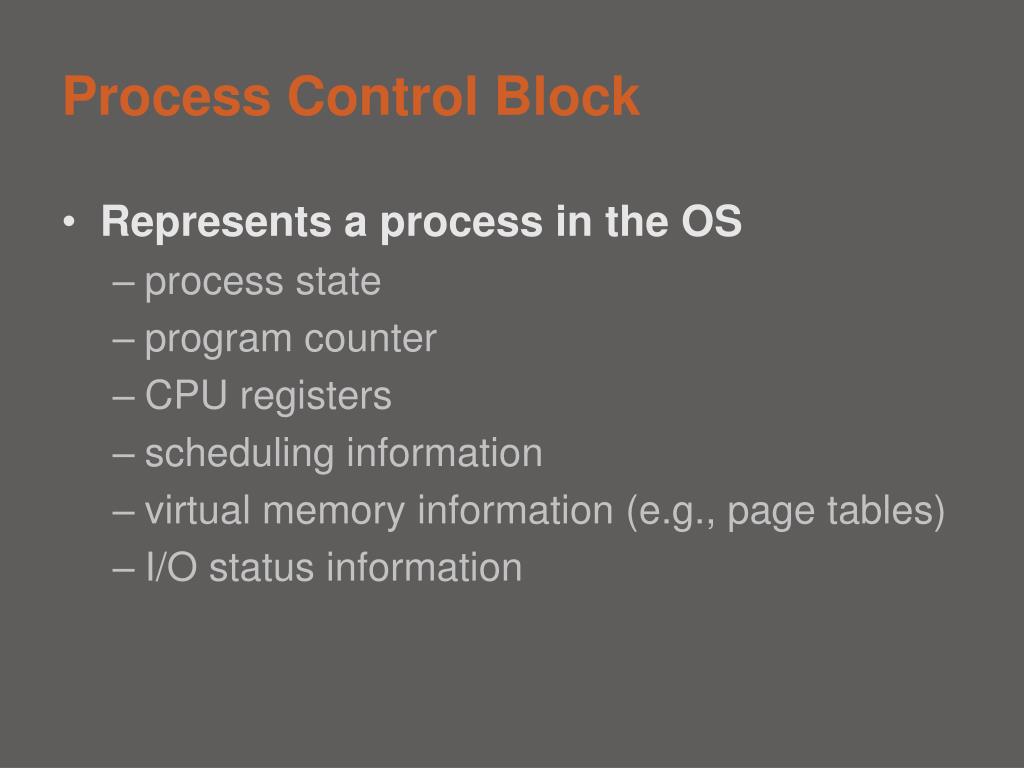

  5. Process Control Block • Represents a process in the OS • process state • program counter • CPU registers • scheduling information • virtual memory information (e.g., page tables) • I/O status information

  6. Resource Queues

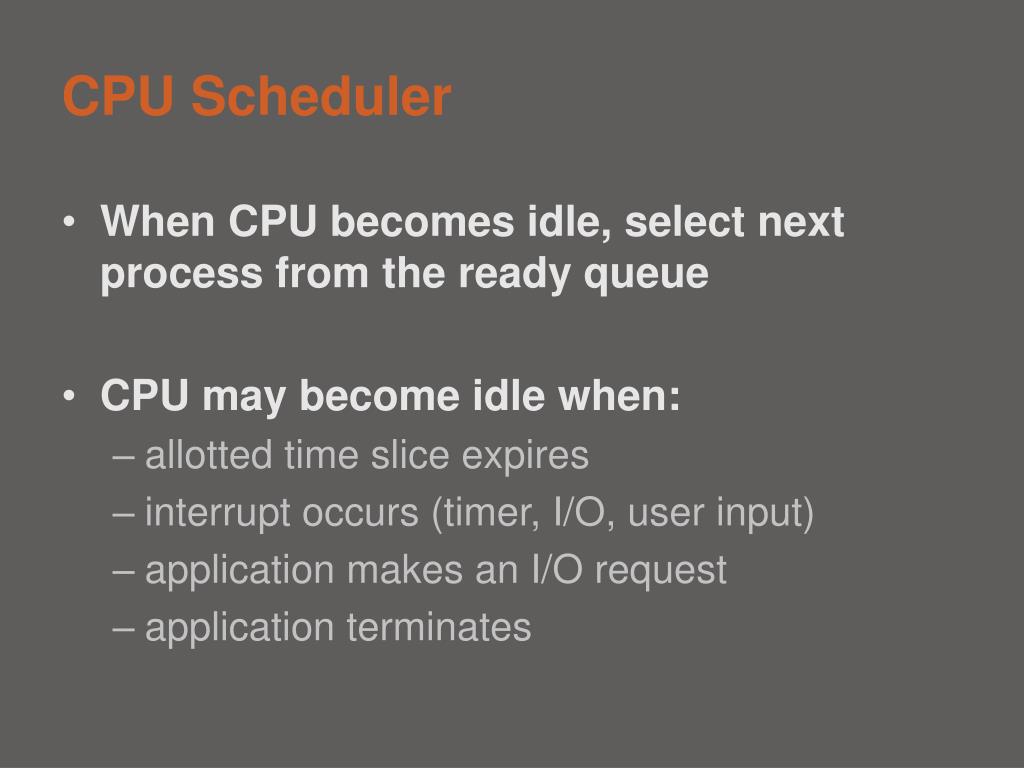

  7. CPU Scheduler • When CPU becomes idle, select next process from the ready queue • CPU may become idle when: • allotted time slice expires • interrupt occurs (timer, I/O, user input) • application makes an I/O request • application terminates

  8. Evaluation Criteria • Throughput: processes completed per unit time • Turnaround: from submission to termination • Wait: time waiting in the ready queue • Response: from user request to system response • Utilization: how busy the CPU is over time • Want predictable system behavior

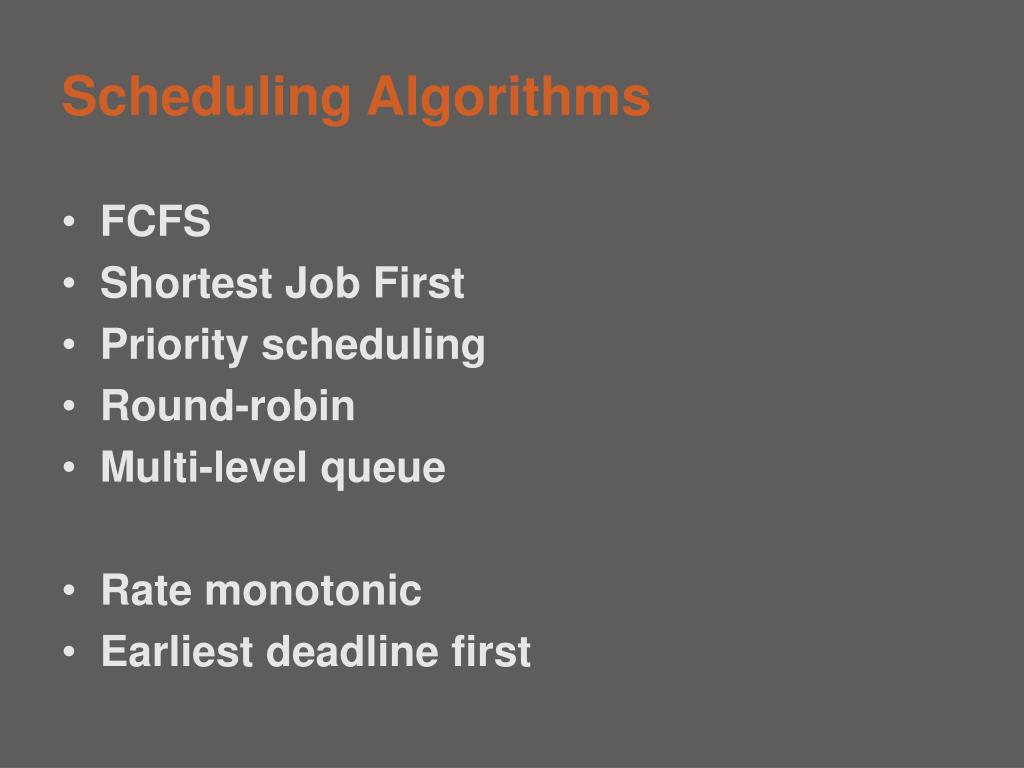

  9. Scheduling Algorithms • FCFS • Shortest Job First • Priority scheduling • Round-robin • Multi-level queue • Rate monotonic • Earliest deadline first

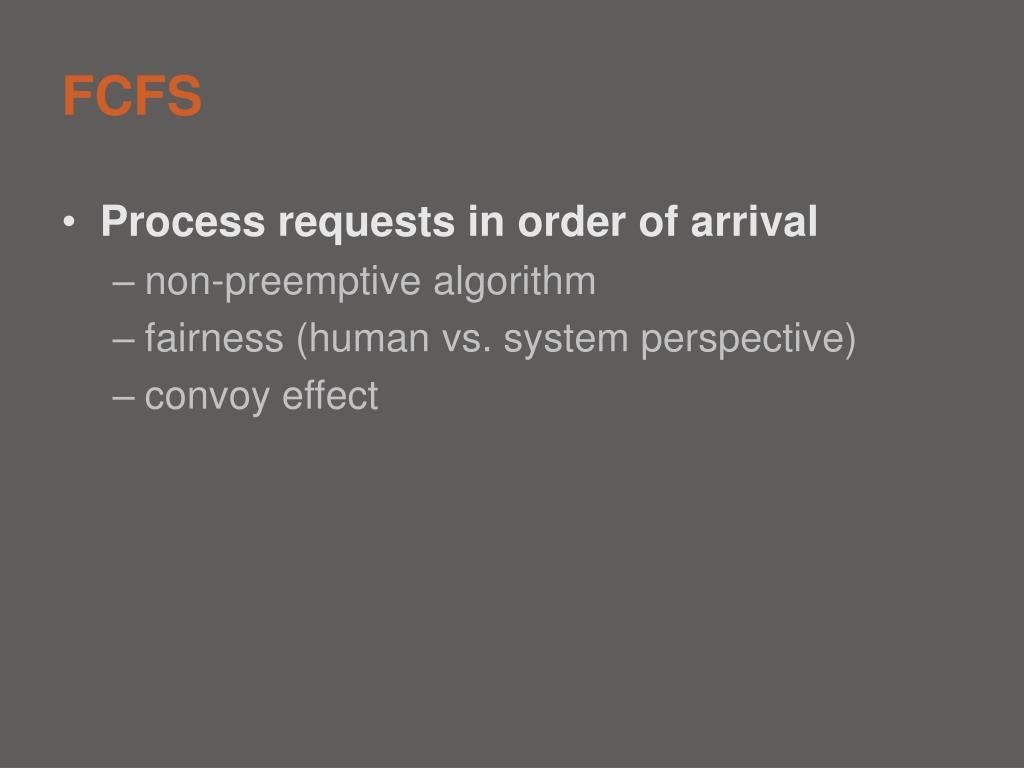

  10. FCFS • Process requests in order of arrival • non-preemptive algorithm • fairness (human vs. system perspective) • convoy effect

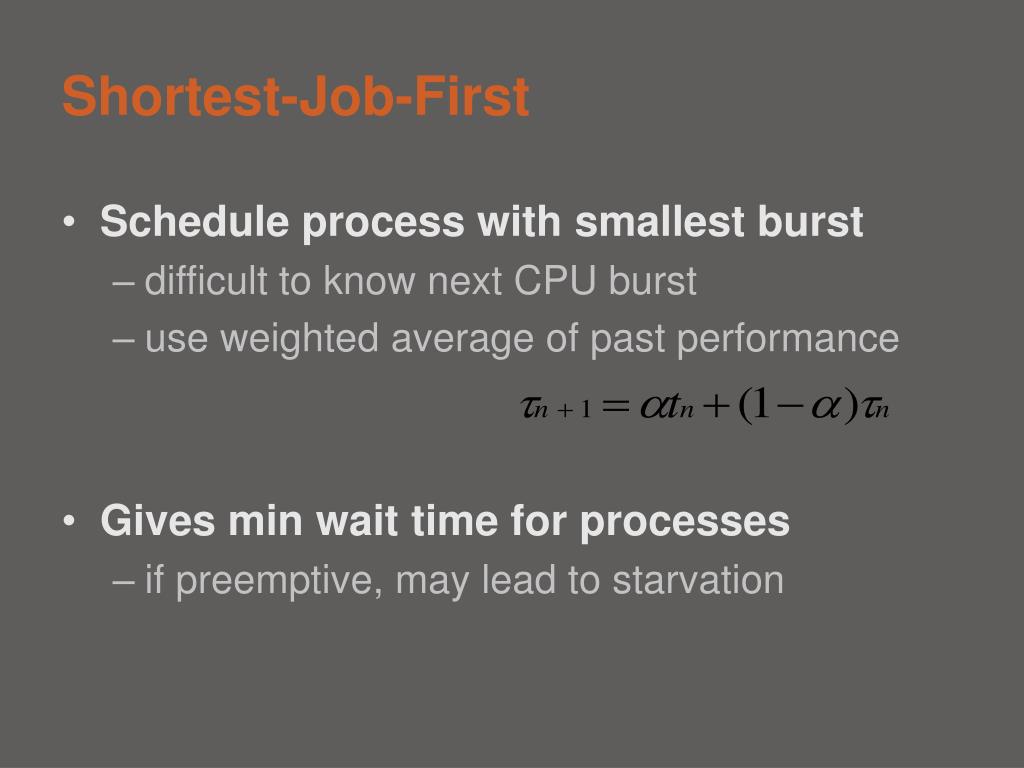

  11. Shortest-Job-First • Schedule process with smallest burst • difficult to know next CPU burst • use weighted average of past performance • Gives min wait time for processes • if preemptive, may lead to starvation

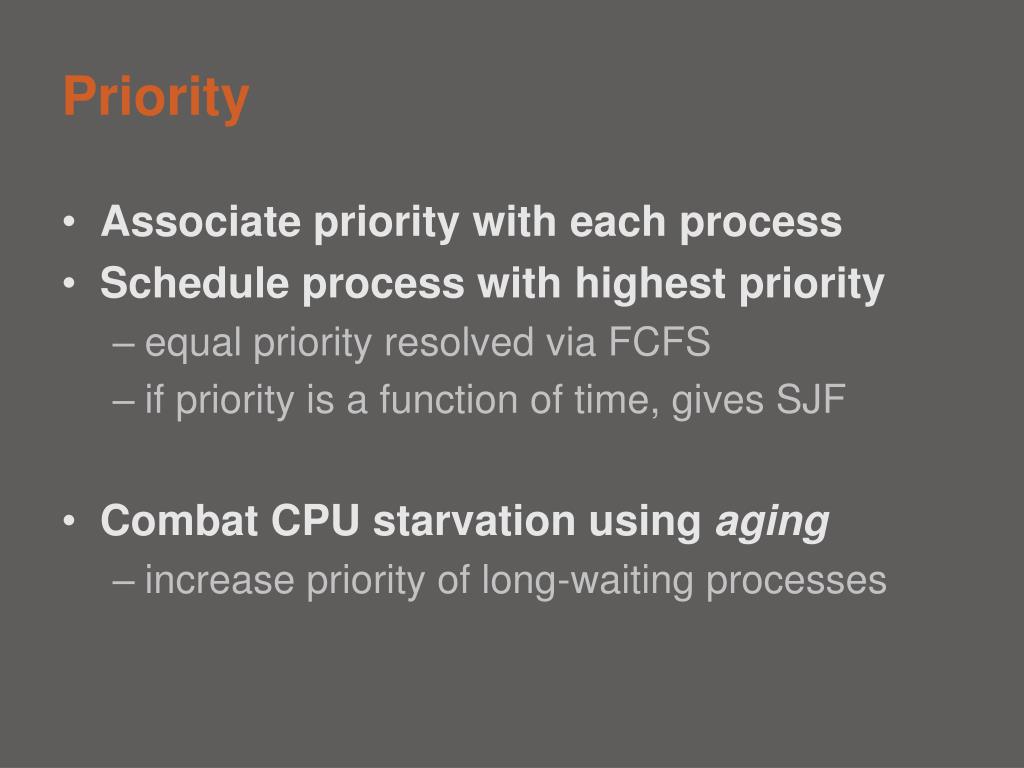

  12. Priority • Associate priority with each process • Schedule process with highest priority • equal priority resolved via FCFS • if priority is a function of time, gives SJF • Combat CPU starvation using aging • increase priority of long-waiting processes

  13. Round Robin • Schedule process after a time quantum • circulate around queue, give each process single time quantum to execute • results in lots of context switches • Selection of time quantum • short quantum results in longer waits • infinite quantum results in FCFS • should be large relative to context switch time

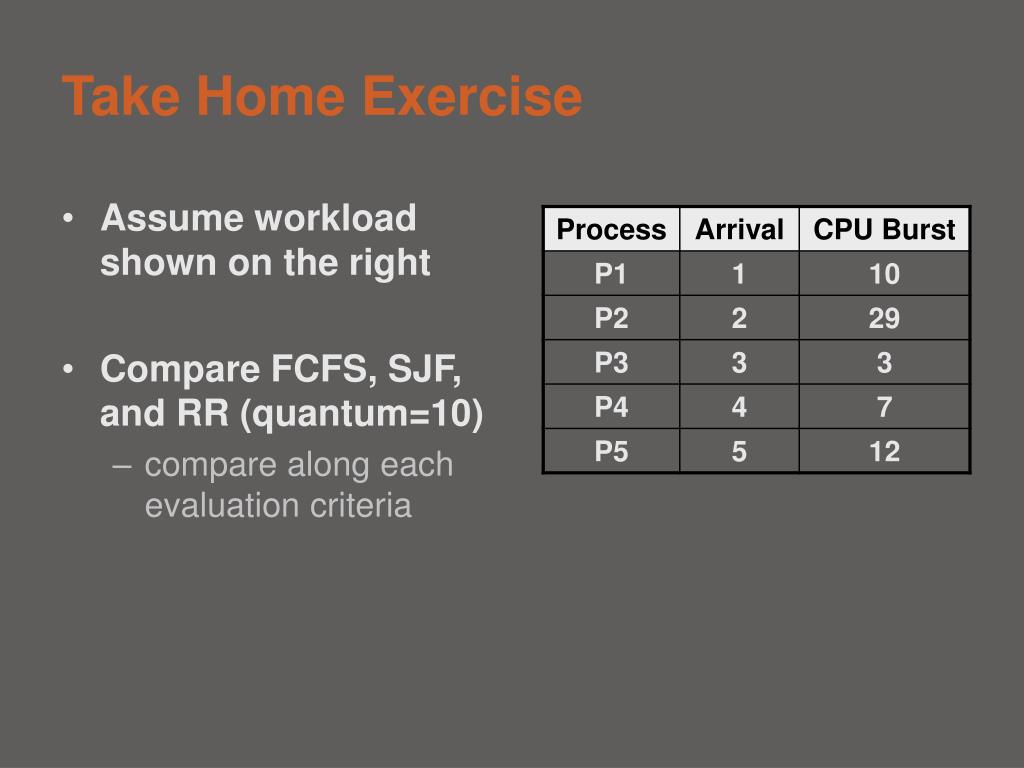

  14. Assume workload shown on the right Compare FCFS, SJF, and RR (quantum=10) compare along each evaluation criteria Take Home Exercise

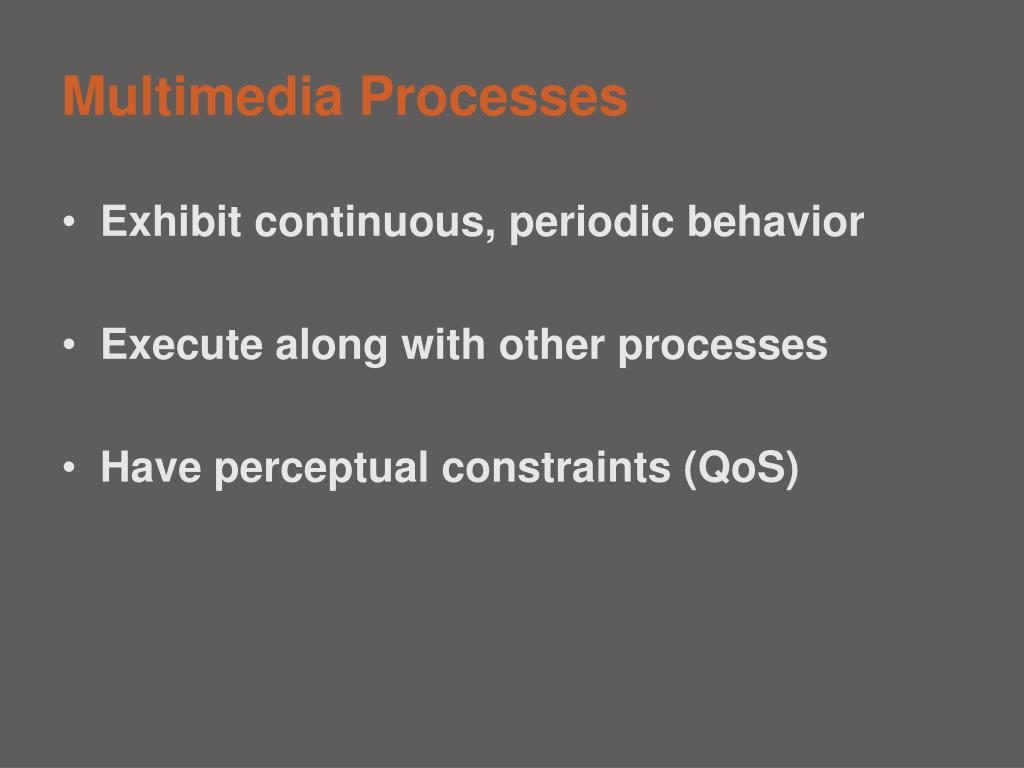

  15. Multimedia Processes • Exhibit continuous, periodic behavior • Execute along with other processes • Have perceptual constraints (QoS)

  16. Scheduling • Determine sharing of a resource such that all admitted tasks meet their deadlines • Balance need to meet deadlines with maximizing throughput and utilization

  17. Admissibility Test • If test succeeds, the task can be added, and all tasks will still meet deadlines • called a feasible schedule • Process utilization (U) <1 if deadlines considered

  18. Rate Monotonic Scheduling • Static, fixed priority-based, periodic tasks • Ci is execution time of task i • Ti is request period of task i • Determines if a set of periodic tasks can be scheduled or not (feasible schedule) • no other fixed priority scheme can schedule a set of tasks which can’t be scheduled by RM Liu, C.L. and J.W. Layland. Journal of the ACM, 20(1): 46-61, 1973

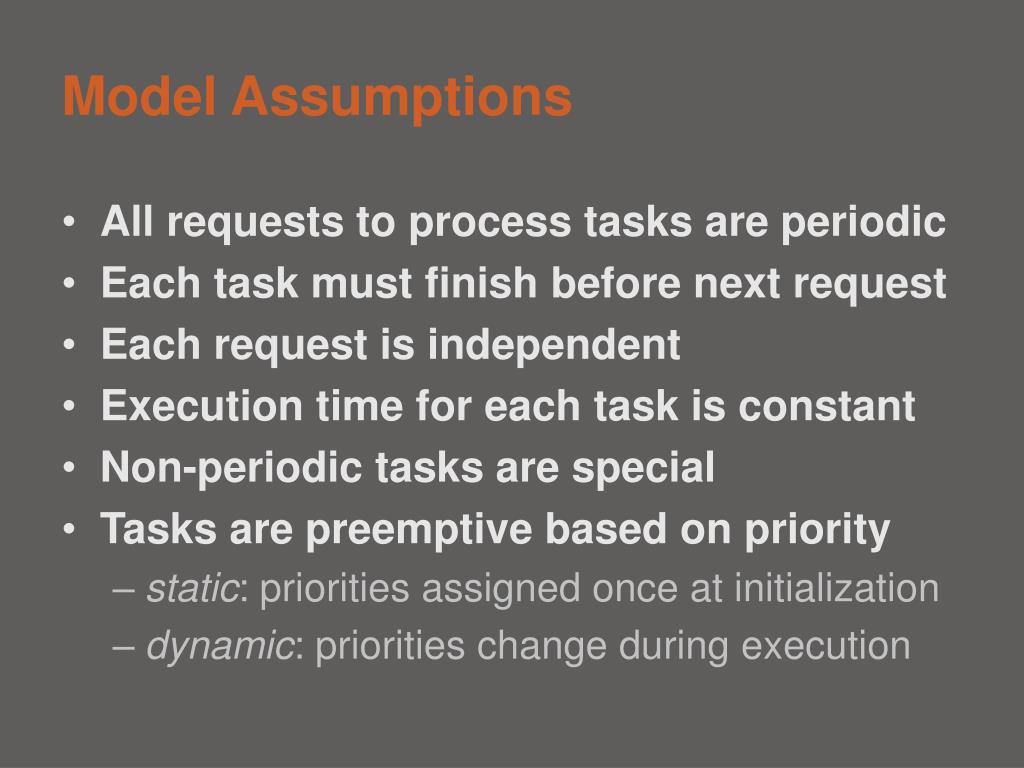

  19. Model Assumptions • All requests to process tasks are periodic • Each task must finish before next request • Each request is independent • Execution time for each task is constant • Non-periodic tasks are special • Tasks are preemptive based on priority • static: priorities assigned once at initialization • dynamic: priorities change during execution

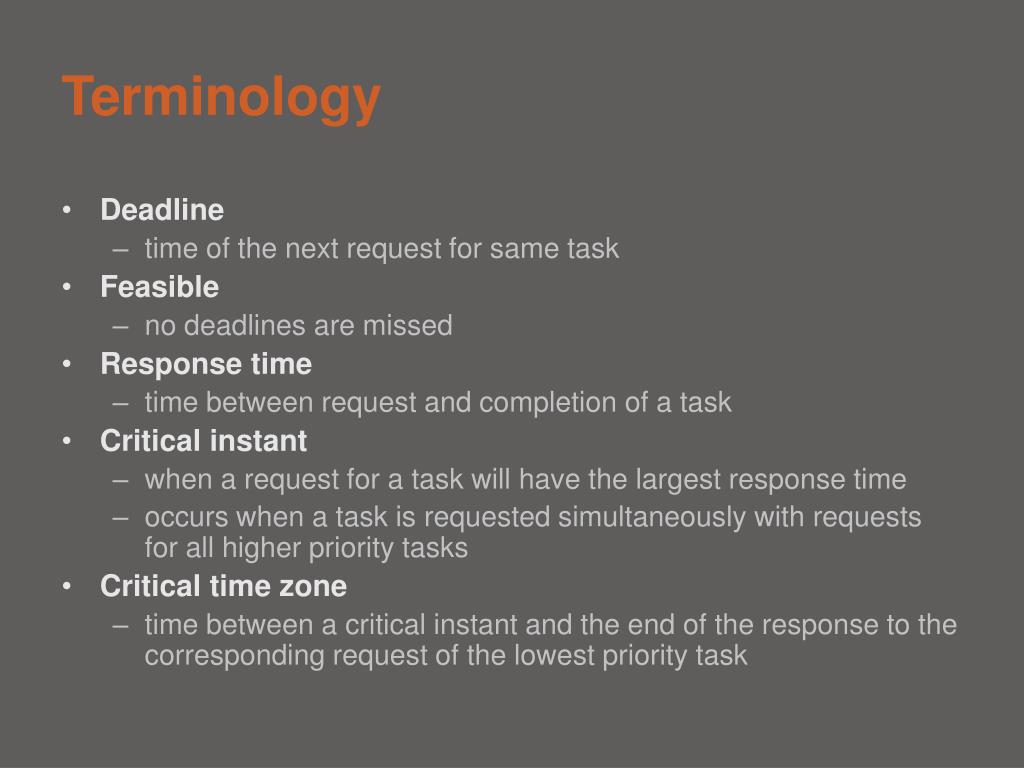

  20. Terminology • Deadline • time of the next request for same task • Feasible • no deadlines are missed • Response time • time between request and completion of a task • Critical instant • when a request for a task will have the largest response time • occurs when a task is requested simultaneously with requests for all higher priority tasks • Critical time zone • time between a critical instant and the end of the response to the corresponding request of the lowest priority task

  21. Example 1 C1 = 1 C2 = 1 T1 = 2 T2 = 5 T1 is higher priority Utilization (U) =

  22. Example 2 C1 = 1 C2 = 2 T1 = 2 T2 = 5 T1 is higher priority Utilization (U) =

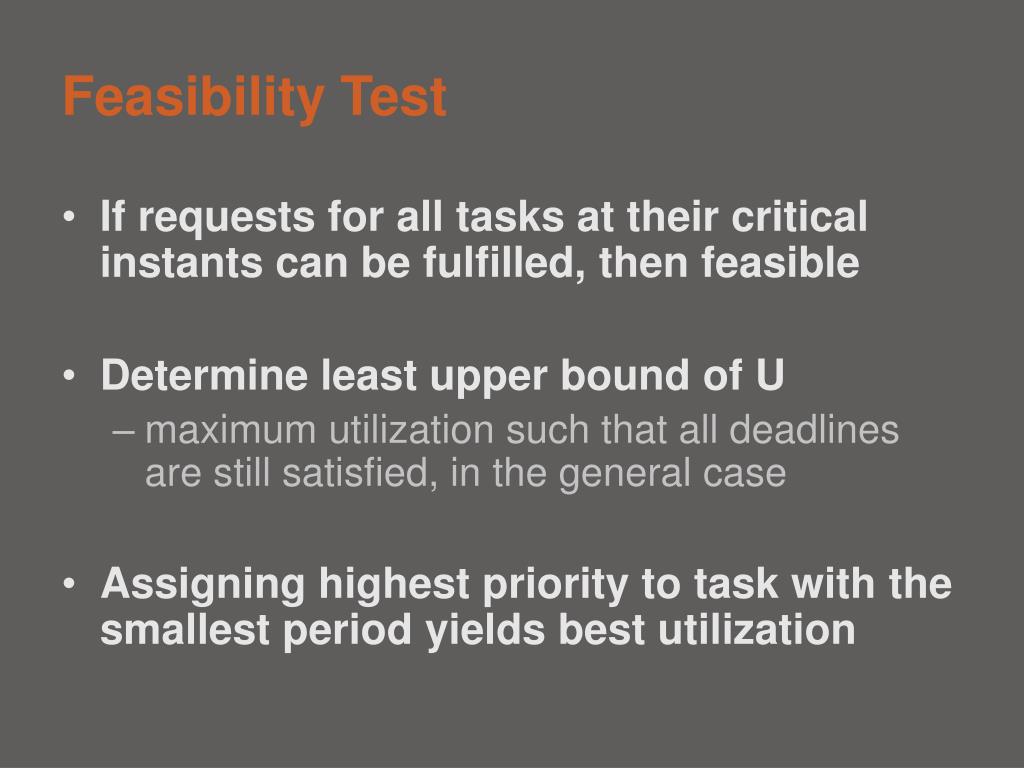

  23. Feasibility Test • If requests for all tasks at their critical instants can be fulfilled, then feasible • Determine least upper bound of U • maximum utilization such that all deadlines are still satisfied, in the general case • Assigning highest priority to task with the smallest period yields best utilization

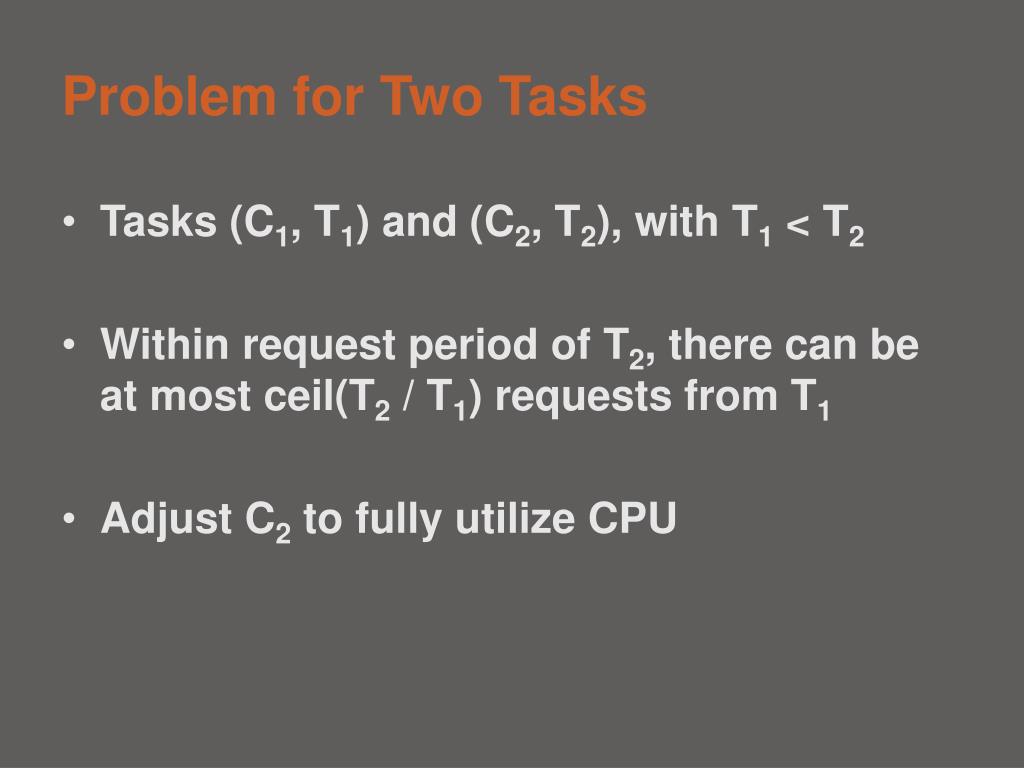

  24. Problem for Two Tasks • Tasks (C1, T1) and (C2, T2), with T1 < T2 • Within request period of T2, there can be at most ceil(T2 / T1) requests from T1 • Adjust C2 to fully utilize CPU

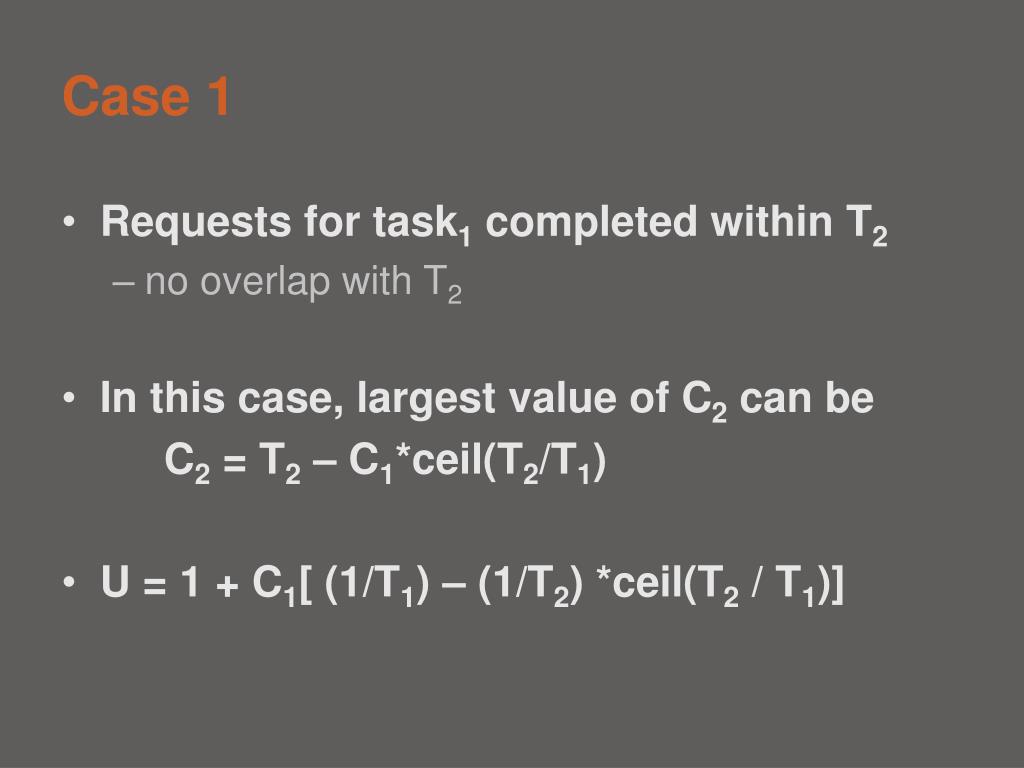

  25. Case 1 • Requests for task1 completed within T2 • no overlap with T2 • In this case, largest value of C2 can be C2 = T2 – C1*ceil(T2/T1) • U = 1 + C1[ (1/T1) – (1/T2) *ceil(T2 / T1)]

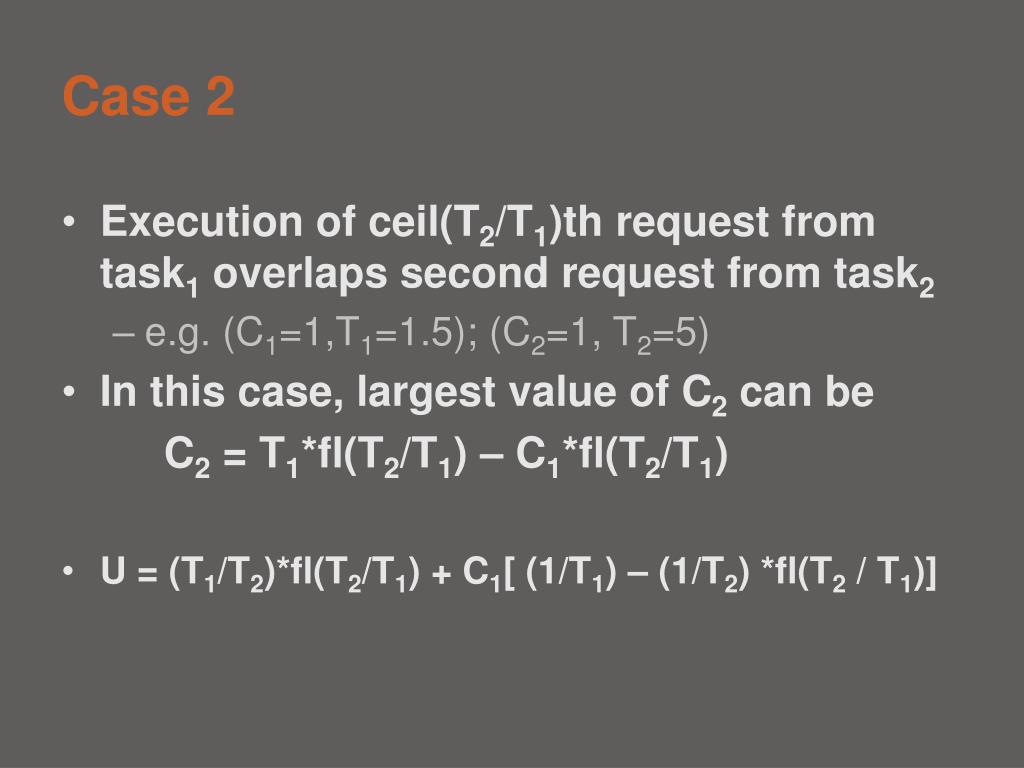

  26. Case 2 • Execution of ceil(T2/T1)th request from task1 overlaps second request from task2 • e.g. (C1=1,T1=1.5); (C2=1, T2=5) • In this case, largest value of C2 can be C2 = T1*fl(T2/T1) – C1*fl(T2/T1) • U = (T1/T2)*fl(T2/T1) + C1[ (1/T1) – (1/T2) *fl(T2 / T1)]

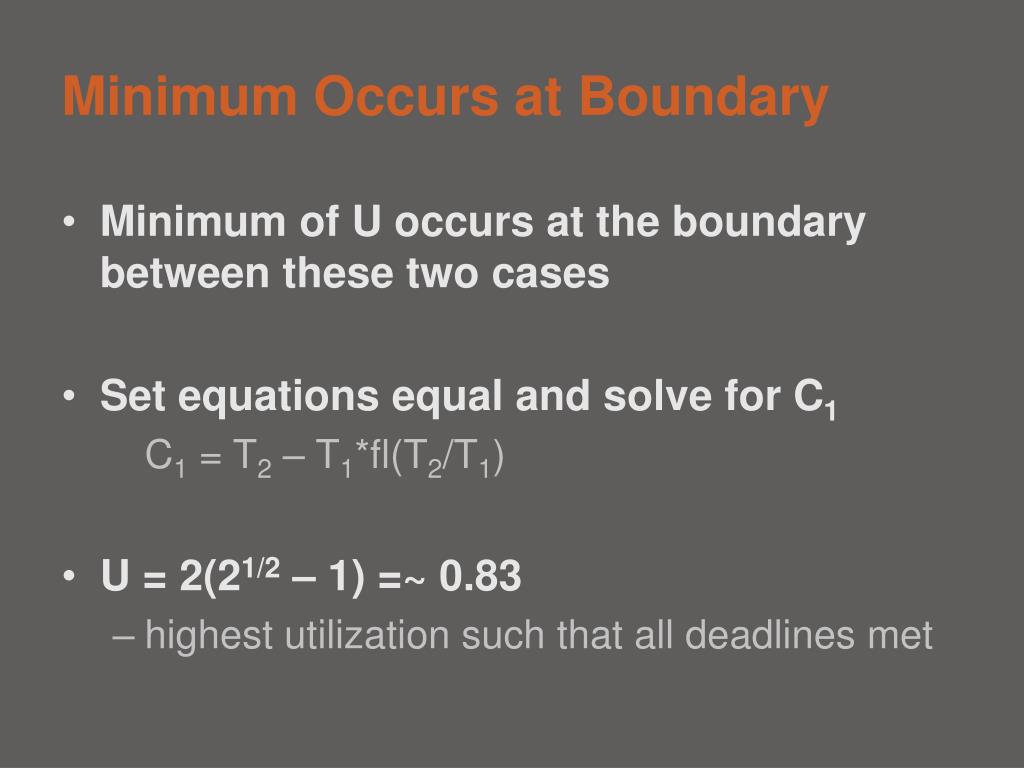

  27. Minimum Occurs at Boundary • Minimum of U occurs at the boundary between these two cases • Set equations equal and solve for C1 C1 = T2 – T1*fl(T2/T1) • U = 2(21/2 – 1) =~ 0.83 • highest utilization such that all deadlines met

  28. General Case • For two tasks • U < 2 (2½ - 1), ~= 0.83 • For three tasks • U < 3 (21/3 - 1) ~= 0.78 • For n tasks • U < n (21/n – 1) -> ln 2 ~= 0.69 • If configuration of tasks pass the test, no deadlines will be missed • must limit utilization to 69% for large N !!!

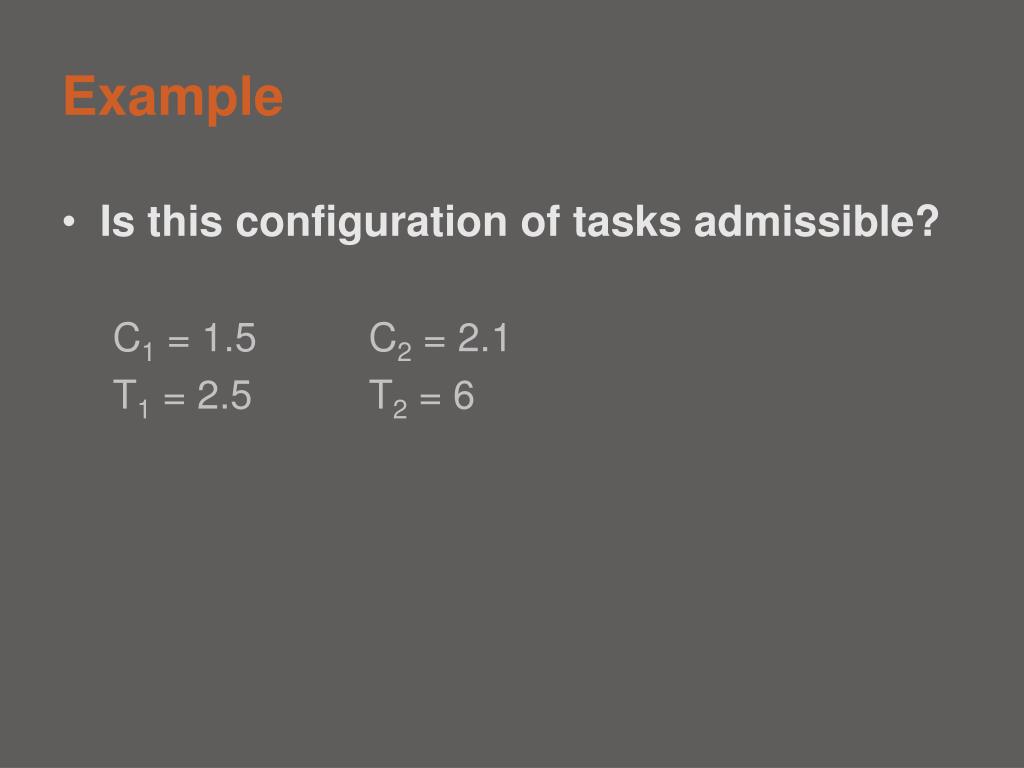

  29. Example • Is this configuration of tasks admissible? C1 = 1.5 C2 = 2.1 T1 = 2.5 T2 = 6

  30. Example • Is this configuration of tasks admissible? C1 = 1 C2 = 2 T1 = 2 T2 = 4

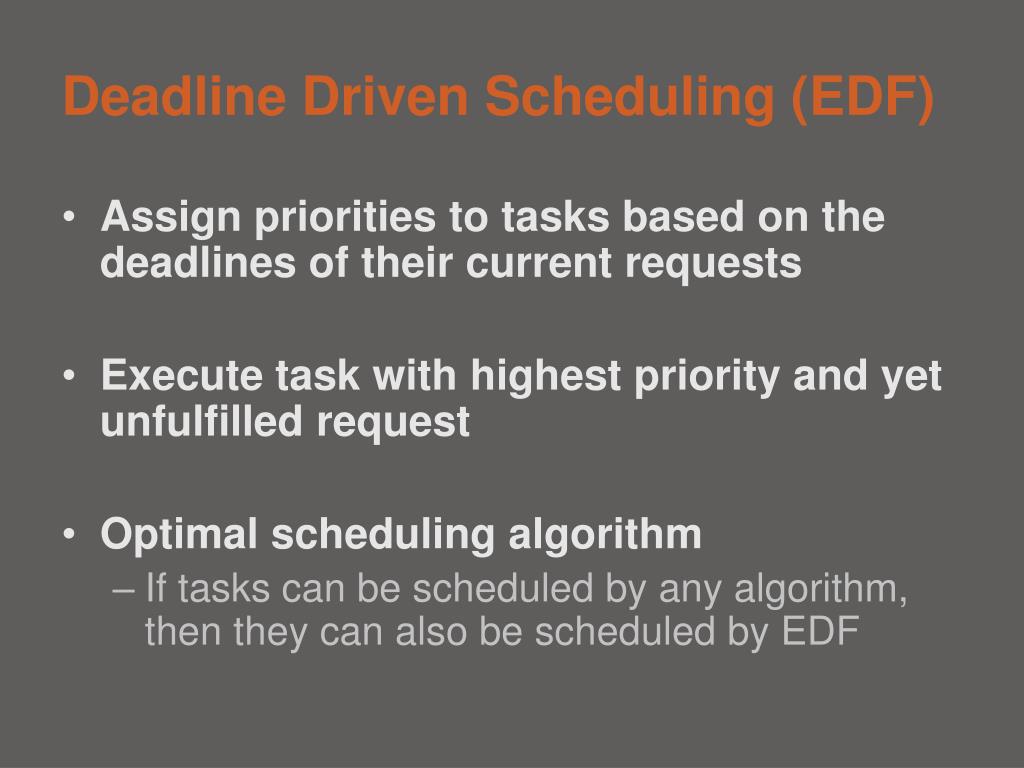

  31. Deadline Driven Scheduling (EDF) • Assign priorities to tasks based on the deadlines of their current requests • Execute task with highest priority and yet unfulfilled request • Optimal scheduling algorithm • If tasks can be scheduled by any algorithm, then they can also be scheduled by EDF

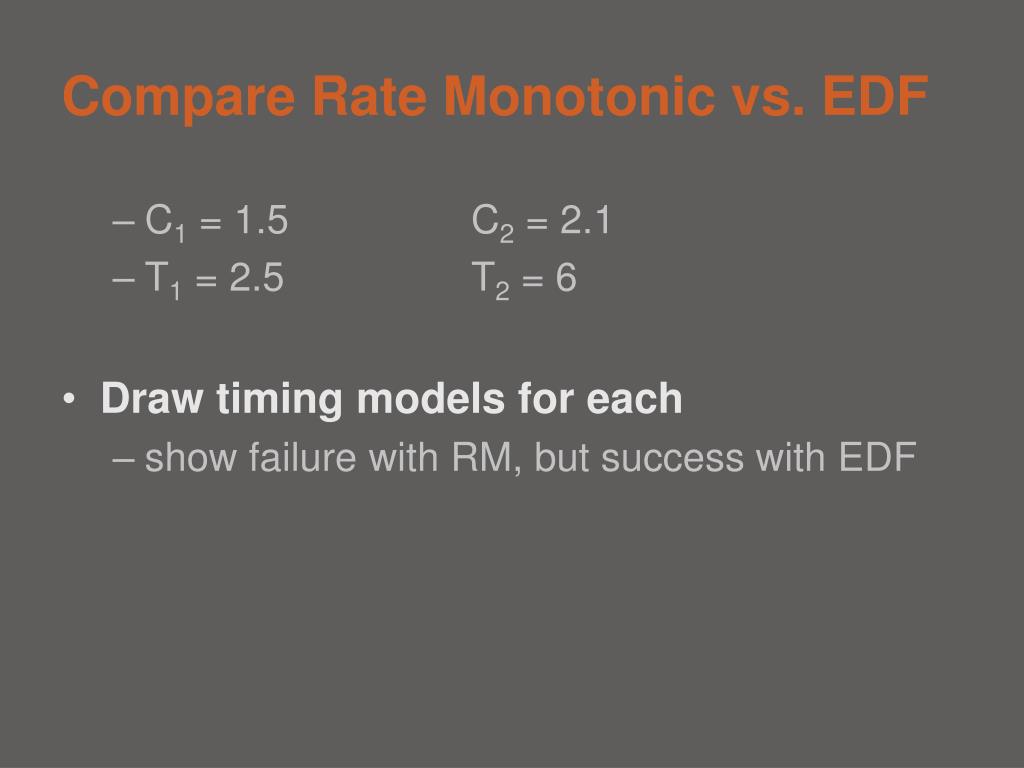

  32. Compare Rate Monotonic vs. EDF • C1 = 1.5 C2 = 2.1 • T1 = 2.5 T2 = 6 • Draw timing models for each • show failure with RM, but success with EDF
