  1. How to Design and Implement Load Testing for Sakai The Michigan Experience

  2. Why Load Test? • Measure end-user response time • How long does a specified operation take? • Currently a minor part of our testing • Define optimal hardware configuration • Enables pre-tuning of Oracle • Testing various JVM settings • Check reliability • How long or hard can system work without producing errors (failures)? lmp@umich.edu

  3. Why Load Test.... • Check hardware & software upgrades • Does new host or software perform as well as previously tested versions? • Evaluate new products • Used to evaluate hardware for database replacement • Measure system capacity • How much can the system handle before performance degradation occurs? • Identify bottlenecks • What part of the environment causes performance degradation? lmp@umich.edu

  4. Test Environment • Performance Testing Tool • Infrastructure • Courses & Users • Data lmp@umich.edu

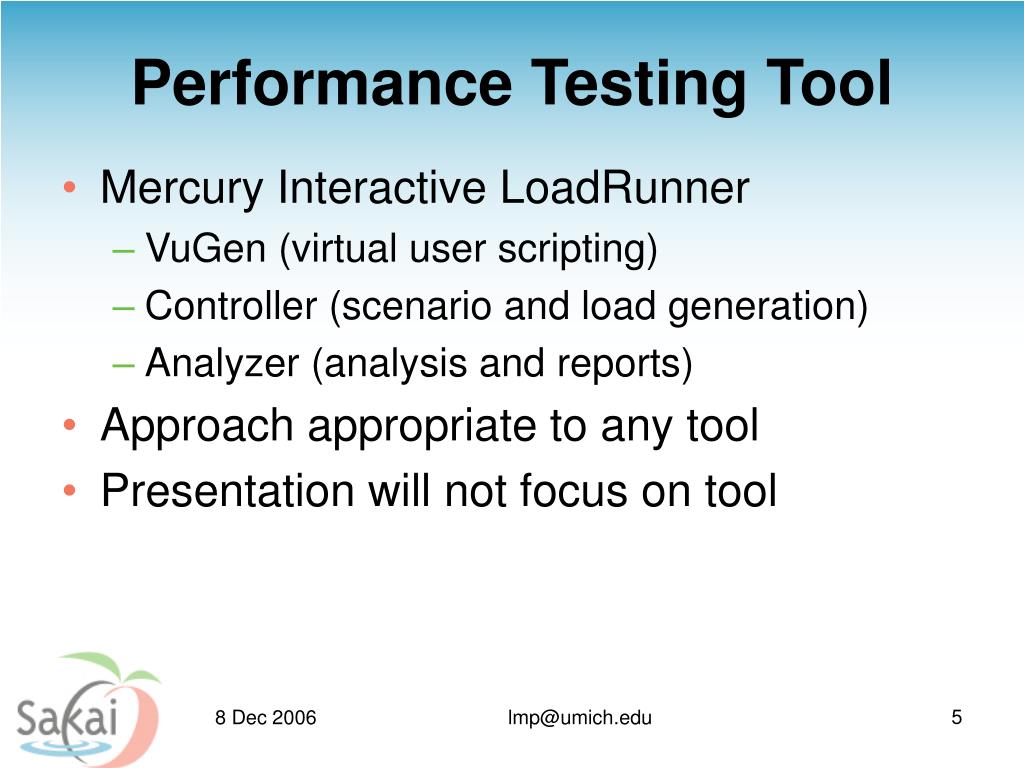

  5. Performance Testing Tool • Mercury Interactive LoadRunner • VuGen (virtual user scripting) • Controller (scenario and load generation) • Analyzer (analysis and reports) • Approach appropriate to any tool • Presentation will not focus on tool lmp@umich.edu

  6. Infrastructure • As close to Production as possible • Hardware • Software • Same configuration unless testing something specific • Authentication • Use application rather than CoSign • UM-developed, open-source single web login service • UMIAC • Warehouse for needed administrative data • UM-developed, PERL scripts accessing Peoplesoft system • Database servers not always identical • Where less “powerful,” larger host will likely perform better than observed in tests • AFS resource storage lmp@umich.edu

  7. Courses & Users • UMIACload provides course names, instructor owners, and rosters of students • 11,000 courses • 11,000 “instructors” • 43,000 “students” • Why so many? • To permit high level of activity without excessive concurrency lmp@umich.edu

  8. Data • Testing requires that all courses be pre-populated with materials to be used by students • Both AFS and Oracle data used • Saved versions of “base” data maintained to enable rollback to “clean” data • Always start with data refresh when adding new tools to test suite lmp@umich.edu

  9. Testing Process • Scripts • Scenarios • Analysis • Results lmp@umich.edu

  10. Script Setup • Analyze tool to be scripted • Understand tool usage • Value of user profiling • Design test plan • Goals • Single or multiple scripts? • Student or Instructor activity? • Are course materials required? • Design data files • Used by Virtual Users (VU) to change input parameters lmp@umich.edu

  11. Script Setup... • Create course materials • Populate courses with materials • Must be done sequentially to ensure all courses get materials • Multiple resources can be added to same course with same script • Need more efficient method • Record activity to be tested lmp@umich.edu

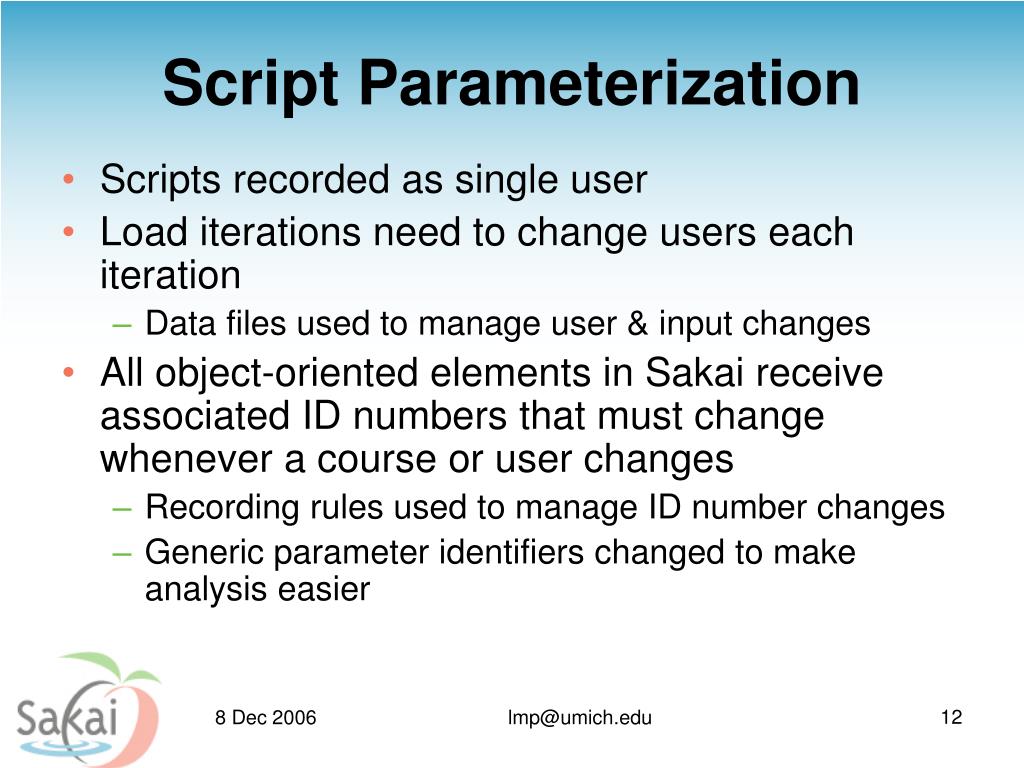

  12. Script Parameterization • Scripts recorded as single user • Load iterations need to change users each iteration • Data files used to manage user & input changes • All object-oriented elements in Sakai receive associated ID numbers that must change whenever a course or user changes • Recording rules used to manage ID number changes • Generic parameter identifiers changed to make analysis easier lmp@umich.edu

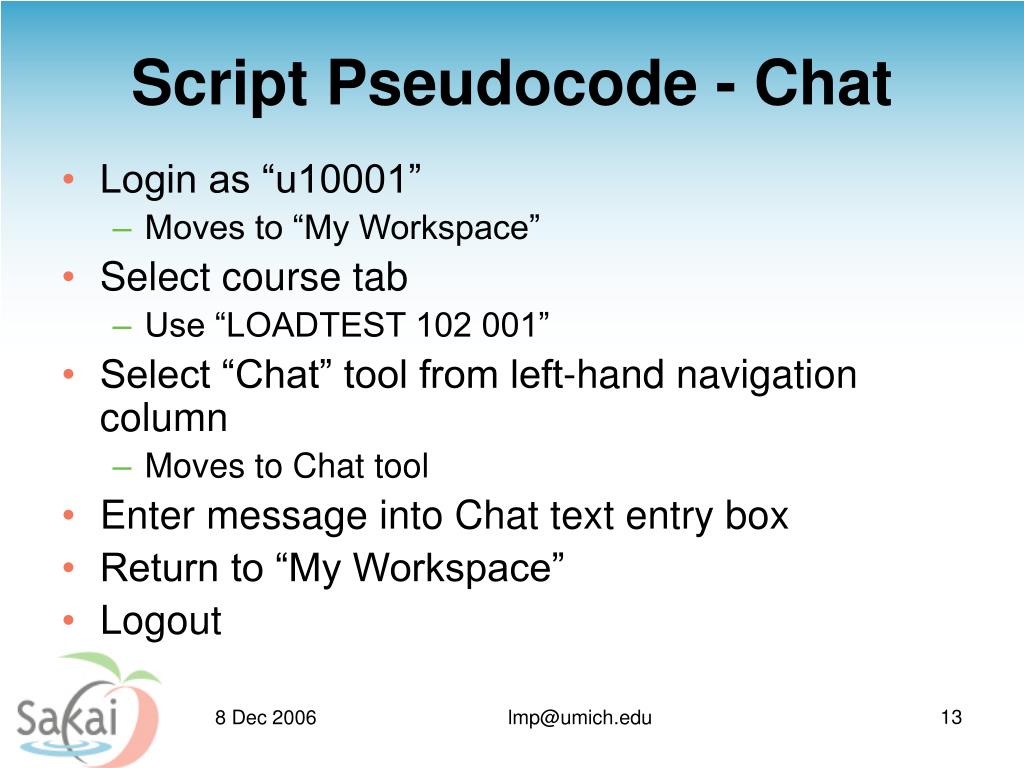

  13. Script Pseudocode - Chat • Login as “u10001” • Moves to “My Workspace” • Select course tab • Use “LOADTEST 102 001” • Select “Chat” tool from left-hand navigation column • Moves to Chat tool • Enter message into Chat text entry box • Return to “My Workspace” • Logout lmp@umich.edu

  14. Script Walkthrough - Chat Chat() { web_set_max_html_param_len("1024"); web_url("xlogin", "URL=https://ctoolsload.ds.itd.umich.edu/portal/xlogin", "Resource=0", "RecContentType=text/html", "Referer=", "Snapshot=t1.inf", "Mode=HTML", EXTRARES, "Url=../ctlib/skin/ctools/images/logo_inst.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/tool_base.css", ENDITEM, "Url=../ctlib/skin/ctools/images/topleft-p-title.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/tool.css", ENDITEM, "Url=../ctlib/skin/ctools/images/help.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/tool.css", ENDITEM, "Url=../ctlib/skin/ctools/images/topright-p-title.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/tool.css", ENDITEM, "Url=../ctlib/skin/ctools/images/reload_h.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/tool.css", ENDITEM, "Url=../ctlib/skin/ctools/images/chatpresicon.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/tool.css", ENDITEM, LAST);

  15. // [WCSPARAM WCSParam_UserID 36 b2de7f47-7c74-40d5-0024-98d191450a5d] Parameter {WCSParam_UserID} created by Correlation Studio web_reg_save_param( "WCSParam_UserID", "LB=site/", "RB=\"", "Ord=2", "Search=Body", "RelFrameId=1.1", LAST ); web_submit_form("xlogin_2", "Snapshot=t2.inf", ITEMDATA, "Name=eid", "Value={CTlogin}", ENDITEM, "Name=pw", "Value={CTpwd}", ENDITEM, "Name=submit", "Value=Login", ENDITEM, EXTRARES, "Url=../ctlib/skin/ctools/images/topright-tab.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/portal.css", ENDITEM, "Url=../ctlib/skin/ctools/images/topright-curtab.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/portal.css", ENDITEM, "Url=../ctlib/skin/ctools/images/topright-tab_hov.gif", "Referer=https://ctoolsload.ds.itd.umich.edu/ctlib/skin/ctools/portal.css", ENDITEM, LAST);

  16. web_link("LOADTEST {Course2} 001 W06", "Text=LOADTEST {Course2} 001 W06", "Snapshot=t3.inf", LAST); lr_think_time(5); // [WCSPARAM WCSParam_ChatID 36 194d7683-e9fc-41d3-0012-f0ac6fea0d60] Parameter {WCSParam_ChatID} created by Correlation Studio web_reg_save_param( "WCSParam_ChatID", "LB=title/", "RB=?", "Ord=1", "Search=Body", "RelFrameId=1.3", LAST ); web_link("Chat Room", "Text=Chat Room", "Snapshot=t4.inf", EXTRARES, "Url=/courier/194d7683-e9fc-41d3-0012-f0ac6fea0d60/1145294730027-0.2702248719455739?auto=true", "Referer=", ENDITEM, "Url=/courier/194d7683-e9fc-41d3-0012-f0ac6fea0d60/1145294740215-0.4220853133253527?auto=true", "Referer=", ENDITEM, "Url=/courier/194d7683-e9fc-41d3-0012-f0ac6fea0d60/1145294750293-0.2283065980084248?auto=true", "Referer=", ENDITEM, "Url=/courier/{WCSParam_UserID}-presence/1145294759434-0.23544053982281854?auto=true", "Referer=", ENDITEM, LAST);

  17. web_url("{WCSParam_UserID}", "URL=https://ctoolsload.ds.itd.umich.edu/portal/presence/{WCSParam_UserID}", "Resource=0", "RecContentType=text/html", "Referer=https://ctoolsload.ds.itd.umich.edu/portal/presence/{WCSParam_UserID}", "Snapshot=t5.inf", "Mode=HTML", EXTRARES, "Url=/courier/{WCSParam_ChatID}/1145294760356-0.31310668668084407?auto=true", "Referer=", ENDITEM, LAST);

  18. web_submit_data("{WCSParam_ChatID}", "Action=https://ctoolsload.ds.itd.umich.edu/portal/tool/{WCSParam_ChatID}?panel=Control", "Method=POST", "RecContentType=text/html", "Referer=https://ctoolsload.ds.itd.umich.edu/portal/tool/{WCSParam_ChatID}?panel=Control", "Snapshot=t6.inf", "Mode=HTML", ITEMDATA, "Name=message", "Value=Who me? Wadya want, meathead? sheesh.....", ENDITEM, "Name=eventSubmit_doSend", "Value=x", ENDITEM, "Name=send", "Value=Add message", ENDITEM, EXTRARES, "Url=/courier/{WCSParam_ChatID}/1145294761621-0.647618403375133?auto=true", "Referer=", ENDITEM, LAST); web_url("{WCSParam_ChatID}_2", "URL=https://ctoolsload.ds.itd.umich.edu/portal/tool/{WCSParam_ChatID}?panel=List", "Resource=0", "RecContentType=text/html", "Referer=https://ctoolsload.ds.itd.umich.edu/portal/tool/{WCSParam_ChatID}?panel=Main", "Snapshot=t7.inf", "Mode=HTML", LAST);

  19. lr_think_time(6); web_url("%7E{CTlogin}", "URL=https://ctoolsload.ds.itd.umich.edu/portal/site/%7E{CTlogin}", "Resource=0", "RecContentType=text/html", "Referer=https://ctoolsload.ds.itd.umich.edu/portal/site_tabs/{WCSParam_UserID}", "Snapshot=t8.inf", "Mode=HTML", LAST); return 0; }

  20. Scenarios • One or more scripts to be run in load test • Number of virtual users running script • Number of iterations per virtual user • Pacing (how much delay between iterations) • Think time (emulates user variability) • Browser emulation • Network bandwidth emulation • Results detail (step or full transaction level) lmp@umich.edu

  21. Instructor CreateAnnounce CreateAssign ReviseResource ScheduleEvent UploadLgFile UploadSmFile Student Chat CreateProject DownloadSmFile DownloadLgFile NewDiscussion ReadBrowse SubmitAssign 13 “Core” Tests lmp@umich.edu

  22. Instructor AddSoMod AddVzMod EditSyllabus EditWiki3L SubmitGrades Student ReadTxtMod ReadSoMod ReadVzMod ReadSyllabus ReadWiki3L ViewGrade “New” Tool Tests lmp@umich.edu

  23. Scenario Preparation • Single script runs • 1 VU • 100 iterations • No wait time between iterations • No think time • Showing response times for each step of transaction • Identify serious script problems • Take average response time for scenario lmp@umich.edu

  24. Scenario Iteration Timing (125%) lmp@umich.edu

  25. Analysis & Results • Scenario runs for 1 hour plus ramp up and down time • Upon completion of run, use LoadRunner Analyzer to crunch data • Compare resulting graphs with previous runs • Developers, DBA, SysAdmins look for performance bottlenecks • Fixes proposed and test rerun lmp@umich.edu

  26. CTload Scenario Results:2.0_r3636w8app (100%) lmp@umich.edu

  27. CTload Scenario Results:2.2.1_r14159w6app (125%) lmp@umich.edu

  28. Sharing the Burden? • Multiple campuses participate • Ideally a few dedicated partners • Localized hardware • Localized test tool choice • Centralized resources • Test design • Pseudocode for scripts • Course data files • Results • Support and discussion lmp@umich.edu

  29. Community Testing? • Share common core tests • Baseline for comparison • Focus on new tools of interest to campus • Contribute resources back to central repository • Contribute results to community • Greater stress on performance in development lmp@umich.edu
