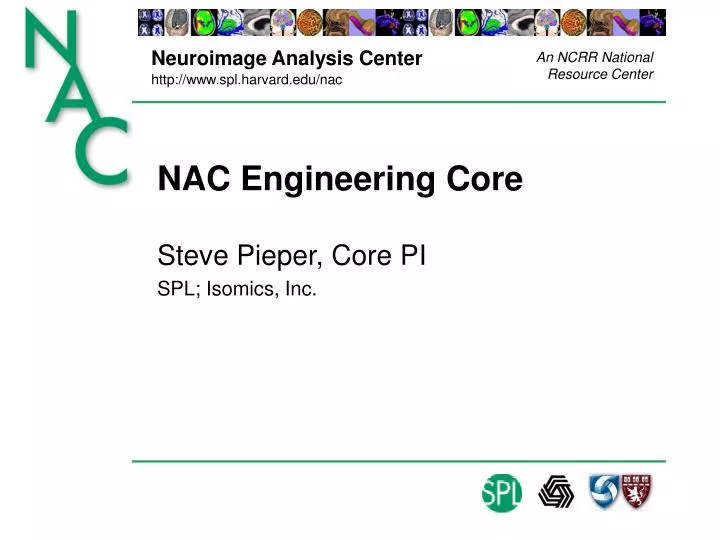

  1. NAC Engineering Core Steve Pieper, Core PI SPL; Isomics, Inc.

  2. Overview of NAC Engineering Core • Was BIRN Core, but split per NIH request • NAC Engineering Core • mBIRN Grant • fBIRN Grant (Sandy took lead) • Mainly do 3D Slicer development • Also sponsored by NA-MIC, NCIGT, R01, SBIR, others…

  3. Slicer2 • Load Medical Image Data: MR, CT in DICOM, GE, Analyze… • XML-based File Format: MRML (Medical Reality Markup Language) • Interactive Editor: Draw, Threshold, Math Morphology… • Automated Segmenters: EM Segmentation, Fast Marching, Level Sets… • Visualization: Model Building, Stereo Rendering, Animation… • Registration: Manual, ITK, CNI • Measurement: Fiducial-Based, Volumetric, Polyhedral Intersection, Vessel Cross-Section, Osteotomy Planning • IGT: Tracked Probes, Real-Time Images, Robot Control • Additional Application-Specific Features in Modules… • Mature and stable, but becoming difficult to maintain and extend • Needed: • New look and feel • More modularity • Generalized data model

  4. Slicer2 DTI

  5. Slicer2 fMRI

  6. Slicer3 Effort • Collaboration of NAC, NA-MIC, BIRN, NCIGT, Others… • Base Development at BWH, GE, Kitware, Isomics • Module Development at MGH, BWH, UNC, Utah, MIT, UCLA, UCSD…

  7. Near Term Plans • 3D Slicer 2.7 Release Candidate • February 2007 • Bug fixes, performance enhancements • 3D Slicer 3.0 Base Release • March 2007 • Essential feature (load/save, view, transforms, models…) • 3D Slicer 3.1 Release • June 2007 • Application modules (DTI, EMSegment)

  8. Longer term plans • Slicer3 Informatics • XNAT (mBIRN), HID (fBIRN), MIDAS (Kitware) • Query Atlas (mBIRN, fBIRN) • Execution Model for Grid Computing (mBIRN, NA-MIC) • DICOM / IHE Clinical Workflows (pending with Northwestern) • FEM Meshing / Visualization (Iowa, ongoing) • DTI (NAC, NA-MIC, mBIRN) • Interoperability (NAC, mBIRN) • FreeSurfer, FSL, MATLAB, NumPy… • Image Guided Therapy (NCIGT, NAC)

  9. Slicer3 Execution Model • Standardized command line syntax and exchange of data (parameters, volumes, models, seed points…) • Slicer3 auto-generates GUI • Modules are “just executables” • (but they can also be shared libraries) • Modules can be written in a variety of languages/toolkits (ITK, VTK, Tcl, Python, MATLAB, C, C++…) • Modules can be used for scripting, batch processing • Simple wrappers to translate syntax can allow interoperability

  10. Slicer 2.6 Functionality: FreeSurfer

  11. BIRN Query Atlas in Slicer3 • Re-Architecture of the QueryAtlas • Advanced Label Features Built-In • Real-Time Interaction with Labels • “Right Click” on Models and Images to Initiate Queries • Based on NA-MIC Software Engineering Methodology • Anatomy-Based Access to Web Resources • Integrates with BIRN IT Efforts • Auto Convert and Load BIRN Data • Leverages mBIRN Data Formats and Analysis (FreeSurfer) • fBIRN is Building Functional QueryAtlas Integrated with mBIRN QueryAtlas
