Presentation Transcript


Solar car electrical system overview

Solar Car Electrical System Overview


Basic system diagram

Basic System Diagram

CAN Bus 1

Solar Array

Maximum PowerPoint Trackers

Vehicle Control and Data Acquisition Computer

HV Bus

Telemetry Radio

Battery Management System

Battery

Driver Display

Motor Controller

CAN Bus 2

Motor

LV Bus

Lights

Rear View Camera

DC/DC Converter


Solar array

Solar Array

  • 6m2 SunPower B30 monocrystalline silicon cells

  • Split into 4 sub-arrays

  • Specialist encapsulation, increasing efficiency by ~4%

  • 22% efficient overall

  • 1.3kW measured max power output

  • Value: £22,500


Maximum powerpoint trackers

Maximum PowerPoint Trackers

  • Also known as MPPTs

  • Built to custom specification by Drivetek

  • Essentially a DC/DC converter, converting array voltage to HV bus voltage

  • 98% efficient

  • 4 MPPTs, one to interface with each of the sub-arrays of solar cells


Motor motor controller

Motor & Motor Controller

  • 1.8kW CSIRO 3-phase brushless DC hub motor

  • 98% efficient

  • 4kW peak power

  • Custom designed hub, machined by Cambridge Precision

  • Value: £18,000

  • Motor Controller: Tritium Wavesculptor

  • Value: £5,500

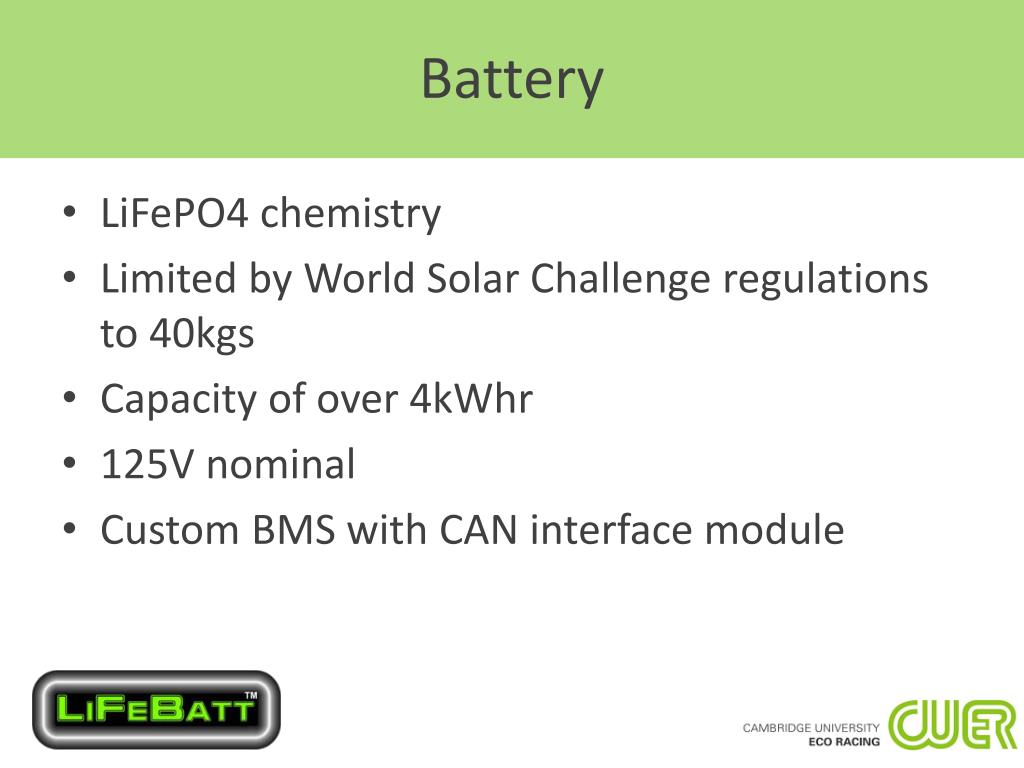

Battery

Battery

  • LiFePO4 chemistry

  • Limited by World Solar Challenge regulations to 40kgs

  • Capacity of over 4kWhr

  • 125V nominal

  • Custom BMS with CAN interface module


Control and data acquisition

Control and Data Acquisition

  • Entire solution provided by National Instruments CompactRIO

  • Interfaces with CAN busses

  • Driver inputs and vehicle instrumentation connected directly to modules

  • Telemetry radio connected to serial output port


Control and data acquisition1

Control and Data Acquisition

  • High-speed control loop run in FPGA, providing fast, reliable response to driver inputs

  • Background loop run in Real-Time Controller

    • Sets maximum allowable currents

    • Determines preferred speed for cruise control

    • Logs all data

    • Selects data to be transmitted over telemetry, to minimise power consumption
