制片人: 李晓颖 张媛媛 刘青 李芹 娄江华 田续江 刘波 张平 董铿

Tumor

Immunity



Tumor immunity
Tumor Immunity

Tumor antigen is the new antigen produced by tumor cells. It can cause cell immune response and humoral immune response .

Types:

New protein ,conformation-changed protein, hidden determinants ,etc.


Nk cell
NK cell

NK cells play important roles in the

early stage of immunity, are the first barrier .

Mechanism


  • NKG2D recptor

    Bind to MHC class I chain-related molecules A/B

    MHC class I chain-related molecules A/B

    express only on epicelial tumor cells

  • Killing mechenism

    Perforin / Granzyme pathway

    Fas FaslL interaction

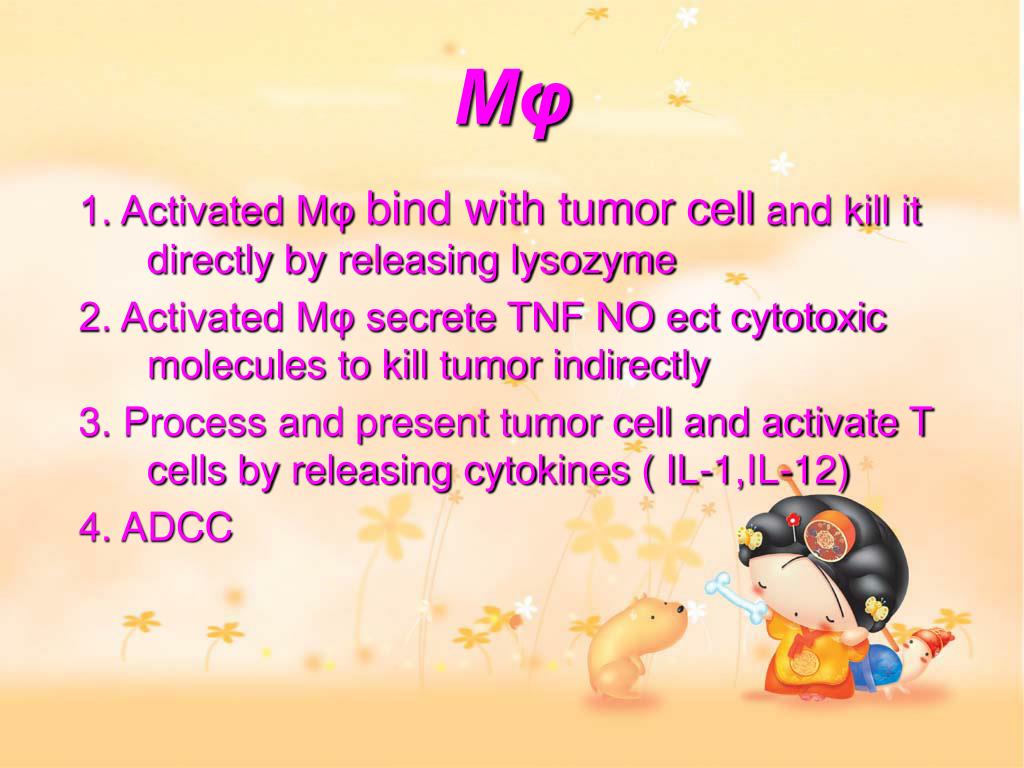

1. Activated Mφbind with tumor cell and kill it directly by releasing lysozyme

2. Activated Mφ secrete TNF NO ect cytotoxic molecules to kill tumor indirectly

3. Process and present tumor cell and activate T cells by releasing cytokines ( IL-1,IL-12)

4. ADCC

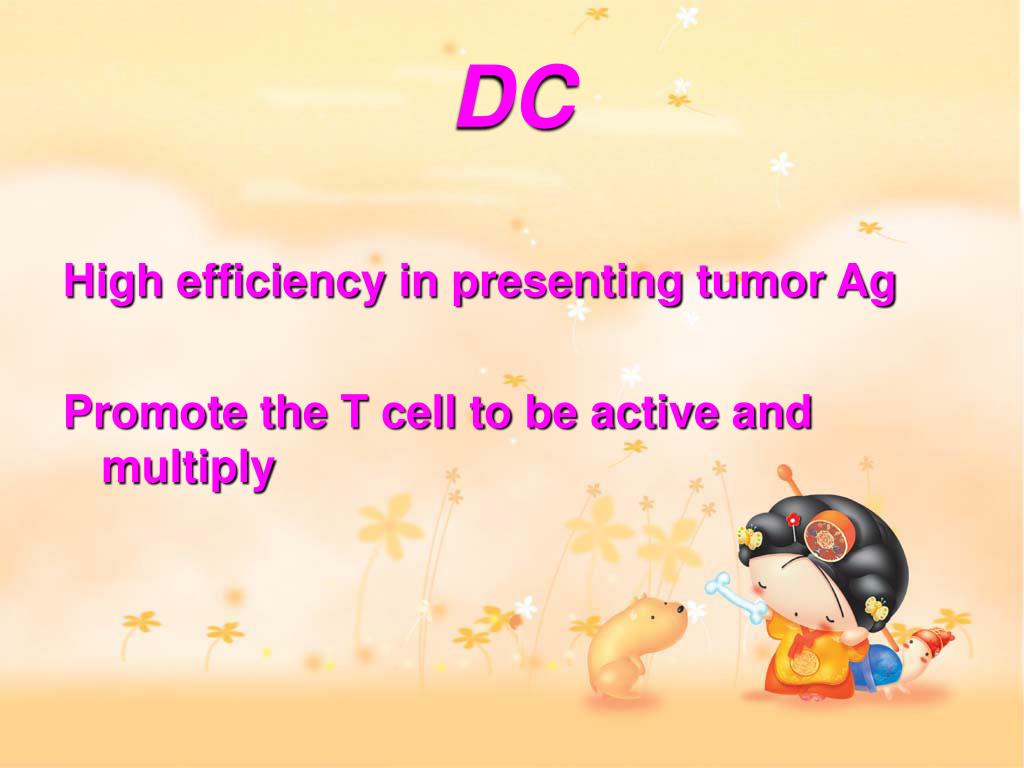

DC

High efficiency in presenting tumor Ag

Promote the T cell to be active and multiply


T cell
T Cell

CD4 +T cell :

Secrete cytokines to activate CD8+ T cell

and macrophage

CD8+ T cell:

1. recognize tumor specifically and kill tumor cells by releasing perforin , granzyme , FasL (bind to Fas on tumor cell

2. secrete cytokines ( e.g. IFN-γ) and kill tumor cells indirectly


特异性抗肿瘤细胞免疫应答过程

CD4+T

肿瘤抗原的加工、

处理及有效果递

呈CD4+T细胞

肿瘤细胞破碎释

放出肿瘤抗原

攻击肿瘤细胞

细胞因子

肿瘤抗原

特异化的

细胞毒性

T细胞

(CTL)

肿瘤抗原特异性

CD4+T细胞增殖

辅助信号

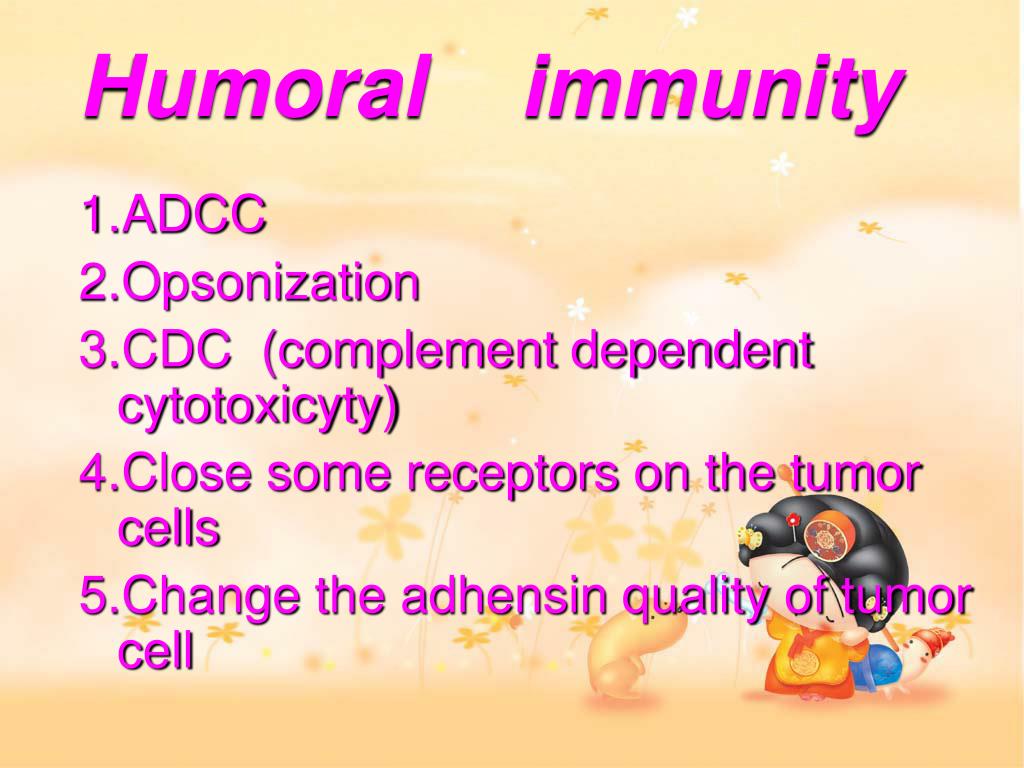

Humoral immunity
Humoral immunity

1.ADCC

2.Opsonization

3.CDC (complement dependent cytotoxicyty)

4.Close some receptors on the tumor cells

5.Change the adhensin quality of tumor cell



Tumor immunotherapy
Tumor immunotherapy

Definition:

Tumor immunotherapy is a kind of therapy which is to initiate or to enhance the immune function of our body, and then to prevent the tumor cells to diffuse or to kill the tumor cells.

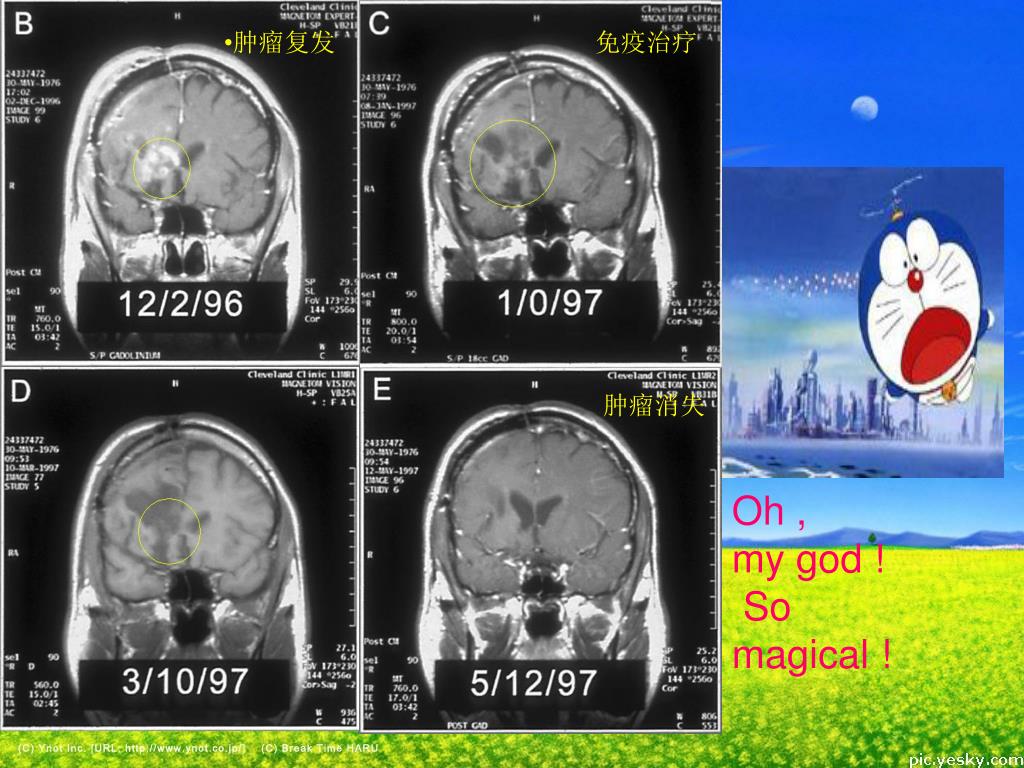

免疫治疗

肿瘤复发

肿瘤消失

Oh ,

my god !

So magical !


Vaccine immunotherapy
Vaccine Immunotherapy

Definition:

The therapy that stimulate specifical anti-tumor immune response by injecting vaccine


Tumor vaccine
Tumor vaccine

1 Inactivated tumor vaccine

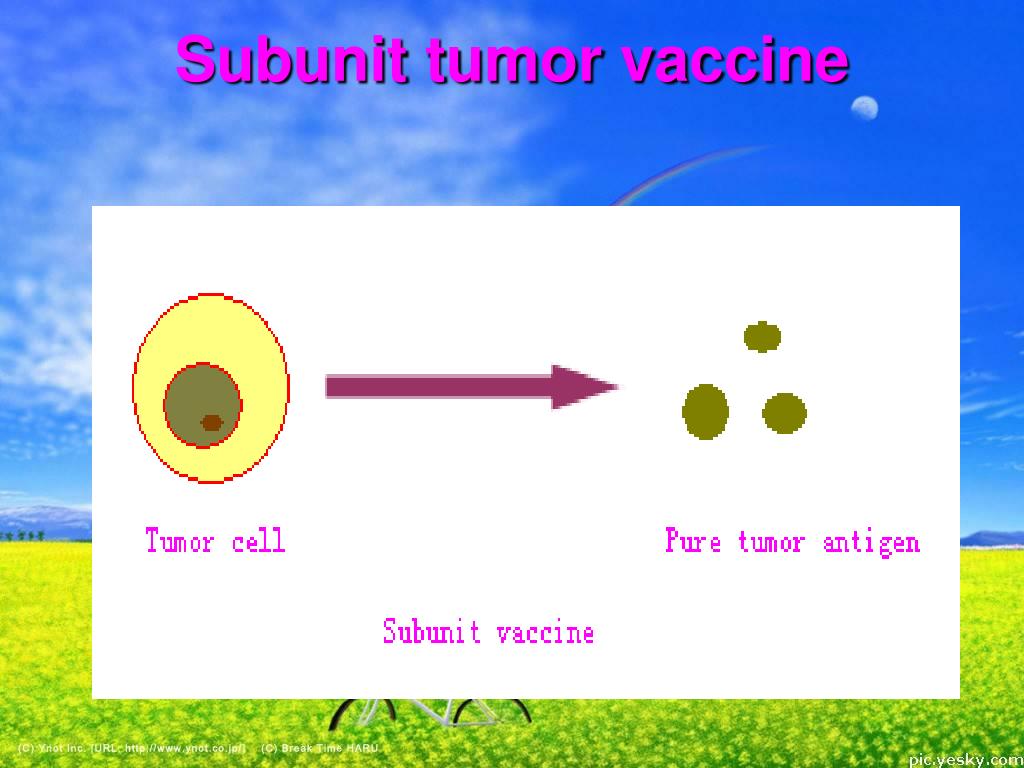

2 Subunit tumor vaccine

3 APC vaccine





Immunotherapy with monoantibody
Immunotherapy with monoantibody

Definition:

Use highly specific mAbs as carriers, coupled with cytotoxic kill molecules to kill tumour cells targetly.

Chimeric mAb:

A human Fc attached to a mouse F(ab)2 , reduce the risk of an immune response to the mAbs.


Types
Types:

radioimmunotherapy

Antibody-mediated

chemotherapy

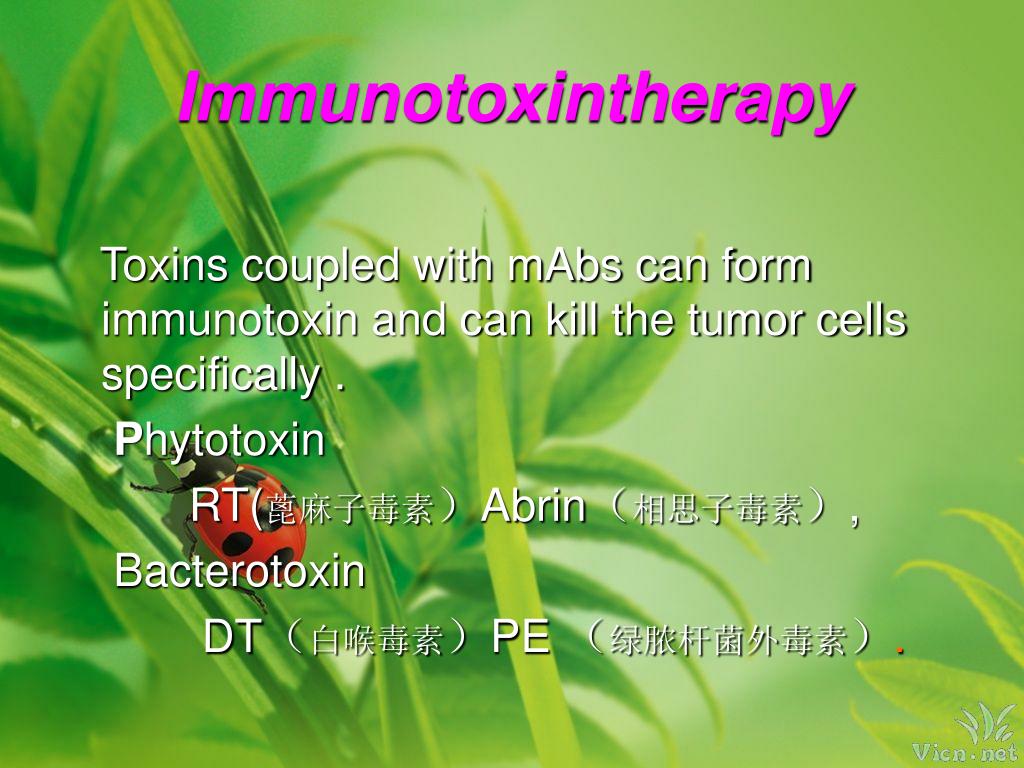

Immunotoxintherapy


Immunotoxintherapy
Immunotoxintherapy

Toxins coupled with mAbs can form immunotoxin and can kill the tumor cells specifically .

Phytotoxin

RT(蓖麻子毒素)Abrin(相思子毒素),

Bacterotoxin

DT(白喉毒素)PE (绿脓杆菌外毒素).


Genetic therapy

Genetic therapy

Tumor cells may lose some genes or express abnormal genes . Transduce target gene to body and restore the function of tumor cells help them to express normal products.


Basic method
Basic method

Body cell gene therapy (ex vivo)

target gene recombined with receptor cell

Inject recombined receptor cell to patient body , so express the exogenous gene in patient

Direct gene therapy

Inject the exogenous gene to the patient body directly, and make it transcript and express .

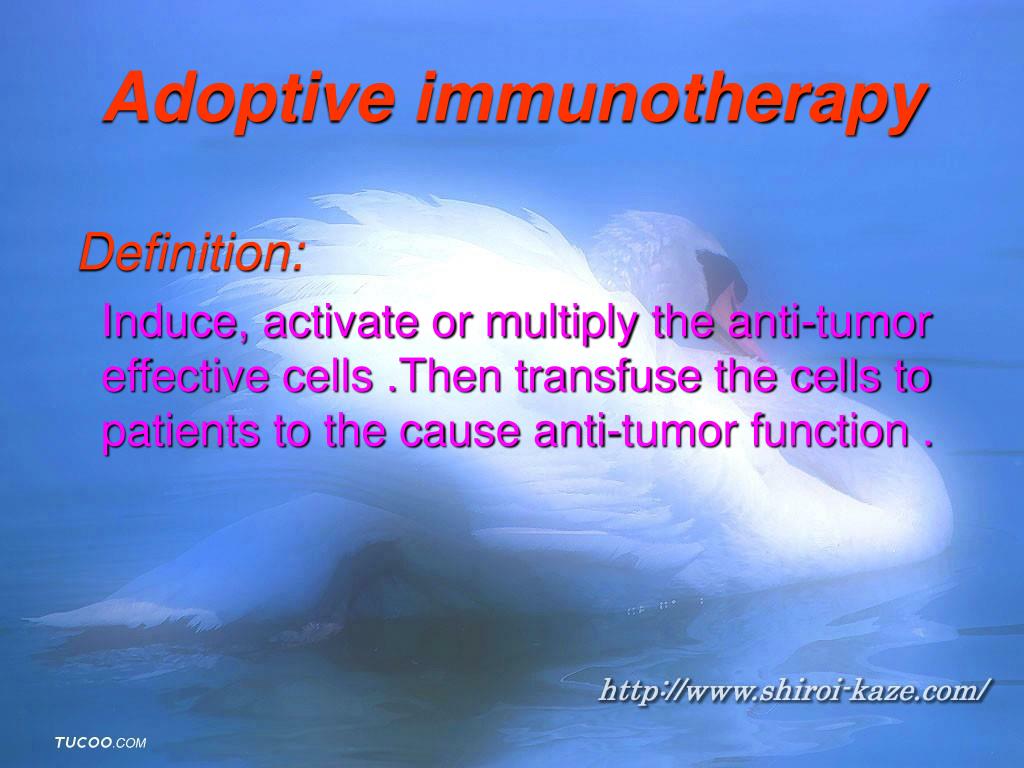

Adoptive immunotherapy
Adoptive immunotherapy

Definition:

Induce, activate or multiply the anti-tumor effective cells .Then transfuse the cells to patients to the cause anti-tumor function .

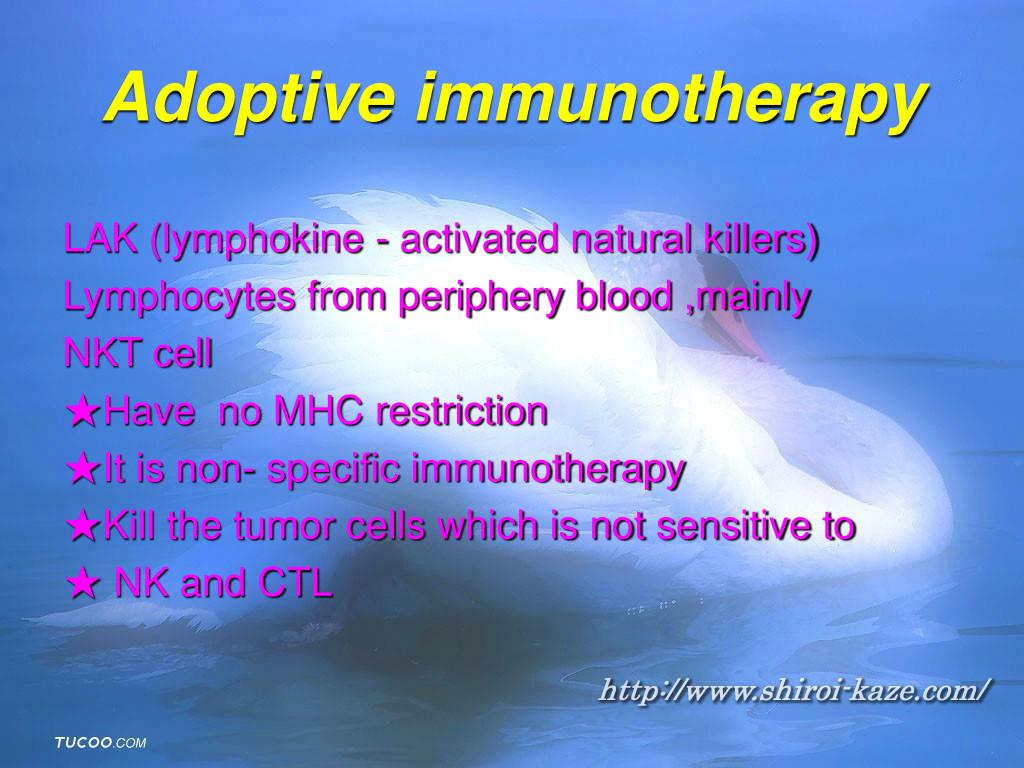

Adoptive immunotherapy1
Adoptive immunotherapy

LAK (lymphokine - activated natural killers)

Lymphocytes from periphery blood ,mainly

NKT cell

★Have no MHC restriction

★It is non- specific immunotherapy

★Kill the tumor cells which is not sensitive to

★ NK and CTL


Cytokine therapy

Cytokine therapy

The mechanism of cytokine therapy for tumor is that after being injected into body ,the cytokine can regulate and increase the activity of immune cells ,and have enhance anti-tumor effect. So far, IL-2,IFN-r,TNF-a and CSF have been used for tumor treatment .


Interleukin 2
Interleukin-2

  • IL-2 is T cell growth factor, it can activate CD8+T cell

  • Induce and increase cytotoxic effection of the cytotoxic cells .(for example NK,CTL,).

  • It can also stimulate the activated T cell to produce IFN,IL-4~6 and CSF.




气有浩然

学无止境


健康所系

性命相托
