  1. Power Minimization Using Voltage Reduction and Parallel Processing By Sudheer Vemula ELEC6970-001

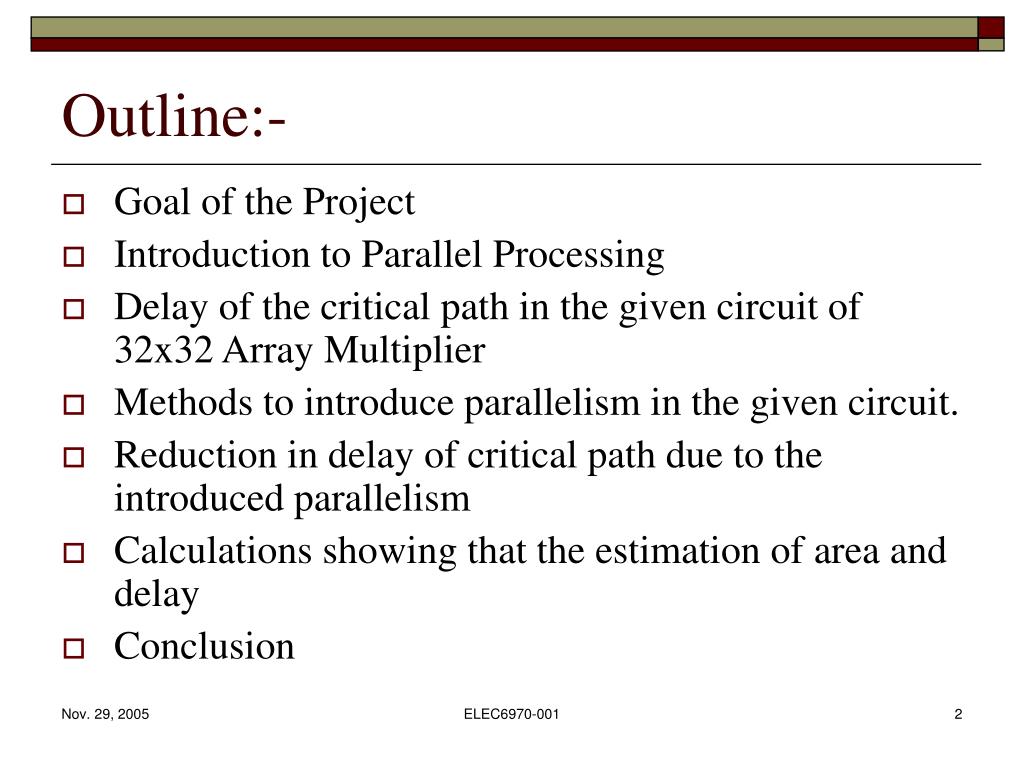

  2. Outline:- • Goal of the Project • Introduction to Parallel Processing • Delay of the critical path in the given circuit of 32x32 Array Multiplier • Methods to introduce parallelism in the given circuit. • Reduction in delay of critical path due to the introduced parallelism • Calculations showing that the estimation of area and delay • Conclusion ELEC6970-001

  3. Goal of the Project • To reduce the power consumption of the circuit. • By reducing the Voltage of the power supply. • Consequence: Increases the delay of the critical path. • To compensate the increase in delay by introducing parallelism. • To calculate the reduction in power. ELEC6970-001

  4. Parallel Processing • Definition:- Concurrent execution of several programs or several blocks of a program is known as parallel processing[1]. • Types of parallelism • Data Parallelism & • Control Parallelism • Data Parallelism is parallel execution of single expression on data distributed over multiple processors[2]. • Control Parallelism is the parallelism that is achieved by the simultaneous execution of multiple threads [3]. ELEC6970-001

  5. Voltage Scaling and Delay:- • Since transistor is a voltage controlled current device, the resistance depends on the voltage and current. • = 0.5(0.5 Rp C + 0.5 Rn C) = 2 for low Vdd ELEC6970-001

  6. Critical Path:- Delay of the Critical path for a multiplier of order n x m = (2m+n-2) Delay of the Critical path for a multiplier of order 32 x 32 = 94 Approximate area of 32 x 32 Multiplier = 1024FAs + 128FAs (due to AND Gates) = 1152 FAs ELEC6970-001

  7. Horizontal Partition:- Ex.: A=98 and B=76 AB=(90x76) + (8x76) =(9x76)x10 + 8x76 Critical path delay for a multiplier of order 32x16 = (2*16+32-2) + Delay of the 32 bit Full Adder (FA) + Delay of the 16 bit Half Adder (HA) = 62 + Delay of the 32 bit FA+ Delay of the 16 bit HA ELEC6970-001

  8. Vertical Partition Ex.: A=98 and B=76 AB = (98x70) + (98x6) = (98x7)x10 + (98x6) Critical path delay for a multiplier of order 16x32 = (2x32+16-2) + Delay of the 32 bit FA+ Delay of the 16 bit HA =78 + Delay of the 32 bit FA+ Delay of the 16 bit HA ELEC6970-001

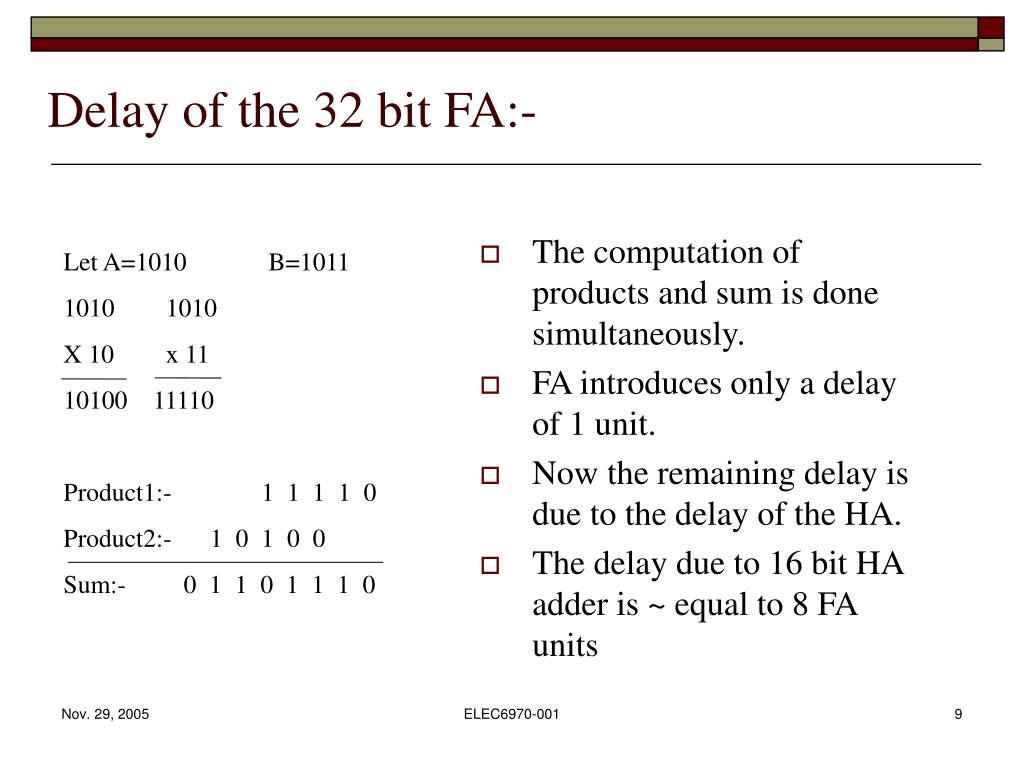

  9. Delay of the 32 bit FA:- The computation of products and sum is done simultaneously. FA introduces only a delay of 1 unit. Now the remaining delay is due to the delay of the HA. The delay due to 16 bit HA adder is ~ equal to 8 FA units Let A=1010 B=1011 1010 1010 X 10 x 11 10100 11110 Product1:- 1 1 1 1 0 Product2:- 1 0 1 0 0 Sum:- 0 1 1 0 1 1 1 0 ELEC6970-001

  10. Here we are introducing a 16 bit multiplexer to eliminate the delay due to 16 bit Half Adder. The additional delay is only due to the multiplexer. Delay of this circuit = 78+1+0.5(~delay due to mux) Additional No. of gates = 32FAs + 16 HAs + Multiplexers ~ 32+8+5 = 45FAs The same procedure can be implemented in the circuit with horizontal partitioning. Eliminating the Delay due to Half Adder:- ELEC6970-001

  11. Ex.: A=98 and B=76 AB=(90x76) + (8x76) =(9x76) 10 + 8x76 =(9x7) 100 + (9x6) 10 +(8x7) 10 + (8x6) ELEC6970-001

  12. Delay and Area Calculations:- • Delay of the circuit = (2x16+16-2)+ 1.5 + (Delay due to 32 bit FA) +1.5 • Delay due to 32 bit FA is 16 units. Because the 16 LSBs of the FA are computed simultaneously with previous stage whereas the 16 MSBs are computed without any overlap. • Therefore, Delay = 49 + 16 = 65 • Area Overhead = 2 x 16 bit FAs + 32 bit FA +3 x 16 bit HAs + 3 x 16 bit Multiplexers ~ 64 + 24 + 3 x 8 = 112 FAs Percentage Reduction in Delay = (94-65) x 100 / 94 = 30.8% Percentage Increase in Area = (112/1152) x 100 = 9.7% ELEC6970-001

  13. Circuit with improved Delay:- ELEC6970-001

  14. Delay and Area Calculations:- • Delay of the circuit = (2x16+16-2)+ 1.5 + (Delay due to 16 bit CLA) +1.5 • Therefore, Delay = 49 + (16/3.6) = 53.5 --[4] • Area Overhead = 2 x 16 bit FAs + 16 bit FA + 16 bit Carry Look Ahead Adder (CLA) + 3 x 16 bit HAs + 3 x 16 bit Multiplexers ~ 32 + 16 + 16 x (10/7.2) + 24 + 24 --- [4] = 48 + 22 + 48 = 118 FAs Percentage Reduction in Delay = (94-53.5) x 100 / 94 = 43.08% Percentage Increase in Area = (118/1152) x 100 = 10.24% ELEC6970-001

  15. ELEC6970-001

  16. Delay and Area Calculations:- • Delay of the circuit = (2x16+16-2)+ 1.5 + (Delay due to 16 bit CLA) +1.5 + 1(Added delay due to one FA) • Therefore, Delay = 49 + (16/3.6) +1 = 54.5 ---[4] • Area Overhead = 2 x 16 bit FAs + 16 bit FA + 16 bit Carry Look Ahead Adder (CLA) + 16 bit HA + 1 bit FA + 15 bit HA + 3 x 16 bit Multiplexers ~ 32 + 16 + 16 x (10/7.2) + 8 + 1+ 8.5 + 24 --- [4] = 48 + 22 + 41.5 = 111.5 FAs Percentage Reduction in Delay = (94-54.5) x 100 / 94 = 42.02% Percentage Increase in Area = (111.5/1152) x 100 = 9.7% ELEC6970-001

  17. 32x32 Multiplier with 4x4 Multipliers:- • New delay of the circuit = (2x4+4-2) + 1.5 + 1.5 + 10 (CLAs) + 3 + 4.5 (both from previous ckt. values) = 29.5 • New Area overhead = 8 x 4 bit FAs + 8 x 4 bit HAs + 4 x 4 bit CLA + 4 x 4 bit FA + overhead of previous ckt = 32 + 16 + 16 x (10/7.2) + 16 + 111.5 ~ 198 FAs • Percentage reduction in Delay = (94 - 30) / 94 = 68% • Percentage increase in Area = 198/1152 = 17% ELEC6970-001

  18. Conclusion:- • The percentage reduction in Delay is much higher than the increase in Area. So, there is a very high possibility that the final power consumed after voltage scaling is much lesser than the original value. ELEC6970-001

  19. References • [1]dspvillage.ti.com/docs/catalog/dspplatform/details.jhtml • [2]www.llnl.gov/CASC/Overture/henshaw/documentation/App/manual/node160.html • [3]books.nap.edu/html/up_to_spedd/appD.html • [4] J. M. Rabey & M. Pedram, Low power Design Metodologies, Kluwer Academic Publishers, Boston MA, 1996. ELEC6970-001
