UMass Lowell Computer Science 91.503 Analysis of Algorithms Prof. Karen Daniels Fall, 2008. Lecture 2 Tuesday, 9/16/08 Design Patterns for Optimization Problems Greedy Algorithms. Algorithmic Paradigm Context. Solve subproblem(s), then make choice. Make choice, then solve subproblem(s).

Download Presentation

UMass Lowell Computer Science 91.503 Analysis of Algorithms Prof. Karen Daniels Fall, 2008

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

UMass Lowell Computer Science 91.503Analysis of AlgorithmsProf. Karen DanielsFall, 2008

Lecture 2

Tuesday, 9/16/08

Design Patterns for Optimization Problems

Greedy Algorithms


Algorithmic paradigm context

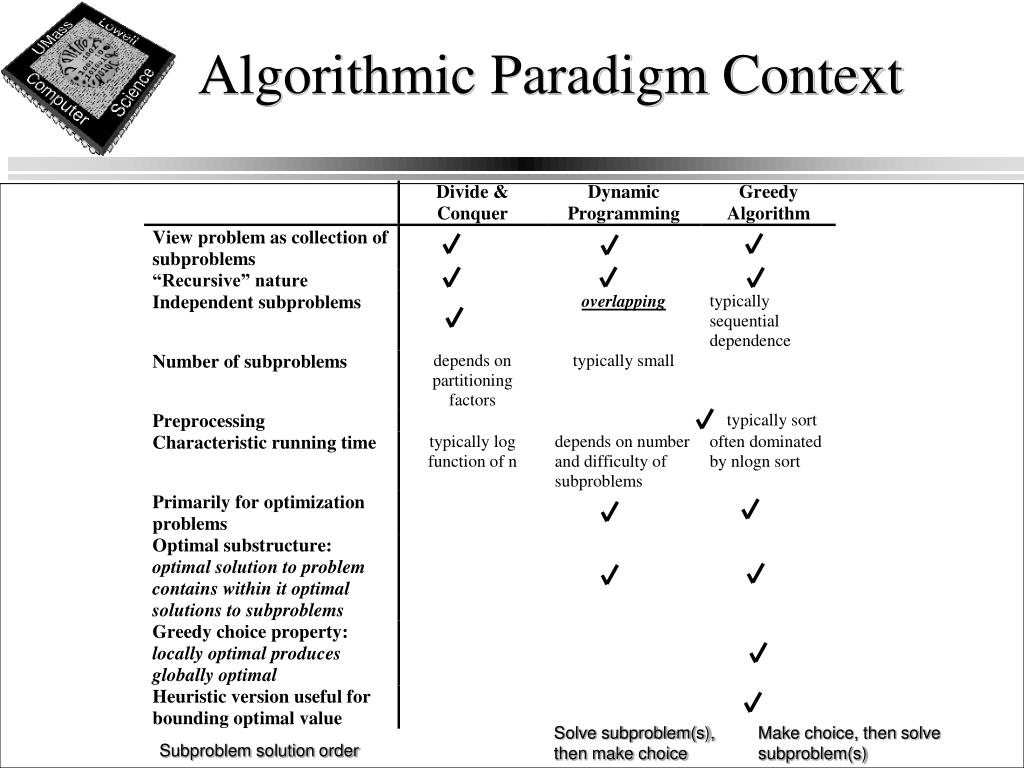

Algorithmic Paradigm Context

Solve subproblem(s), then make choice

Make choice, then solve subproblem(s)

Subproblem solution order


Greedy algorithms

Greedy Algorithms


What is a greedy algorithm

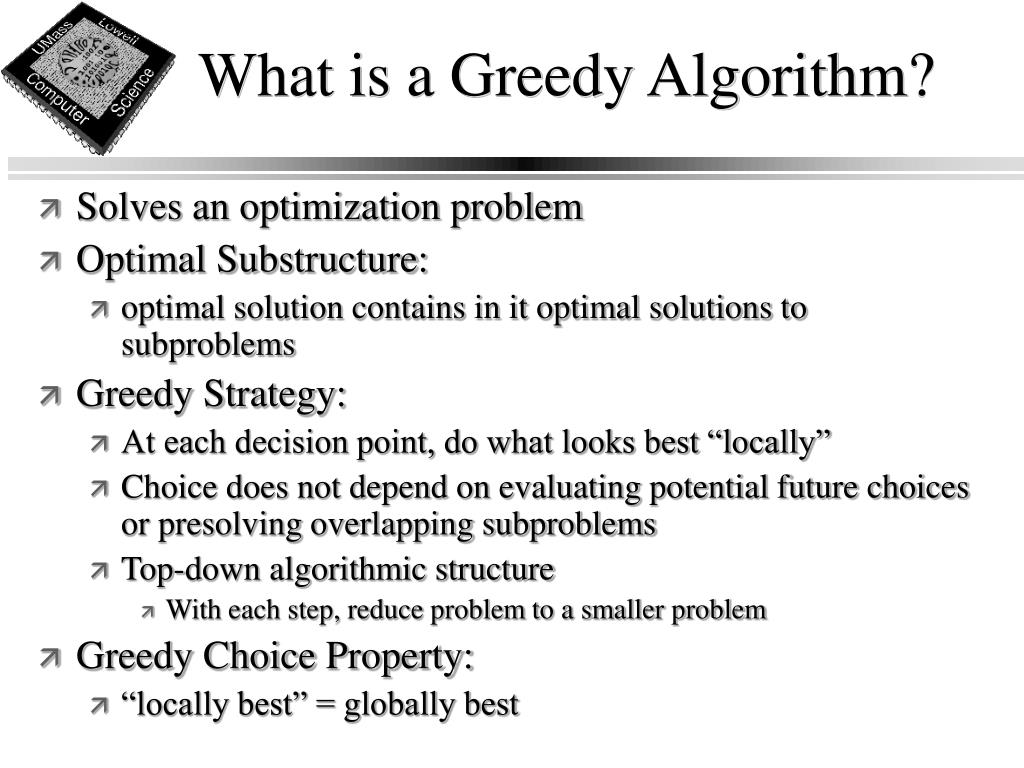

What is a Greedy Algorithm?

  • Solves an optimization problem

  • Optimal Substructure:

    • optimal solution contains in it optimal solutions to subproblems

  • Greedy Strategy:

    • At each decision point, do what looks best “locally”

    • Choice does not depend on evaluating potential future choices or presolving overlapping subproblems

    • Top-down algorithmic structure

      • With each step, reduce problem to a smaller problem

  • Greedy Choice Property:

    • “locally best” = globally best


Greedy strategy approach

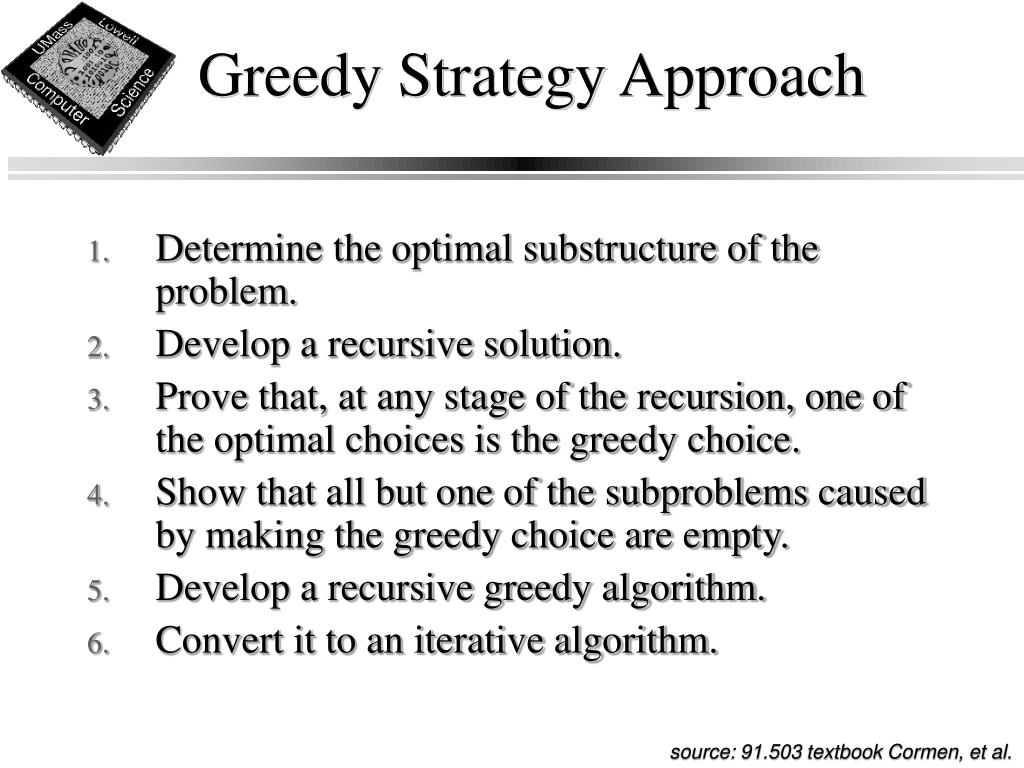

Greedy Strategy Approach

  • Determine the optimal substructure of the problem.

  • Develop a recursive solution.

  • Prove that, at any stage of the recursion, one of the optimal choices is the greedy choice.

  • Show that all but one of the subproblems caused by making the greedy choice are empty.

  • Develop a recursive greedy algorithm.

  • Convert it to an iterative algorithm.

source: 91.503 textbook Cormen, et al.


Examples

Examples

  • Activity Selection

  • Minimum Spanning Tree

  • Dijkstra Shortest Path

  • Huffman Codes

  • Fractional Knapsack

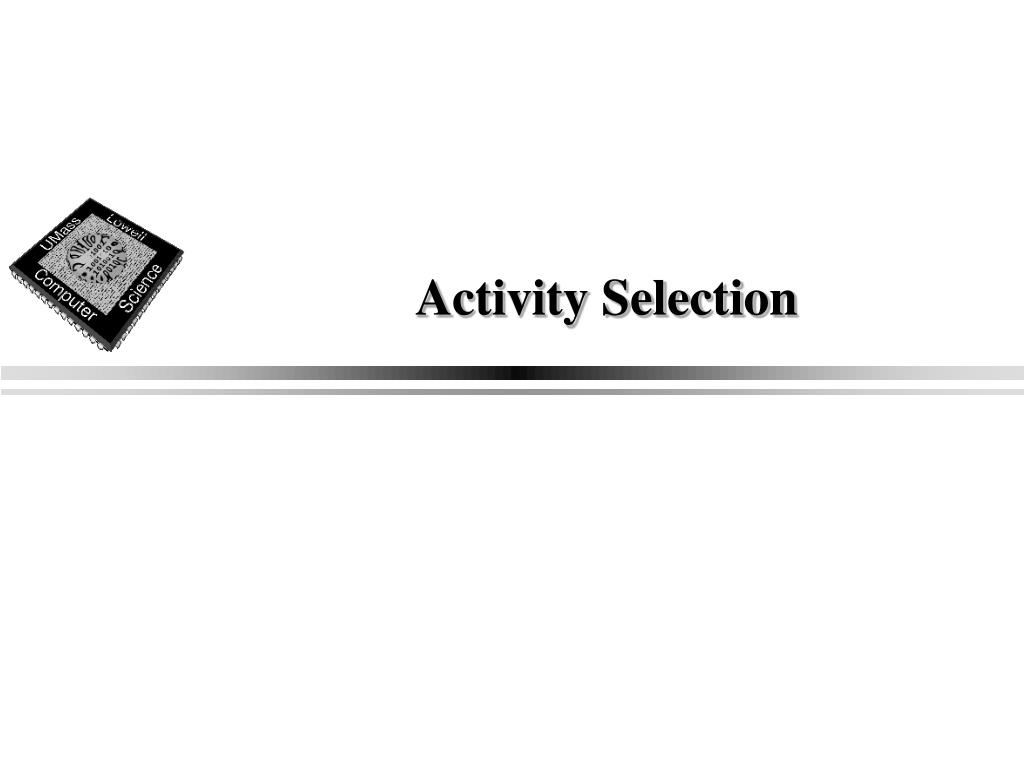

Activity selection

Activity Selection


Activity selection optimization problem

Activity Selection Optimization Problem

  • Problem Instance:

    • Set S = {1,2,...,n} of n activities

    • Each activity i has:

      • start time: si

      • finish time: fi

    • Activities i, j are compatible iff non-overlapping:

    • Objective:

      • select a maximum-sized set of mutually compatible activities

source: 91.404 textbook Cormen, et al.


Activity selection1

1

2

4

5

9

3

12

16

6

10

14

15

11

7

13

8

1

2

3

4

5

6

7

8

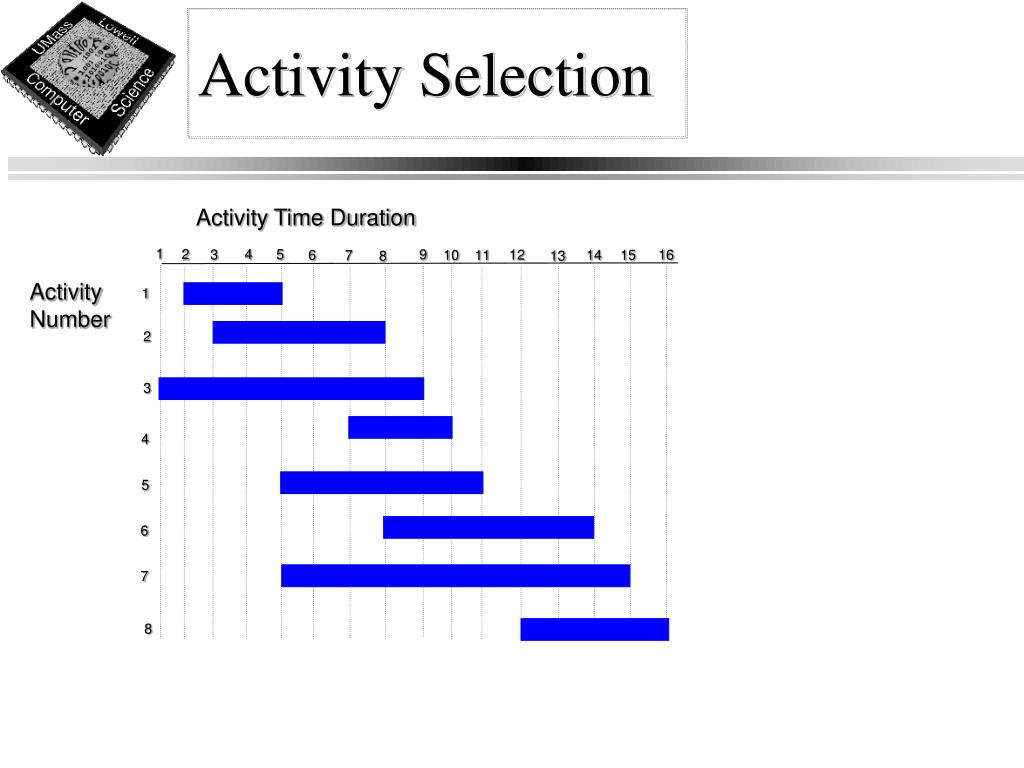

Activity Selection

Activity Time Duration

Activity Number

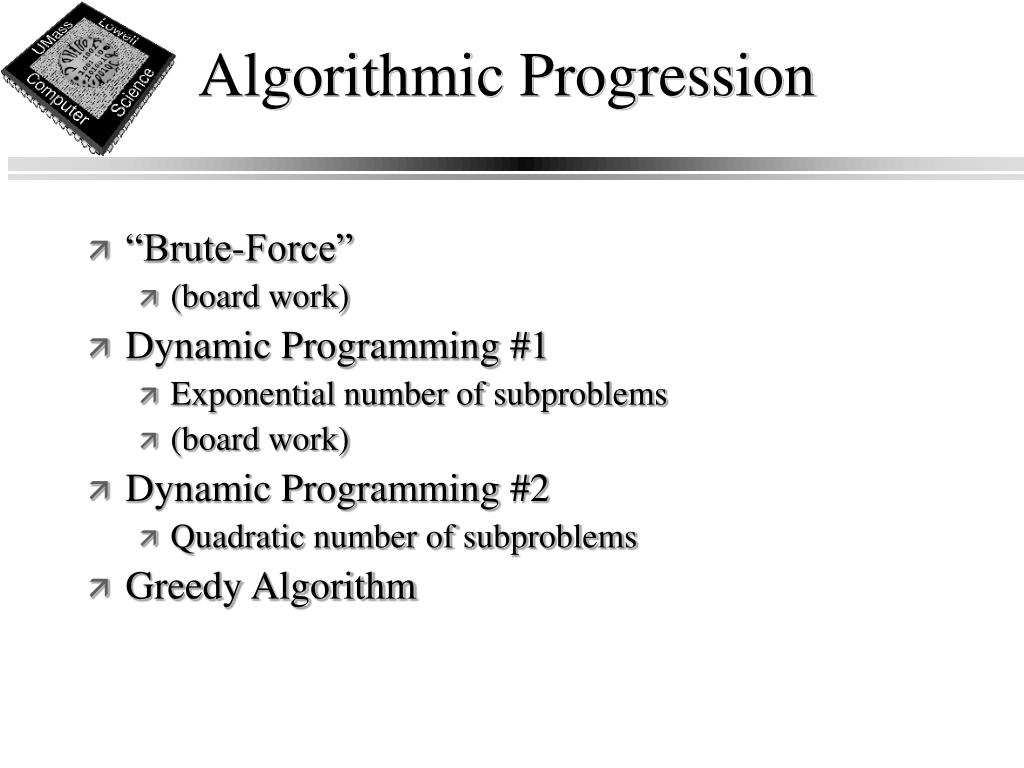

Algorithmic progression

Algorithmic Progression

  • “Brute-Force”

    • (board work)

  • Dynamic Programming #1

    • Exponential number of subproblems

    • (board work)

  • Dynamic Programming #2

    • Quadratic number of subproblems

  • Greedy Algorithm

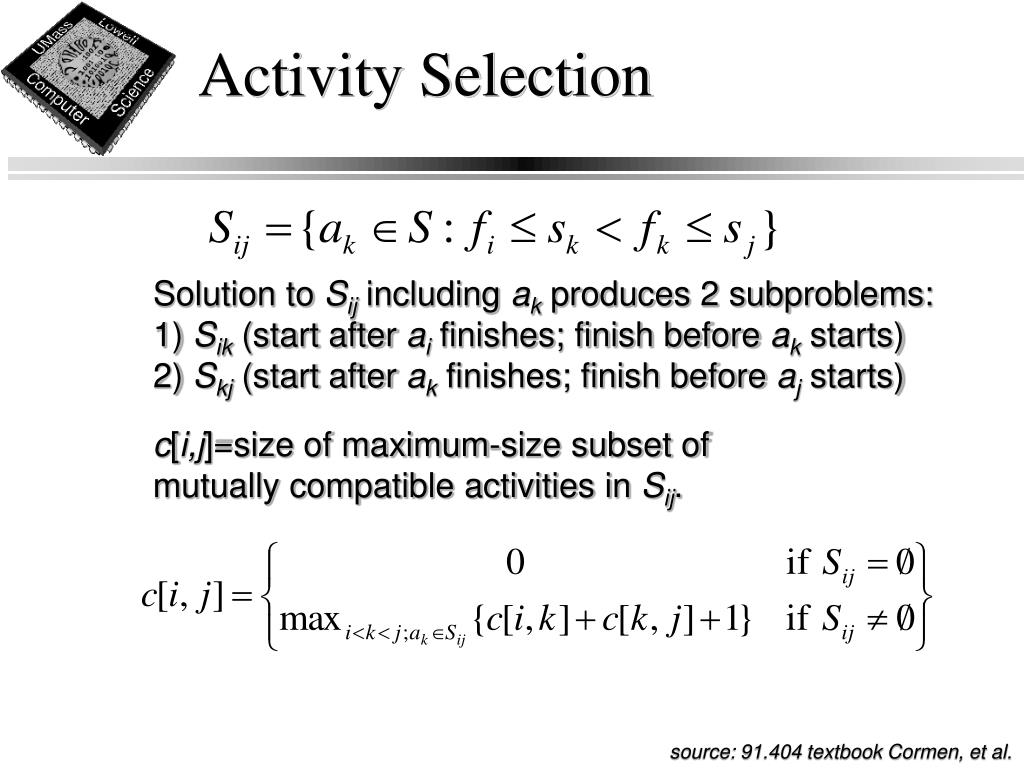

Activity selection2

Activity Selection

Solution to Sij including ak produces 2 subproblems:

1) Sik (start after ai finishes; finish before ak starts)

2) Skj (start after ak finishes; finish before aj starts)

c[i,j]=size of maximum-size subset of mutually compatible activities in Sij.

source: 91.404 textbook Cormen, et al.


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

Recursive Activity Selection

High-level call: RECURSIVE-ACTIVITY-SELECTOR(s,f,0,n)

Returns an optimal solution for

Errors from earlier printing are corrected in red.

source: web site accompanying 91.503 textbook Cormen, et al.


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

source: web site accompanying 91.503 textbook Cormen, et al.


Greedy algorithm

Running time?

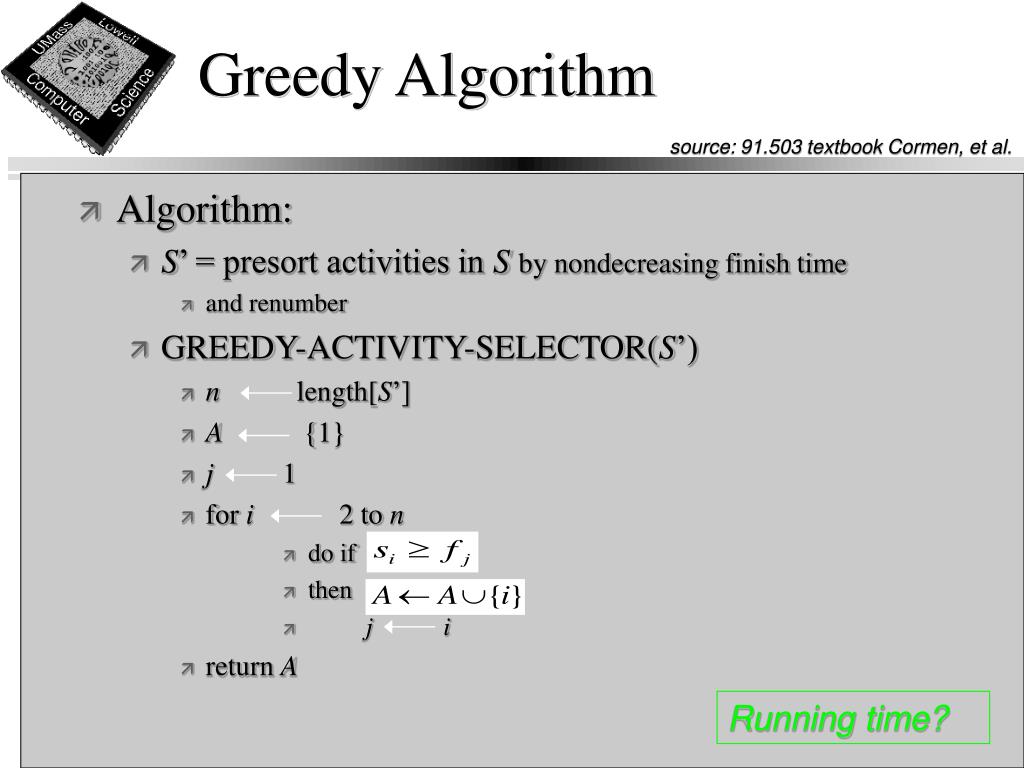

Greedy Algorithm

source: 91.503 textbook Cormen, et al.

  • Algorithm:

    • S’ = presort activities in Sby nondecreasing finish time

      • and renumber

    • GREEDY-ACTIVITY-SELECTOR(S’)

      • n length[S’]

      • A {1}

      • j1

      • for i 2 to n

        • do if

        • then

        • ji

    • return A

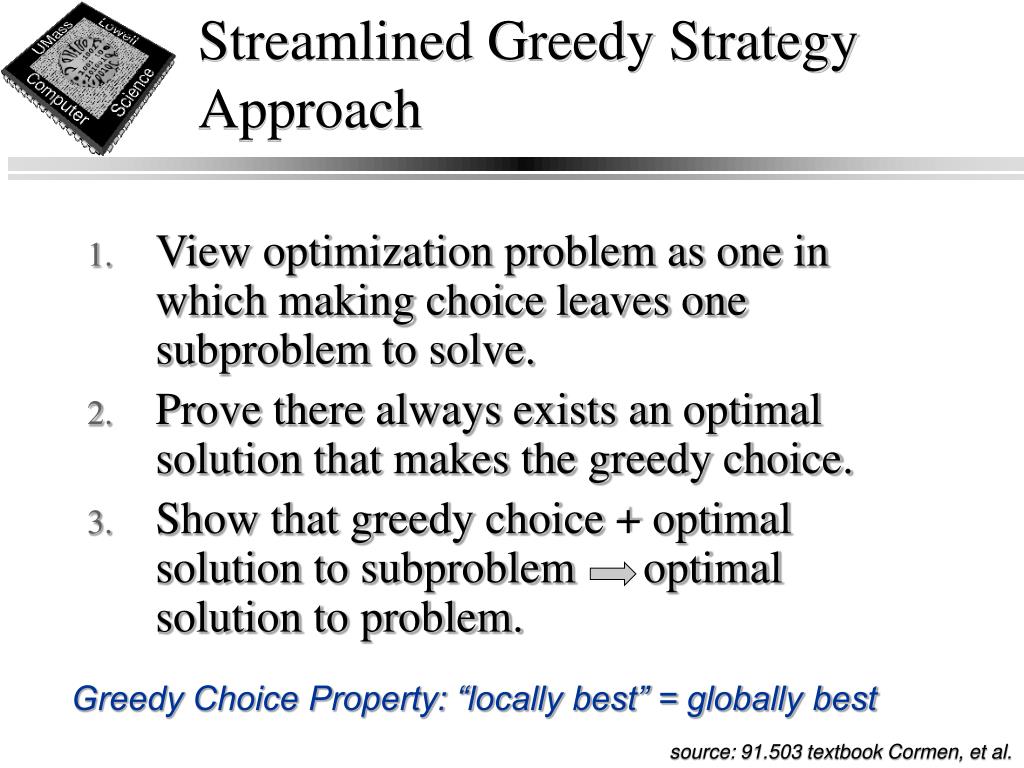

Streamlined greedy strategy approach

Streamlined Greedy Strategy Approach

  • View optimization problem as one in which making choice leaves one subproblem to solve.

  • Prove there always exists an optimal solution that makes the greedy choice.

  • Show that greedy choice + optimal solution to subproblem optimal solution to problem.

Greedy Choice Property: “locally best” = globally best

source: 91.503 textbook Cormen, et al.


Minimum spanning tree

Minimum Spanning Tree


Minimum spanning tree1

Invariant: Minimum weight spanning forest

Becomes single tree at end

Invariant: Minimum weight tree

2

A

B

4

3

G

6

Spans all vertices at end

5

1

1

E

7

6

F

8

4

D

C

2

Minimum Spanning Tree

Time: O(|E|lg|E|) given fast FIND-SET, UNION

  • Produces minimum weight tree of edges that includes every vertex.

Time: O(|E|lg|V|) = O(|E|lg|E|) slightly faster with fast priority queue

  • forUndirected, Connected, Weighted Graph

  • G=(V,E)

source: 91.503 textbook Cormen et al.


Dijkstra shortest path

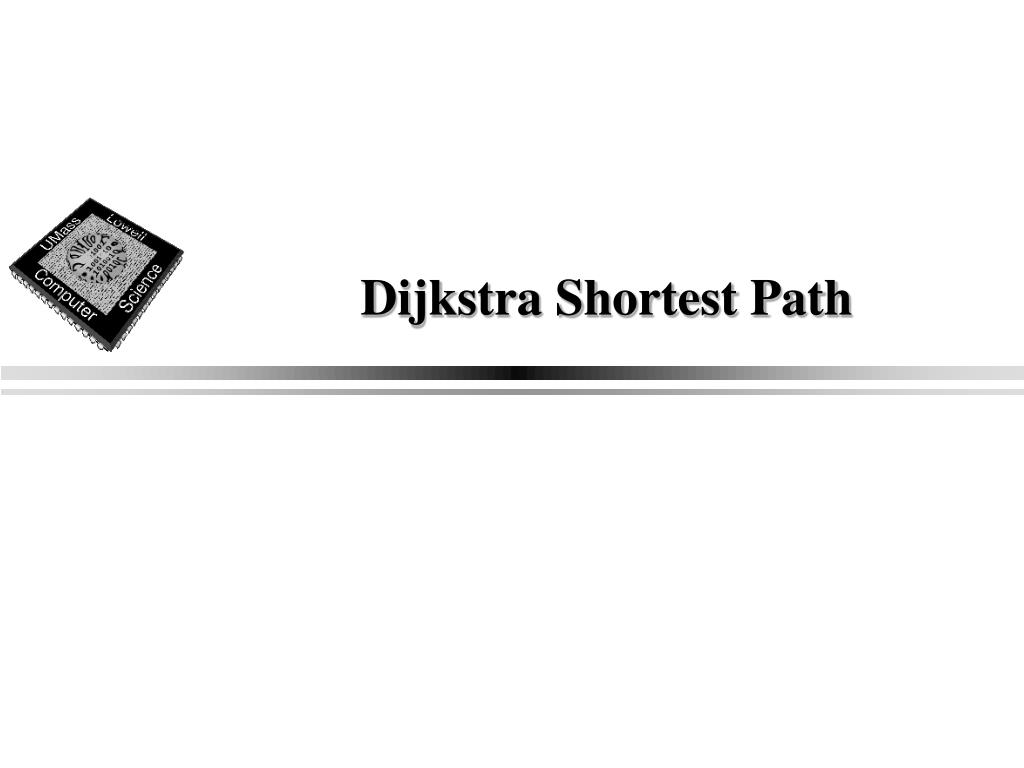

Dijkstra Shortest Path


Single source shortest paths dijkstra s algorithm

2

A

4

3

6

5

1

1

7

B

6

F

8

G

4

C

2

E

D

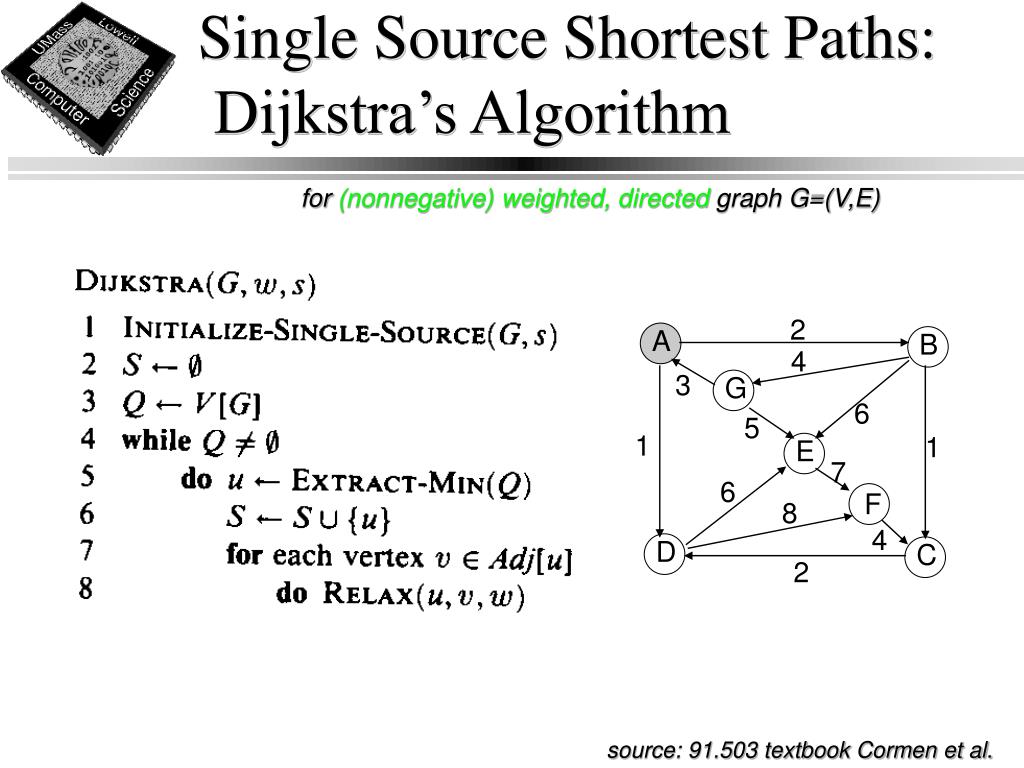

Single Source Shortest Paths: Dijkstra’s Algorithm

for (nonnegative)weighted,directed graph G=(V,E)

source: 91.503 textbook Cormen et al.


Huffman codes

Huffman Codes

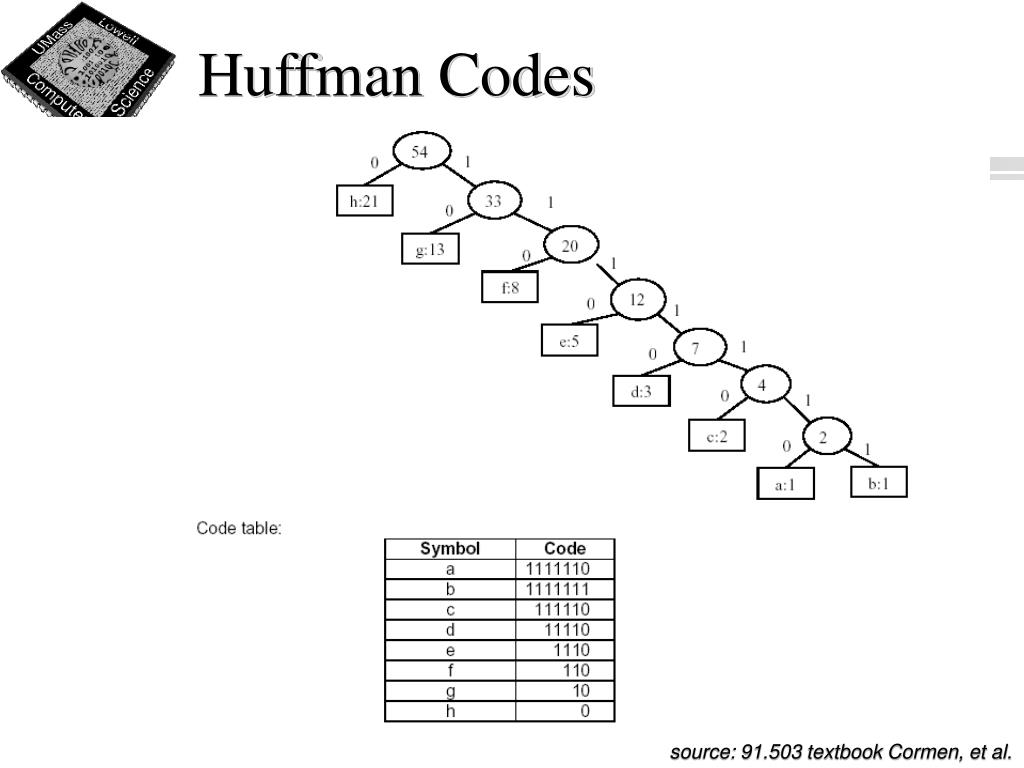

Huffman codes1

Huffman Codes

source: 91.503 textbook Cormen, et al.


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

source: web site accompanying 91.503 textbook Cormen, et al.


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

source: web site accompanying 91.503 textbook Cormen, et al.


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

source: web site accompanying 91.503 textbook Cormen, et al.


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

source: web site accompanying 91.503 textbook Cormen, et al.


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

source: web site accompanying 91.503 textbook Cormen, et al.


Fractional knapsack

Fractional Knapsack


Knapsack

Knapsack

Each item has value and weight.

Goal: maximize total value of items chosen, subject to weight limit.

50

fractional: can take part of an item

0-1: take all or none of an item

30

20

10

item1

item2

item3

“knapsack”

Value: $60 $100$120


Umass lowell computer science 91 503 analysis of algorithms prof karen daniels fall 2008

source: web site accompanying 91.503 textbook Cormen, et al.


Additional examples

Additional Examples

On course web site under Miscellaneous Docs

  • Patriotic Tree

    • 404 review handout

  • Tree Vertex Cover

    • 91.503 midterm


Greedy heuristic

Greedy Heuristic

  • If optimization problem does not have “greedy choice property”, greedy approach may still be useful as a heuristic in bounding the optimal solution

  • Example: minimization problem

Upper Bound (heuristic)

Solution Values

Optimal (unknown value)

Lower Bound

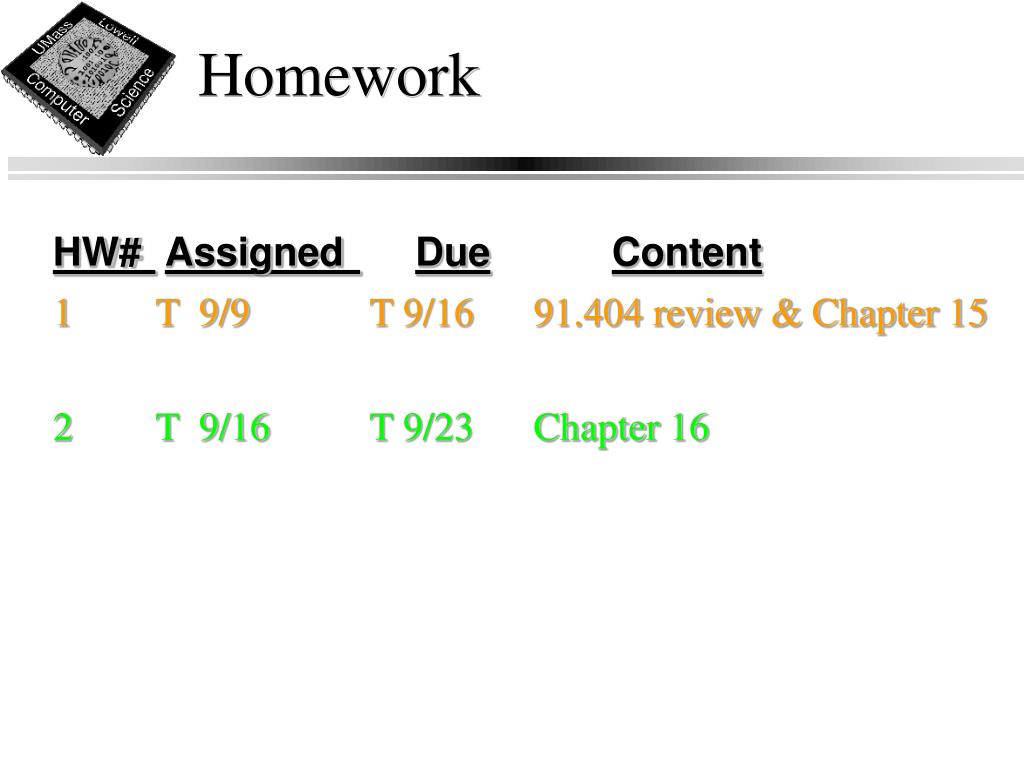

Homework

Homework

HW#AssignedDueContent

1 T 9/9 T 9/16 91.404 review & Chapter 15

2 T 9/16 T 9/23 Chapter 16
