Presentation Transcript


Chapter 6

Chapter 6

Current State of XBRL

IFRS Taxonomy

Discoverable Taxonomy Set

Extension Taxonomies

Validation of XBRL vs xml


Current state of xbrl

Current State of XBRL


Who must file

Who Must File

  • All companies are now required to file using XBRL

  • Foreign Private Issuers are required to file using IFRS taxonomy


Automating xbrl preparation

Automating XBRL Preparation

  • Fujitsu

    • Xwand

      • Taxonomy Creation

      • Instance Document Creation

      • Excel Mapping

  • Rivet

    • Crossfire & CrossView

  • CoreFiling

    • Sphinx

  • EDGAROnline

    • I-Metrix

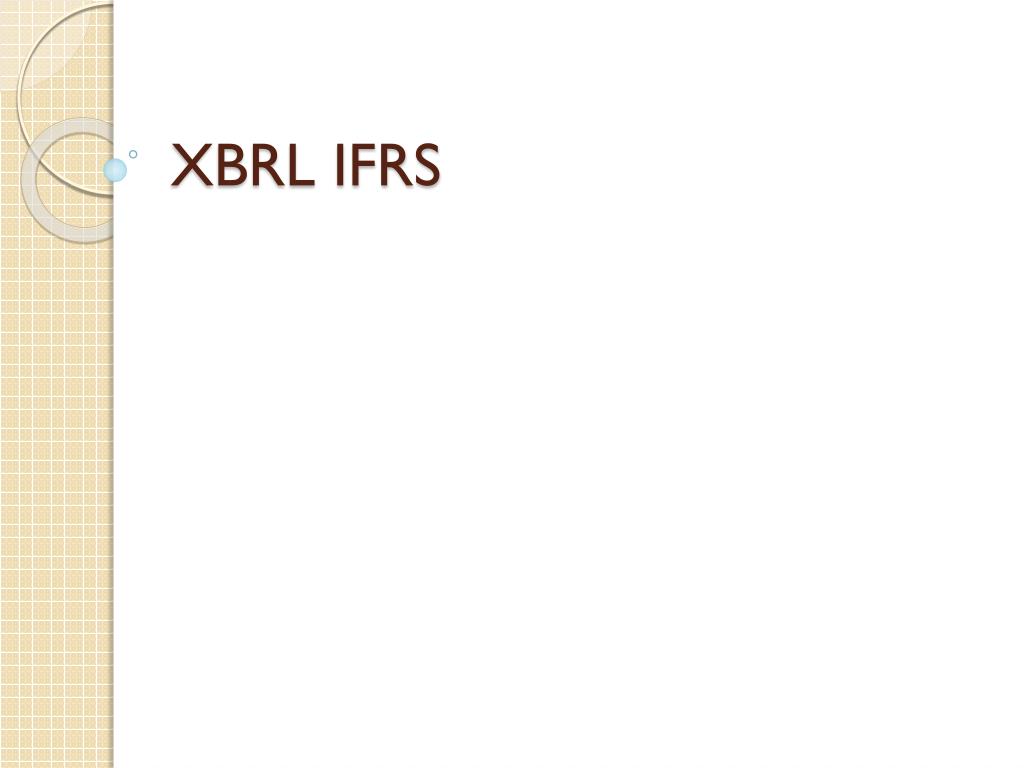

Xbrl ifrs

XBRL IFRS


Ifrs instance document

IFRS Instance Document

  • Same structure as XBRL

  • Uses different taxonomy

    • Root element / namespace declarations

    • SchemaRef

    • Context

    • Unit

    • Items


Ifrs taxonomy

IFRS Taxonomy

  • 2011 Taxonomy Issued March 25, 2011

  • Compared to US GAAP, ~ 4000 elements vs. 15,000

  • Documentation is not included in IFRS (as it is NOT rule based).

    • Instead disclosures and example references are included


Illustrations of ifrs xbrl

Illustrations of IFRS XBRL

  • iXBRL (next week)

  • XBRL IFRS


Chapter 6

<?xml version="1.0" encoding="utf-8"?>

<!-- XBRL instance shell - Skip White December 2010 -->

<!-- File name: XBRLInstanceShell2010.xml -->

<xbrli:xbrlxmlns:xbrli="http://www.xbrl.org/2003/instance" xmlns:link="http://www.xbrl.org/2003/linkbase" xmlns:xlink="http://www.w3.org/1999/xlink" xmlns:iso4217="http://www.xbrl.org/2003/iso4217" xmlns: _____1_________ >

<link:schemaRefxlink:type="simple" xlink:href= _____2_________ /> <xbrli:context id= _____3_________ >

<xbrli:entity>

<xbrli:identifier scheme= _____4_________ > _____5_________ </xbrli:identifier>

</xbrli:entity>

<xbrli:period>

<xbrli:instant> _____6_________ </xbrli:instant>

</xbrli:period>

</xbrli:context>

<xbrli:unit id= _____7_________ >

<xbrli:measure> _____8_________ </xbrli:measure>

</xbrli:unit>

<!-- Insert the XBRL items (facts) below --> </xbrli:xbrl>


Discoverable taxonomy set dts

Discoverable Taxonomy Set(DTS)


Dts what must be filed with sec

DTS – What must be filed with SEC

  • Contains:

    • Instance Document

    • Extension Taxonomy

    • Linkbases

      • Calculation

      • Definition

      • Labels

      • Presentation

    • All Imported Schemas

  • Filename Format

    • Identifier-yyyymmdd for instance and schema

    • Identifier_yyyymmdd_cal or _def or _lab or _pre


Extension taxonomy

Extension Taxonomy


Structure of sec extension taxonomy

Structure of SEC Extension Taxonomy

  • Schema Root Element, namespace declarations

  • annotation/appinfo

    • link:linkbaseRef

      • Links all the linkbases to the schema document

    • link:roleType

      • Links each statement and disclosure to the linkbases


Link linkbaseref international speedway corp 10q

link:linkbaseRef(International Speedway Corp 10Q)

  • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_cal.xml" xlink:role="http://www.xbrl.org/2003/role/calculationLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Calculation Links, all"/>

  • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_pre.xml" xlink:role="http://www.xbrl.org/2003/role/presentationLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Presentation Links, all"/>

  • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_lab.xml" xlink:role="http://www.xbrl.org/2003/role/labelLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Label Links, all"/>

  • <link:linkbaseRefxlink:type="simple" xlink:href="isca-20110531_def.xml" xlink:role="http://www.xbrl.org/2003/role/definitionLinkbaseRef" xlink:arcrole="http://www.w3.org/1999/xlink/properties/linkbase" xlink:title="Definition Links, all"/>


Link roletype international speedway corp 10q

link:roleType (International Speedway Corp 10Q)

  • <link:roleTyperoleURI="http://internationalspeedwaycorporation.com/role/BalanceSheetsParenthetical" id="BalanceSheetsParenthetical">

  • <link:definition>0111 - Statement - Consolidated Balance Sheets (Unaudited) (Parenthetical)</link:definition>

  • <link:usedOn>link:presentationLink</link:usedOn>

  • <link:usedOn>link:calculationLink</link:usedOn>

  • <link:usedOn>link:definitionLink</link:usedOn>

  • </link:roleType>


Extension element international speedway 10q

Extension Element (International Speedway 10Q)

  • <element id="isca_PrepaidExpensesAndOtherCurrentAssets" name="PrepaidExpensesAndOtherCurrentAssets" type="xbrli:monetaryItemType" substitutionGroup="xbrli:item" nillable="true" xbrli:periodType="instant" xbrli:balance="debit"/>


Xbrl validation

XBRL Validation


Xbrl validation levels

XBRL Validation Levels

  • Phase I

    • xml validation (NOT XBRL)

      • Schema validation – does the xml match the schema structure?

  • Phase II

    • Validates XBRL semantics in DTS

      • Requires specialized software ($’s)

  • Phase III

    • Validates XBRL based on reporting rules

    • SEC XBRL filing requirements

      • Requires specialized software ($’s)
