  1. Chalk Rates of Reaction Vanderbilt Student Volunteers for Science Spring 2009

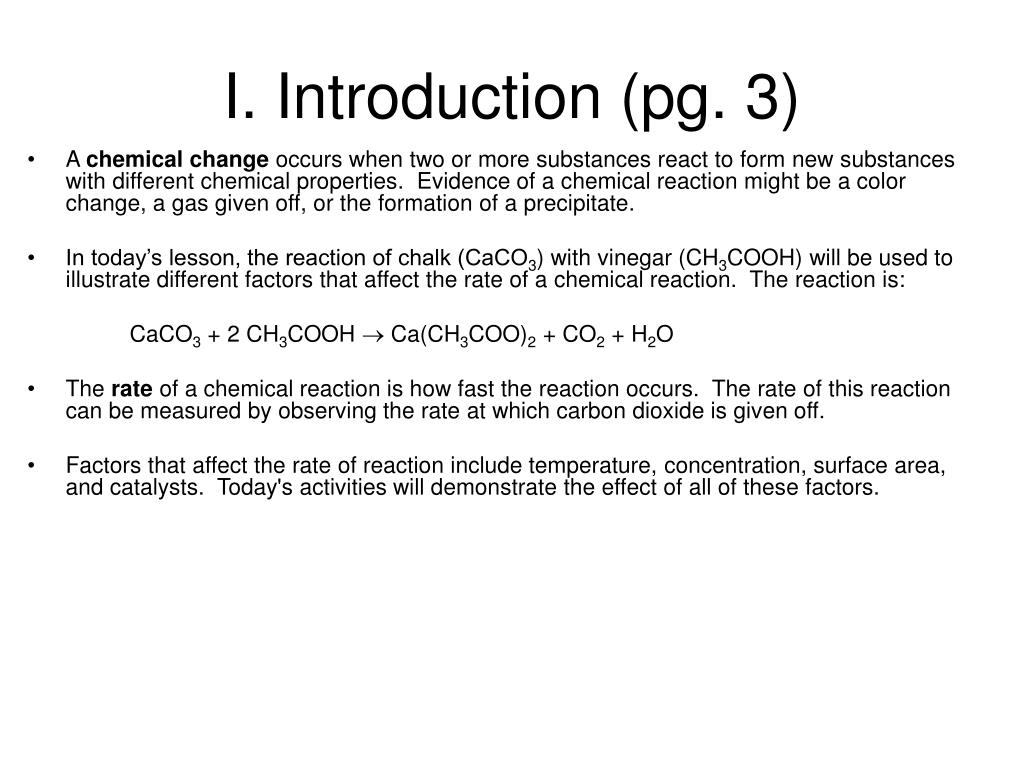

  2. I. Introduction (pg. 3) • A chemical change occurs when two or more substances react to form new substances with different chemical properties. Evidence of a chemical reaction might be a color change, a gas given off, or the formation of a precipitate. • In today’s lesson, the reaction of chalk (CaCO3) with vinegar (CH3COOH) will be used to illustrate different factors that affect the rate of a chemical reaction. The reaction is: CaCO3 + 2 CH3COOH  Ca(CH3COO)2 + CO2 + H2O • The rate of a chemical reaction is how fast the reaction occurs. The rate of this reaction can be measured by observing the rate at which carbon dioxide is given off. • Factors that affect the rate of reaction include temperature, concentration, surface area, and catalysts. Today's activities will demonstrate the effect of all of these factors.

  3. I. Preparation Instruct the students to do the following: • Place the test tubes in order in the test tube rack (A-F) • Measure 10mL of regular strength vinegar and pour into test tubes “A” through “E”. • Measure 5mL of regular strength vinegar and pour into test tube “F”. Measure 5mL of water and pour into test tube “F”. This test tube now contains a 50% vinegar solution. • All “D” test tubes should be placed in the container of hot tap water. The VSVS team or teacher will give instructions on how to do this. The vinegar in the test tube will take about 5 minutes to warm up.

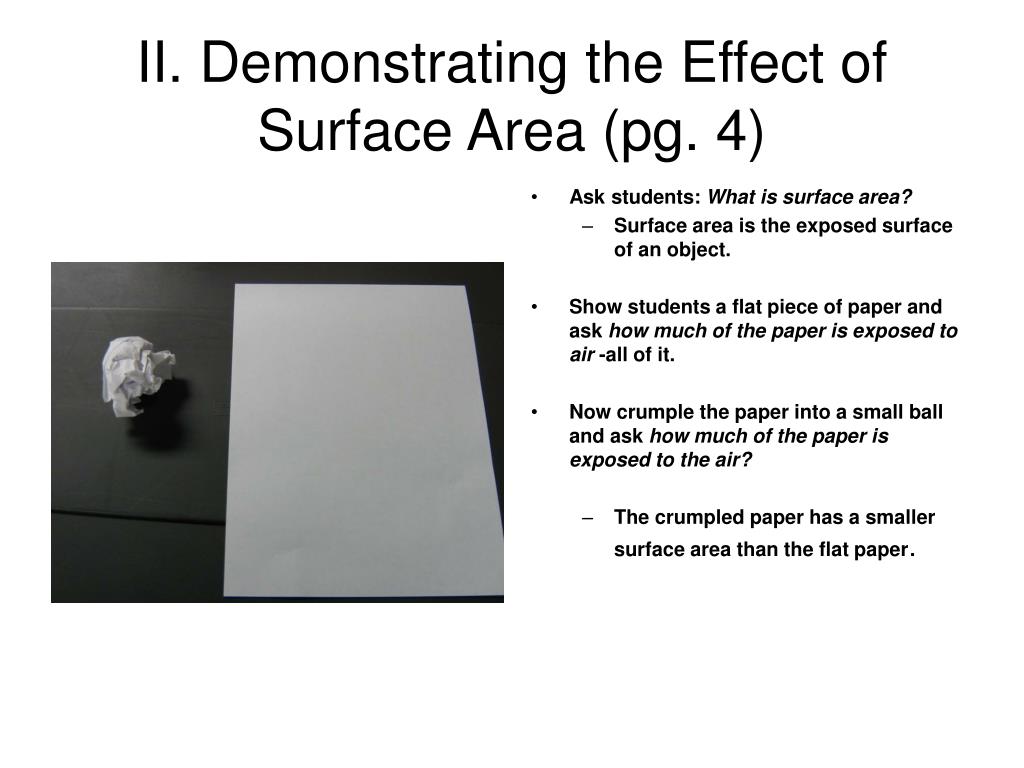

  4. II. Demonstrating the Effect of Surface Area (pg. 4) • Ask students: What is surface area? • Surface area is the exposed surface of an object. • Show students a flat piece of paper and ask how much of the paper is exposed to air -all of it. • Now crumple the paper into a small ball and ask how much of the paper is exposed to the air? • The crumpled paper has a smaller surface area than the flat paper.

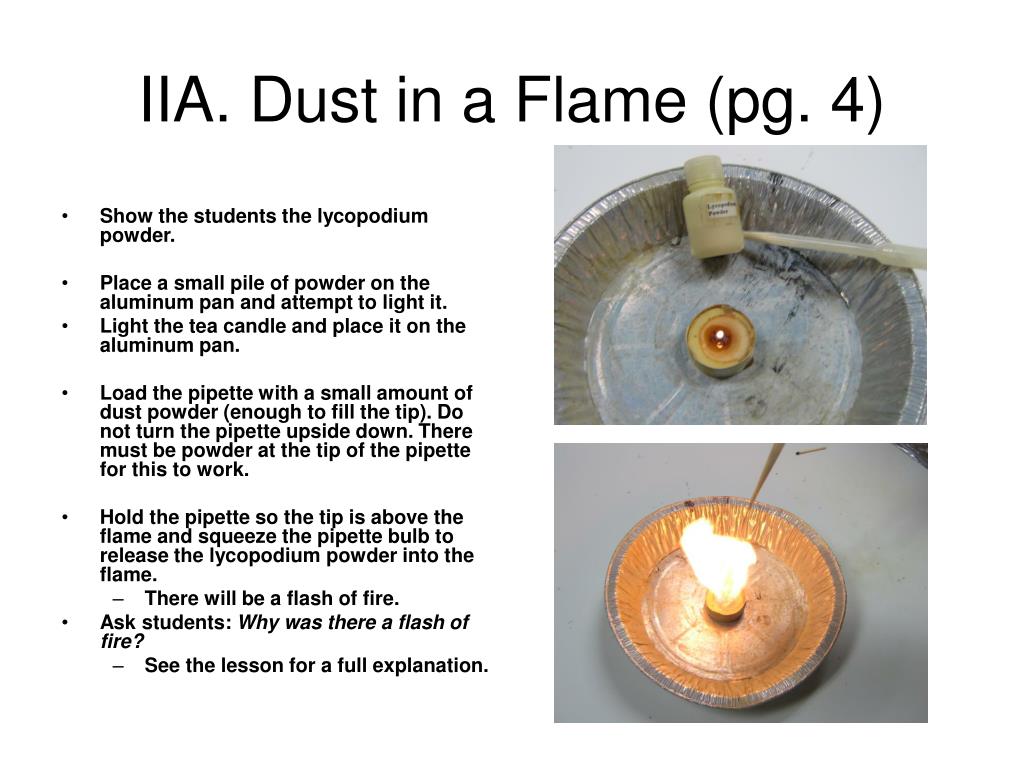

  5. IIA. Dust in a Flame (pg. 4) • Show the students the lycopodium powder. • Place a small pile of powder on the aluminum pan and attempt to light it. • Light the tea candle and place it on the aluminum pan. • Load the pipette with a small amount of dust powder (enough to fill the tip). Do not turn the pipette upside down. There must be powder at the tip of the pipette for this to work. • Hold the pipette so the tip is above the flame and squeeze the pipette bulb to release the lycopodium powder into the flame. • There will be a flash of fire. • Ask students: Why was there a flash of fire? • See the lesson for a full explanation.

  6. IIB. Dust Can Explosion (pg. 5) • Show students the "dust can”. • Light the tea light candle and place it in the coffee can. Do NOT put the lid on until the very end. • Load the pipette with a small amount of dust powder. Do not turn the pipette upside down. There must be powder at the tip of the pipette for this to work. • Show the students that there is a hole in the side of the can. • Ask students to predict what will happen when you 'blow’ the dust into the can. • Holding the pipette at an angle (aiming down with about a 30° angle), place the pipette in the hole (make sure the pipette is snug). • Place the lid on the can. • Squeeze firmly on the pipette. • There will be a flash of fire, a loud explosion, and the lid will blow off the can. • Note: If the explosion does not happen on the first try, please try again. The students love to see this more than once and it shows them that perseverance pays off.

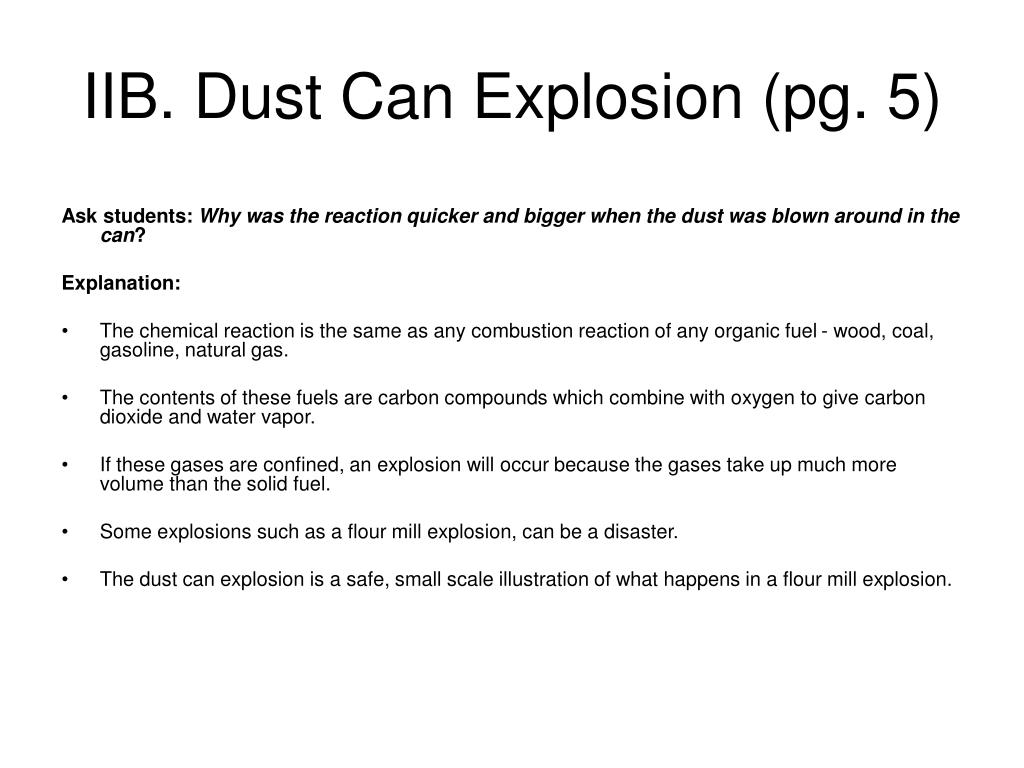

  7. IIB. Dust Can Explosion (pg. 5) Ask students: Why was the reaction quicker and bigger when the dust was blown around in the can? Explanation: • The chemical reaction is the same as any combustion reaction of any organic fuel - wood, coal, gasoline, natural gas. • The contents of these fuels are carbon compounds which combine with oxygen to give carbon dioxide and water vapor. • If these gases are confined, an explosion will occur because the gases take up much more volume than the solid fuel. • Some explosions such as a flour mill explosion, can be a disaster. • The dust can explosion is a safe, small scale illustration of what happens in a flour mill explosion.

  8. III. Effect of Surface Area (Particle Size, pg. 6) Have each group do the following: • Take two of pieces of chalk. Use a mortar and pestle to grind ONE piece into a fine powder. • Ask students to tell which piece of chalk has more surface area. • The crushed chalk - more of the inside surface of the chalk is now exposed. • Insert the funnel into test tube “B”. Shake all the crushed chalk into one bottom corner of a plastic bag and cut the other bottom corner off. At the same time, put the whole piece of chalk into test tube “A” and pour the crushed chalk through the bottom cut corner into the test tube “B” through the funnel. • Record observations.

  9. III. Effect of Surface Area (Particle Size, pg. 6) • Ask students: Which piece of chalk produced a faster reaction? Why? • Bubbles of carbon dioxide come off more quickly from the crushed chalk than from the whole piece. • Ask students: How does this illustrate the effect of surface area or particle size on the rate of a reaction? • The crushed chalk reacts faster because the vinegar can reach more of the chalk when there is more exposed surface area. Therefore, increasing the surface area increases the rate of the reaction.

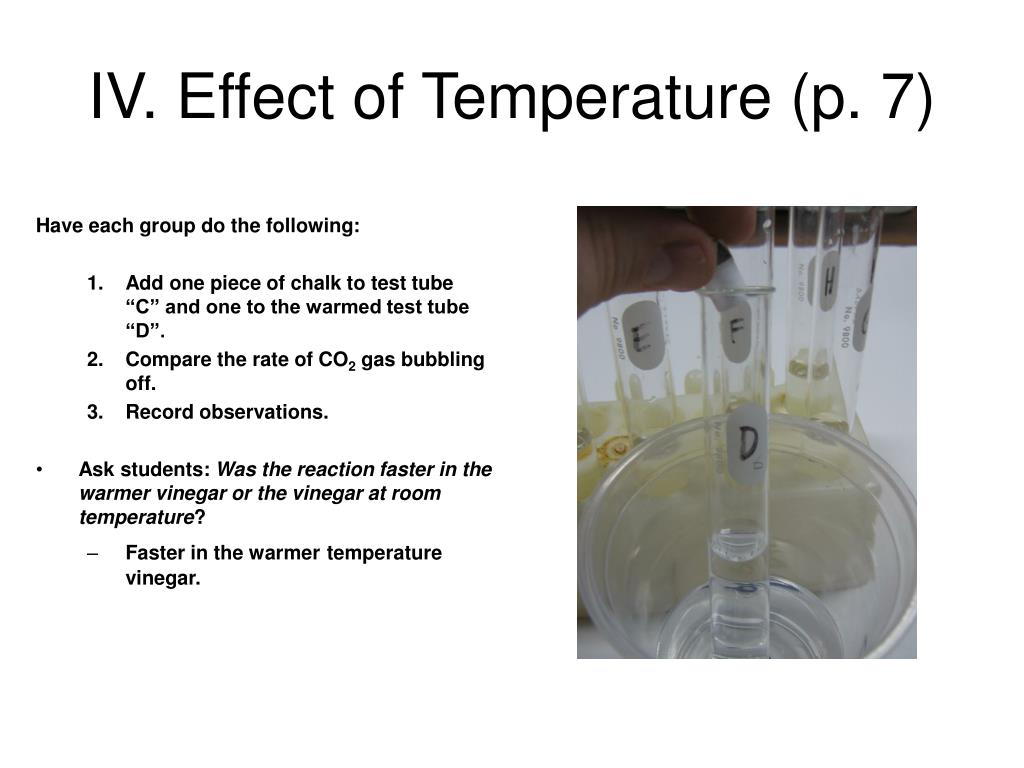

  10. IV. Effect of Temperature (p. 7) Have each group do the following: • Add one piece of chalk to test tube “C” and one to the warmed test tube “D”. • Compare the rate of CO2 gas bubbling off. • Record observations. • Ask students: Was the reaction faster in the warmer vinegar or the vinegar at room temperature? • Faster in the warmertemperature vinegar.

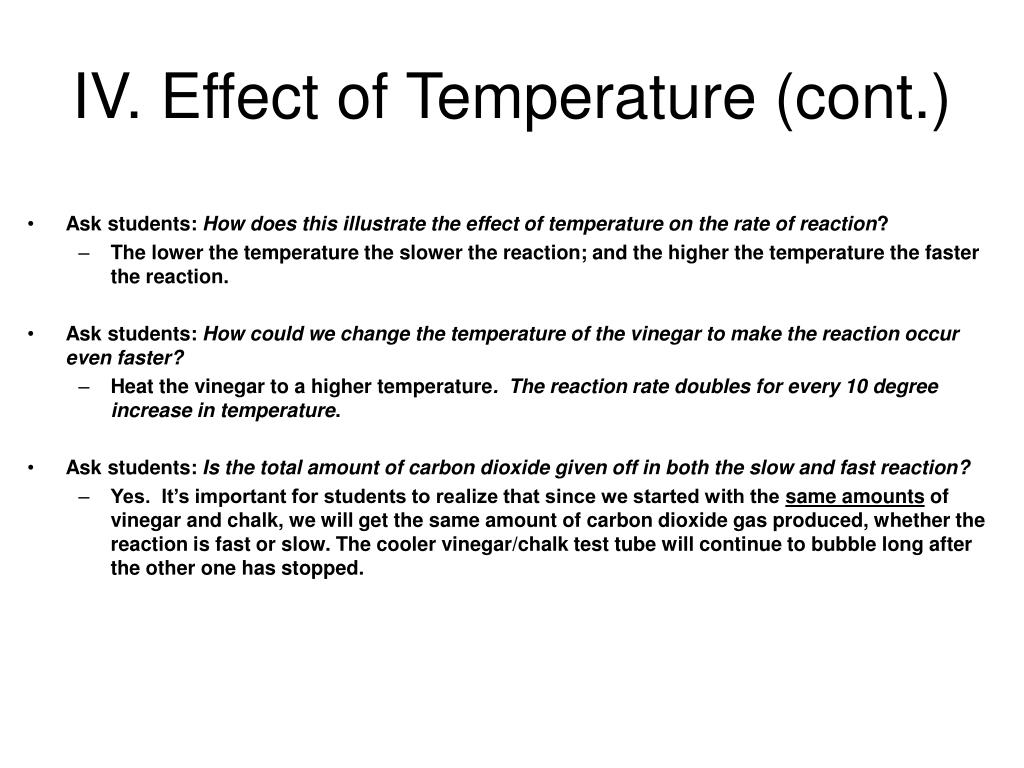

  11. IV. Effect of Temperature (cont.) • Ask students: How does this illustrate the effect of temperature on the rate of reaction? • The lower the temperature the slower the reaction; and the higher the temperature the faster the reaction. • Ask students: How could we change the temperature of the vinegar to make the reaction occur even faster? • Heat the vinegar to a higher temperature. The reaction rate doubles for every 10 degree increase in temperature. • Ask students: Is the total amount of carbon dioxide given off in both the slow and fast reaction? • Yes. It’s important for students to realize that since we started with the same amounts of vinegar and chalk, we will get the same amount of carbon dioxide gas produced, whether the reaction is fast or slow. The cooler vinegar/chalk test tube will continue to bubble long after the other one has stopped.

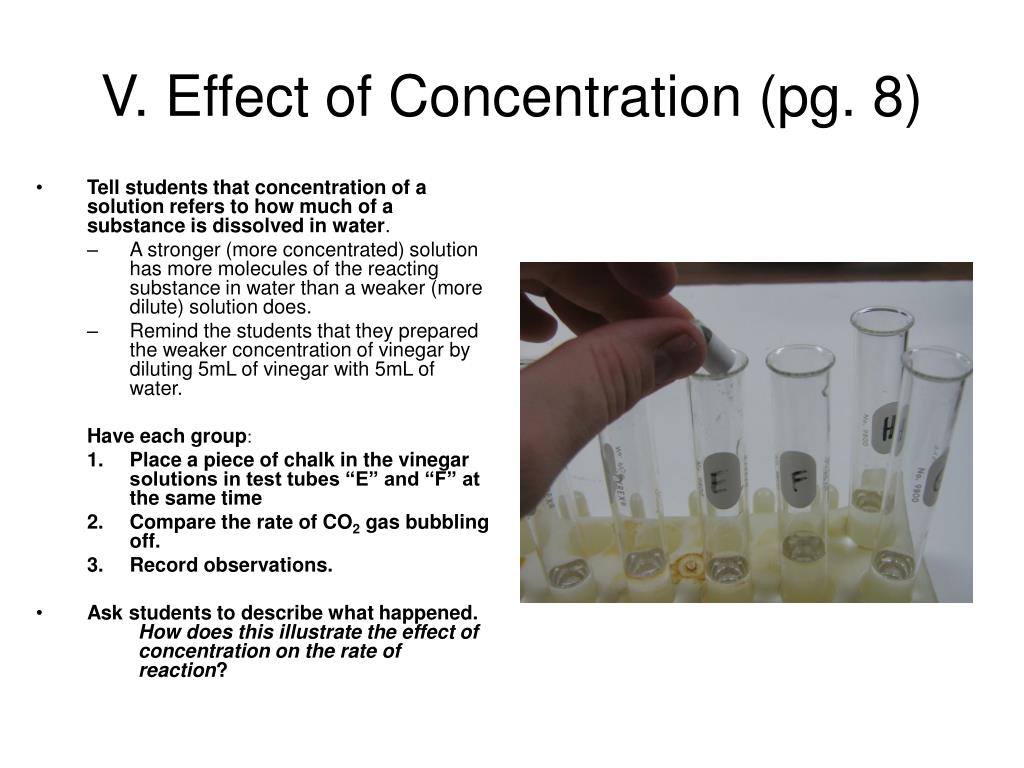

  12. V. Effect of Concentration (pg. 8) • Tell students that concentration of a solution refers to how much of a substance is dissolved in water. • A stronger (more concentrated) solution has more molecules of the reacting substance in water than a weaker (more dilute) solution does. • Remind the students that they prepared the weaker concentration of vinegar by diluting 5mL of vinegar with 5mL of water. Have each group: • Place a piece of chalk in the vinegar solutions in test tubes “E” and “F” at the same time • Compare the rate of CO2 gas bubbling off. • Record observations. • Ask students to describe what happened. How does this illustrate the effect of concentration on the rate of reaction?

  13. VI. Effect of a Catalyst • Ask students: What is a catalyst?A catalyst is a substance that speeds up or slows down a chemical reaction but is not changed by the reaction. • Show the students the sample bottle of hydrogen peroxide. Ask students what they know about hydrogen peroxide. • Include the following information in the discussion: • Tell students that hydrogen peroxide (H2O2) will chemically decompose (break down) into oxygen gas (O2) (yes, the glowing splint test will work!) and water (H2O). • The decomposition reaction of hydrogen peroxide is: 2H2O2 2H2O + O2 • Hydrogen peroxide is sold in brown bottles because it will decompose in the presence of light. • Tell students that the decomposition of hydrogen peroxide will speed up if a catalyst is added to the hydrogen peroxide.

  14. VI. Effect of a Catalyst (cont.) • Two VSVS members should work together on this demonstration. • One VSVS member should pour hydrogen peroxide into the jar so that it is half full. Show the students that no bubbling can be seen. The decomposition reaction is too slow. • A second VSVS member should light a splint with a match and shake it out until it is glowing without flaming. • Tell students to watch what happens when the scoop of manganese dioxide is added to the jar. As soon as you see vigorous bubbling, insert the glowing splint into the jar. Observe that it bursts into flame. • Repeat the glowing splint test several times while bubbles of gas are being given off.

  15. VI. Effect of a Catalyst (cont.) • When bubbling ceases (about five minutes) cap the jar tightly to be safely returned to the VSVS lab. Manganese dioxide is a heavy metal compound and cannot be poured down the sink. • Ask students: What gas caused the glowing splint to burst into flame? Oxygen. • Point out to the students that the manganese dioxide still looks the same – catalysts are not changed to something else nor are they consumed during the reaction.

  16. VI. Effect of a Catalyst (cont.) • The VSVS team should add some H2O2 to the cup with the potato. • Take the cup and potato around to the students and ask what they observe. There should be lots of bubbles around the potato.The potato looks unused. • Ask students if the potato will look different or the same tomorrow? • Leave the potato chunk with the teacher and have the students check to see if their hypothesis is correct. • Explanation: A catalyst speeds up a chemical reaction without being used up. The catalyst does this without undergoing permanent change itself, so it can act over and over again.

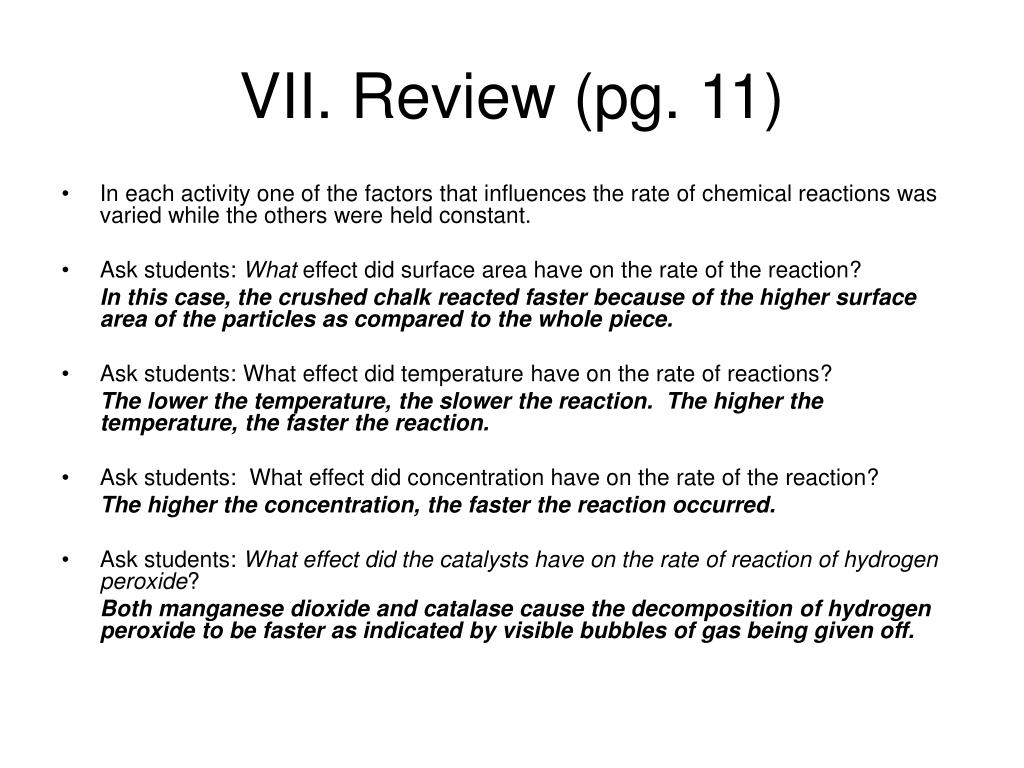

  17. VII. Review (pg. 11) • In each activity one of the factors that influences the rate of chemical reactions was varied while the others were held constant. • Ask students: What effect did surface area have on the rate of the reaction? In this case, the crushed chalk reacted faster because of the higher surface area of the particles as compared to the whole piece. • Ask students: What effect did temperature have on the rate of reactions? The lower the temperature, the slower the reaction. The higher the temperature, the faster the reaction. • Ask students: What effect did concentration have on the rate of the reaction? The higher the concentration, the faster the reaction occurred. • Ask students: What effect did the catalysts have on the rate of reaction of hydrogen peroxide? Both manganese dioxide and catalase cause the decomposition of hydrogen peroxide to be faster as indicated by visible bubbles of gas being given off.

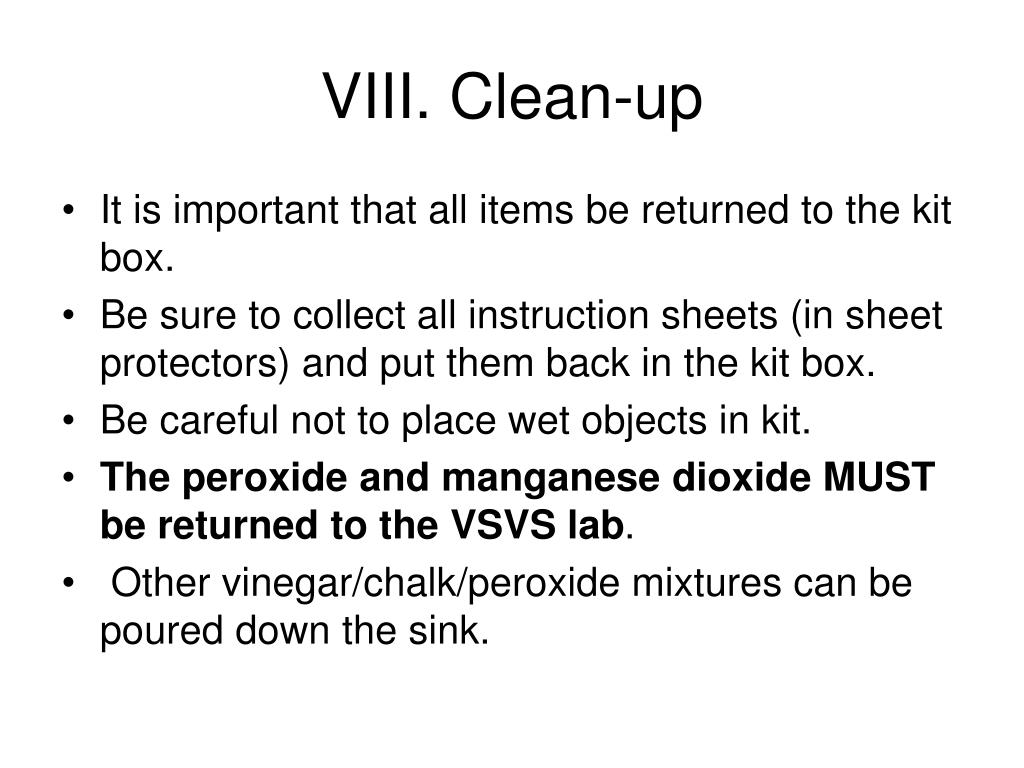

  18. VIII. Clean-up • It is important that all items be returned to the kit box. • Be sure to collect all instruction sheets (in sheet protectors) and put them back in the kit box. • Be careful not to place wet objects in kit. • The peroxide and manganese dioxide MUST be returned to the VSVS lab. • Other vinegar/chalk/peroxide mixtures can be poured down the sink.
