  1. CS 525 Advanced Topics in Distributed SystemsSpring 07 Indranil Gupta Handling Stress March 27, 2007

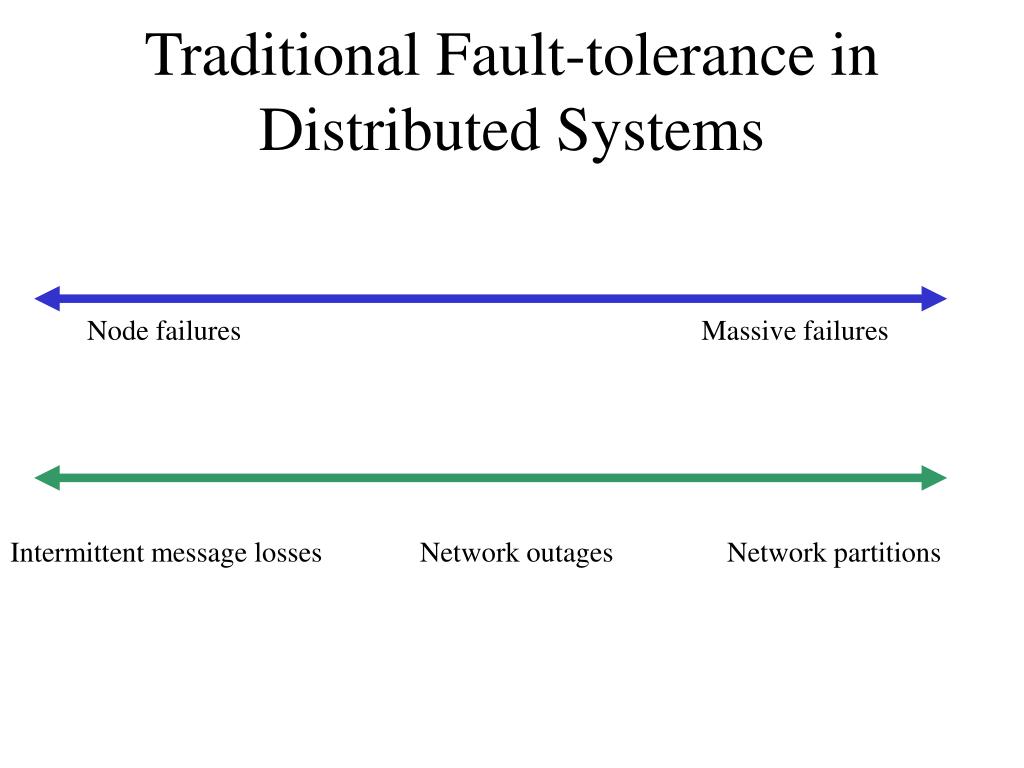

  2. Traditional Fault-tolerance in Distributed Systems Node failures Massive failures Intermittent message losses Network outages Network partitions

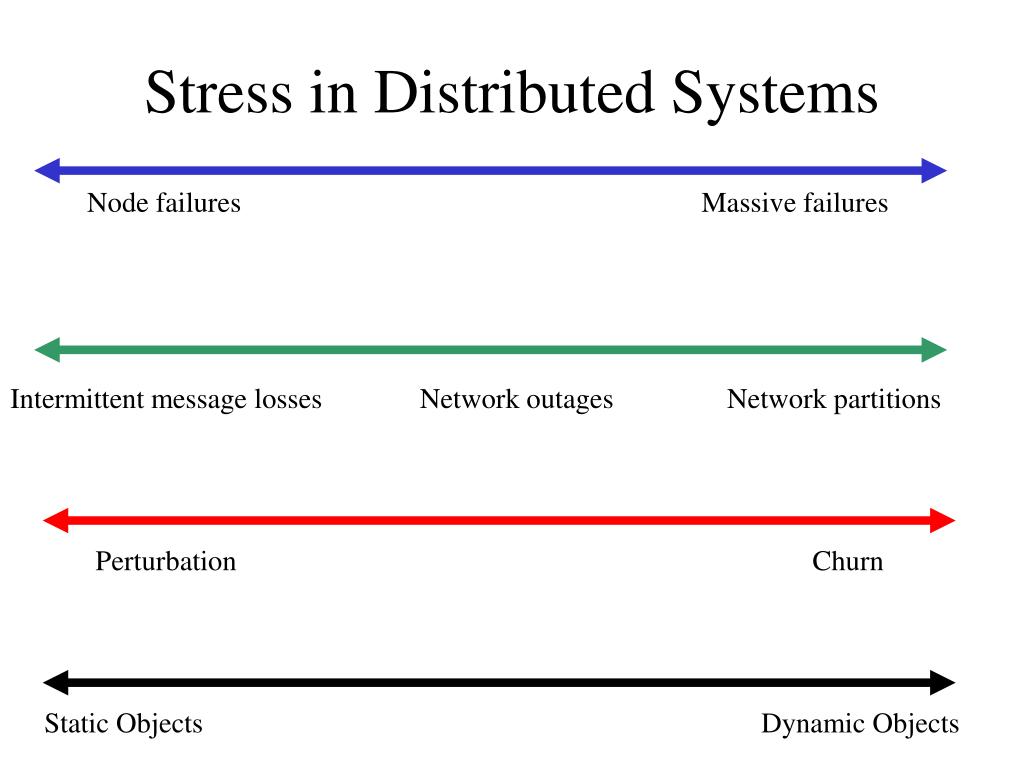

  3. Stress in Distributed Systems Node failures Massive failures Intermittent message losses Network outages Network partitions Perturbation Churn Static Objects Dynamic Objects

  4. Stress in Distributed Systems Node failures Massive failures Intermittent message losses Network outages Network partitions Today’s Focus Perturbation Churn Static Objects Dynamic Objects

  5. Papers We’ll concentrate on one class of distributed systems: peer to peer systems We’ll study: • Characteristics of Churn: How does node availability vary in peer to peer systems? • Effect of Churn: How do p2p DHTs behave under churn? • Fighting Churn: How do we use churn to our benefit?

  6. Understanding Availability R. Bhagwan, S. Savage, G. Voelker University of California, San Diego

  7. Goals • Measurement study of peer-to-peer (P2P) file sharing application • Overnet (January 2003) • Analyze collected data to analyze availability • Host IP address changes • Diurnal patterns • Interdependence among nodes

  8. Overnet • Based on Kademlia, a DHT • Each node uses a random self-generated ID • The ID remains constant (unlike IP address) • Used to collect availability traces • Routing works in a similar manner to Gnutella • Widely deployed (eDonkey) • Overnet protocol and application are closed-source, but have already been reverse engineered.

  9. Experiment Methodology • Crawler: • Takes a snapshot of all the active hosts by repeatedly requesting 50 randomly generated IDs. • The requests lead to discovery of some hosts (through routing requests), which are sent the same 50 IDs, and the process is repeated. • Run once every 4 hours to minimize impact

  10. Experiment Methodology • Prober: • Probe the list of available IDs to check for availability • By sending a request to ID I; request succeeds only if I replies • Does not use TCP, avoids problems with NAT and DHCP • Used on only randomly selected 2400 hosts from the initial list • Run every 20 minutes • All Crawler and Prober trace data from this study is available for your project (ask Indy if you want access)

  11. Experiment Summary • Ran for 15 days from January 14 to January 28 (with problems on January 21) 2003 • Each pass of crawler yielded 40,000 hosts. • In a single day (6 crawls) yielded between 70,000 and 90,000 unique hosts. • 1468 of the 2400 randomly selected hosts probes responded at least once

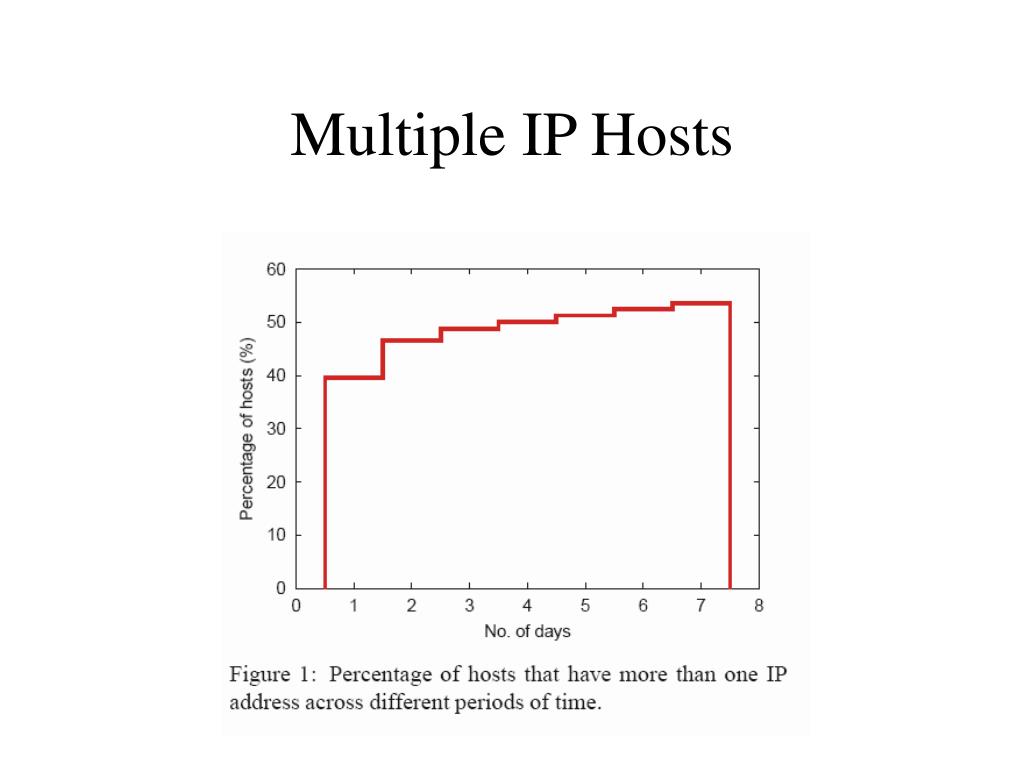

  12. Multiple IP Hosts

  13. Availability

  14. Host Availability As time interval increased, av. decreases

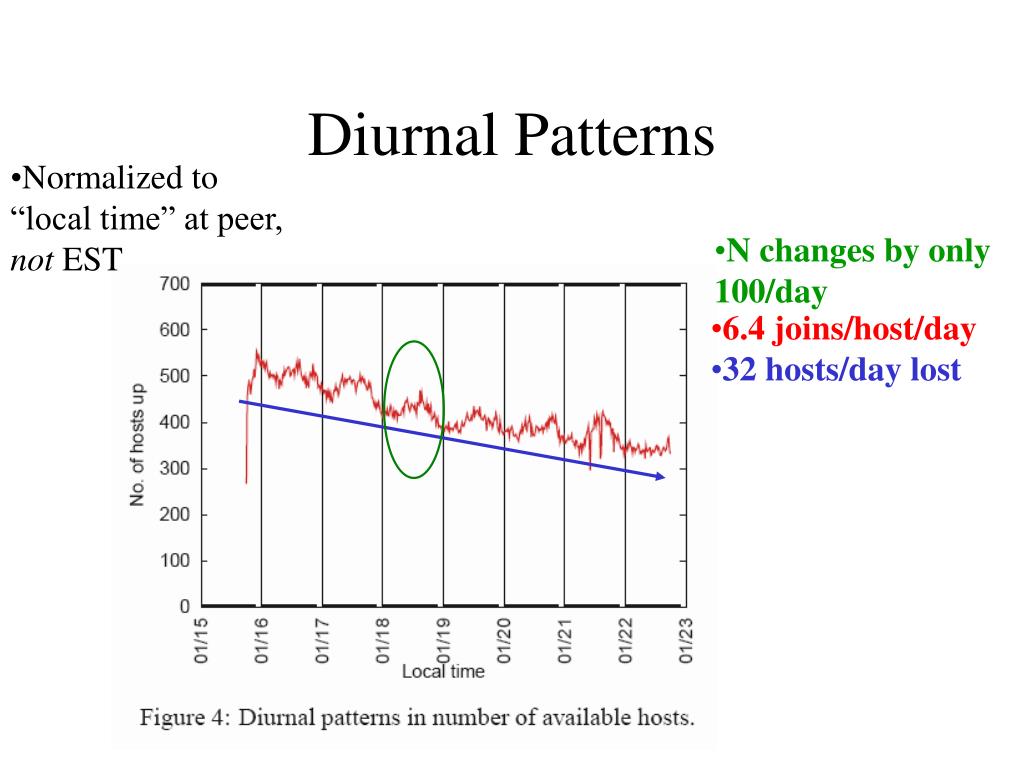

  15. Diurnal Patterns • Normalized to • “local time” at peer, • not EST • N changes by only • 100/day • 6.4 joins/host/day • 32 hosts/day lost

  16. Are Node Failures Interdependent? 30% with 0 difference, 80% within +-0.2 Should be same if X and Y independent

  17. Arrival and Departure • 20% of nodes each day • are new • Number of nodes • stays about 85,000

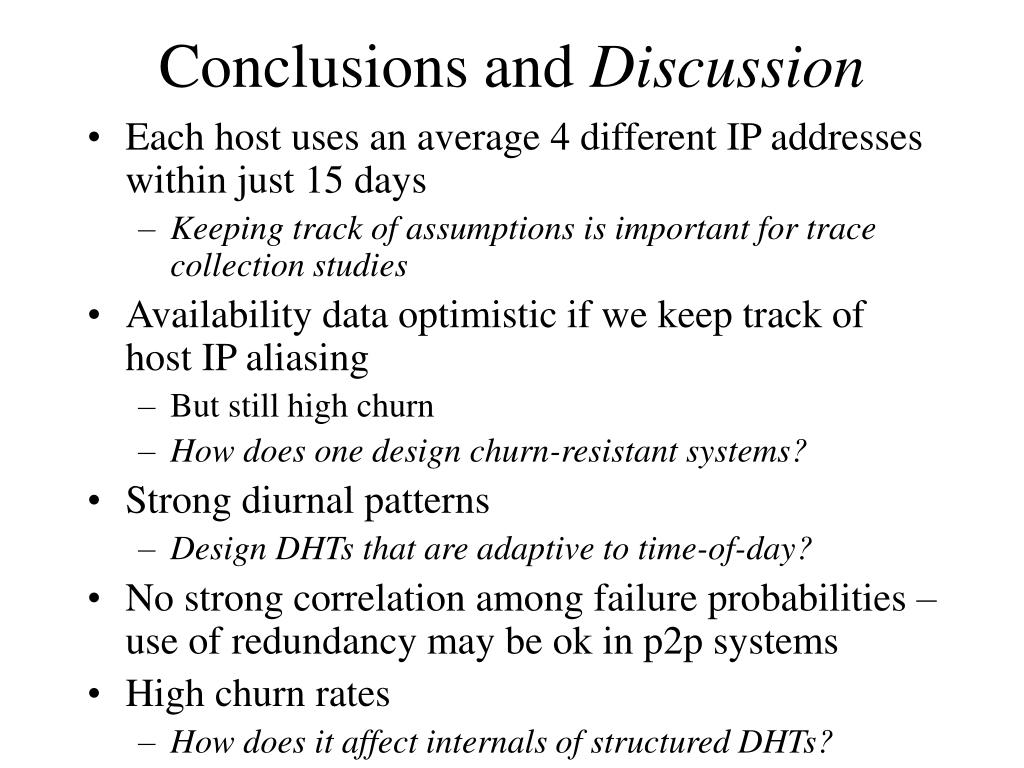

  18. Conclusions and Discussion • Each host uses an average 4 different IP addresses within just 15 days • Keeping track of assumptions is important for trace collection studies • Availability data optimistic if we keep track of host IP aliasing • But still high churn • How does one design churn-resistant systems? • Strong diurnal patterns • Design DHTs that are adaptive to time-of-day? • No strong correlation among failure probabilities – use of redundancy may be ok in p2p systems • High churn rates • How does it affect internals of structured DHTs?

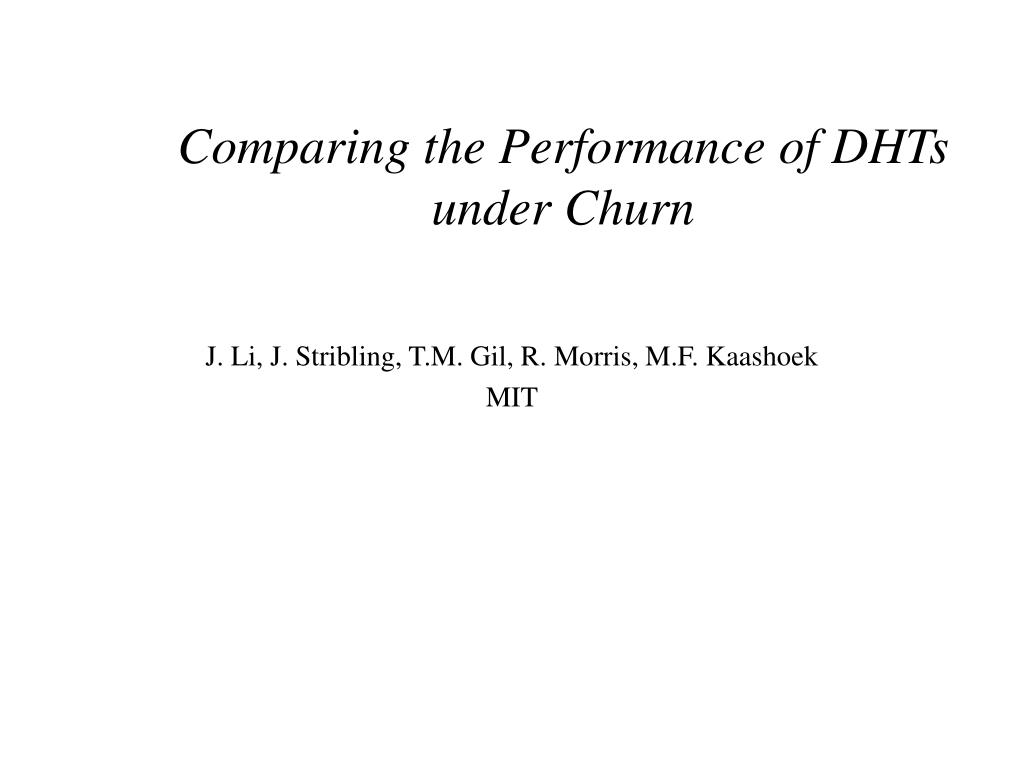

  19. Comparing the Performance of DHTs under Churn J. Li, J. Stribling, T.M. Gil, R. Morris, M.F. Kaashoek MIT

  20. Comparing different DHTs • Metrics to measure • Cost = number of bytes of messages sent • Performance = latency for a query • p2psim • 1024 nodes (inter-node latencies obtained from DNS servers, avg. 152 ms) • lookups issued for random keys at exponentially distributed intervals (avg. 10 min) • nodes crash and rejoin at exponentially distributed intervals (avg. 1 hour) • experiments run for 6 hours.

  21. “Convex Hull” • -upper bound on performance • does this hide the “real” • performance?

  22. DHTs considered • Tapestry, Pastry, Chord, Kademlia: normal implementations • Kelips: slightly different

  23. Kademlia Tapestry Kelips Chord

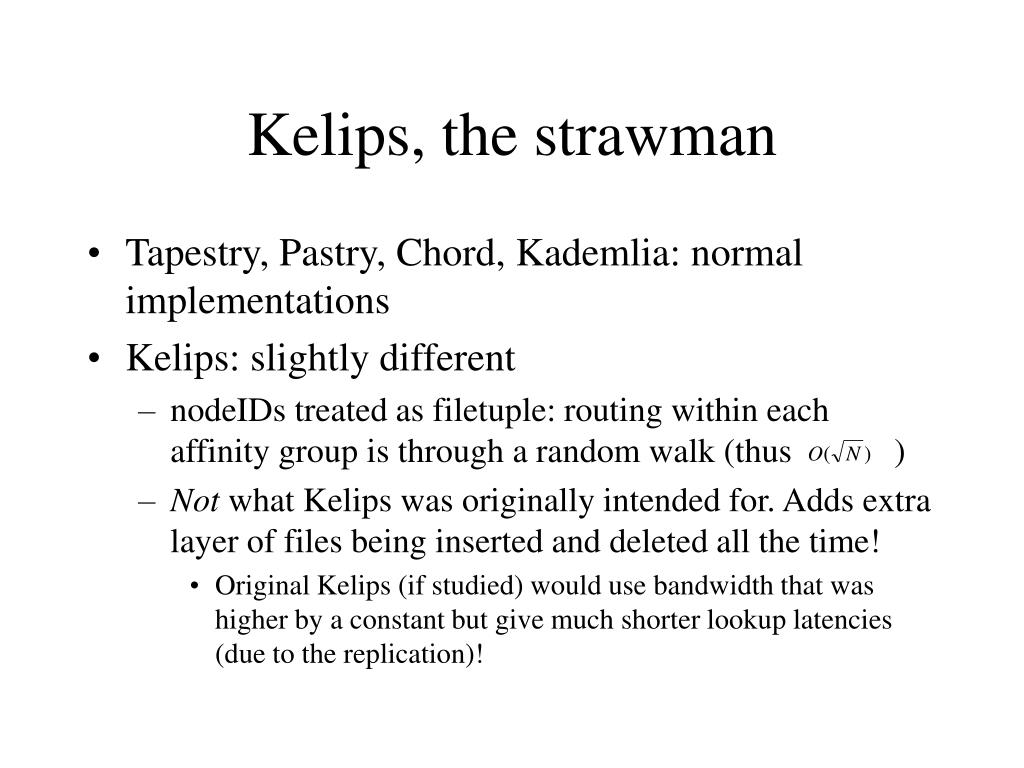

  24. Kelips, the strawman • Tapestry, Pastry, Chord, Kademlia: normal implementations • Kelips: slightly different • nodeIDs treated as filetuple: routing within each affinity group is through a random walk (thus ) • Not what Kelips was originally intended for. Adds extra layer of files being inserted and deleted all the time! • Original Kelips (if studied) would use bandwidth that was higher by a constant but give much shorter lookup latencies (due to the replication)!

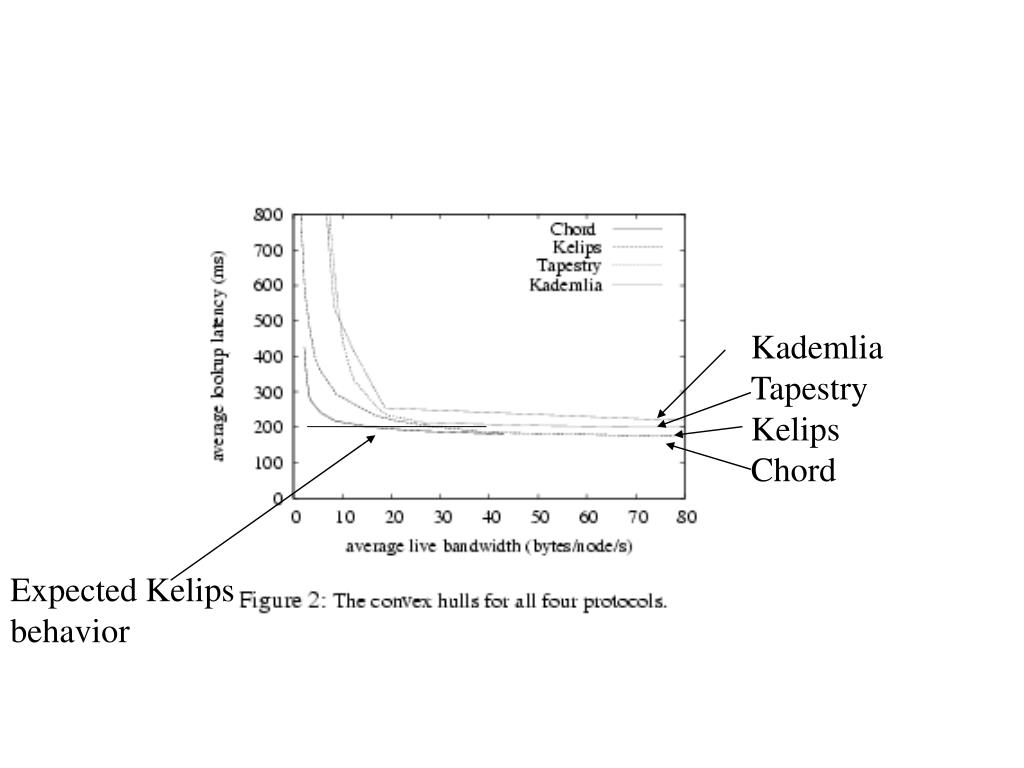

  25. Kademlia Tapestry Kelips Chord Expected Kelips behavior

  26. Tapestry • Higher base=> • short paths, but… • same lookup latency • more entries => b/w Base Stabilization int (stab) Reasonable value 72 s Base low, stab low

  27. Chord Fixed: 72 s stab for succ/pred Varied: stab for routing entries Base Base value makes no difference Bases 2 and 8 enough

  28. Conclusions and Discussion • Upper Bound of performance for all DHTs considered are similar • Is this enough? • Why not average performance curves? • Parameter tuning is essential to performance • Design DHTs that tune parameters adaptively? • Comparing different systems is a tricky task!

  29. AVCast: Availability-Dependent Reliability for Multicast Thadpong Pongthawornkamol Indranil Gupta tpongth2@uiuc.edu IEEE Symposium on Reliable Distributed Systems (SRDS), 2006

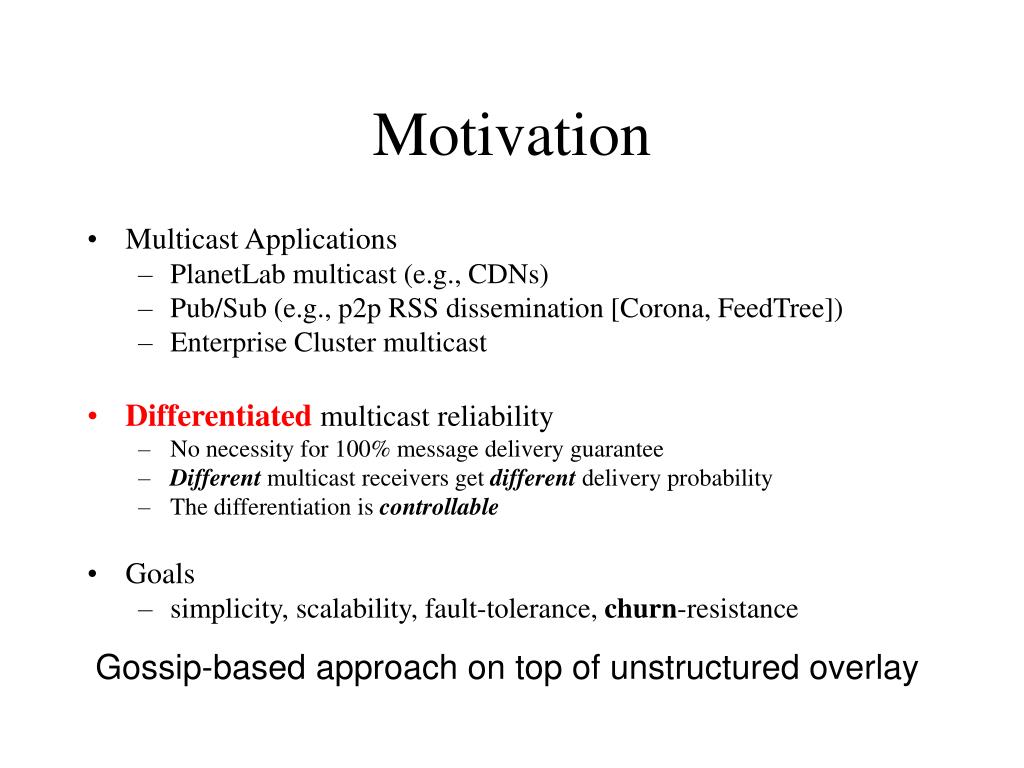

  30. Motivation • Multicast Applications • PlanetLab multicast (e.g., CDNs) • Pub/Sub (e.g., p2p RSS dissemination [Corona, FeedTree]) • Enterprise Cluster multicast • Differentiated multicast reliability • No necessity for 100% message delivery guarantee • Different multicast receivers get different delivery probability • The differentiation is controllable • Goals • simplicity, scalability, fault-tolerance, churn-resistance Gossip-based approach on top of unstructured overlay

  31. What should be used as priority in differentiation? Monetary cost Link bandwidth Contribution to the system …? Host availabilityas priority % time online Fairness Incentivizing availability Motivation (Cont.) Availability trace in Overnet file sharing system (Bhagwan et al ‘03)

  32. Challenges • How to obtain each node’s availability? • Self-monitoring may cause lying • Using DHTs does not give consistent monitors for a given node • Peer-monitoring must sustain system dynamism • The relation between a node and a monitor must be • verifiable and • consistent over time • Two parts of the problem: • Global: Specifying relation between availability and reliability (a reliability predicate) • Global to Local: Given a reliability predicate, design a local algorithm to implement the predicate as global emergent behavior

  33. Availability-Dependent Reliability Predicates • Specify a node x’s multicast reliability rx as a function of its availability ax • rx = f(ax) • f is an arbitrary function • Some Examples: • Uniform: rx=constant • Proportional: rx=ax • Threshold-Linear: rx=c1 if ax < t, otherwise rx=ax • Bimodal: rx=c1 if ax < t, otherwise rx=c2 (which is > c1) • Basic Idea: Allow application developer/system administrator to decide which predicate is best

  34. AVCast: Implementing these Reliability Predicates • An availability-aware, gossip-based multicast system • consistent, verifiable peer-monitoring • Gossip-based multicast forwarding using the availability information • AVCast consists of two main components I. Monitoring component • Monitor availability of other nodes II. Multicast component • Based on the availability information of other nodes, forward messages in gossip style

  35. Model & Assumptions • Multiple-source gossip-based multicast • An approximation of long-term stable system size (N) • Crash-recovery nodes • Each node has persistent storage (available only when node online)

  36. message message message message message message message X X x online offline online offline time Definition Availability of a node x,ax= fraction of time x online Live messagesof a nodex = multicast messages initiated during x’s online period Reliability at a node x, rx = fraction of live messages that xreceives during its online period ax= 5/8 = 0.625 #live messages of x = 5 rx = 3/5 = 0.6 (and not 5/7 )

  37. Each node xperiodically monitors a set of other nodes called target set of x, or TS(x) At the same time, each node x is being monitored by a set of other nodes called pinging set of x, or PS(x) y TS(x)iff x PS(y) u p v x q w au = 0.37 av = 0.14 aw = 0.60 az = 0.91 z r TS(x) PS(x) I. Monitoring Component: TS & PS

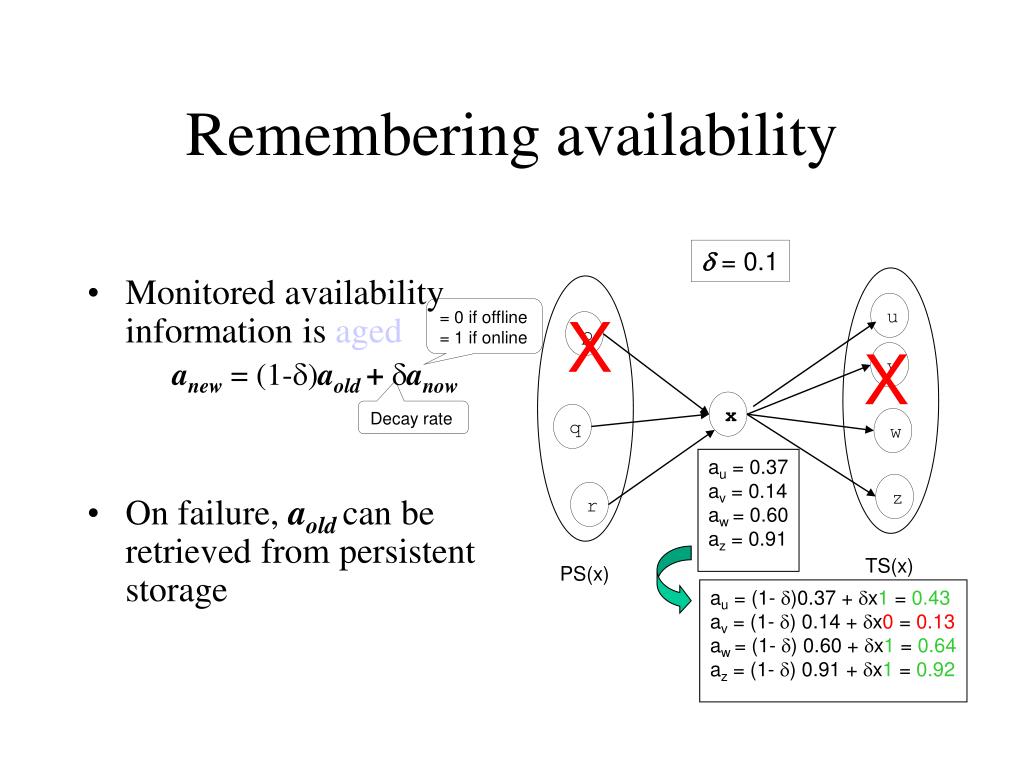

  38. Monitored availability information is aged anew = (1-)aold + anow On failure, aoldcan be retrieved from persistent storage u X p X v x q w au = 0.37 av = 0.14 aw = 0.60 az = 0.91 z r TS(x) PS(x) Remembering availability  = 0.1 = 0 if offline = 1 if online Decay rate au = (1- )0.37 + x1 = 0.43 av = (1- ) 0.14 + x0 = 0.13 aw = (1- ) 0.60 + x1 = 0.64 az = (1- ) 0.91 + x1 = 0.92

  39. Selecting PS & TS • Randomization won’t work (e.g., Eclipse attacks [Singh et. al 06]) • The relation needs to be randomized and consistent over time • Our approach [Consistency Condition]: use a globally consistent hash function H(x,y) with range [0,1] y TS(x) iff H(x,y) < K / N • Assuming uniformity of id space, each node’s TS and PS contains an expected K nodes • A joining node x broadcasts the JOIN message to all other nodes • Upon receiving JOIN message, any node y such that H(x,y) < K/N or H(y,x) < K/N adds x into its TS(y) or PS(y) respectively. y then replies to x Expected size of target set = O(log N) (Fixed parameter) Approximate total number of (online) nodes

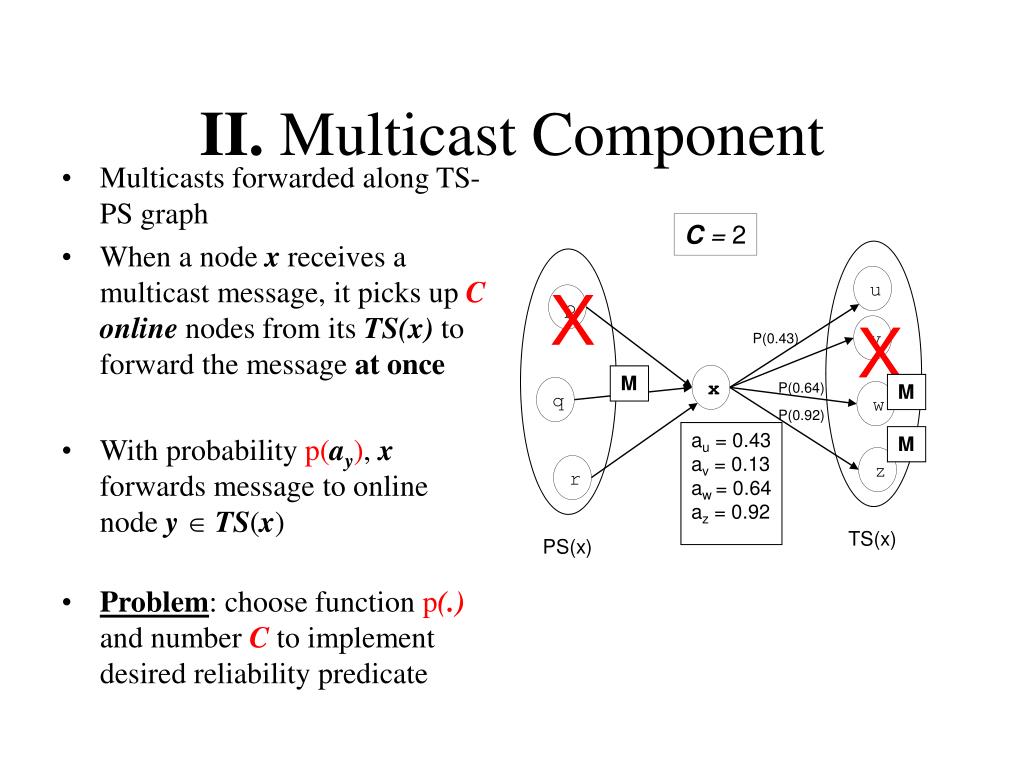

  40. Multicasts forwarded along TS-PS graph When a node x receives a multicast message, it picks up Conline nodes from its TS(x) to forward the message at once With probability p(ay), x forwards message to online node y  TS(x) Problem: choose function p(.) and number Ctoimplement desired reliability predicate C =2 u X p X v x q w au = 0.43 av = 0.13 aw = 0.64 az = 0.92 z r TS(x) PS(x) II. Multicast Component P(0.43) M P(0.64) M P(0.92) M

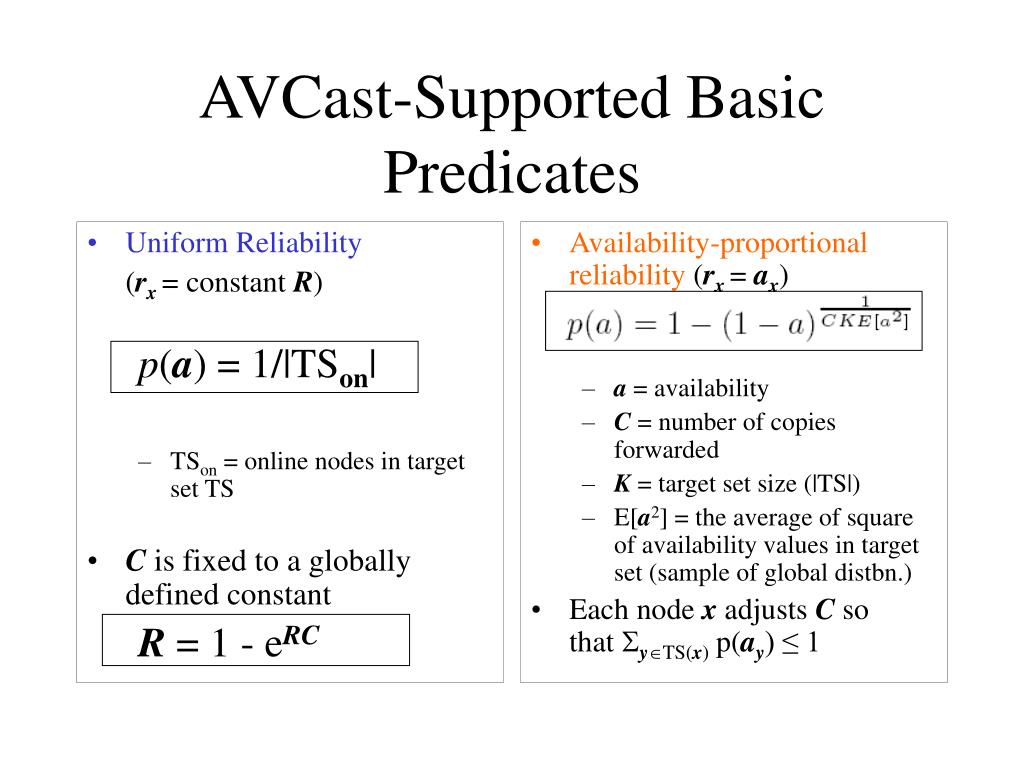

  41. Uniform Reliability (rx= constant R) p(a) = 1/|TSon| TSon = online nodes in target set TS C is fixed to a globally defined constant R = 1 - eRC Availability-proportional reliability (rx= ax) a = availability C = number of copies forwarded K = target set size (|TS|) E[a2] = the average of square of availability values in target set (sample of global distbn.) Each node x adjusts C so thatyTS(x) p(ay) ≤ 1 AVCast-Supported Basic Predicates

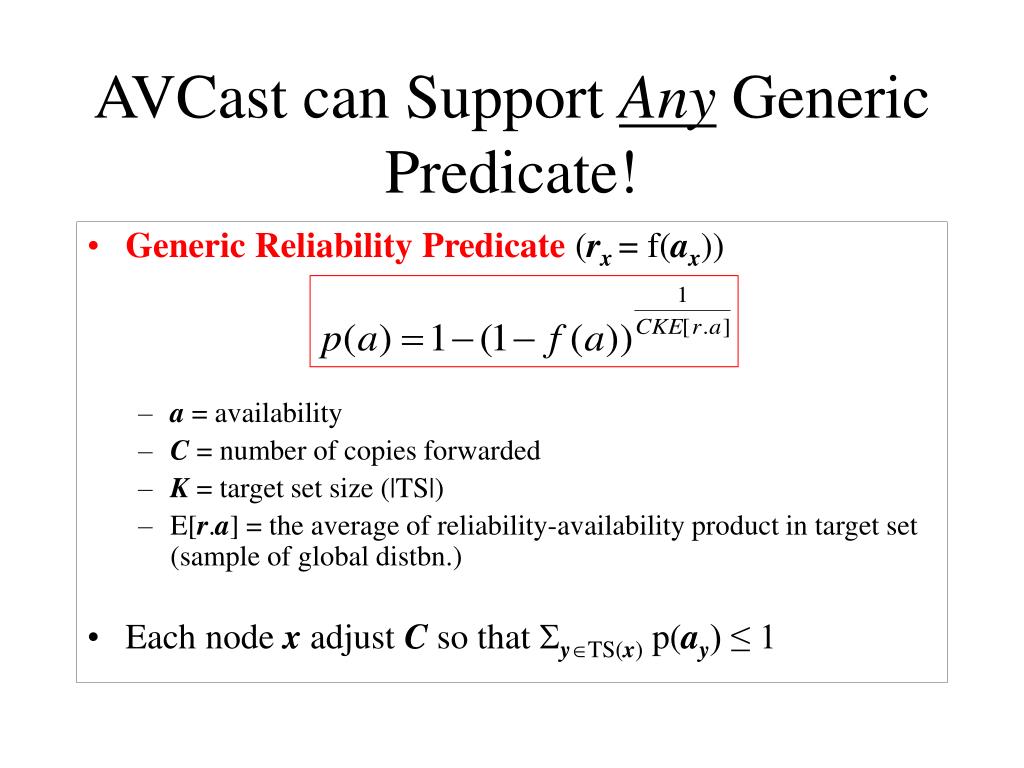

  42. AVCast can Support Any Generic Predicate! • Generic Reliability Predicate (rx= f(ax)) • a = availability • C = number of copies forwarded • K = target set size (|TS|) • E[r.a] = the average of reliability-availability product in target set (sample of global distbn.) • Each node x adjust C so thatyTS(x) p(ay) ≤ 1

  43. Evaluation • AVCast prototype implemented in 3,000-line C++ code • Simulate a system of 1,442 nodes • availability values from Overnet file-sharing trace [Bhagwan et. al 03] • Average availability in traces: 0.3 • Simulate for 6000 protocol rounds • One message injected per round during last 3000 rounds • K=31

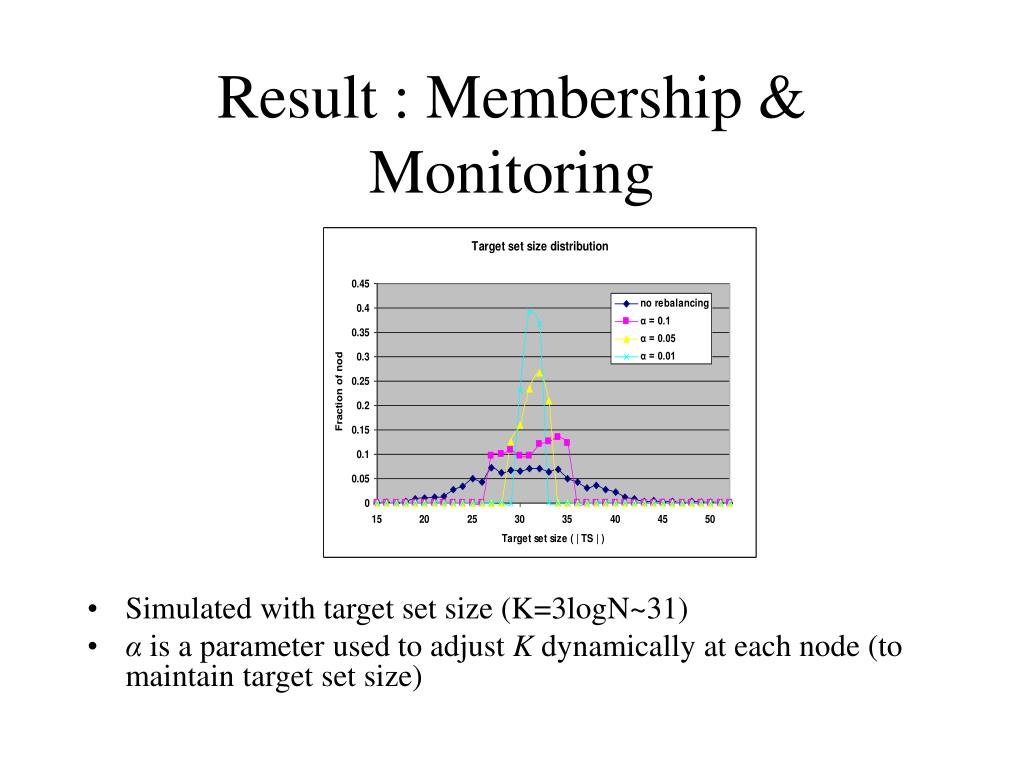

  44. Result : Membership & Monitoring • Simulated with target set size (K=3logN~31) • αis a parameter used to adjust K dynamically at each node (to maintain target set size)

  45. System-wide availability measured at each node • Estimated based on TS’s availabilities • The variance decreases when K increases global = 0.315

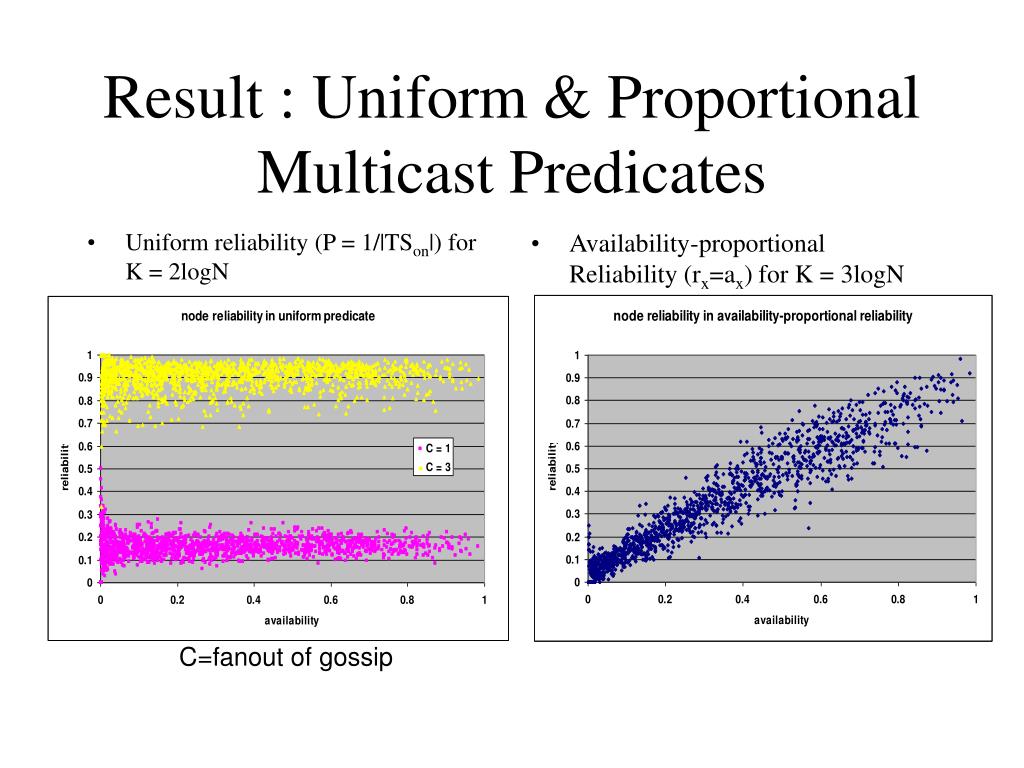

  46. Uniform reliability (P = 1/|TSon|) for K = 2logN Availability-proportional Reliability (rx=ax) for K = 3logN Result : Uniform & Proportional Multicast Predicates C=fanout of gossip

  47. Result: Bimodal and Threshold-Linear Predicates rx = 0.3 if ax< 0.5 0.9 otherwise rx = 0.3 if ax< 0.3 ax otherwise

  48. AVCast: Conclusions • Availability-aware multicast reliability differentiation • Consistent, verifiable peer-monitoring • Gossip-based multicast with adjustable forwarding probability function and fanout • AVCast currently supports any reliabilitypredicate. Examples are: • Uniform, Proportional, Bimodal, Threshold-Linear

  49. Lecture Summary and Discussion For peer to peer systems: • Characteristics of Churn: Node availability varies across nodes, and time. Failures are independent. • Effect of Churn: Upper bound reasonable, but real performance? • Churn-Resistance: Can incentivize nodes to have higher availability by tying end-host reliability to host’s availability. AVCast for multicast. Research Directions • Adaptive DHTs : adaptivity to changing network conditions, changing churn rates, changing time-of-day… • Stress-Resistant Protocols: more challenging than mere fault-tolerance • AV* protocols: AVMON (ICDCS 07), AVMEM (ongoing), …
