Geothermal energy

Geothermal Energy

Jen Eden

ME 258

Fall 2012


Location requirements

Location Requirements

  • Traditional Geothermal Plant

    • Hottest reservoir regions

      • Volcanic areas

      • Recent tectonic activity

    • High Permeability

    • Discovered by visible hot springs or other industries

      • Hydrocarbon

  • Enhanced Geothermal Systems

    • Low enthalpy reservoirs

    • Near the end user


Egs plant

EGS Plant

  • U.S. Department of Energy: http://www1.eere.energy.gov


What sets egs apart

What sets EGS apart

  • Man-made reservoirs

    • Created where there is hot rock but little to no natural permeability or fluid saturation

  • Fluid is injected into the subsurface

    • At low pressures

      • Causes less damage to fractures

    • Which causes pre-existing fractures to re-open

  • Increased permeability

    • Allows fluid to circulate throughout the rock

    • Transport heat to the surface where electricity can be generated.


2 drilling injection well

2. Drilling Injection Well

  • Understand Geology

    • Rock permeability

  • Depth to target temperature is important

    • Heat at shallow depth is desired


3 reservoir enhancement

3. Reservoir Enhancement

  • Thermal Stimulation

    • Increases Permeability

  • Hydraulic Fracture

    • Increases Permeability

  • Chemical Stimulation

    • Dissolves Rock

  • Induced Seismicity

    • Opening existing fractures

    • Or creates new ones


Extraction well

Extraction Well

  • Needs to intersect as many fractures as possible

  • Can have multiple production wells

  • Hot fluid (brine) is pumped out of the well and into the power plant


Types of power plants

Types of Power Plants

  • Dry Steam

    • First type of plant built

    • Hydrothermal fluids are primarily steam

  • Flash Steam

    • Most common type of plants today

    • Fluid greater than 360°F (182°C) is pumped at high pressure into a tank

    • The tank is held at a much lower pressure, causing the fluid to rapidly vaporize, "flash”

  • Binary Cycle

    • The future

    • Brine below 400°F

    • Uses secondary fluid with lower vaporization temperature

    • Binary cycle power plants are closed-loop systems and virtually nothing

      • U.S. Department of Energy: http://www1.eere.energy.gov


Binary power plant diagram

Binary Power Plant Diagram

  • Power Generation From Low-Enthalpy Geothermal Resources. by Maghiar and Antal


Binary power plant schematic university of oredea romania

Binary Power Plant SchematicUniversity of Oredea, Romania

  • Power Generation From Low-Enthalpy Geothermal Resources. by Maghiar and Antal


Geothermal energy

Paper 1:Rock specific hydraulic fracturing and matrix acidizing to enhance a geothermal system-concepts and field results

  • A major aspect of EGS is enhancing the geothermal reservoir.

  • This is done on a site–to–site basis taking into account unique geological features.

  • This paper focused on the GroßSchönebeckfield, a key site for EGS research in the North German Basin

    • Has 2 lithological units:

      • volcanic rock on bottom

      • Siliciclastics on top (from conglomerates to fine-grained sandstone)


Geothermal energy

Paper 1:Rock specific hydraulic fracturing and matrix acidizing to enhance a geothermal system-concepts and field results

  • Treatments were performed over 6 days

  • Needed multiple hydraulic treatments done at various depths in order to initiate cross-flow.

  • Multiple acid treatments were also performed to avoid iron scaling of the injected water and keep the pH at 5.

  • Additionally, quartz was added in low concentrations to maintain sustainable fracture performance.


Geothermal energy

Paper 1:Rock specific hydraulic fracturing and matrix acidizing to enhance a geothermal system-concepts and field results

  • Must sustain fracture openings

    • mostly tensile fractures without shearing displacement: add meshed sand or proppants to support the fracture opening

  • Higher flow rates lead to an increase in fracture length, lower flow rates lead to an increase in width and height.

  • Acid stimulation dissolved the residual drilling mud

    • increased productivity by 30-50%

    • lead to a total increase in productivity by a factor between 5.5 and 6.2


Geothermal energy

Paper 2: Environmental analysis of practical design options for enhanced geothermal systems(EGS) through life-cycle assessment

  • Analysis of EGS in central Europe based on life cycle assessment (LCA) of 10 significant design options

  • Annual electricity output of 10 power plants in central Europe corresponding to different sets of parameters were calculated.

    • number of wells

    • well depth and geothermal fluid temp at production wellhead

    • flow rate

    • production flow rate

    • reinjection flow rate

    • induced seismicity risk


Geothermal energy

Paper 2: Environmental analysis of practical design options for enhanced geothermal systems(EGS) through life-cycle assessment

  • 2 well cases:

  • 5 risk categories:

    • Human Health

    • Ecosystem Quality

    • Climate Change

    • Resources

    • Seismicity Risk


Geothermal energy

Paper 2: Environmental analysis of practical design options for enhanced geothermal systems(EGS) through life-cycle assessment

  • EGS achieves environmental performances comparable to other renewable energies

    (Despite the high amount of energy and resources required to build it)

  • Drilling has the highest environmental impact because of its use of fossil fuels

    • Alternative: is to connect to the grid to improve environmental performance.

  • Without appropriate reinjection strategy, the risk of induced seismicity increases.

  • Design of the plant and reservoir conditions can greatly change the environmental performance.


Paper 3 egs using co 2 as working fluid

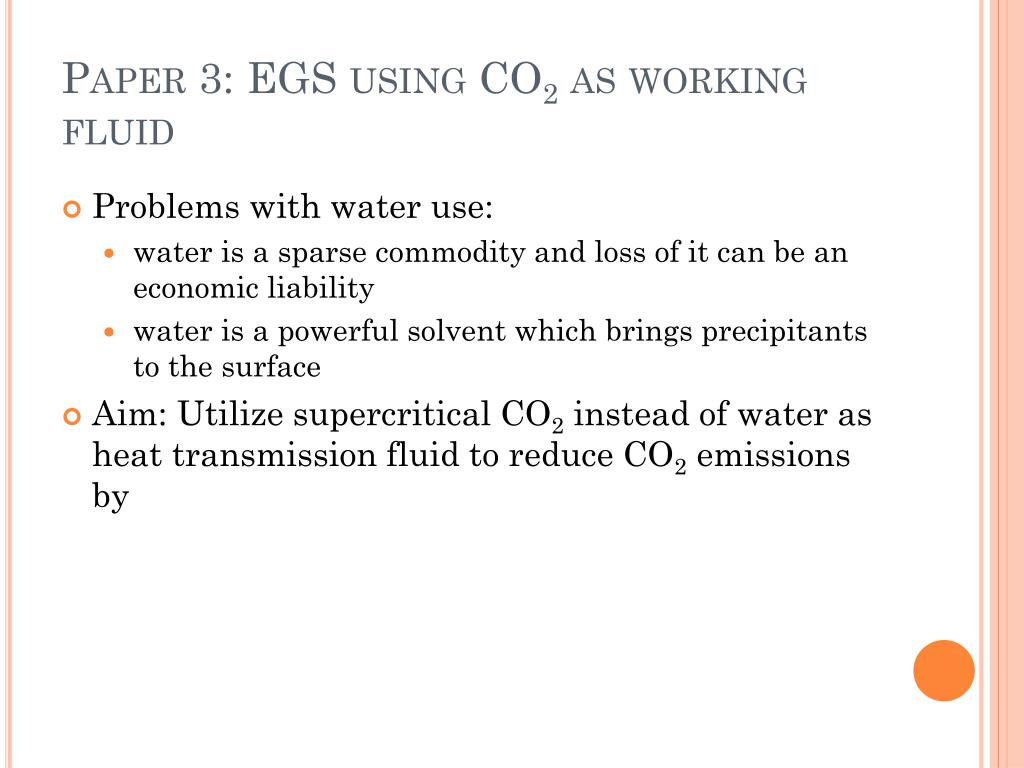

Paper 3:EGS using CO2 as working fluid

  • Problems with water use:

    • water is a sparse commodity and loss of it can be an economic liability

    • water is a powerful solvent which brings precipitants to the surface

  • Aim: Utilize supercritical CO2 instead of water as heat transmission fluid to reduce CO2 emissions by


Paper 3 egs using co 2 as working fluid1

Paper 3:EGS using CO2 as working fluid

  • Wellbore flow:

    • gravity contribution to pressure gradient is dominant

    • friction and inertial gradients are decidedly small

    • at lower depths, temperature increases by surrounding rock and by pressure increase, from compression, of the fluid

    • this is small for water but higher for CO2.

    • Difference in wellhead pressures are:

      • 230.7 bar CO2

      • 61.2 bar water

  • Indicates a stronger buoyancy drive from CO2


Paper 3 egs using co 2 as working fluid2

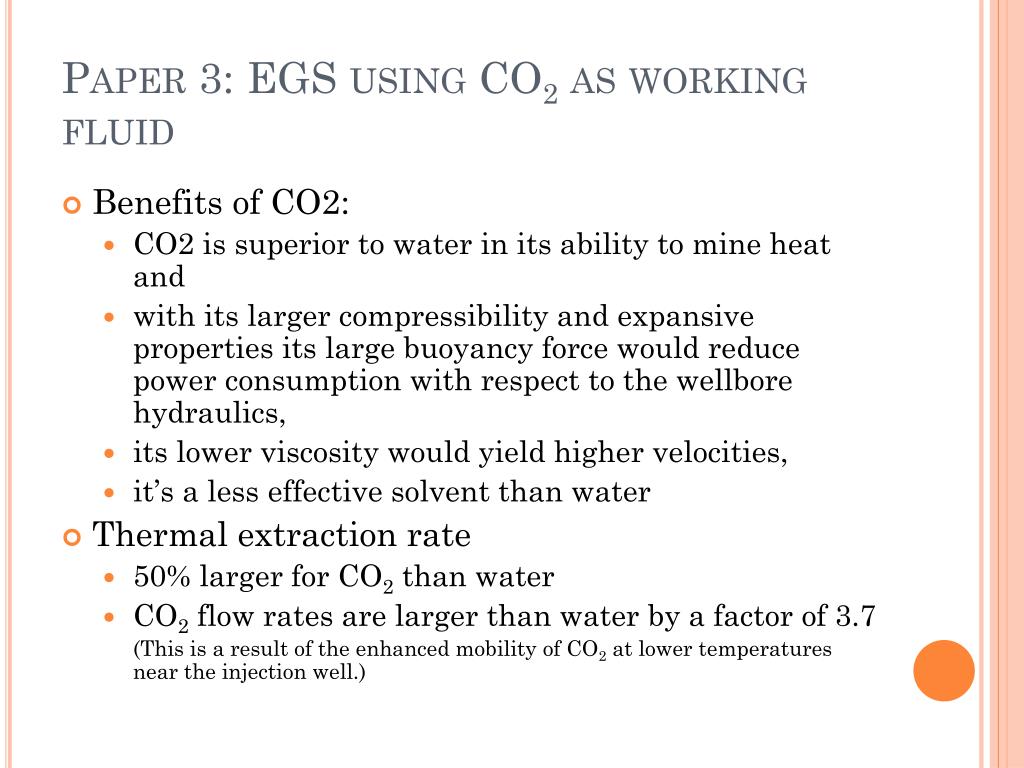

Paper 3:EGS using CO2 as working fluid

  • Benefits of CO2:

    • CO2 is superior to water in its ability to mine heat and

    • with its larger compressibility and expansive properties its large buoyancy force would reduce power consumption with respect to the wellbore hydraulics,

    • its lower viscosity would yield higher velocities,

    • it’s a less effective solvent than water

  • Thermal extraction rate

    • 50% larger for CO2 than water

    • CO2flow rates are larger than water by a factor of 3.7

      (This is a result of the enhanced mobility of CO2 at lower temperatures near the injection well.)


Geothermal energy

Paper 4:Performance analysis of hybrid solar-geothermal CO2 heat pump system for residential heating

  • Aim: to develop a solar-CO2geothermal hybrid heating system

  • The performance of a heat pump using CO2is lower than that using a subcritical cycle refrigerant due to irreversibilities, so system performance needs to be investigated.

  • Previous studies have used CFC or HCFC refrigerant, so it’s important to analyze the performance of a hybrid solar-geothermal CO2heat pump system.


Geothermal energy

Paper 4:Performance analysis of hybrid solar-geothermal CO2 heat pump system for residential heating

  • Setup:

    • A solar heat unit

    • A CO2heat pump unit.

    • The heat is collected and stored in a thermal heat storage tank at a specified operating temperature, when the temperature drops below this, the heat pump starts to operate and supplies heat to the tank


Geothermal energy

Paper 4:Performance analysis of hybrid solar-geothermal CO2 heat pump system for residential heating

  • Performance of the hybrid system was analyzed under varying operating conditions

    • Elevation of ground temp can significantly reduce the refrigerant temperature at the outlet of the compressor, thereby improving the system performance and reliability.

      • When the heat pump operating temperature increases from 40 C to 48 C, the pressure ratio between the inlet and the outlet of the compressor rises by 19.9% and the compressor work increases from 4.5 to 5.3 kW.

    • The performance of the solar hybrid heat pump is very sensitive to pump operating conditions.

  • Therefore, design of proper indoor temperature for variable outdoor conditions is very important to maintain high system performance and reliability in the pump system.


Geothermal energy

Paper 5: Shallow geothermal energy applies to a solar-assisted air-conditioning system in southern Spain

  • Aim: to determine the viability of a shallow geothermal system used in place of a cooling tower for a solar assisted AC system.

    • Specifically an aquifer thermal storage to solar assisted AC system

  • Main goal is to propose the application of a new alternative heat dissipation system for the absorption chiller installed in the CIESOL building in Spain


Geothermal energy

Paper 5: Shallow geothermal energy applies to a solar-assisted air-conditioning system in southern Spain

  • First analyzed the solar-assisted AC system with cooling tower, then with the geothermal system applied.

    • Cooling Tower:

      • The water in it can cause corrosion if not treated

      • The tower circuit is vulnerable because its an open circuit susceptible to scaling from precipitation of dissolved solids and algae growth and microorganisms

      • Causes Legionella outbreak if not properly maintained.

      • Also requires a storage tank and distribution pump to provide the needed permanent flow.

    • Shallow Geothermal System:

      • Purpose is to provide cooling water to the absorption chiller.

      • No risk of Legionella.

      • Does not involve any water consumption or rigorous maintenance.

      • Requires less space and eliminates outdoor noise levels


Geothermal energy

Paper 5: Shallow geothermal energy applies to a solar-assisted air-conditioning system in southern Spain

  • Operating for 2 years 2010-2012. During Summer:

    • Used 31% less electrical energy

    • Consumed none of the water the cooling tower needed

      • Saves 116m3 of water in one cooling period.

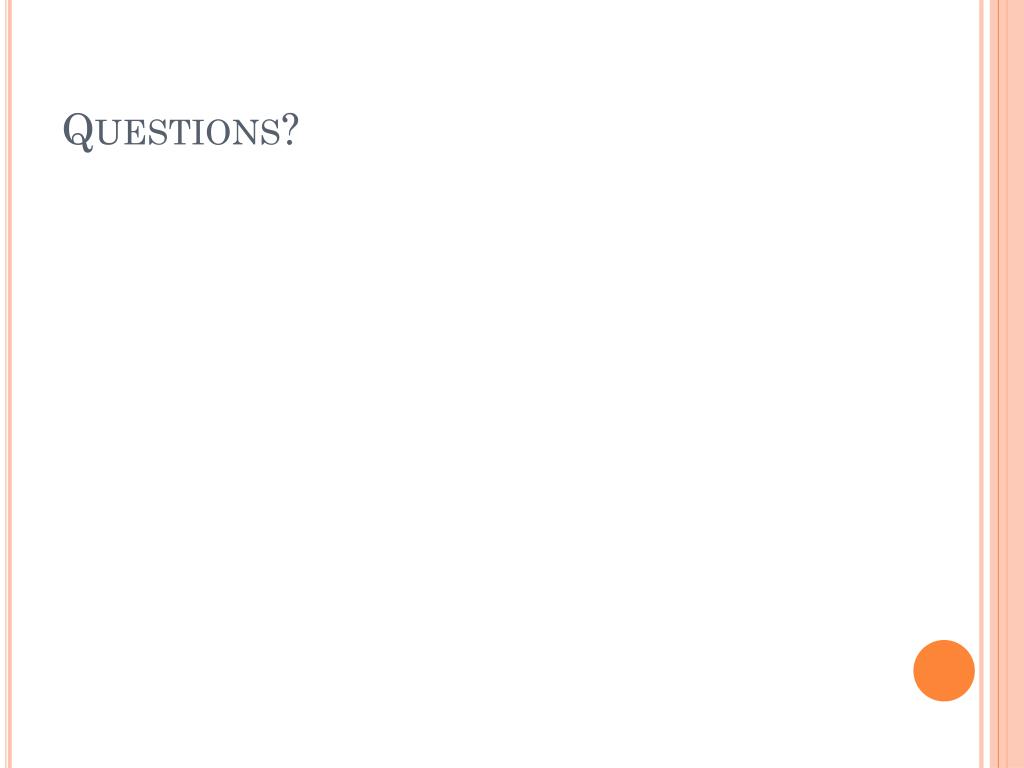

Questions
