  1. SIGMADUR 1800THE NEXT GENERATION DURABLE FINISHES

  2. Added value topcoats • Improved performance qualities • Differentiation in specification position • Higher gloss stability • Better corrosion resistance • Higher dft’s • Economical improvements • Lower VOC

  3. SIGMADUR 1800 Major driving forces in the Protective Coating industry: Highly durable systems • Corrosion engineers and coating specifiers in the offshore and O&G industry ask systems with a durability up to 20 years. • Coating suppliers have launched Polysiloxane topcoats with an expected durability of 15-20 years. Environmental issues. • Polysiloxane systems meet the latter requirement of being high solid hence reducing VOC emissions

  4. USAGE OF HIGHLY DURABLE SYSTEMS: • Highly corrosive environments with high salinity and UV exposure (C5-I and C5-M). • Difficult accessible areas for maintenance or in case shut down costs formaintenance is high.

  5. TYPICAL SYSTEMS IN THE MARKET • Two coat systems with zinc silicate or zinc rich epoxy as first coat. • Three coat systems. ATTRACTIVE BENEFITS OF 2-COAT SYSTEMS • Higher cost easily offset by savings in labour and time to contractors. • Projects of short time period to complete application. • Project end-users are inclined specifying coatings that will last longer.

  6. HOWEVER • Severe coating failures with a Polysiloxane topcoat reported after 2-5 years in offshore. • The main damage is a breakdown of the Polysiloxane topcoat in a two-coat zinc epoxy / Polysiloxanesystem where dft. and stripe coating requirements were not met. • A combination of internal stress, lack of flexibility and decreased adhesion are considered to be the possible cause of failures. • Generally Polysiloxane technology has not proved to provide a risk free technology for 15-20 years service. • Polysiloxane show a wide difference in formulations, hence have different properties differ widely in performance, • Products with proper qualifications a proven history are available on the market. • Where toughness and flexibility beyond the yield point of steel is required, polyurethane coating provide better services.

  7. Flexibility? Hard coatings • Reduced friction damage • Abrasion resistant • Follows steel elongation Flexible coatings • Reduced transport damage • Abrasion resistant (tough) • Follows bended or dented steel SNCF 2500 times 20 mm /32 KN / 2000 cycl Zinc Epoxy / Polysiloxane and Epoxy- Alu / Polysiloxane

  8. SIGMADUR 1800 Flexibility (Mandrel) – ISO 1519 But flexible? Flexible? SIGMADUR 1800 8

  9. A traditional polyurethane Styrene block is weakness in UV exposure: • Gloss retention • Discoloration • Chalking Styrene 30-40 % Acrylate 60-70 % The typical building block: styrene / acrylate 9

  10. Sigmadur1800 SigmaKalon’s“State of the Art” polyurethane Styrene free!, weakness eliminated. Longer durability in UV: • Enhanced gloss retention • Enhanced discoloration • Enhanced chalking resistance Branched vinyl 30-40 % Acrylate 60-70 % Branched vinyl/acrylate building block 10

  11. Sigmadur1800 • Not “just” a polyurethane! • What is it and Why? • Let’s have a look inside. 11

  12. PPG’s branched vinyl Technology • Why is branched vinyl technology unique? • PPG is only manufacturer to make this binder through innovative in-house technology • The cutting edge branched vinyl technology is embedded in SIGMADUR 1800 12

  13. SigmaDur 1800, conventional polysiloxane and polyurethane Accelerated WOM exposure – ISO 4892-2 13

  14. Typical systems SigmaDur1800 new construction System 1 • SIGMAZINC 158, 75 microns • SIGMADUR 1800, 75 microns System 2 • SIGMACOVER 805 Al, 150 microns • SIGMACOVER 805, 150 microns • SIGMADUR 1800, 75 microns 14

  15. Typical systems SigmaDur1800 new construction System 3 • SIGMAZINC 109 HS, 75 microns • SIGMACOVER 456 HS, 130 microns • SIGMADUR 1800, 75 microns System 4 • SIGMACOVER 280, 75 microns • SIGMACOVER 456, 100 microns • SIGMADUR 1800, 75 microns 15

  16. Typical systems SigmaDur1800 maintenance System 1 • SIGMACOVER 1500, 125 microns • SIGMADUR 1800, 75 microns System 2 • SIGMACOVER 280, 75 microns • SIGMACOVER 456, 100 microns • SIGMADUR 1800, 75 microns 16

  17. Practical example in comparison Siemens Energy production in Colombia 2011 (ISO 12944 C1-C5) • Equipment with a capacity of >150-2500 KVA at ambient C1 SIGMACOVER435 @80 microns SIGMADUR550 @50 microns • Equipment with a capacity of >150-2500 KVA at ambient C2, C3 SIGMACOVER435 @120 microns      SIGMADUR550 @60 microns •  Equipment with a capacity of >2500 KVA at ambient C4; SIGMACOVER640 LT @150 microns SIGMADUR1800 @75 microns • Equipment with a capacity of >2500 KVA at ambient C4; SIGMACOVER640 LT @180 microns      SIGMADUR1800 @75 microns 17

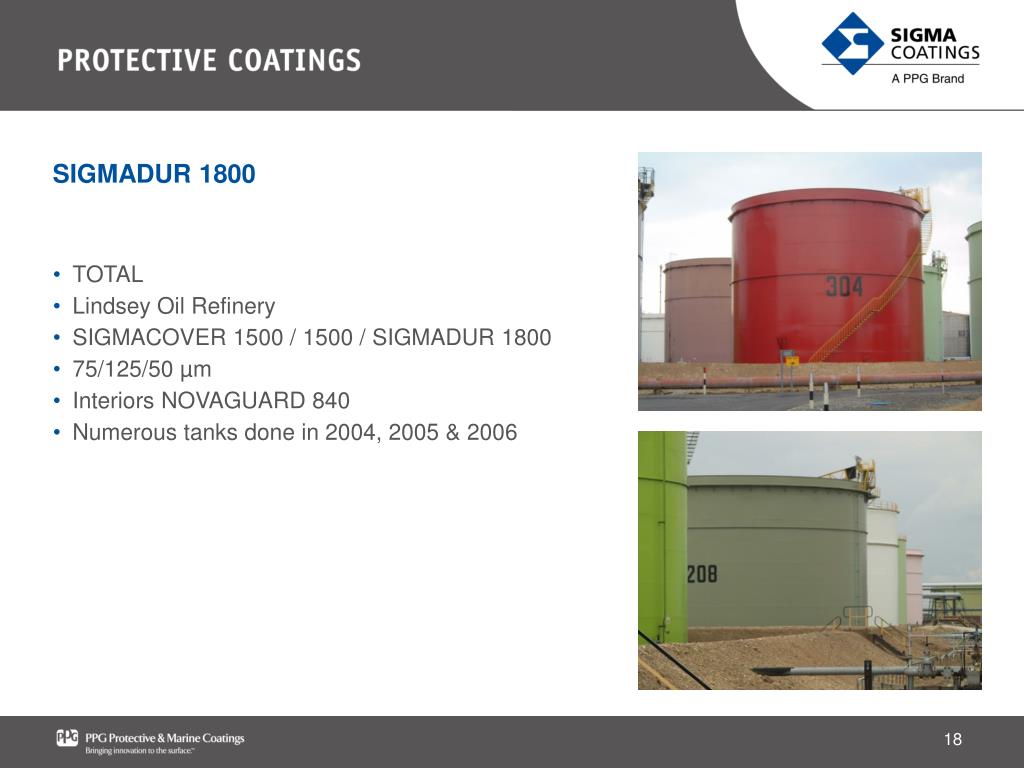

  18. SIGMADUR 1800 • TOTAL • Lindsey Oil Refinery • SIGMACOVER 1500 / 1500 / SIGMADUR 1800 • 75/125/50 µm • Interiors NOVAGUARD 840 • Numerous tanks done in 2004, 2005 & 2006 18

  19. Third party testing • Systems pass ISO 20340 and Norsok M501 rev. 5. • Systems pass ISO 12944 C5-I High • Systems pass ACQPA testing for all prescribed colors 19

  20. SIGMADUR 1800 Hendrikbrug • Prorail Drawbridge • Maintenance • Zinc/Alu 85/15) metal/SC280/SD1800 • 125/75/125 my • Coated in 2008 Bolgerijensebrug • RijkswaterstaatSwingbridge from 1949 • Maintenance of riveted rotating structure • SIGMACOVER 805/805/SD 1800 (150/150/75my) • Coated in 2008 20

  21. 25th of April bridge Lisbon • Maintenance 2011 • SIGMAZINC 109HS / SIGMACOVER 630 / SIGMADUR 1800 • At 60/100/60/60 microns dft. 21

  22. Railway station Arnhem 2010 • SC 280/805/SD 1800 • 100/150/100 my SIGMADUR 1800 Lighthouse IJmuiden SC 256/456/456/SD1800 At 75/75/75/75 my • TT race circuitAssen • SC 256/456/SD1800 • 70/70/75 my • Butterfly bridge Zaandam 22

  23. AtochamadridLargest railway station spain • Maintenance historical station • Major new construction • 2000 m2 galvanized steel in SIGMACOVER 280 / SIGMADUR 1800 • 50,000 m2 in STEELGUARD FM 585 fire protection 23

  24. CEPSA refinery santacruzCEPSA refinery tenerife • SIGMACOVER 522 / Foamglass / PITT-CHAR XP / SIGMADUR 1800 • Flexibility that can follow the flexible fire protection system • Several colours 24

  25. Your added value with SigmaDur 1800 • Reduced downtime of your asset due to less maintenance. • Systems that comply with ISO 20340, Norsok M501 and ISO 12944 C5-I. • SIGMADUR 1800 meets Florida testing according to ACQPA for all colours. • Better flexibility than Polysiloxane, a risk free protective coating solution. • Long term durability up to 20 years. • Outperforms Polysiloxane on gloss retention. • More cost effective than Polysiloxane. • Styrene free. • Availability in the colours of your choice. • Unlimited recoatability. • High solids and VOC compliant. 25
