Advanced sketch tools

Advanced Sketch Tools

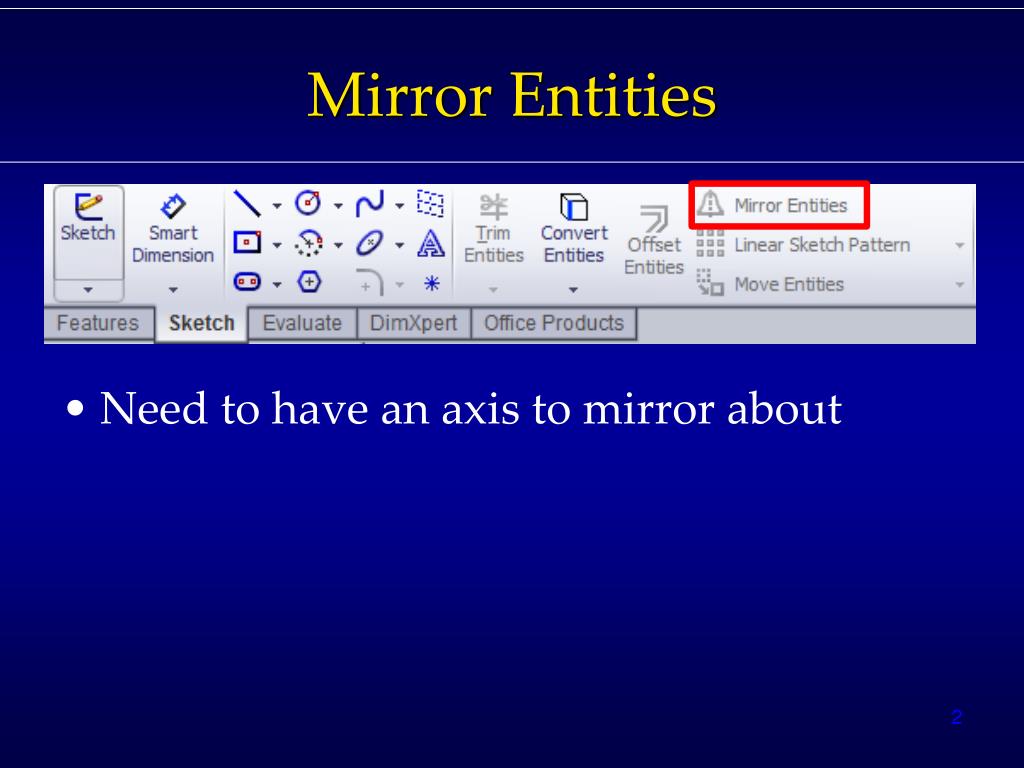

Mirror entities

Mirror Entities

  • Need to have an axis to mirror about


Need to determine axis of symmetry

Need to determine axis of symmetry


Advanced sketch tools

Copy

  • Need to pick a ‘start point’ on the selected entities

  • The ‘start point’ is the reference point for those entities

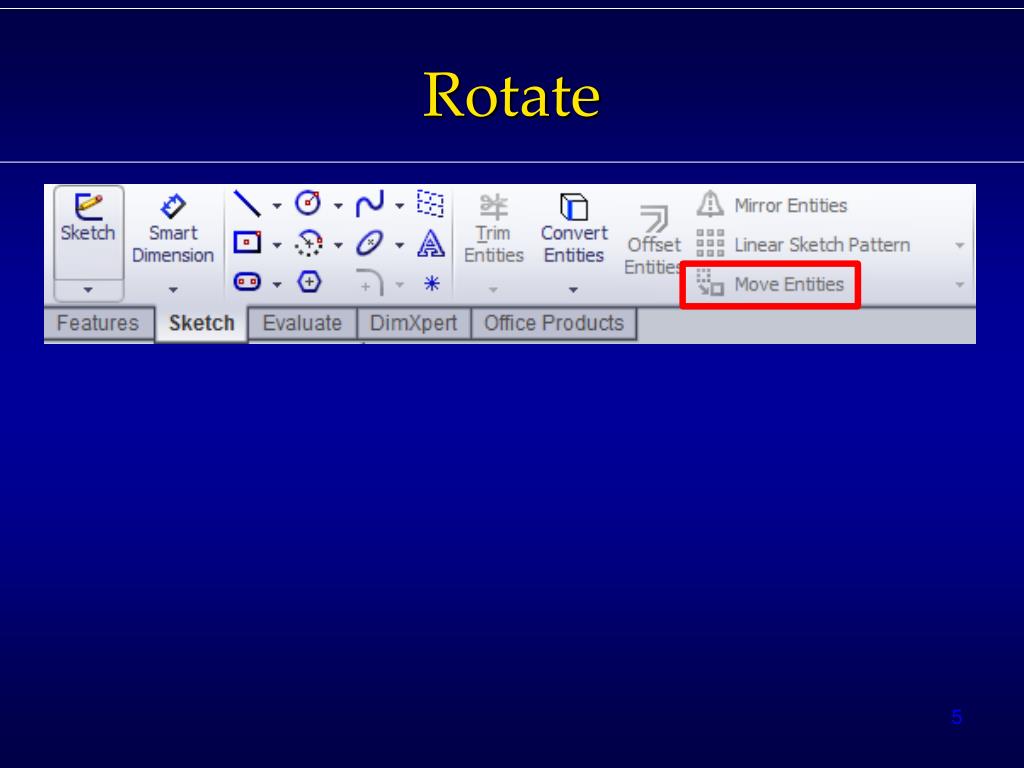

Rotate

Rotate


Scale

Scale


Advanced sketch tools

Move


Linear pattern

Linear Pattern


Circular pattern

Circular Pattern

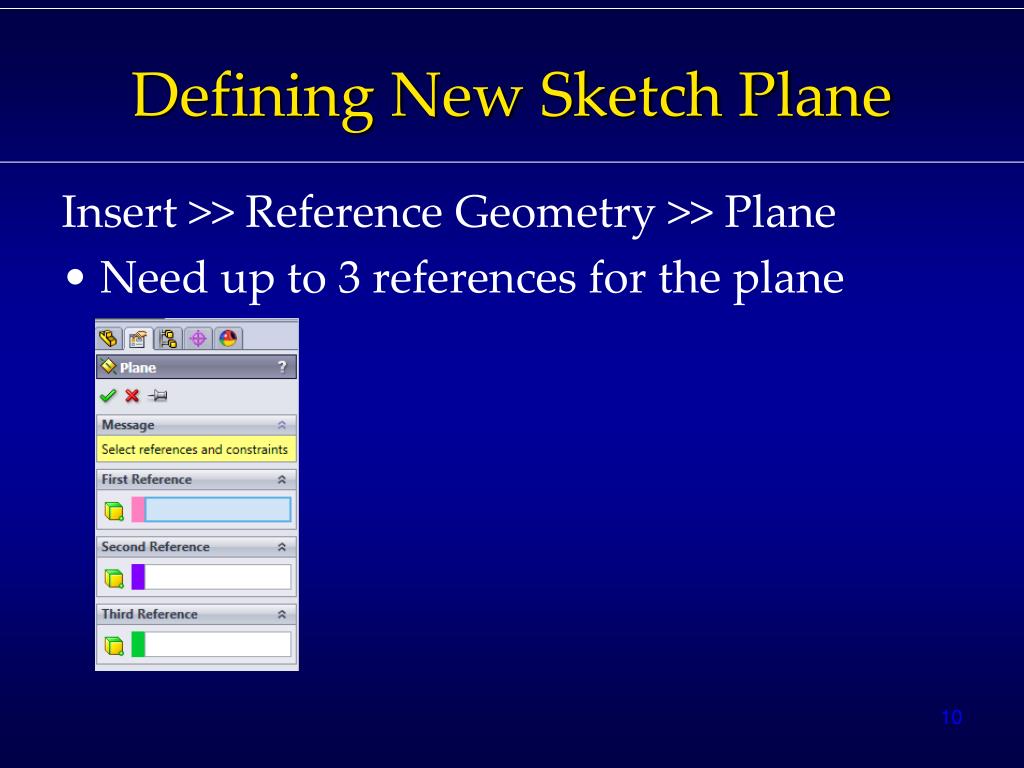

Defining new sketch plane

Defining New Sketch Plane

Insert >> Reference Geometry >> Plane

  • Need up to 3 references for the plane


Info for a plane

Info for a plane

1 Point

1 Line

3 Points

1 Line

1 Edge

(in the same plane)


Info for a plane1

Info for a plane

Parallel Plane:

  • Choose 1 reference face

  • Choose 1 offset point/vertex

    Plane at an Angle:

  • 1 reference face – choose ‘at angle’

  • 1 axis or rotation


Info for a plane2

Info for a plane

Offset Distance:

  • 1 Plane – Choose ‘offset distance’

    Perpendicular to:

  • 1 sketch entity

  • 1 point


Info for a plane3

Info for a plane

Tangent To:

  • 1 non-planar face

  • 1 point on the edge of that face


Projection theory

PROJECTION THEORY


Understanding projections

Understanding Projections

Projection:

  • A “VIEW” of an object

  • Intended to be shown on a PLANE


Multi view projection

Multi-View Projection


Visualization

Visualization

18


Edges and vertices

Edges and Vertices

19


Edge view of a surface

Edge View of a Surface

20


True size view of surface

True-Size View of Surface

21

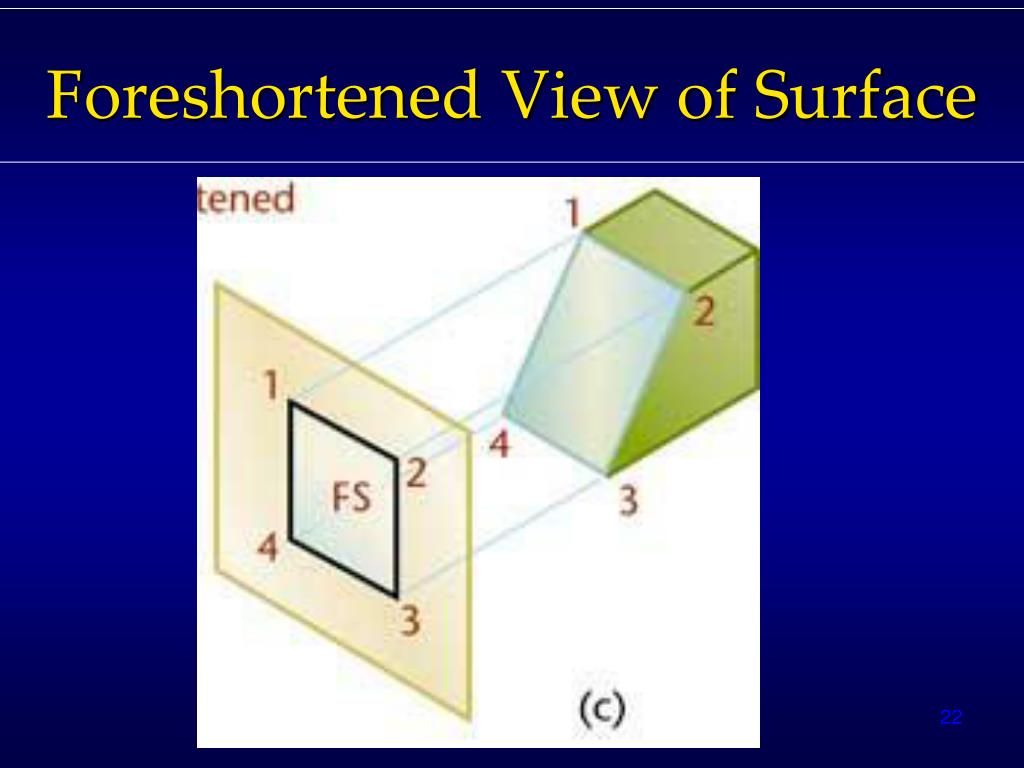

Foreshortened view of surface

Foreshortened View of Surface

22


Normal surfaces

Normal Surfaces

23


Inclined surfaces

Inclined Surfaces

24


Oblique surfaces

Oblique Surfaces

25


Edges 1

Edges (1)

26


Edges 2

Edges (2)

27


Edges 3

Edges (3)

28


Views of objects

VIEWS of OBJECTS

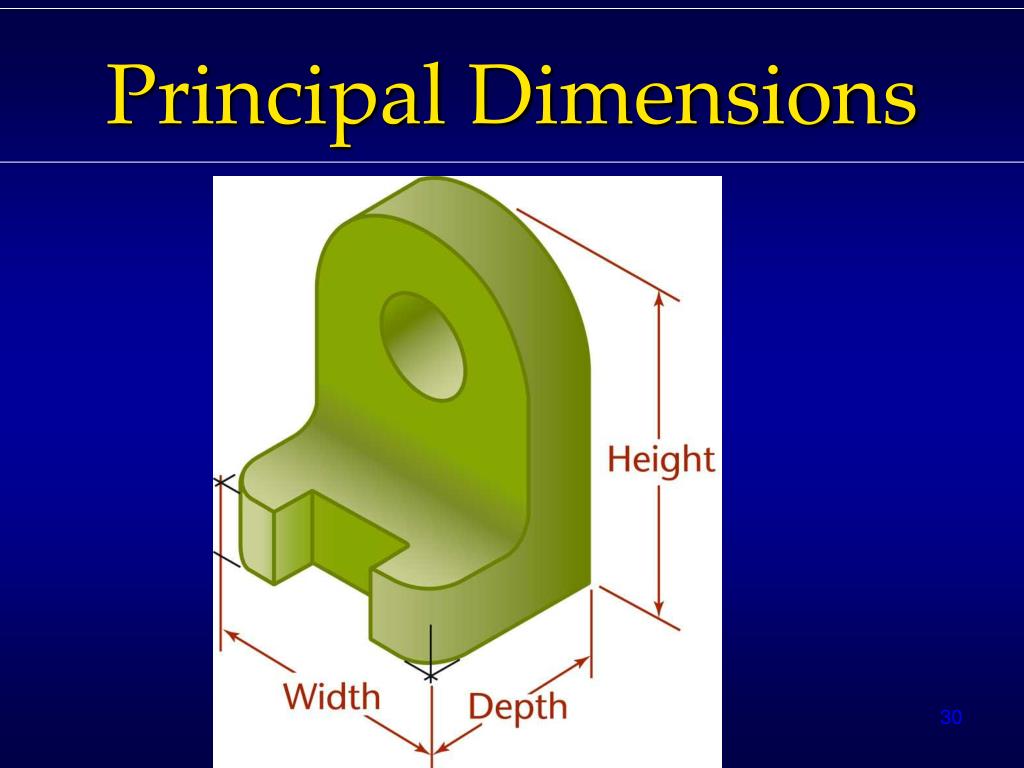

Principal dimensions

Principal Dimensions


Revolving an object

Revolving an Object

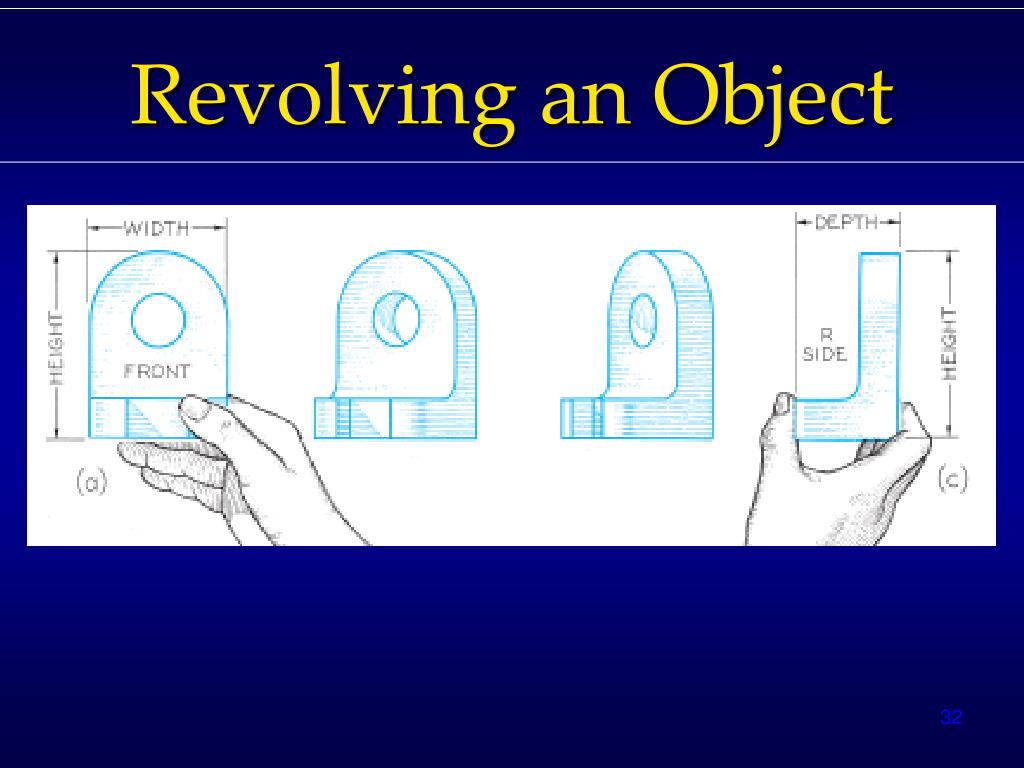

Revolving an object1

Revolving an Object

32


The six standard views

The Six Standard Views


The six standard views1

The Six Standard Views


Necessary views

Necessary Views

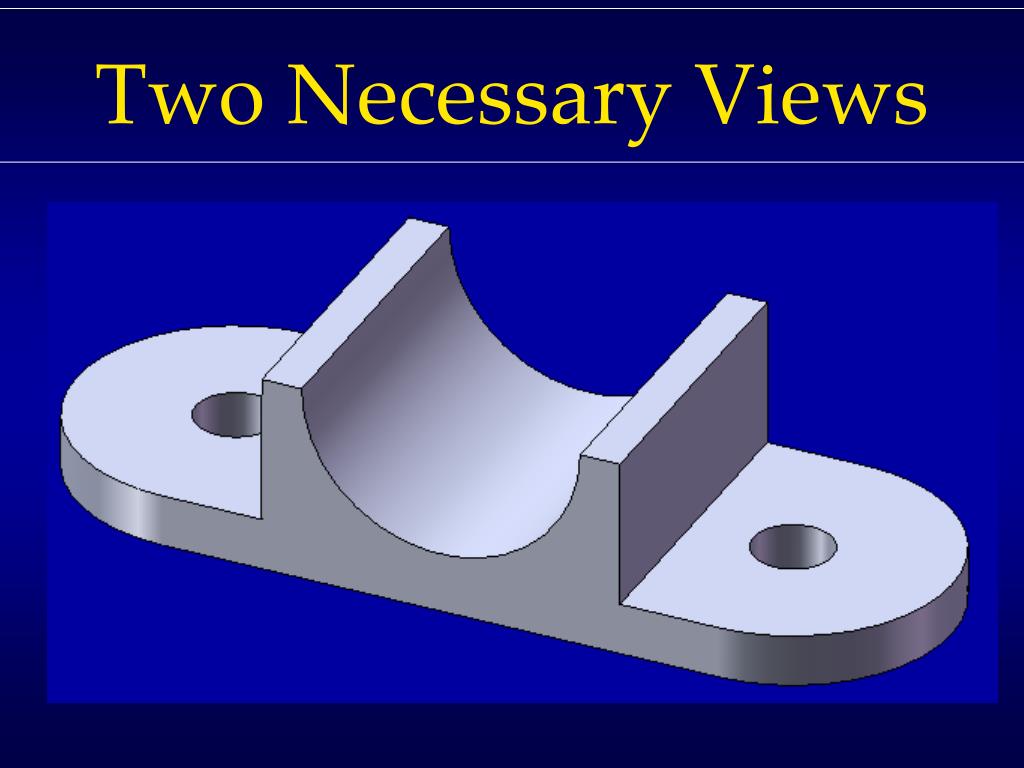

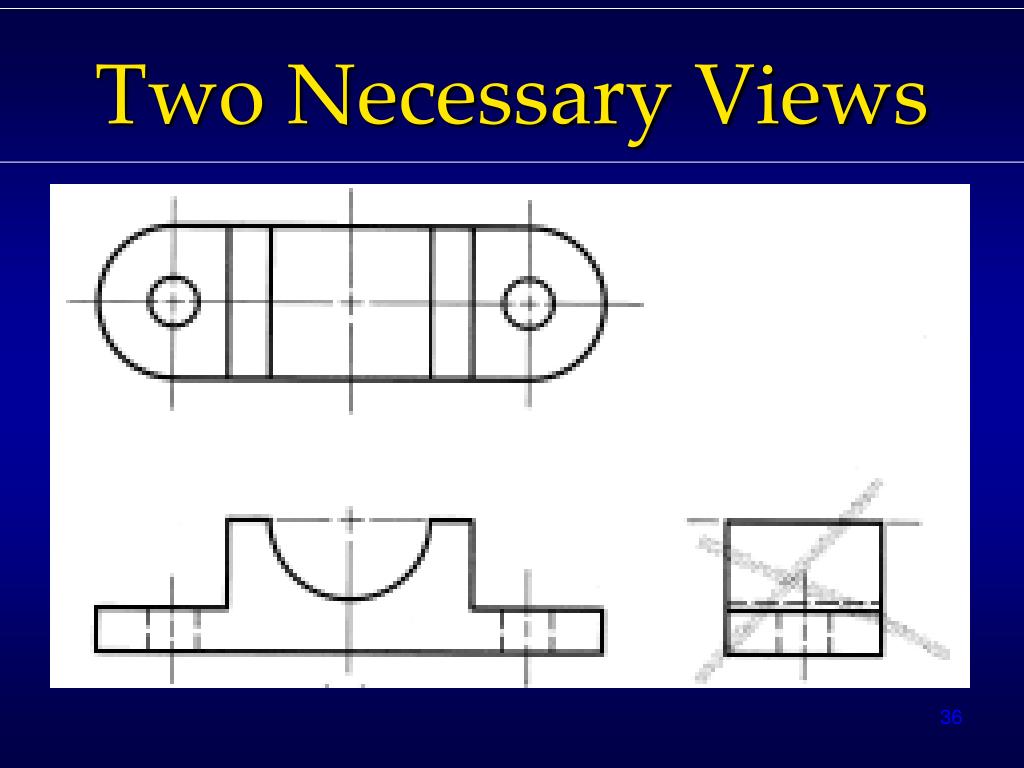

Two necessary views

Two Necessary Views


Two necessary views1

Two Necessary Views

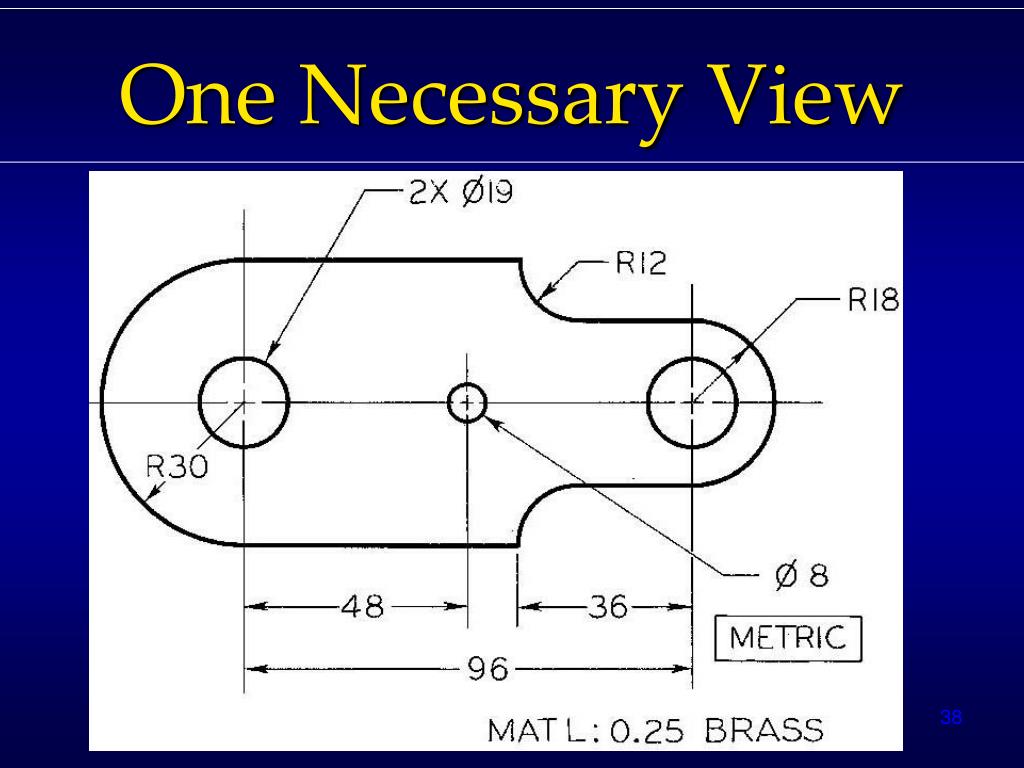

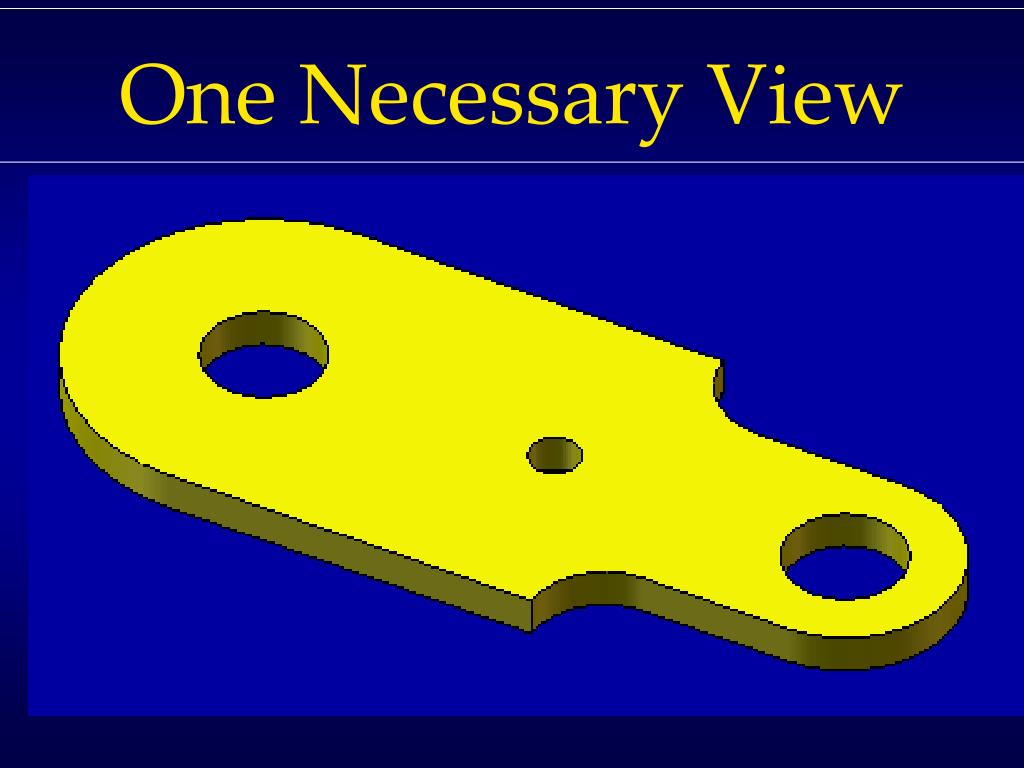

One necessary view

One Necessary View


One necessary view1

One Necessary View


Orthographic projection 3 rd angle projection

Orthographic Projection(3rd Angle Projection)

40

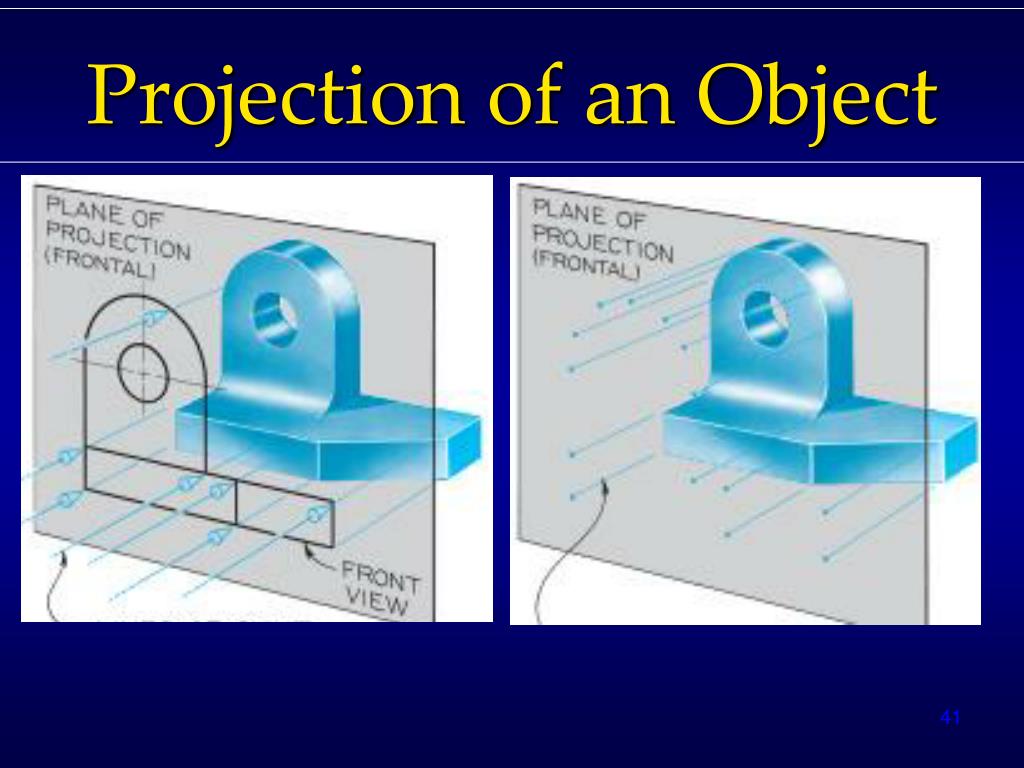

Projection of an object

Projection of an Object

41


Projection method

Projection Method

42


Top view

Top View

43


Right side view

Right-Side View

44


The glass box

The Glass Box

45


The glass box1

The Glass Box

46


Unfolding the box

Unfolding the Box

47


Unfolding the box 2

Unfolding the Box (2)

48

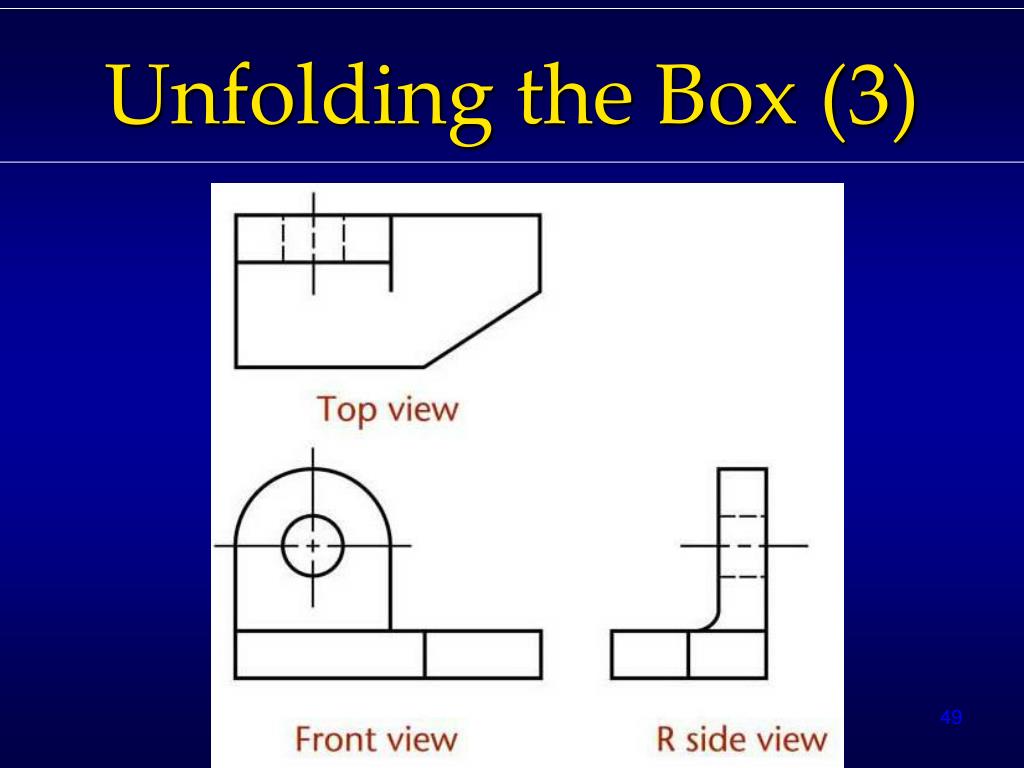

Unfolding the box 3

Unfolding the Box (3)

49


Meaning of lines

Meaning of Lines


Folding lines

Folding Lines


Transferring depth dimensions

Transferring Depth Dimensions


Projecting a third view 1

Projecting a Third View (1)


Projecting a third view 2

Projecting a Third View (2)


Projecting a third view 3

Projecting a Third View (3)


Projecting a third view 4

Projecting a Third View (4)


Projecting a third view 5

Projecting a Third View (5)


Alignment of views

Alignment of Views

58


Alternative positions of views

Alternative Positions of Views


Parallel edges

Parallel Edges


Angles

Angles


Similar shapes of surfaces

Similar Shapes of Surfaces


Interpreting views

Interpreting Views

  • One method of interpreting sketches is to reverse the mental process used in projecting them

  • Each view provides certain definite information about the shape of the object and all are necessary to visualize it completely


First and third angle projection

First- and Third-Angle Projection

  • There are two main systems used for projecting and unfolding the views:

    • Third-angle projection which is used in the United States, Canada and some other countries

    • First-angle projection which is primarily used in Europe and Asia

  • You should understand both methods


First angle projection

First-angle Projection


Model items

Model Items


Smart dim

Smart Dim


Example 1

Example 1


Example 2

Example 2


Example 21

Example 2


Example 3

Example 3


Example 31

Example 3


Example 4

Example 4


Example 5

Example 5


Example 51

Example 5


Example 52

Example 5
