Presentation Transcript


Contents

CONTENTS

  • Description of ITKnife2 SpecificationsImprovements Features & Benefits WarningCompetitorsSummary

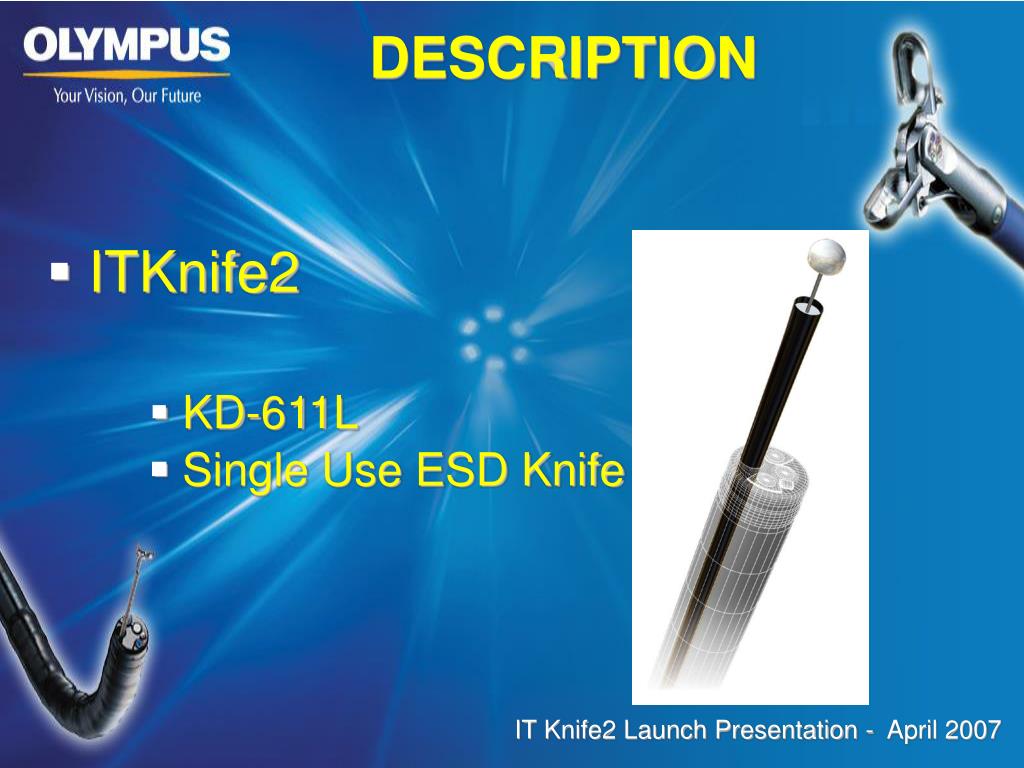

Description

DESCRIPTION

  • ITKnife2 KD-611LSingle Use ESD Knife

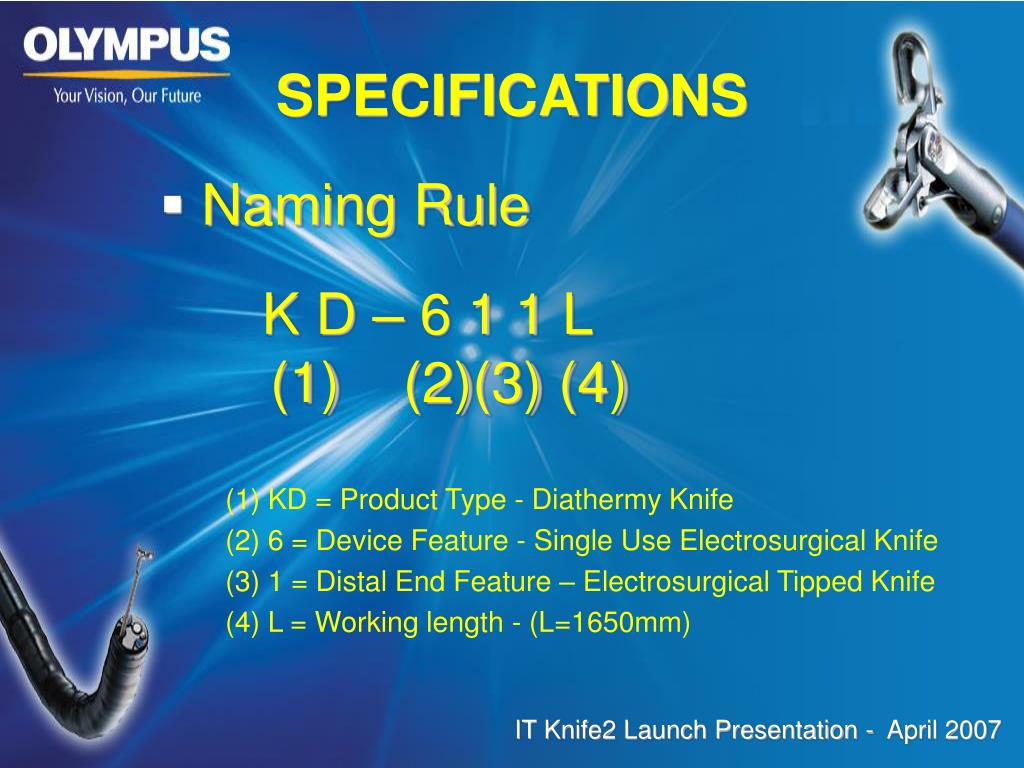

Specifications

SPECIFICATIONS

  • Naming RuleK D – 6 1 1 L(1) (2)(3) (4)

(1) KD = Product Type - Diathermy Knife

(2) 6 = Device Feature - Single Use Electrosurgical Knife

(3) 1 = Distal End Feature – Electrosurgical Tipped Knife

(4) L = Working length - (L=1650mm)


Specifications1

SPECIFICATIONS

  • Colour Change

KD-600 Series

ITKnife2 (KD-611L)

Easily differentiate from other ESD devices


Specifications2

SPECIFICATIONS


Improvements

IMPROVEMENTS

  • Additional Electrode at the bottom of the insulated tip


Improvements1

IMPROVEMENTS

①Approach

①Approach

② Incision

③ Incision

② Pressing knife

Pressing knife is necessary

Pressing knife isnotnecessary

⇒Incision is difficult if condition does not allow pressing

⇒Incision is possible even if condition does not allow pressing


Improvements2

IMPROVEMENTS

Improved points ② – Lateral incision

Area where ITknife can incise easily

Direction

of incision

Lesion

Area where difficult for ITknife to incise

Direction

of incision

ITknife2 facilitates incision in ② areas

Direction of scope approach


Features benfeits

Electrode

FEATURES & BENFEITS

  • Additional Electrode - wider dissectible area, wider range movement Facilitates Haemostasis – without pressing – less bleeding, better visual


Contents

WARNING

  • Inform users of risk of ESD procedures and device  Higher performance cut than ITKnifeShort incision range Upper GI only


Contents

WARNING

Warning statement in

instruction manual &

on packaging


Competitors

COMPETITORS

  • All ESD knives copied from Olympus!


Competitors1

COMPETITORS


Summary

SUMMARY

  • Use ESD interest as ‘door opener’ Additional Electrode Facilitates Haemostasis
