Presentation Transcript


Consider a network in which for any two nodes directly connected with a link a

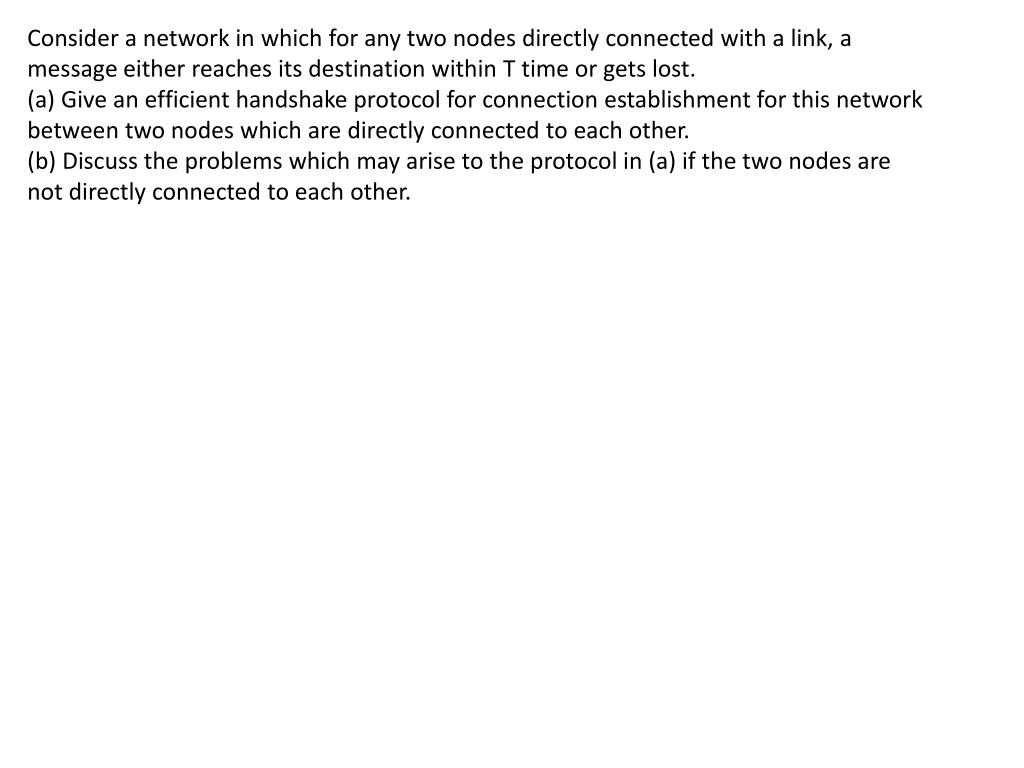

Consider a network in which for any two nodes directly connected with a link, a

message either reaches its destination within T time or gets lost.

(a) Give an efficient handshake protocol for connection establishment for this network

between two nodes which are directly connected to each other.

(b) Discuss the problems which may arise to the protocol in (a) if the two nodes are

not directly connected to each other.


Consider a network in which for any two nodes directly connected with a link a

Consider the arrangement of hosts shown in the Figure. All links are full-duplex, can

transmit up to 2Mbps, and all routers are faster and all routers are faster than their

links. A wants to send data to D at rate 1Mpbs and E wants to send data to F at

rate 2Mbps. What is the throughput for A and E (how much data can they transfer

per sec) under the following conditions:

(a) The congestion control policy at B employs a single input queue for data coming

from both A and E and forwards using the FIFO discipline.

(b) The congestion control policy at B employs separate input queues of equal size

for A and E and forwards using round robin.

Give reasons for your answers.


Consider a network in which for any two nodes directly connected with a link a

Consider the case where A is connected to B via a wired link and B is connected

to C via a wireless link. The bandwidth of the link from A to B is 106 bytes/sec and

for the link from B to C is 105 bytes/sec. The round trip delay is 1sec from A to B and 5 secs from B to C. Assume that A needs to send data to C using B as an intermediate hop.

If a standard sliding window protocol is used from A to C, what would be the type of protocol used? If a split-TCP approach is used, what would be the types of protocol used.


Consider a network in which for any two nodes directly connected with a link a

Assume that you have a set of 4 nodes, A, B, C and D arranged in a ring with A as

the requester and B, C and D as responder. The execution proceeds in a sequence

of iteration. In each iteration, A asks a question which is to be sent in the clockwise

direction in the ring to all responders. On receiving this question, each responder send

a response message back to A (which is again sent in the clockwise direction). After

receiving all of the responses, A proceeds with the next iteration by asking the next

question. You need to design a protocol stack to support this application. Describe

the data link layer and routing protocol in sufficient detail for this protocol stack (e.g.,

type of sliding window protocol, window size, routing strategy). The protocols must

be efficient in terms of minimizing the execution/response time.


Consider a network in which for any two nodes directly connected with a link a

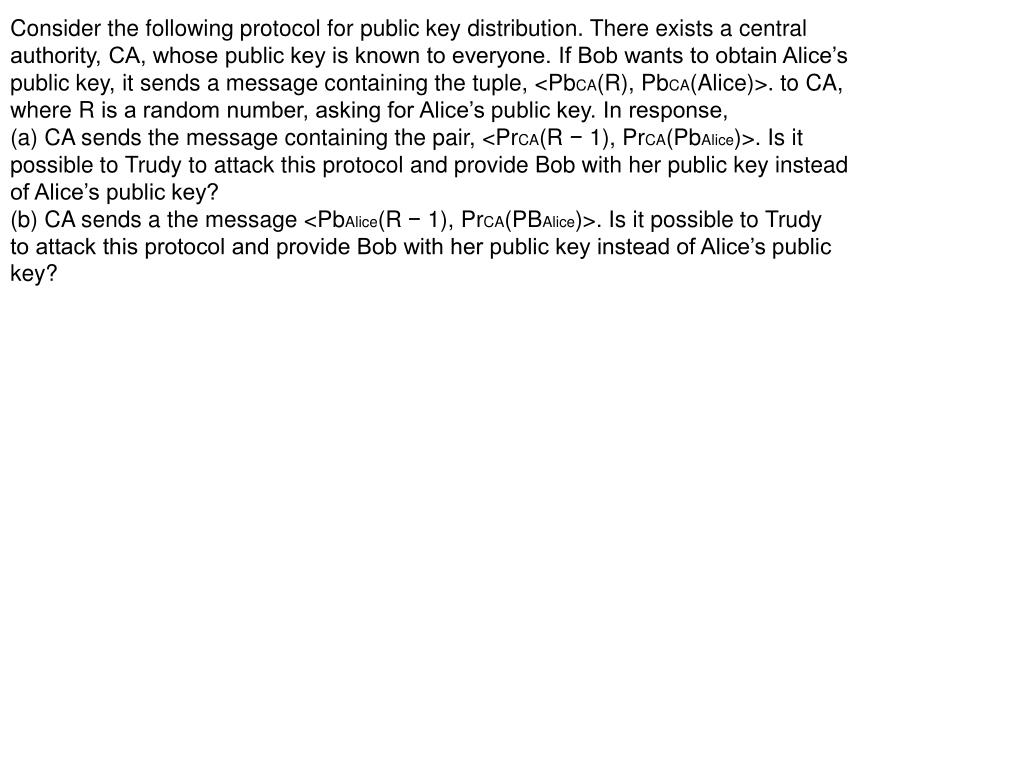

Consider the following protocol for public key distribution. There exists a central

authority, CA, whose public key is known to everyone. If Bob wants to obtain Alice’s

public key, it sends a message containing the tuple, <PbCA(R), PbCA(Alice)>. to CA,

where R is a random number, asking for Alice’s public key. In response,

(a) CA sends the message containing the pair, <PrCA(R − 1), PrCA(PbAlice)>. Is it

possible to Trudy to attack this protocol and provide Bob with her public key instead

of Alice’s public key?

(b) CA sends a the message <PbAlice(R − 1), PrCA(PBAlice)>. Is it possible to Trudy

to attack this protocol and provide Bob with her public key instead of Alice’s public

key?
