  1. Chapter 4 Internal Memory

  2. Contents • Computer Memory System Overview • Semiconductor Main Memory • Cache Memory • Pentium

  3. Key Characteristics of Computer Memory System Computer memory system over view

  4. Characteristics of Memory System Computer memory system over view • Location • Processor • Internal(main) • External(secondary)

  5. Capacity Computer memory system over view • Internal memory capacity • Expressed byte or word • External memory capacity • Expressed byte

  6. Unit of Transfer Computer memory system over view • Internal memory • The unit of transfer equal to number of data into and out of memory module • Often equal to word length of may not be • Word • natural unit of organization of memory • Size of the word equal to number of bits used to represent a number and to instruction length • Addressable unit • Addressable unit is word • Some system addressing byte level • Unit of transfer • Number of bits read out of or written into memory at a time

  7. Methods of Accessing Computer memory system over view • Sequential access • Start at the beginning and read through in order • Access time depends on location of data and previous location • e.g. tape • Direct access • Individual blocks have unique address • Access is by jumping to vicinity plus sequential search • Access time depends on location and previous location • e.g. disk

  8. Methods of Accessing Computer memory system over view • Random access • Individual addresses identify locations exactly • Access time is independent of location or previous access • e.g. RAM • Associative access • Data is located by a comparison with contents of a portion of the store • Access time is independent of location or previous access • e.g. cache

  9. Performance Computer memory system over view • Access time • Time it takes to perform read or writ operation (for random-access memory) • Time it takes to position the read-write mechanism at desired location (for non-random-access memory) • Memory cycle time • Applied to random-access memory • Consist of access time plus any additional time required before next access

  10. Performance Computer memory system over view • Transfer rate • Rate which data transferred into or out of memory unit (for random-access memory) • For non-random-access memory TN = Average time to read or write N bits TA = Average access time N = Number of bits R = Transfer rate, in bits per second(bps)

  11. Physical Types Computer memory system over view • Semiconductor • RAM • Magnetic • Disk & Tape • Optical • CD & DVD • Others • Bubble • Hologram

  12. Physical Characteristics Computer memory system over view • Decay • Volatility • Erasable • Power consumption

  13. Organization Computer memory system over view • Physical arrangement of bits into words • Not always obvious • e.g. interleaved

  14. The Bottom Line Computer memory system over view • How much? • Capacity • How fast? • Time is money • How expensive?

  15. The Memory Hierarchy Computer memory system over view • Relationships • Faster access time, greater cost per bit • Greater capacity, smaller cost per bit • Greater capacity, slower access time • As one goes down the hierarchy, the following occur • Decreasing cost per bit • Increasing capacity • Increasing access time • Decreasing frequency of access of the memory by the processor

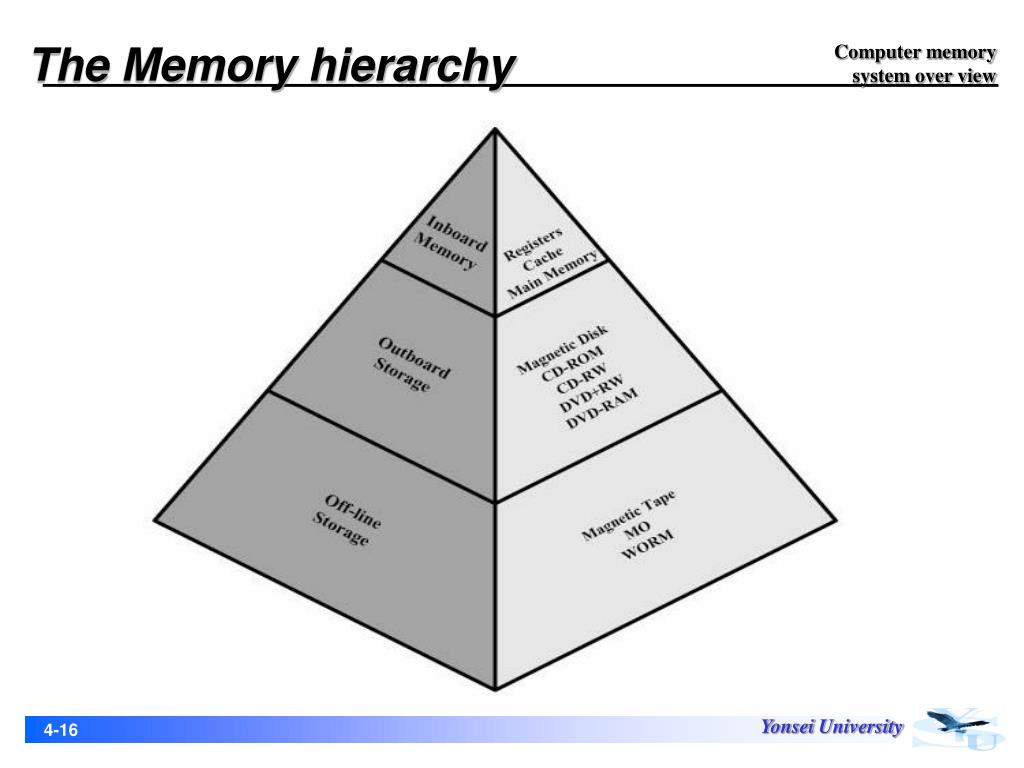

  16. The Memory hierarchy Computer memory system over view

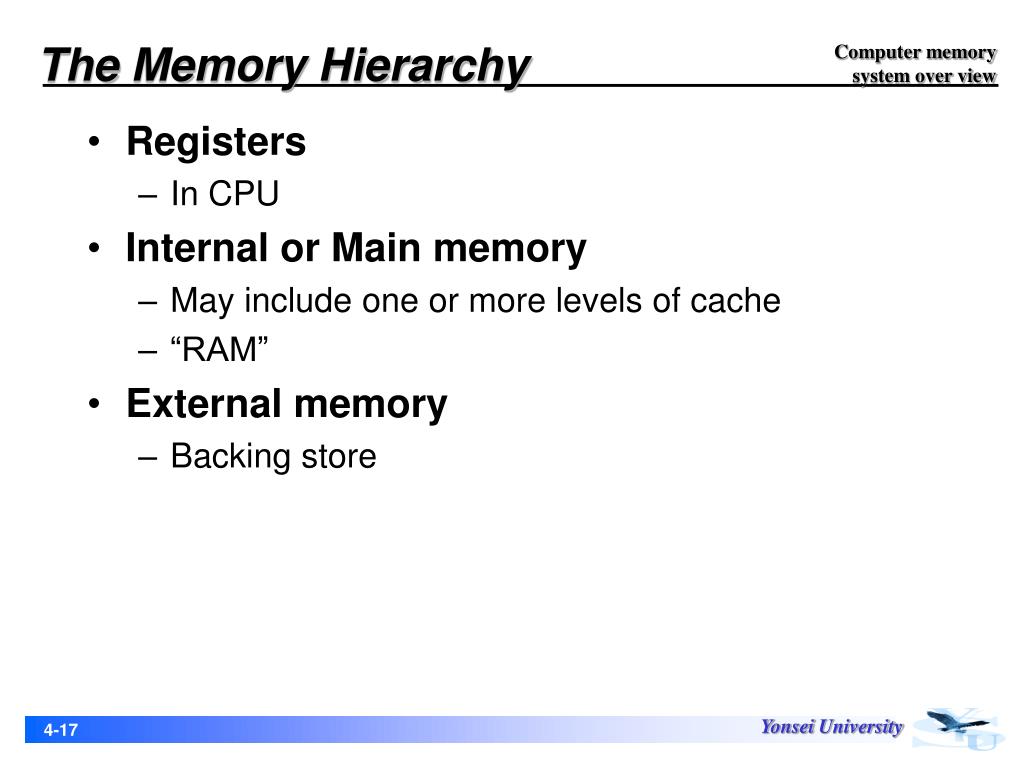

  17. The Memory Hierarchy Computer memory system over view • Registers • In CPU • Internal or Main memory • May include one or more levels of cache • “RAM” • External memory • Backing store

  18. Performance of A Two-Level Memory Computer memory system over view

  19. Hierarchy List Computer memory system over view • Registers • L1 Cache • L2 Cache • Main memory • Disk cache • Disk • Optical • Tape

  20. The Memory Hierarchy Computer memory system over view • Locality of reference • During the course of the execution of a program, memory references tend to cluster

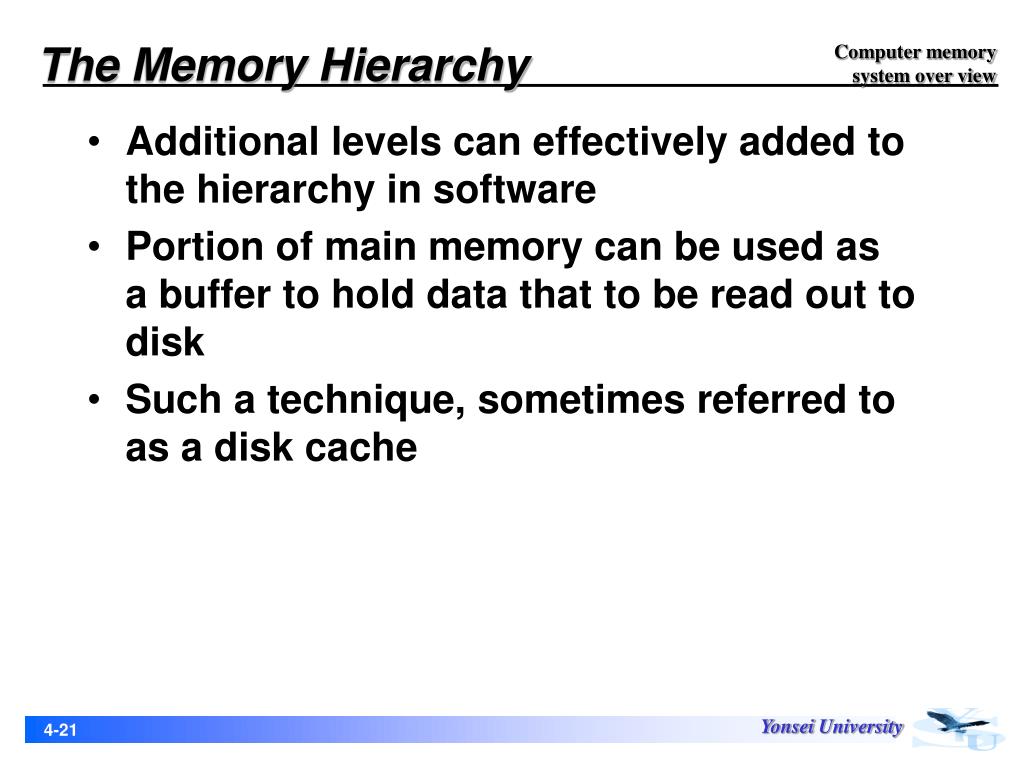

  21. The Memory Hierarchy Computer memory system over view • Additional levels can effectively added to the hierarchy in software • Portion of main memory can be used as a buffer to hold data that to be read out to disk • Such a technique, sometimes referred to as a disk cache

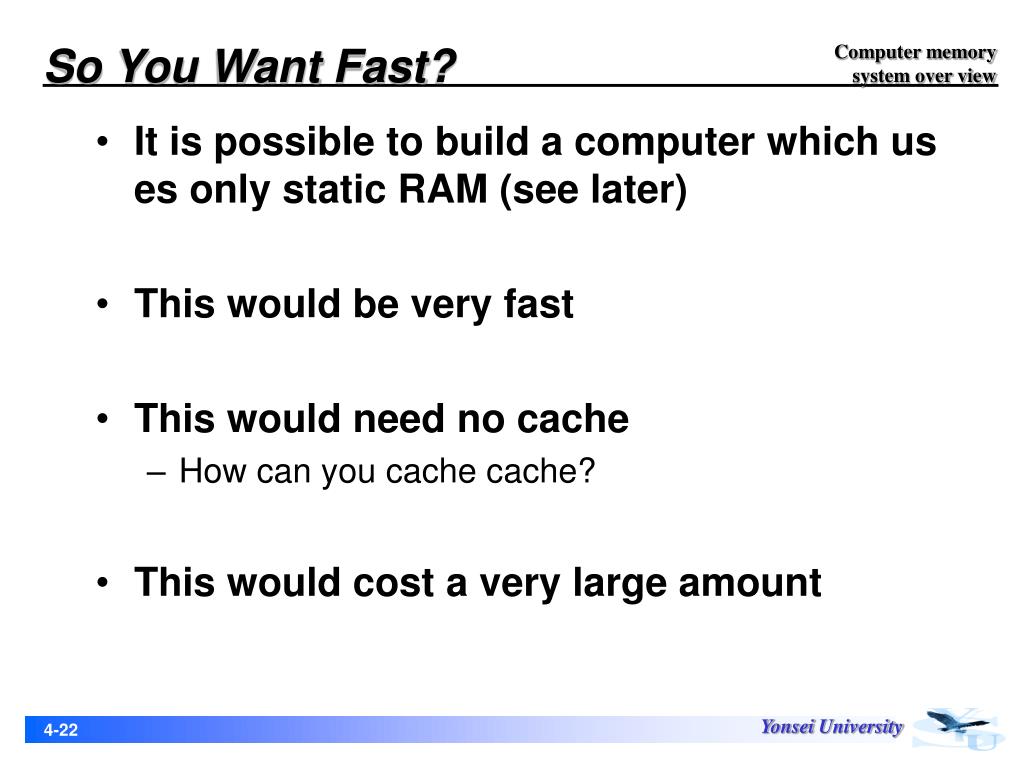

  22. So You Want Fast? Computer memory system over view • It is possible to build a computer which uses only static RAM (see later) • This would be very fast • This would need no cache • How can you cache cache? • This would cost a very large amount

  23. Semiconductor Memory Types Semiconductor main memory

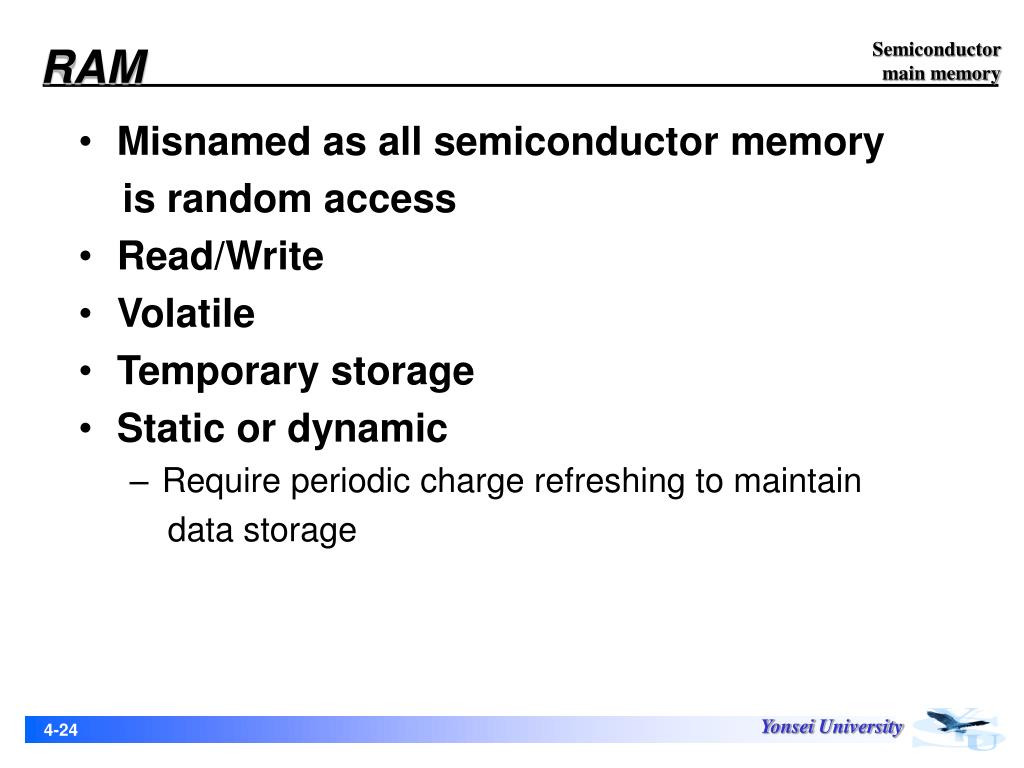

  24. RAM Semiconductor main memory • Misnamed as all semiconductor memory is random access • Read/Write • Volatile • Temporary storage • Static or dynamic • Require periodic charge refreshing to maintain data storage

  25. DRAM Semiconductor main memory • Bits stored as charge in capacitors • Charges leak • Need refreshing even when powered • Simpler construction • Smaller per bit • Less expensive • Need refresh circuits • Slower • Main memory

  26. SRAM Semiconductor main memory • Bits stored as on/off switches • No charges to leak • No refreshing needed when powered • More complex construction • Larger per bit • More expensive • Does not need refresh circuits • Faster • Cache

  27. Read Only Memory (ROM) Semiconductor main memory • Permanent storage • Applications • Microprogramming • Library subroutines • Systems programs (BIOS) • Function tables • Problems • Data insertion step includes large fixed cost • No room for error • Written during manufacture • Very expensive for small runs

  28. Programmable ROM (PROM) Semiconductor main memory • Nonvolatile & Written only once • Writing performed electrically and may performed by supplier or customer after original chip fabrication • Needs special equipment to program

  29. Read “Mostly” Memory (RMM) Semiconductor main memory • Erasable Programmable ROM (EPROM) • Storage cell must erased by UV before written operation • Read and written electrically • More expensive PROM • Advantage of multiple update capability

  30. Electrically Erasable PROM(EEPROM) Semiconductor main memory • Takes much longer to write than read • Advantage • Nonvolatility & being updatable in using ordinary bus control, address, data line

  31. Flash Memory Semiconductor main memory • Erase whole memory electrically • Entire flash memory can erased in one or few seconds (faster than EPROM) • Possible to erase just blocks • Impossible to erase byte-level • Use only one transistor per bit • Achieves high density

  32. Memory Cell Operation Semiconductor main memory

  33. Chip Logic Semiconductor main memory • A 16Mbit chip can be organised as 1M of 16 bit words • A bit per chip system has 16 lots of 1Mbit chip with bit 1 of each word in chip 1 and so on • A 16Mbit chip can be organised as a 2048 x 2048 x 4bit array • Reduces number of address pins • Multiplex row address and column address • 11 pins to address (211=2048) • Adding one more pin doubles range of values so x4 capacity

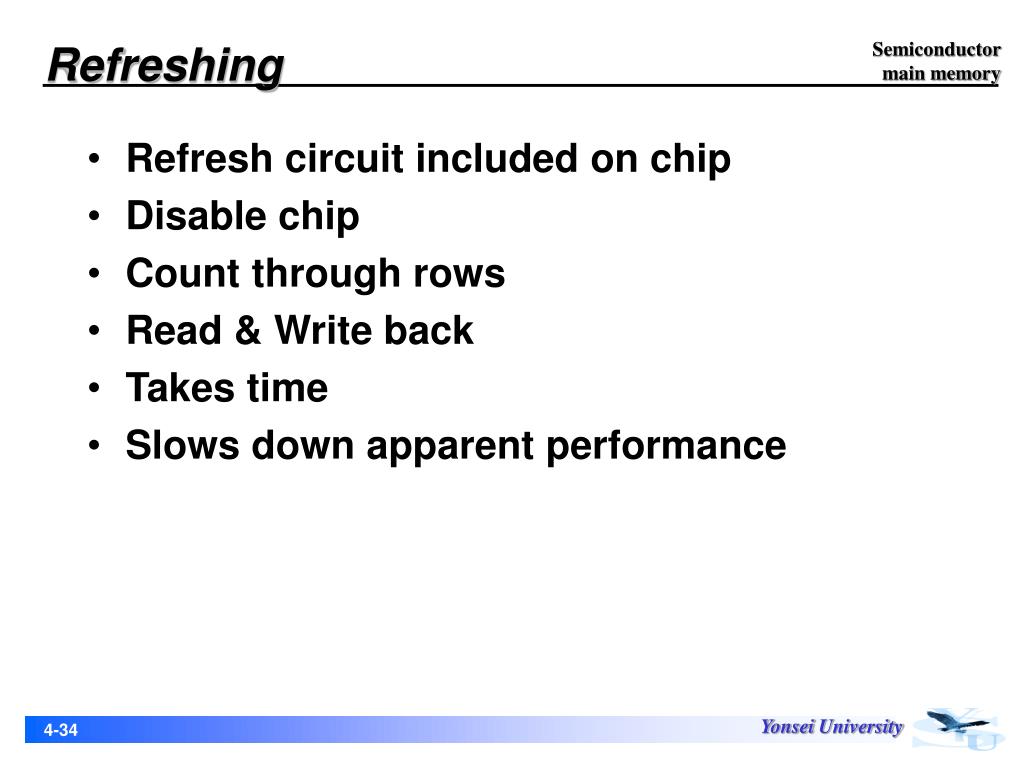

  34. Refreshing Semiconductor main memory • Refresh circuit included on chip • Disable chip • Count through rows • Read & Write back • Takes time • Slows down apparent performance

  35. Typical 16 Mb DRAM (4M x 4) Semiconductor main memory

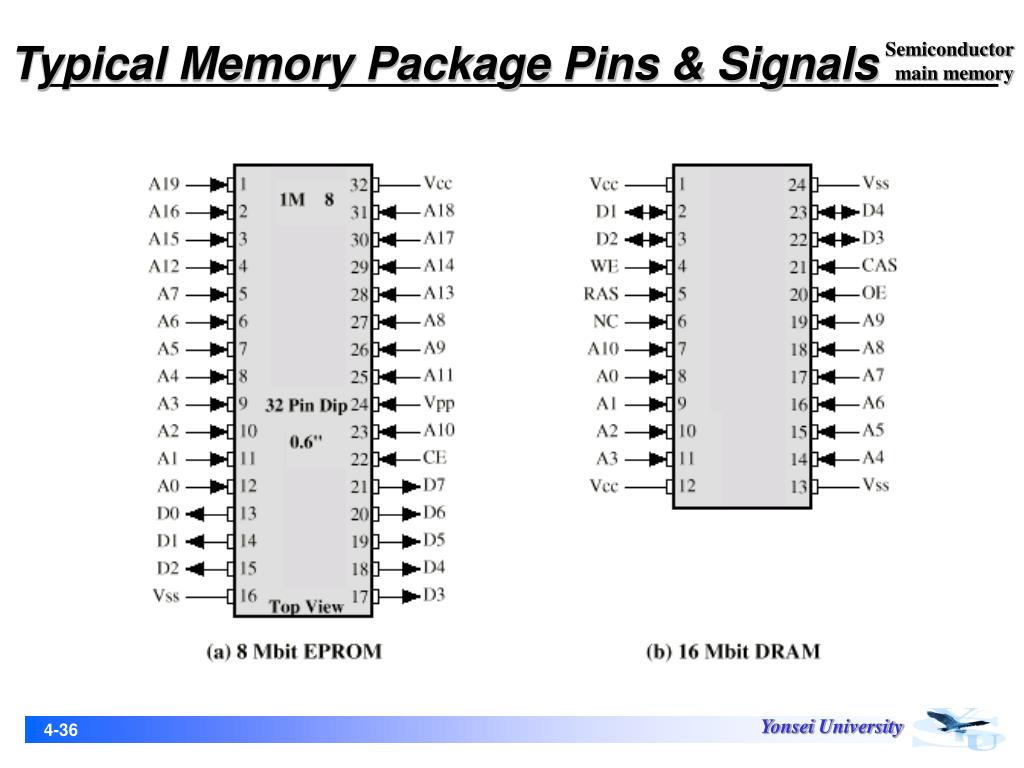

  36. Typical Memory Package Pins & Signals Semiconductor main memory

  37. Chip Packaging Semiconductor main memory • Pins support following signal lines • Address of word being accessed • For 1M words, a total of 20(220=1M) pins needed(A0-A19) • Data to be read out, consisting of 8lines(D0-D7) • Power supply to the chip(Vcc) • Ground pin(Vss) • Chip enable (CE)pin • Program voltage(Vpp) that supplied during programming(writing operation)

  38. Module Organization Semiconductor main memory • How a memory module consisting of 256K 8-bit words could be organization • For 256K word, 18-bit address needed and supplied to the module from external source

  39. 256 kbyte Memory Organization Semiconductor main memory

  40. Module Organization Semiconductor main memory • Possible organization of memory consisting of 1M word by 8bit per word • Need four columns of chips, each column containing 256K words arranged

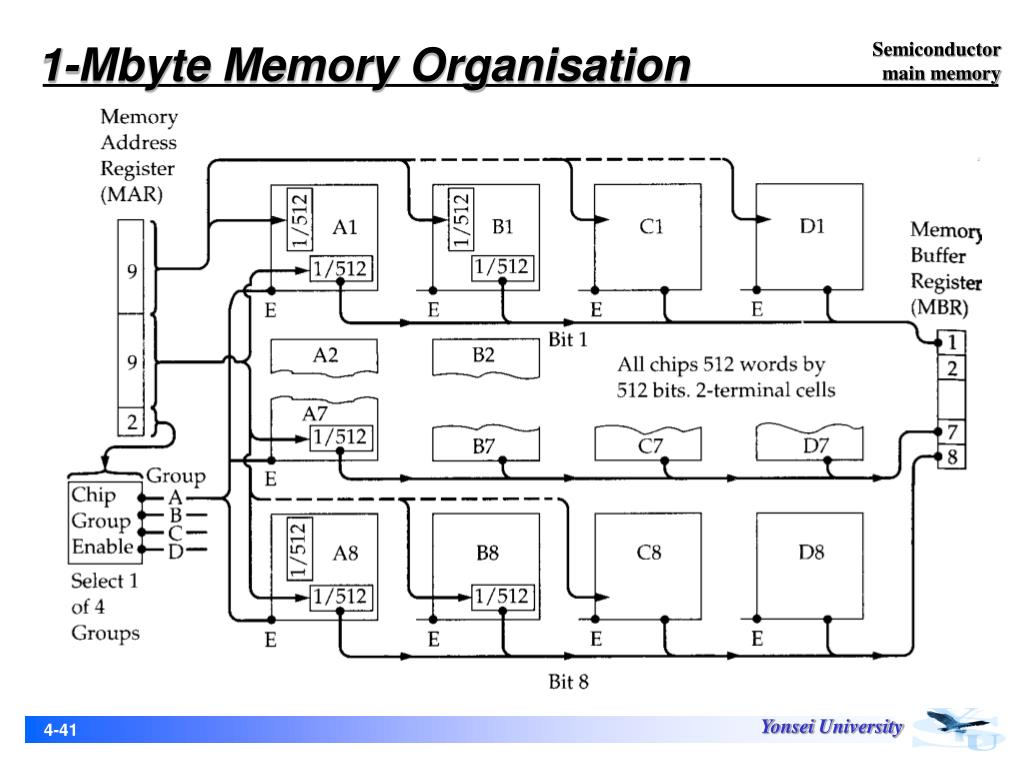

  41. 1-Mbyte Memory Organisation Semiconductor main memory

  42. Error Correction Semiconductor main memory • Hard Failure • Permanent physical defect • Memory cell or cell affected cannot reliably store data • Stuck at 0 or 1or switch erratically between 0 and 1 • Caused by harsh environmental abuse, manufacturing defects and wear • Soft Error • Random, non-destructive • No permanent damage to memory • Caused by power supply problems or alpha particles • Detected using Hamming error correcting code

  43. Error - Correcting Code Semiconductor main memory

  44. Error Correction Semiconductor main memory • If M-bit word of data stored, and code is K bit, then actual size of stored word is M+K bits • New set of K code generated from M data bits compared with fetched code bits • Comparison one of three results • No errors detected therefore fetched data bits sent out • An error detected and possible to correct error then data bit plus error-correction bits fed into corrector which produce corrected set of M bits set out • An error detected, but impossible to correct this condition reported

  45. Hamming Error-Correcting Code Semiconductor main memory

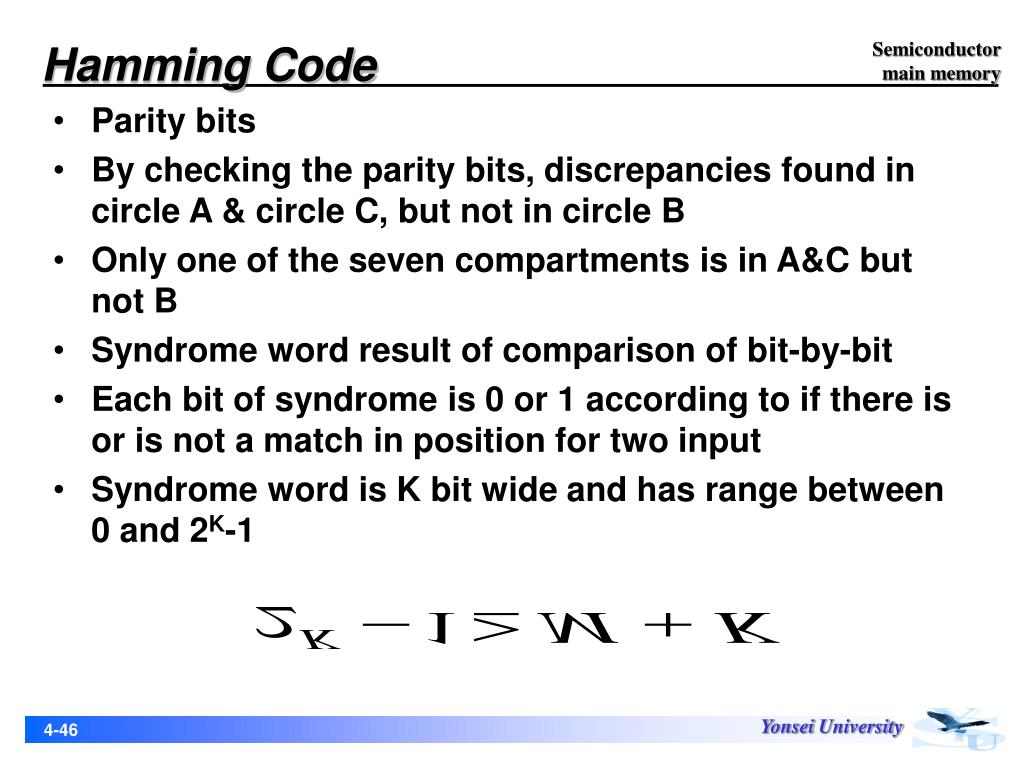

  46. Hamming Code Semiconductor main memory • Parity bits • By checking the parity bits, discrepancies found in circle A & circle C, but not in circle B • Only one of the seven compartments is in A&C but not B • Syndrome word result of comparison of bit-by-bit • Each bit of syndrome is 0 or 1 according to if there is or is not a match in position for two input • Syndrome word is K bit wide and has range between 0 and 2K-1

  47. Increase in Word Length Semiconductor main memory

  48. Error Correction Semiconductor main memory • To generate 4-bit syndrome with follow • If syndrome contains all 0s, no error detected • If syndrome contains one & only one bit set to 1, error occurred in one of 4 check bits. No correction needed • If syndrome contains more than one bit set to 1, numerical value of syndrome indicates position of data bit in error. This data bit inverted for correction • Position numbers are powers of 2 designated as check bits

  49. Layout of Data Bits & Check Bits Semiconductor main memory • To achieve these characteristics, data and check bits arranged into a 12-bit word as depicted • Bit position whose position numbers are powers of 2 designated as check bits

  50. Layout of Data Bits & Check Bits Semiconductor main memory
