Fibres and forensics

Slide 1

Fibres and forensics

Text and images by the Centre for Microscopy & Microanalysis, University of Queensland, Australia, August 2007


Fibres and forensics

Slide 2

Fibres:

Natural [animal & mineral]

Synthetic [human –made]

What we will cover:

1) Scanning Electron Microscopy (SEM).

2) How to identify fibres using the SEM.

3) The identification of a mystery fibre.


Fibres and forensics

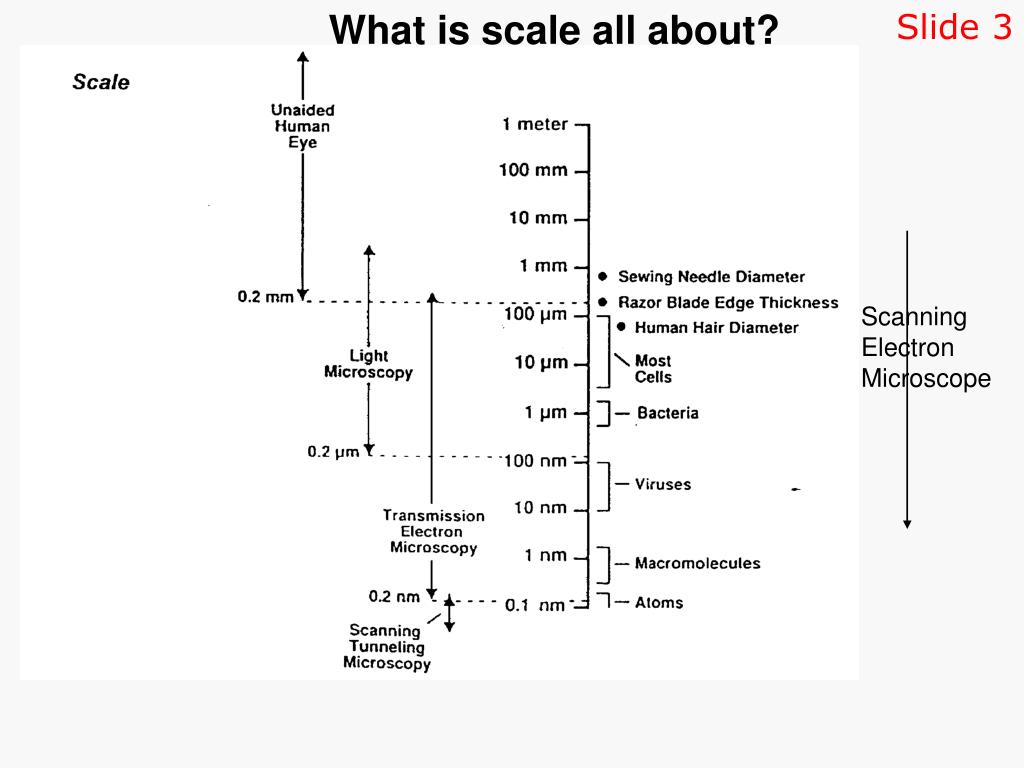

What is scale all about?

Slide 3

Scanning

Electron

Microscope


Fibres and forensics

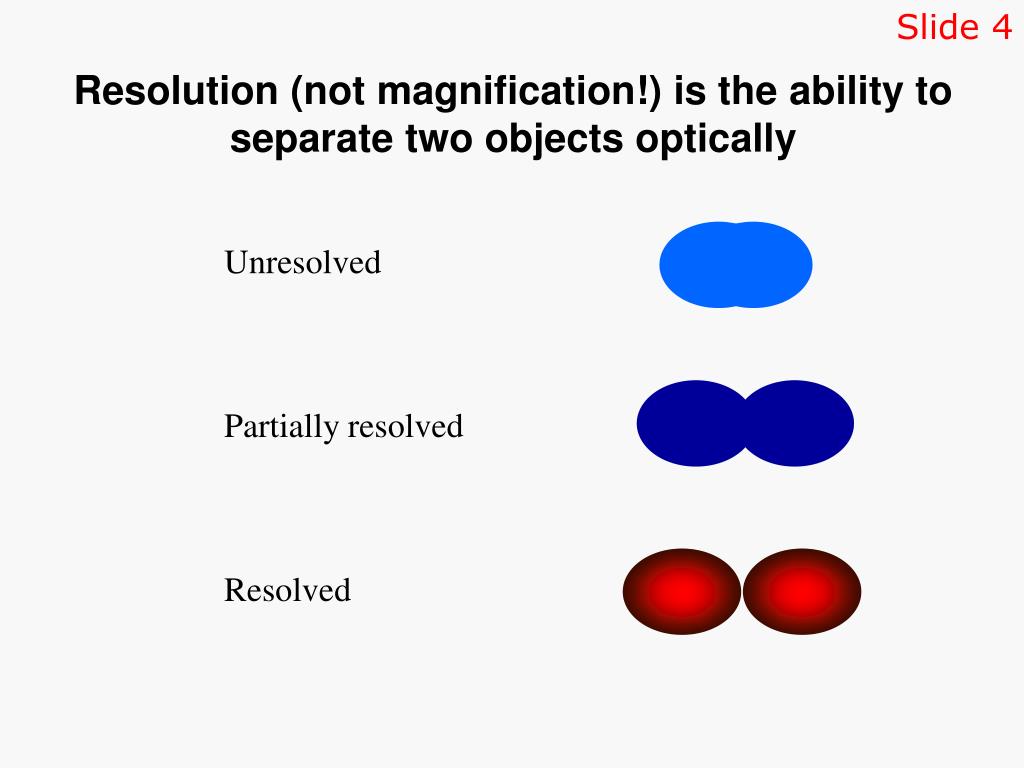

Slide 4

Resolution (not magnification!) is the ability to separate two objects optically

Unresolved

Partially resolved

Resolved


Fibres and forensics

Slide 5

With enough resolution we can magnify an object many millions of times and still see new detail

This is why we use electron microscopes

If you magnified your thumb nail just 10,000 times it would be about the size of a football pitch.

For example think of the size of Suncorp Stadium in Brisbane


Fibres and forensics

Slide 6

Electron beam produced here

Beam passes down the microscope column

Electron beam now tends to diverge

But is converged by electromagnetic lenses

Cross section of electromagnetic lenses

Sample

Diagram of Scanning Electron Microscope or SEM

in cross section - the electrons are in green


Fibres and forensics

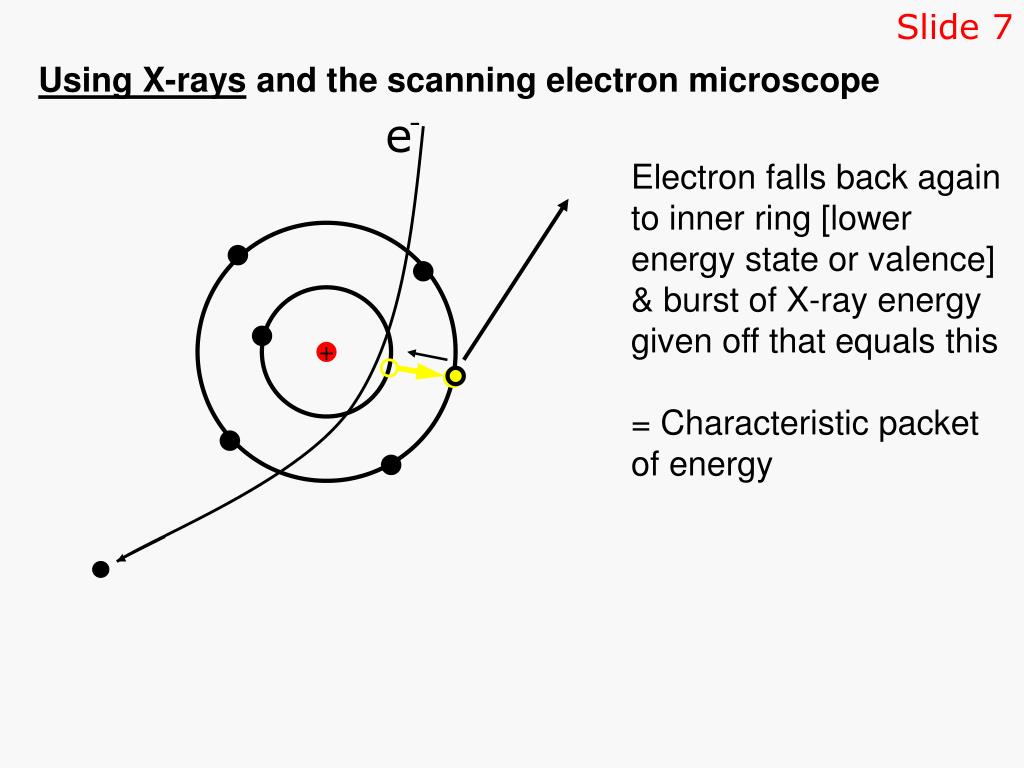

Slide 7

-

+

Using X-rays and the scanning electron microscope

e

Electron falls back again to inner ring [lower energy state or valence] & burst of X-ray energy given off that equals this

= Characteristic packet of energy


Fibres and forensics

What the X-rays tell us

Slide 8

Quantity of packets

Characteristic oxygen peak

Energy of packets

in thousands of electron volts come off atoms

Characteristic carbon peak

Characteristic chlorine peak


Fibres and forensics

Some definitions of fibre

Any slender, elongated, threadlike object or structure.

A natural (e.g. plant, animal or mineral) or synthetic filament, capable of being spun into yarn.

Commonly also used in:

Botany: One of the elongated, thick-walled cells that give strength and support to plant tissue.

Anatomy: Any of the filaments constituting the extracellular matrix of connective tissue. Any of various elongated cells or threadlike structures, especially a muscle fiber or a nerve fiber.

Slide 9


Fibres and forensics

Sample preparation for SEM

Slide 10

Sample

Adhesive

tape

Sample mount

12mm wide

Fibre samples are dried then mounted on 12mm metal stubs and coated with platinum.


Fibres and forensics

Slide 11


Fibres and forensics

Slide 12

The following images are of various natural (plant and animal) fibres and synthetic fibres imaged using a scanning electron microscope

Note: electrons provide monochrome images.


Fibres and forensics

A

Slide 13

Natural Fibres (Plant)

(A) Tissue paper at low magnification.

(B) Same tissue paper at higher magnification showing individual fibres.

How wide are these fibres?

B


Fibres and forensics

Slide 14


Fibres and forensics

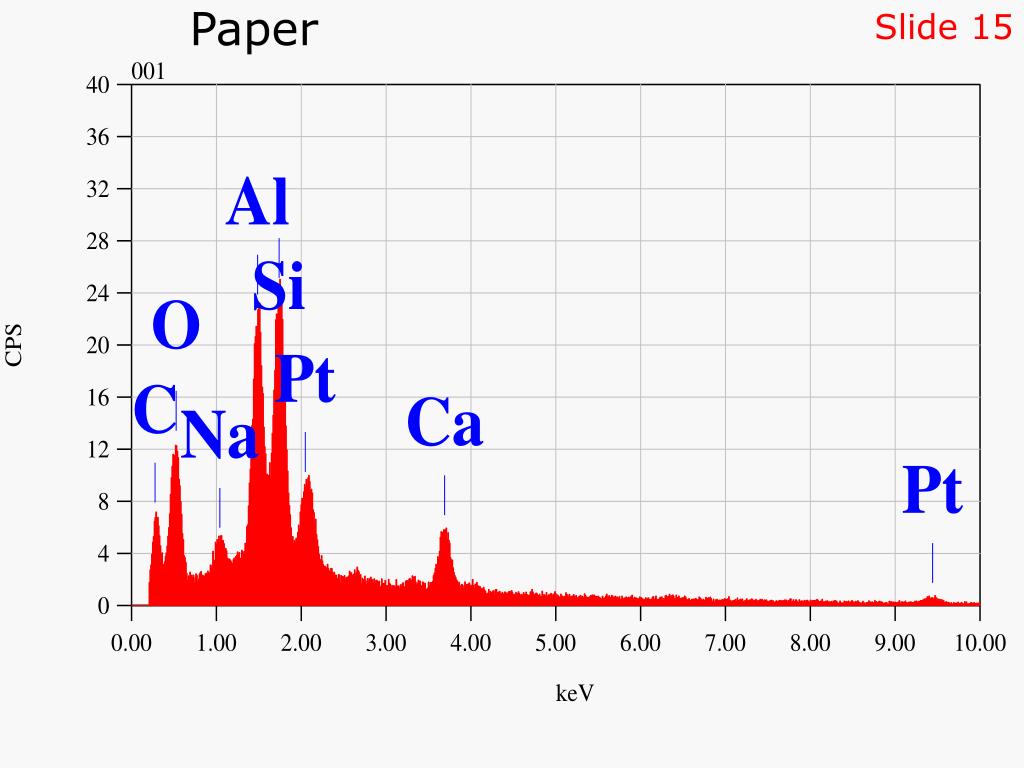

Paper

Slide 15


Fibres and forensics

Slide 16


Fibres and forensics

Not all hair is the same!

Rabbit hair (A) looks different from

human hair (B) under the SEM.

What are the differences?

Slide 17

A

B


Fibres and forensics

Natural fibres

(Animal)

(A) Human hair strands at low magnification.

(B) & (C) At higher magnifications showing surface detail (scales).

Slide 18


Fibres and forensics

Slide 19

Human hair


Fibres and forensics

Slide 20

Wool


Fibres and forensics

Slide 21


Fibres and forensics

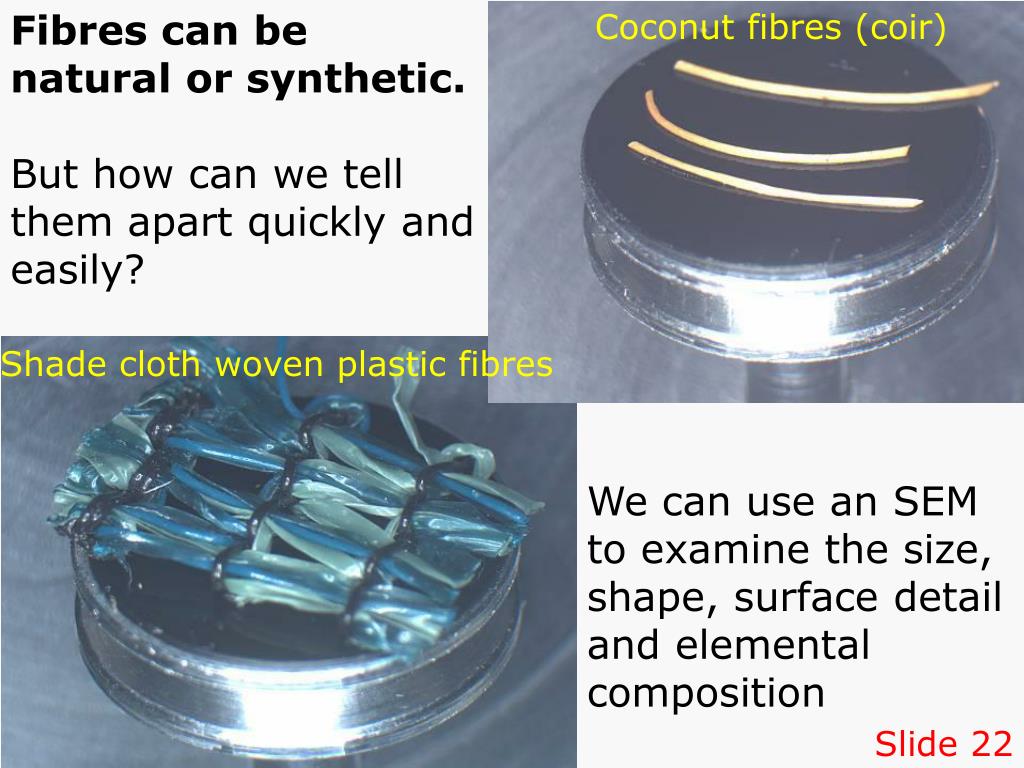

Fibres can be

natural or synthetic.

But how can we tell them apart quickly and easily?

Coconut fibres (coir)

Shade cloth woven plastic fibres

We can use an SEM to examine the size, shape, surface detail and elemental composition

Slide 22


Fibres and forensics

A

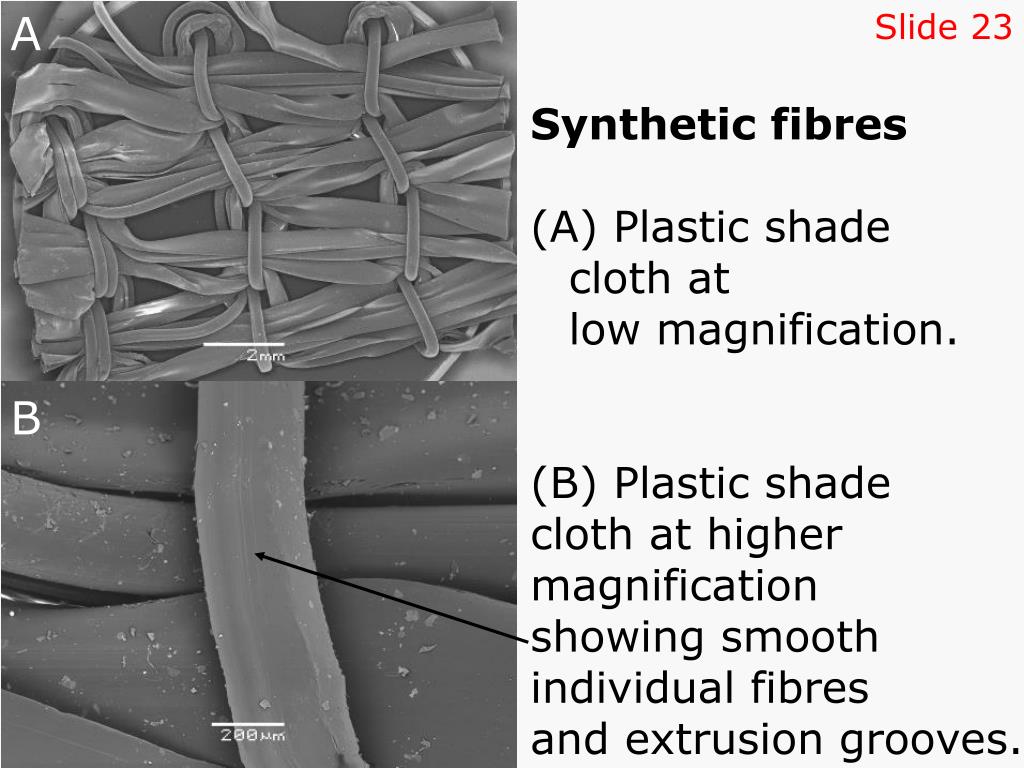

Slide 23

  • Synthetic fibres

  • Plastic shade

  • cloth at

  • low magnification.

  • (B) Plastic shade

  • cloth at higher

  • magnification

  • showing smooth

  • individual fibres

  • and extrusion grooves.

B


Fibres and forensics

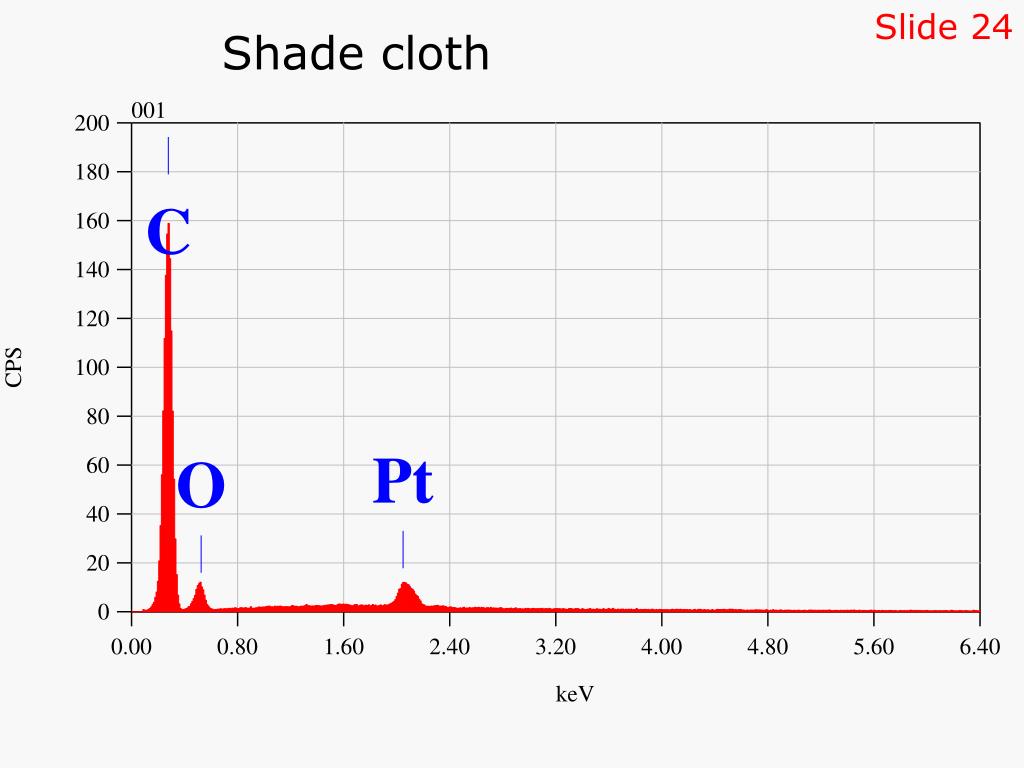

Slide 24

Shade cloth


Fibres and forensics

Synthetic fibre: velcro

Slide 25


Fibres and forensics

Slide 26

Velcro


Fibres and forensics

Slide 27


Fibres and forensics

A

Synthetic fibres

(A) Fibre glass at

low magnification.

(B) & (C) Fibre glass at progressively higher magnifications showing individual fibres.

B

Note smooth fibre surfaces

B

C

Slide 28


Fibres and forensics

A

Slide 29

Asbestos – why is it

dangerous to health?

B

How many fibres this wide

would fit across 1 mm ?

C


Fibres and forensics

Slide 30

Asbestos


Fibres and forensics

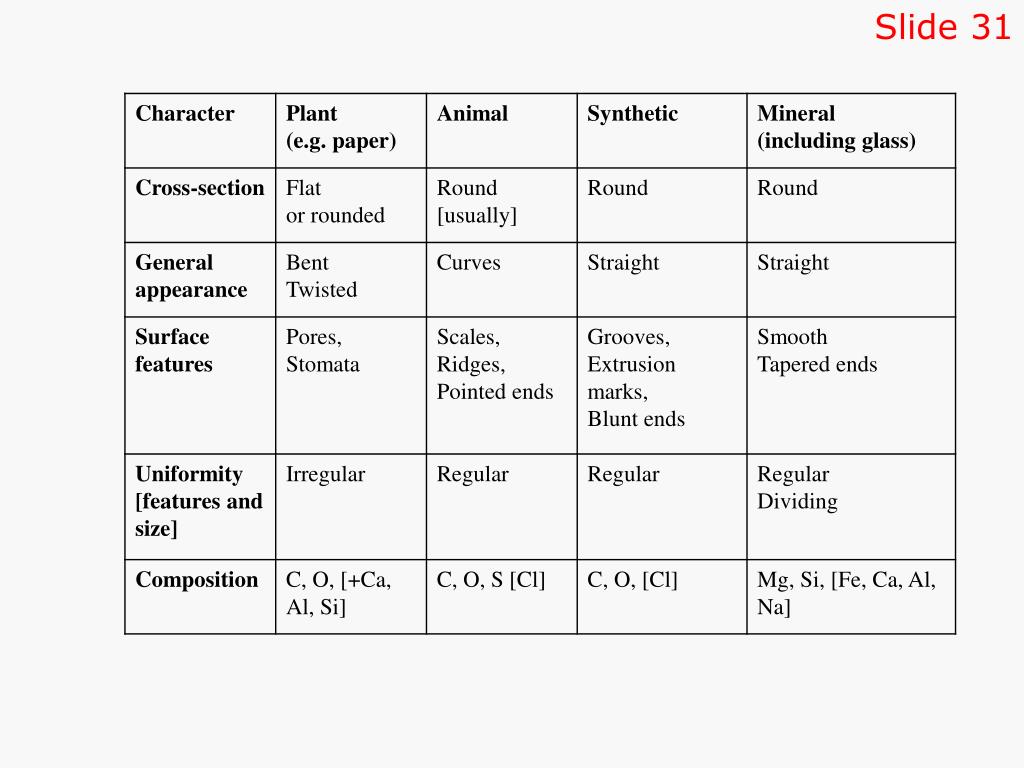

Slide 31


Fibres and forensics

Slide 32

Mystery fibre


Fibres and forensics

Slide 33


Fibres and forensics

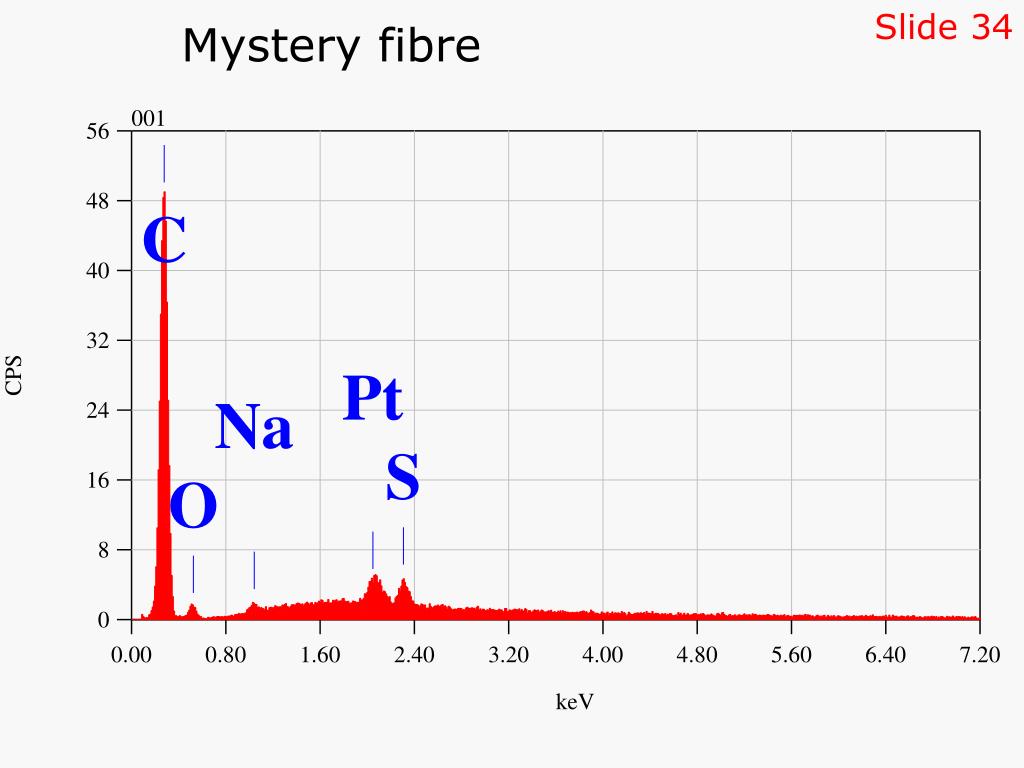

Slide 34

Mystery fibre


Fibres and forensics

Slide 35


Fibres and forensics

Some fibres

have very

characteristic

features

that are

seen easily

with the

SEM.

As seen by a light microscope

6 mm

As seen by an SEM !
