  1. 21st Annual Conference

  2. Living with Lead:Environmental Management of Active Small Arms Ranges Harley O’Hagan, NZ Defence Force Penny Kneebone, Tonkin & Taylor Ltd

  3. Overview • New Zealand Defence Force (Army, Navy, Air Force) • Joint Logistics & Support Organisation (JLSO) • Property Group • Environmental Services (8 civilian staff) • NZDF’s issues • 87,000ha estate • Sustainable land management • Services for Camps/Bases (water, waste, heat, etc) • Statutory planning • Consents & compliance • Environmental education • Contaminated sites

  4. Small arms ranges • Hand held firearms • Lead,copper, zinc, nickel, antimony • Ongoing source of contamination

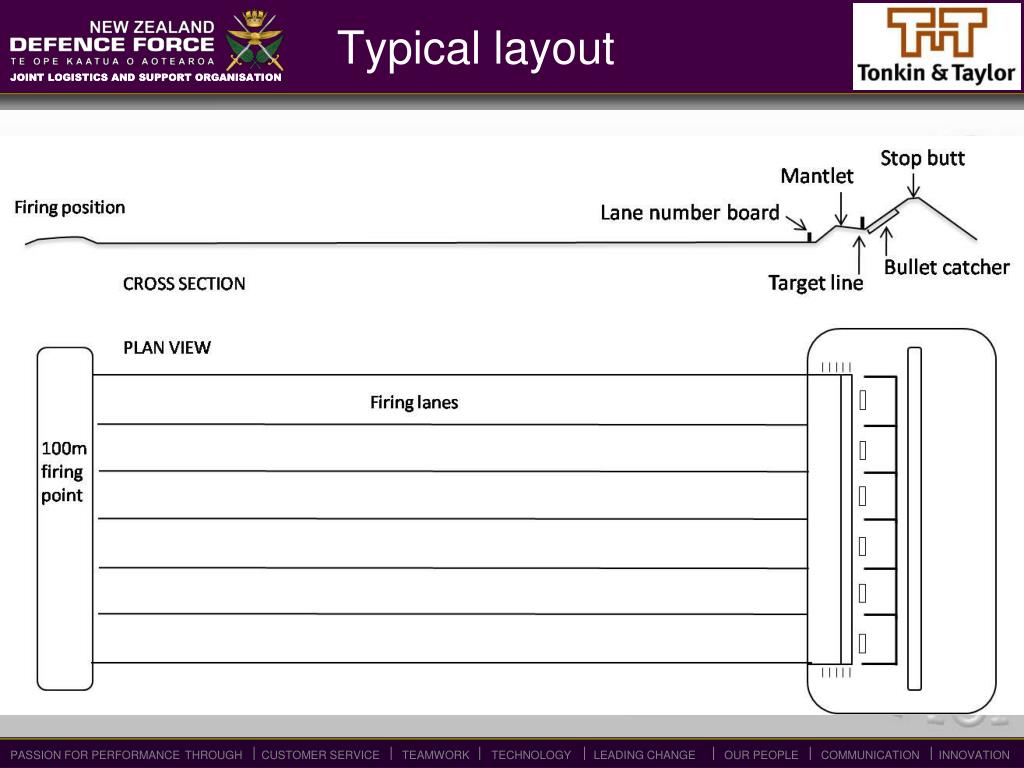

  5. Typical layout

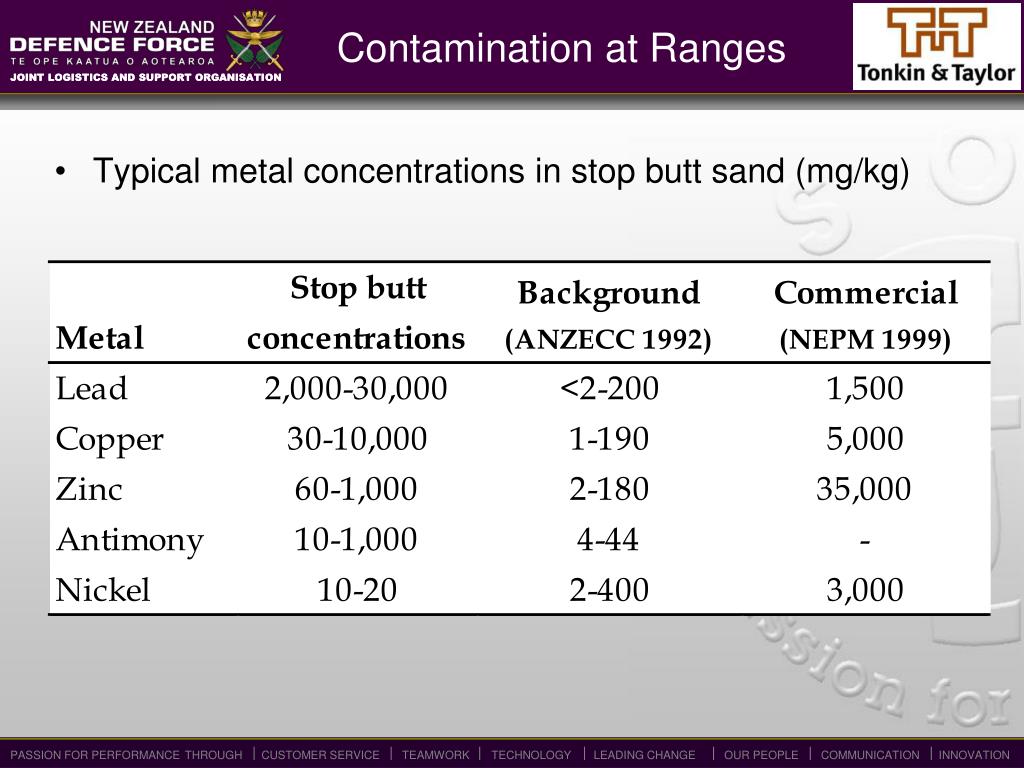

  6. Contamination at Ranges • Typical metal concentrations in stop butt sand (mg/kg)

  7. NZDF’s small arms ranges • 29 ranges • Coastal to central plateau • Various types, environmental settings

  8. Approach to management • Range similarities: overarching guideline • Differences: individual, site-specific plans

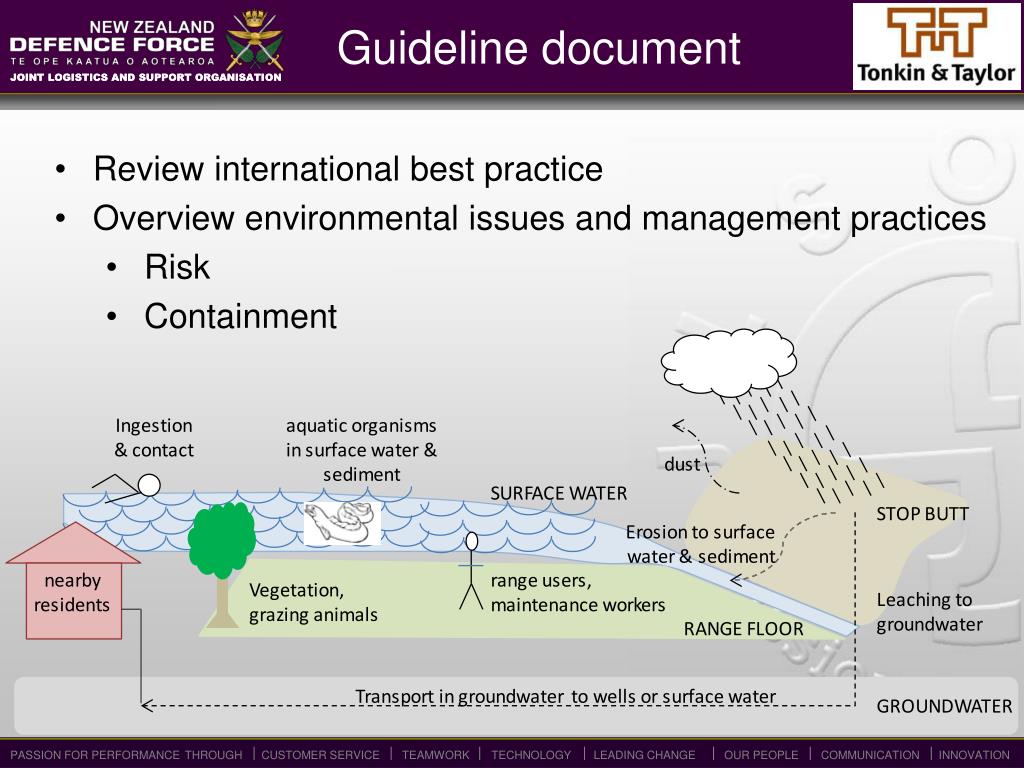

  9. Guideline document • Review international best practice • Overview environmental issues and management practices • Risk • Containment

  10. Containment • Stop butts • Operational controls

  11. Erosion control • Maintaining stable slopes • Minimising divots • Vegetated riparian buffer strips • Particle size distribution

  12. Stormwater and drainage • Cut off drains • Sedimentation basins

  13. Source control • Screening for safety • Small particles prone to leaching and transport • Best to contain source, rather than treat it • On-site disposal in engineered cells

  14. Site specific plans • Practical, user friendly, easy to read, minimise paperwork • Non-scientific language • Photographs and pictures • Clear, prescriptive instructions • Use existing maintenance systems • Consultation with users

  15. Home Valley Range upgrade • Waiouru Stream • Safety concerns • Frost heave • High intensity use

  16. Solutions implemented • Stop butts for containment • Free draining • Stormwater diversion • Collecting under-drainage • Capped stockpile • Culverting

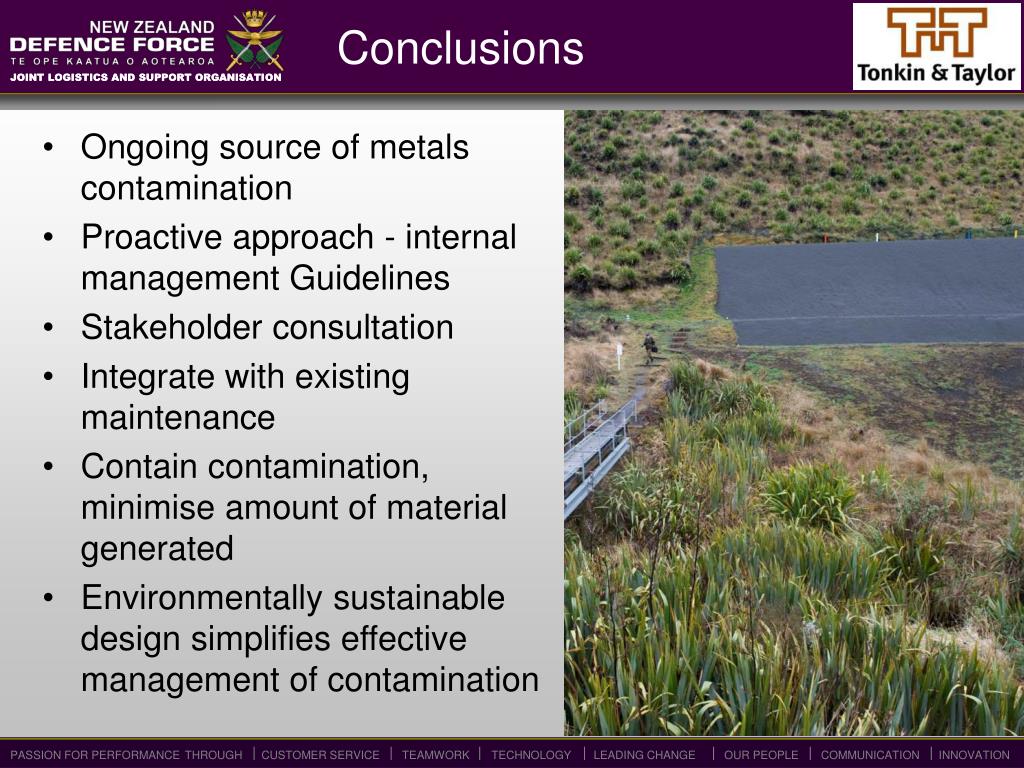

  17. Conclusions • Ongoing source of metals contamination • Proactive approach - internal management Guidelines • Stakeholder consultation • Integrate with existing maintenance • Contain contamination, minimise amount of material generated • Environmentally sustainable design simplifies effective management of contamination

  18. 21st Annual Conference
