The quick mo blade

The Quick-Mo Blade

Alex Roltgen


Parts

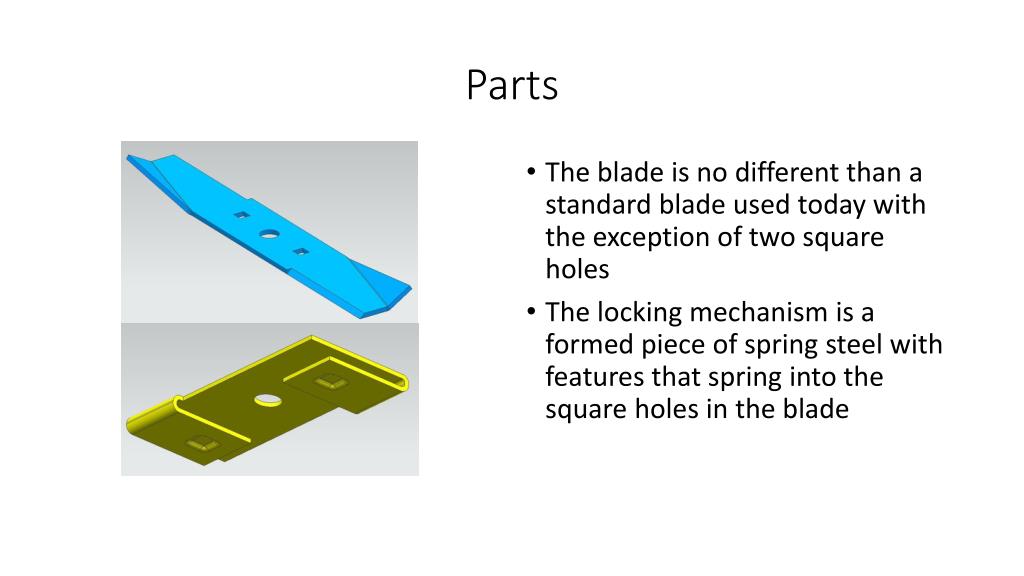

Parts

  • The blade is no different than a standard blade used today with the exception of two square holes

  • The locking mechanism is a formed piece of spring steel with features that spring into the square holes in the blade


Assembly
Assembly

  • The yellow spring steel lock is bolted to the spindle just as a blade would normally be

  • The spindle would have a rotate-stop so the yellow piece would be held from spinning

  • Position the center hole of the blade around the bolt head and rotate the blade clockwise


Advantages of the quick mo blade

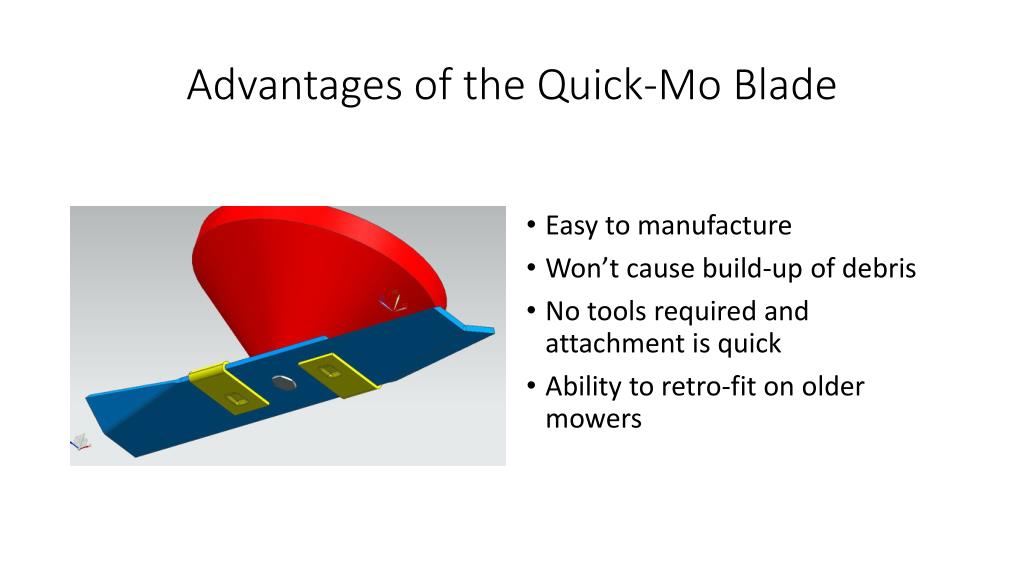

Advantages of the Quick-Mo Blade

  • Easy to manufacture

  • Won’t cause build-up of debris

  • No tools required and attachment is quick

  • Ability to retro-fit on older mowers
