Medium access control in wireless sensor networks

Medium Access Control in Wireless Sensor Networks

Wei Ye

USC Information Sciences Institute

Guest lecture for CS113, UCLA


Outline

Outline

  • Introduction to MAC

  • MAC attributes and trade-offs

  • Scheduled MAC protocols

  • Contention-based MAC protocols

  • Case studies

  • Summary

Guest lecture for CS113, UCLA


Introduction to mac

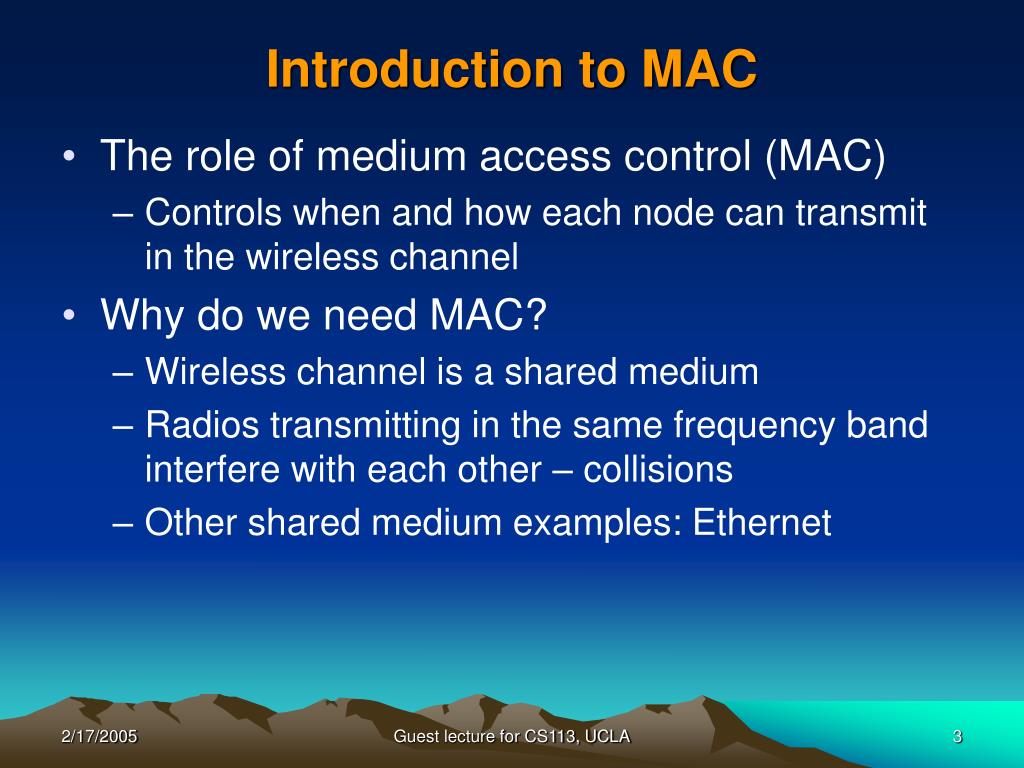

Introduction to MAC

  • The role of medium access control (MAC)

    • Controls when and how each node can transmit in the wireless channel

  • Why do we need MAC?

    • Wireless channel is a shared medium

    • Radios transmitting in the same frequency band interfere with each other – collisions

    • Other shared medium examples: Ethernet

Guest lecture for CS113, UCLA


Where is the mac

Application layer

Transport layer

End-to-end reliability, congestion control

Network layer

Routing

Link/MAC layer

Per-hop reliability, flow control, multiple access

Physical layer

Packet transmission and reception

Where Is the MAC?

  • Network model from Internet

  • A sublayer of the Link layer

    • Directly controls the radio

    • The MAC on each node only cares about its neighborhood

Guest lecture for CS113, UCLA


What s new in sensor networks

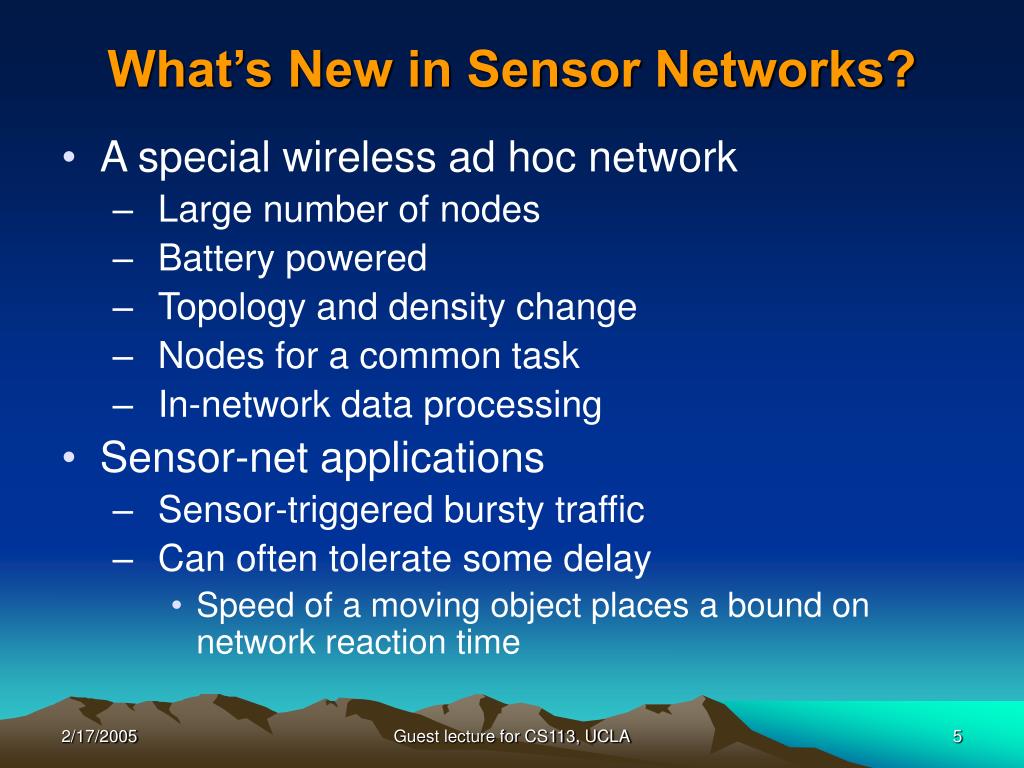

What’s New in Sensor Networks?

  • A special wireless ad hoc network

    • Large number of nodes

    • Battery powered

    • Topology and density change

    • Nodes for a common task

    • In-network data processing

  • Sensor-net applications

    • Sensor-triggered bursty traffic

    • Can often tolerate some delay

      • Speed of a moving object places a bound on network reaction time

Guest lecture for CS113, UCLA


Medium access control in wireless sensor networks

Next…

  • Introduction to MAC

  • MAC attributes and trade-offs

  • Scheduled MAC protocols

  • Contention-based MAC protocols

  • Case studies

  • Summary

Guest lecture for CS113, UCLA


Primary mac attributes

Primary MAC Attributes

  • Collision avoidance

    • Basic task of a MAC protocol

  • Energy efficiency

    • One of the most important attributes for sensor networks, since most nodes are battery powered

  • Scalability and adaptivity

    • Network size, node density and topology change

Guest lecture for CS113, UCLA


Other mac attributes

Other MAC Attributes

  • Channel utilization

    • How well is the channel used? Also called bandwidth utilization or channel capacity

  • Latency

    • Delay from sender to receiver; single hop or multi-hop

  • Throughput

    • The amount of data transferred from sender to receiver in unit time

  • Fairness

    • Can nodes share the channel equally?

Guest lecture for CS113, UCLA


Energy efficiency in mac design

Dominant factor

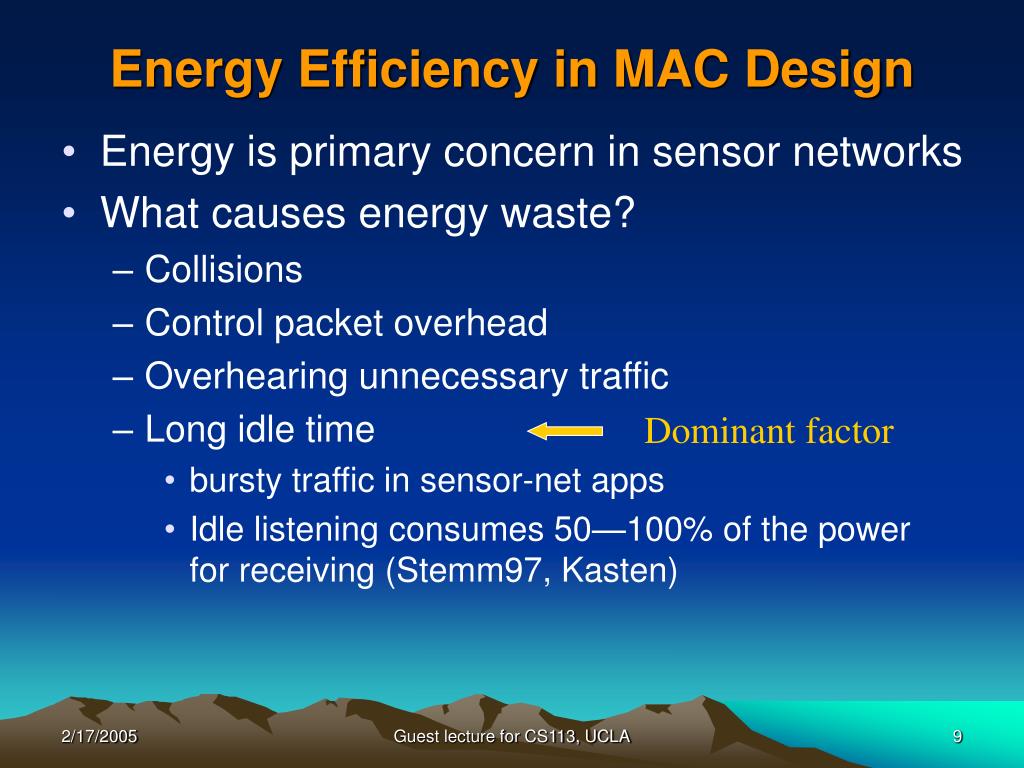

Energy Efficiency in MAC Design

  • Energy is primary concern in sensor networks

  • What causes energy waste?

    • Collisions

    • Control packet overhead

    • Overhearing unnecessary traffic

    • Long idle time

      • bursty traffic in sensor-net apps

      • Idle listening consumes 50—100% of the power for receiving (Stemm97, Kasten)

Guest lecture for CS113, UCLA


Classification of mac protocols

Classification of MAC Protocols

  • Schedule-based protocols

    • Schedule nodes onto different sub-channels

    • Examples: TDMA, FDMA, CDMA

  • Contention-based protocols

    • Nodes compete in probabilistic coordination

    • Examples: ALOHA (pure & slotted), CSMA

Guest lecture for CS113, UCLA


Medium access control in wireless sensor networks

Next…

  • Introduction to MAC

  • MAC attributes and trade-offs

  • Scheduled MAC protocols

  • Contention-based MAC protocols

  • Case studies

  • Summary

Guest lecture for CS113, UCLA


Scheduled protocols tdma

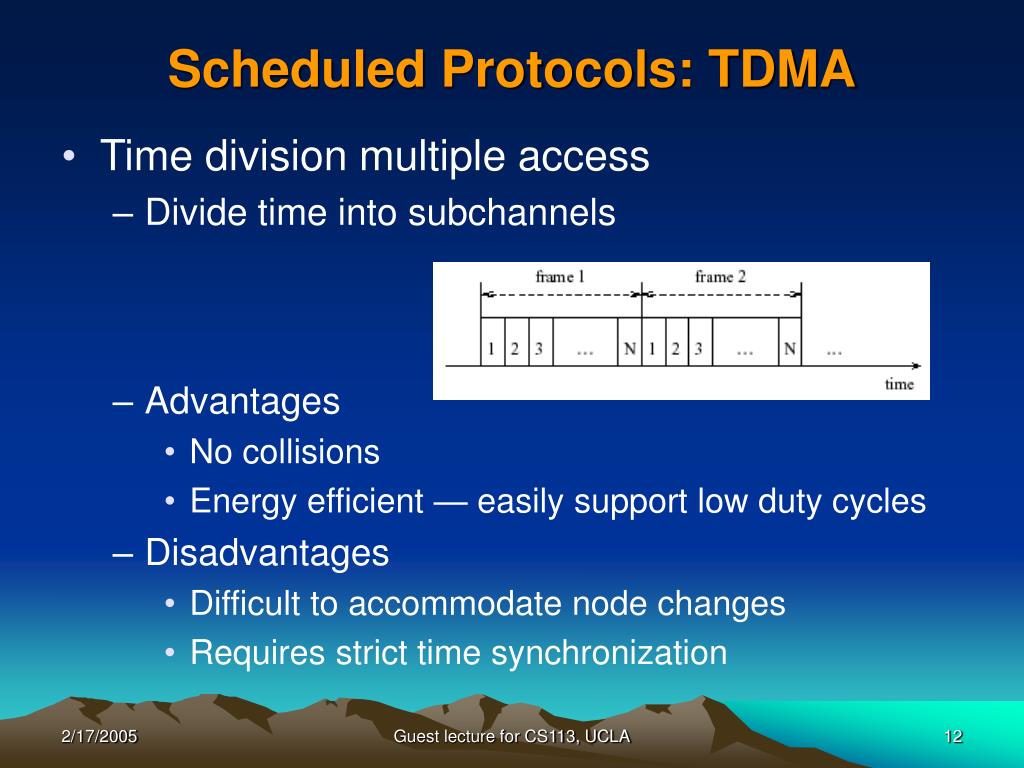

Scheduled Protocols: TDMA

  • Time division multiple access

    • Divide time into subchannels

    • Advantages

      • No collisions

      • Energy efficient — easily support low duty cycles

    • Disadvantages

      • Difficult to accommodate node changes

      • Requires strict time synchronization

Guest lecture for CS113, UCLA


Scheduled protocols polling

Scheduled Protocols: Polling

  • Master-slave configuration

    • The master node decides which slave can send by polling the corresponding slave

    • Only direct communication between the master and a slave

    • A special TDMA without pre-assigned slots

    • Examples

      • IEEE 802.11 infrastructure mode (CPF)

      • Bluetooth piconets

Guest lecture for CS113, UCLA


Scheduled protocols bluetooth

Scheduled Protocols: Bluetooth

  • Wireless personal area network (WPAN)

    • Short range, moderate bandwidth, low latency

    • IEEE 802.15.1 (MAC + PHY) is based on Bluetooth

  • Nodes are clustered into piconet

    • Each piconet has a master and up to 7 active slaves – scalability problem

    • The master polls each slave for transmission

    • CDMA among piconets

    • Multiple connected piconets form a scatternet

      • Difficult to handle inter-cluster communications

Guest lecture for CS113, UCLA


Scheduled protocols self organization

Scheduled Protocols: Self-Organization

  • By Sohrabi and Pottie

    • Have a pool of independent channels

      • Frequency band or spreading code

      • Potential interfering links select different channels

    • Talk to neighbors in different time slots

    • Sleep in unscheduled time slots

    • Looks like TDMA, but actual multiple access is accomplished by FDMA or CDMA

      • Any pair of two nodes can talk at the same time

    • Low bandwidth utilization

Guest lecture for CS113, UCLA


Scheduled protocols leach

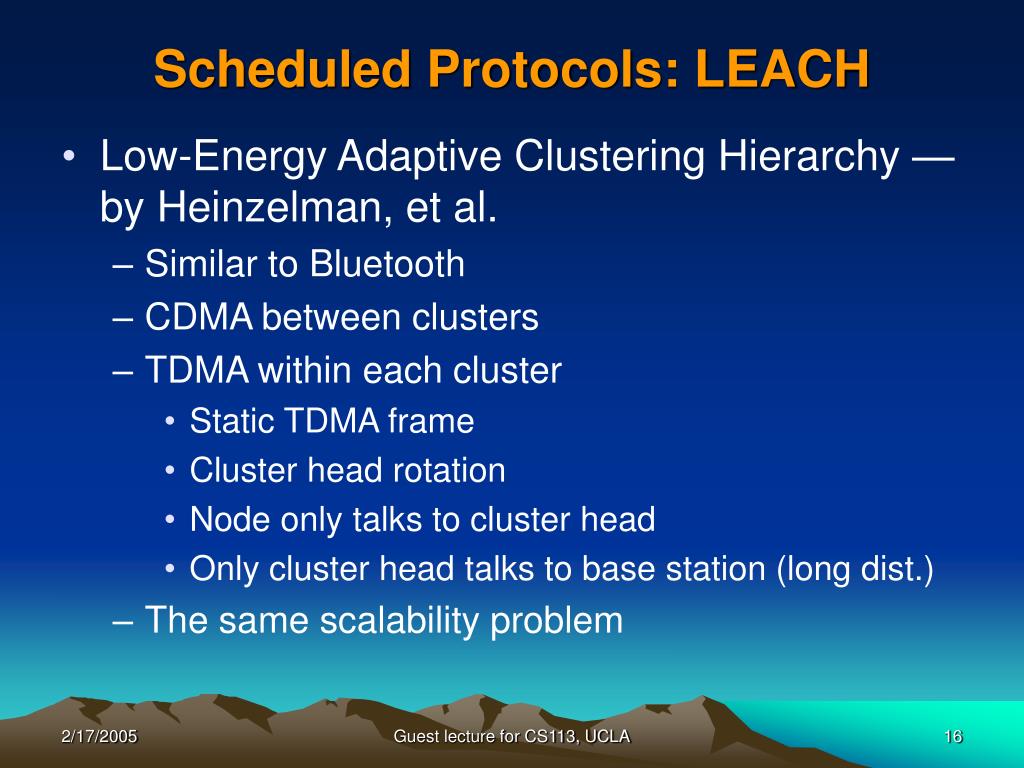

Scheduled Protocols: LEACH

  • Low-Energy Adaptive Clustering Hierarchy — by Heinzelman, et al.

    • Similar to Bluetooth

    • CDMA between clusters

    • TDMA within each cluster

      • Static TDMA frame

      • Cluster head rotation

      • Node only talks to cluster head

      • Only cluster head talks to base station (long dist.)

    • The same scalability problem

Guest lecture for CS113, UCLA


Medium access control in wireless sensor networks

Next…

  • Introduction to MAC

  • MAC attributes and trade-offs

  • Scheduled MAC protocols

  • Contention-based MAC protocols

  • Case studies

  • Summary

Guest lecture for CS113, UCLA


Contention protocols classics

Contention Protocols: Classics

  • ALOHA

    • Pure ALOHA: send when there is data

    • Slotted ALOHA: send on next available slot

    • Both rely on retransmission when there’s collision

  • CSMA — Carrier Sense Multiple Access

    • Listening (carrier sense) before transmitting

    • Send immediately if channel is idle

    • Backoff if channel is busy

      • non-persistent, 1-persistent and p-persistent

Guest lecture for CS113, UCLA


Contention protocols csma ca

c

a

b

Node a is hidden from c’s carrier sense

Contention Protocols: CSMA/CA

  • Hidden terminal problem

    • CSMA is not enough for multi-hop networks (collision at receiver)

  • CSMA/CA (CSMA with Collision Avoidance)

    • RTS/CTS handshake before send data

    • Node c will backoff when it hears b’s CTS

Guest lecture for CS113, UCLA


Contention protocols maca and macaw

Contention Protocols: MACA and MACAW

  • MACA — Multiple Access w/ Collision Avoidance

    • Based on CSMA/CA

    • Add duration field in RTS/CTS informing other node about their backoff time

  • MACAW

    • Improved over MACA

    • RTS/CTS/DATA/ACK

    • Fast error recovery at link layer

Guest lecture for CS113, UCLA


Contention protocols ieee 802 11

Contention Protocols: IEEE 802.11

  • IEEE 802.11 ad hoc mode (DCF)

    • Virtual and physical carrier sense (CS)

      • Network allocation vector (NAV), duration field

    • Binary exponential backoff

    • RTS/CTS/DATA/ACK for unicast packets

    • Broadcast packets are directly sent after CS

    • Fragmentation support

      • RTS/CTS reserve time for first (fragment + ACK)

      • First (fragment + ACK) reserve time for second…

      • Give up transmission when error happens

Guest lecture for CS113, UCLA


Contention protocols ieee 802 11 cont

Contention Protocols: IEEE 802.11 (cont.)

  • Power save (PS) mode in IEEE 802.11 DCF

    • Assumption: all nodes are synchronized and can hear each other (single hop)

    • Nodes in PS mode periodically listen for beacons & ATIMs (ad hoc traffic indication messages)

    • Beacon: timing and physical layer parameters

      • All nodes participate in periodic beacon generation

    • ATIM: tell nodes in PS mode to stay awake for Rx

      • ATIM follows a beacon sent/received

      • Unicast ATIM needs acknowledgement

      • Broadcast ATIM wakes up all nodes — no ACK

Guest lecture for CS113, UCLA


Contention protocols ieee 802 11 cont1

Contention Protocols: IEEE 802.11 (cont.)

  • Unicast example of PS mode in 802.11 DCF

Guest lecture for CS113, UCLA


Contention protocols tx rate control

Contention Protocols: Tx Rate Control

  • By Woo and Culler

    • Based on a special network setup

      • A base station tries to collect data equally from all sensors in the network

    • CSMA + adaptive rate control

    • Promote fair bandwidth allocation to all sensors

      • Nodes close to the base station forward more traffic, and have less chances to send their own data

    • Helps in congestion avoidance

Guest lecture for CS113, UCLA


Contention protocols piconet

Contention Protocols: Piconet

  • By Bennett, Clarke, et al.

    • Not the same piconet in Bluetooth

    • Low duty-cycle operation — energy efficient

      • Sleep for 30s, beacon, and listen for a while

      • Sending node needs to listen for receiver’s beacon first, then

      • CSMA before sending data

    • May wait for long time before sending

Guest lecture for CS113, UCLA


Contention protocols pamas

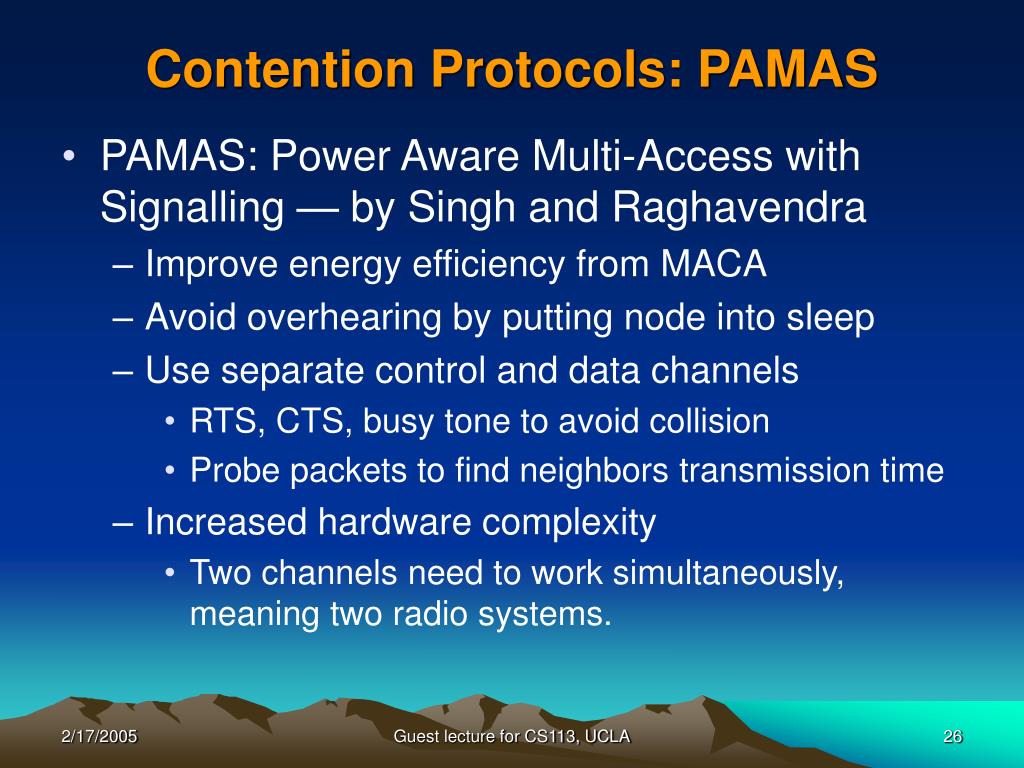

Contention Protocols: PAMAS

  • PAMAS: Power Aware Multi-Access with Signalling — by Singh and Raghavendra

    • Improve energy efficiency from MACA

    • Avoid overhearing by putting node into sleep

    • Use separate control and data channels

      • RTS, CTS, busy tone to avoid collision

      • Probe packets to find neighbors transmission time

    • Increased hardware complexity

      • Two channels need to work simultaneously, meaning two radio systems.

Guest lecture for CS113, UCLA


Contention protocols zigbee

Contention Protocols: ZigBee

  • Based on IEEE 802.15.4 MAC and PHY

    • Three types devices

      • Network Coordinator

      • Full Function Device (FFD)

        • Can talk to any device, more computing power

      • Reduced Function Device (RFD)

        • Can only talk to a FFD, simple for energy conservation

    • CSMA/CA with optional ACKs on data packets

    • Optional beacons with superframes

    • Optional guaranteed time slots (GTS), which supports contention-free access

Guest lecture for CS113, UCLA


Contention protocols zigbee cont

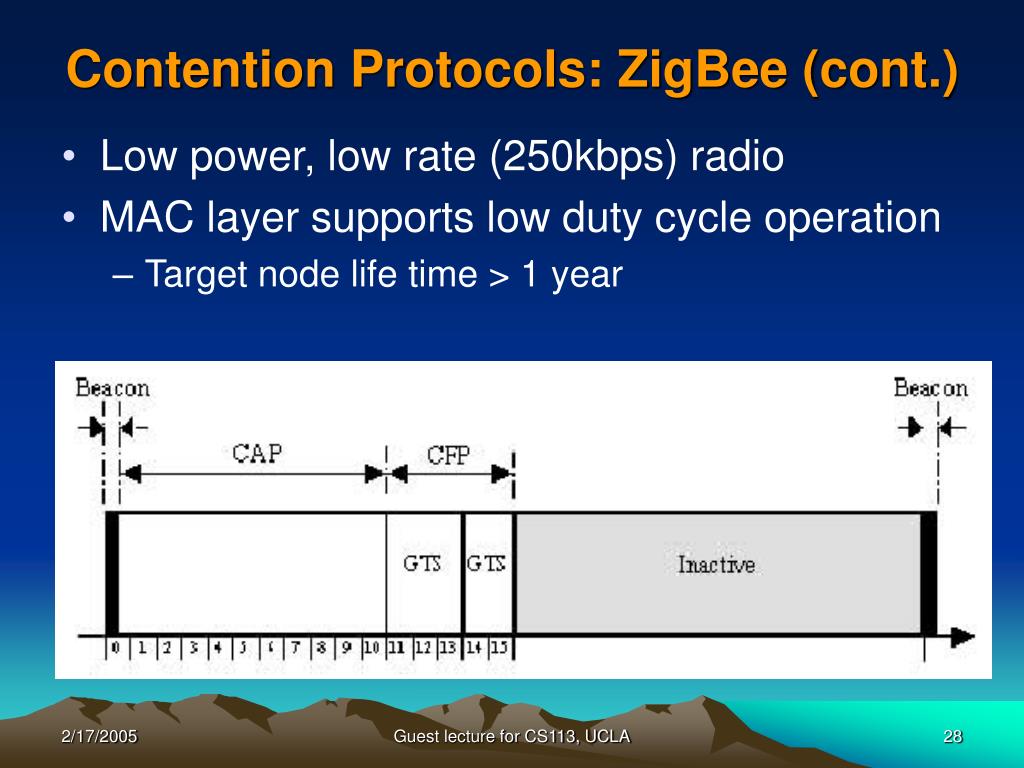

Contention Protocols: ZigBee (cont.)

  • Low power, low rate (250kbps) radio

  • MAC layer supports low duty cycle operation

    • Target node life time > 1 year

Guest lecture for CS113, UCLA


Medium access control in wireless sensor networks

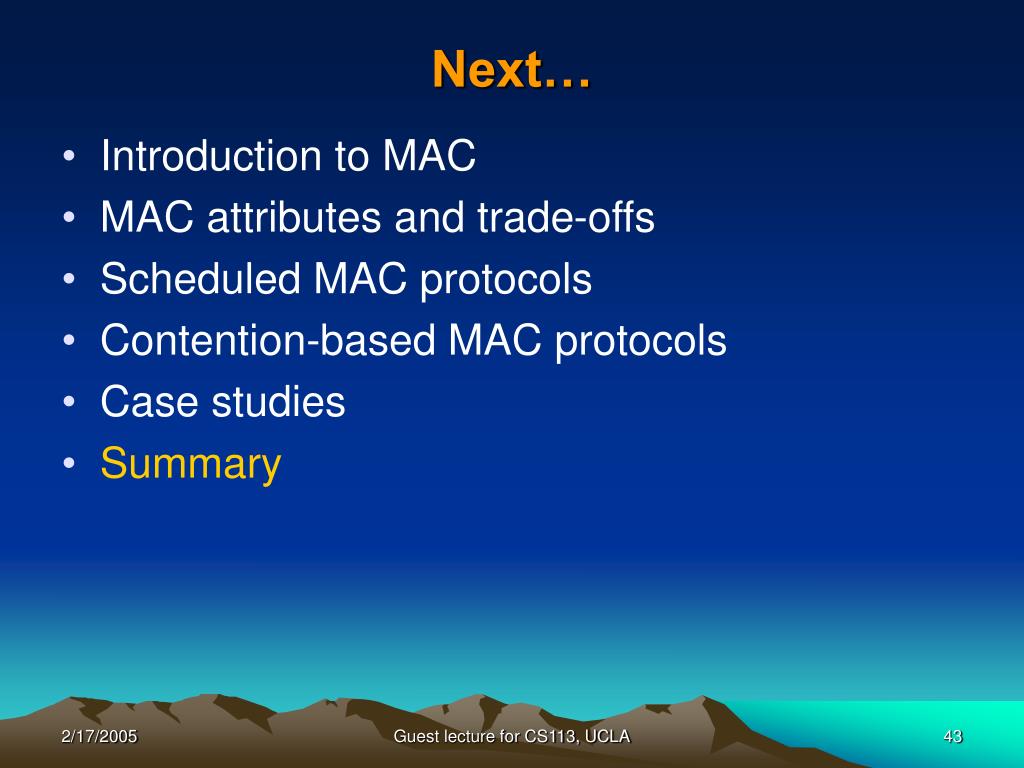

Next…

  • Introduction to MAC

  • MAC attributes and trade-offs

  • Scheduled MAC protocols

  • Contention-based MAC protocols

  • Case studies

  • Summary

Guest lecture for CS113, UCLA


Case study 1 s mac

Latency

Fairness

Energy

Case Study 1: S-MAC

  • By Ye, Heidemann and Estrin

  • Tradeoffs

  • Major components in S-MAC

    • Periodic listen and sleep

    • Collision avoidance

    • Overhearing avoidance

    • Massage passing

Guest lecture for CS113, UCLA


Coordinated sleeping

sleep

listen

listen

sleep

Energy

Latency

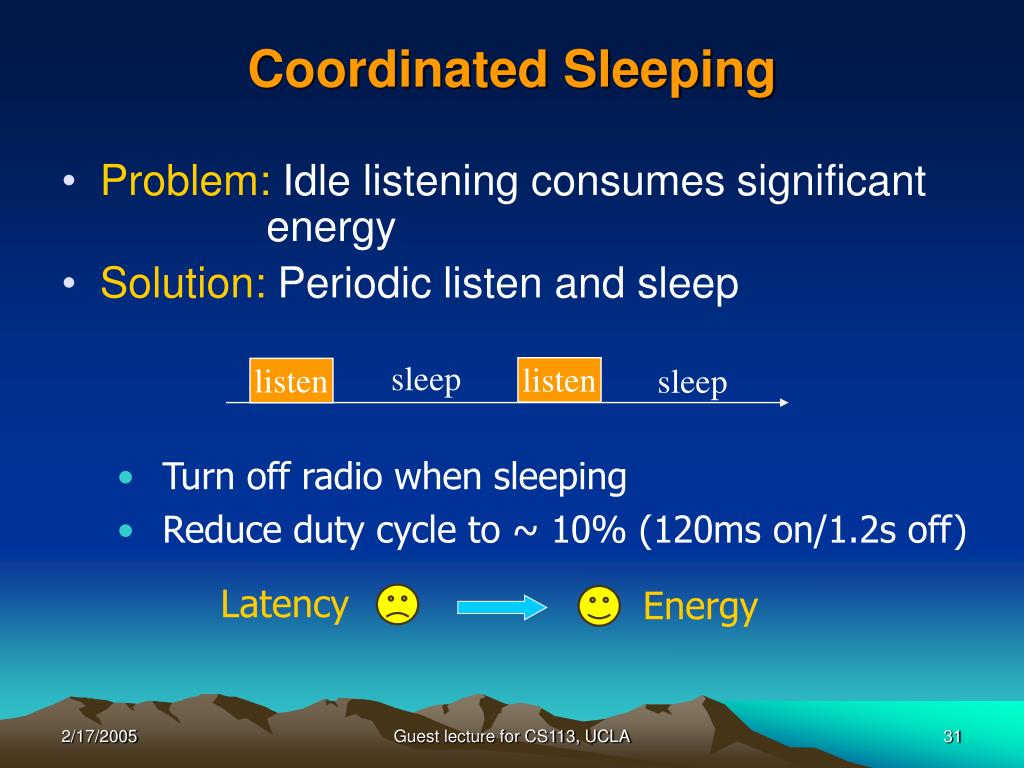

Coordinated Sleeping

  • Problem: Idle listening consumes significant energy

  • Solution: Periodic listen and sleep

  • Turn off radio when sleeping

  • Reduce duty cycle to ~ 10% (120ms on/1.2s off)

Guest lecture for CS113, UCLA


Coordinated sleeping1

Node 1

sleep

sleep

listen

listen

Node 2

sleep

sleep

listen

listen

Schedule 1

Schedule 2

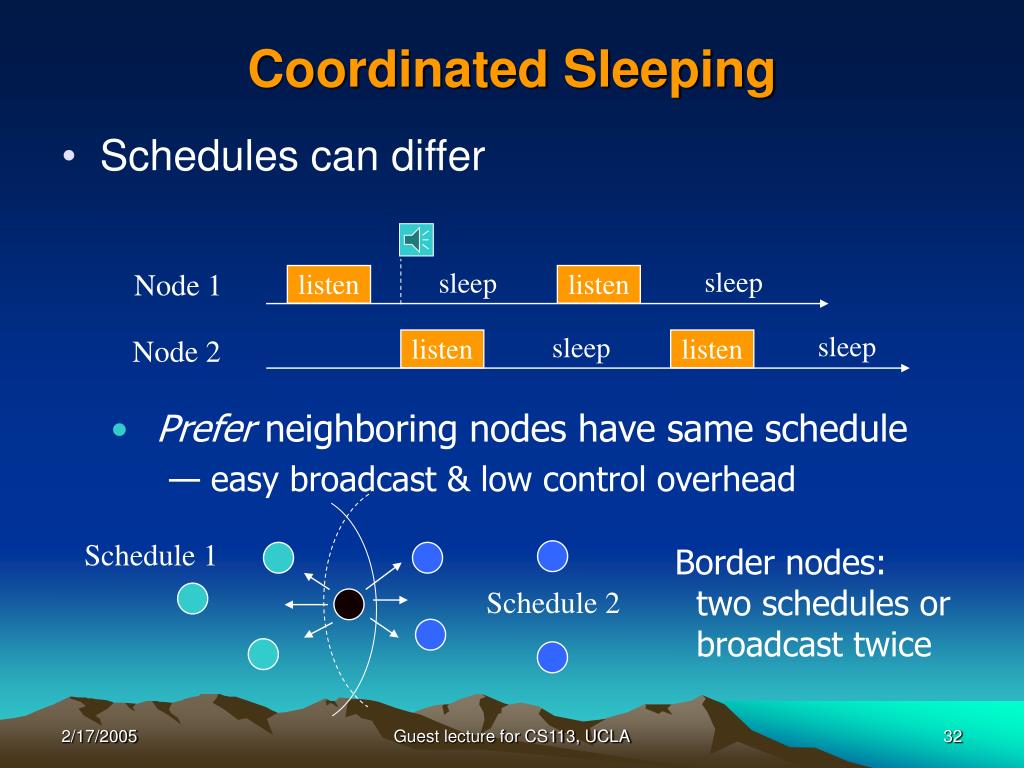

Coordinated Sleeping

  • Schedules can differ

  • Prefer neighboring nodes have same schedule

    • — easy broadcast & low control overhead

Border nodes:

two schedules or

broadcast twice

Guest lecture for CS113, UCLA


Coordinated sleeping2

Coordinated Sleeping

  • Schedule Synchronization

    • New node tries to follow an existing schedule

    • Remember neighbors’ schedules

      — to know when to send to them

    • Each node broadcasts its schedule every few periods of sleeping and listening

    • Re-sync when receiving a schedule update

  • Periodic neighbor discovery

    • Keep awake in a full sync interval over long periods

Guest lecture for CS113, UCLA


Coordinated sleeping3

RTS

CTS

CTS

listen

listen

t1

t2

Coordinated Sleeping

  • Adaptive listening

    • Reduce multi-hop latency due to periodic sleep

    • Wake up for a short period of time at end of each transmission

2

4

1

3

listen

  • Reduce latency by at least half

Guest lecture for CS113, UCLA


Collision avoidance

Collision Avoidance

  • S-MAC is based on contention

  • Similar to IEEE 802.11 ad hoc mode (DCF)

    • Physical and virtual carrier sense

    • Randomized backoff time

    • RTS/CTS for hidden terminal problem

    • RTS/CTS/DATA/ACK sequence

Guest lecture for CS113, UCLA


Overhearing avoidance

Overhearing Avoidance

  • Problem: Receive packets destined to others

  • Solution: Sleep when neighbors talk

    • Basic idea from PAMAS (Singh, Raghavendra 1998)

    • But we only use in-channel signaling

  • Who should sleep?

    • All immediate neighbors of sender and receiver

  • How long to sleep?

    • The duration field in each packet informs other nodes the sleep interval

Guest lecture for CS113, UCLA


Message passing

Energy

Msg-level latency

Fairness

Message Passing

  • Problem: Sensor net in-network processing requires entire message

  • Solution: Don’t interleave different messages

    • Long message is fragmented & sent in burst

    • RTS/CTS reserve medium for entire message

    • Fragment-level error recovery — ACK

      — extend Tx time and re-transmit immediately

  • Other nodes sleep for whole message time

Guest lecture for CS113, UCLA


Implementation and experiments

Platform: Mica Motes

Topology: 10-hop linear network

S-MAC saved a lot of energy compared with a MAC without sleep

Energy consumption at different traffic load

30

25

No sleep cycles

20

Energy consumption (J)

15

10

10% duty cycle without adaptive listen

5

10% duty cycle with adaptive listen

0

0

2

4

6

8

10

Message inter-arrival period (S)

Implementation and Experiments

Guest lecture for CS113, UCLA


Case study 2 b mac

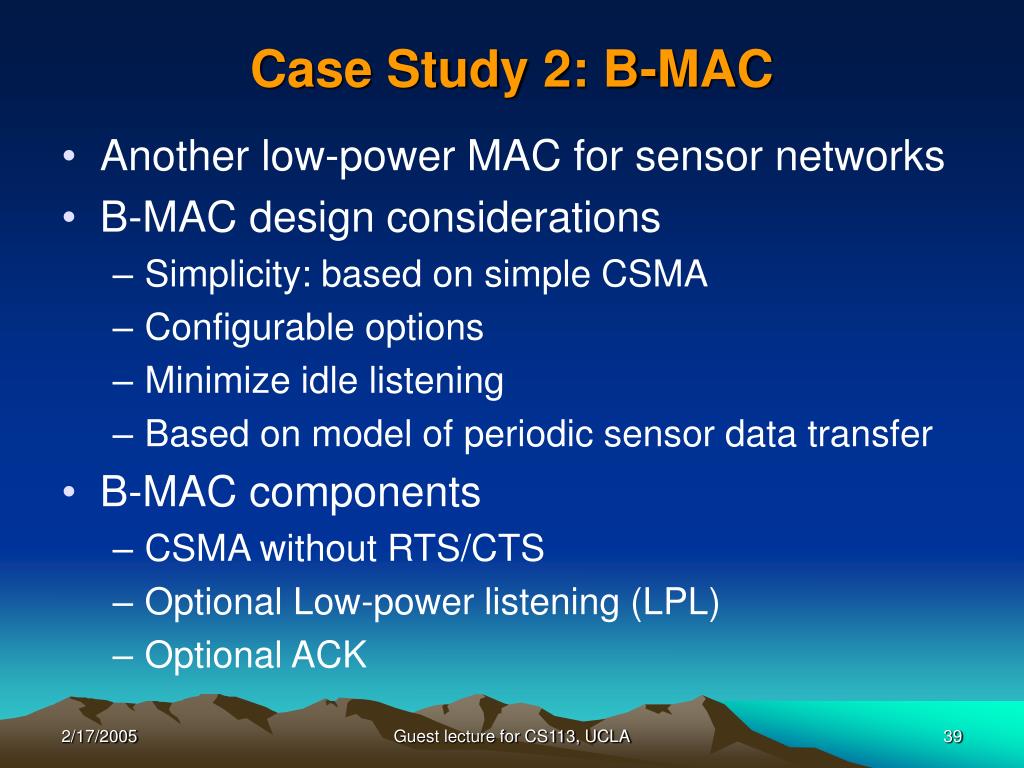

Case Study 2: B-MAC

  • Another low-power MAC for sensor networks

  • B-MAC design considerations

    • Simplicity: based on simple CSMA

    • Configurable options

    • Minimize idle listening

    • Based on model of periodic sensor data transfer

  • B-MAC components

    • CSMA without RTS/CTS

    • Optional Low-power listening (LPL)

    • Optional ACK

Guest lecture for CS113, UCLA


Low power listening

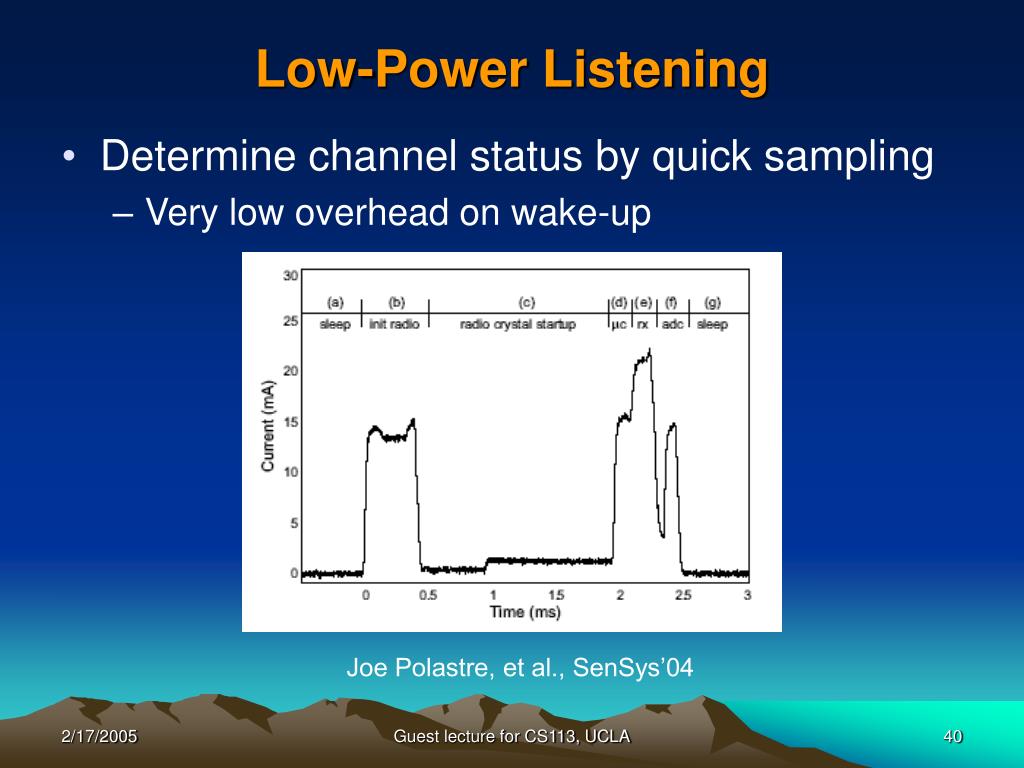

Low-Power Listening

  • Determine channel status by quick sampling

    • Very low overhead on wake-up

Joe Polastre, et al., SenSys’04

Guest lecture for CS113, UCLA


Low duty cycle with lpl

Low Duty Cycle with LPL

  • Nodes periodically sleep and perform LPL

  • Nodes do not synchronized on listen time

  • Sender uses a long preamble before each packet to wake up the receiver

  • Shift most burden to the sender

Guest lecture for CS113, UCLA


Comparison of s mac and b mac

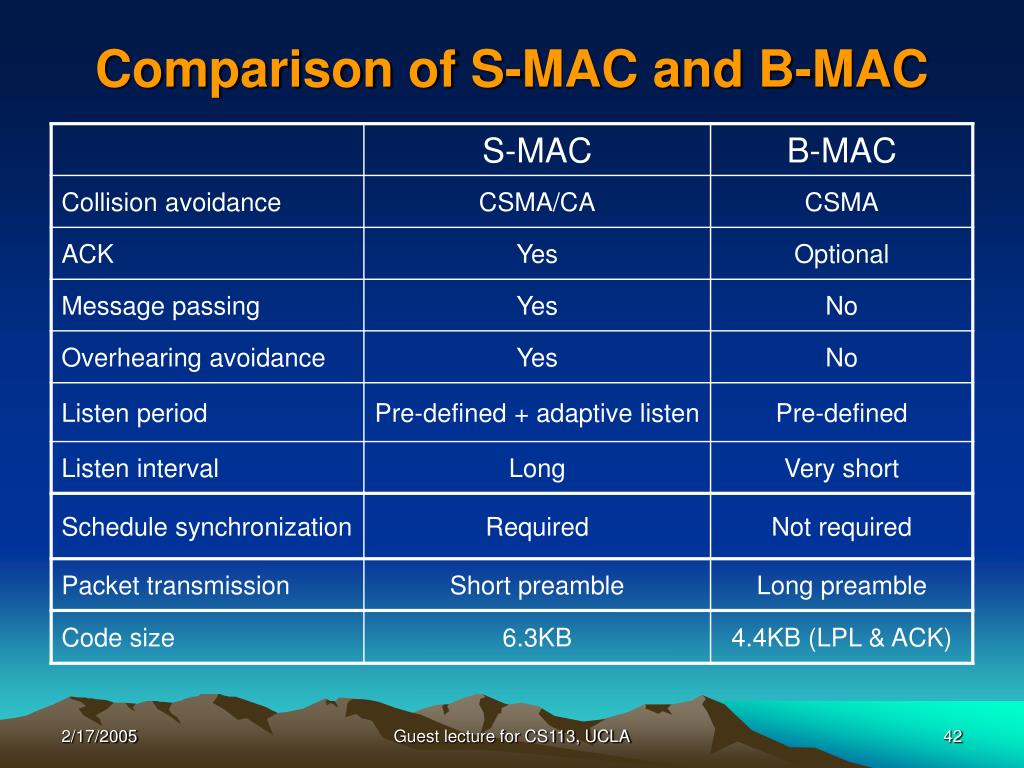

Comparison of S-MAC and B-MAC

Guest lecture for CS113, UCLA


Medium access control in wireless sensor networks

Next…

  • Introduction to MAC

  • MAC attributes and trade-offs

  • Scheduled MAC protocols

  • Contention-based MAC protocols

  • Case studies

  • Summary

Guest lecture for CS113, UCLA


Mac design for sensor networks

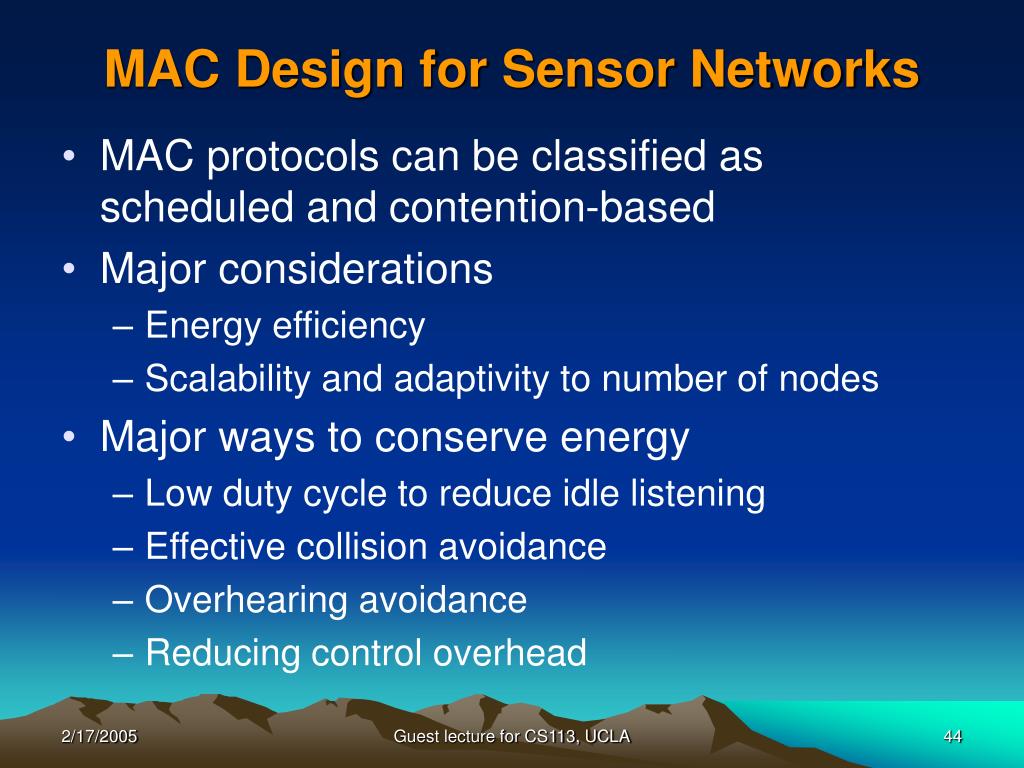

MAC Design for Sensor Networks

  • MAC protocols can be classified as scheduled and contention-based

  • Major considerations

    • Energy efficiency

    • Scalability and adaptivity to number of nodes

  • Major ways to conserve energy

    • Low duty cycle to reduce idle listening

    • Effective collision avoidance

    • Overhearing avoidance

    • Reducing control overhead

Guest lecture for CS113, UCLA


Scheduled vs contention protocols

Scheduled vs. Contention Protocols

Guest lecture for CS113, UCLA


Medium access control in wireless sensor networks

Questions?

Guest lecture for CS113, UCLA


  • Login
