Ventilation ventichape

VENTILATION VENTICHAPE

Product presentation


Ventilation ventichape

Let us start with some practical examples, home ventilation with Ventichape


Ventilation ventichape

  • Duct

    • 200x60

    • 200x80


Ventilation ventichape

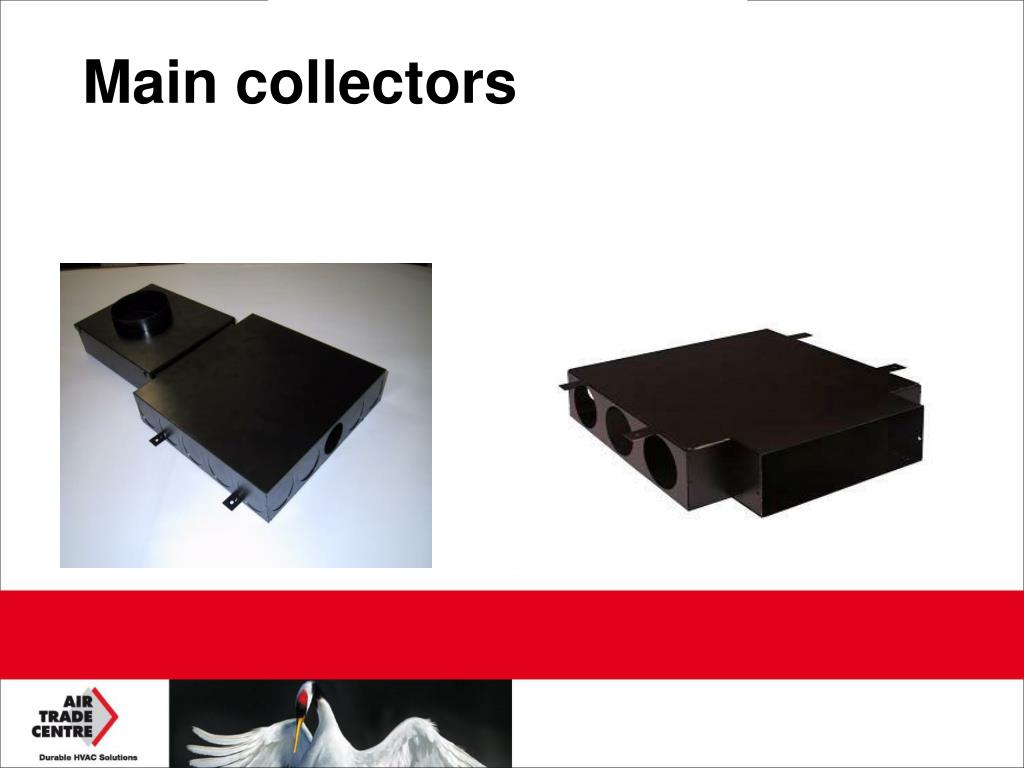

  • Main collectors


Ventilation ventichape

5x50, Ø125

5x50, Ø160

  • Subcollectors

  • 90 70 50

3x50, Ø125

2x70, Ø125

2x70, Ø160

1x70, Ø125

1x90, Ø125

2x90, Ø160


Ventilation ventichape

Bend 45°

Bend 90°

Connection piece

Reduction

1x70 – 3x50

1x90 – 3x50

Y-piece

Verticale bend 90°

Rect / round

Push-in connection


Ventilation ventichape

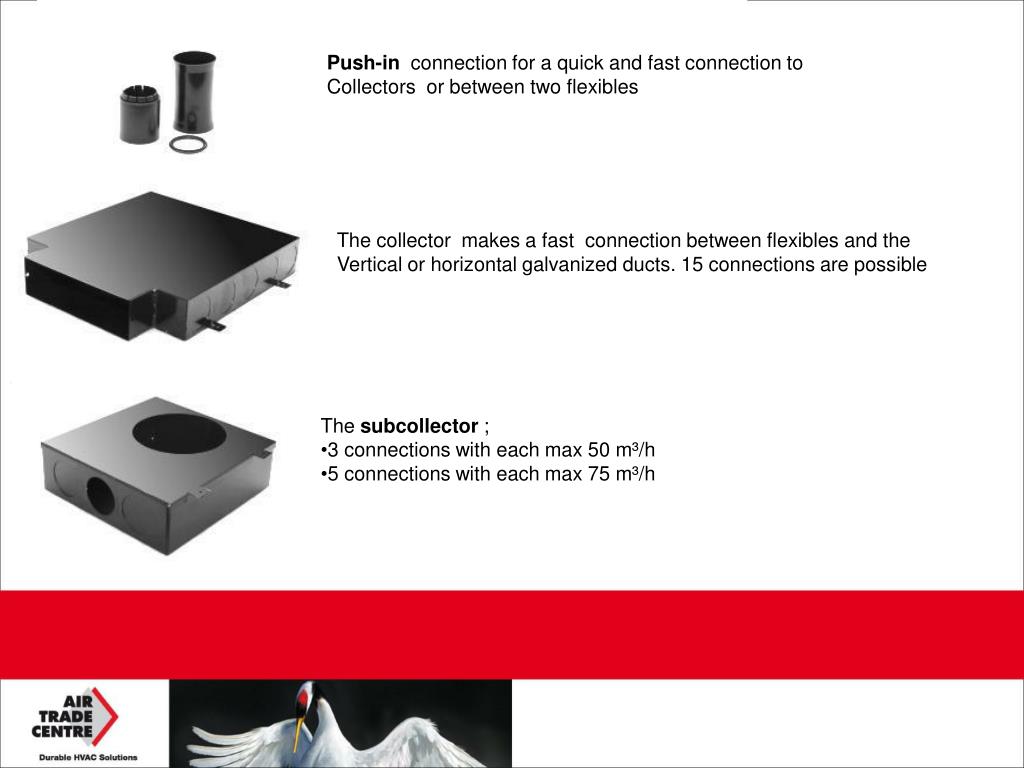

Push-in connection for a quick and fast connection to

Collectors or between two flexibles

The collector makes a fast connection between flexibles and the

Vertical or horizontal galvanized ducts. 15 connections are possible

  • The subcollector ;

  • 3 connections with each max 50 m³/h

  • 5 connections with each max 75 m³/h


Ventilation ventichape

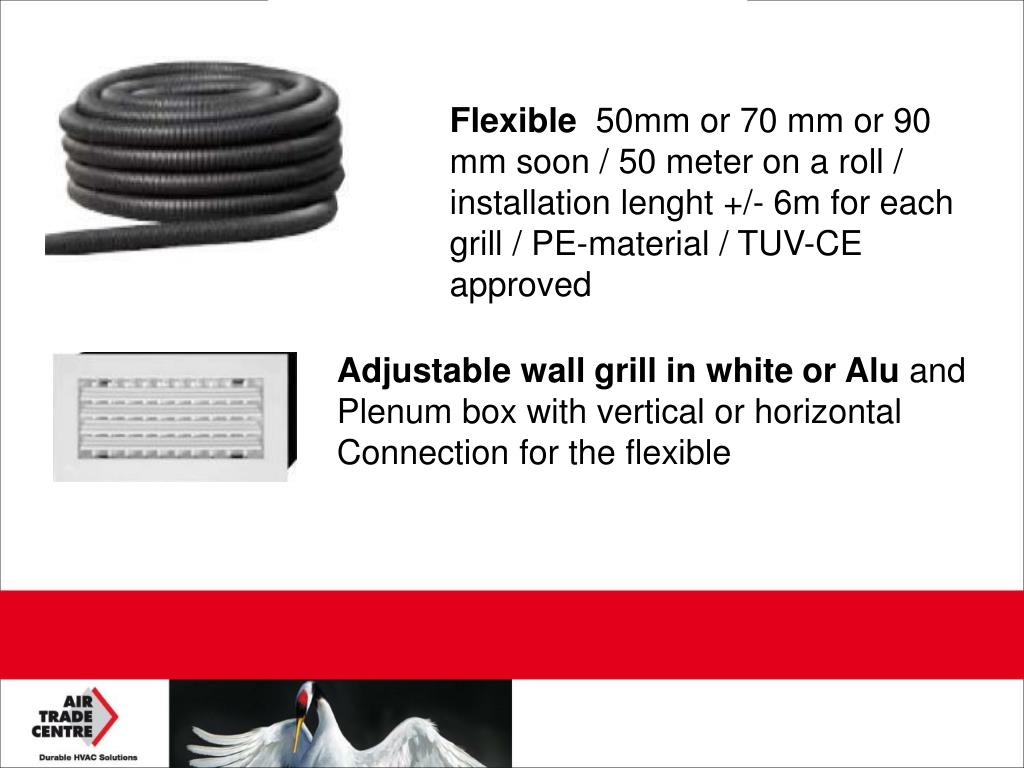

Flexible 50mm or 70 mm or 90 mm soon / 50 meter on a roll / installation lenght +/- 6m for each grill / PE-material / TUV-CE approved

Adjustable wall grill in white or Alu and

Plenum box with vertical or horizontal

Connection for the flexible


Ventilation ventichape

Collector with max 15 connections

duct

Collector

Push-in


Ventilation ventichape

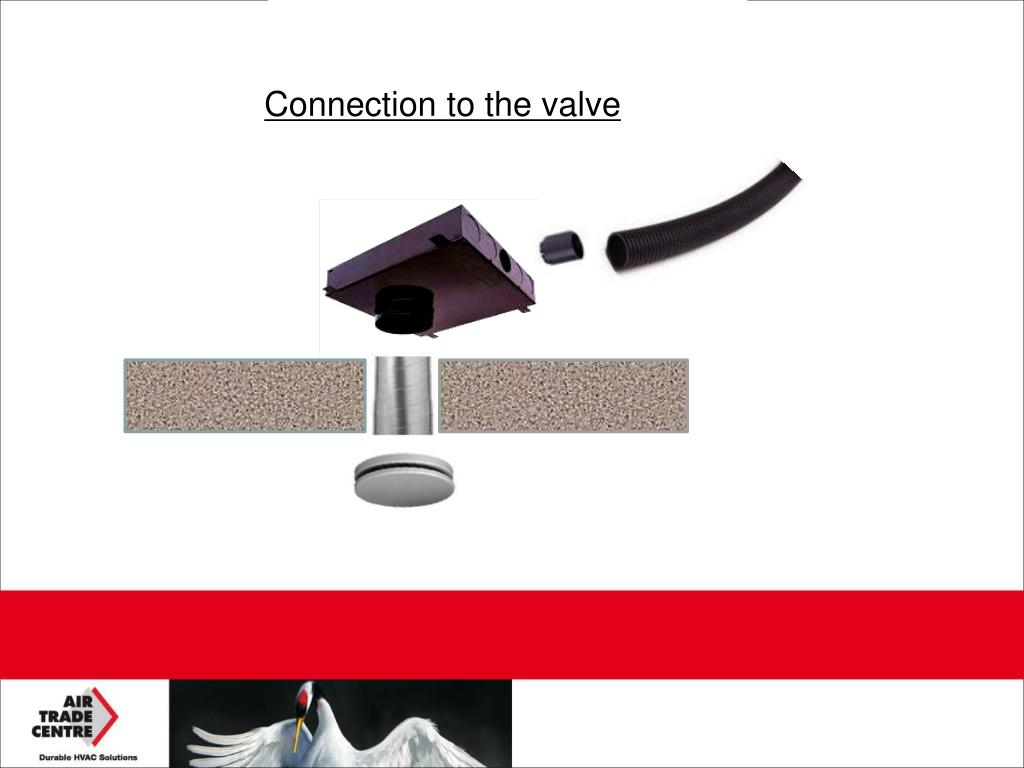

Connection to the valve


Ventilation ventichape

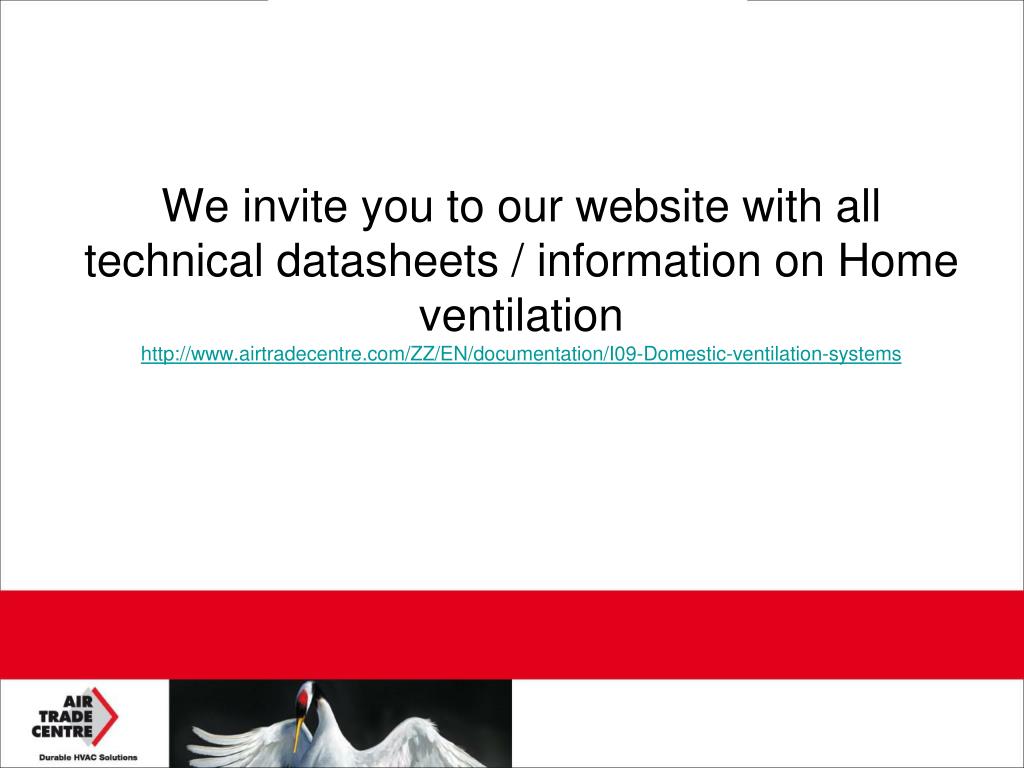

We invite you to our website with all technical datasheets / information on Home ventilation

http://www.airtradecentre.com/ZZ/EN/documentation/I09-Domestic-ventilation-systems
