Notes: Graphing Quadratic Functions and solving quadratic linear systems algebraically

Notes: Graphing Quadratic Functions and solving quadratic linear systems algebraically. Aim: Students will be able to solve quadratic linear systems graphically and algebraically. Grab your foldable that I gave you from class today and start filling in your notes. Happy “ foldabling ”.

caroun
Download Presentation

Notes: Graphing Quadratic Functions and solving quadratic linear systems algebraically

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

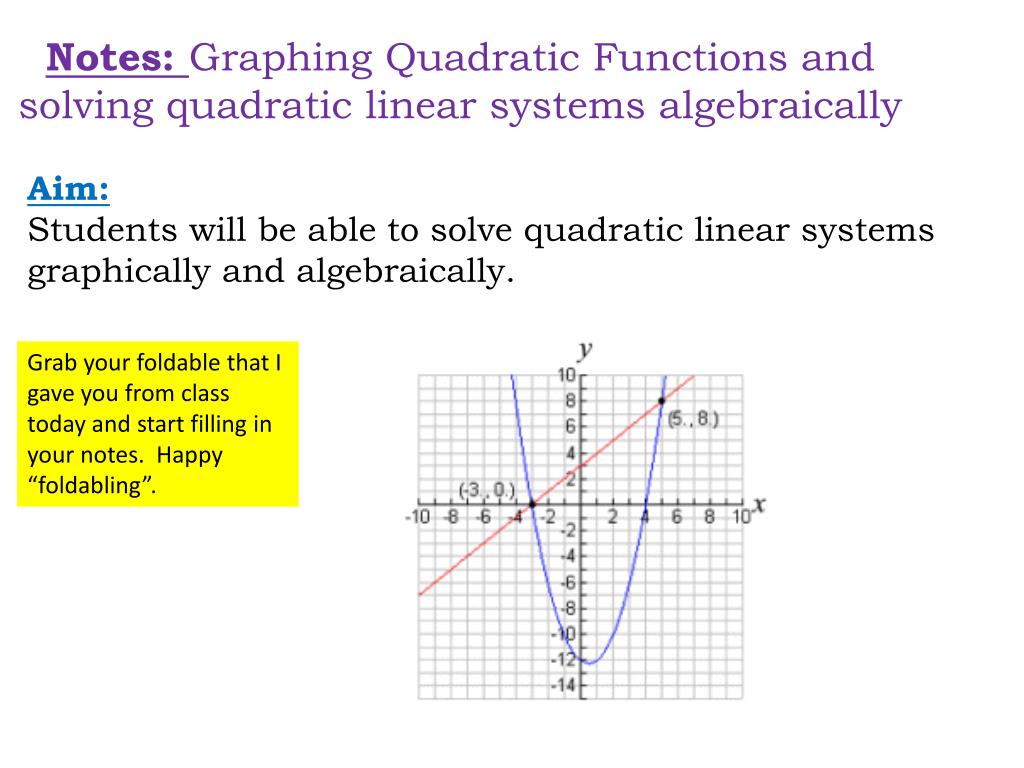

  1. Notes: Graphing Quadratic Functions and solving quadratic linear systems algebraically Aim: Students will be able to solve quadratic linear systems graphically and algebraically. Grab your foldable that I gave you from class today and start filling in your notes. Happy “foldabling”.

  2. What is a quadratic-linear system? quadratic linear quadratic linear solution • A ____________system consists of a __________ equation and a ________equation. • The _______of a quadratic linear system is the ______________of numbers that make both equations true. • Depending on how many times the line _________ the curve, the solution set may contain ____ ordered pairs, ___ ordered pair, or __ ordered pairs. set of ordered pairs intersects two one no 2 solutions 1 solution no solution

  3. Example 1 Solve the quadratic-linear system graphically: y = x2– 6x + 6 y – x = -4 y = x2– 6x + 6 Show work for line in foldable, underneath box “Graph a line using…” + x + x y = x – 4 6 slope(m) = 1 y-int(b) = -4 1. Draw the graph of y = x2 – 6x + 6 2. Find the axis of symmetry for the graph using 3. Then construct the table of values for x less than 3 and x greater than 3. 4. Graph the line y – x = -4 using slope-intercept form. 5. The points where the graphs intersect are the solution to the system. a = 1 b = -6 c = 6 1 -2 -3 y = x2– 6x + 6 -2 1 6 [(2,-2) and (5,1)] The quadratic-linear system has ______ solution(s). The solution(s) _________________ 2 Don’t forget to label the graphs. (2, -2) and (5, 1)

  4. Check with graphing calculator Type the 2 functions into your graphing calculator. y1 = x2+6x + 6AND the line y2 = x – 4 on the interval [0,6] quadratic line Solution to the system: {(-2, -2), (1, 1)}

  5. Example 2 Solve the quadratic-linear system graphically: y = x2– 2x + 2 y – 2x = -2 Show work for line in foldable, underneath box “Graph a line using…” +2 x + 2x y = 2x – 2 y = x2– 2x + 2 slope(m) = 2 y-int(b) = -2 1. Draw the graph of y = x2 – 2x + 2 2. Find the axis of symmetry for the graph using 3. Then construct the table of values for x less than 1 and x greater than 1. 4. Graph the line y – 2x = -2 using slope-intercept form. 5. The points where the graphs intersect are the solution to the system. a = 1 b = -2 c = 2 I’m only using 5 points because my graph grid only goes up to 7 and -7. 5 2 1 y = x2– 2x + 2 2 5 (2,2) Don’t forget to label the graphs. The quadratic-linear system has ______ solution(s). The solution(s) _________________ 1 (2, 2)

  6. Example 3 Solve the quadratic-linear system graphically: y = x2– 2x + 1 3y = x – 6 Show work for line in foldable, underneath box “Graph a line using…” y = x2– 2x + 1 4 1. Draw the graph of y = x2 – 2x + 1 2. Find the axis of symmetry for the graph using 3. Then construct the table of values for x less than 1 and x greater than 1. 4. Graph the line 3y = x - 6 using slope-intercept form. 5. The points where the graphs intersect are the solution to the system. a = 1 b = -2 c = 2 1 y = x2– 2x + 1 0 1 4 3y = x – 6 3 3 3 y = 1x – 2 3 Don’t forget to label the graphs. slope(m) = 1/3 y-int(b) = -2 The quadratic-linear system has ______ solution(s). The solution(s) _________________ no Glue foldable on page 20 none

  7. Page 21 Now in your notebook Title it: Solving Quadratic-Linear Systems Algebraically Solve: y = x2– 6x + 6 y– x = -4 Steps: Substitute “x2 – 6x + 6” into the linear equation for “y”. Solve for x. Plug the value of x into either equation. ((I’m picking the linear equation) to get y. Check with your calculator. (x2 – 6x + 6) – x = -4 x2 – 7x + 6 = -4 +4 +4 x2 – 7x + 10 = 0 (x – 5 ) (x – 2) = 0 x = 5 x = 2 Now look back at #1 in the foldable that you just created. Compare the answers. y– x = -4 y – 5 = -4 + 5 +5 y = 1 y– x = -4 y – 2 = -4 + 2 +2 y = -2 Yay, they are the same. Solution: (5, 1) and (2, -2)

  8. 2. Solve: y = x2 – 2x + 2 y– 2x = -2 Page 22 Steps: Substitute “x2 – 2x + 2” into the linear equation for “y”. Solve for x. Plug the value of x into either equation. ((I’m picking the linear equation) to get y. Check with your calculator. (x2 – 2x + 2) – 2x = -2 x2 – 4x + 2 = -2 +2 +2 x2 – 4x + 4 = 0 Can’t factor a = 1 b = -4 c = 4 y– 2x = -2 y – 2(2) = -2 y – 4 = -2 + 4 +4 y = 2 Solution: (2, 2)

  9. 3. Solve: y = x2 – 2x + 1 3y= x – 6 Page 23 3(x2 – 2x + 1) = x – 6 3x2 – 6x + 3 = x – 6 -x +6 -x +6 3x2 – 7x + 9 = 0 Steps: Substitute “x2 – 2x + 1” into the linear equation for “y”. Solve for x. Can’t factor a = 3 b = -7 c = 9 Does not work therefore no solution Solution: no solution

  10. 3-2-1 • What are three important characteristics of a parabola? • Describe the two ways of finding the roots of a quadratic equation. • What is one way to solve a system with a quadratic and a linear equation?
