Presentation Transcript


Optical flow math 680 professor a hicks given by bill green rares stanciu

Optical FlowMath 680Professor A. HicksGiven by: Bill Green & Rares Stanciu


What is optical flow

What is Optical Flow?

  • Optical flow is the velocity field which warps one sequential image to another


First condition

First Condition

  • Camera is stationary

    • Only objects that are moving have optic flow vectors


Second condition

Second Condition

  • Camera is moving

    • Relative to camera, all object appear to be moving


Characteristics

Characteristics

  • Objects in close proximity will appear to be moving faster than far away objects


Optical flow formula

Optical Flow Formula

OF = w + (v/d) sin q


Other applications

Other Applications

  • Conclude if objects are undergoing linear or rotational motion

  • Determine the distance between the camera and the object

  • Tracking moving objects


Challenges with optical flow

Challenges with Optical Flow

  • Correspondence Problem

    • Relating pixels in corresponding images via a rotation and translation

  • Aperture Problem

    • only able to measure the component of optical flow that is in the direction of the intensity gradient.


Autonomous landing of uavs

Autonomous Landing of UAVs

  • The UAVs altitude can be calculated from optical flow

    • “Obstacle” is the ground; q = 90

    • UAV does not rotate during landing


Our experiment

Our Experiment

  • Determine distance to obstacle using 2 sequential images

OF = v/d

v

d

Top view


First attempt

First Attempt

  • Calculate optic flow

    • Threshold and binarize the images

    • Find image centroids

    • OF value of 110 pixels/sec was calculated

    • distance, d, to the target was found

      • 1 inch (actual dist was 22 ft)


Find the calibration constant

Find the Calibration Constant

  • Took 2 sequential images

  • Distance from object to camera was known

  • Camera’s velocity was also known

  • Compute optic flow

    • OF = 140; vcam = 12 in/s; d = 163 in

  • Find K => OF = vcam/dK

  • K = 5.26 E-4


Redid calculations

Redid Calculations

  • Distance from object to camera was unknown

  • Camera’s velocity was known

  • Compute optic flow

    • OF = 108; vcam = 15 in/s

  • Find d => OF = vcam/dK

  • d = 22 feet

  • Actual distance was 22’ 6”

Error = 2.22%

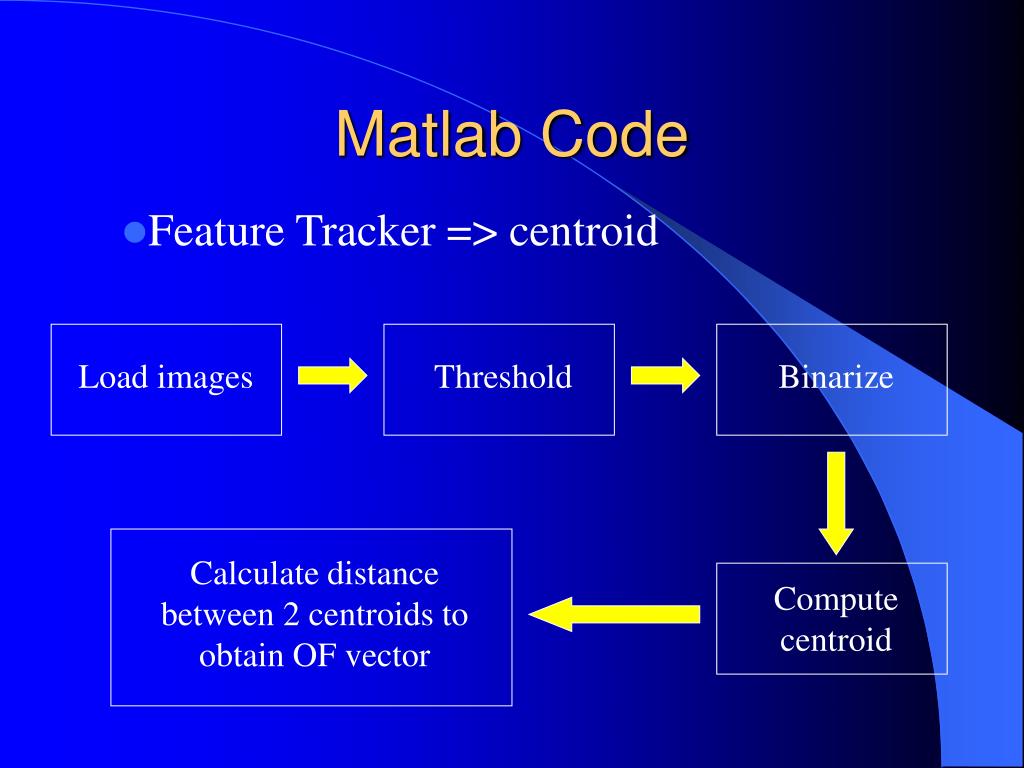

Matlab code

Load images

Threshold

Binarize

Calculate distance between 2 centroids to obtain OF vector

Compute centroid

Matlab Code

  • Feature Tracker => centroid


Optic flow sensor

Optic Flow Sensor


References

References

  • B.K.P. Horn and B.G. Schunck. “Determining optical flow”, AI Memo 572. Massachusetts Institute of Technology, 1980.

  • Barrows, G., Chahl, J.S., Srinivasan, M.V., "Biomimetic Visual Sensing and Flight Control", 2002 Bristol UAV Conference, Bristol, UK April 2002

  • Barrows, G., Neely, C., "Mixed-Mode VLSI Optic Flow Sensors for In-Flight Control of a Micro Air Vehicle", SPIE, San Diego, CA, July 2000

  • Barrows, G., "Future Visual Microsensors for Mini/Micro-UAV Applications“


Questions

Questions??


Mathematical background

Mathematical Background

  • Assumption: The apparent brightness of moving objects remains constant between frames

    • I(x(t+Dt), y(t+Dt), t+Dt) = I(x(t), y(t), t) (1)

  • Taylor expansion of the left term

    • I(x(t+Dt), y(t+Dt), t+Dt) =

      I(x(t), y(t), t) + Ixu + Iyv + ItDt (2)

      where u & v are the optic flow vectors

  • From (1) and (2), optical flow equation is:

    • Ixu + Iyv + ItDt = 0
