What is endura

What is Endura?

It is a high-quality, high-performance distributed IP-based video surveillance solution

  • Performance

  • Functionality

  • Reliability

  • Stability

  • Flexibility

  • Scalability

  • Easy to use and to install

  • Pelco service and support

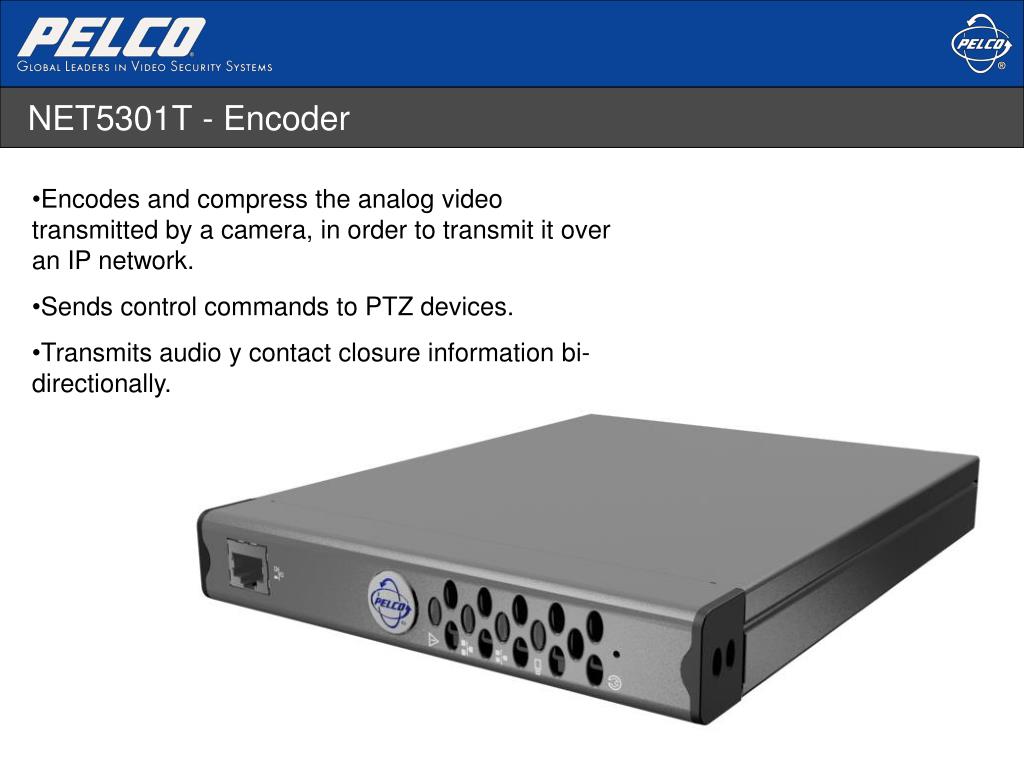

Net5301t encoder

NET5301T - Encoder

  • Encodes and compress the analog video transmitted by a camera, in order to transmit it over an IP network.

  • Sends control commands to PTZ devices.

  • Transmits audio y contact closure information bi-directionally.


Net5301t encoder1

NET5301T - Encoder

  • Video

    • MPEG4

    • 4CIF / 30 fps (704x480)

    • Encodes two video streams

    • Looping

    • Motion detection

  • Audio

    • G.711 @ 64 kbps

    • Bi-directional, half-duplex

    • 1 output y 1 input (dual level)

  • Contact Closure

    • 3 alarm inputs y 1 relay output

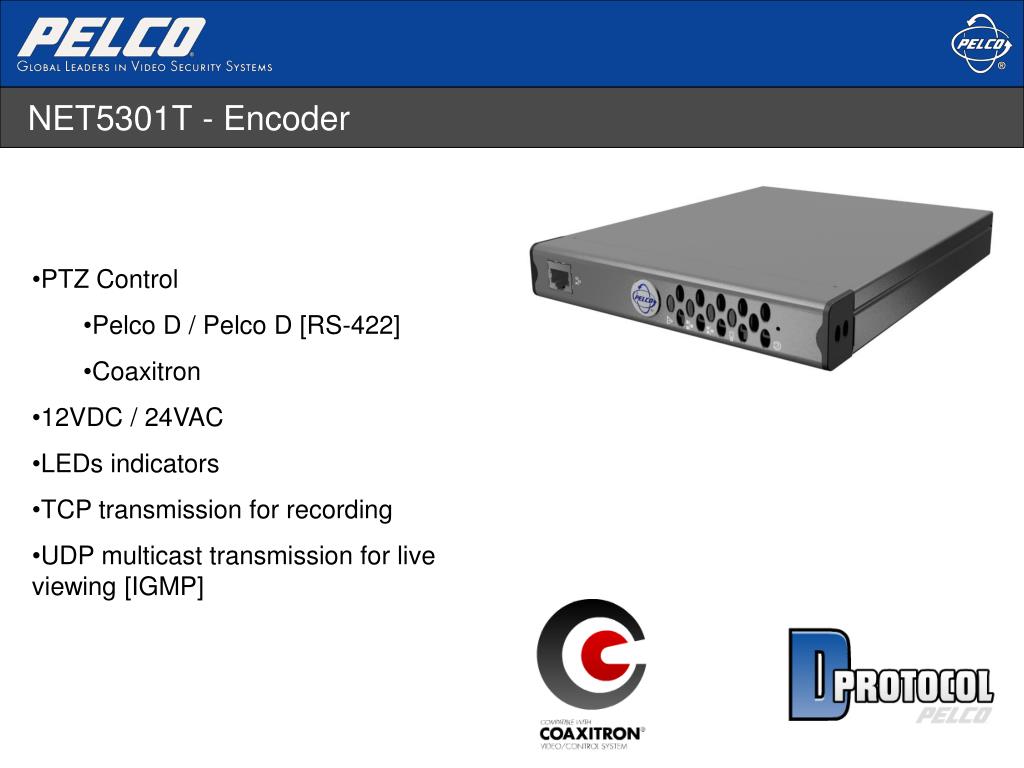

Net5301t encoder2

NET5301T - Encoder

  • PTZ Control

    • Pelco D / Pelco D [RS-422]

    • Coaxitron

  • 12VDC / 24VAC

  • LEDs indicators

  • TCP transmission for recording

  • UDP multicast transmission for live viewing [IGMP]

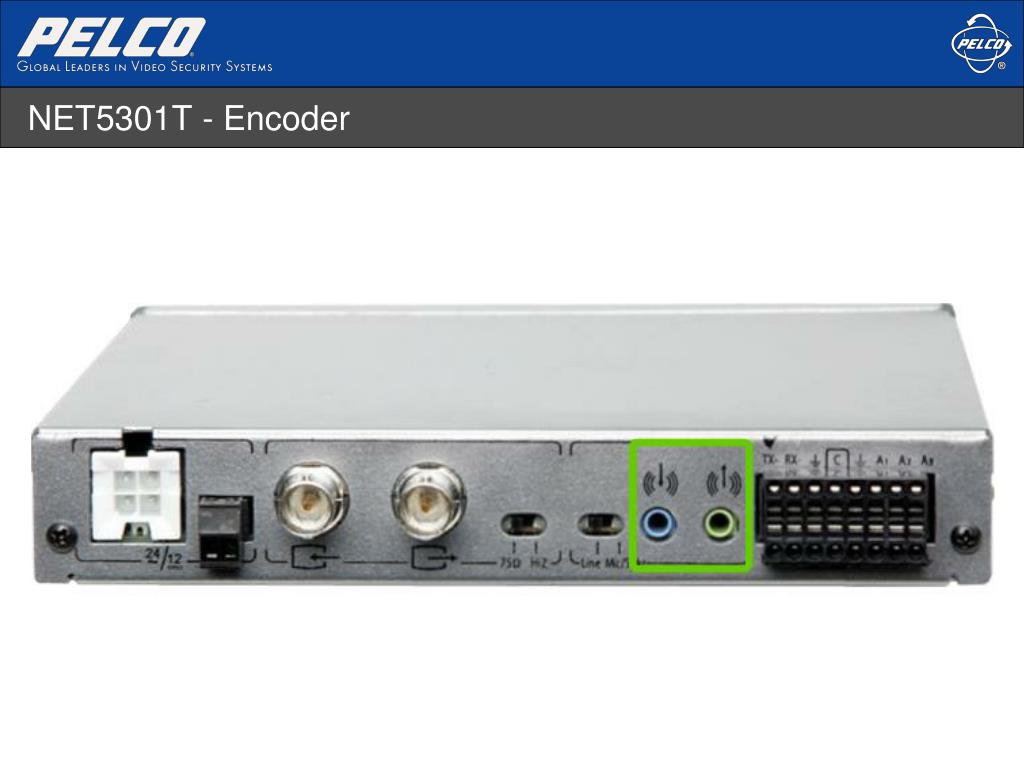

Net5301t encoder3

NET5301T - Encoder

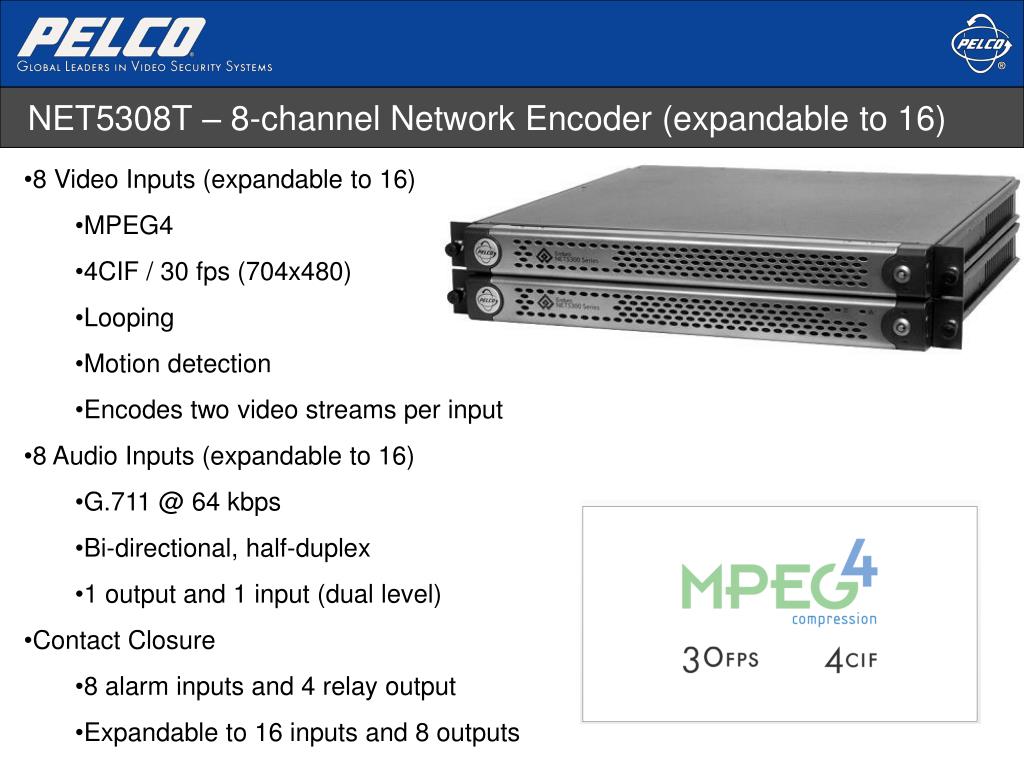

Net5308t 8 channel network encoder expandable to 16

NET5308T – 8-channel Network Encoder (expandable to 16)

  • 8 Video Inputs (expandable to 16)

    • MPEG4

    • 4CIF / 30 fps (704x480)

    • Looping

    • Motion detection

    • Encodes two video streams per input

  • 8 Audio Inputs (expandable to 16)

    • G.711 @ 64 kbps

    • Bi-directional, half-duplex

    • 1 output and 1 input (dual level)

  • Contact Closure

    • 8 alarm inputs and 4 relay output

    • Expandable to 16 inputs and 8 outputs

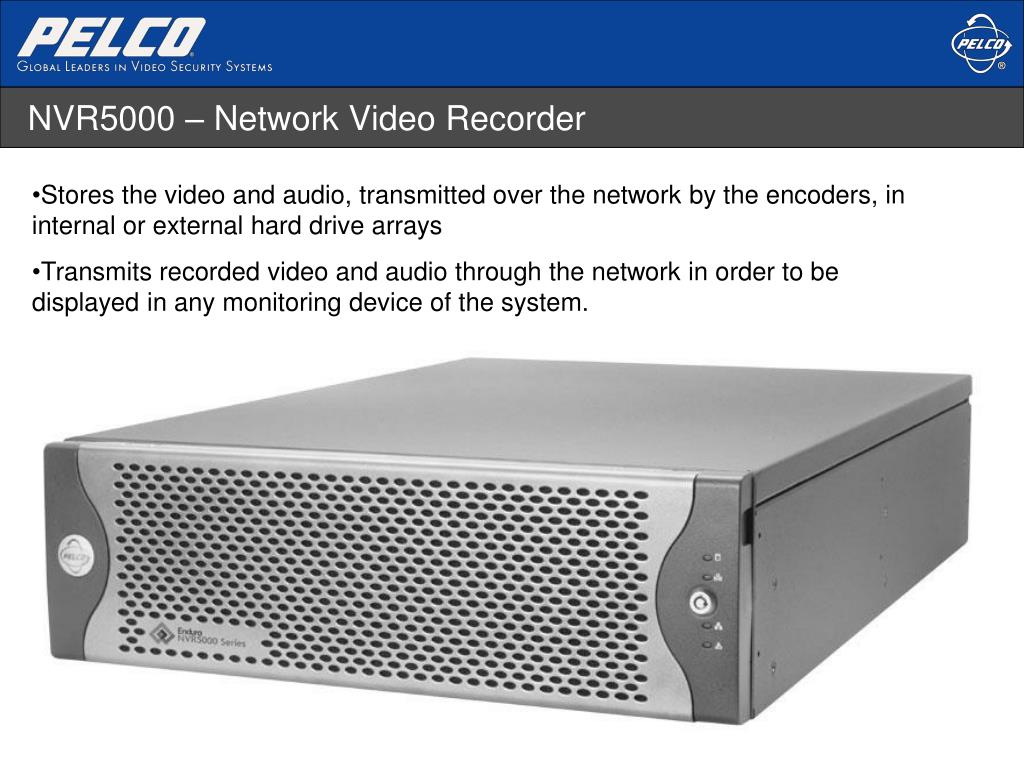

Nvr5000 network video recorder

NVR5000 – Network Video Recorder

  • Stores the video and audio, transmitted over the network by the encoders, in internal or external hard drive arrays

  • Transmits recorded video and audio through the network in order to be displayed in any monitoring device of the system.

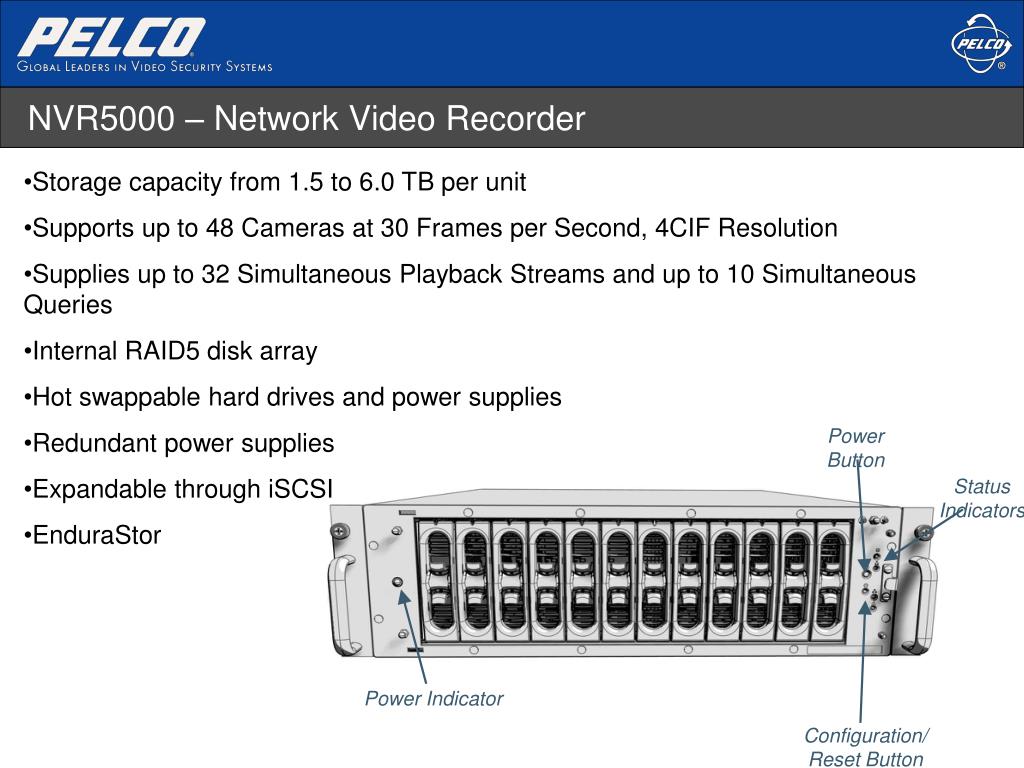

Nvr5000 network video recorder1

Power

Button

Status

Indicators

Power Indicator

Configuration/

Reset Button

NVR5000 – Network Video Recorder

  • Storage capacity from 1.5 to 6.0 TB per unit

  • Supports up to 48 Cameras at 30 Frames per Second, 4CIF Resolution

  • Supplies up to 32 Simultaneous Playback Streams and up to 10 Simultaneous Queries

  • Internal RAID5 disk array

  • Hot swappable hard drives and power supplies

  • Redundant power supplies

  • Expandable through iSCSI

  • EnduraStor

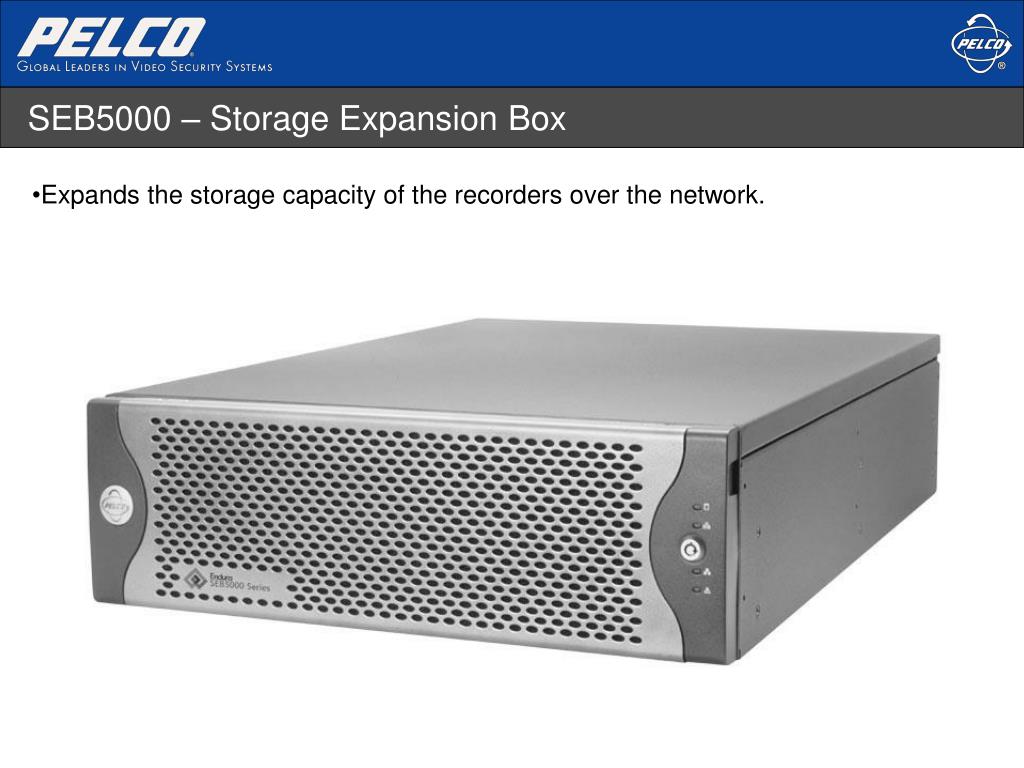

Seb5000 storage expansion box

SEB5000 – Storage Expansion Box

  • Expands the storage capacity of the recorders over the network.

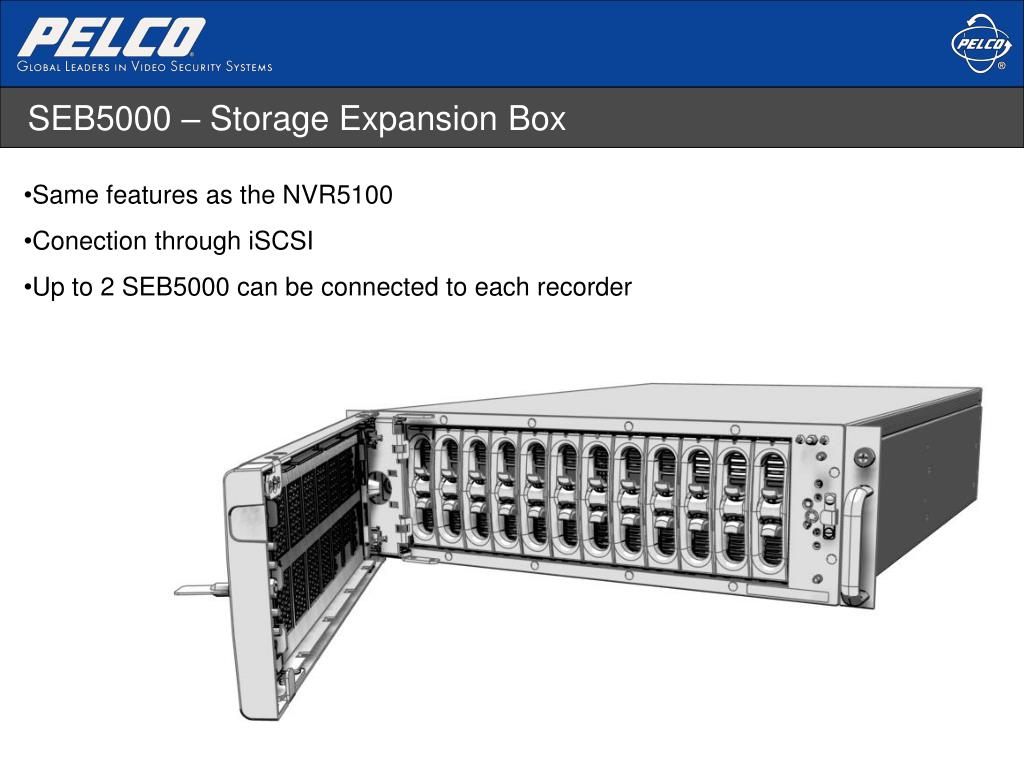

Seb5000 storage expansion box1

SEB5000 – Storage Expansion Box

  • Same features as the NVR5100

  • Conection through iSCSI

  • Up to 2 SEB5000 can be connected to each recorder


Easy to install and setup iscsi

Easy to install and setup – iSCSI


Reliability redundant power supplies

Reliability – Redundant Power Supplies


Flexibility endurast r

I frame

P frame

P

P

P

P

P

P

P

P

P

P

P

P

P

I frame

P frame

P

P

P

P

P

P

P

P

P

P

P

P

P

Flexibility - EnduraStõr

Recording at 4CIF / 30 ips

30 images / second


Flexibility endurast r1

I frame

P frame

P

P

P

P

P

P

P

P

P

P

P

P

P

I frame

P frame

P

P

P

P

P

P

P

P

P

P

P

P

P

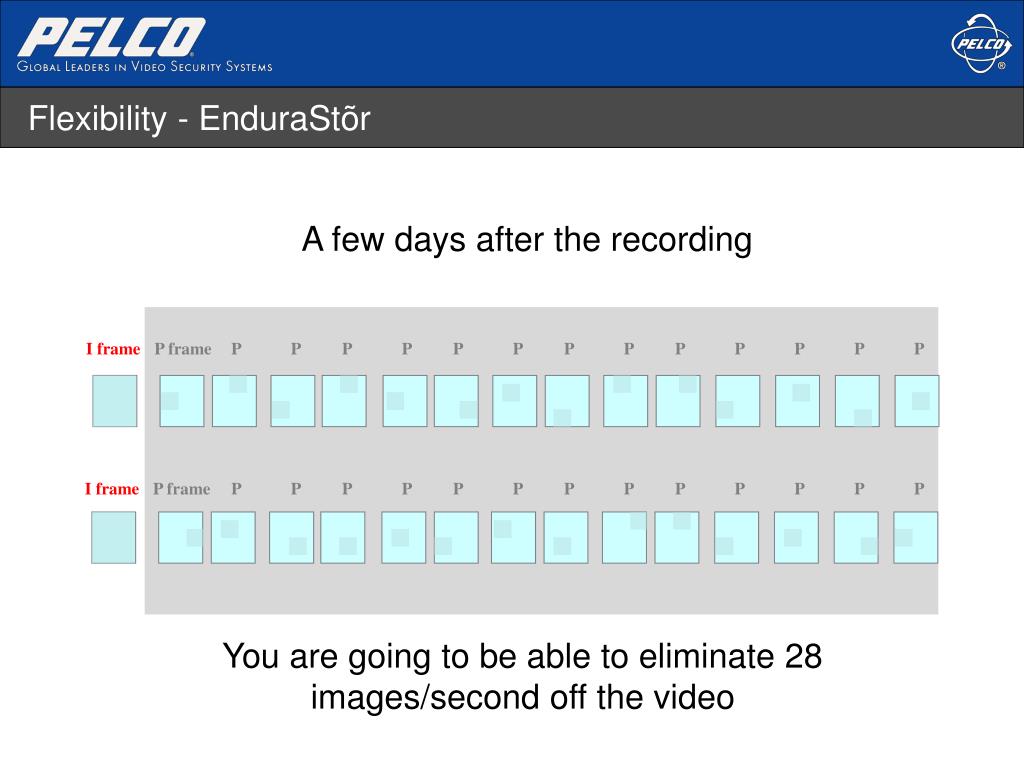

Flexibility - EnduraStõr

A few days after the recording

You are going to be able to eliminate 28 images/second off the video


Flexibility endurast r2

I frame

I frame

Flexibility - EnduraStõr

Keeping just 2 images/second of old video

Maximizing the storage space that you have in your system

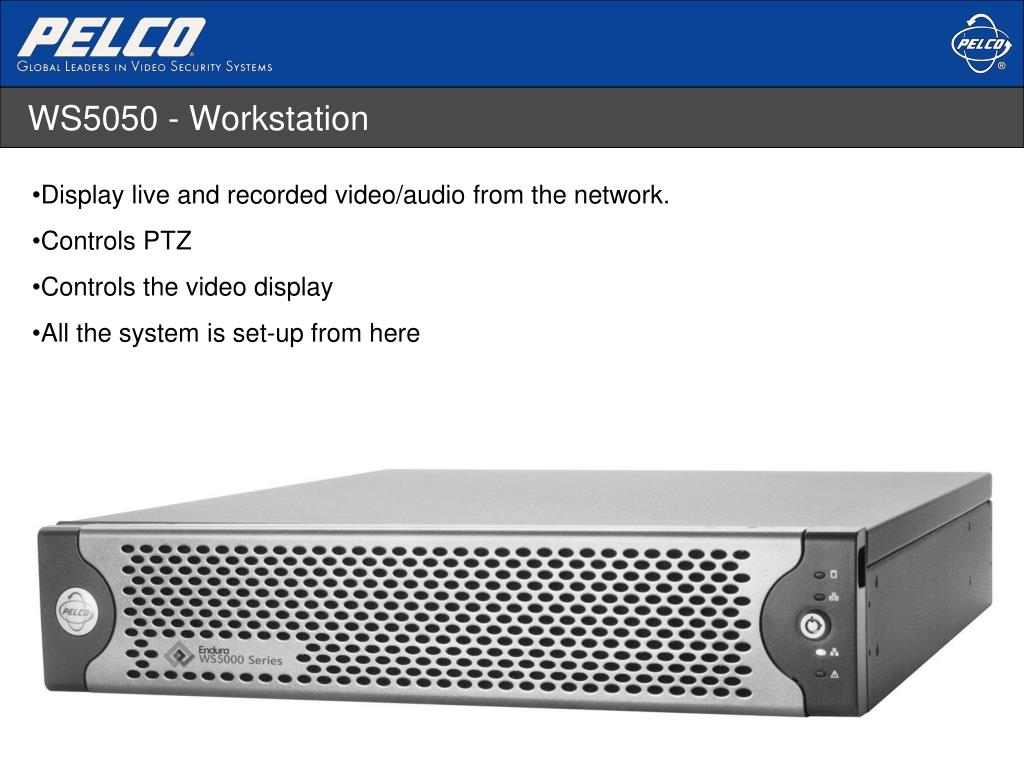

Ws5050 workstation

WS5050 - Workstation

  • Display live and recorded video/audio from the network.

  • Controls PTZ

  • Controls the video display

  • All the system is set-up from here

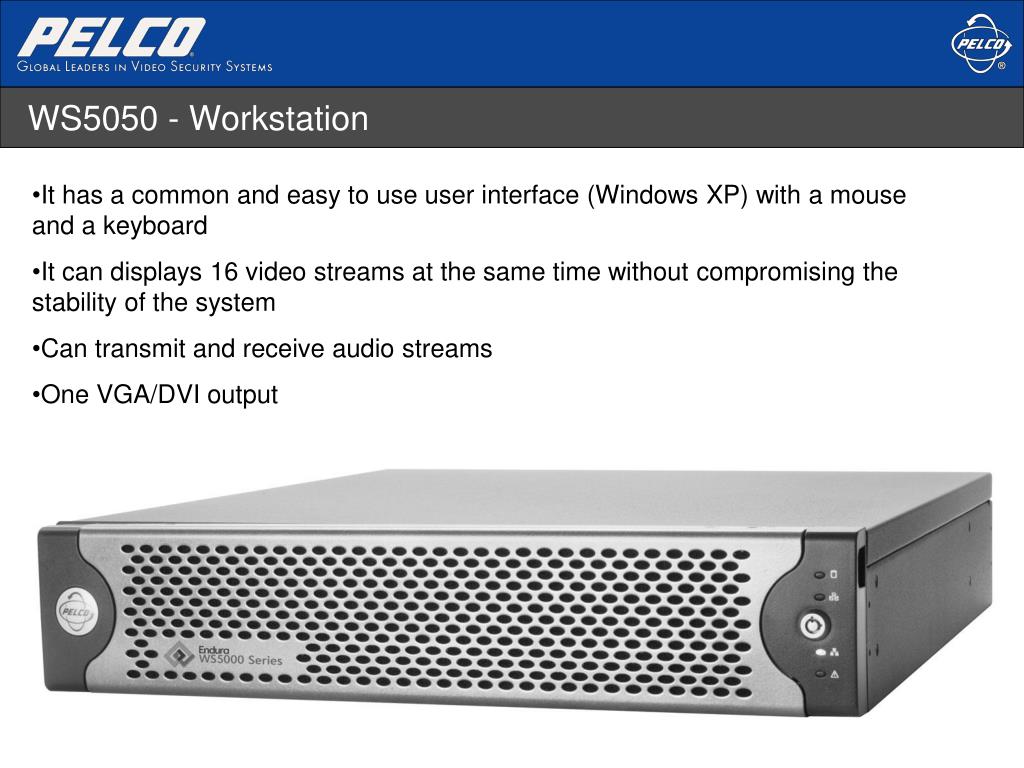

Ws5050 workstation1

WS5050 - Workstation

  • It has a common and easy to use user interface (Windows XP) with a mouse and a keyboard

  • It can displays 16 video streams at the same time without compromising the stability of the system

  • Can transmit and receive audio streams

  • One VGA/DVI output


Windows user interface

Windows User Interface


Windows user interface for set up

Windows User Interface for Set-Up


Sm5000 system manager

SM5000 – System Manager

  • Stores the database of the system with all the information of the different devices

  • Manages all the security, encryption and policies of the system


Performance functionality secure system rsa 256

Performance & Functionality – Secure System (RSA-256)


Net5301r decoder

NET5301R - Decoder

  • Displays up to 4 live or recorded video streams at the same time.

  • Transmits bi-directional audio and contact closure information.


Net5301r decoder1

NET5301R - Decoder

  • Video

    • MPEG4

    • 4CIF / 30 fps (704x480)

    • XVGA, BNC and S-Video outputs

    • Displays up to four (4) video streams (live/recorded)

  • Audio

    • G.711 @ 64 kbps

    • Bi-directional, half-duplex

    • 1 Input (microphone/line-level) and 1 Output (headphone or line-level)

  • Contact closure

    • 3 alarm inputs / 1 relay output


Net5301r decoder2

NET5301R - Decoder

  • Video

    • MPEG4

    • 4CIF / 30 fps (704x480)

    • XVGA, BNC and S-Video outputs

    • Displays up to four (4) video streams (live/recorded)

  • Audio

    • G.711 @ 64 kbps

    • Bi-directional, half-duplex

    • 1 Input (microphone/line-level) and 1 Output (headphone or line-level)

  • Contact closure

    • 3 alarm inputs / 1 relay output


Flexibility and scalability video outputs net5301r

Analog

Video

Output

Audio

level

Switch

VGA Video

Output

Control, Alarms,

Relays

S-Video

Output

Power

24VAC/12VDC

Audio I/O

Flexibility and Scalability – Video outputs [NET5301R]


Rk5000ps 5u rack mount

RK5000PS-5U – Rack mount

  • Allows 12 units (encoders/decoders) per rack with a common power supply.

  • Redudant power supply models available


Vcd5000 video console display

VCD5000 – Video Console Display

  • Displays live or recorded network video.

  • Controls camera pan/tilt/zoom.

  • Controls other VCD and decoder displays

  • Can be commanded with a keyboard to have the look and feel of matrix system.

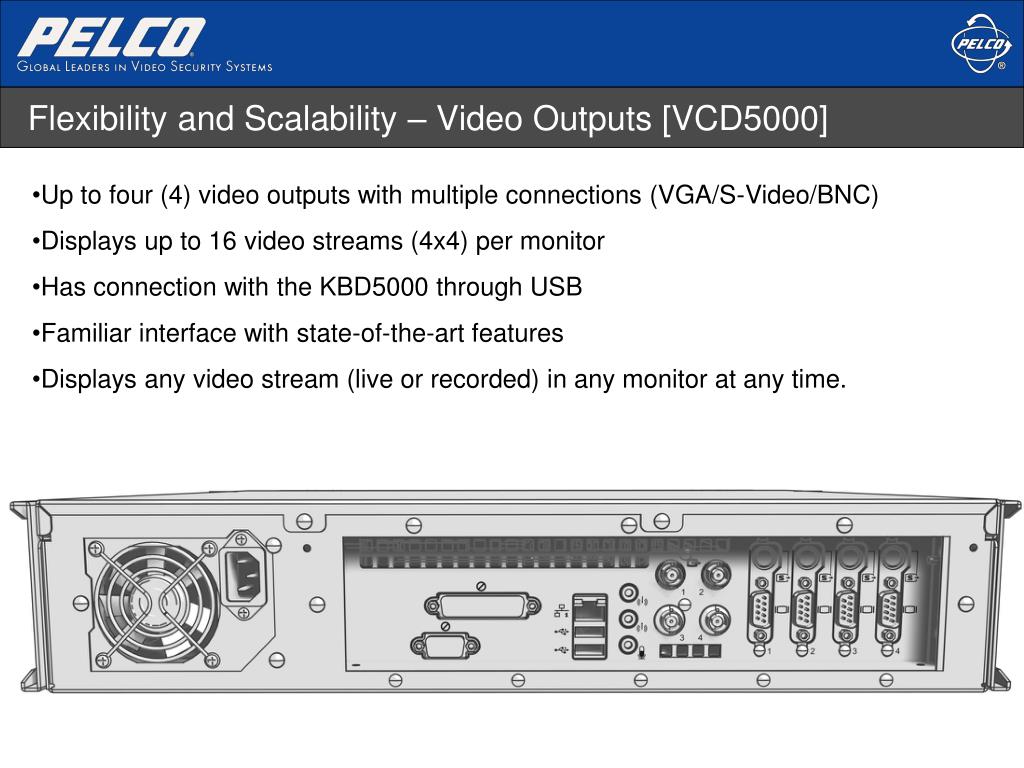

Flexibility and scalability video outputs vcd5000

Flexibility and Scalability – Video Outputs [VCD5000]

  • Up to four (4) video outputs with multiple connections (VGA/S-Video/BNC)

  • Displays up to 16 video streams (4x4) per monitor

  • Has connection with the KBD5000 through USB

  • Familiar interface with state-of-the-art features

  • Displays any video stream (live or recorded) in any monitor at any time.


Kbd5000 keyboard with joystick

KBD5000 – Keyboard with Joystick

  • It is the VCD5000 control device (it can be used with WS5050)

  • Allows PTZ control with a “traditional” joystick

  • Allows cameras in divisions/monitor calls using a numeric keypad

  • Allows recorded video playback using “traditional” controls like disc and knob

  • Exports video through the local USB port

  • Transmits bi-directional audio


Kbd5000 keyboard with joystick1

KBD5000 – Keyboard with Joystick

  • USB connection

  • 1 audio input / 1 audio output

  • Two (2) USB ports for video export

  • Interchangeable modules

  • Color Illuminated Buttons


Flexibility virtual matrix user interface

Flexibility – Virtual Matrix User Interface

PTZ control latency <117 ms


Cm9700mdd evs digital decoder for matrix switcher

CM9700MDD-EVS Digital Decoder for Matrix Switcher

  • Provides an interface between Endura and the CM9700 matrix switcher

    • Switch Cameras in Monitors

    • Display Live Video

    • Display Recorded Video

    • Control PTZ cameras

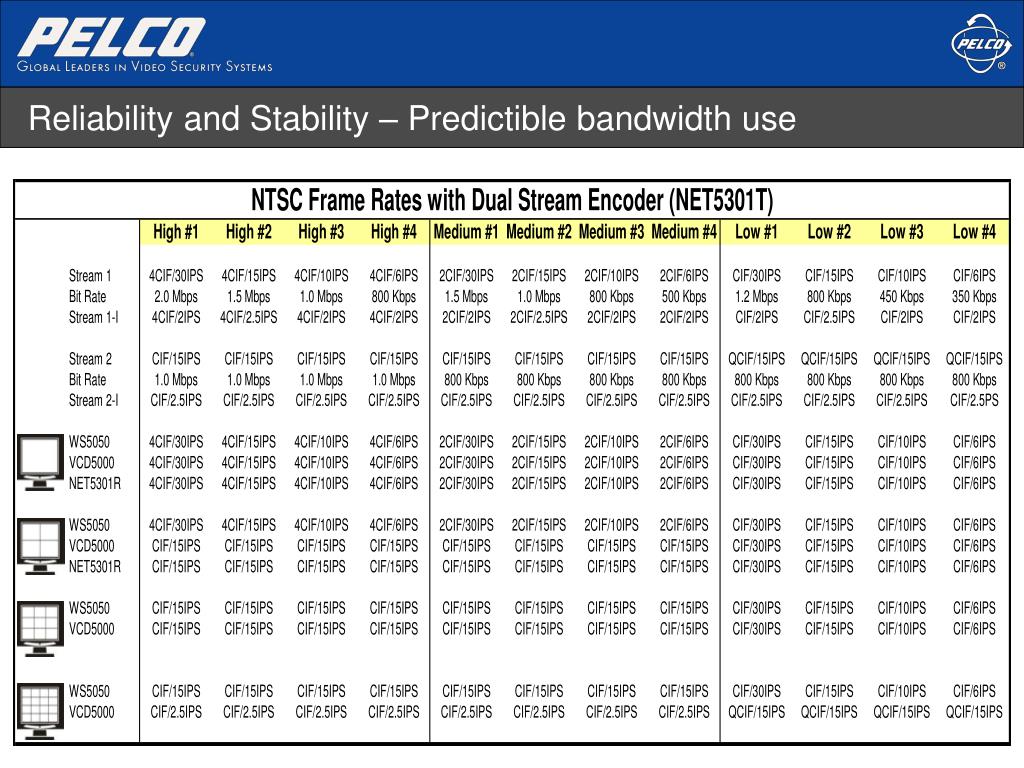

Reliability and stability predictible bandwidth use

Reliability and Stability – Predictible bandwidth use

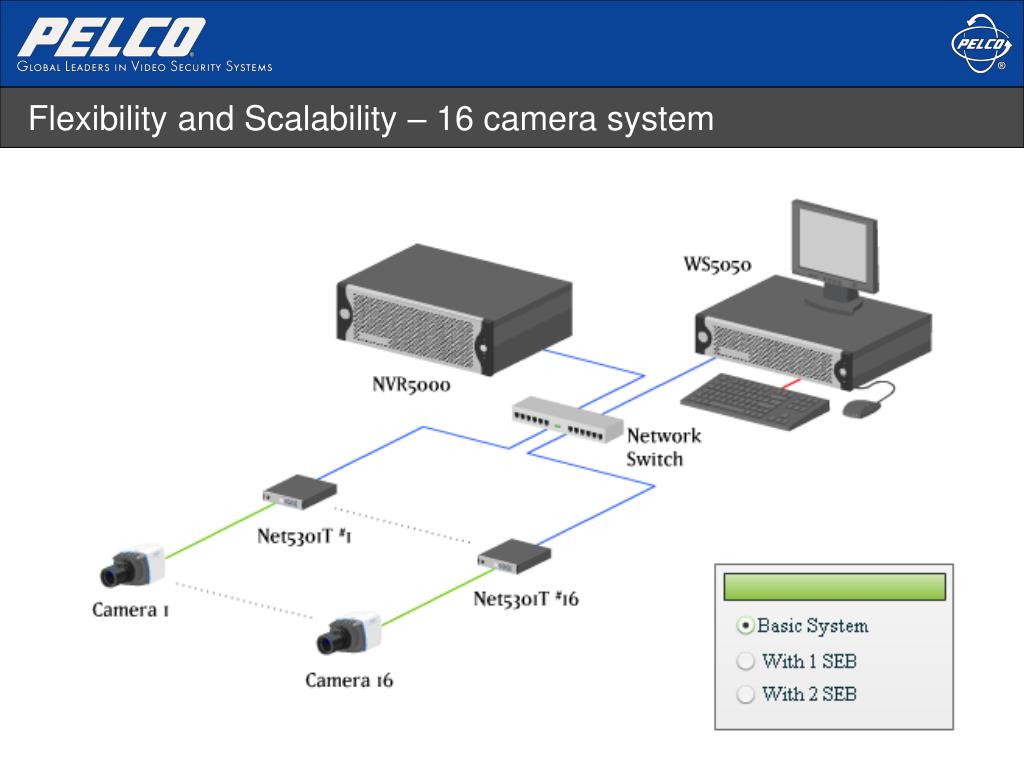

Flexibility and scalability 16 camera system

Flexibility and Scalability – 16 camera system


Flexibility and scalability 16 camera system w expansion box

Flexibility and Scalability – 16 camera system w/ Expansion Box

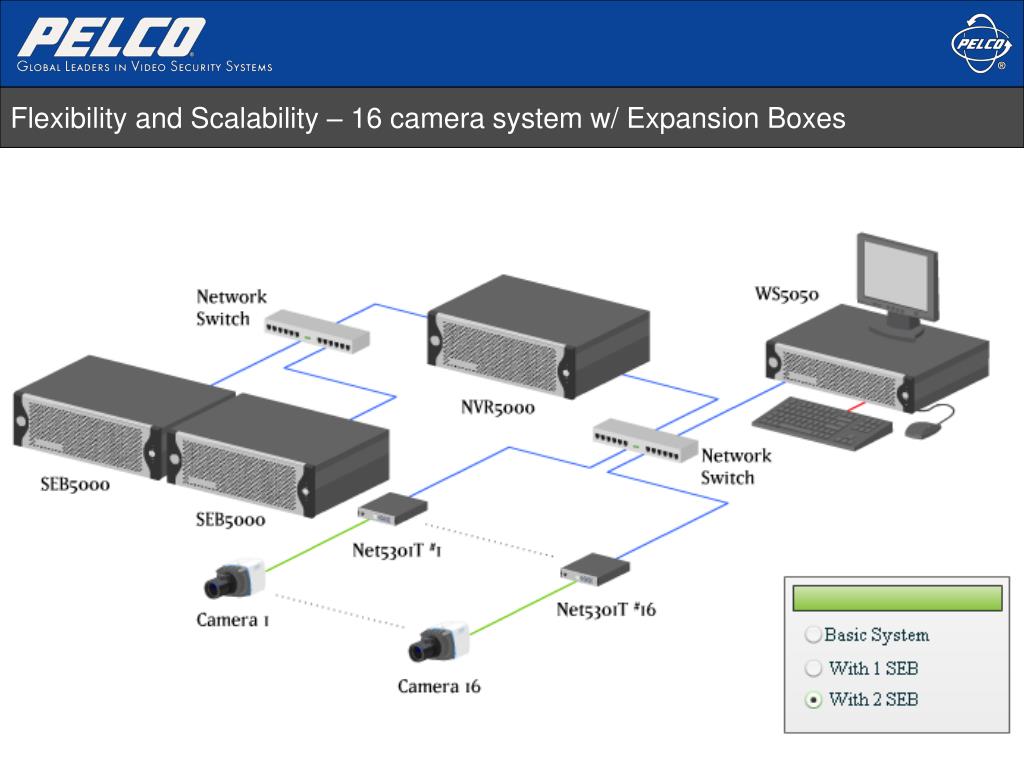

Flexibility and scalability 16 camera system w expansion boxes

Flexibility and Scalability – 16 camera system w/ Expansion Boxes


Flexibility and scalability 288 camera system

Flexibility and Scalability – 288 camera system


Flexibility and scalability 9 monitors video wall system

Flexibility and Scalability – 9 monitors video wall system


Easy to install and configure licenses

Easy to install and configure – Licenses

No licenses required!


Pelco service and support

Pelco Service and Support

  • 24/7 1-800 number for tech support

  • Best warranty in the industry

  • Repairs and warranties at the factory (24h)

  • Repairs and warranties at authorized service centers

  • Lead times guaranteed

  • Video Security Institute

  • Crockett International

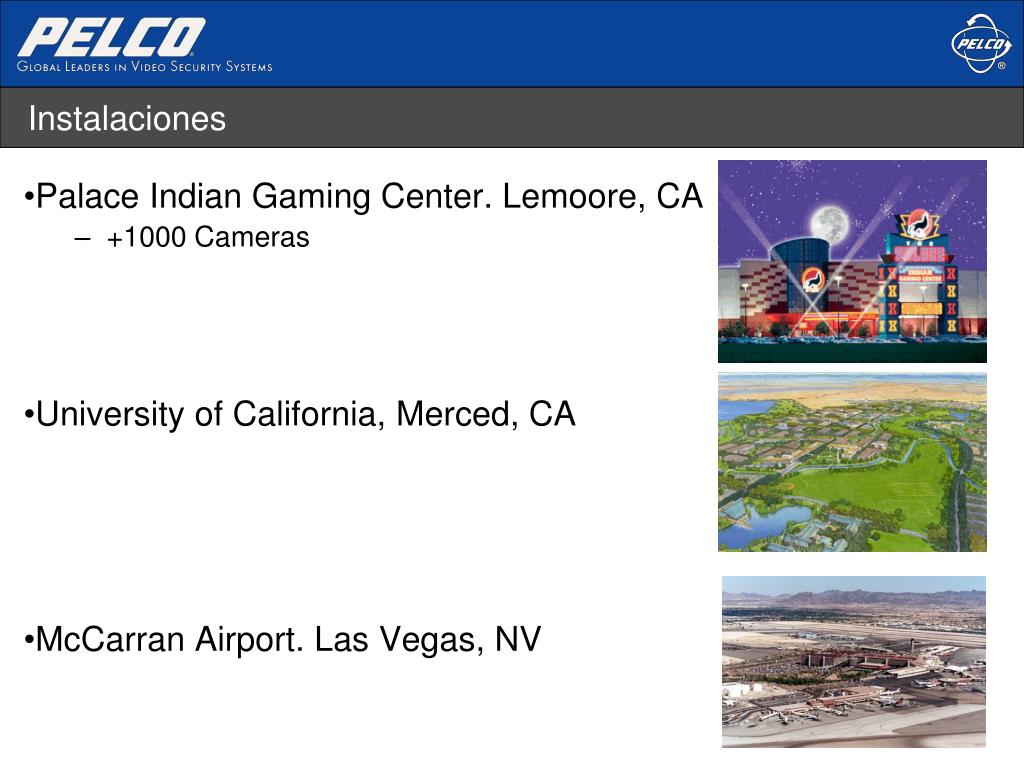

Instalaciones

Instalaciones

  • Palace Indian Gaming Center. Lemoore, CA

    • +1000 Cameras

  • University of California, Merced, CA

  • McCarran Airport. Las Vegas, NV

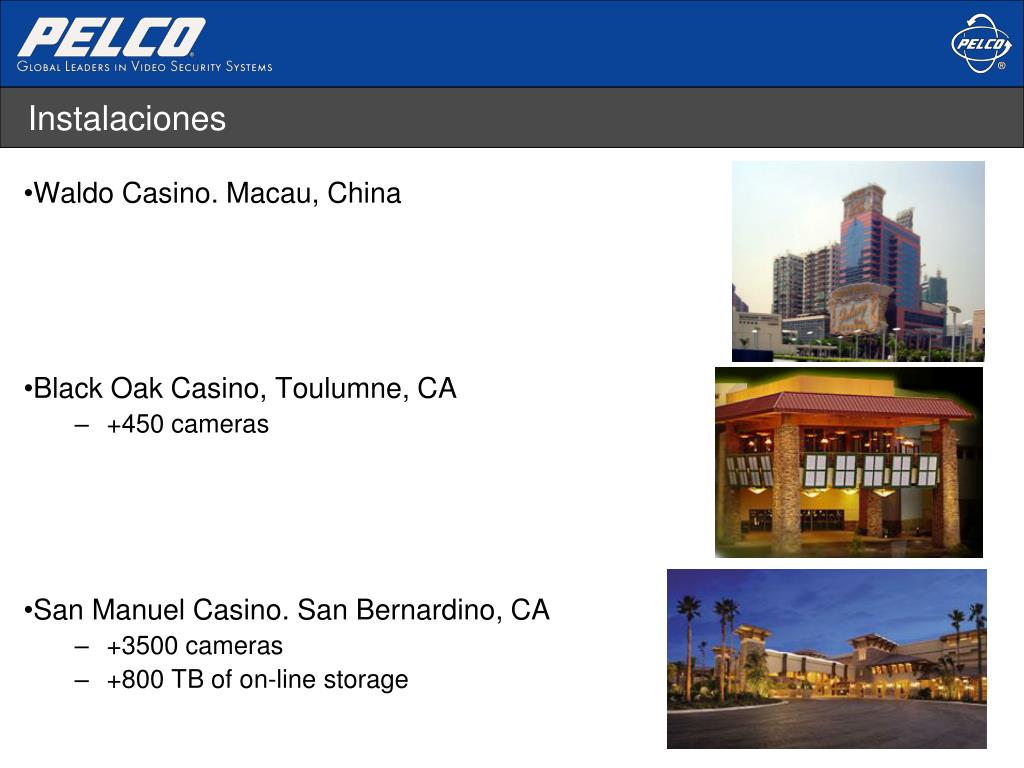

Instalaciones1

Instalaciones

  • Waldo Casino. Macau, China

  • Black Oak Casino, Toulumne, CA

    • +450 cameras

  • San Manuel Casino. San Bernardino, CA

    • +3500 cameras

    • +800 TB of on-line storage


What is endura

MORE ENDURA

PRODUCTS AVAILABLE

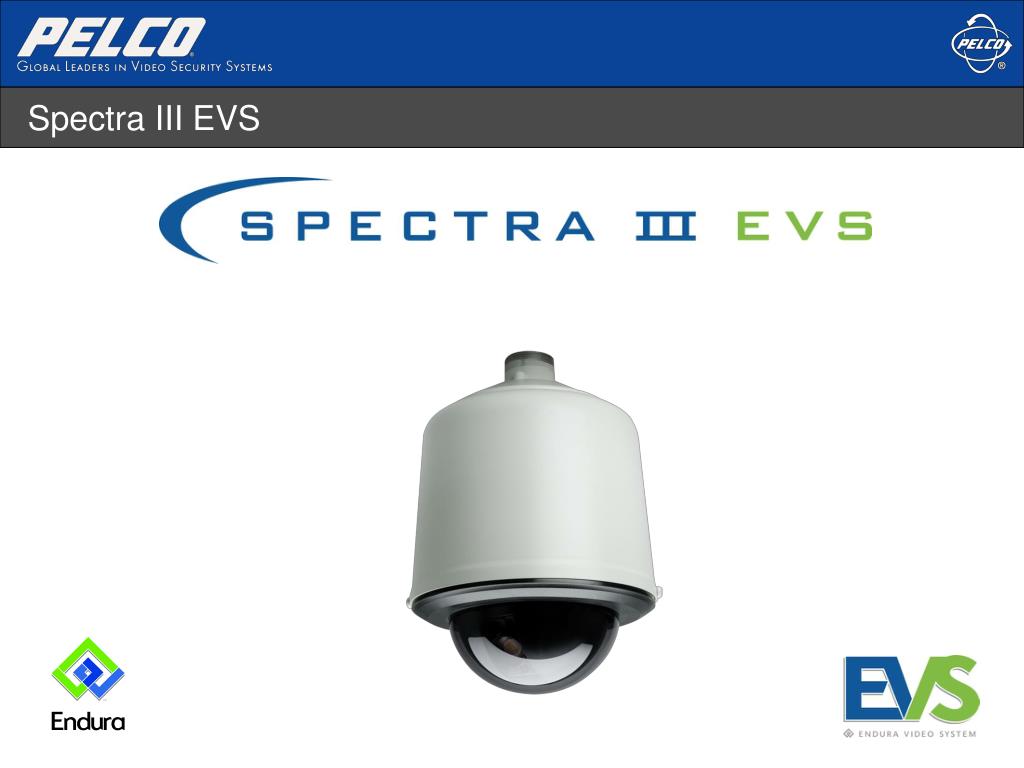

Spectra iii evs

Spectra III EVS

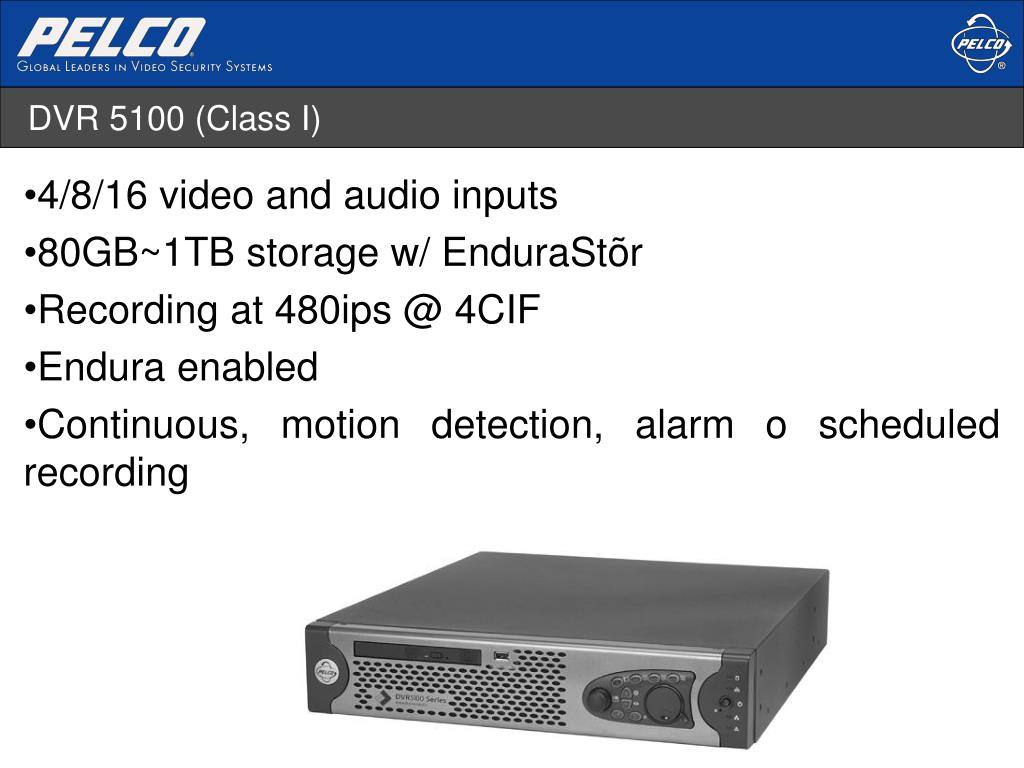

Dvr 5100 class i

DVR 5100 (Class I)

  • 4/8/16 video and audio inputs

  • 80GB~1TB storage w/ EnduraStõr

  • Recording at 480ips @ 4CIF

  • Endura enabled

  • Continuous, motion detection, alarm o scheduled recording


Dvr 5100 class i1

DVR 5100 (Class I)

  • Multiple User Interface options: frontal panel, software client, KBD5000 or any other Endura display device.

  • PTZ Control: Pelco D, Pelco P or Coaxitron

  • VGA / S-Video / BNC main output

  • BNC spot output

  • 16 alarm inputs

  • 2 / 4 relay inputs


Dvr 5300 class iii

DVR 5300 (Class III)

  • Records up to 32 video/audio streams at 4CIF/30ips locally and/or through the network

  • Records analog video using the ENC5316 USB encoder

    • 16 video inputs MPEG4 4CIF/30ips

    • 16 audio inputs G.711

    • 16 alarm inputs

    • 4 relay outputs

    • PTZ Control: Coaxitron / RS422

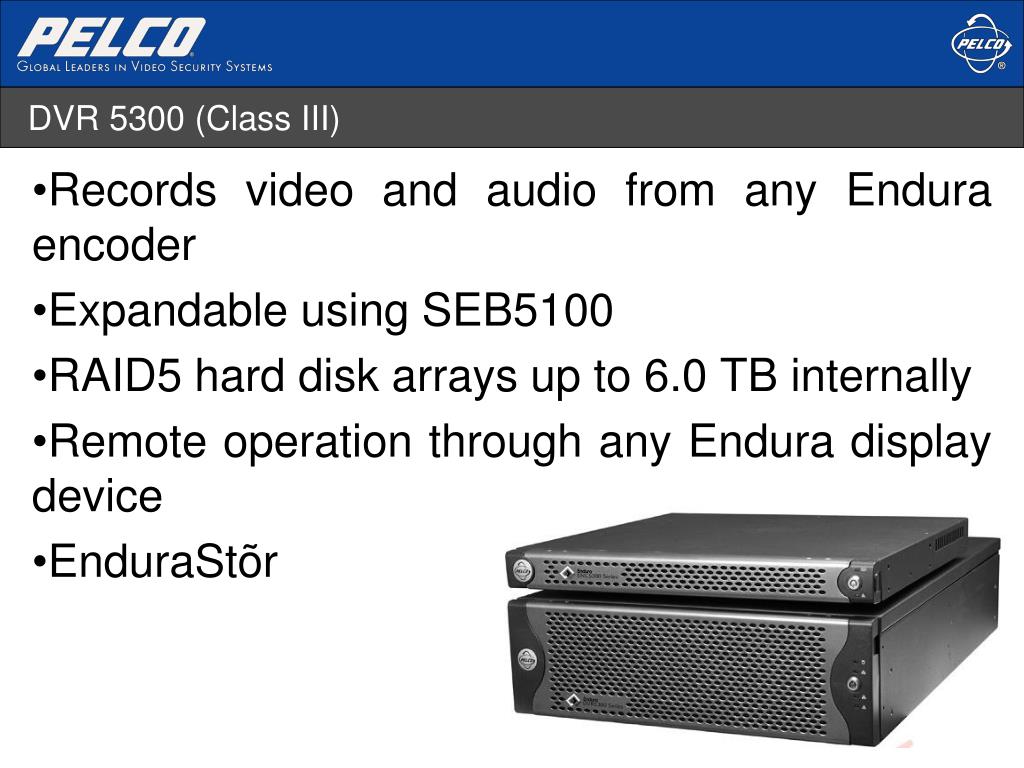

Dvr 5300 class iii1

DVR 5300 (Class III)

  • Records video and audio from any Endura encoder

  • Expandable using SEB5100

  • RAID5 hard disk arrays up to 6.0 TB internally

  • Remote operation through any Endura display device

  • EnduraStõr


Endura

Endura

Questions?
