  1. Multi-core ProcessingThe Past and The Future Amir Moghimi, ASIC Course, UT ECE

  2. The Past • Instruction Level Parallelism (ILP) Enhanced Processors • Wide Dynamic Execution [1] with techniques such as: • speculative execution (using branch prediction) • out of order execution (using register renaming and reservation stations) • super scalar (using multiple-issue instruction cache and reorder buffer) • e.g. Intel P6 Micro-architecture • Used in: Pentium® Pro processor, Pentium® II processor and Pentium® III processors

  3. ILP Limitations • Window size limitation [2] due to: • 2450 comparisons for register dependency detection among 50 instructions in one clock cycle! • A branch instruction every 5 instructions on average • Imperfect branch prediction • Serial nature of the application with true data dependencies • So, how to use this huge amount of silicon coming every year and a half? • Use multiple cores on a single die

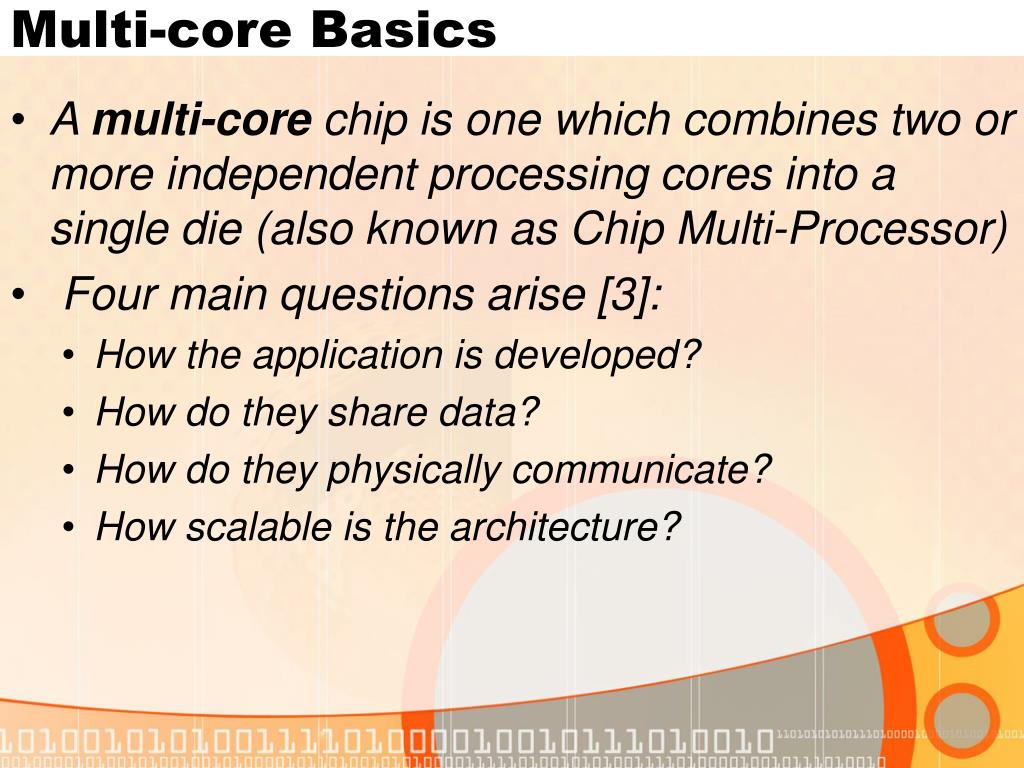

  4. Multi-core Basics • A multi-core chip is one which combines two or more independent processing cores into a single die (also known as Chip Multi-Processor) • Four main questions arise [3]: • How the application is developed? • How do they share data? • How do they physically communicate? • How scalable is the architecture?

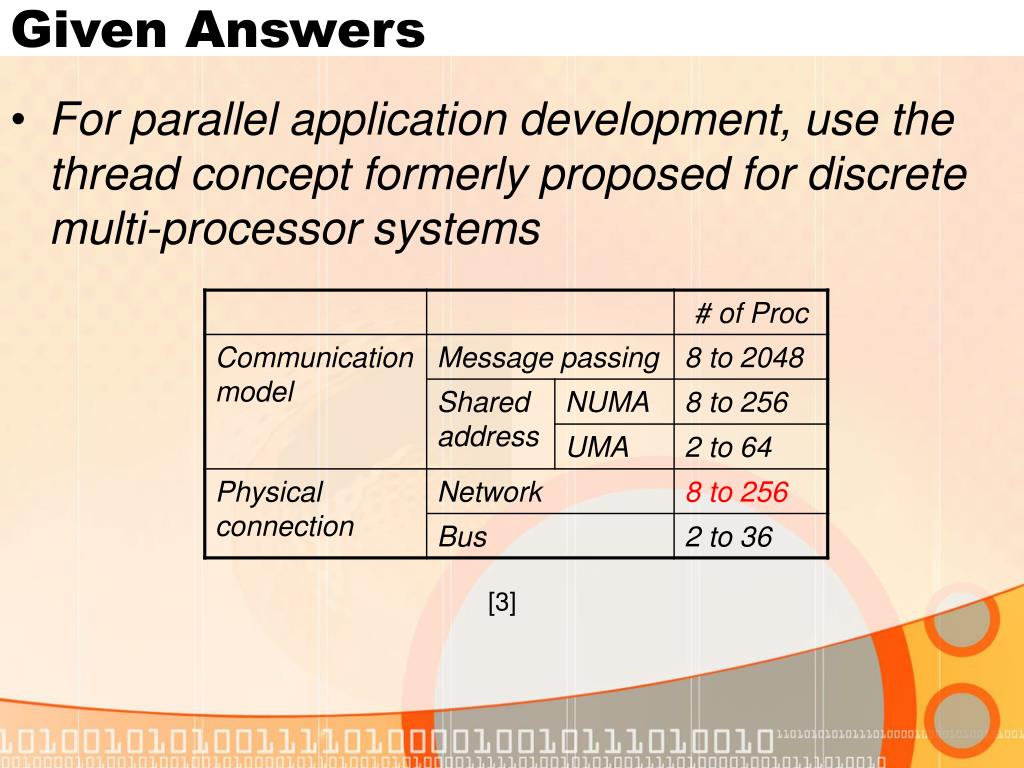

  5. Given Answers • For parallel application development, use the thread concept formerly proposed for discrete multi-processor systems [3]

  6. Chip Level Multi-threading • Implemented in superscalar processors before introducing multi-core chips • Multi-threading Methods: • Fine-grained • Coarse-grained • Simultaneous MT • e.g. Intel HyperThreading Technology

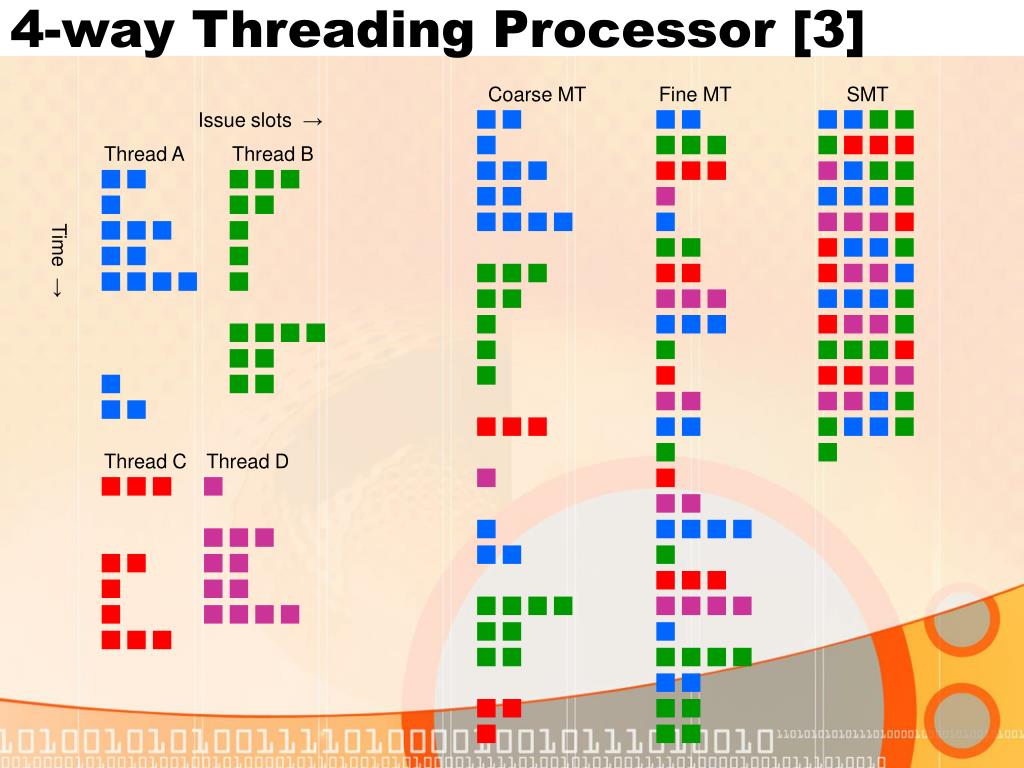

  7. 4-way Threading Processor [3] Coarse MT Fine MT SMT Issue slots → Thread A Thread B Time → Thread C Thread D

  8. Now Multi-core Processing Core 0 Core 1 Core 2 L1D L1I L1D L1I L1D L1I 1MB UL2 • A simple look at a multi-core processor (IBM Xenon used in MS-Xbox 360) • Simple but effective [4]

  9. A More Powerful Design • STI Cell (used in PS3) [8]

  10. A Comparison • Sun UltraSPARC T1 4-way MT SPARC pipe 4-way MT SPARC pipe 4-way MT SPARC pipe 4-way MT SPARC pipe 4-way MT SPARC pipe 4-way MT SPARC pipe 4-way MT SPARC pipe 4-way MT SPARC pipe I/O shared funcs Crossbar 4-way banked L2 [5] Memory controllers [3]

  11. UltraSPARC T1 vs. Pentium EE [5]

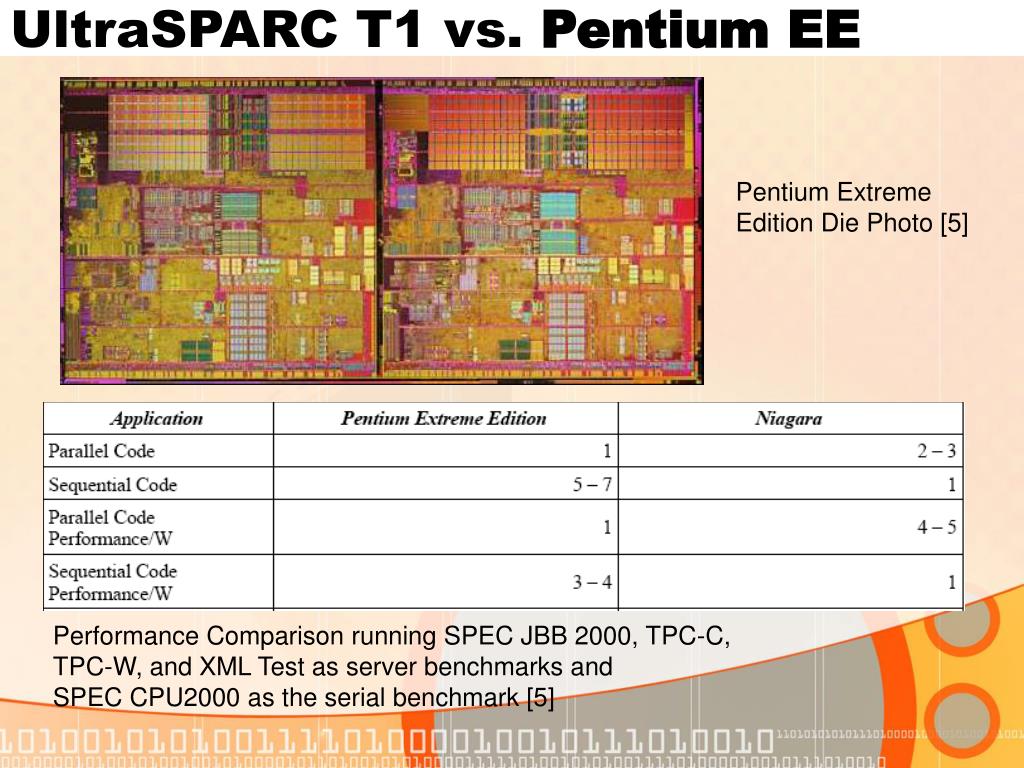

  12. UltraSPARC T1 vs. Pentium EE Pentium Extreme Edition Die Photo [5] Performance Comparison running SPEC JBB 2000, TPC-C, TPC-W, and XML Test as server benchmarks and SPEC CPU2000 as the serial benchmark [5]

  13. Now the Trend • Intel will deliver a quad-core (4 full execution cores) processor in the first quarter of 2007 [1] • “We forecast that more than 85 percent of our server processors and more than 70 percent of our mobile and desktop Pentium® family processor shipments will be multi-core–based by the end of 2006” [7] • Intel plans to have 32 cores on a die till 2015 [7] • But do not forget the high power density and memory bandwidth issues!

  14. Thanks • Any questions?

  15. References 1. http://www.intel.com/technology/architecture/coremicro/index.htm 2. John L. Hennessy and David A. Patterson. Computer Architecture: A Quantitative Approach 2nd Edition. Morgan Kaufmann, 1999. 3. PSU CSE 431, Mary Jane Irwin, Computer Architecture, Fall 2005, Lecture 28. 4. http://www-128.ibm.com/developerworks/power/library/pa-fpfxbox/?ca=dgr-lnxw09XBoxDesign 5. http://www.dns-gmbh.de/dnsgmbh/unternehmen/event-kalender/23b3b3ee6c4e487e6f4205fa03e783bc.0.0/Niagara_CMT.pdf 6. James Laudon: Performance/Watt: the new server focus. SIGARCH Computer Architecture News 33(4): 5-13 (2005) 7. http://www.intel.com/technology/computing/multi-core/index.htm 8. http://www.pcstats.com/articleimages/200502
