  1. Question: How do we know where a particular protein is located in the cell?

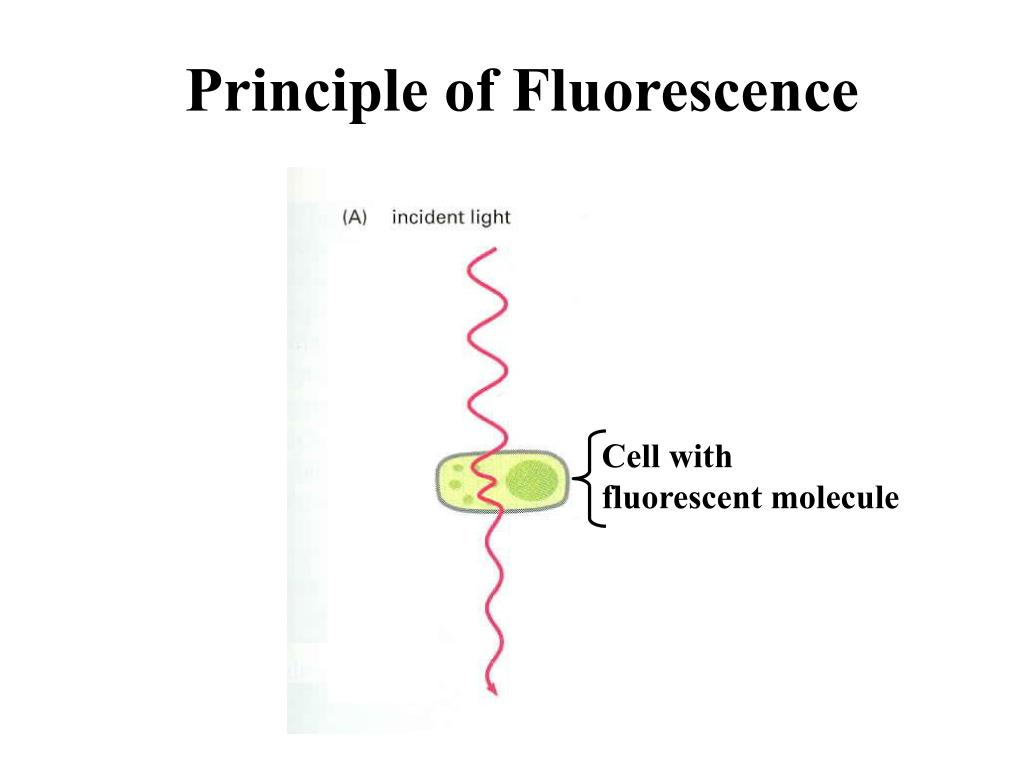

  2. Cell with fluorescent molecule Principle of Fluorescence

  3. Experimental Approaches for Protein Localization 1. Small Molecule Dyes (e.g. DAPI) 2. Immunostaining (dye-conjugated antibodies) 3. Green Fluorescent Protein (GFP) “Tagging”

  4. Aequorea victoria

  5. Green Fluorescent Protein (GFP)

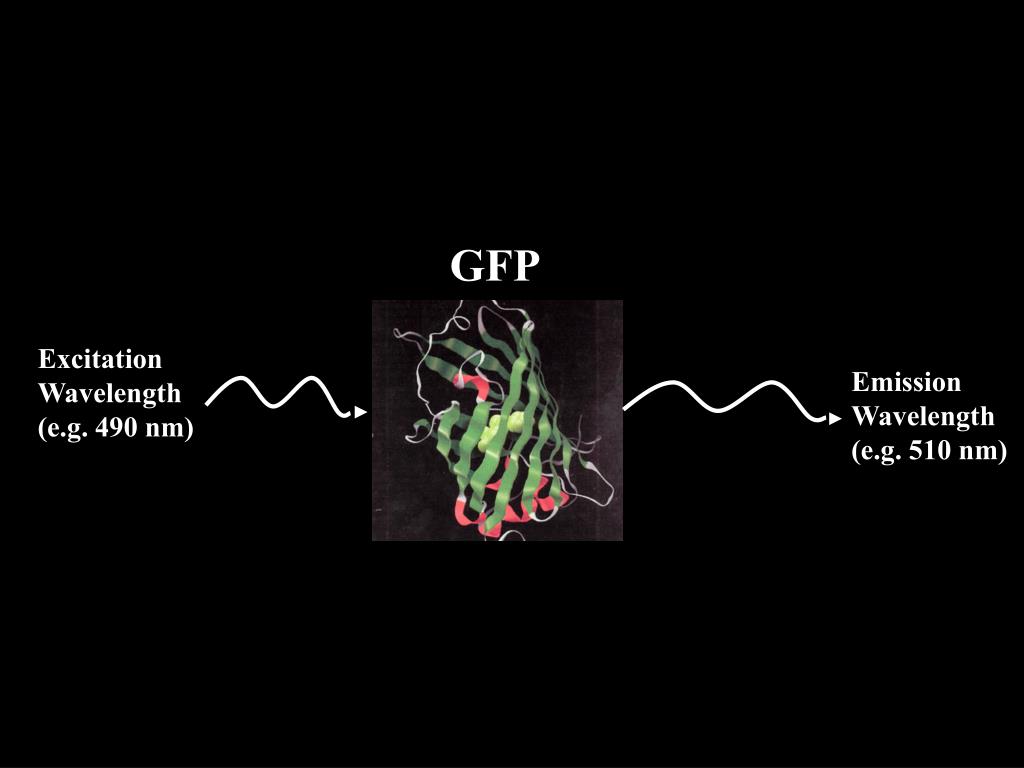

  6. GFP Excitation Wavelength (e.g. 490 nm) Emission Wavelength (e.g. 510 nm)

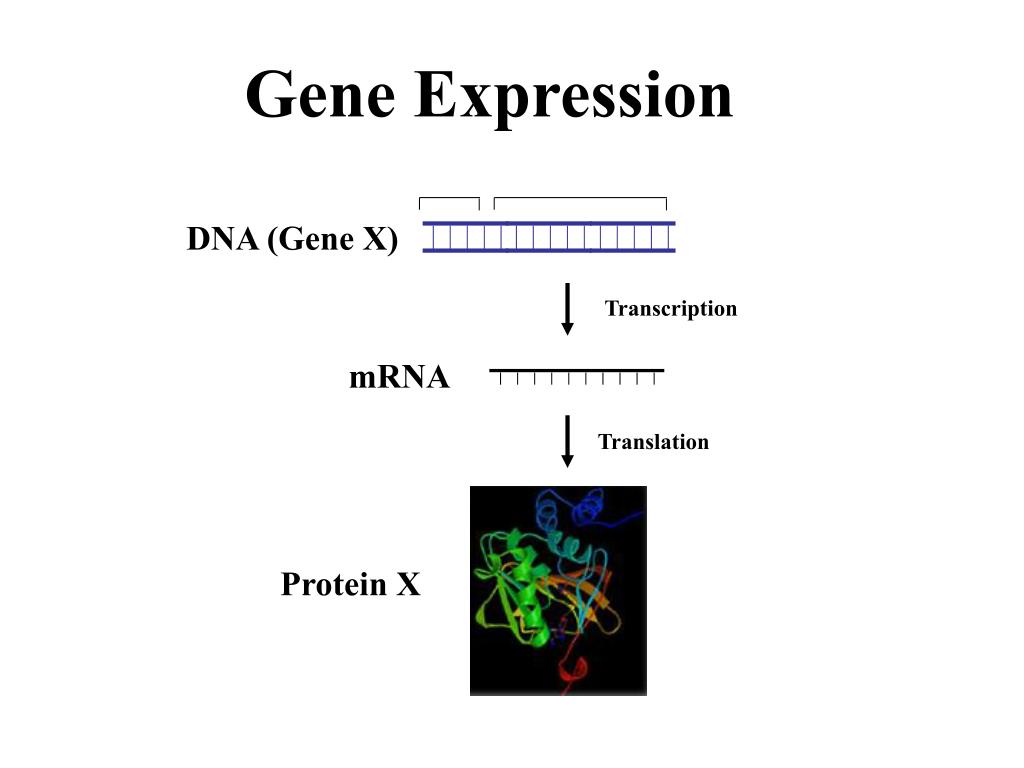

  7. Gene Expression DNA (Gene X) Transcription mRNA Translation Protein X

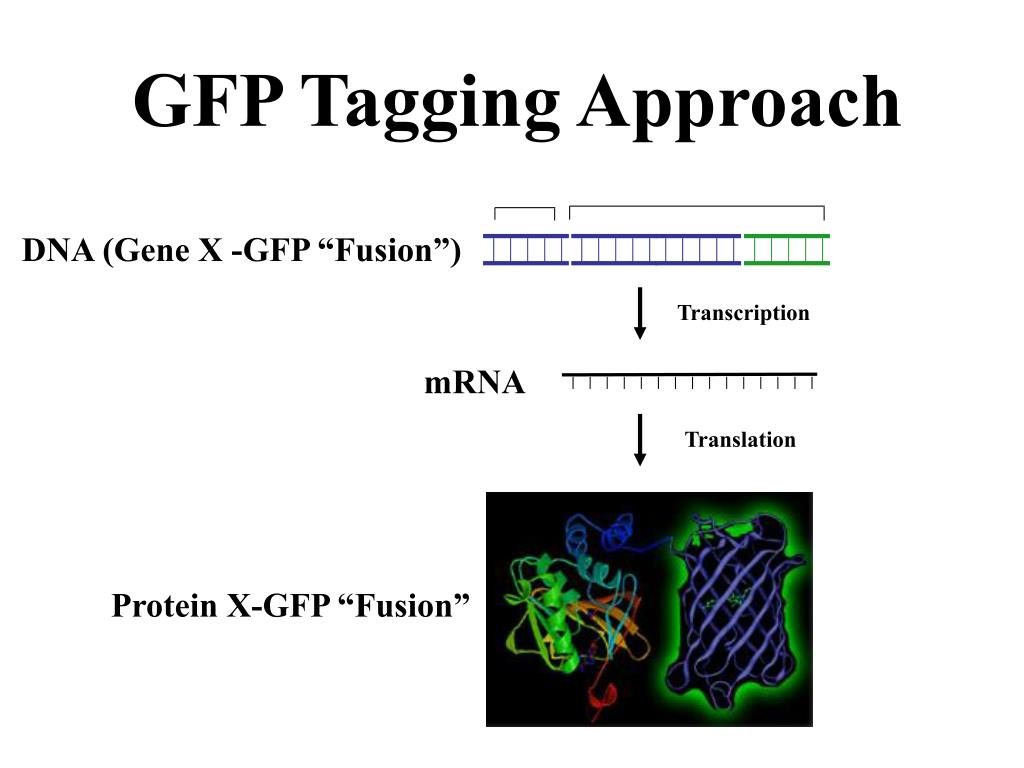

  8. Transcription Translation GFP Tagging Approach DNA (Gene X -GFP “Fusion”) mRNA Protein X-GFP “Fusion”

  9. GFP Tagging Experiments Nuclei Mitotic Spindle Tubulin-GFP Histone-GFP

  10. Light Microscope

  11. Question: Where is the Cdc10 protein located in a yeast cell?

  12. Saccharomyces cerevisiae (Yeast) Eukaryotic cell 15 million bp DNA ~ 6000 genes Complete genome sequence known!

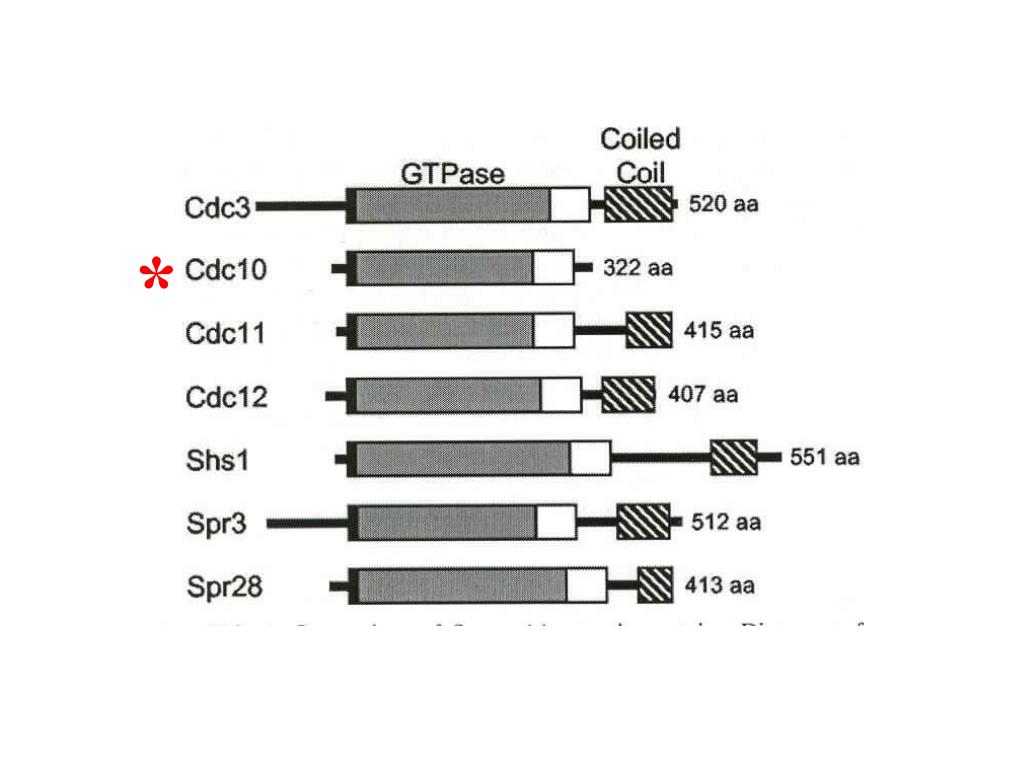

  13. *

  14. Model for “Septin Ring” Formation

  15. Transcription Translation GFP Tagging Approach DNA (CDC10 -GFP “Fusion”) mRNA Cdc10-GFP “Fusion”

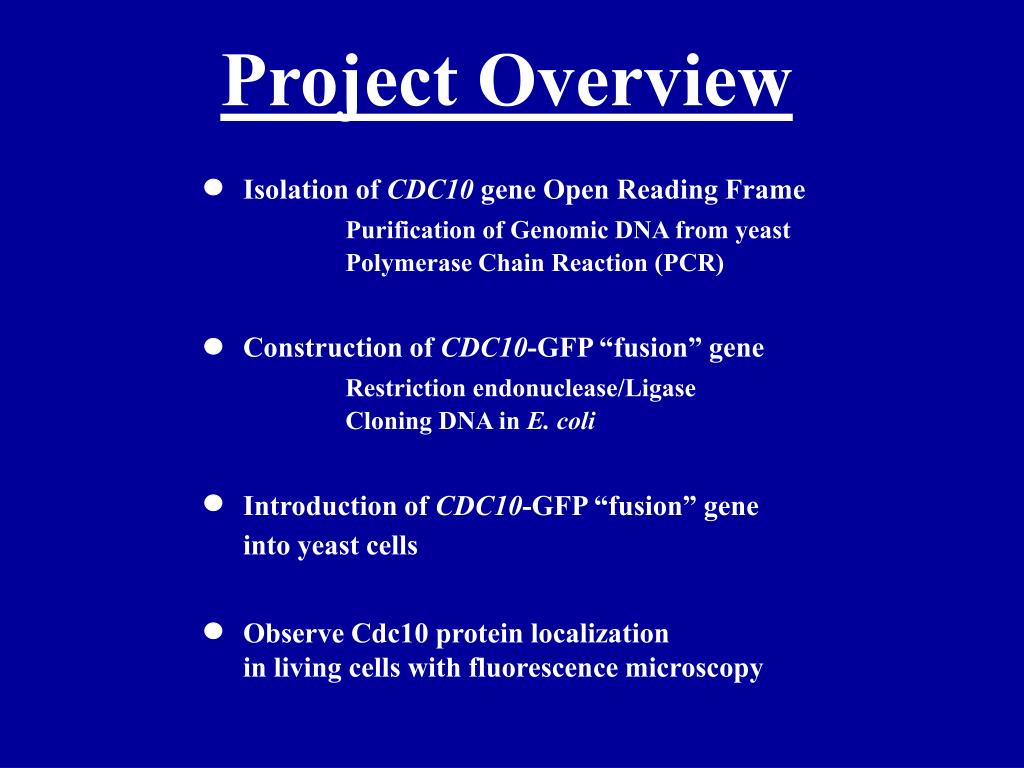

  16. Project Overview Isolation of CDC10 gene Open Reading Frame Purification of Genomic DNA from yeast Polymerase Chain Reaction (PCR) Construction of CDC10-GFP “fusion” gene Restriction endonuclease/Ligase Cloning DNA in E. coli Introduction of CDC10-GFP “fusion” gene into yeast cells Observe Cdc10 protein localization in living cells with fluorescence microscopy

  17. Transcription Translation GFP Tagging Approach DNA (CDC10 -GFP “Fusion”) mRNA Cdc10-GFP “Fusion”

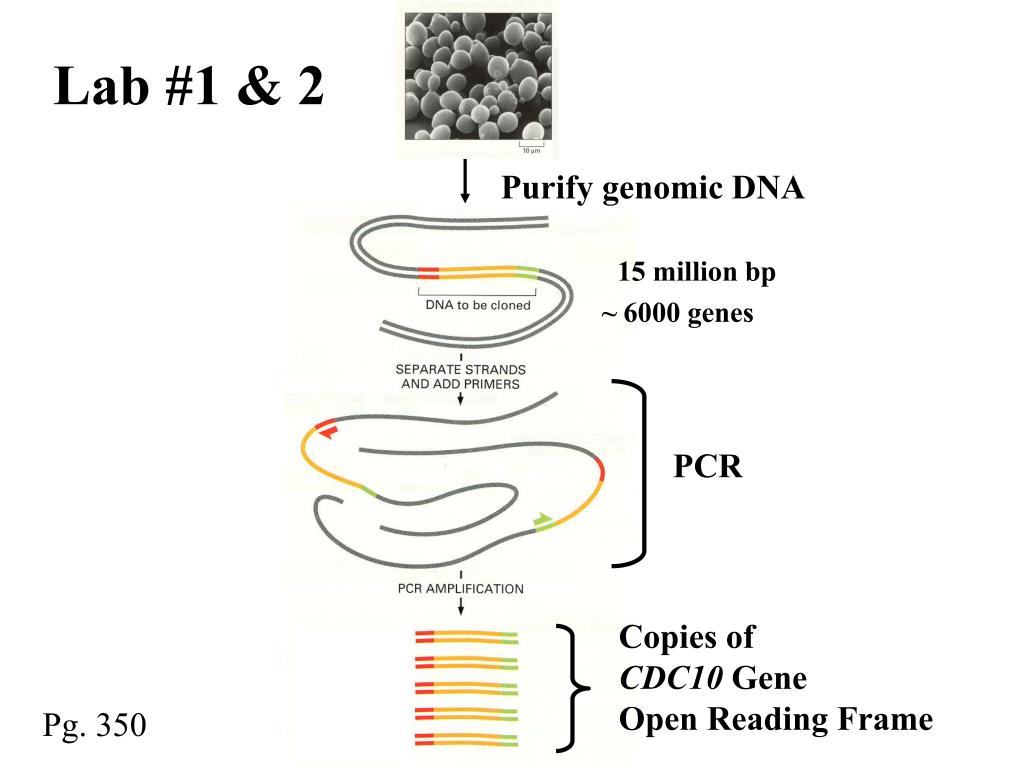

  18. Lab #1 & 2 Purify genomic DNA 15 million bp ~ 6000 genes PCR Copies of CDC10 Gene Open Reading Frame Pg. 350

  19. Lab #1 & 2 Purify genomic DNA 15 million bp ~ 6000 genes PCR Copies of CDC10 Gene Open Reading Frame Pg. 350

  20. CDC10 Gene Primers CDC10-For 5’ – GTGGTGAAGCTTATGTCCATCGAAGAACCTAG – 3’ CDC10-Rev 5’ – GTGGTGAAGCTTCTAGCAGCAGCAGTACCTGT – 3’

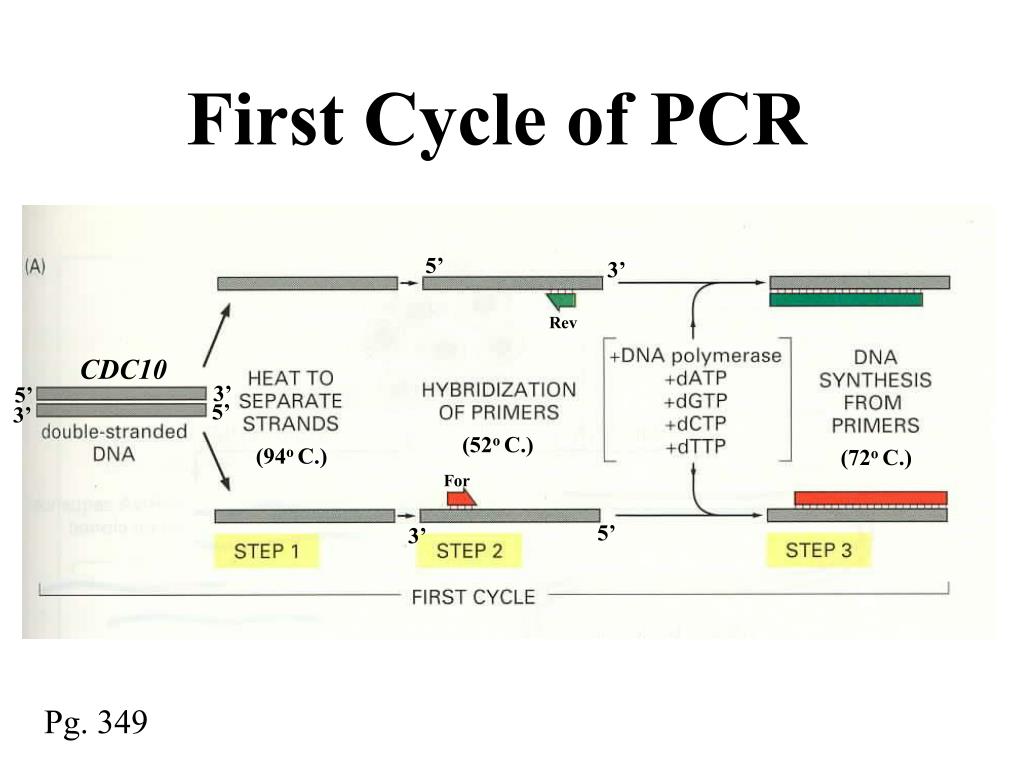

  21. First Cycle of PCR 5’ 3’ Rev CDC10 3’ 5’ 5’ 3’ (52o C.) (94o C.) (72o C.) For 5’ 3’ Pg. 349

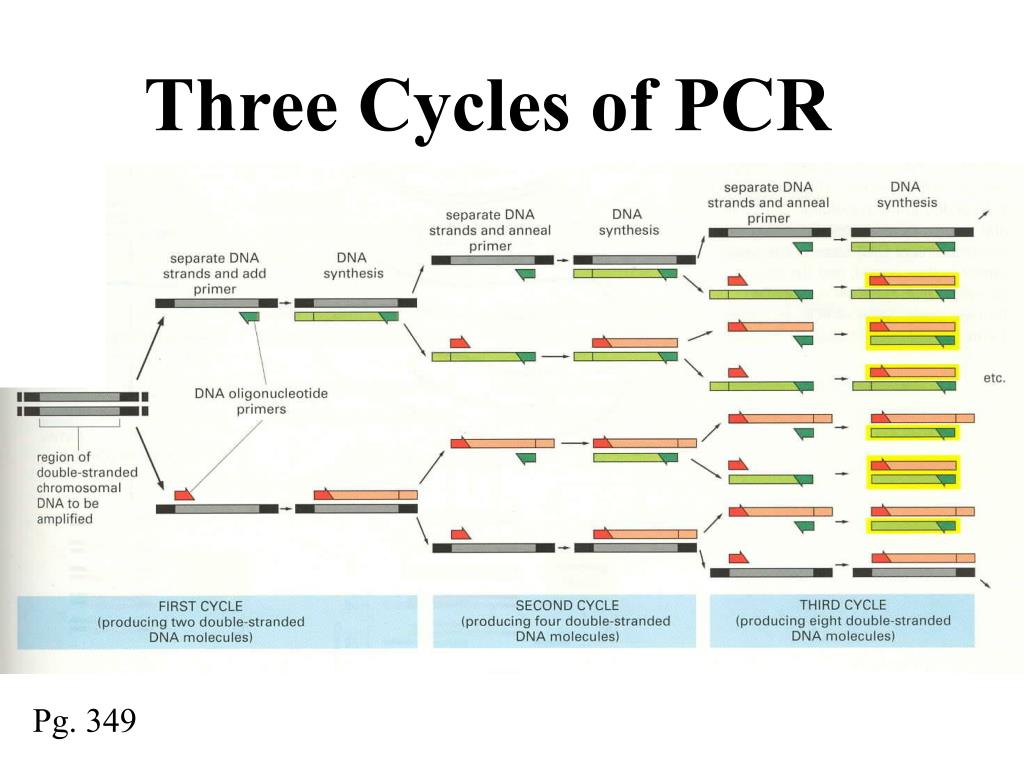

  22. Three Cycles of PCR Pg. 349

  23. Three Cycles of PCR Pg. 349

  24. Lab #1 & 2 Purify genomic DNA 15 million bp ~ 6000 genes PCR Copies of CDC10 Gene Open Reading Frame Pg. 350

  25. CDC10 Gene Sequence

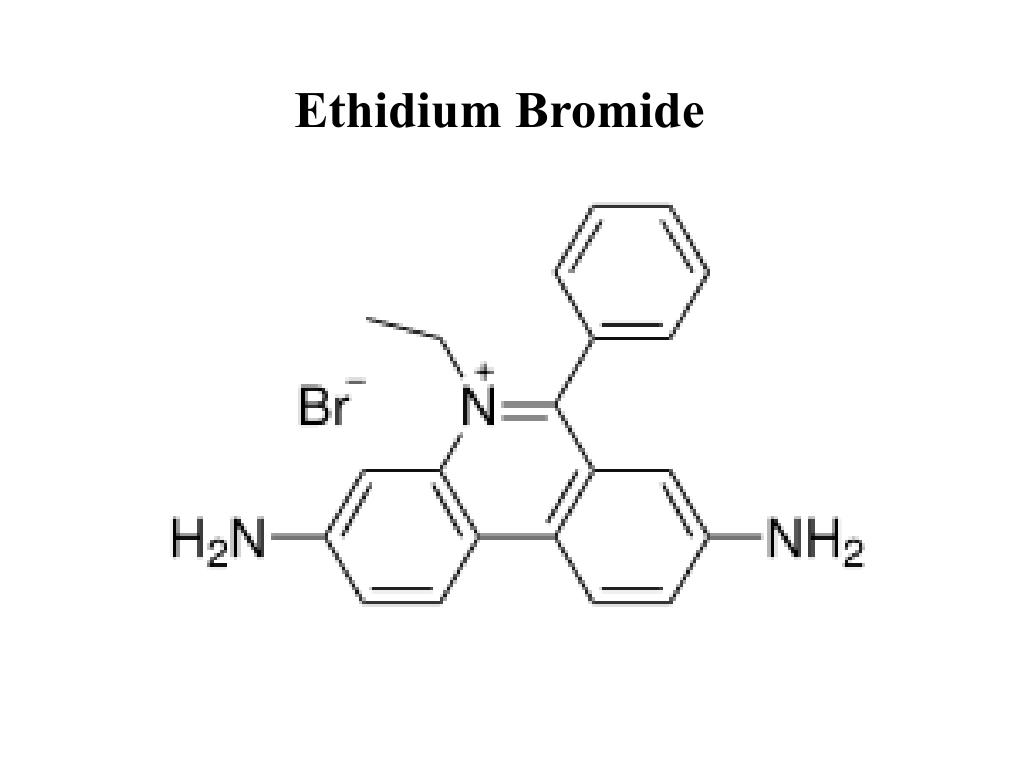

  26. Ethidium Bromide

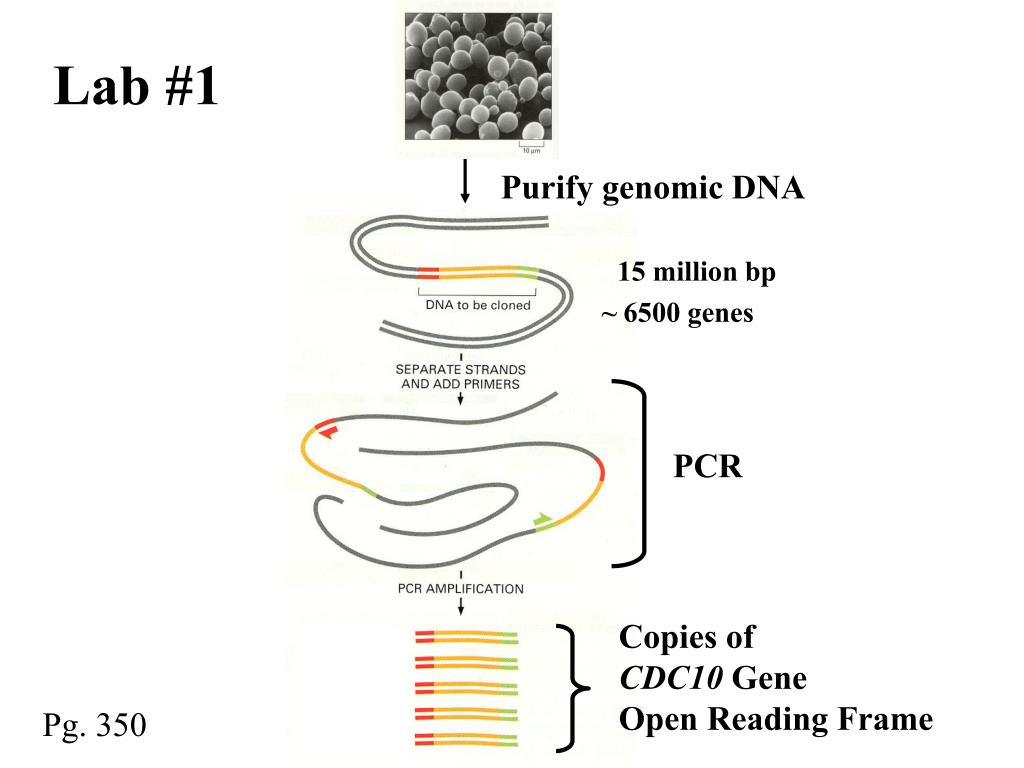

  27. Lab #1 Purify genomic DNA 15 million bp ~ 6500 genes PCR Copies of CDC10 Gene Open Reading Frame Pg. 350

  28. + Wells 2000 bp 500 bp

  29. + Wells 2000 bp 500 bp

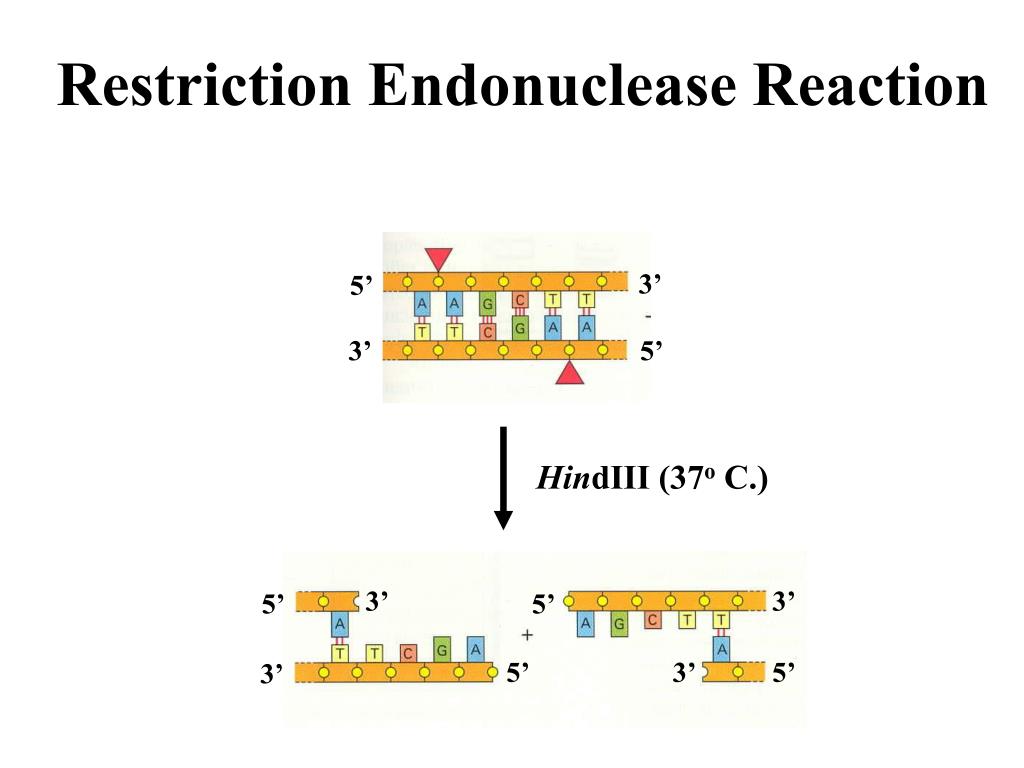

  30. 3’ 3’ 5’ 5’ 5’ 3’ 5’ 3’ Restriction Endonuclease Reaction 3’ 5’ 3’ 5’ HindIII (37o C.)

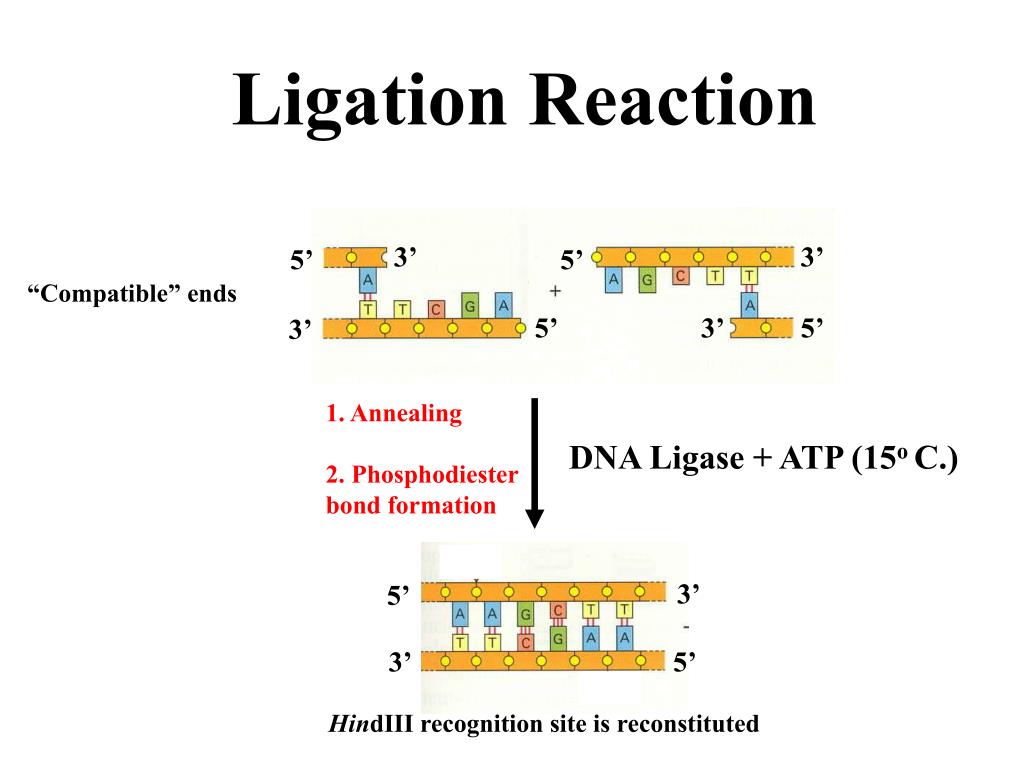

  31. DNA Ligase + ATP (15o C.) 3’ 5’ 3’ 3’ 5’ 5’ 3’ 5’ 5’ 3’ 5’ 3’ HindIII recognition site is reconstituted Ligation Reaction “Compatible” ends 1. Annealing 2. Phosphodiester bond formation

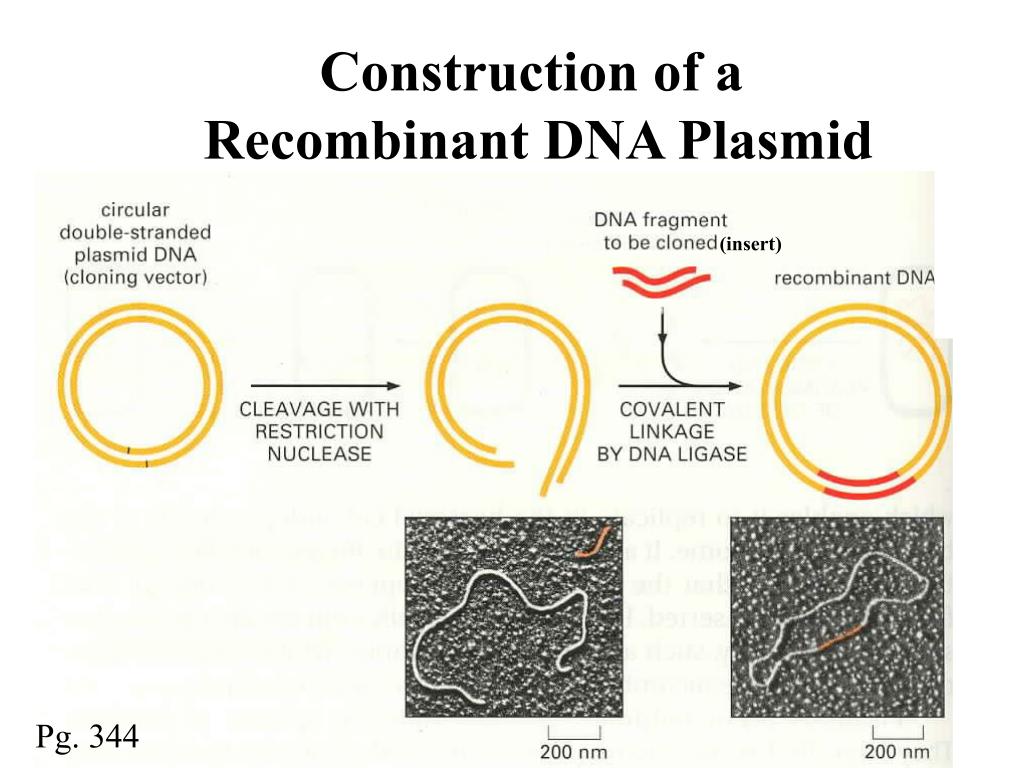

  32. Construction of a Recombinant DNA Plasmid (insert) Pg. 344

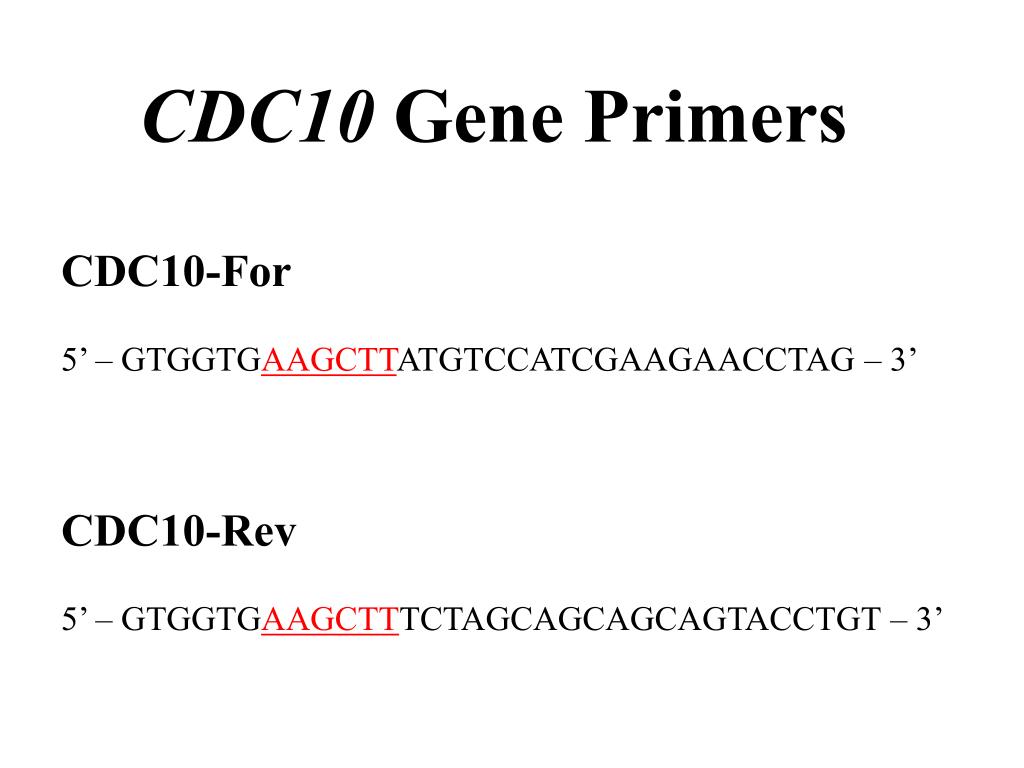

  33. CDC10 Gene Primers CDC10-For 5’ – GTGGTGAAGCTTATGTCCATCGAAGAACCTAG – 3’ CDC10-Rev 5’ – GTGGTGAAGCTTTCTAGCAGCAGCAGTACCTGT – 3’

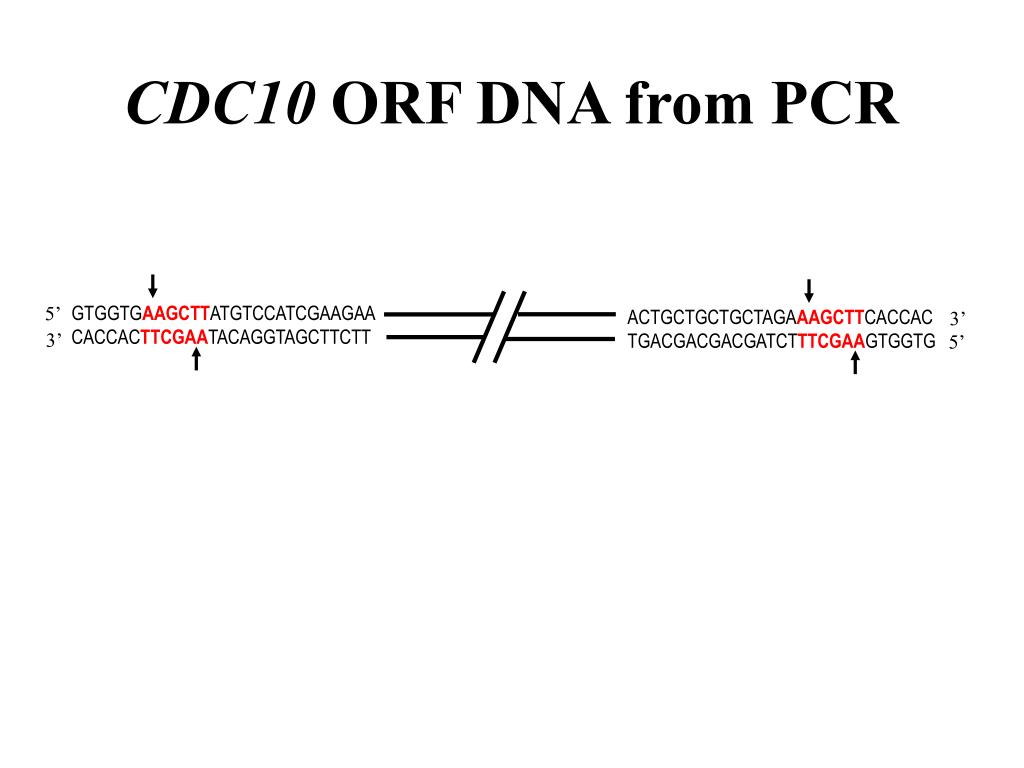

  34. GTGGTGAAGCTTATGTCCATCGAAGAA CACCACTTCGAATACAGGTAGCTTCTT 5’ ACTGCTGCTGCTAGAAAGCTTCACCAC TGACGACGACGATCTTTCGAAGTGGTG 3’ 3’ 5’ CDC10 ORF DNA from PCR

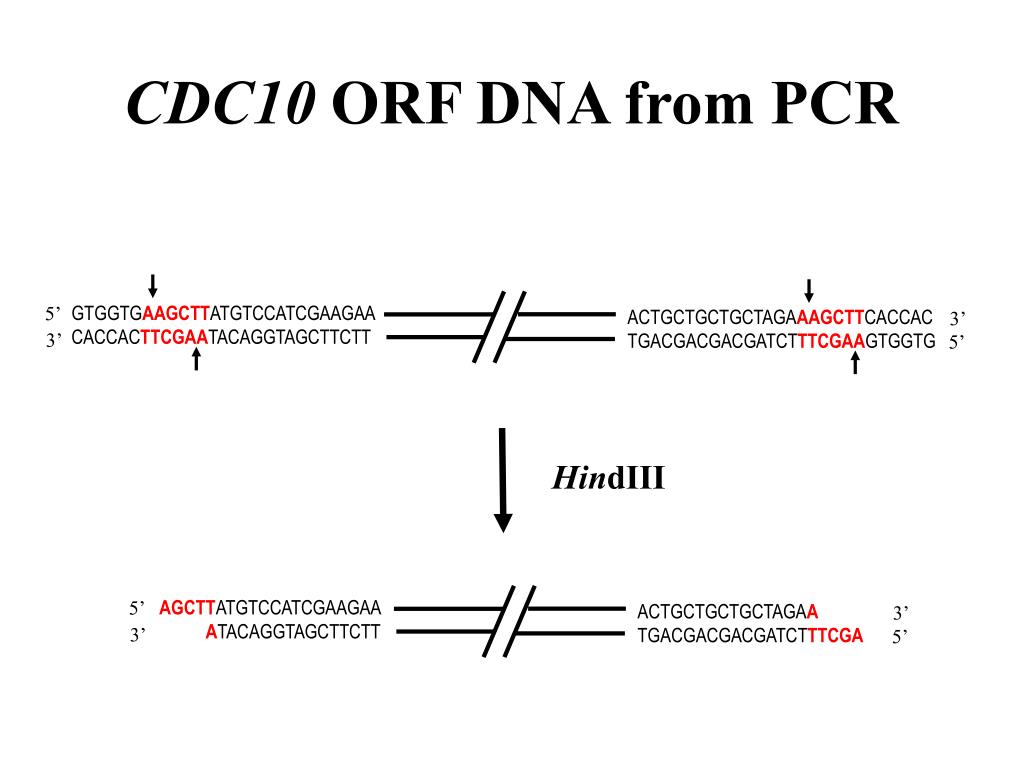

  35. GTGGTGAAGCTTATGTCCATCGAAGAA CACCACTTCGAATACAGGTAGCTTCTT 5’ ACTGCTGCTGCTAGAAAGCTTCACCAC TGACGACGACGATCTTTCGAAGTGGTG 3’ 3’ 5’ AGCTTATGTCCATCGAAGAA ATACAGGTAGCTTCTT 5’ ACTGCTGCTGCTAGAA TGACGACGACGATCTTTCGA 3’ 3’ 5’ CDC10 ORF DNA from PCR HindIII

  36. Ori AmpR pGFP Plasmid HindIII

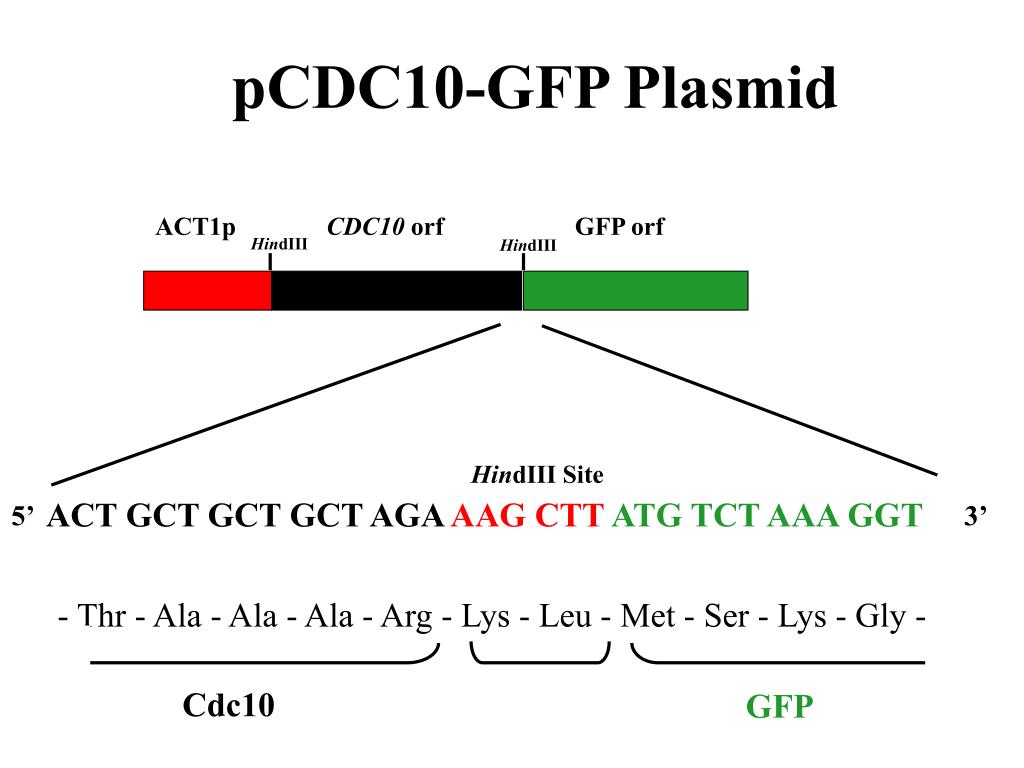

  37. ACT1p CDC10 orf GFP orf HindIII HindIII - Thr - Ala - Ala - Ala - Arg - Lys - Leu - Met - Ser - Lys - Gly - Cdc10 GFP pCDC10-GFP Plasmid HindIII Site ACT GCT GCT GCT AGA AAG CTTATG TCT AAA GGT 5’ 3’

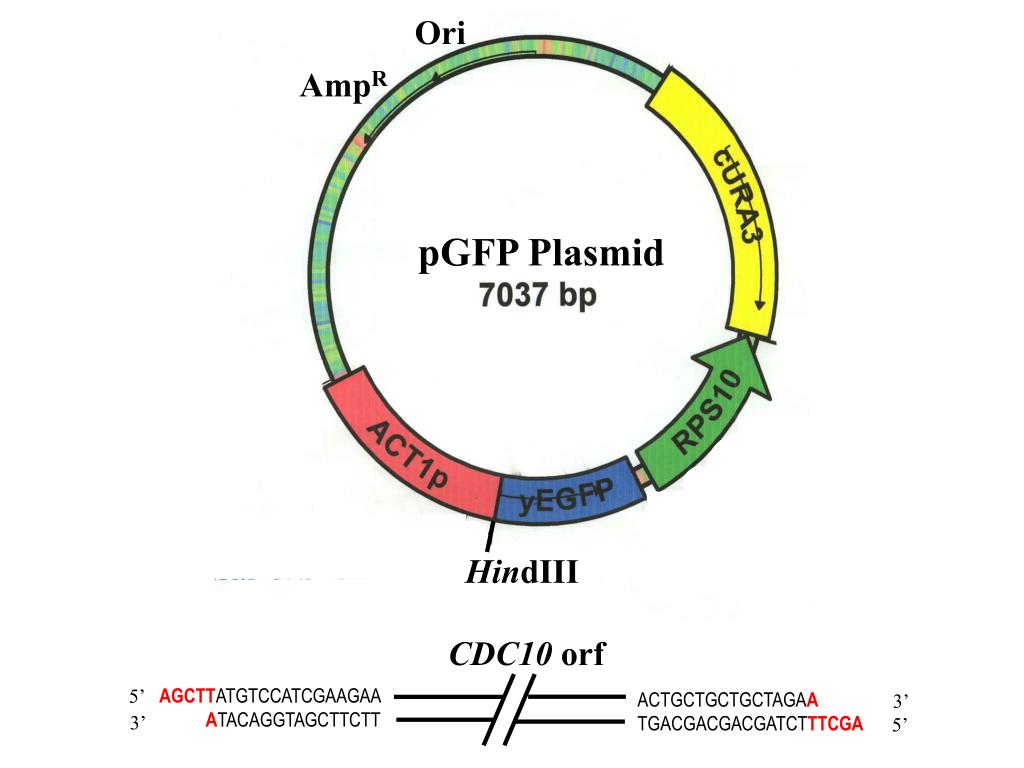

  38. Ori AmpR pGFP Plasmid AGCTTATGTCCATCGAAGAA ATACAGGTAGCTTCTT 5’ ACTGCTGCTGCTAGAA TGACGACGACGATCTTTCGA 3’ 3’ 5’ HindIII CDC10 orf

  39. Construction of a Recombinant DNA Plasmid (insert) Pg. 344

  40. Transformation of E. Coli plasmid

  41. Transformation of E. Coli Cold CaCl2 plasmid

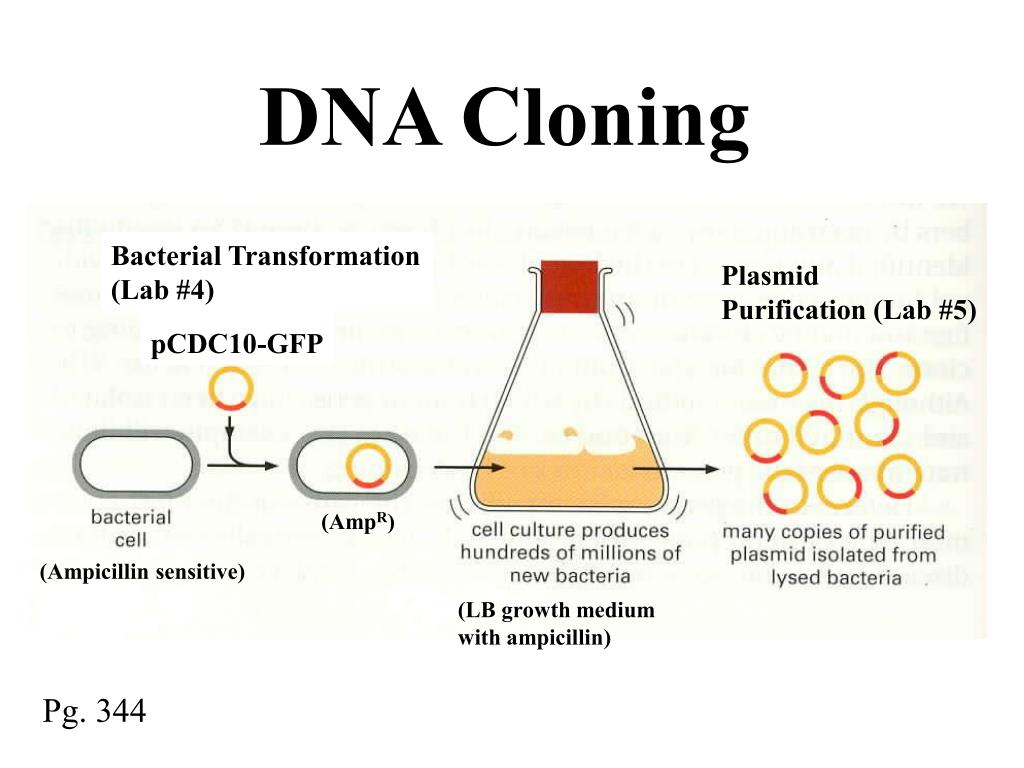

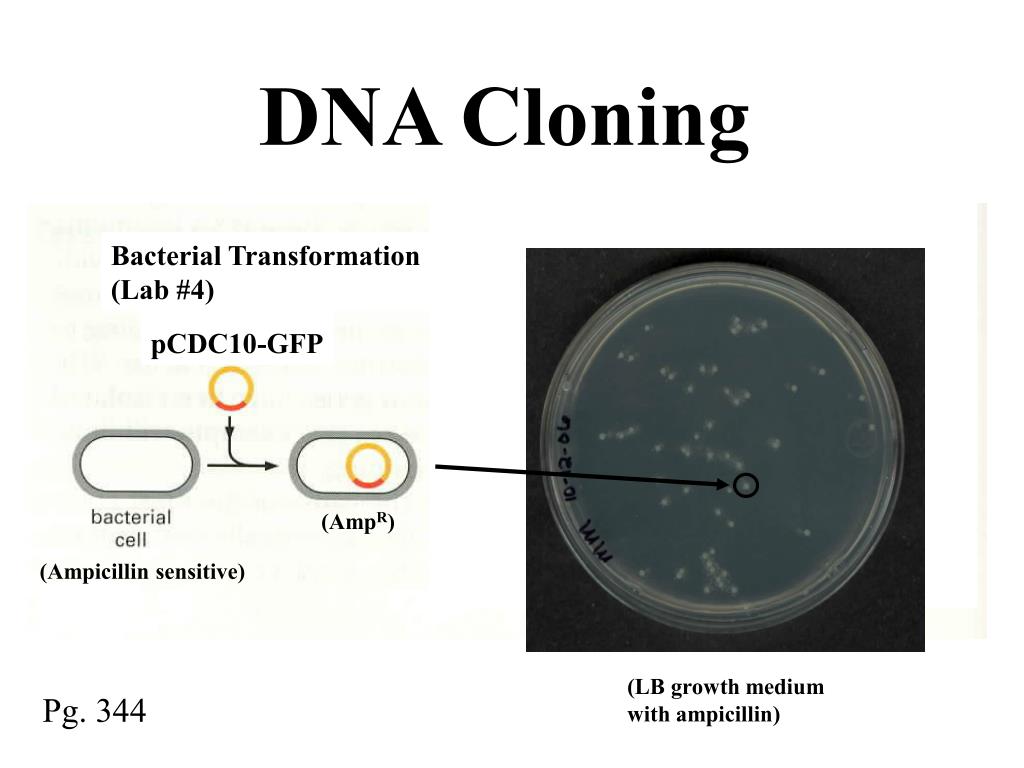

  42. DNA Cloning Bacterial Transformation (Lab #4) pCDC10-GFP Plasmid Purification (Lab #5) (AmpR) (Ampicillin sensitive) (LB growth medium with ampicillin) Pg. 344

  43. DNA Cloning Bacterial Transformation (Lab #4) pCDC10-GFP Plasmid Purification (Lab #5) (AmpR) (Ampicillin sensitive) (LB growth medium with ampicillin) Pg. 344

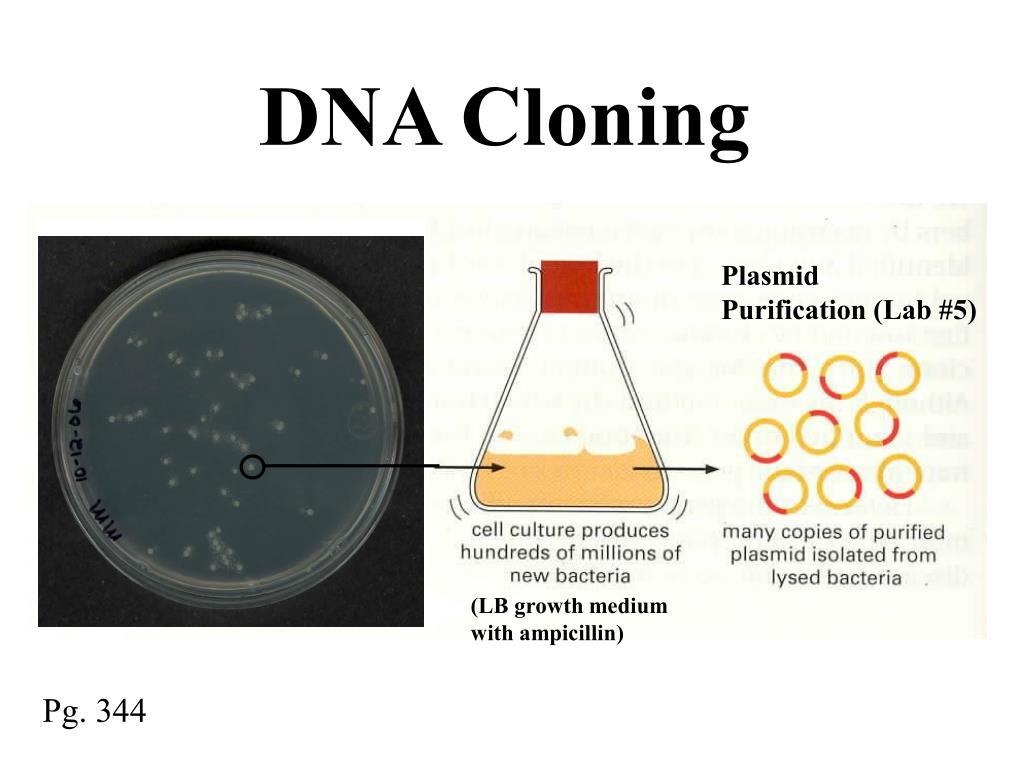

  44. DNA Cloning Plasmid Purification (Lab #5) (AmpR) (LB growth medium with ampicillin) Pg. 344

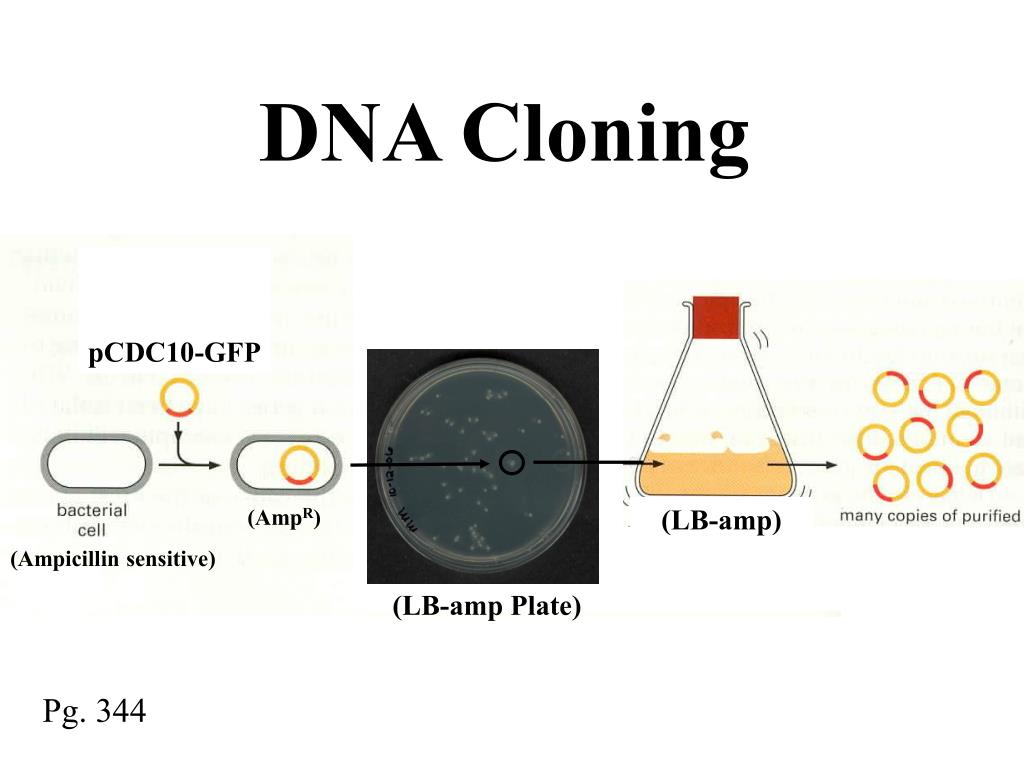

  45. DNA Cloning pCDC10-GFP (LB-amp) (AmpR) (Ampicillin sensitive) (LB-amp Plate) Pg. 344

  46. E. coli Cell Wall Cell Membrane Cytoplasm (chromosome, plasmids)
