  1. Part 2: Interactivity Rebecca Fiebrink Princeton University

  2. In this section • Using the laptop’s inputs • Adding game controllers and MIDI controllers • Interacting with controllers, other software, and other computers using OSC

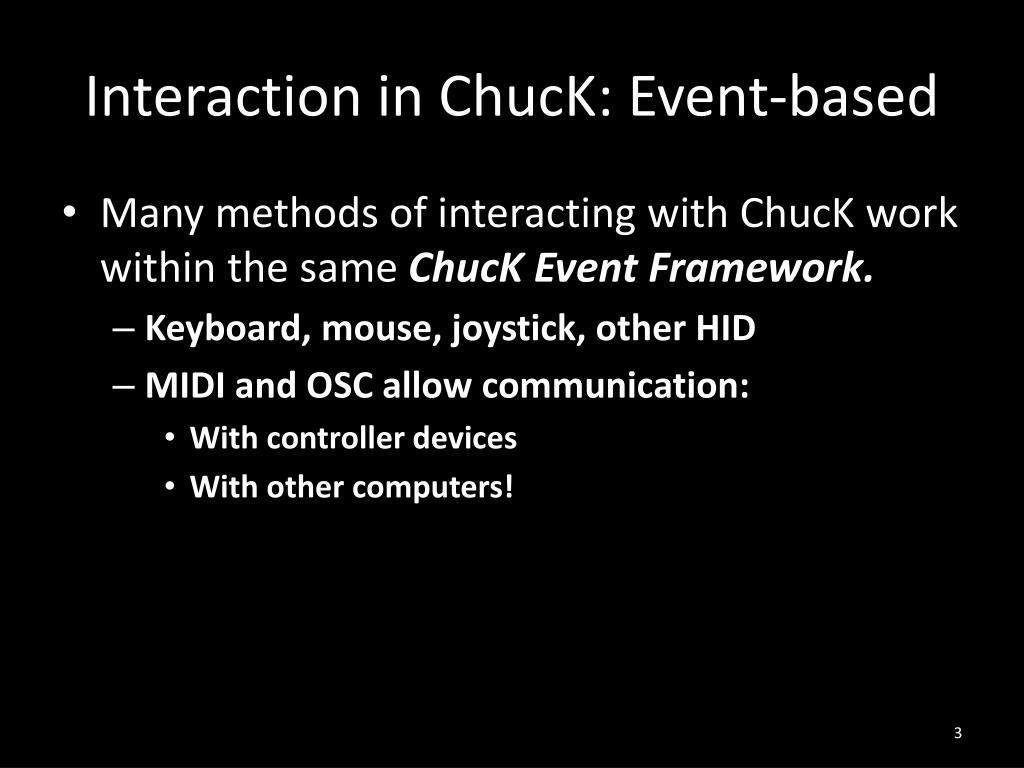

  3. Interaction in ChucK: Event-based • Many methods of interacting with ChucK work within the same ChucK Event Framework. • Keyboard, mouse, joystick, other HID • MIDI and OSC allow communication: • With controller devices • With other computers!

  4. Events • An Event can be broadcast from one shred to one or more other shreds. • Shreds wait for an event by chucking “e => now” • See events.ck, events_sound.ck

  5. Using the laptop’s native inputs • Revisit FM_mouse.ck (#30) • SMELT: • http://smelt.cs.princeton.edu • Show website: A place for you to grab example code • The computer is a bunch of generic input devices • Buttons, position sensor, camera, motion sensor, mic • Why not use these inputs creatively? • Examples: kb-fret.ck, tp-cond.ck, motion-sing.ck, ocarina (Motion sensor and mic are not HID)

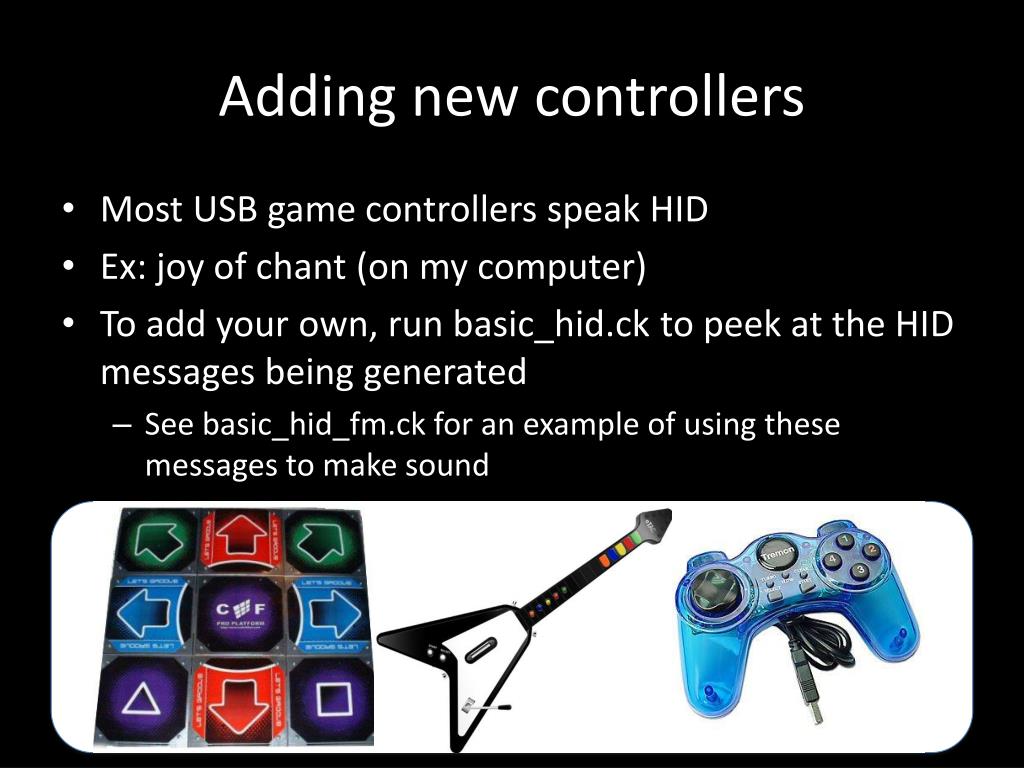

  6. Adding new controllers • Most USB game controllers speak HID • Ex: joy of chant (on my computer) • To add your own, run basic_hid.ck to peek at the HID messages being generated • See basic_hid_fm.ck for an example of using these messages to make sound

  7. MIDI • Use ChucK’s event structure to work with any MIDI devices • Use basic_midi.ck to see what messages are being received from a device • See midi_mandolin.ck for a standard use of MIDI (synthesizing from noteOn messages)

  8. OSC • Open Sound Control • More customizable than MIDI • Each message has a path (like a name) and some data (ints, floats, strings, etc.) • Run on a single computer: Can speak to other programs! • E.g., Processing, Jitter, Max/MSP, custom C++/Java code • Run over ANY network: Communicate between machines!

  9. Establishing OSC communication • Each shred can listen for OSC messages on an open port (e.g., 6565) and/or send OSC messages to a specific port. • The destination machine is specified using an IP address or “localhost” Machine X Port 6449 on Machine X UDP Shred B Shred A Listens on port 6449 Sends to port 6449 on Machine X

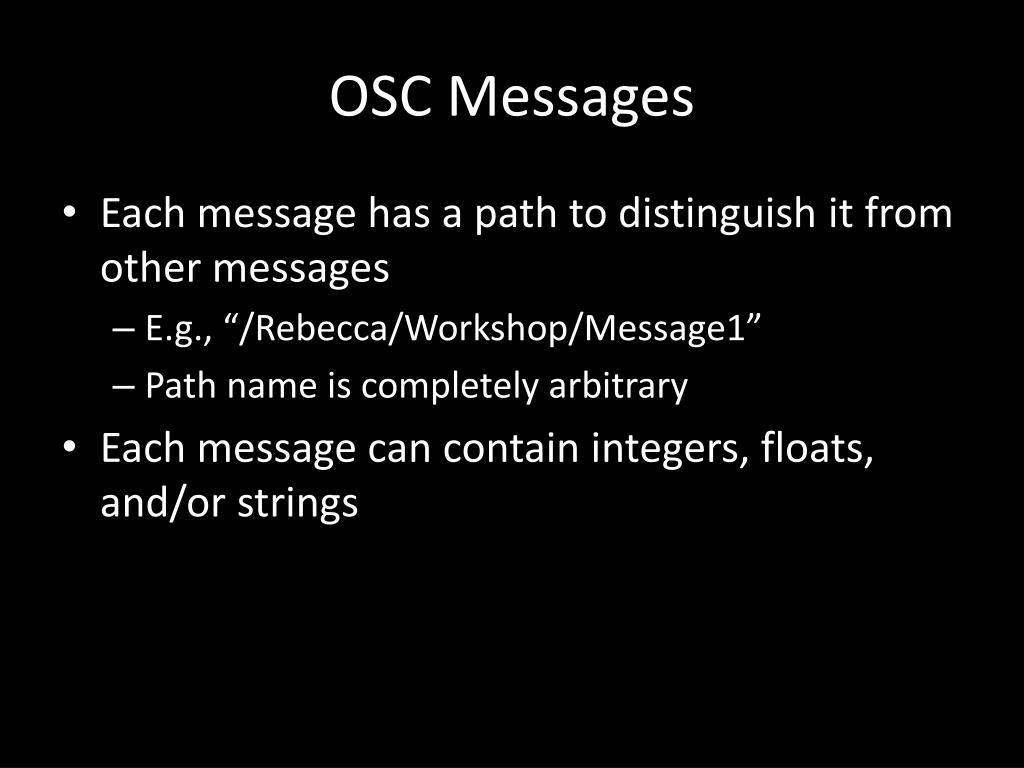

  10. OSC Messages • Each message has a path to distinguish it from other messages • E.g., “/Rebecca/Workshop/Message1” • Path name is completely arbitrary • Each message can contain integers, floats, and/or strings

  11. Communicating between shreds • Event example from Part 1 (#47) required that all communicating shreds share a namespace • E.g., 2 player shreds were children of the conductor • With OSC: No namespace necessary • Example: osc_conductor.ck, osc_player.ck

  12. OSC with Processing • Example: Simple webcam mapping: processing_webcam_osc.pde + use_processing_cam.ck

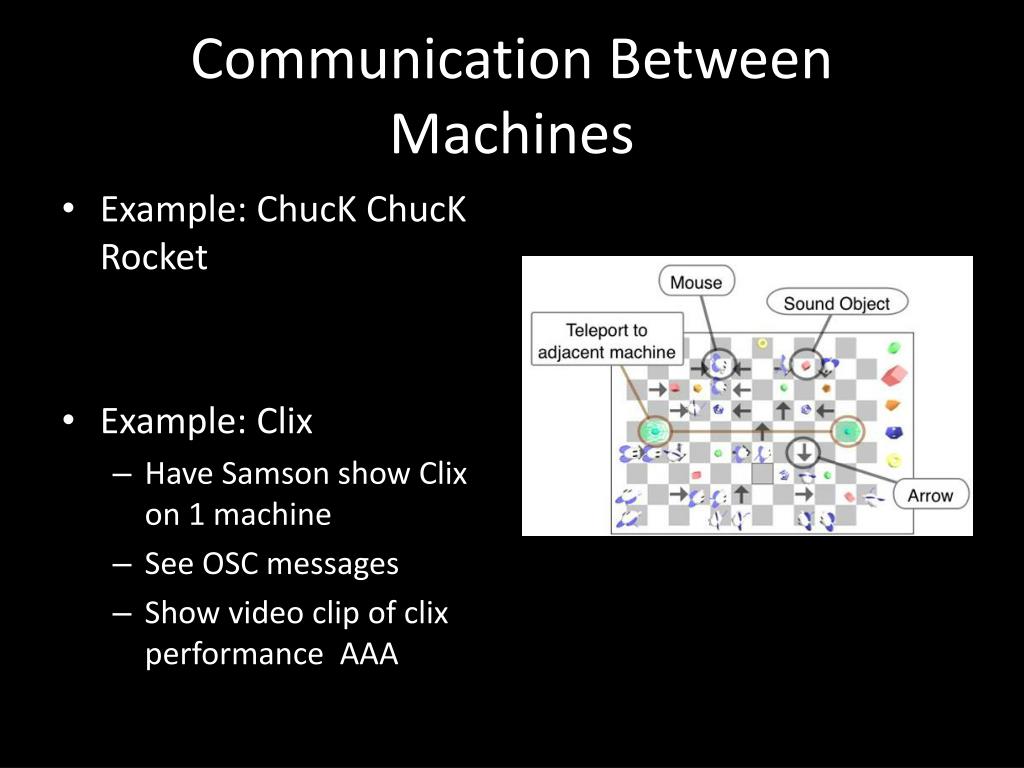

  13. Communication Between Machines • Example: ChucK ChucK Rocket • Example: Clix • Have Samson show Clix on 1 machine • See OSC messages • Show video clip of clix performance AAA

  14. Review: Interactivity • Laptop’s native inputs: SMELT toolkit • Keyboard, mouse, motion sensor, microphone • External controllers • Game devices: HID events • MIDI controllers • Custom sensors: Arduino (OSC), CUI (HID), iCube (MIDI) • Other software via OSC: • Processing, Max/MSP, Jitter • Custom C++, Java, vvvv, mrmr, openFrameworks, Ruby, … • Other computers via OSC • Anything on the same network, or with a reachable IP address See my OSC handout for the details on how to use OSC with ChucK
