Coms w4115 programming languages translators maria ayako taku mat2185@columbia edu

Lecture 23

Functional Programming Languagesand the Influence of Lambda Calculus

COMS W4115

Programming Languages & Translators

Maria Ayako Taku

[email protected]

COMS W4115 - PLT Columbia University 1 April 24, 2013


Why functional programming

Why Functional Programming?

You may have heard that:

  • functional programs are very succinct and elegant,

    but…

    (2) they take forever to write and understand

Simple XOR program:

let xor p = match p

with (false, x) -> x

| (true, x) -> not x;;

COMS W4115 - PLT Columbia University 2 April 24, 2013


Outline

Outline

What is Functional Programming?

Lambda Calculus' Influence on Functional Programming

Benefits of Functional Programming

OCaml in Action: An Entire Interpreter in 3 slides

COMS W4115 - PLT Columbia University 3 April 24, 2013

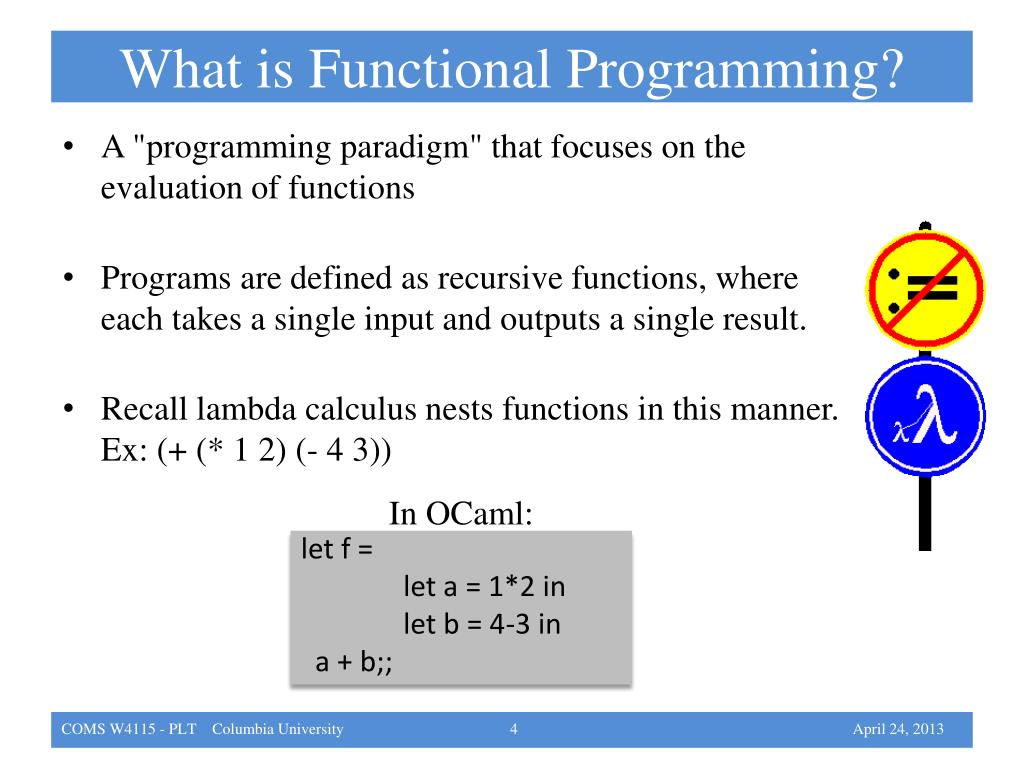

What is functional programming

What is Functional Programming?

  • A "programming paradigm" that focuses on the evaluation of functions

  • Programs are defined as recursive functions, where each takes a single input and outputs a single result.

  • Recall lambda calculus nests functions in this manner. Ex: (+ (* 1 2) (- 4 3))

In OCaml:

let f =

let a = 1*2 in

let b = 4-3 in

a + b;;

COMS W4115 - PLT Columbia University 4 April 24, 2013


What is functional programming1

What is Functional Programming?

  • One important trademark of Functional Programming:

    It avoids both changes in state and mutable data

These expressions are

not equal.

Conceptually, they

are more like this.

//F#//C#

let a=42; int a=42;

//F#//C#

let a=42;static int a(){

return 42;

}

http://johnnycoder.com/blog/2009/04/20/functional-programming-part-1/

COMS W4115 - PLT Columbia University 5 April 24, 2013


What is functional programming2

What is Functional Programming?

Some Common (more or less) FP Languages:

  • LISP

  • OCaml

  • Haskell

  • Erlang

  • F# (multi-paradigm)

So what's the value in functional programming?

Are its benefits worth taking the time to learn it and overcoming the (possibly) steep learning curve?

COMS W4115 - PLT Columbia University 6 April 24, 2013


Outline1

Outline

  • What is Functional Programming?

  • Lambda Calculus' Influence on Functional Programming

  • Benefits of Functional Programming

  • OCaml in Action: An Entire Interpreter in 3 slides

COMS W4115 - PLT Columbia University 7 April 24, 2013


Lambda calculus influence

Lambda Calculus' Influence

  • The syntax and theory of Functional Programming is highly influenced by lambda calculus.

  • Knowledge of lambda calculus means that FP is easier to learn, understand, and use efficiently.

    You might recognize some of the following FP syntax traits from lambda calculus…

COMS W4115 - PLT Columbia University 8 April 24, 2013


Lambda calculus influence function abstraction

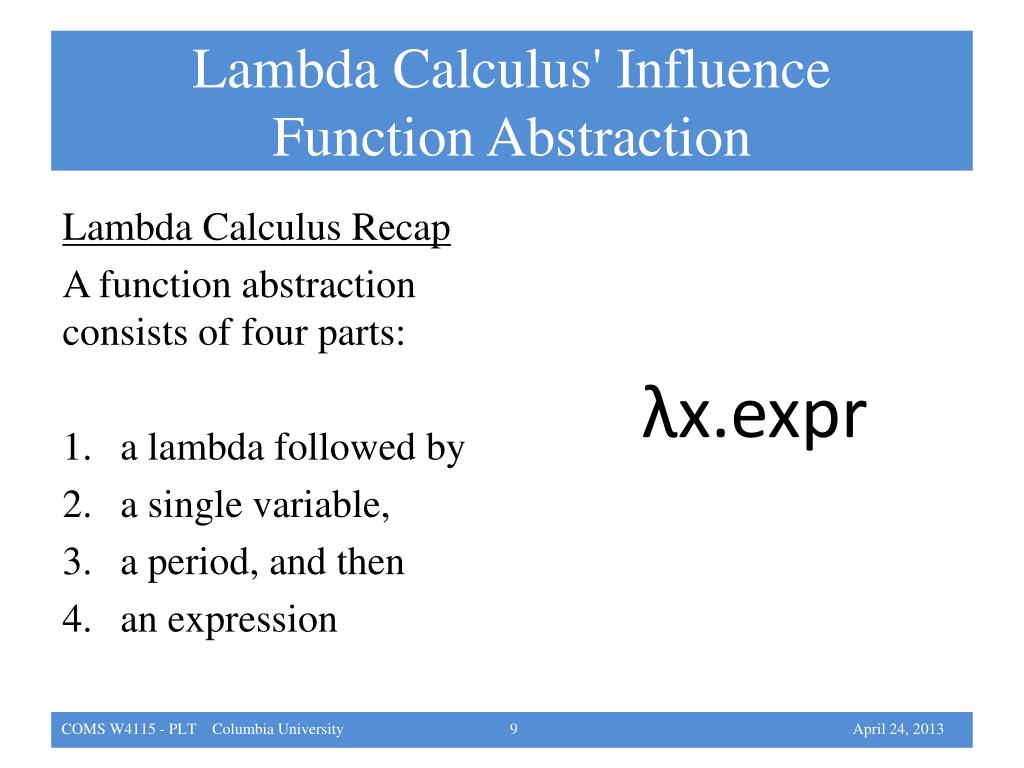

Lambda Calculus' InfluenceFunction Abstraction

λx.expr

Lambda Calculus Recap

A function abstraction consists of four parts:

  • a lambda followed by

  • a single variable,

  • a period, and then

  • an expression

COMS W4115 - PLT Columbia University 9 April 24, 2013

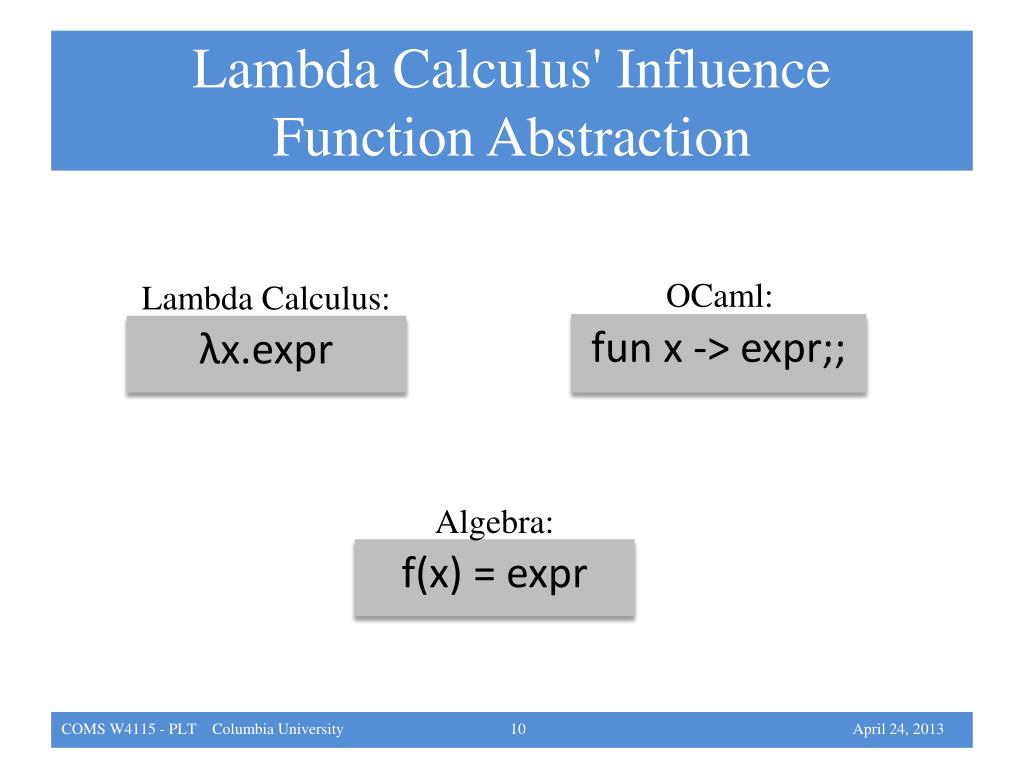

Lambda calculus influence function abstraction1

Lambda Calculus' InfluenceFunction Abstraction

OCaml:

Lambda Calculus:

fun x -> expr;;

λx.expr

Algebra:

f(x) = expr

COMS W4115 - PLT Columbia University 10 April 24, 2013

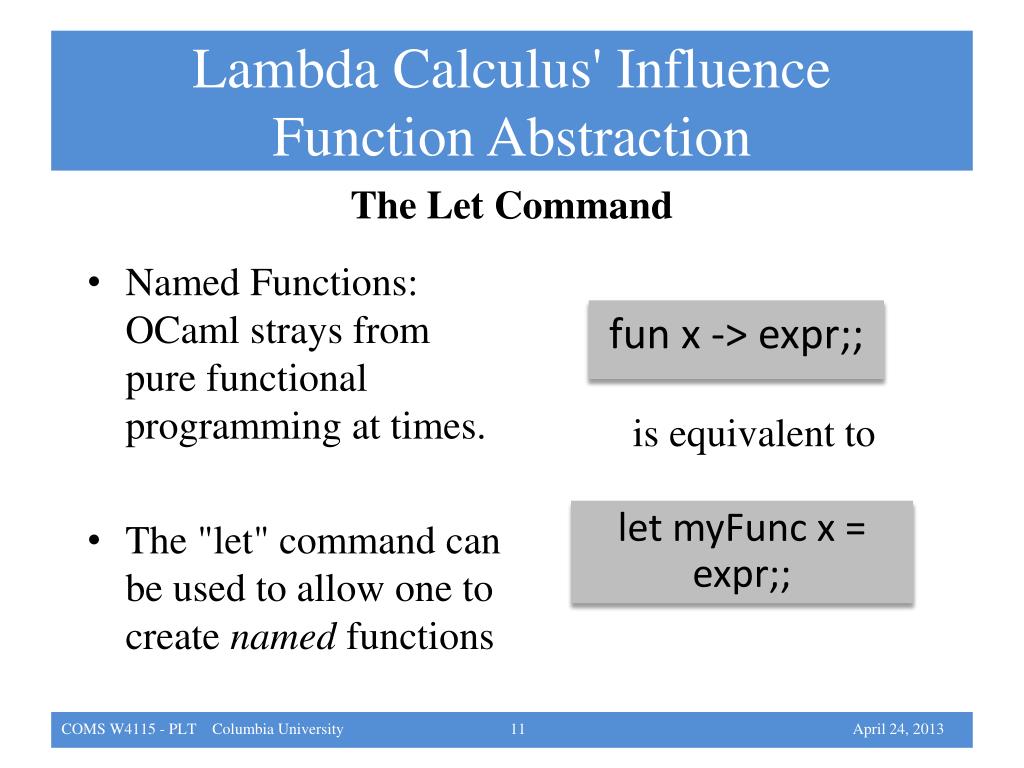

Lambda calculus influence function abstraction2

Lambda Calculus' InfluenceFunction Abstraction

The Let Command

  • Named Functions: OCaml strays from pure functional programming at times.

  • The "let" command can be used to allow one to create named functions

fun x -> expr;;

is equivalent to

let myFunc x = expr;;

COMS W4115 - PLT Columbia University 11 April 24, 2013

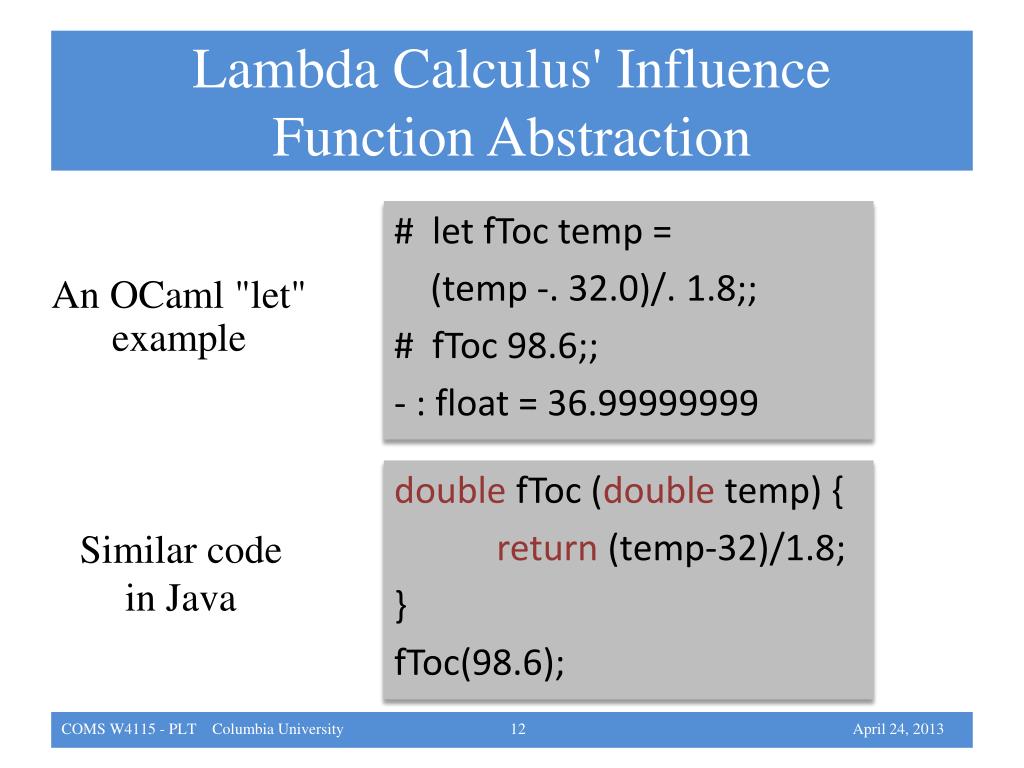

Lambda calculus influence function abstraction3

Lambda Calculus' InfluenceFunction Abstraction

# let fToc temp =

(temp -. 32.0)/. 1.8;;

# fToc 98.6;;

- : float = 36.99999999

An OCaml "let" example

doublefToc (double temp) {

return (temp-32)/1.8;

}

fToc(98.6);

Similar code

in Java

COMS W4115 - PLT Columbia University 12 April 24, 2013


Lambda calculus influence beta reductions

Lambda Calculus' InfluenceBeta Reductions

Lambda Calculus Recap

A function application is evaluated via a beta reduction

Which occurs when an actual value is substituted for a variable

Examples:

(λx.xzx)y → [y/x]xzx = yzy

(λx.+ 1 x)7 → + 1 7 = 8

Layman's Terms: (λx.expr1)expr2 means "replace every instance of x in expr1 with expr2"

COMS W4115 - PLT Columbia University 13 April 24, 2013


Lambda calculus influence beta reductions1

Lambda Calculus' InfluenceBeta Reductions

OCaml:

Lambda Calculus:

(fun x ->expr1)expr2;;

(λx.expr1)expr2

Example Usage:

(fun x ->x*x)5;;

(* Evaluates to 5*5 = 25 *)

COMS W4115 - PLT Columbia University 14 April 24, 2013


Lambda calculus influence beta reductions2

Lambda Calculus' InfluenceBeta Reductions

The Let Command

(fun x ->expr1)expr2;;

The "let" command can once again be used to perform similar functionality to the "fun" command.

Is semantically equivalent to:

let x = expr2 in expr1;;

Example Usage:

let x = 5 in x*x;;

(* Evaluates to 5*5=25*)

COMS W4115 - PLT Columbia University 15 April 24, 2013


Outline2

Outline

  • What is Functional Programming?

  • Lambda Calculus' Influence on Functional Programming

  • Benefits of Functional Programming

  • OCaml in Action: An Entire Interpreter in 3 slides

COMS W4115 - PLT Columbia University 16 April 24, 2013


Benefits of functional programming

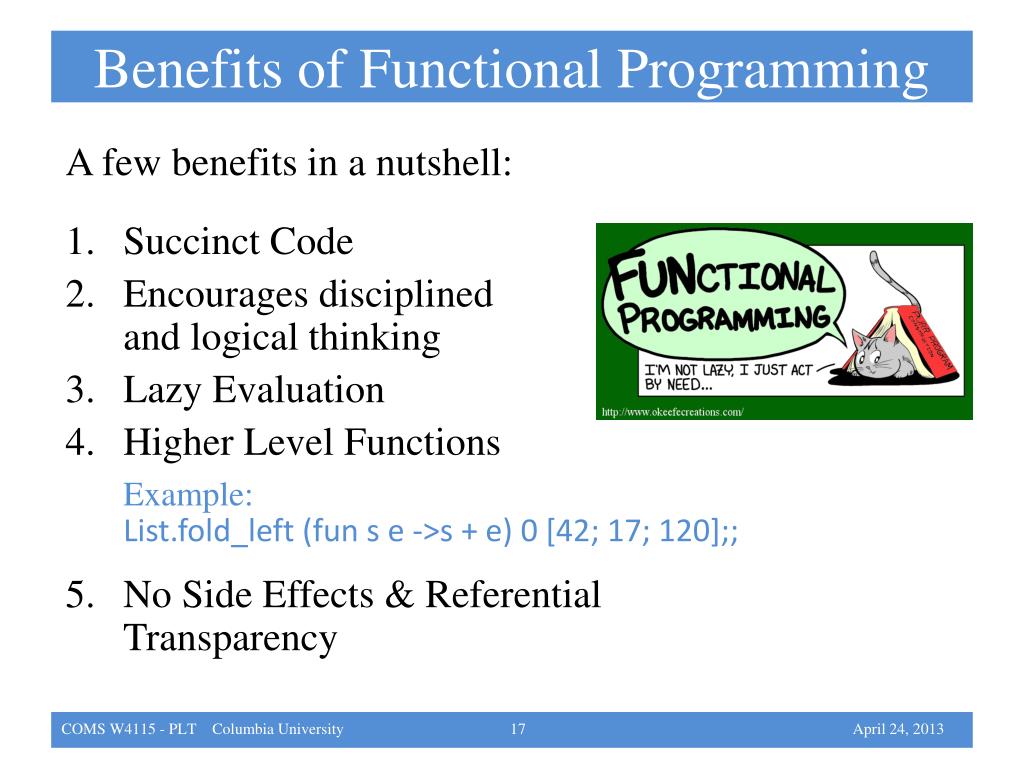

Benefits of Functional Programming

A few benefits in a nutshell:

  • Succinct Code

  • Encourages disciplined and logical thinking

  • Lazy Evaluation

  • Higher Level FunctionsExample:List.fold_left(fun s e ->s + e) 0 [42; 17; 120];;

  • No Side Effects & Referential Transparency

COMS W4115 - PLT Columbia University 17 April 24, 2013


Benefits of functional programming no side effects

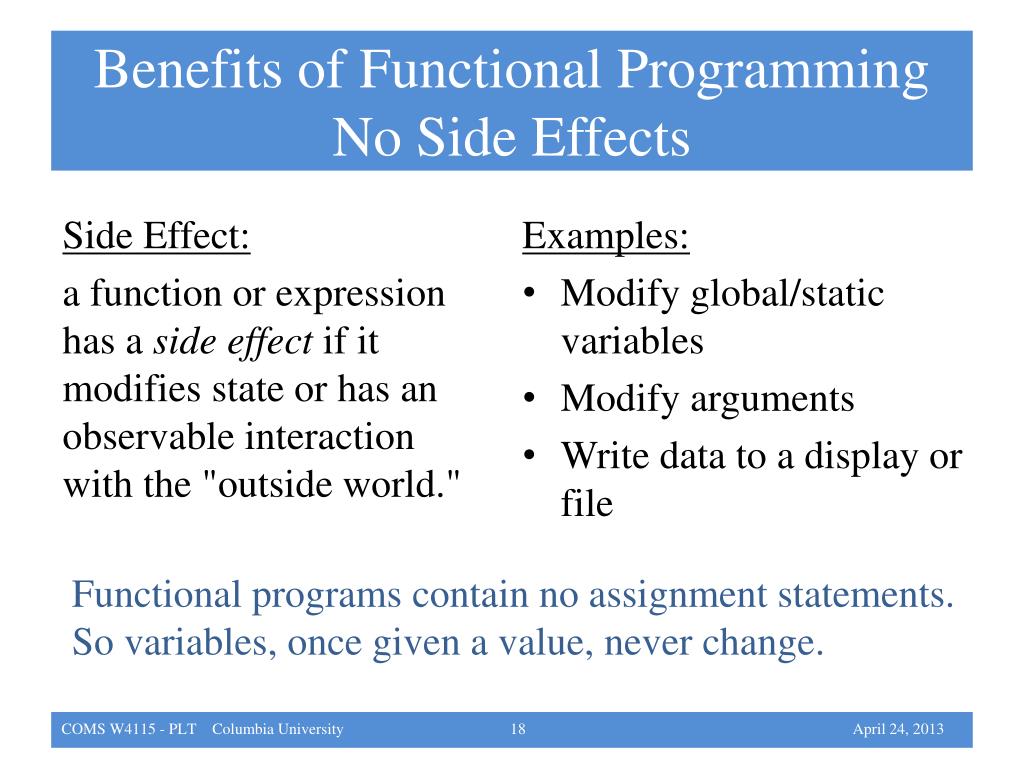

Benefits of Functional ProgrammingNo Side Effects

Side Effect:

a function or expression has a side effect if it modifies state or has an observable interaction with the "outside world."

Examples:

  • Modify global/static variables

  • Modify arguments

  • Write data to a display or file

Functional programs contain no assignment statements. So variables, once given a value, never change.

COMS W4115 - PLT Columbia University 18 April 24, 2013


Benefits of functional programming no side effects1

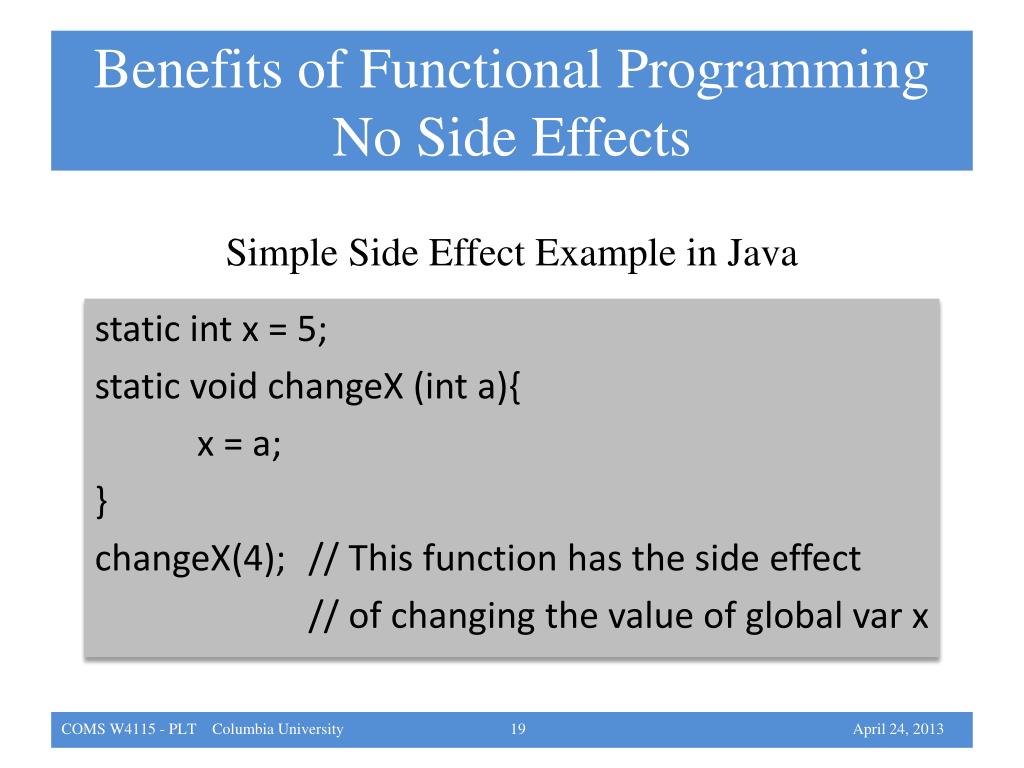

Benefits of Functional ProgrammingNo Side Effects

Simple Side Effect Example in Java

static int x = 5;

static void changeX (int a){

x = a;

}

changeX(4); // This function has the side effect

// of changing the value of global var x

COMS W4115 - PLT Columbia University 19 April 24, 2013


Benefits of functional programming referential transparency

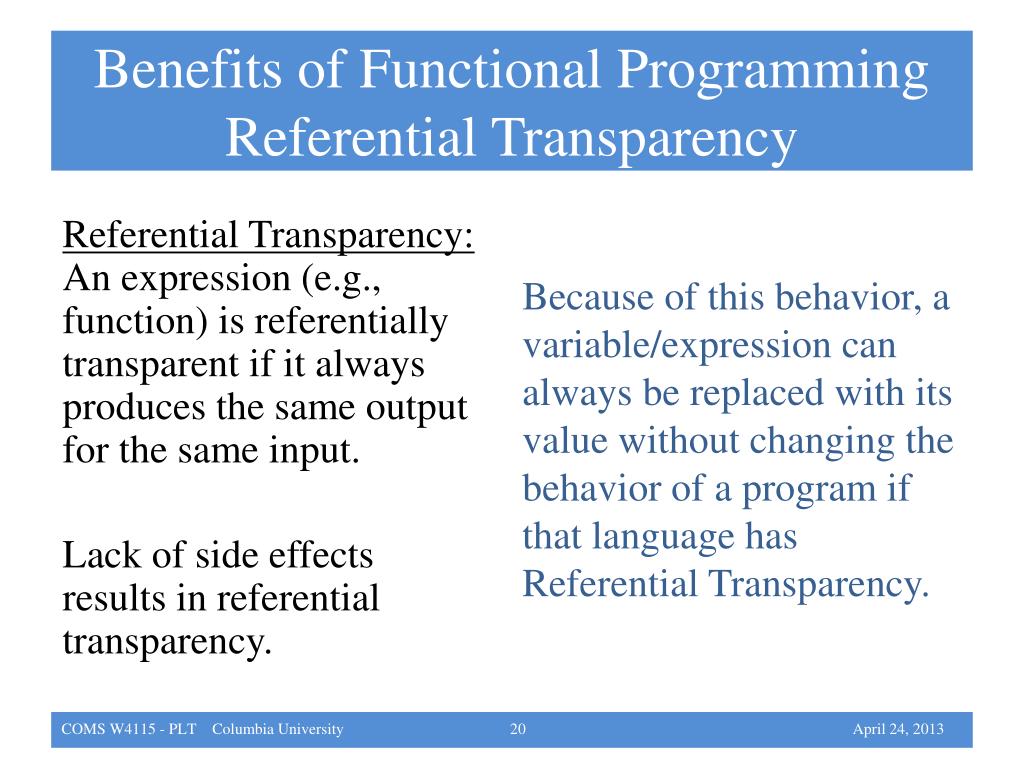

Benefits of Functional ProgrammingReferential Transparency

Referential Transparency:An expression (e.g., function) is referentially transparent if it always produces the same output for the same input.

Lack of side effects results in referential transparency.

Because of this behavior, a variable/expression can always be replaced with its value without changing the behavior of a program if that language has Referential Transparency.

COMS W4115 - PLT Columbia University 20 April 24, 2013


Benefits of functional programming referential transparency1

Benefits of Functional ProgrammingReferential Transparency

Lack of Referential Transparency in Java

static int x = 10;

static int add(int a){

return a + x;

}

add(1); // returns 11

x = 0;

add(1); // returns 10, even though same input. NOT RT!

COMS W4115 - PLT Columbia University 21 April 24, 2013


Why are referential transparency and lack of side effects good

Why are Referential Transparency and Lack of Side Effects Good?

  • Elimination of bugs

  • Debugging in general is easier

  • Independence of evaluation order

  • Safe reuse of subprograms

  • Safe multithreading

COMS W4115 - PLT Columbia University 22 April 24, 2013


Why are referential transparency and lack of side effects good1

Why are Referential Transparency and Lack of Side Effects Good?

Easier and Better Compiling

Easier to Compile – It's not only people that benefit from being able to better predict and understand a program's behavior

Better Compiling – optimization via:

  • Memoization

  • Parallelization

  • Common Subexpression Elimination

COMS W4115 - PLT Columbia University 23 April 24, 2013


Outline3

Outline

  • What is Functional Programming?

  • Lambda Calculus' Influence on Functional Programming

  • Benefits of Functional Programming

  • OCaml in Action: An Entire Interpreter in 3 slides

COMS W4115 - PLT Columbia University 24 April 24, 2013


Implementing an interpreter in ocaml

Implementing an Interpreter in OCaml

  • We will build a simple desk calculator to perform integer arithmetic.

  • You recall the basic block diagram of a simple interpreter:

tokens

AST

Lexer

Parser

AST Walker

Input

(arithmetic expression)

Output

(evaluated arithmetic expression)

COMS W4115 - PLT Columbia University 25 April 24, 2013

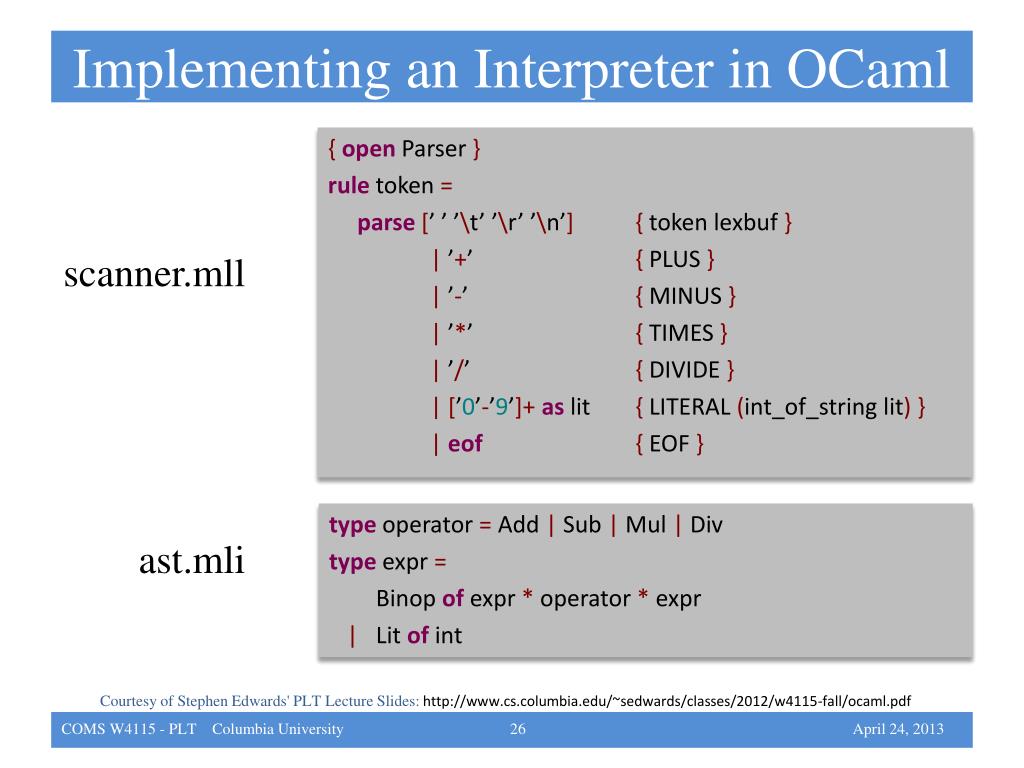

Implementing an interpreter in ocaml1

Implementing an Interpreter in OCaml

{openParser }

ruletoken =

parse[’ ’ ’\t’ ’\r’ ’\n’]{token lexbuf}

|’+’ {PLUS }

| ’-’{MINUS }

| ’*’ { TIMES }

|’/’ {DIVIDE }

|[’0’-’9’]+aslit { LITERAL (int_of_string lit)}

|eof{EOF }

scanner.mll

ast.mli

typeoperator = Add | Sub |Mul|Div

typeexpr=

Binopofexpr* operator *expr

| Lit ofint

Courtesy of Stephen Edwards' PLT Lecture Slides: http://www.cs.columbia.edu/~sedwards/classes/2012/w4115-fall/ocaml.pdf

COMS W4115 - PLT Columbia University 26 April 24, 2013

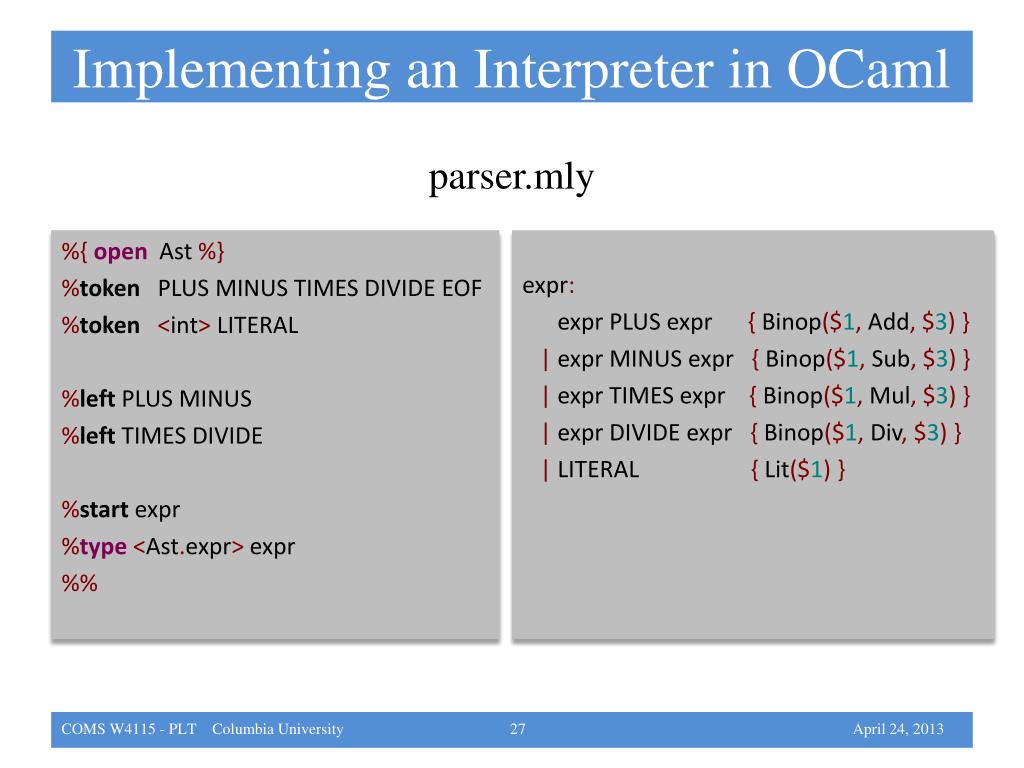

Implementing an interpreter in ocaml2

Implementing an Interpreter in OCaml

parser.mly

%{openAst%}

%token PLUS MINUS TIMES DIVIDE EOF

%token <int> LITERAL

%left PLUS MINUS

%left TIMES DIVIDE

%startexpr

%type<Ast.expr>expr

%%

expr:

exprPLUS expr{Binop($1,Add,$3)}

|expr MINUS expr{Binop($1, Sub,$3)}

|expr TIMES expr{Binop($1,Mul,$3)}

|expr DIVIDE expr{Binop($1,Div,$3)}

| LITERAL { Lit($1)}

COMS W4115 - PLT Columbia University 27 April 24, 2013


Implementing an interpreter in ocaml3

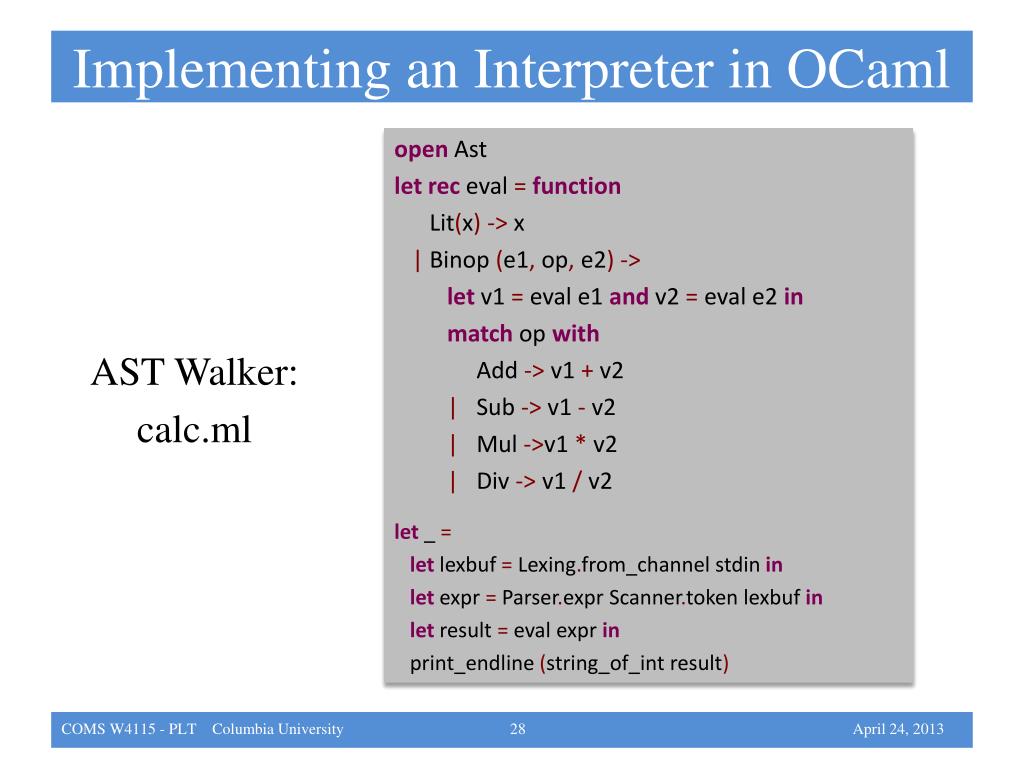

Implementing an Interpreter in OCaml

openAst

letreceval=function

Lit(x)-> x

|Binop(e1, op, e2)->

letv1 =eval e1 andv2 =eval e2 in

matchopwith

Add -> v1 + v2

| Sub -> v1 - v2

| Mul->v1 * v2

|Div-> v1 /v2

let_ =

letlexbuf=Lexing.from_channelstdinin

letexpr=Parser.exprScanner.tokenlexbufin

letresult =evalexprin

print_endline(string_of_int result)

AST Walker:

calc.ml

COMS W4115 - PLT Columbia University 28 April 24, 2013

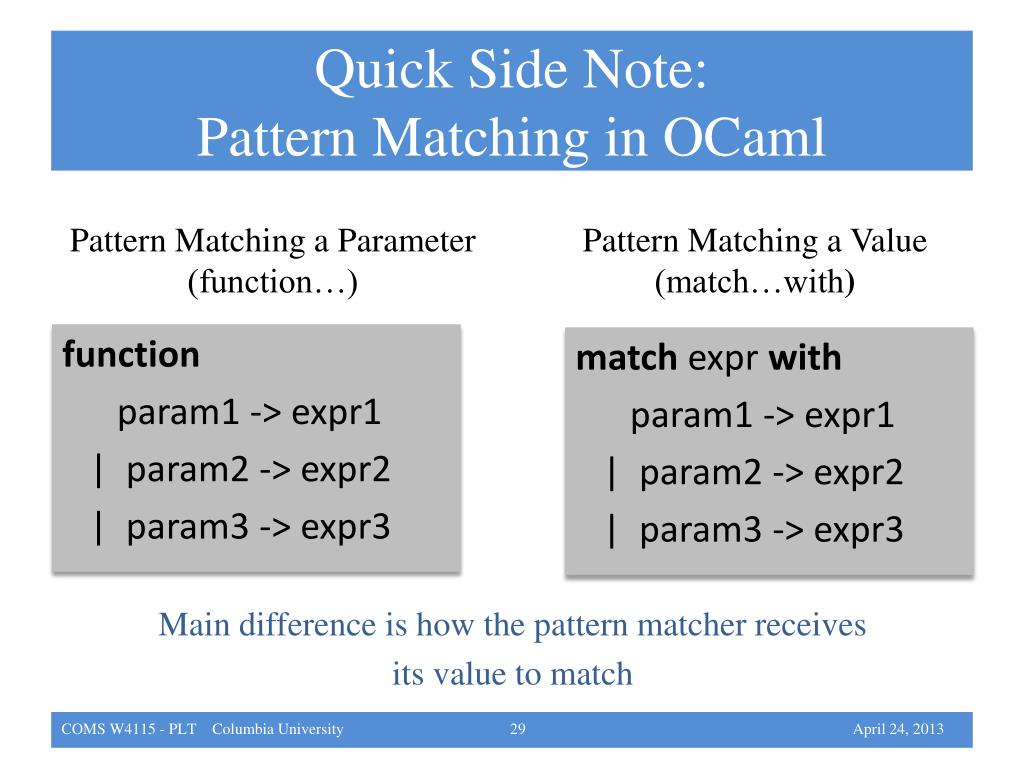

Quick side note pattern matching in ocaml

Quick Side Note:Pattern Matching in OCaml

Pattern Matching a Parameter (function…)

Pattern Matching a Value (match…with)

function

param1 -> expr1

| param2 -> expr2

| param3 -> expr3

match exprwith

param1 -> expr1

| param2 -> expr2

| param3 -> expr3

Main difference is how the pattern matcher receives

its value to match

COMS W4115 - PLT Columbia University 29 April 24, 2013

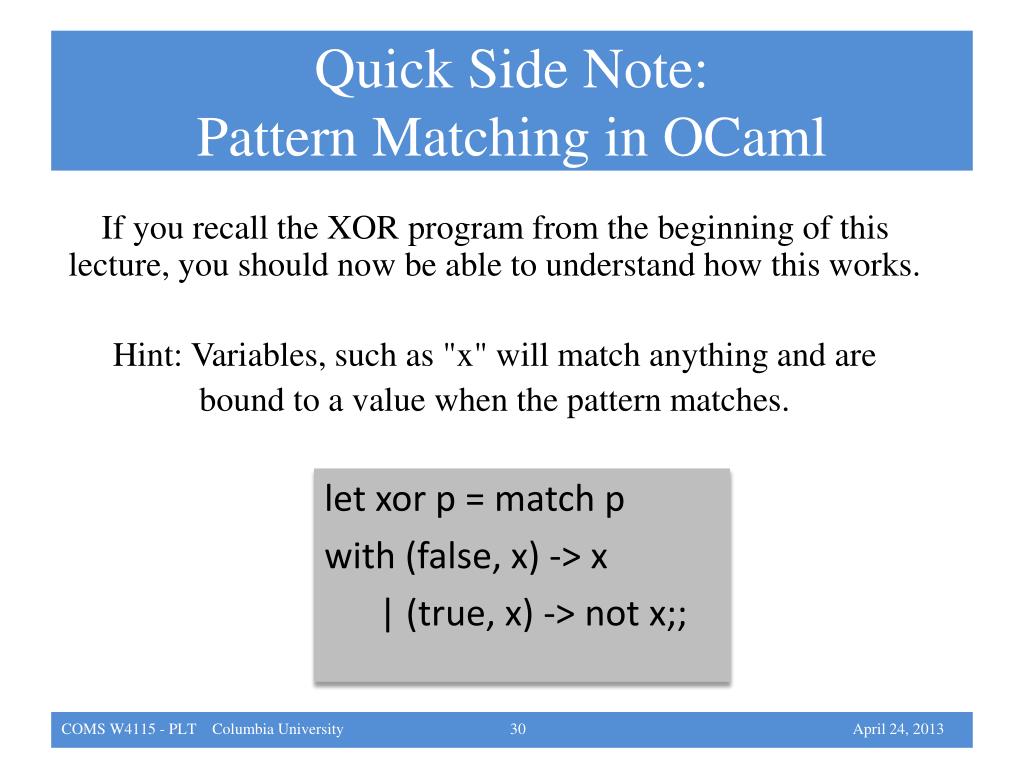

Quick side note pattern matching in ocaml1

Quick Side Note:Pattern Matching in OCaml

If you recall the XOR program from the beginning of this lecture, you should now be able to understand how this works.

Hint: Variables, such as "x" will match anything and are

bound to a value when the pattern matches.

let xor p = match p

with (false, x) -> x

| (true, x) -> not x;;

COMS W4115 - PLT Columbia University 30 April 24, 2013

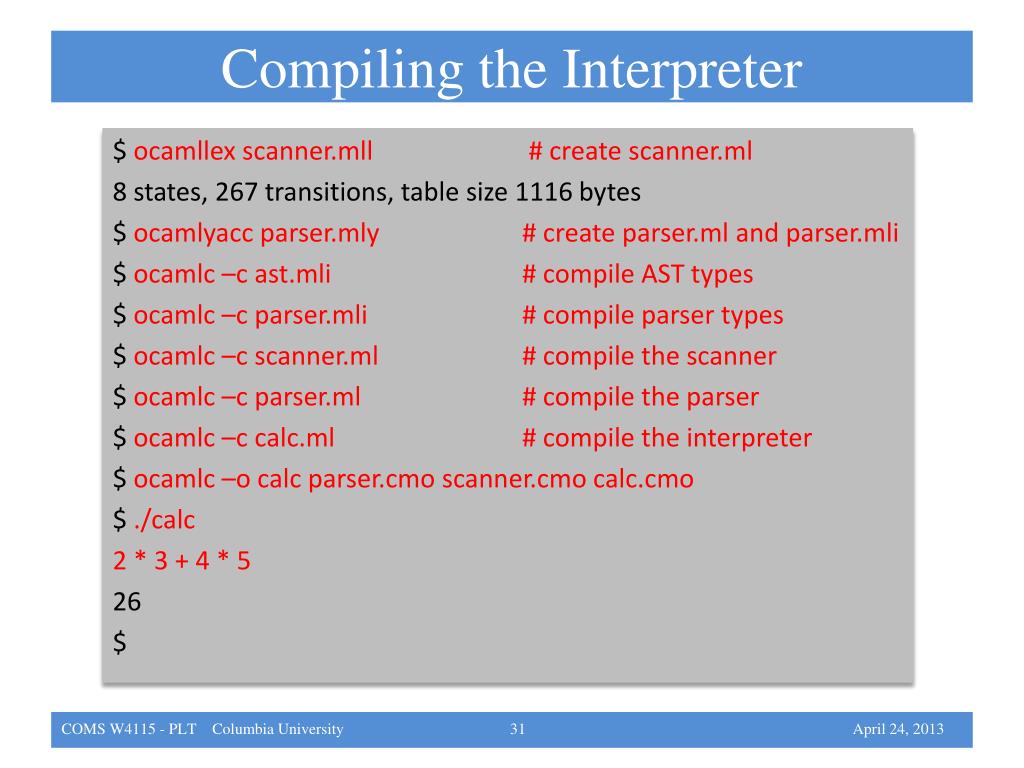

Compiling the interpreter

Compiling the Interpreter

$ ocamllexscanner.mll # create scanner.ml

8 states, 267 transitions, table size 1116 bytes

$ ocamlyaccparser.mly # create parser.ml and parser.mli

$ ocamlc–c ast.mli # compile AST types

$ ocamlc–c parser.mli # compile parser types

$ ocamlc–c scanner.ml # compile the scanner

$ ocamlc–c parser.ml # compile the parser

$ ocamlc–c calc.ml # compile the interpreter

$ ocamlc–o calcparser.cmoscanner.cmocalc.cmo

$ ./calc

2 * 3 + 4 * 5

26

$

COMS W4115 - PLT Columbia University 31 April 24, 2013

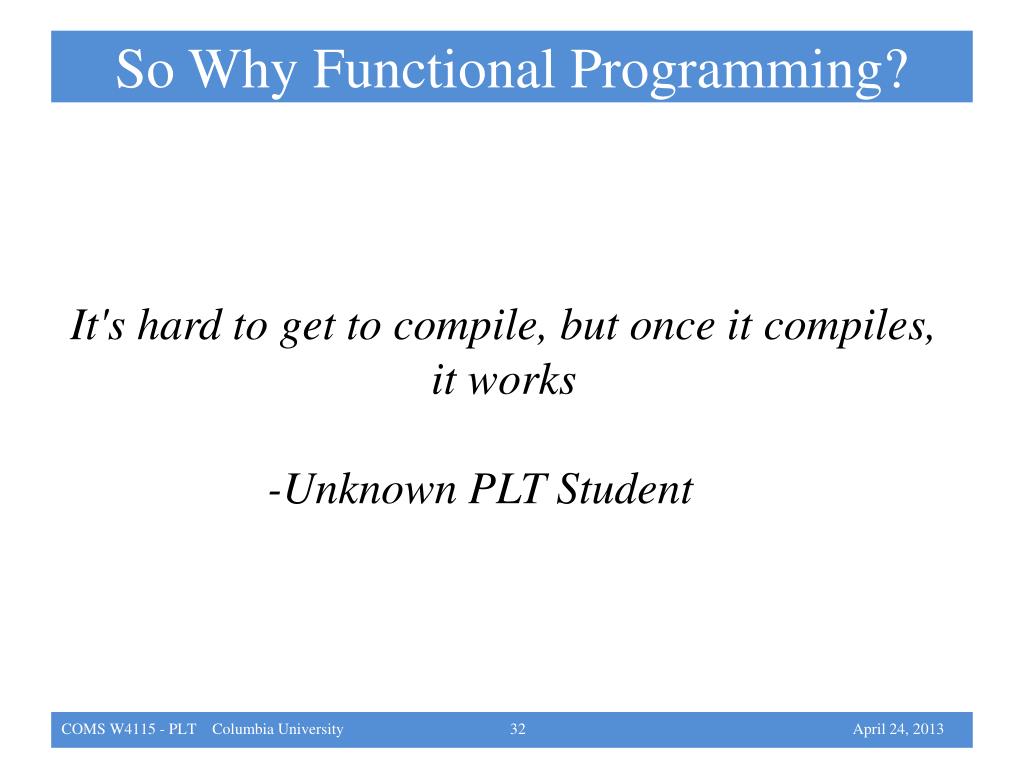

So why functional programming

So Why Functional Programming?

It's hard to get to compile, but once it compiles, it works

-Unknown PLT Student

COMS W4115 - PLT Columbia University 32 April 24, 2013


References

References

  • Edwards, Stephen. “An Introduction to Objective Caml.” http://www.cs.columbia.edu/~sedwards/classes/2012/w4115-fall/ocaml.pdf

  • Huges, John. “Why Functional Programming Matters.” Research Topics in Functional Programming, Addison-Wesley, 1990: pp 17-42

  • “Advantages of Functional Programming.” http://c2.com/cgi/wiki?AdvantagesOfFunctionalProgramming

COMS W4115 - PLT Columbia University 33 April 24, 2013


  • Login
